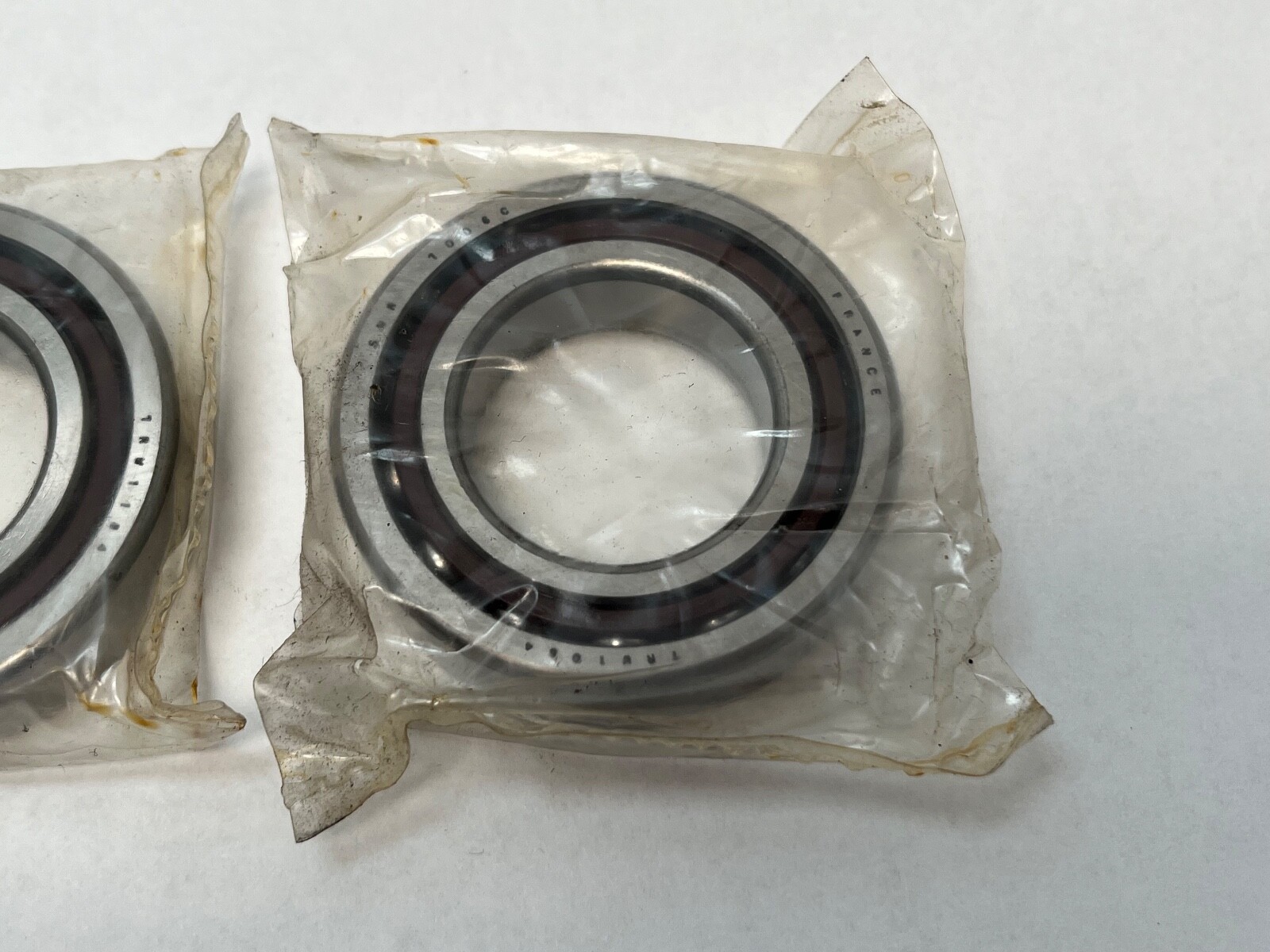

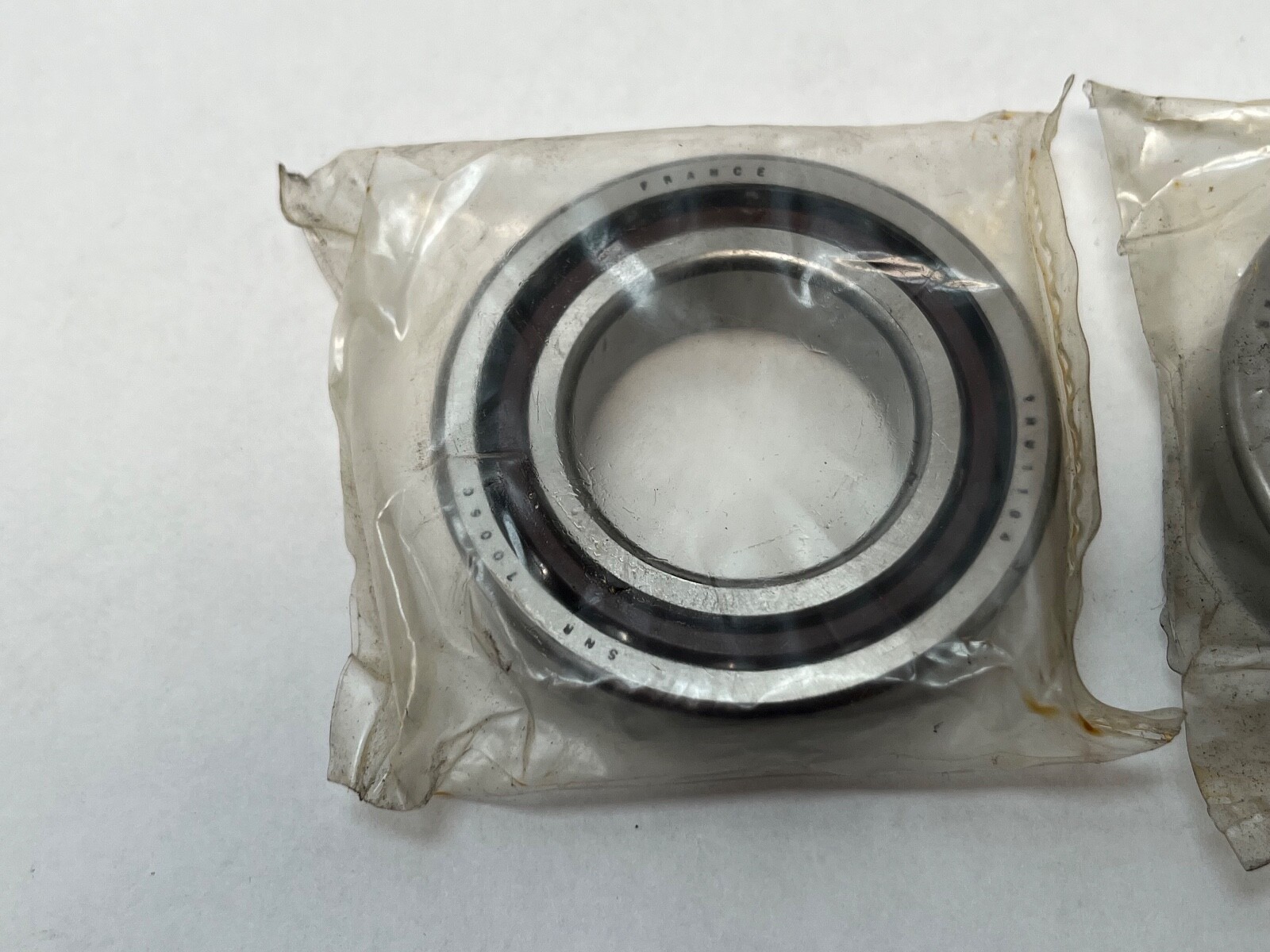

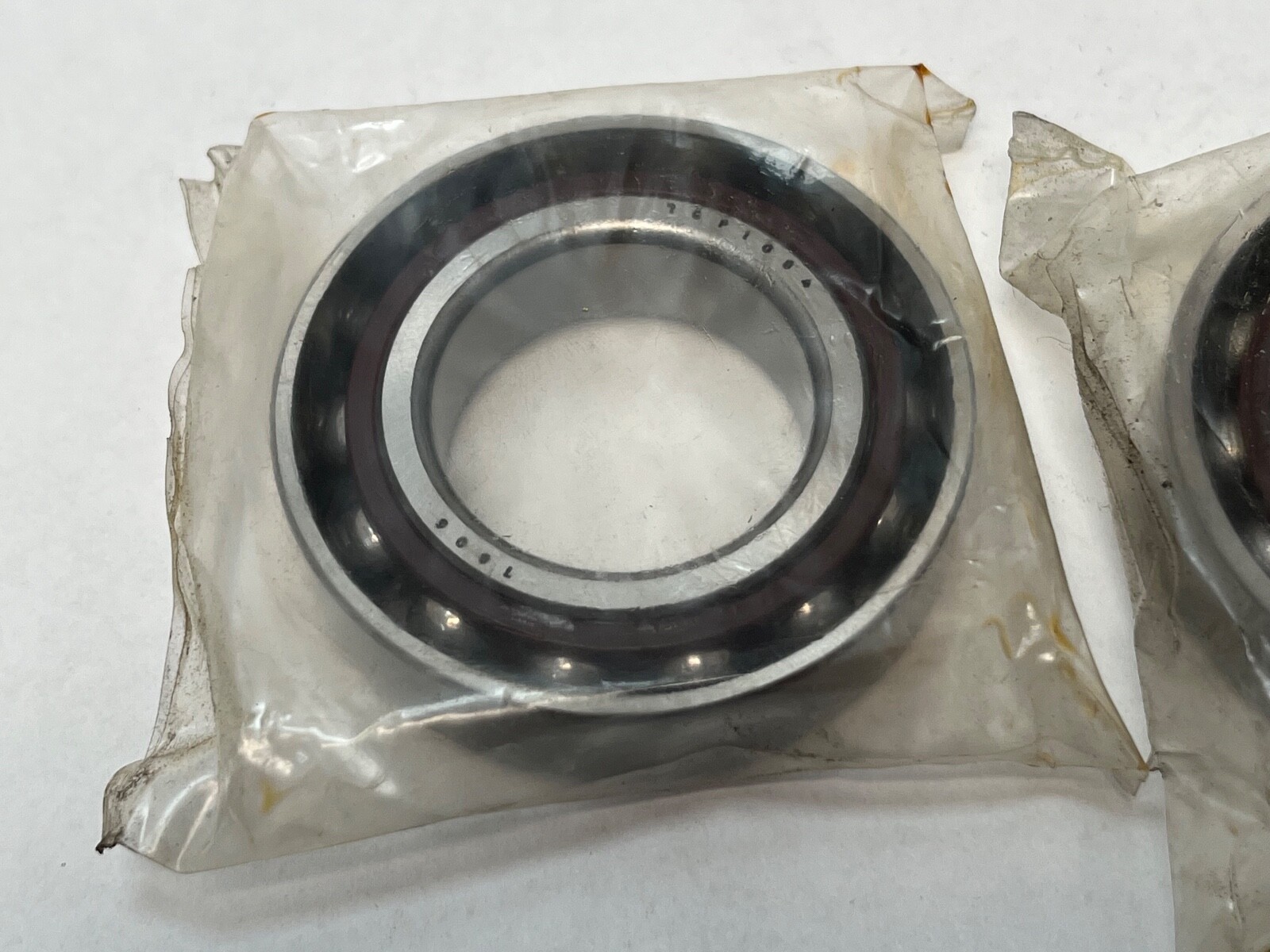

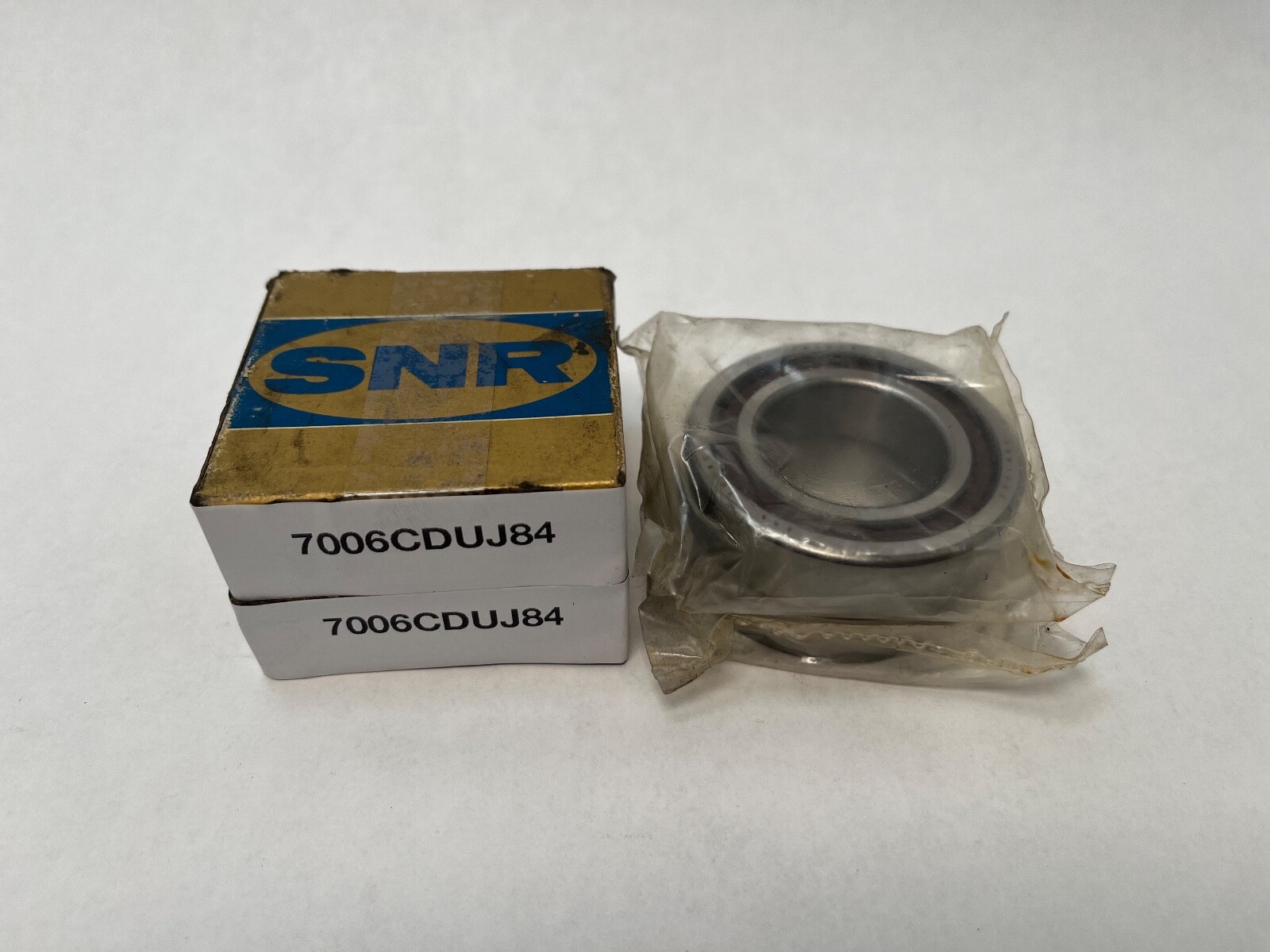

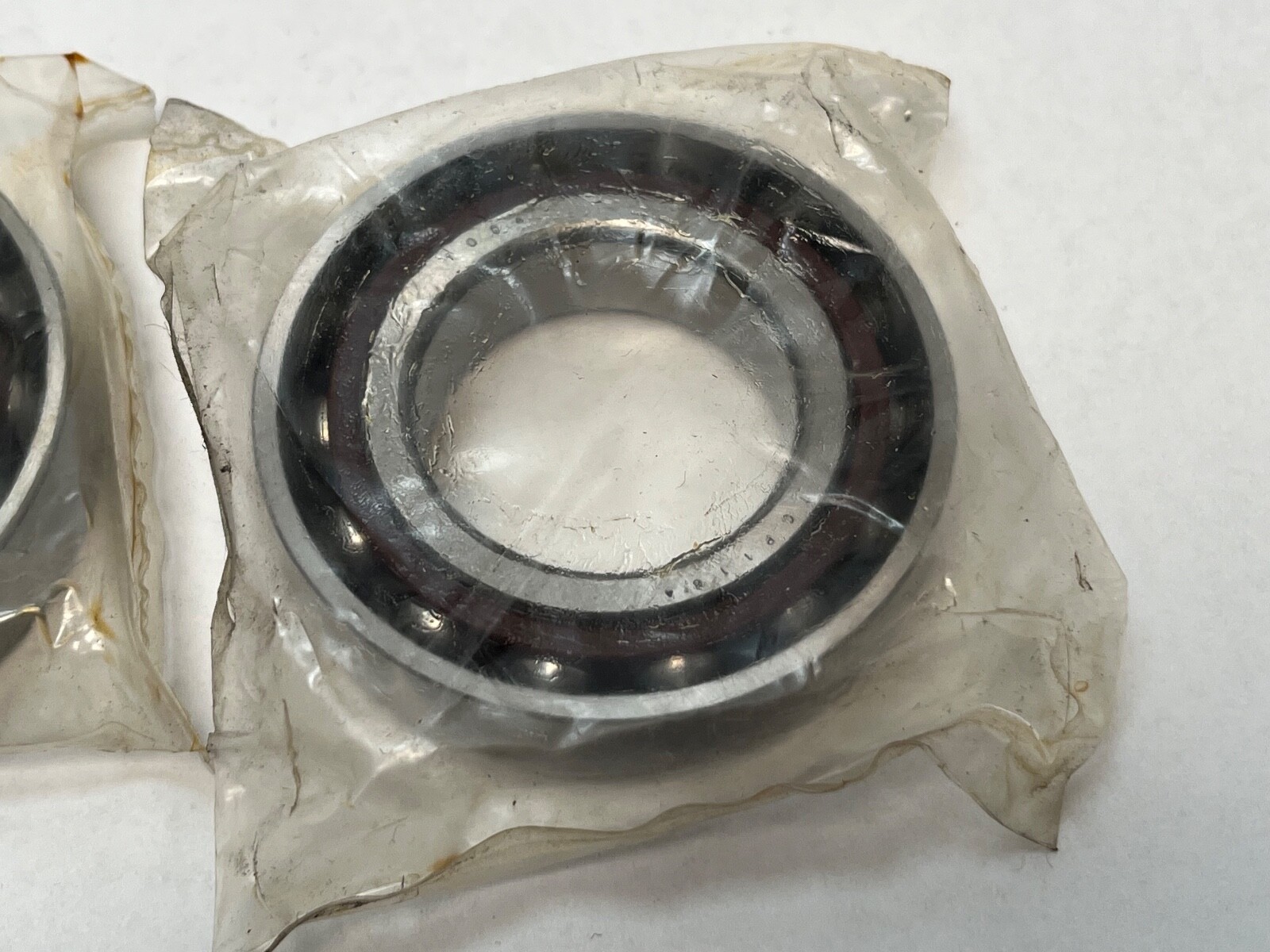

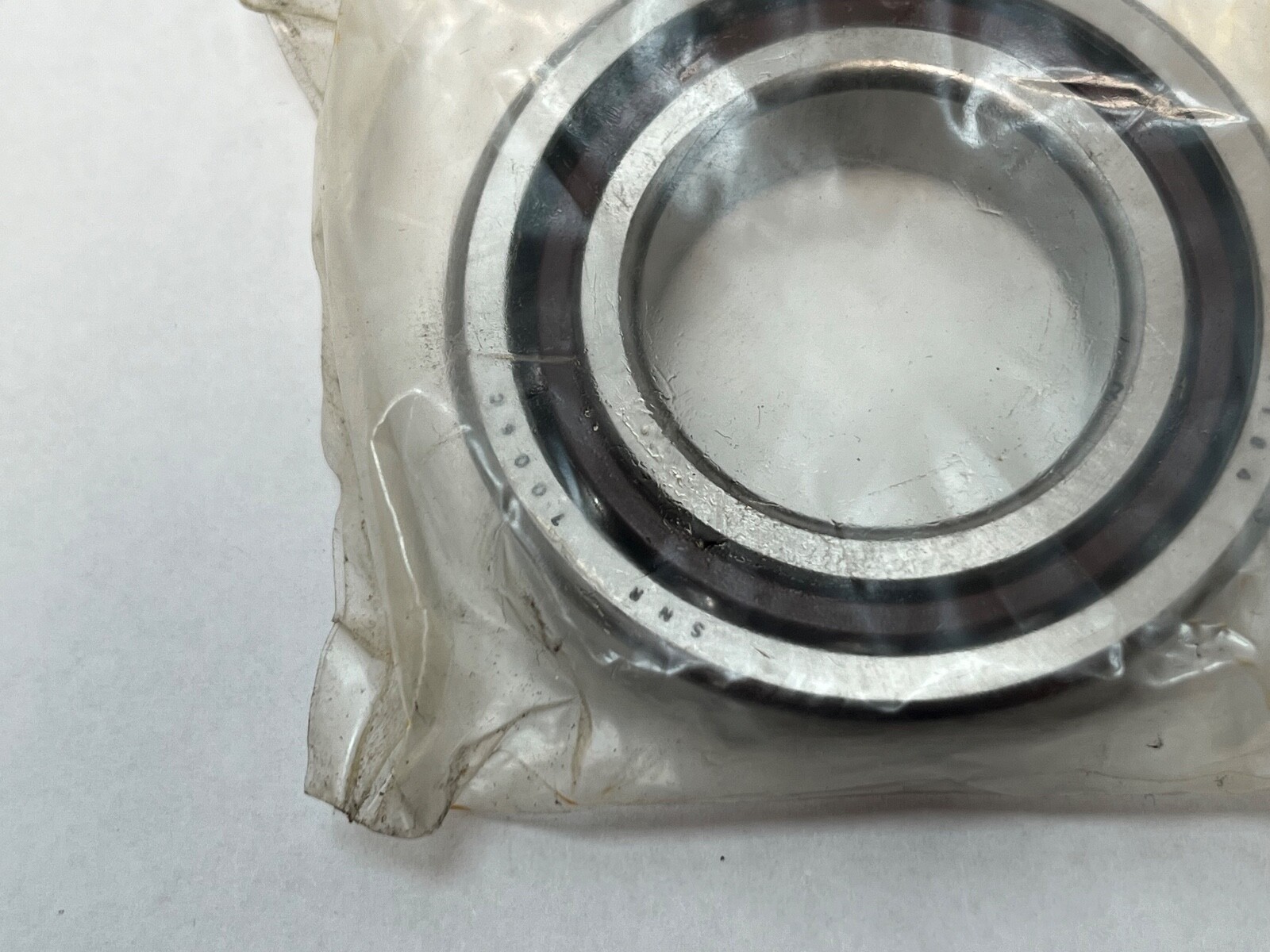

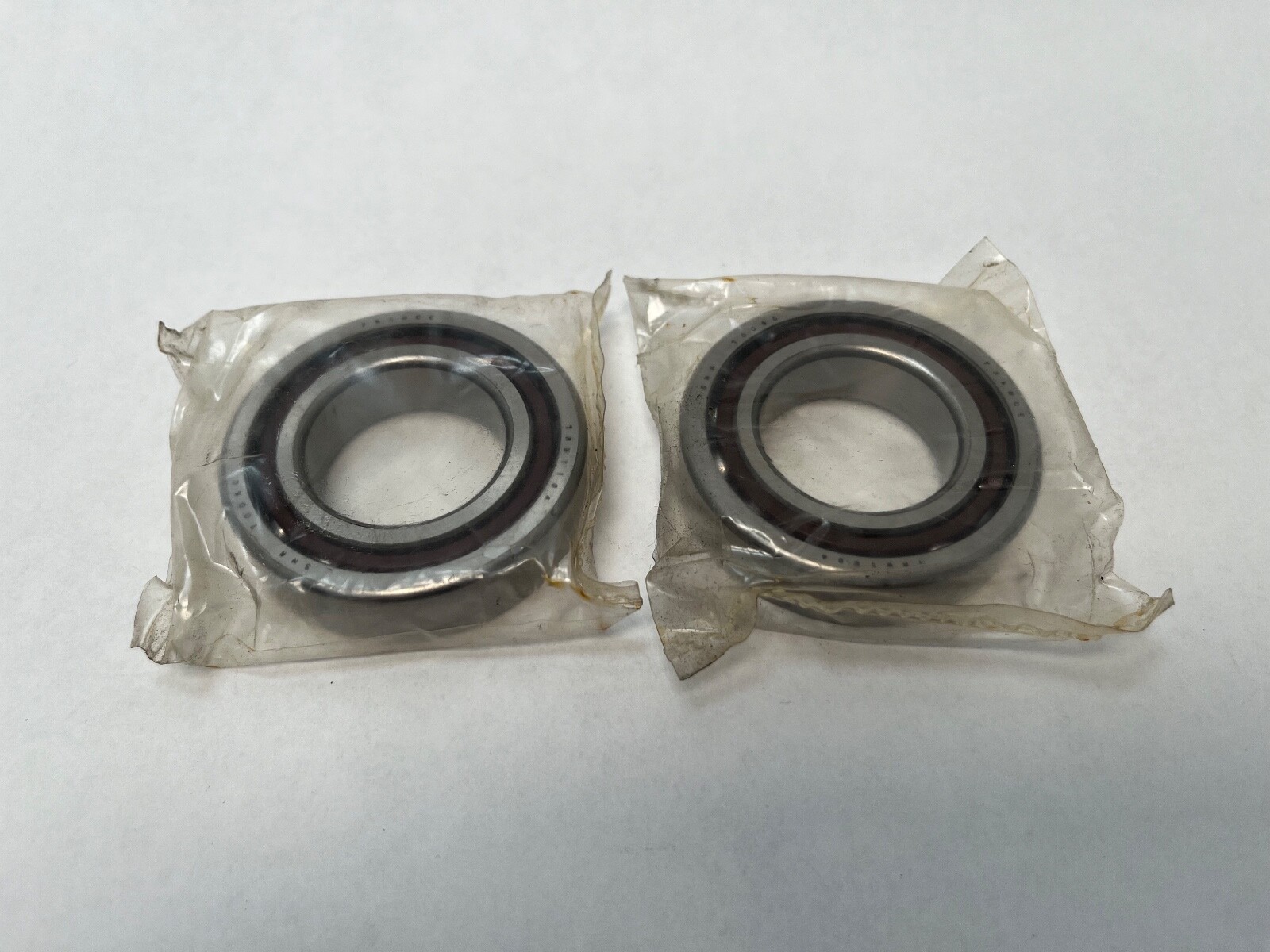

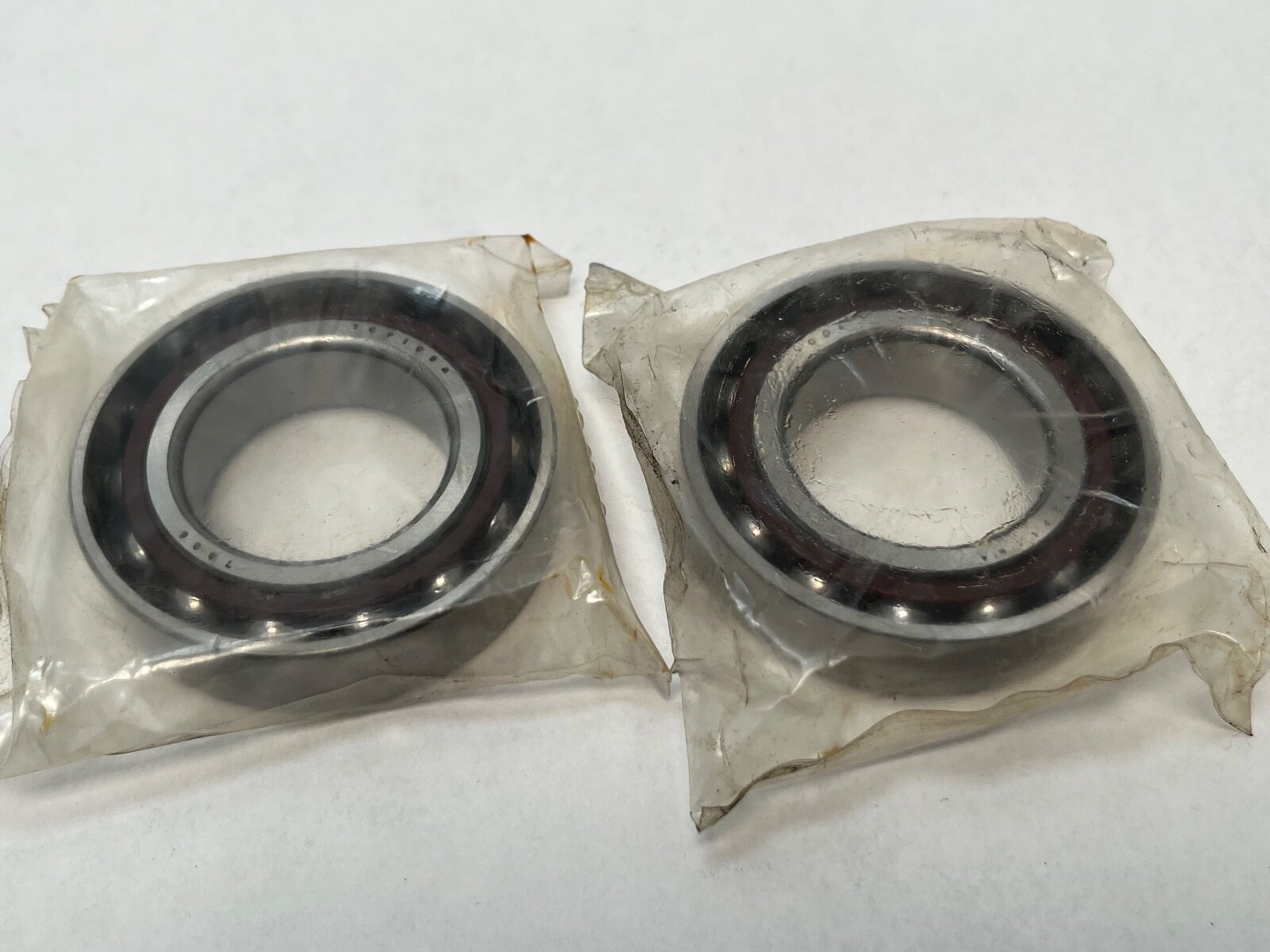

SNR 7006CDUJ84 angular contact ball bearing, 2 Pcs, 30 x 55 x 13 mm, 15° contact angle, medium preload, ISO P4 (ABEC 7), straight bore, open.
List Price
$143.20
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7006CDUJ84 |
| Model | 7006C T DUM P4 / 2MM9106WI CR DUM / 7006 C DU J84 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Medium |
| Base Number | 7006 |
| Bore Shaft Size | 30 mm |
| Mpn Variants | 7006-C-DU-J84; 7006 C DU J84; 7006C; 7006C-T-DUM-P4; 2MM9106WI CR DUM |
| Precision Class | ABEC 7 / P4 |
| Closure Type | Open |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7006CDUJ84 |
| Cross Reference 1 | FAG B7006-C-T-P4S-DUM |
|---|---|
| Cross Reference 2 | NSK 7006CTRDUMP4 |
| Cross Reference 3 | Fafnir 2MM9106WI CR DUM |
| Cross Reference 4 | SKF 7006 CD/P4ADGB – 15° duplex, DGB medium preload |
SNR 7006CDUJ84 super-precision angular contact ball bearing, ISO 70 series, 30 x 55 x 13 mm, supplied as 2 pieces with universally ground rings. Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Contact Angle: 15°. Preload: Medium. Precision Class: ABEC 7 / P4. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Unit Quantity: 2 Pcs.
7006 — ISO 70 series angular contact bearing, 30 mm bore.
C — 15° contact angle.
J84 — medium preload; the second digit of the J-code is the ISO precision class, class 4 (P4, ABEC 7).
Bore Diameter: 30 mm.
Outside Diameter: 55 mm.
Overall Width: 13 mm.
Contact Angle: 15°.
Preload: Medium.
Precision Class: ABEC 7 / P4.
Bore Type: Straight.
Number Of Rows: 1.
Rolling Elements: Ball.
Closure Type: Open.
Unit Quantity: 2 Pcs.
Series: 7000.

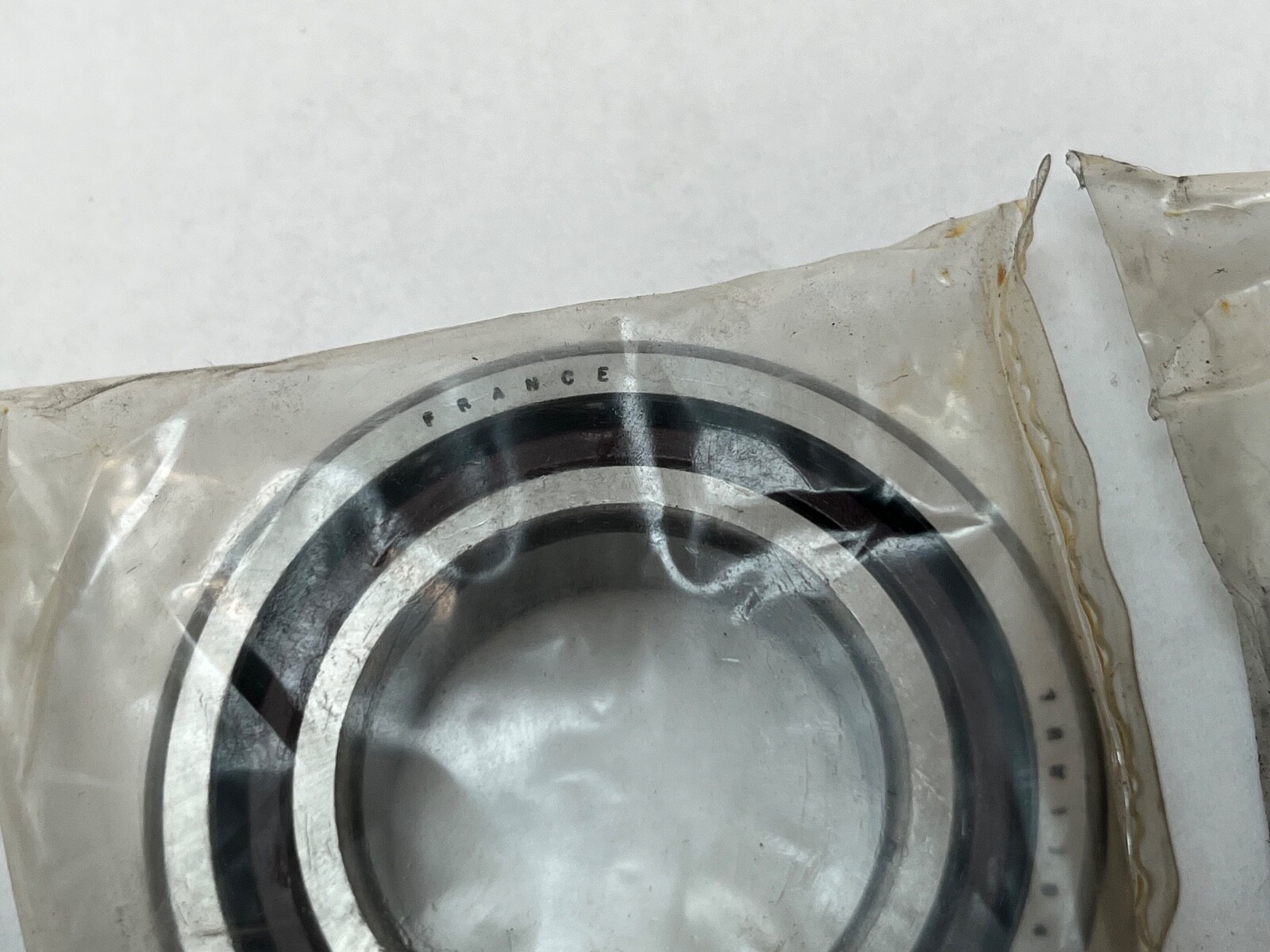

Country of Origin: France.
Envelope 30 x 55 x 13 mm, single row, straight bore, open on both faces. The rings are universally ground and the pair is set at medium preload.
FAG B7006-C-T-P4S-DUM, NSK 7006CTRDUMP4 and Fafnir 2MM9106WI CR DUM — 15° duplex pairs at medium preload on the same envelope. SKF 7006 CD/P4ADGB — 15° duplex, DGB medium preload. Searchable forms of the SNR number: 7006CDUJ84, 7006-C-DU-J84, 7006 C DU J84.
30 mm bore, 55 mm outside diameter and 13 mm width.
15° contact angle (the C in 7006C) and medium preload (J84).
ISO class 4 (P4, ABEC 7), given by the second digit of the J84 code.
