FAG22215-E-AS-M-W33Spherical Roller Bearing – Straight Bore, 75 mm ID, 130 mm OD, 31 mm Width, Open, Machined Brass Cage, CN Clearance, AS Lubrication Groove

Product Description

What this part is:

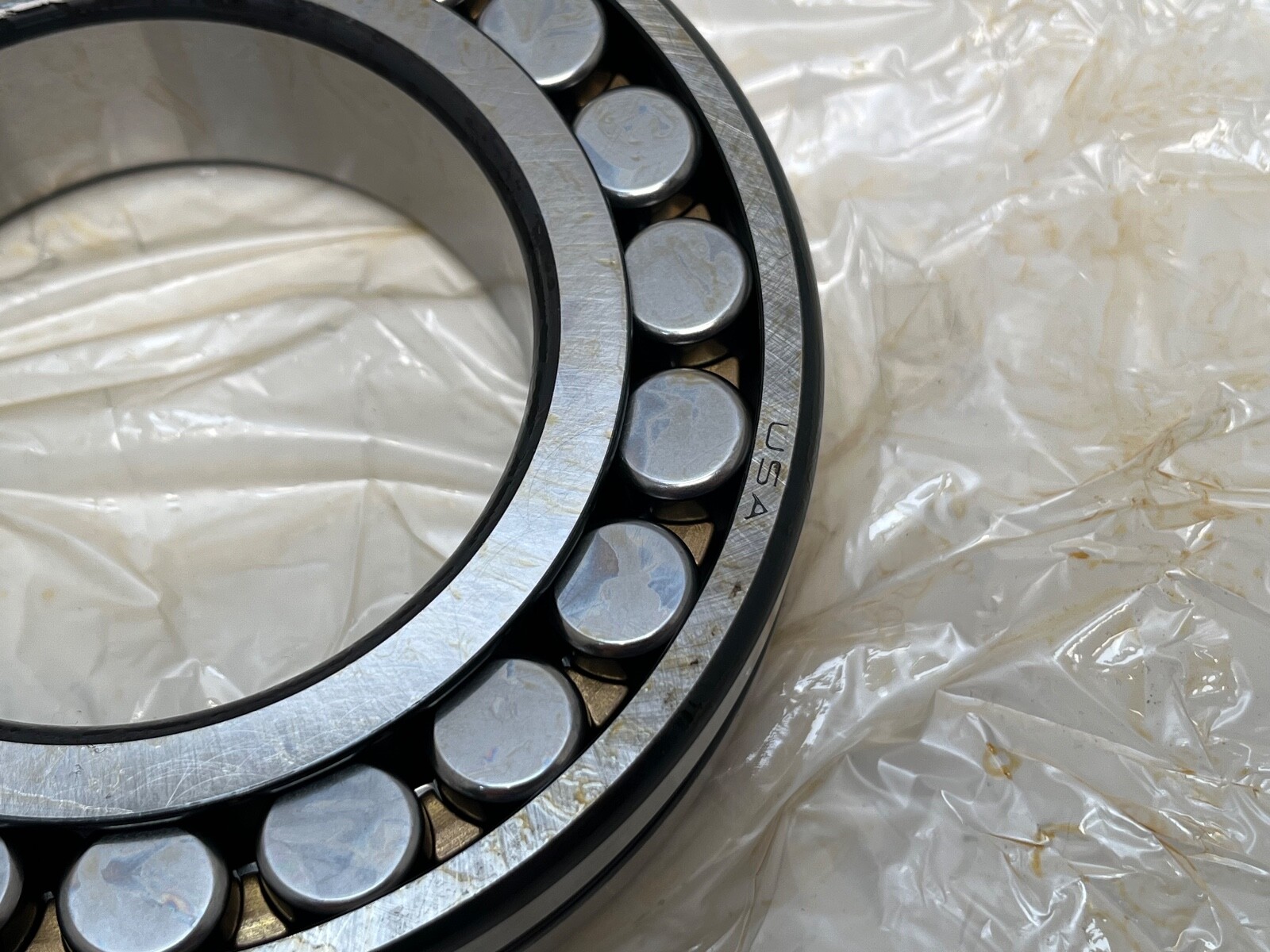

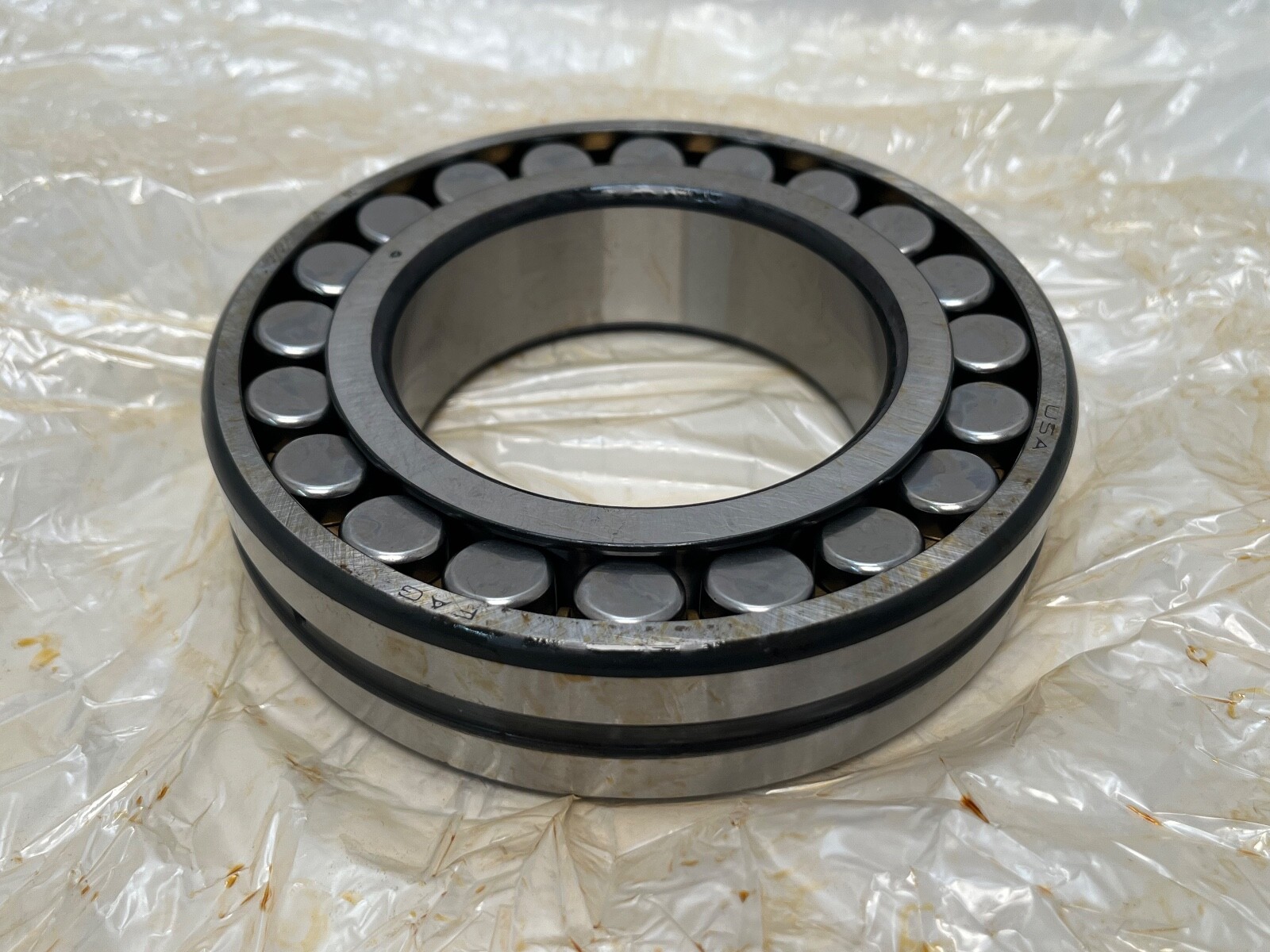

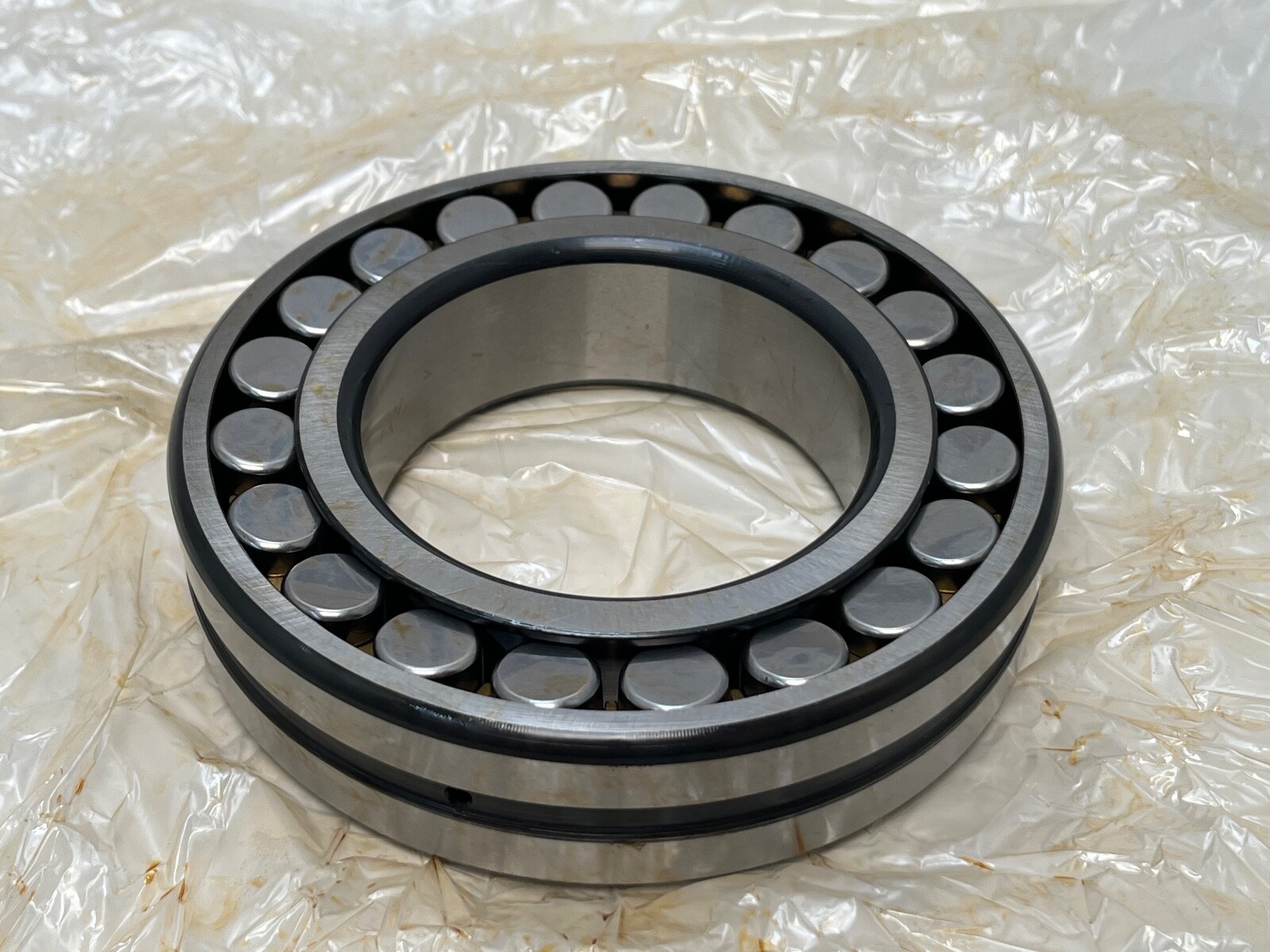

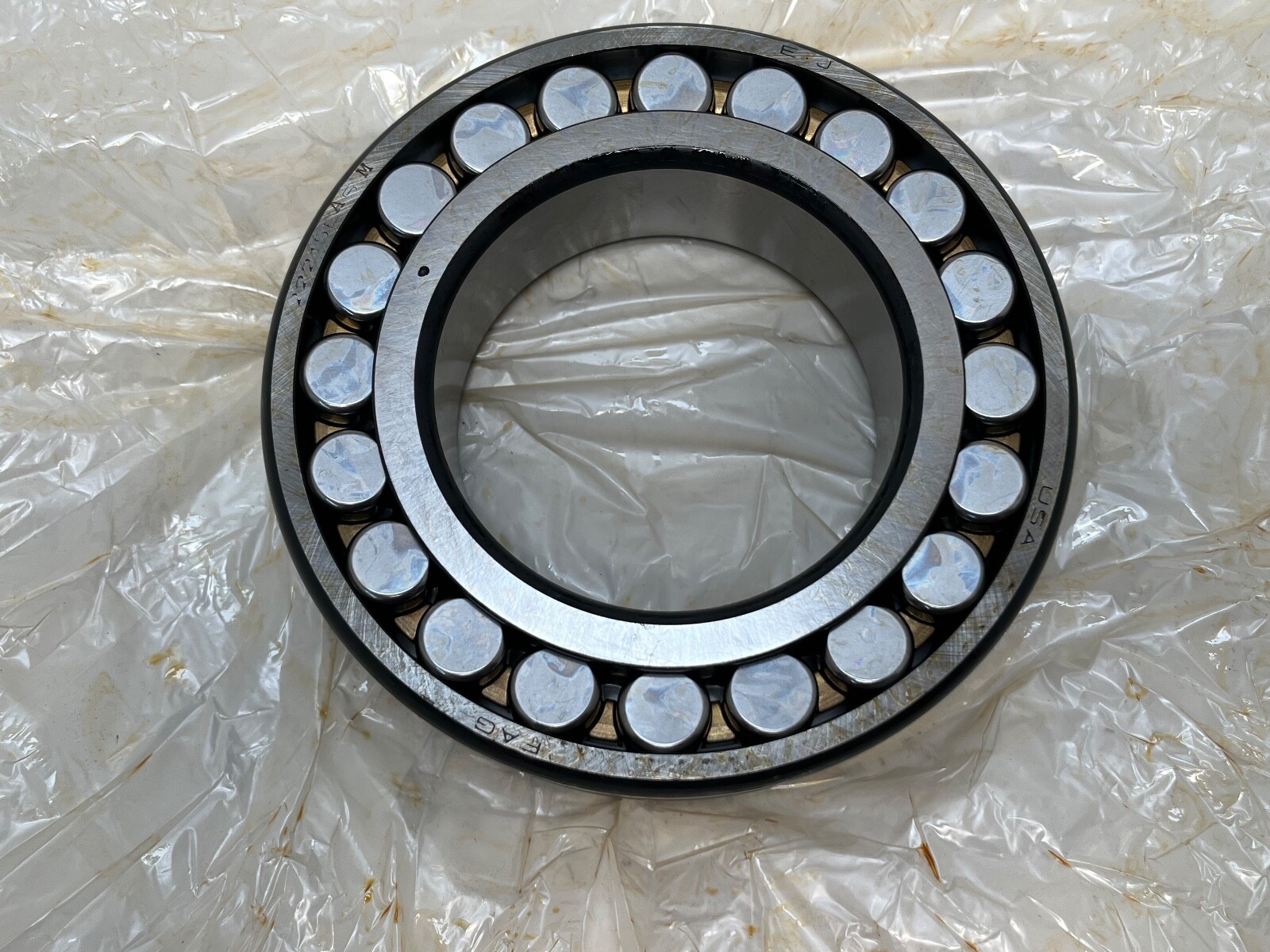

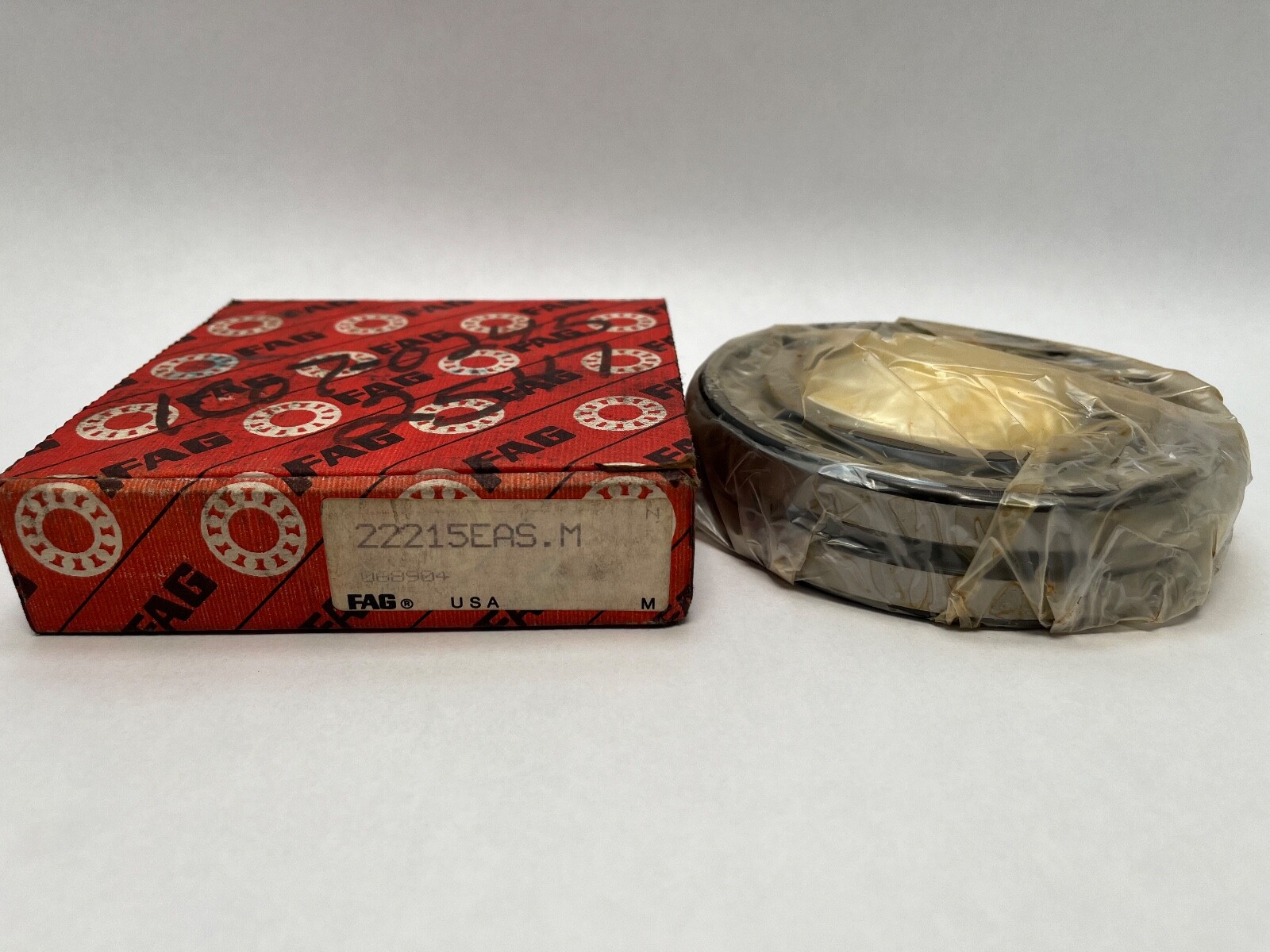

FAG 22215 E AS M W33 double-row spherical roller bearing, 75 x 130 x 31 mm, straight bore. Manufacturer: FAG, part of Schaeffler. Manufacturer Part Number: 22215EASMW33. Base Number: 22215. Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical Rollers. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 31 mm. Bore Type: Straight. Closure Type: Open. Cage Type: Machined. Cage Material: Brass. Internal Clearance: CN. Unit Quantity: 1 Pc.

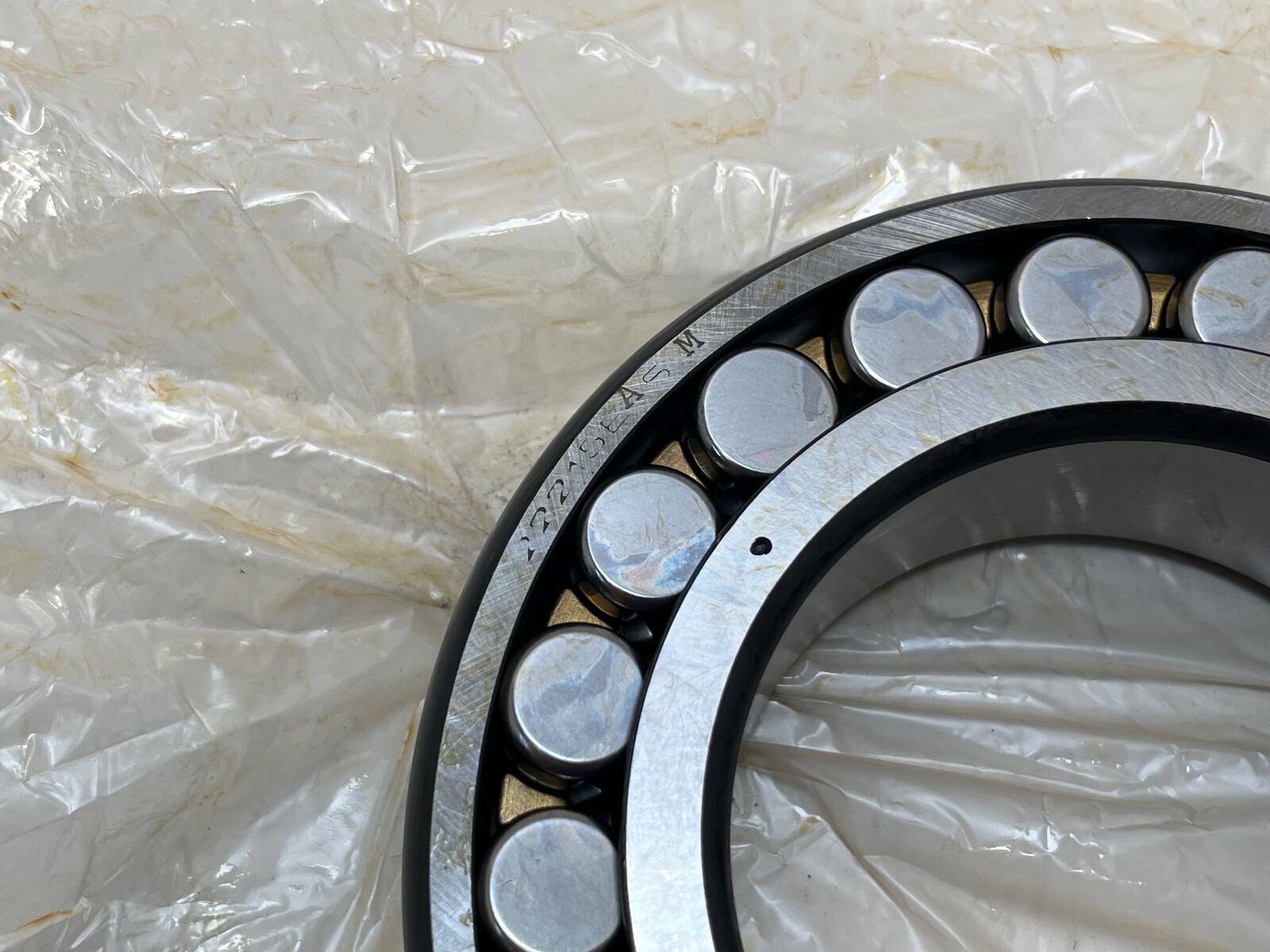

Decoding the designation:

222 — dimension series for a double-row spherical roller bearing.

E — reinforced design: larger rollers in a strengthened ring set, which raises load capacity over the plain execution on the same envelope.

AS — FAG lubrication code for a groove in the outer ring with radial feed holes, the same provision the ISO scheme writes as W33.

M — machined brass cage.

Specifications:

Dynamic Load Rating: 216 kN. Static Load Rating: 240 kN. Limiting Speed: 5,600 rpm. Maximum Temperature: 200°C. Minimum Temperature: −40°C. Lubricant: Grease or oil. Material: Bearing Steel. Harmonization Code: 8482.30.00.

Dimensions and mounting:

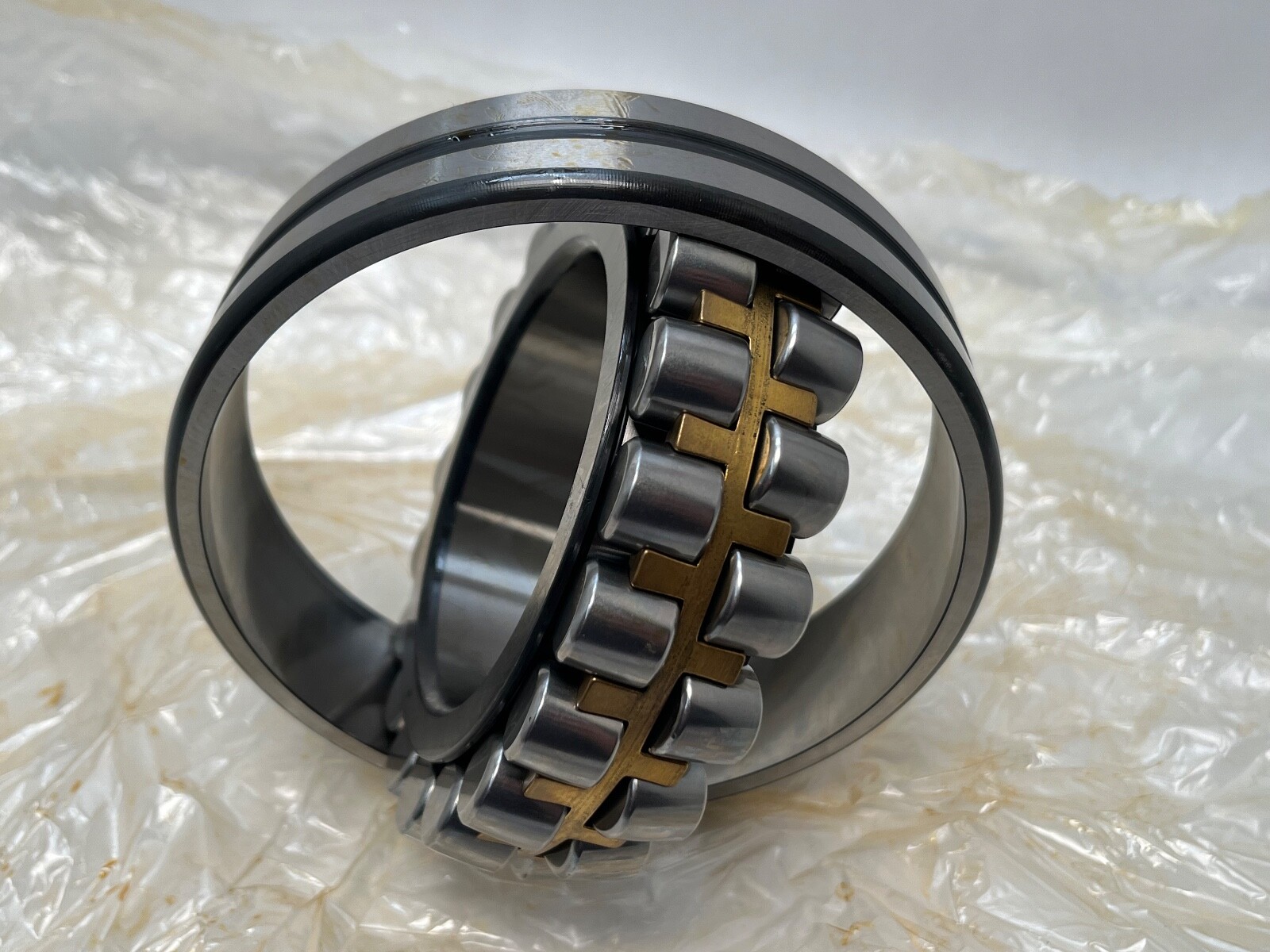

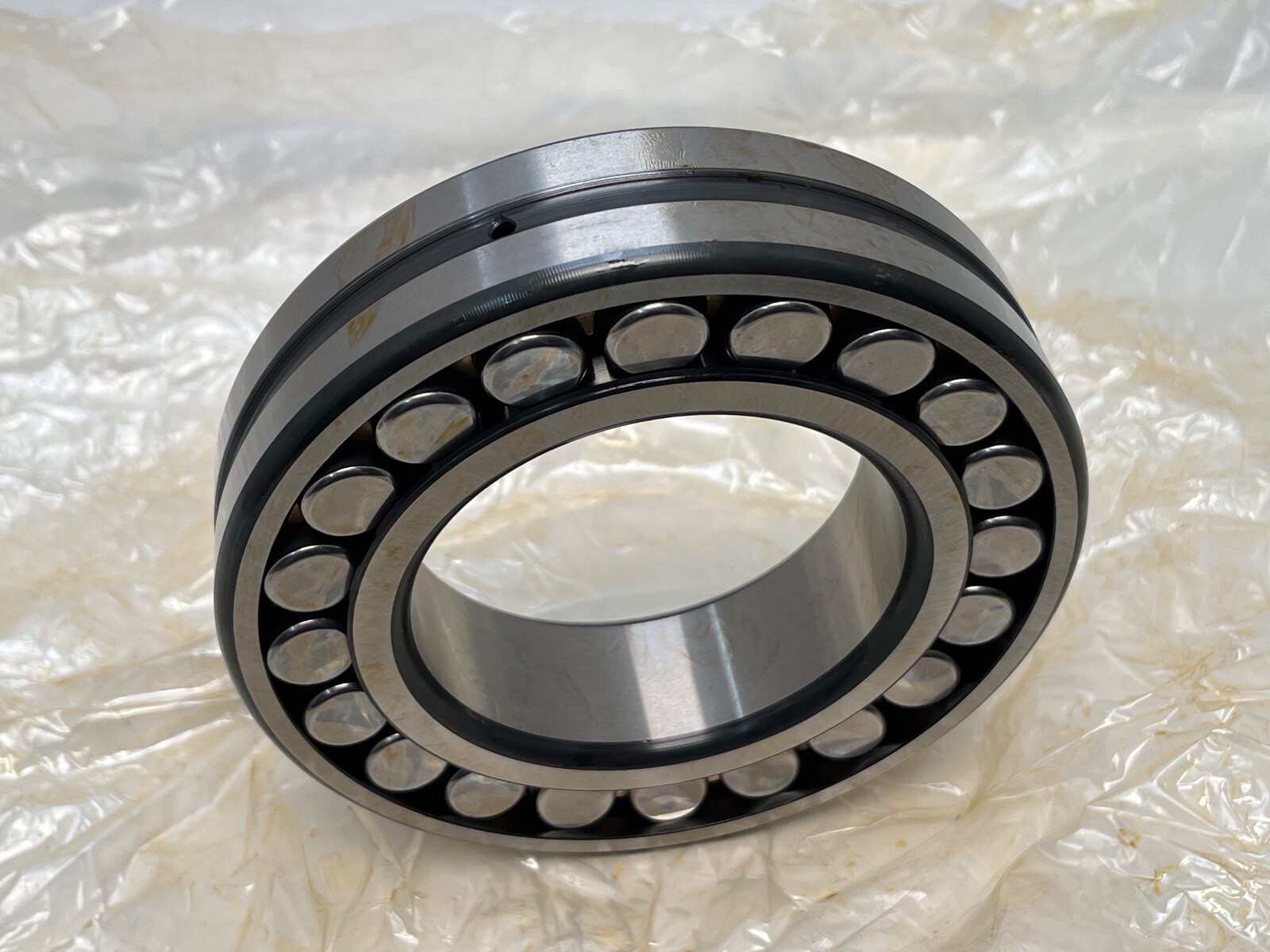

Two rows of spherical rollers run in a common concave outer raceway and carry high radial load with thrust in both directions. The bearing tolerates shaft-to-housing misalignment. The 75 mm cylindrical bore mounts directly on the shaft journal. The AS groove and radial holes feed lubricant from the outer ring to the rolling elements.

Compatibility and replacement:

SKF 22215 E and NTN 22215EMD1 share the 75 x 130 x 31 mm envelope with a cylindrical bore and a reinforced design. Cage execution and load ratings differ between makers. A 22215 K on the same envelope has a 1:12 tapered bore and mounts on an adapter sleeve, so it is a related bore form.

Frequently asked questions:

What size is the FAG 22215 E AS M W33?

75 mm bore, 130 mm outside diameter, 31 mm width.

What does AS mean?

A groove in the outer ring with radial feed holes, the FAG code for the provision written W33 in the ISO scheme.

What cage does it have?

A machined brass cage, coded M.
