Double-row spherical roller bearing, 75 x 130 x 31 mm, straight bore, machined brass cage, CN clearance, 200 kN dynamic and 212 kN static load rating.
List Price
$90.17
15 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22215E1A.M |
| GTIN | 4026677847195 |
| Model | 22215E-1-AM 22215E1A.M |
| Bearing Type | Double-Row Spherical Roller Bearing, Open |
| ID | 75 mm (2.9528 in) |
| OD | 130 mm (5.1181 in) |
| Width | 31 mm (1.2205 in) |
| Material | Chrome bearing steel |
|---|---|
| Series | FAG 22200 / ISO 222 series |
| Lubricant | Oil |
| Base Number | 22215 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row barrel roller bearing, brass cage roller bearing |
| Application Types | Elevators, textile machinery, food processing machinery, cranes, conveyors, gearboxes |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 22215E1A.M; 22215E1AM; 22215-E1A-M; 22215 E 1AM; 22215E-1-AM; 22215-E1A-XL-M |
| Closure Type | Open |
| Dynamic Load Rating | 200,000 N |
| Static Load Rating | 212,000 N |
| Rolling Elements | Symmetrical barrel rollers |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight cylindrical |
| Snap Ring Included | No |
| Limiting Speed | 5,600 rpm |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00.40 |
| Part Number | 22215E1A.M |
| Cage Type | Machined |
| Cross Reference 1 | SKF 22215 EM |
|---|---|
| Cross Reference 2 | FAG 22215-E1A-XL-M - current Schaeffler designation |
| Cross Reference 3 | Koyo 22215RM |
| Cross Reference 4 | NSK 22215EAME4 |
| Cross Reference 5 | SNR 22215EMW33 - adds W33 lube groove, feed holes |
| Cross Reference 6 | FAG 22215EK - 1:12 tapered bore, H315 sleeve |

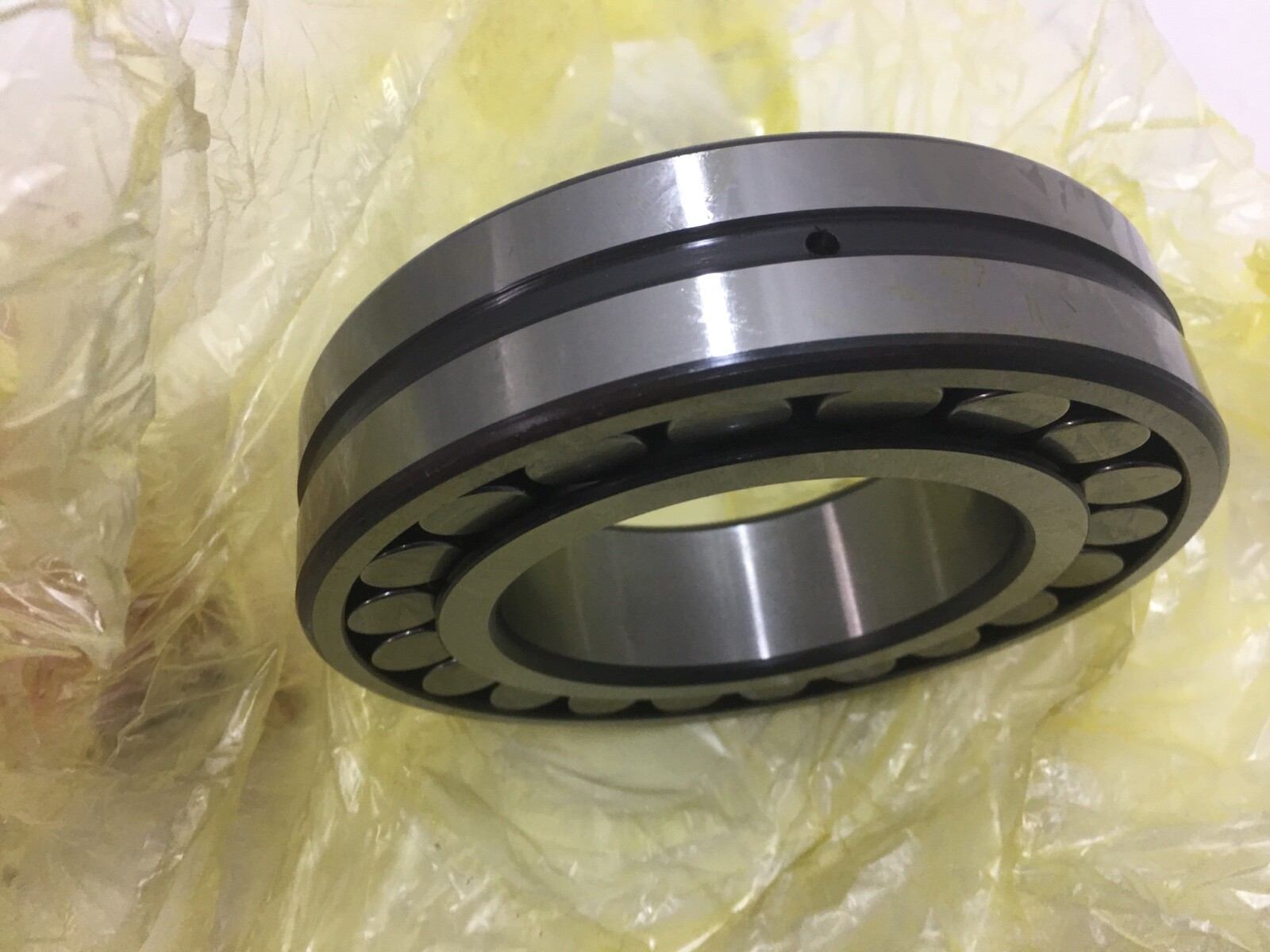

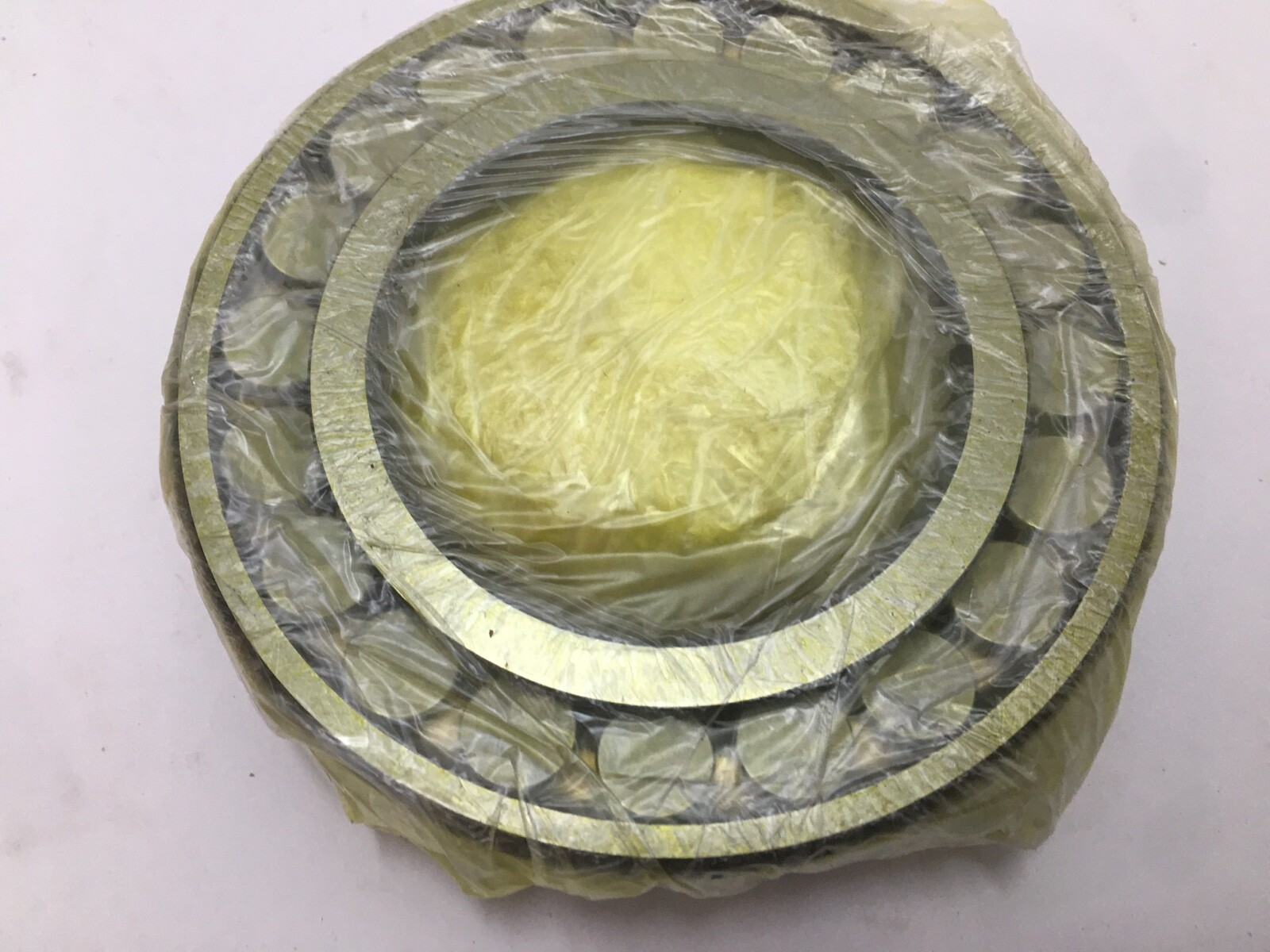

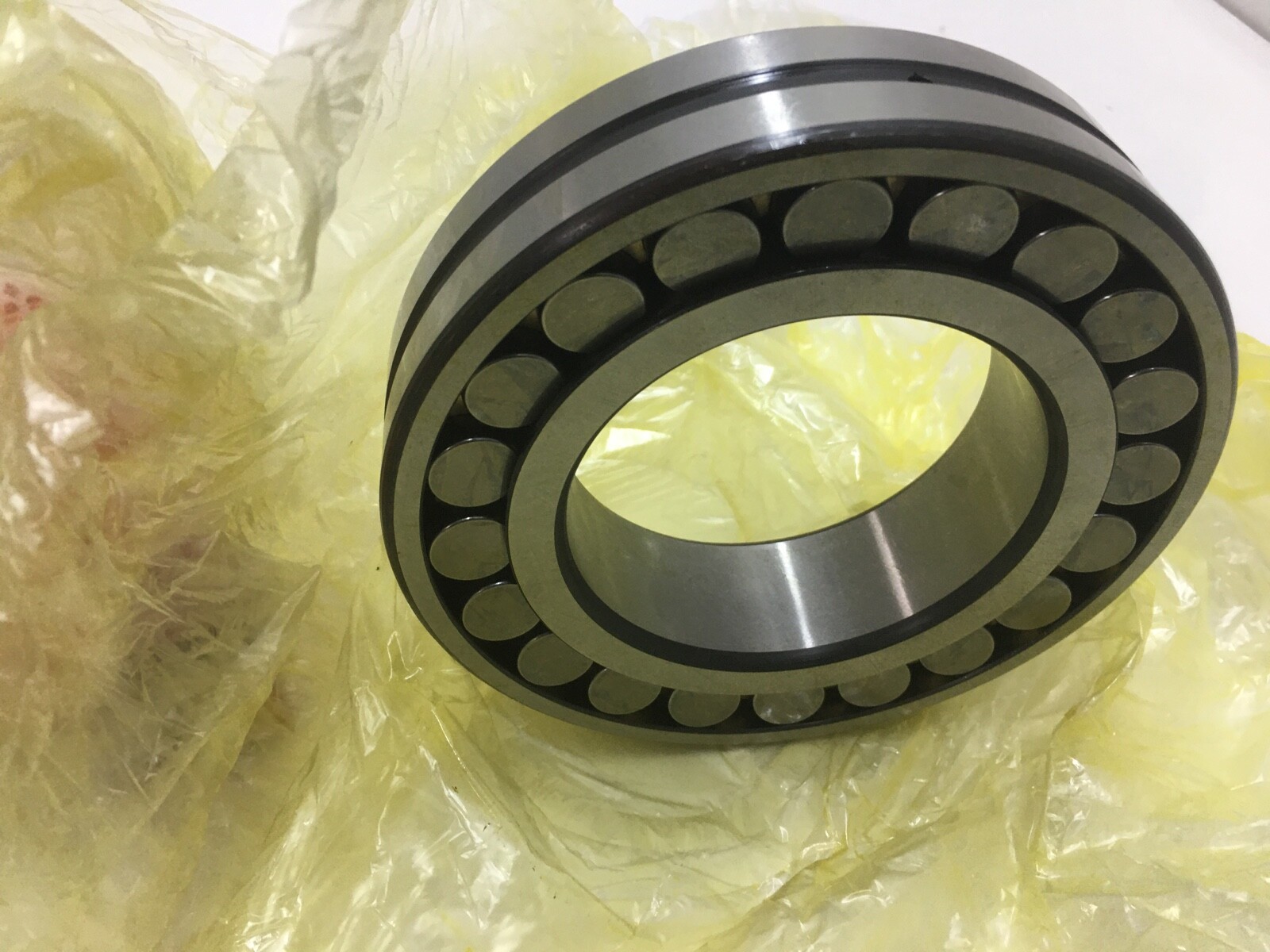

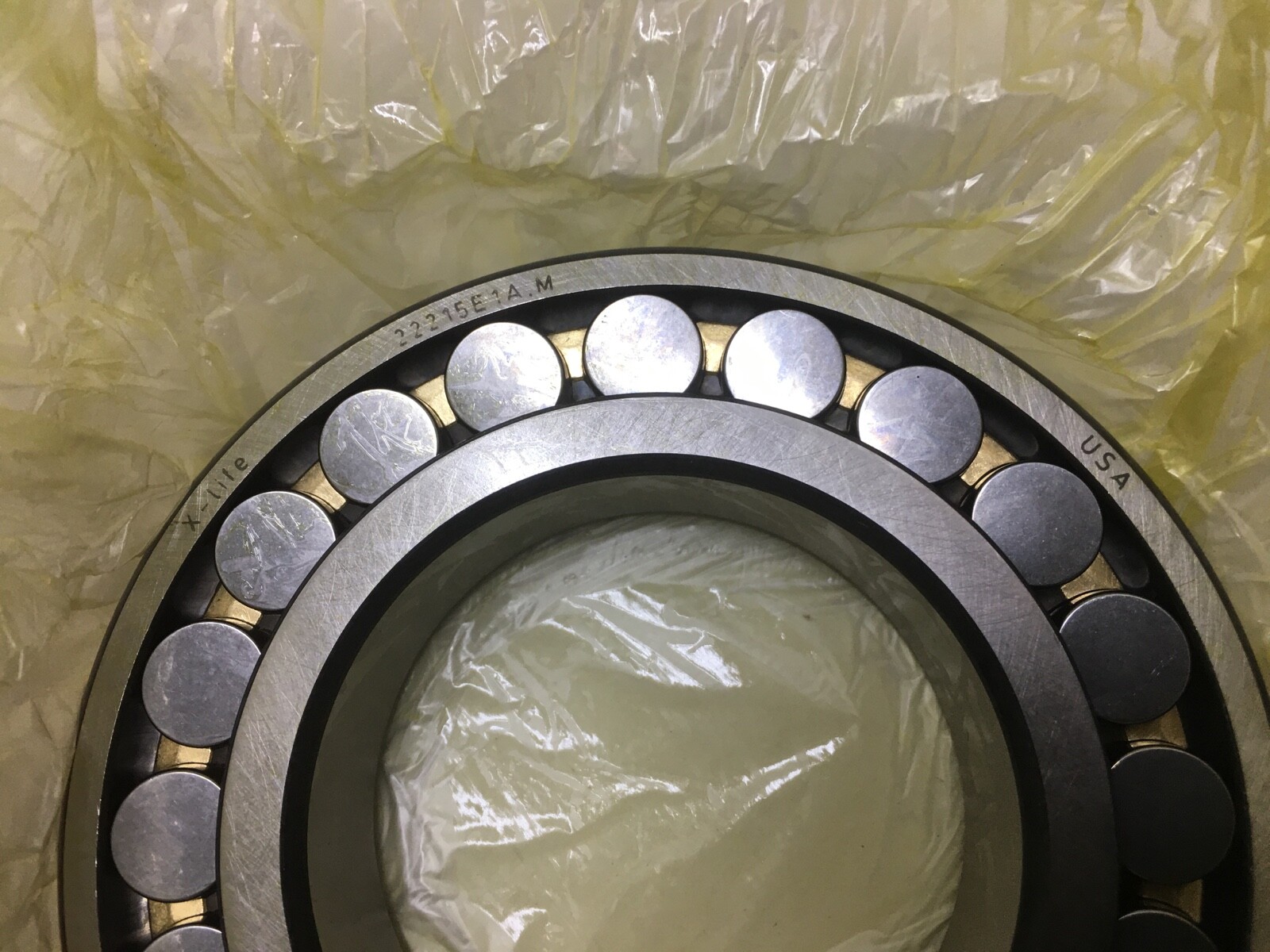

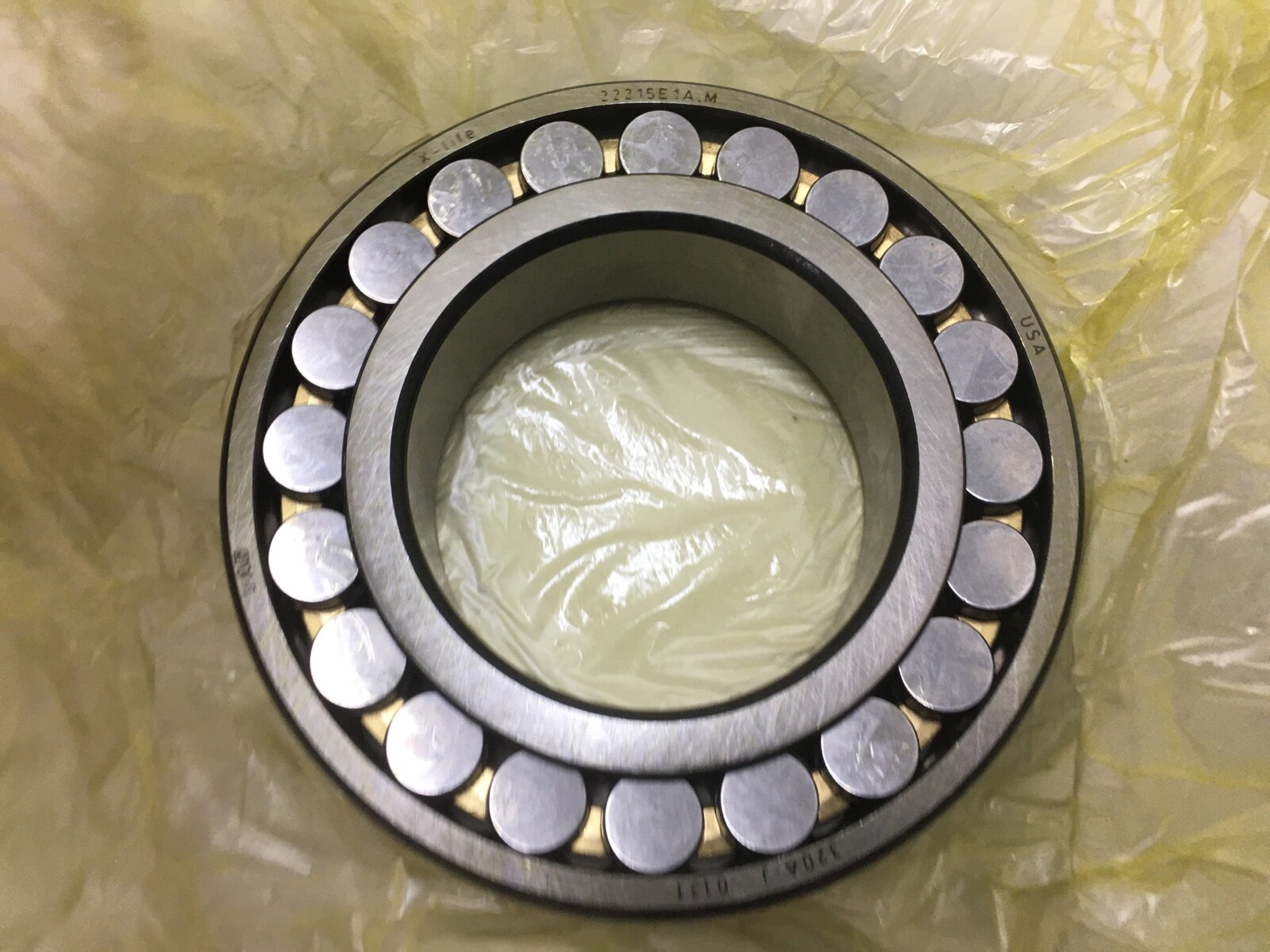

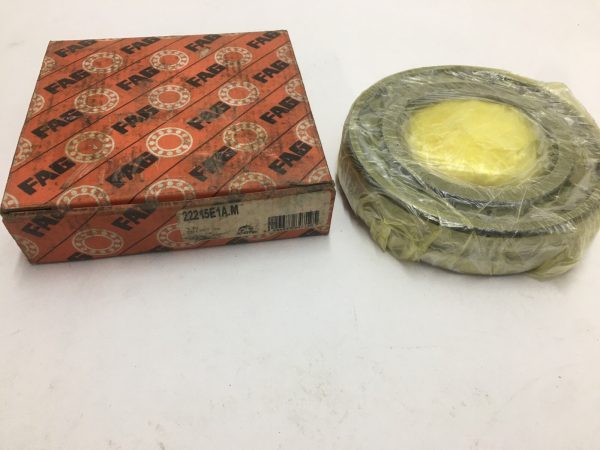

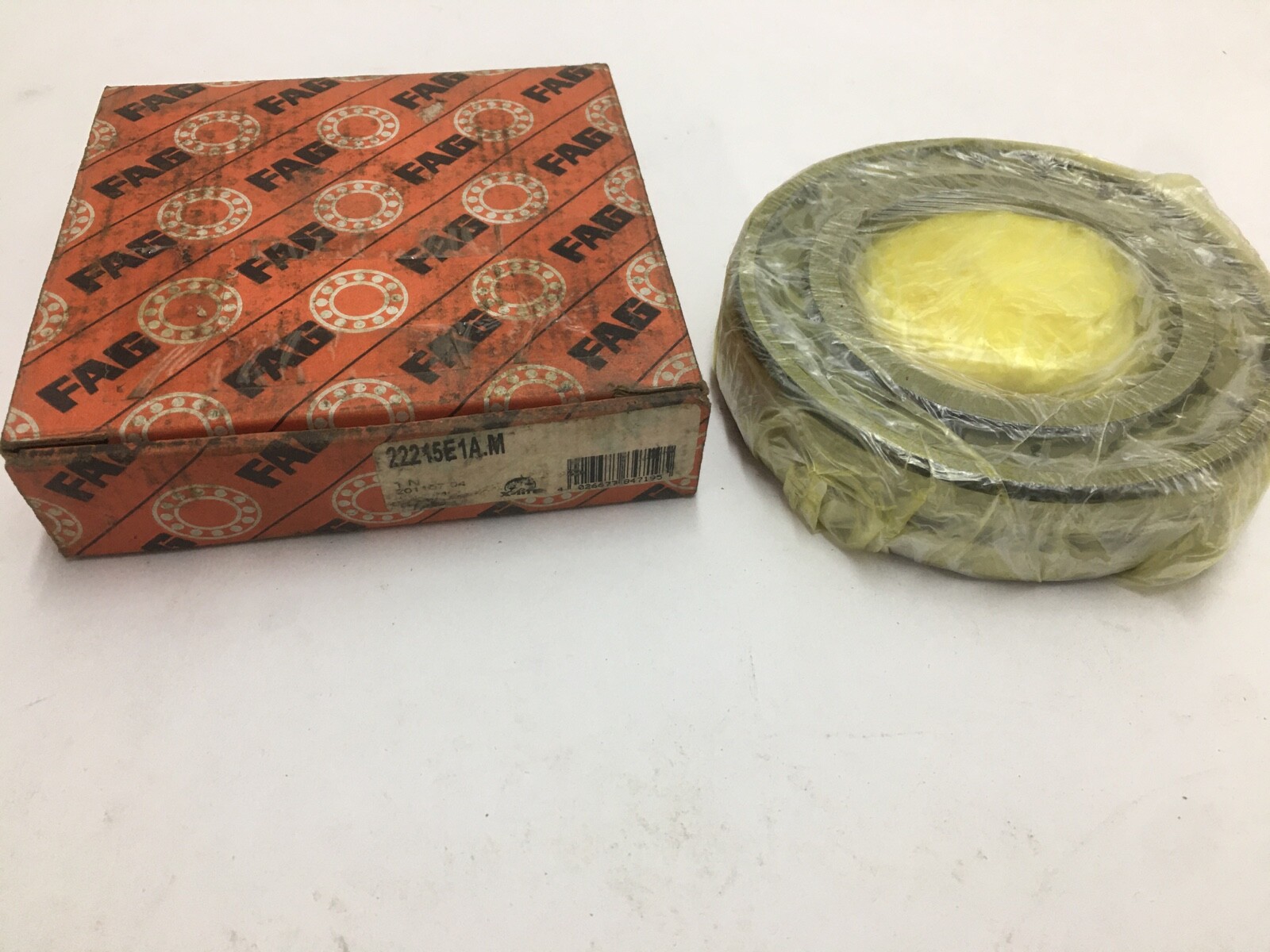

FAG 22215E1A.M double-row spherical roller bearing, 75 mm bore x 130 mm outside diameter x 31 mm width, straight cylindrical bore, open, machined brass cage, CN internal clearance. Sold as 1 Pc.
222 — double-row spherical roller bearing, 22 dimension series.
15 — bore code, 75 mm.
E1A — FAG reinforced internal design with higher capacity in the same envelope.
M — machined solid brass cage.
No K suffix — straight cylindrical bore.
Bore Diameter: 75 mm. Outside Diameter: 130 mm. Width: 31 mm. Dynamic Load Rating: 200,000 N. Static Load Rating: 212,000 N. Limiting Speed: 5,600 rpm. Number of Rows: 2. Rolling Elements: Symmetrical barrel rollers. Cage Material: Brass. Cage Type: Machined. Internal Clearance: CN. Closure Type: Open. GTIN: 4026677847195.
Bore Type: Straight cylindrical. Open on both faces, without a snap-ring groove and without a lubrication groove or feed holes. The bearing takes radial load and thrust in both directions and accommodates shaft misalignment through its spherical outer raceway.
Cross-references: SKF 22215 EM, Koyo 22215RM, NSK 22215EAME4 and FAG 22215-E1A-XL-M (current Schaeffler designation). SNR 22215EMW33 adds a lubrication groove and three feed holes in the outer ring. FAG 22215EK has the same envelope with a 1:12 tapered bore for an H315 adapter sleeve.
75 mm bore, 130 mm outside diameter and 31 mm width, with a straight cylindrical bore.
E1A is the FAG reinforced internal design and M is the machined solid brass cage.
Dynamic load rating 200,000 N, static load rating 212,000 N, limiting speed 5,600 rpm. GTIN 4026677847195.
