Double-row spherical roller bearing with straight bore, glass-fibre polyamide cage, C3 clearance and a W33 lubrication groove with three outer-ring holes.
List Price
$75.82
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22216ES.TVPB.C3 |
| Model | 22216E S TVPB C3 W33 |
| Bearing Type | Double-Row Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Base Number | 22216 |
| Industry Terms | spherical roller bearing; double row; W33 bearing; 222 series |
| Common Misspellings | 22216ES TVBP; 22216 ES-TVPB; 2216ES.TVPB; 22216ESTVBPC3 |
| Application Types | Gearboxes; fans and blowers; belt conveyors; crushers; pumps |
| Bore Shaft Size | 80 mm (3.1496 in), straight cylindrical bore |
| Mpn Variants | 22216ES.TVPB.C3; 22216ES.TVPB.C3.W33; 22216-ES-TVPB-C3-W33 |
| Manufacturer Status | Superseded; current Schaeffler part 22216-E1-XL-TVPB-C3 |
| Cage Type | Window |
| Rolling Elements | Spherical Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight (cylindrical) |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | C3 |
| Part Number | 22216ES.TVPB.C3.W33 |
| Cross Reference 1 | FAG 22216-E1-XL-TVPB-C3 - current designation |
|---|---|
| Cross Reference 2 | SKF 22216 E/C3 - no W33 groove |
| Cross Reference 3 | NSK 22216EAE4C3 |
| Cross Reference 4 | NTN 22216EWC3 |
| Cross Reference 6 | 22216-E1A-M-C3 FAG (related size, machined brass cage) |
| Cross Reference 7 | FAG 22216ESK.TVPB.C3 - 1:12 tapered bore, needs sleeve |
| Cross Reference 9 | Koyo 22216RHRW33C3 (related size, steel cage) |

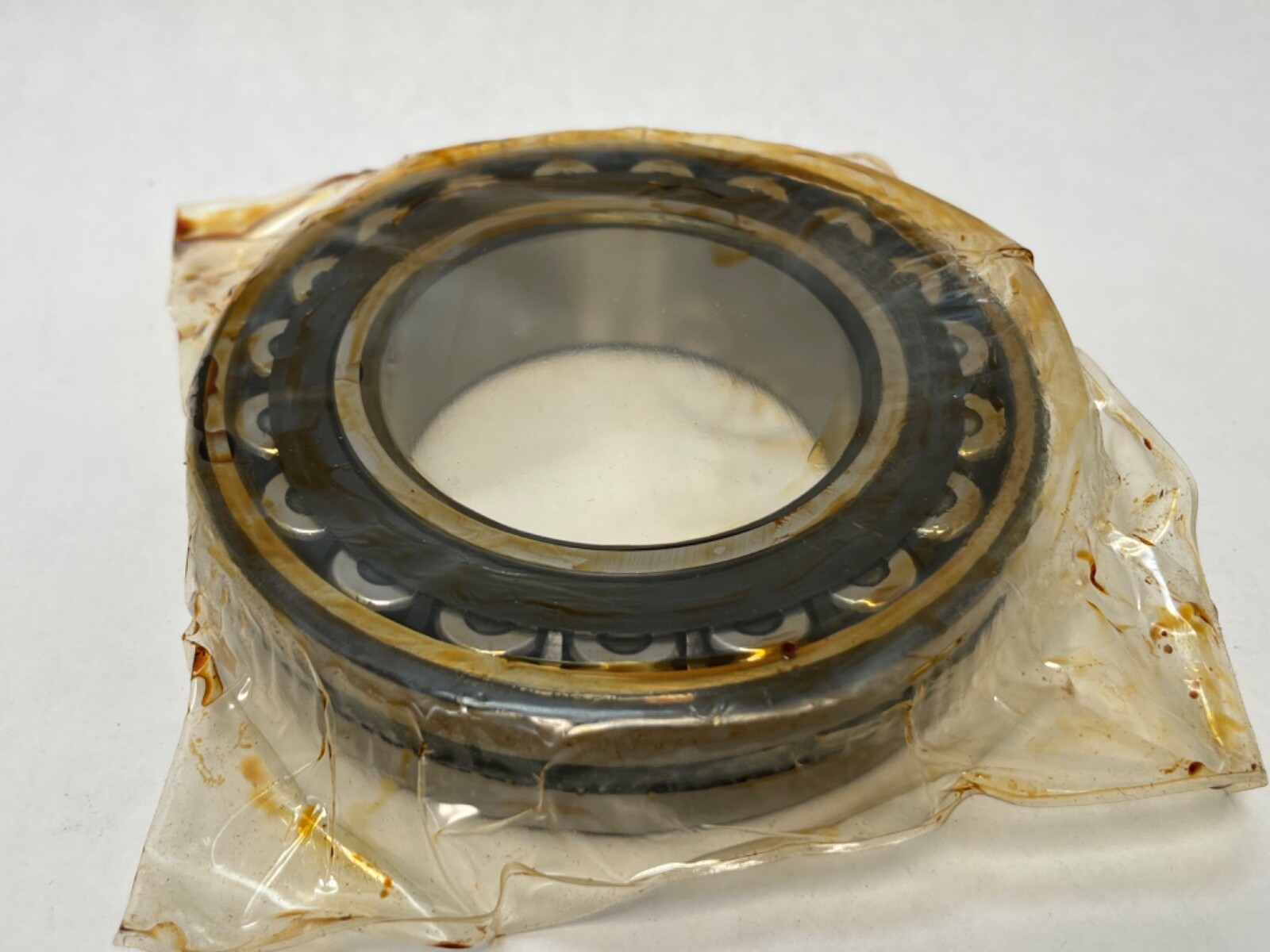

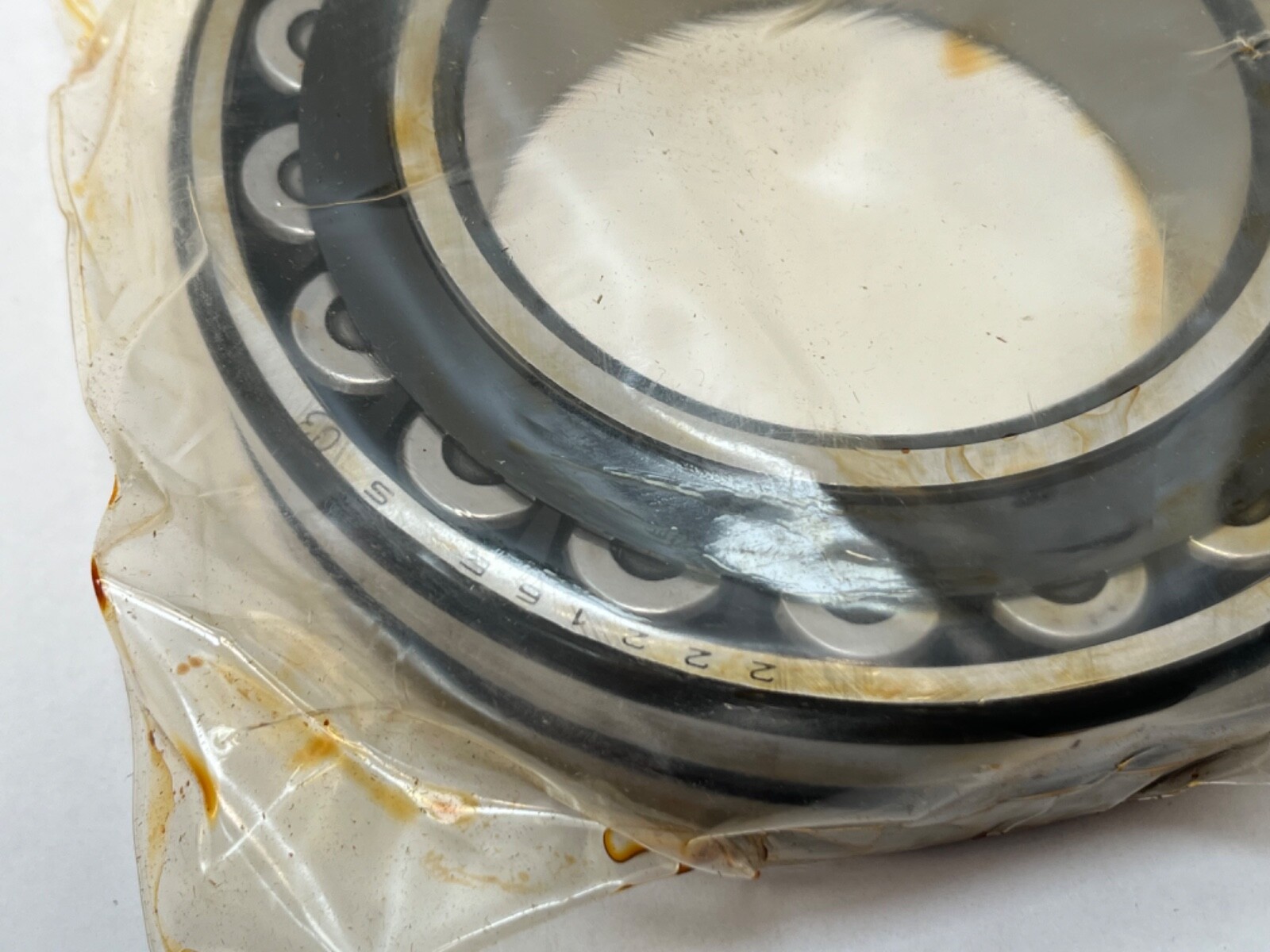

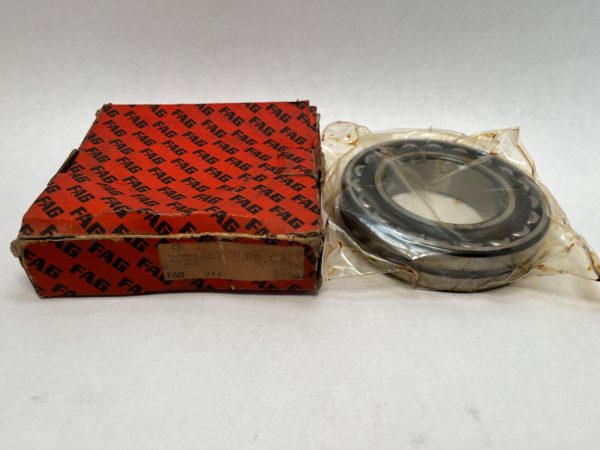

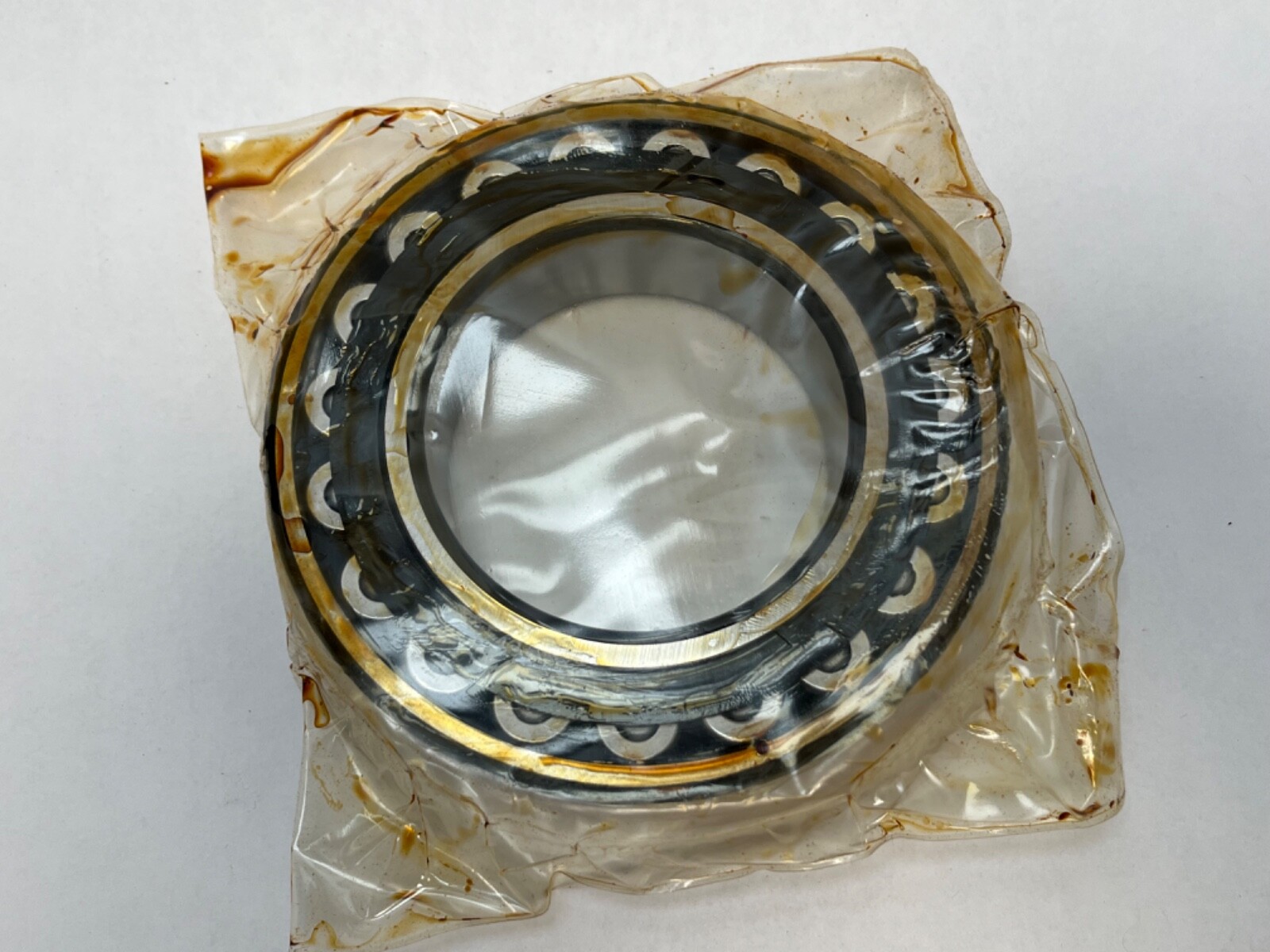

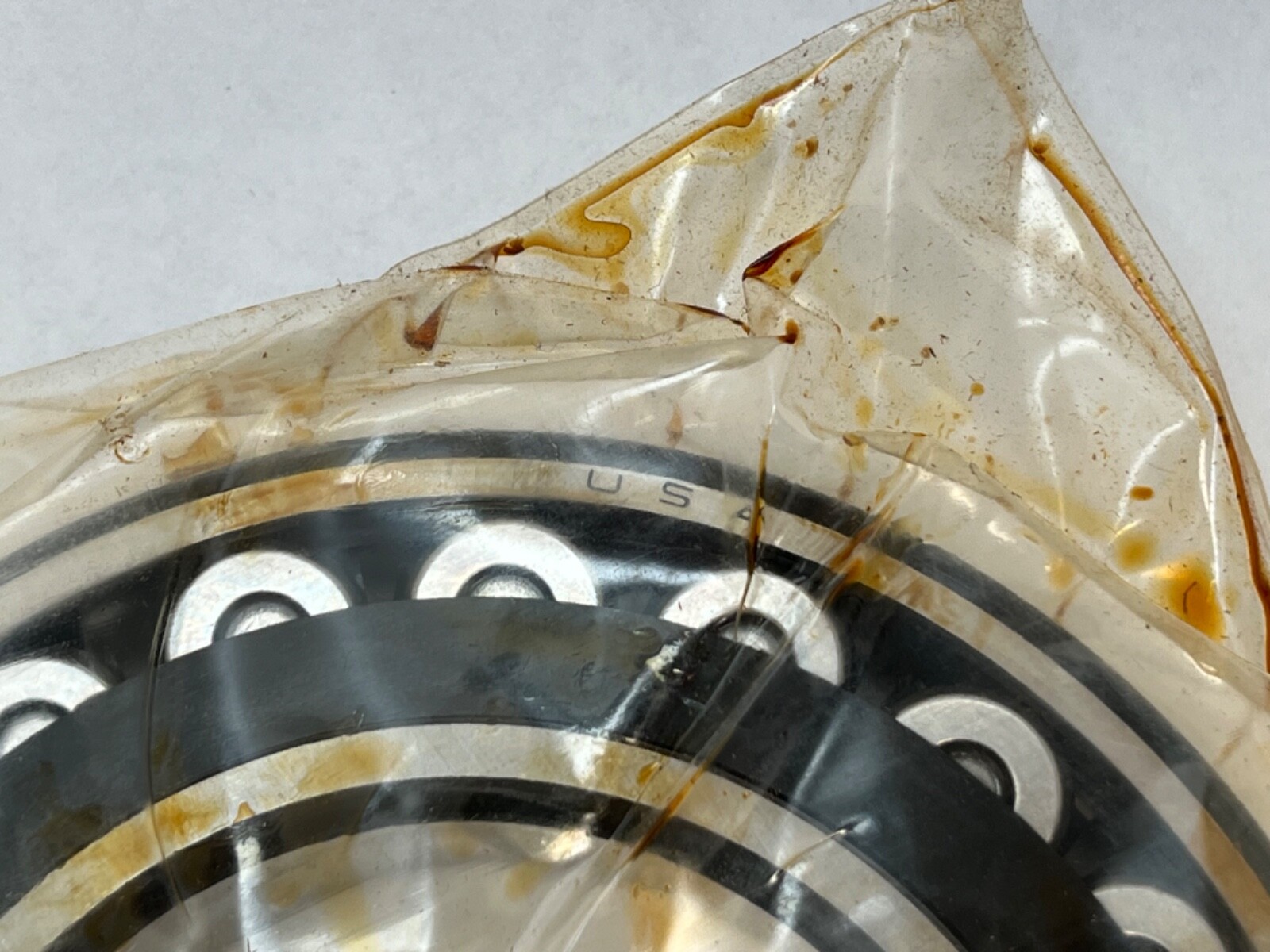

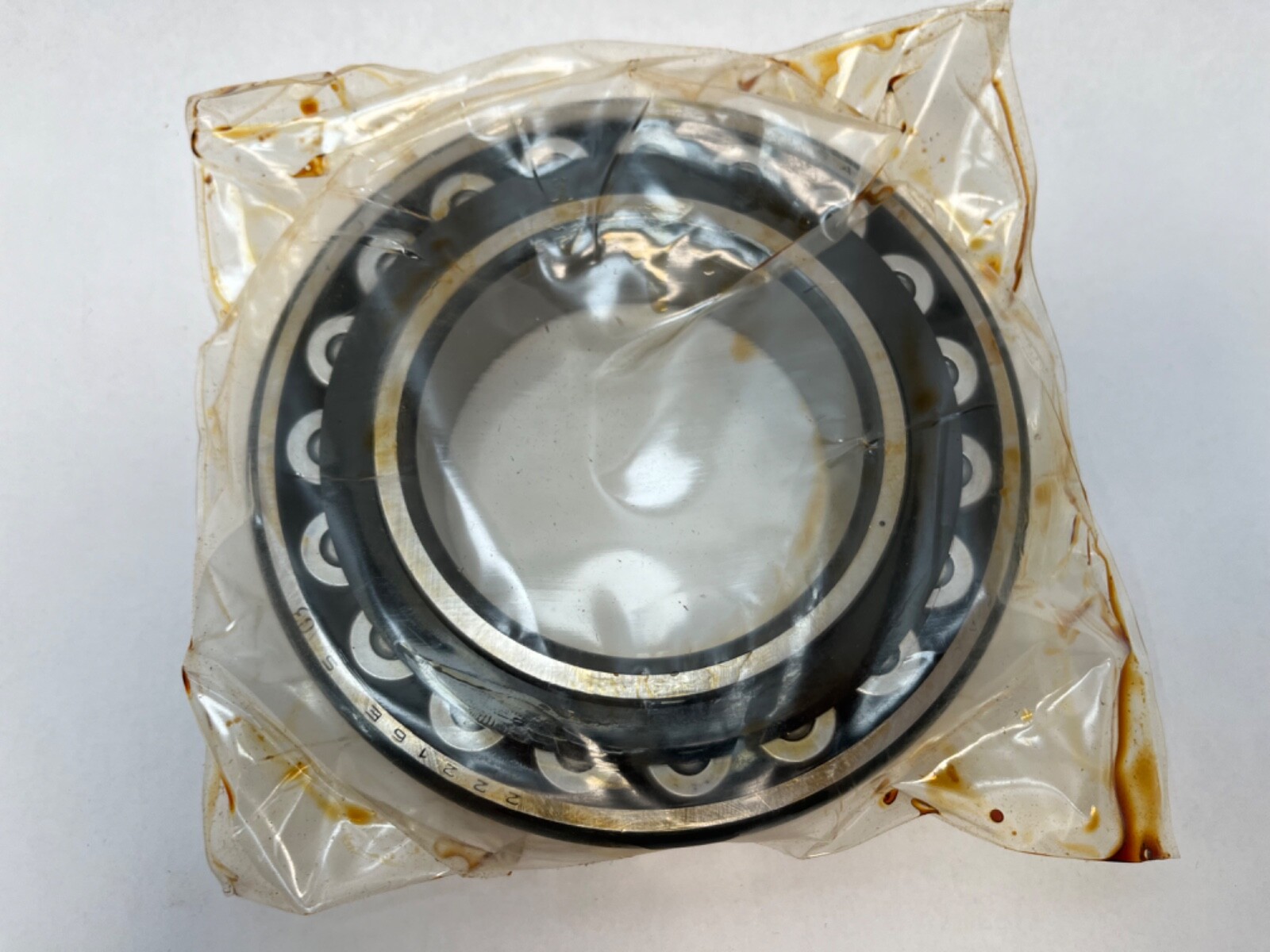

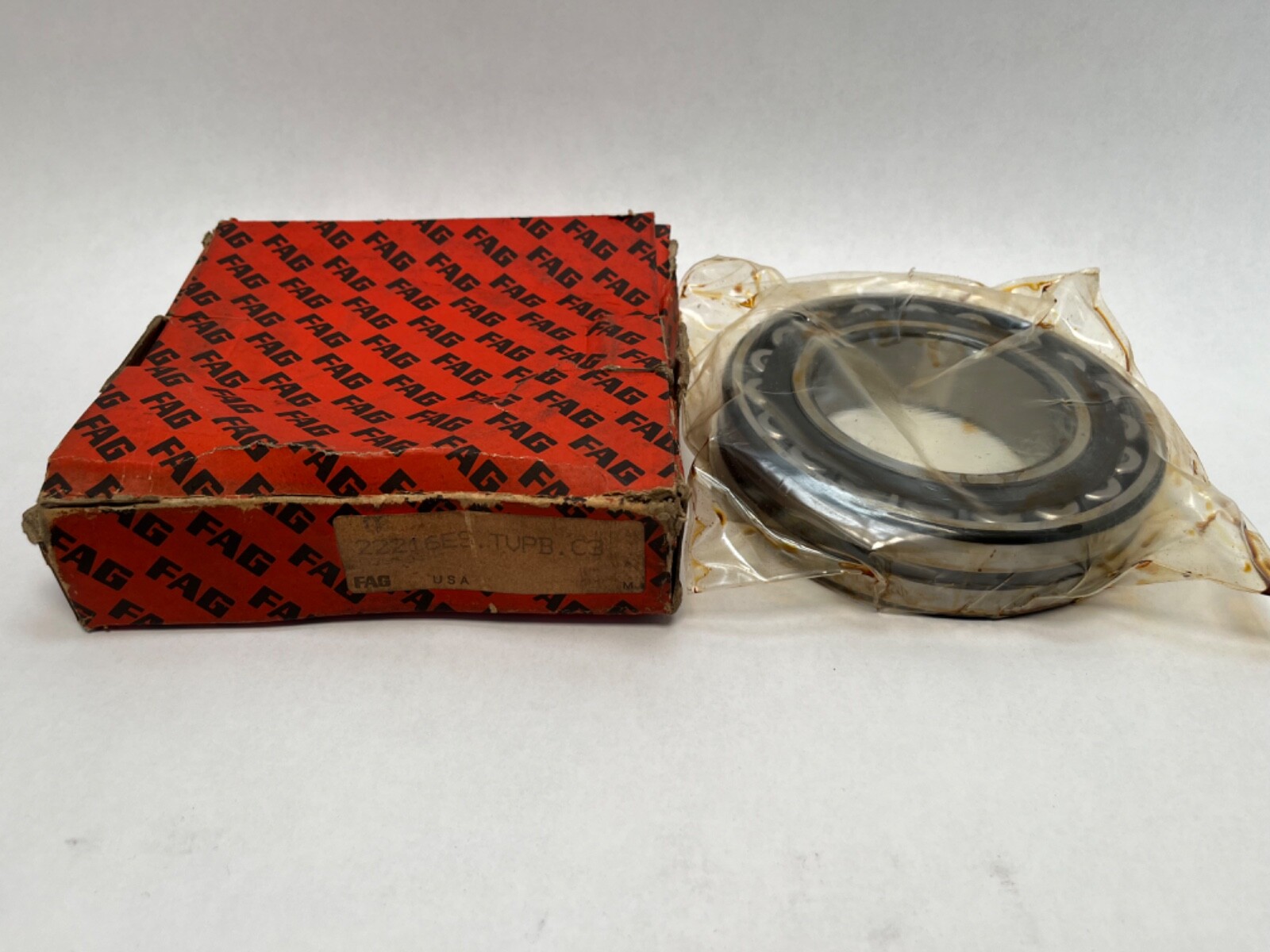

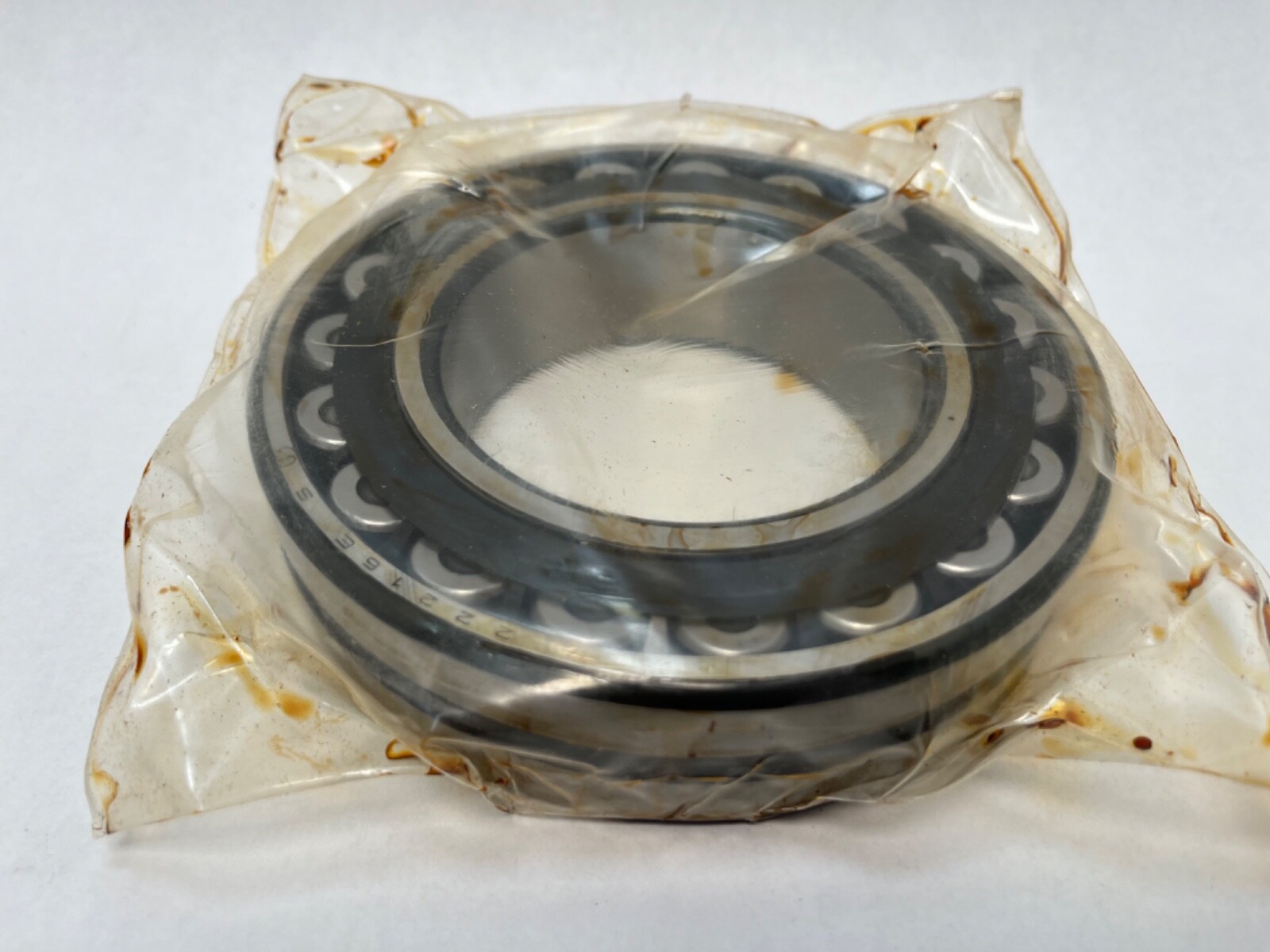

FAG 22216ES.TVPB.C3 double-row spherical roller bearing with a straight cylindrical bore, 80 mm bore by 140 mm outside diameter by 33 mm width. Two rows of symmetrical barrel rollers run on a common concave spherical raceway in the outer ring; the bearing carries heavy radial load and axial load in both directions. Unit Quantity: 1 Pc, one complete bearing with both rings, both roller rows and the cage.
222 — heavy dimension series.
16 — bore code, 80 mm bore.
ES — reinforced higher-capacity internal design; E1 is the current-generation equivalent.
TVPB — one-piece window cage in glass-fibre reinforced polyamide 6.6.
C3 — radial internal clearance greater than normal.
W33 — lubrication groove in the outer ring with three radial feed holes, delivering grease or oil.
No K in the designation — straight cylindrical bore.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 33 mm. Bore Type: Straight (cylindrical). Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Glass-fibre reinforced polyamide. Cage Type: Window. Internal Clearance: C3. Lubricant: grease or oil. Relubrication Feature: Yes. Closure Type: Open. Material: Chrome Steel. Series: 222 heavy series (22200). Base Number: 22216. Unit Quantity: 1 Pc.
Straight bore, 80 mm, seated directly on a cylindrical shaft and located axially by a shoulder, spacer or end cover. Open on both faces. Outer-ring lubrication groove with three radial feed holes (W33). The tapered-bore counterpart in this family is the 22216ESK.TVPB, which mounts on an H316 adapter sleeve.
Cross-references: FAG 22216-E1-XL-TVPB-C3 (current designation). SKF 22216 E/C3 (no W33 groove). NSK 22216EAE4C3. NTN 22216EWC3. Related FAG sizes: 22216-E1-C3 (stamped steel cage), 22216-E1A-M-C3 (machined brass cage), 22216ESK.TVPB.C3 (1:12 tapered bore). Searchable forms: 22216ES.TVPB.C3, 22216ES.TVPB.C3.W33, 22216-ES-TVPB-C3-W33, 22216ESTVPBC3, 22216 ES TVPB C3 W33, 22216E, 22216-E1-TVPB-C3.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 33 mm. Bore Type: Straight (cylindrical).
A one-piece window cage in glass-fibre reinforced polyamide 6.6.
A lubrication groove in the outer ring with three radial feed holes, delivering grease or oil.
