Availability:
148 in stock

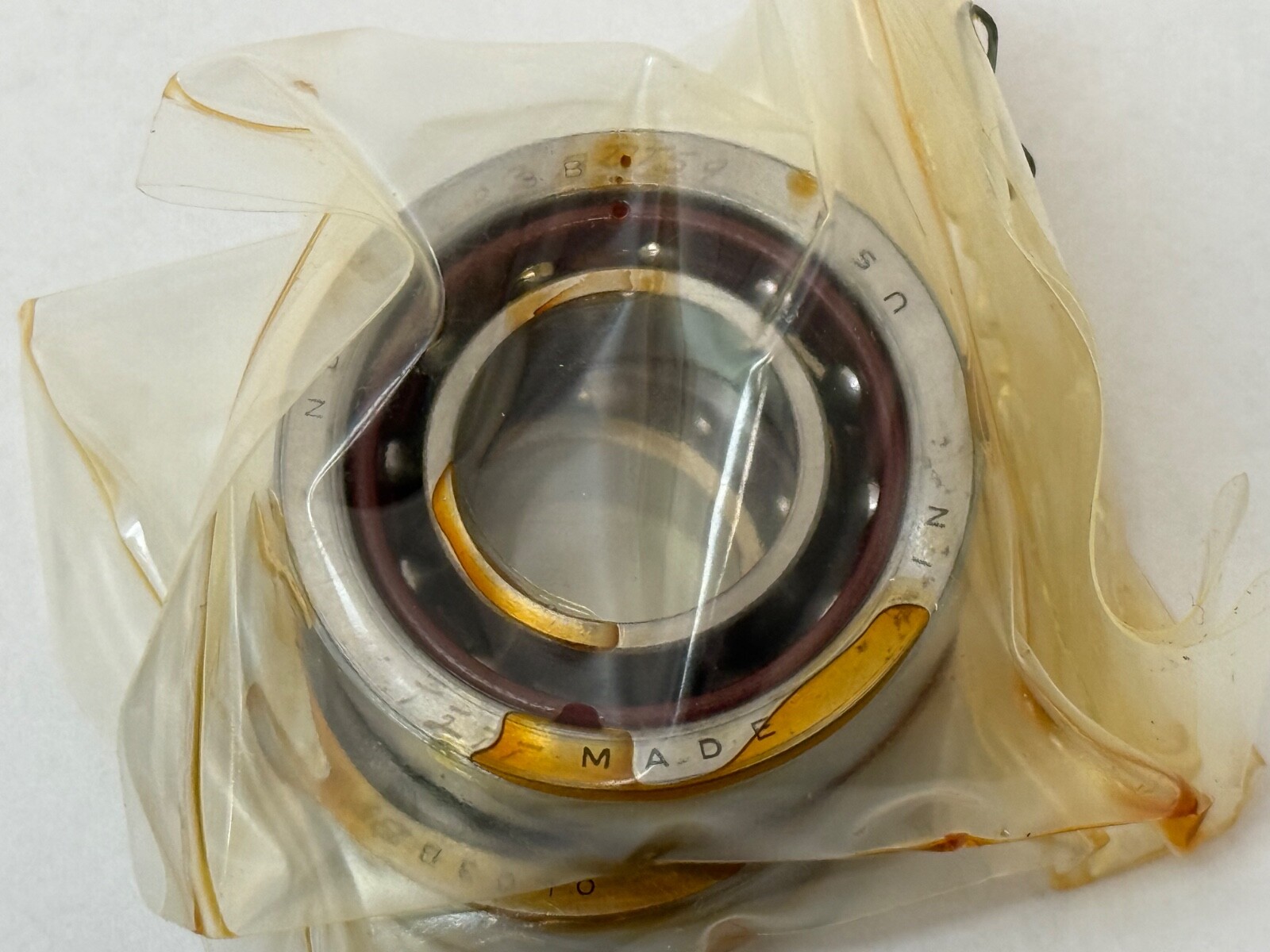

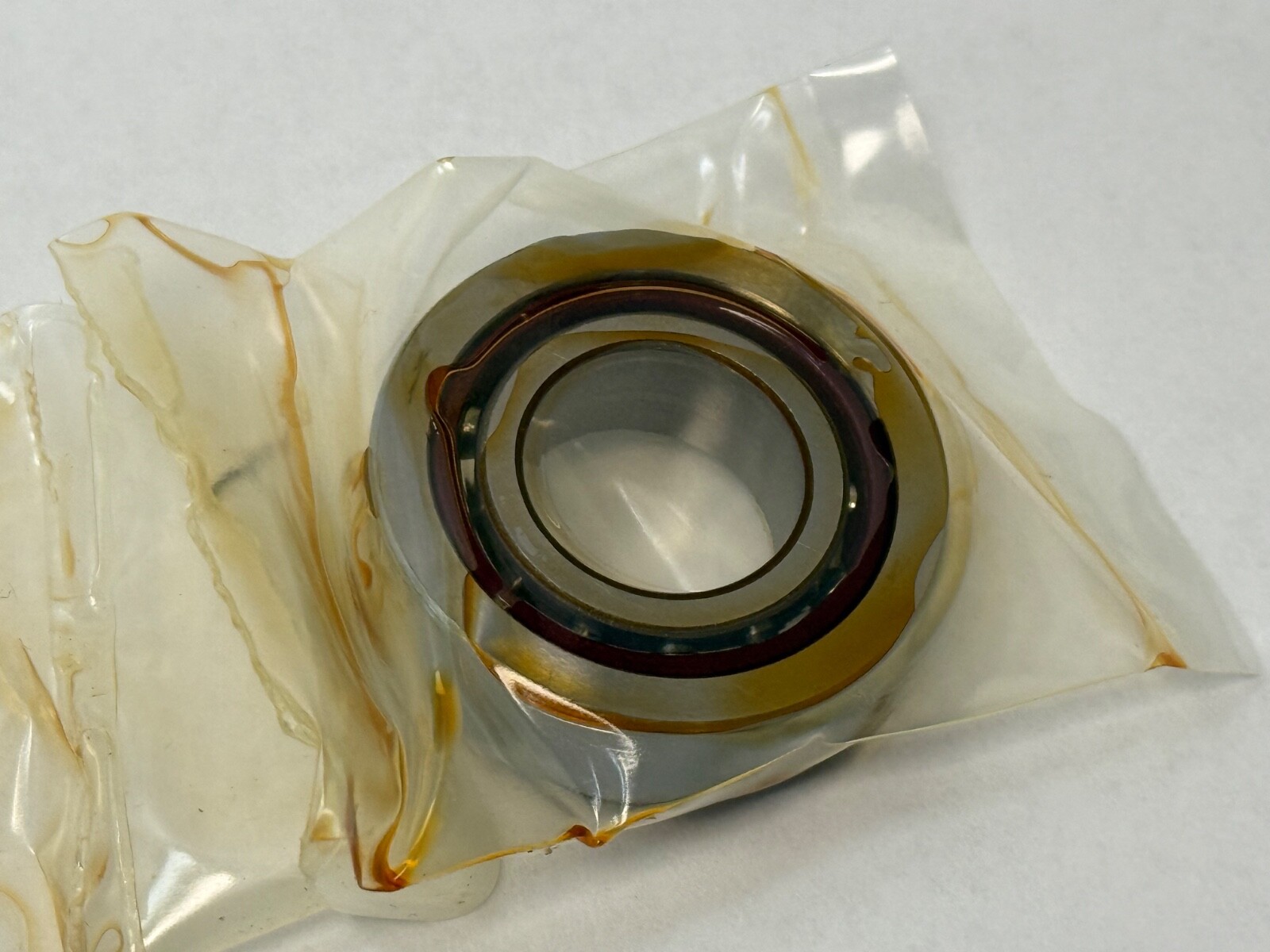

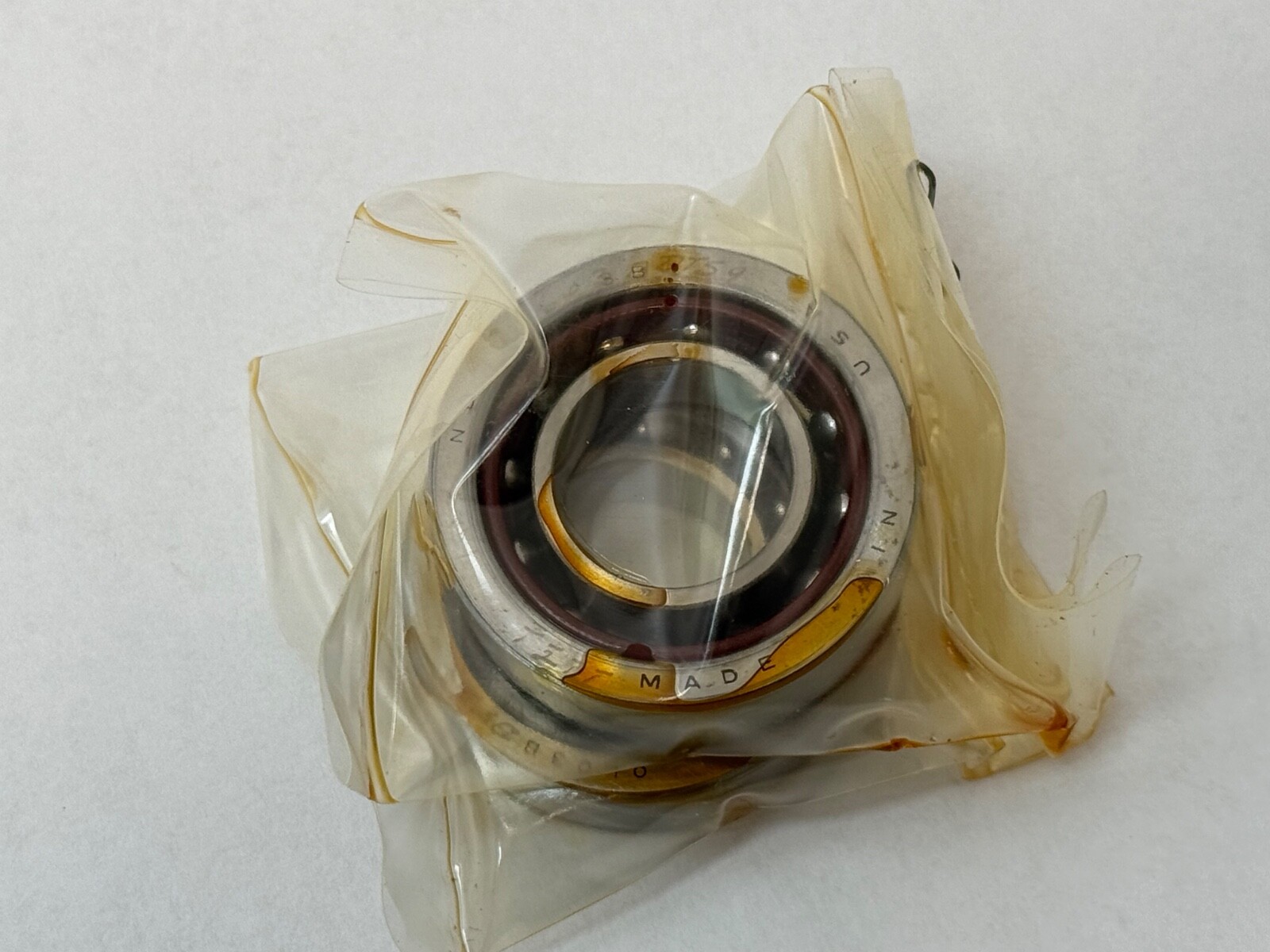

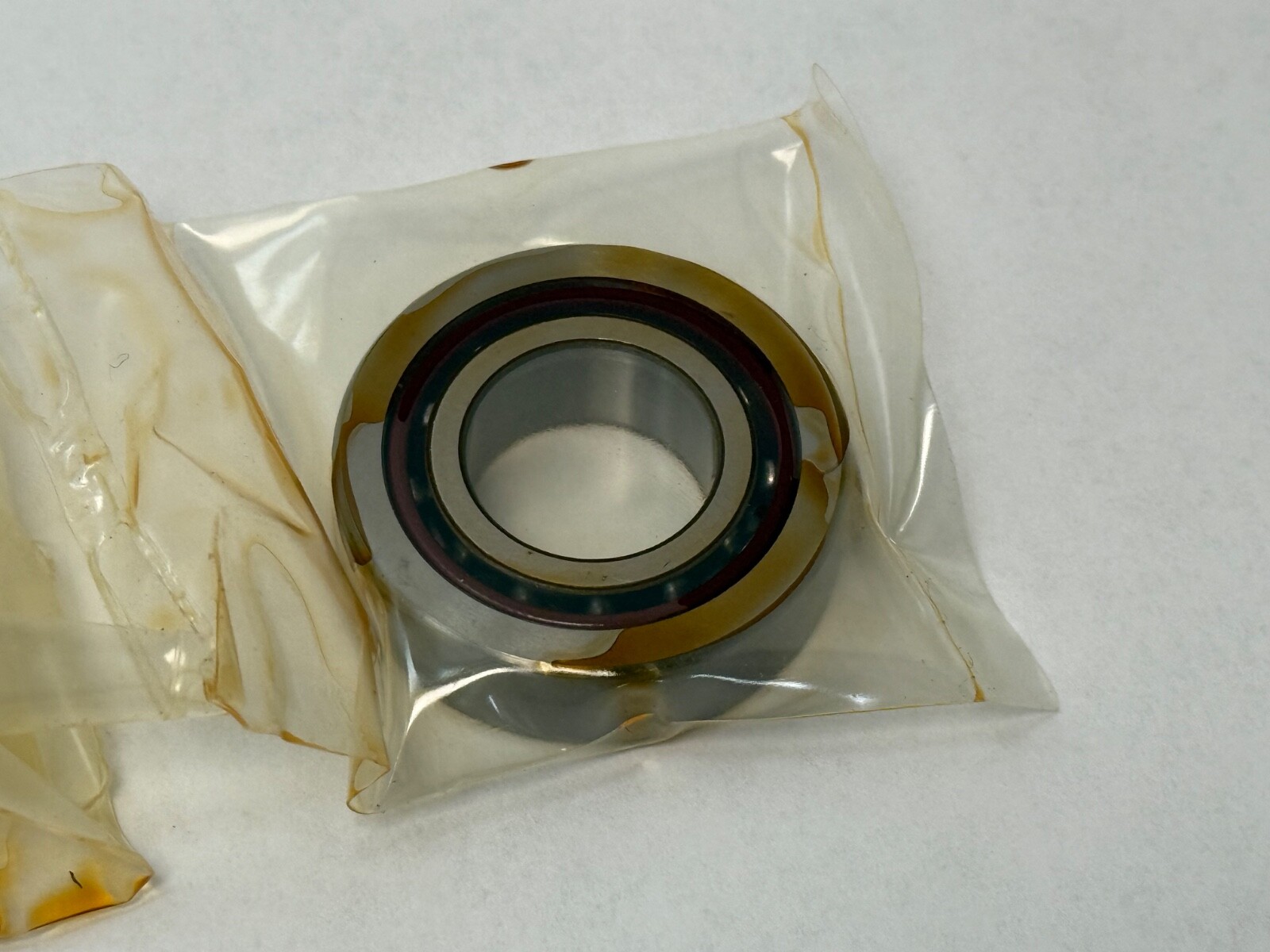

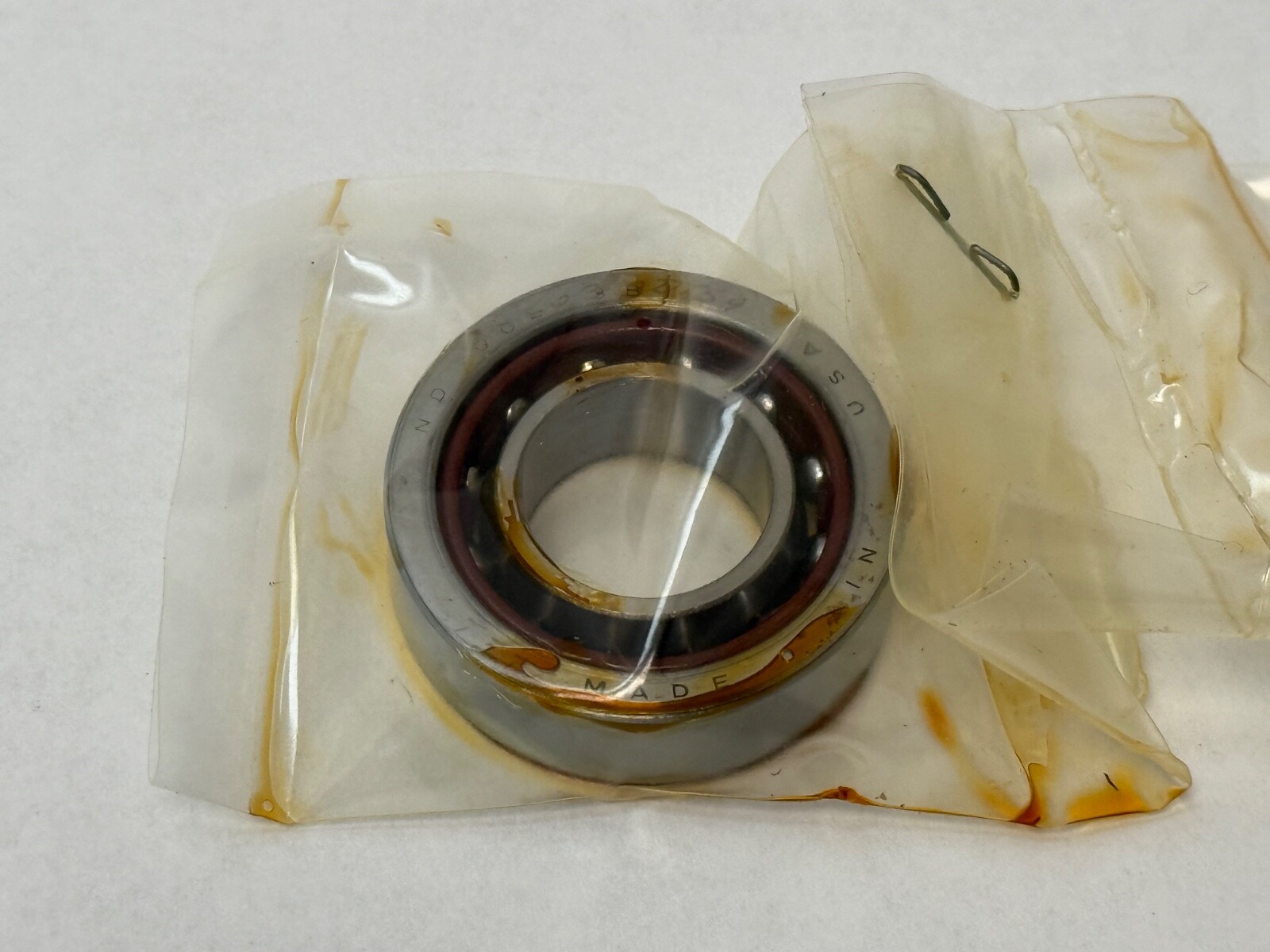

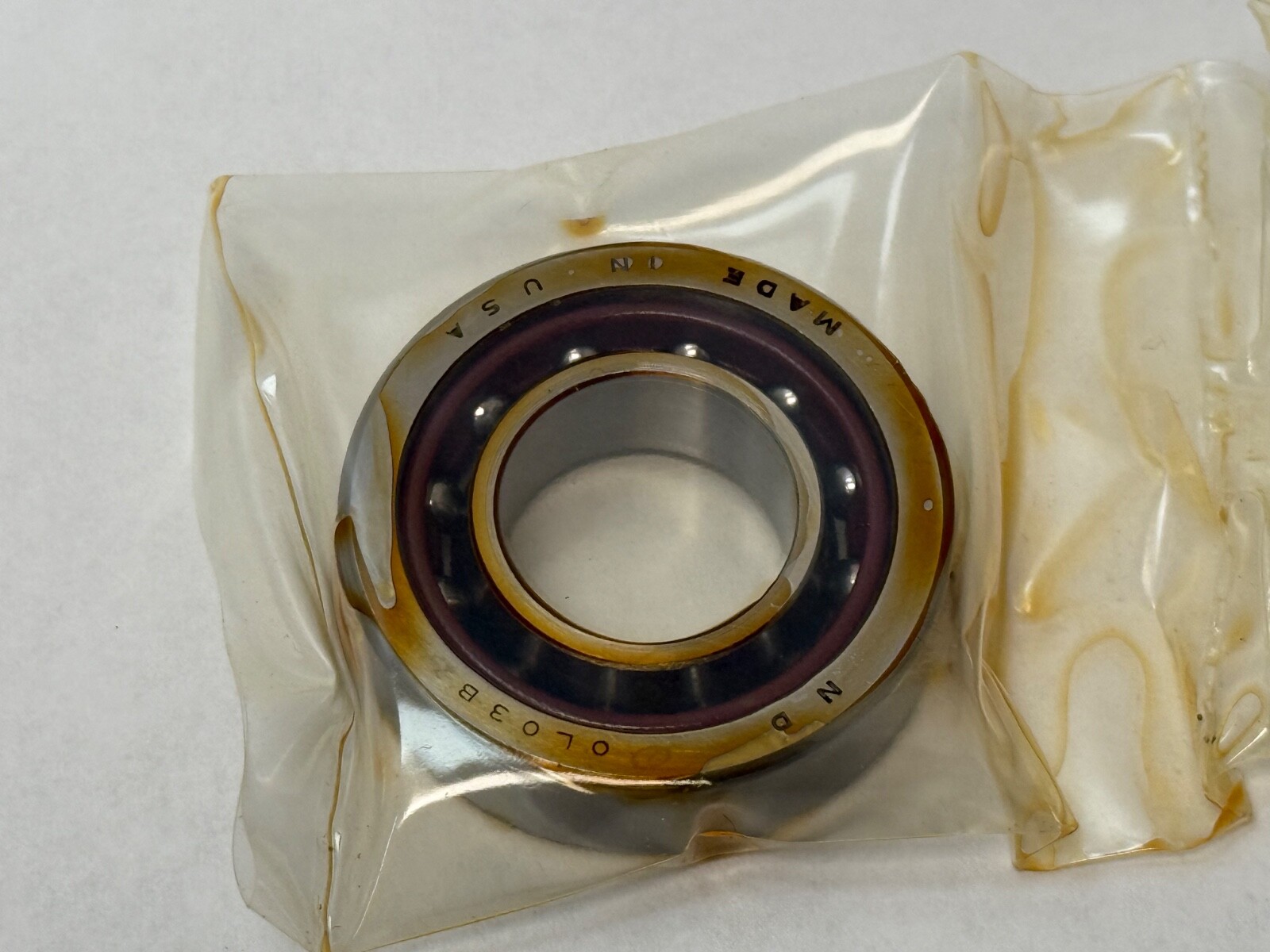

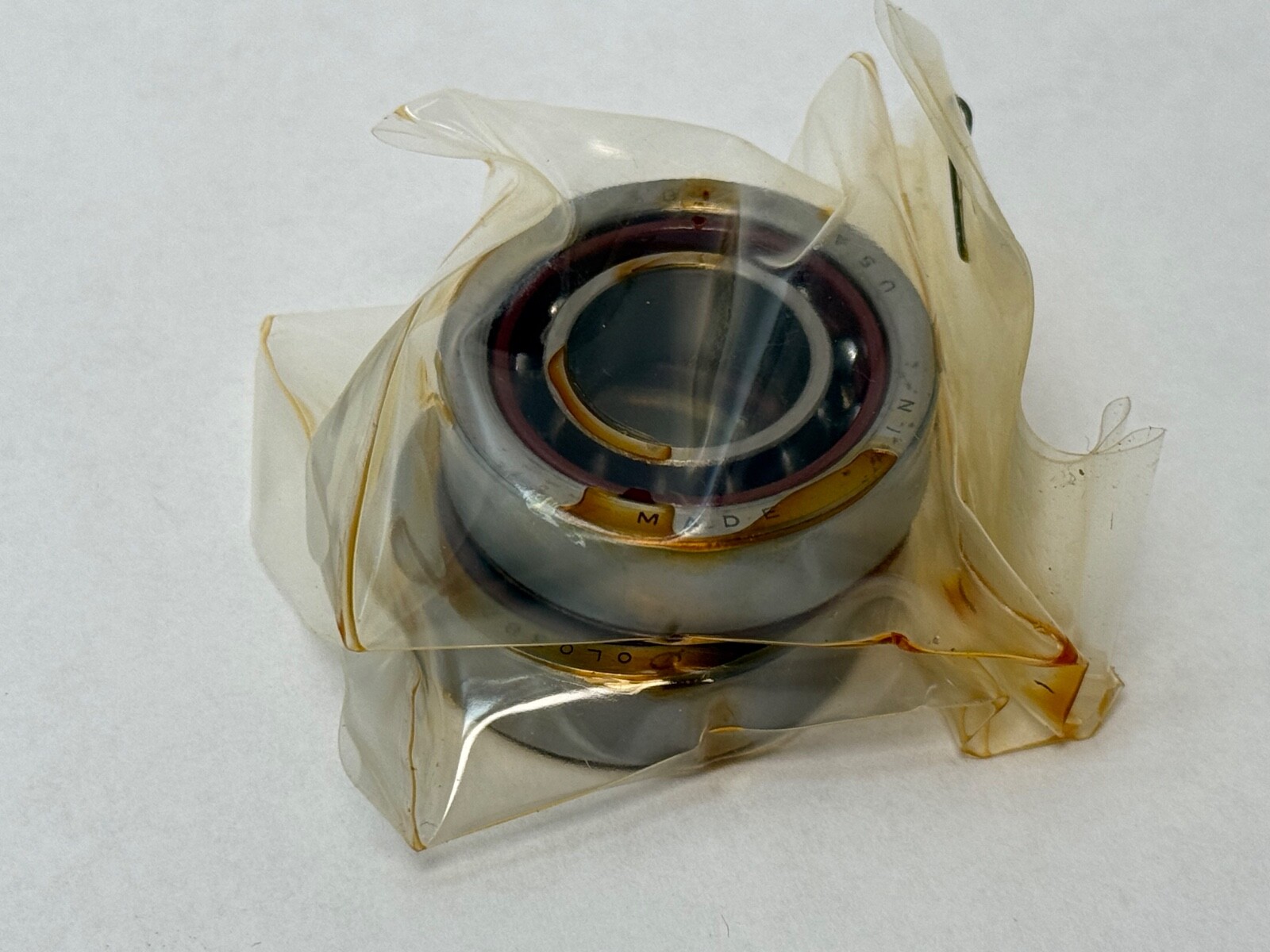

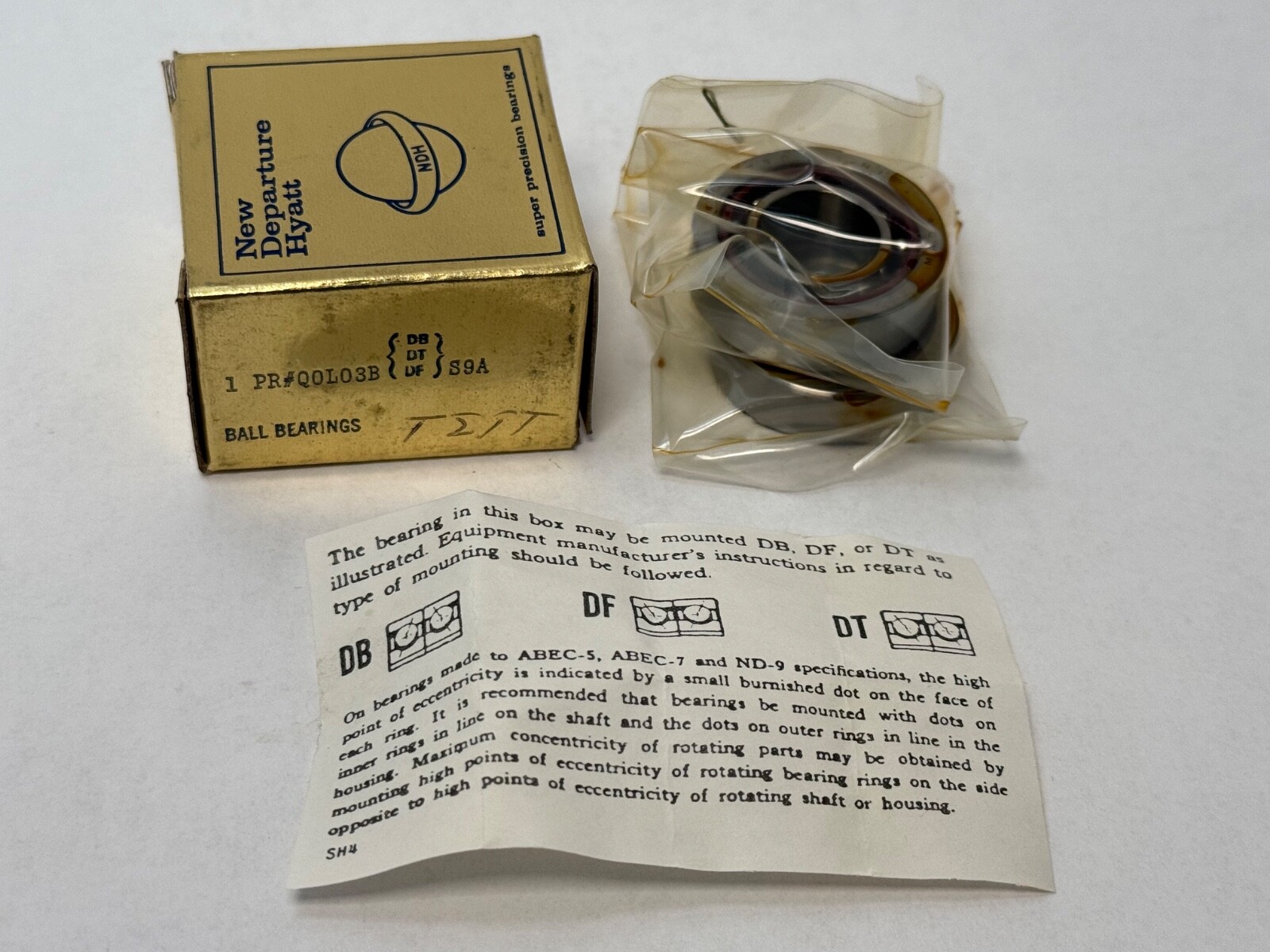

NDH Q0L03BDTS9A angular contact ball bearing set, 17 mm bore, 35 mm OD, 10 mm width, non-metallic separator. Two bearings, universally ground duplex (DT) set.
List Price
$95.00
148 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | Q0L03BDTS9A |
| Model | Q-0L03-B-DT-S9A |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Cage Material | Non-metallic |
|---|---|
| Preload | Special |
| Mounting Arrangement | Universal duplex (DT, DB or DF) |
| Base Number | 0L03 |
| Industry Terms | duplex angular contact bearing, matched pair, New Departure Hyatt, spindle bearing set |
| Common Misspellings | QOL03BDTS9A, Q0LO3BDTS9A, Q-OL03-B-DT-S9A |
| Application Types | Machine tool spindles, precision rotating assemblies |
| Mpn Variants | Q0L03BDTS9A, Q-0L03-B-DT-S9A, Q 0L03 B DT S9A |
| Rolling Elements | Ball |
NDH Q0L03BDTS9A, a matched set of 2 single-row angular contact ball bearings from New Departure Hyatt in the 0L03 size. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Width: 10 mm per bearing. Non-metallic separator, universal duplex set.
Q — non-metallic separator (retainer).
0L03 — NDH 0L series angular contact bearing, size 03, 17 x 35 x 10 mm, the ISO 7003 envelope.
DT — duplex set with all faces flush ground for universal mounting in tandem (DT), back-to-back (DB) or face-to-face (DF).
S — special preload.
Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm per bearing. Rolling Elements: Ball. Cage Material: Non-metallic. Preload: Special. Mounting Arrangement: Universal duplex set (DT, DB or DF). Series: 0L. Base Number: 0L03. Unit Quantity: 2 Pcs.
17 x 35 x 10 mm, the ISO 7003 envelope. Two bearings form one factory-matched duplex set with flush-ground faces.
Base number 0L03, ISO 7003 envelope, 17 x 35 x 10 mm. Number variants: Q0L03BDTS9A, Q-0L03-B-DT-S9A, Q 0L03 B DT S9A.
Bore 17 mm, outside diameter 35 mm, width 10 mm per bearing.
Q denotes a non-metallic separator (retainer).

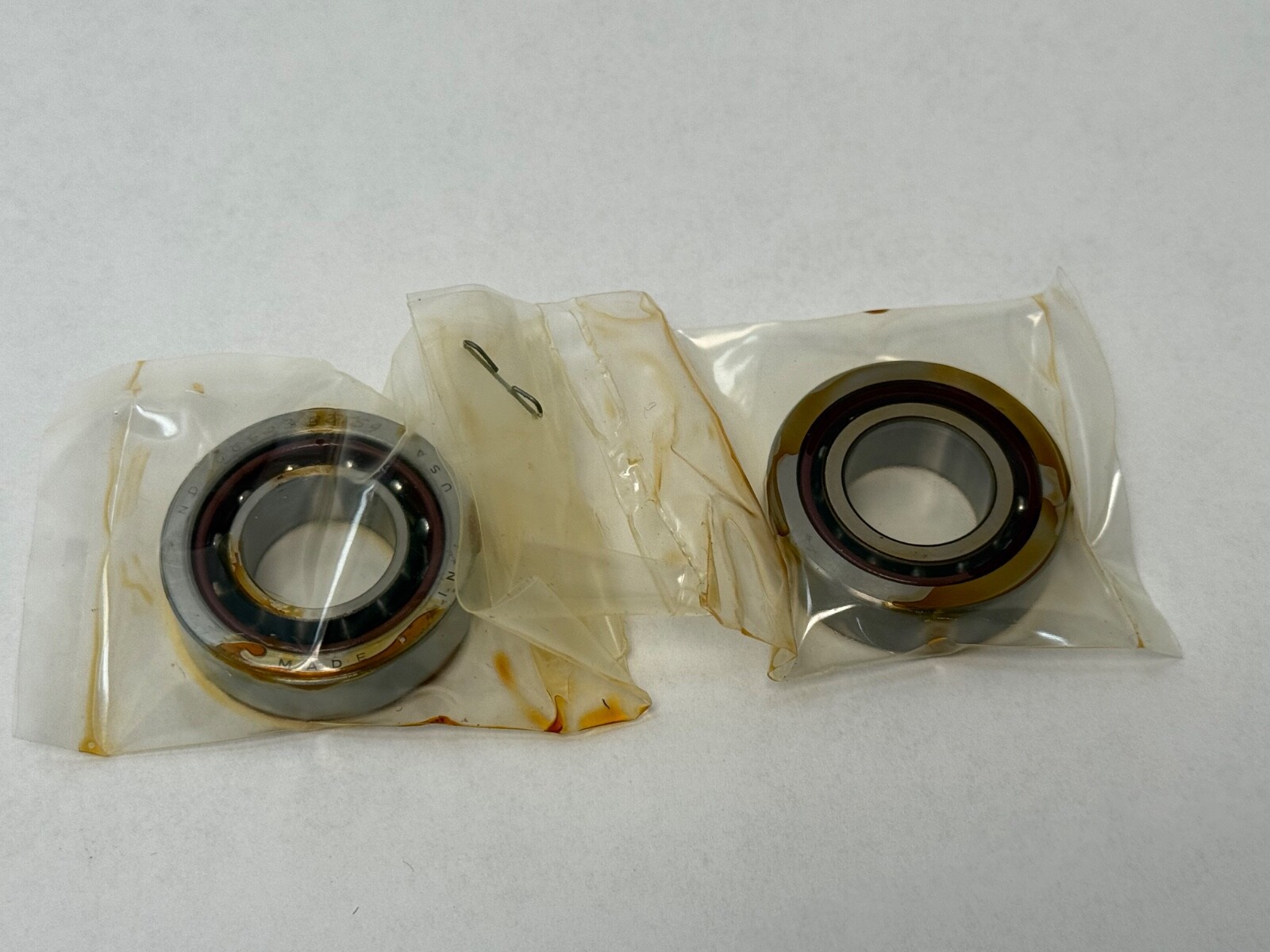

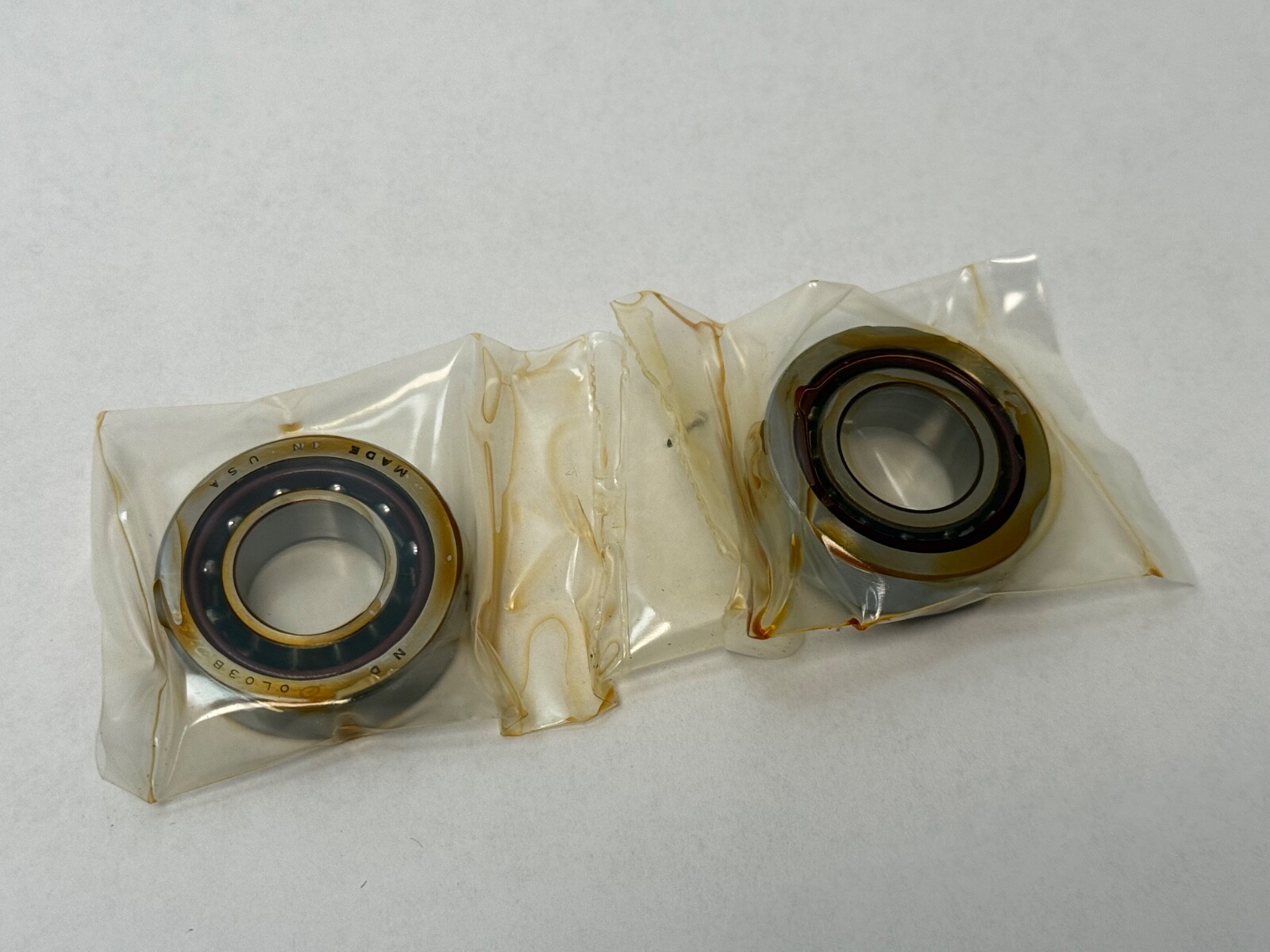

Two bearings forming one factory-matched universal duplex set.
