SKF7219 CDGA/P4ASuper Precision Angular Contact Ball Bearing — 95 mm ID, 170 mm OD, 32 mm Width, 15° Contact Angle, Extra Light Preload, P4A

Condition: New

Availability:

1 in stock

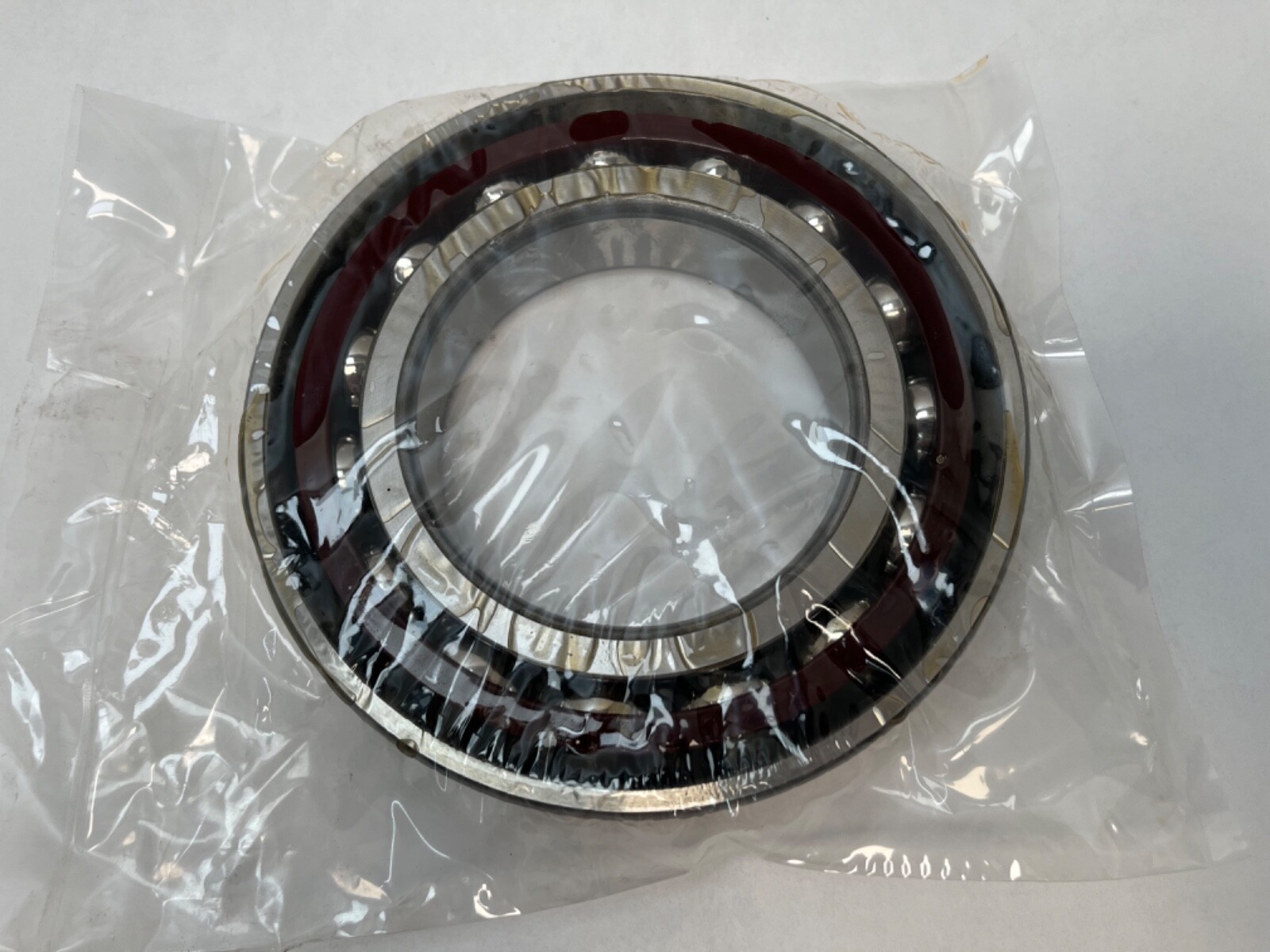

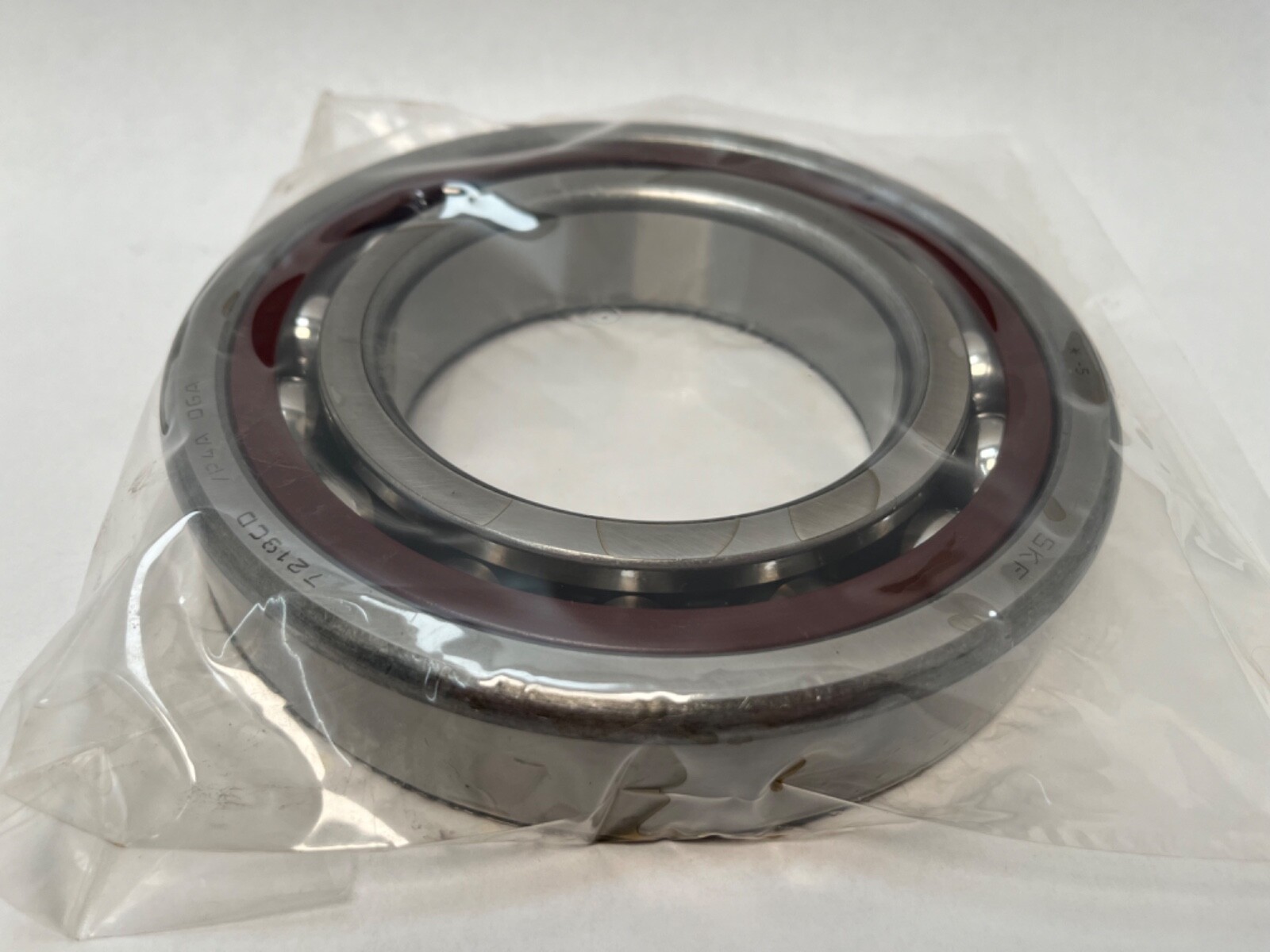

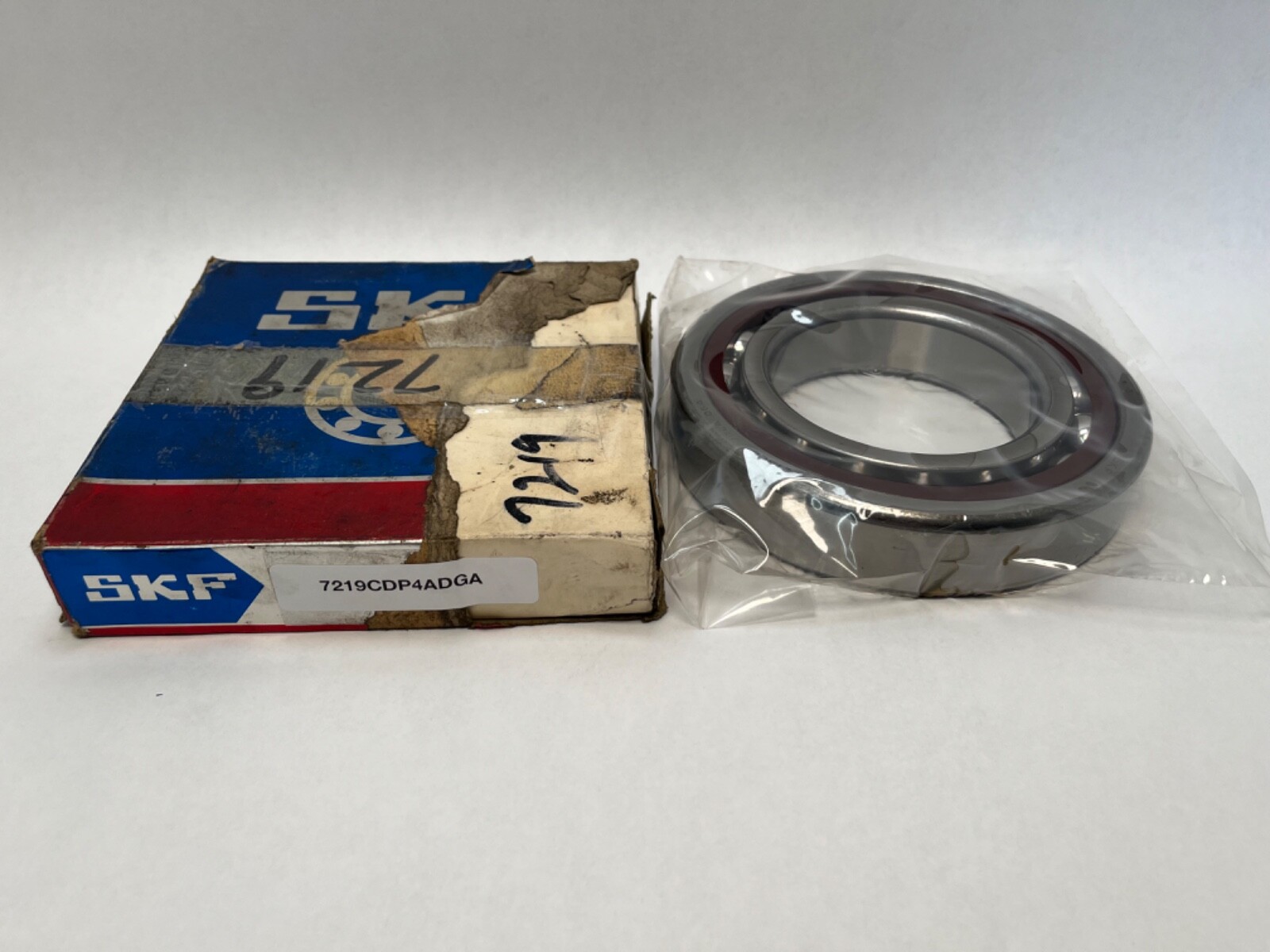

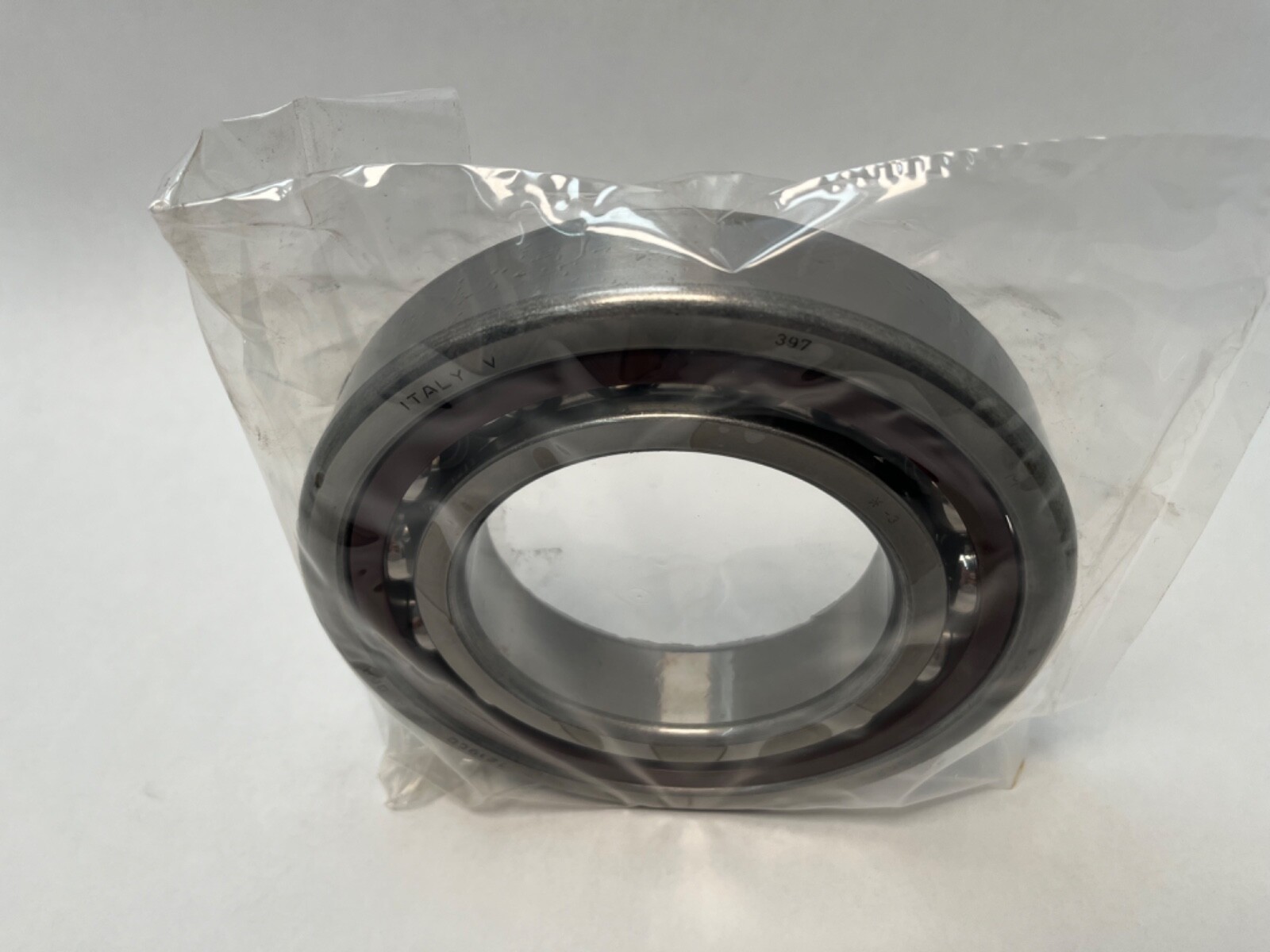

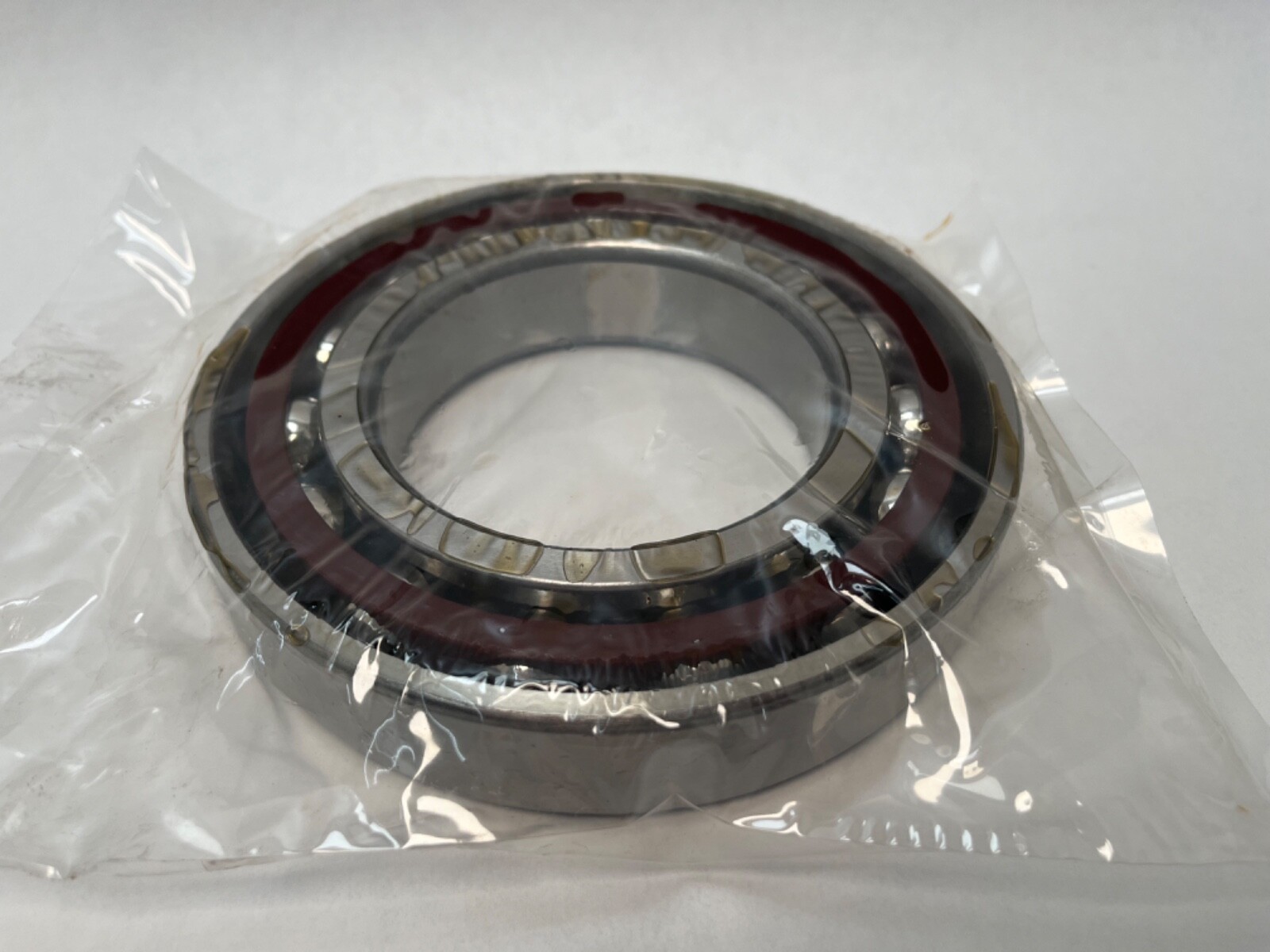

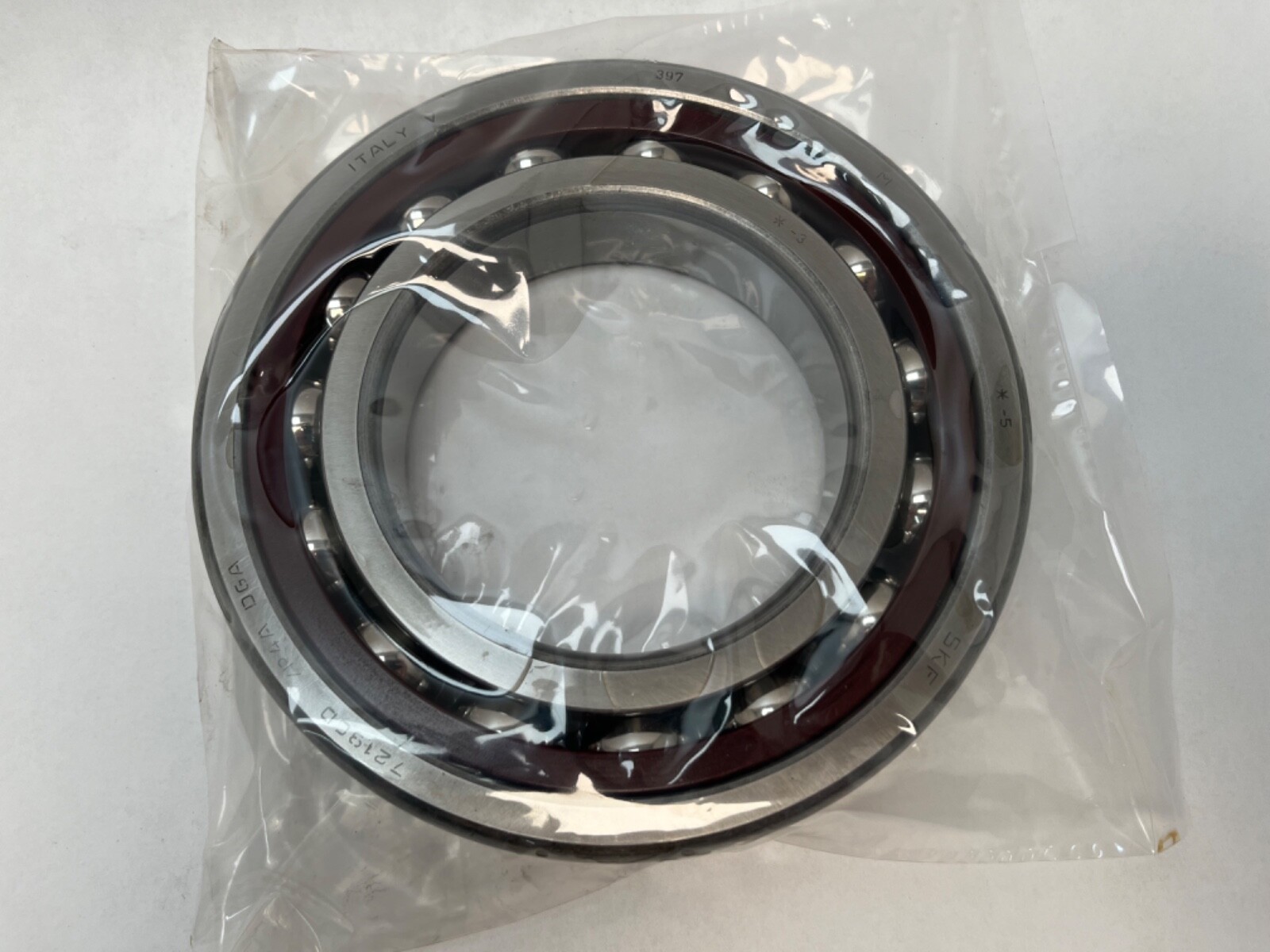

Super-precision angular contact ball bearing, 95 x 170 x 32 mm, 15° contact angle, extra light preload, P4A. SKF D design, universally matchable single bearing.

List Price

$334.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN7219 CDGA/P4A
Model7219 CD P4A DGA / 2M219WI CR DUL
Bearing TypeAngular Contact Ball Bearing, Open
ID95 mm
OD170 mm
Width32 mm

Technical Specifications

MaterialBearing Steel
Series7200
LubricantOil/Grease
PreloadExtra light (paired back-to-back or face-to-face)
Mpn Variants7219 CDGA/P4A, 7219-CDGA/P4A, 7219CDGAP4A, 7219CDP4ADGA, 7219-CD-P4A-DGA
Precision ClassABEC 7 / P4A
Additional AttributesBall diameter 23.812 mm; 15 balls; da min 107 mm; Da max 158 mm; ra max 2 mm; r1,2 min 2.1 mm; oil nozzle position dn 124.4 mm; reference grease quantity 34.3 cm3; axial stiffness 115 N/um (back-to-back pair)
Dynamic Load Rating138,000 N
Static Load Rating120,000 N
Precision RatingABEC 7 / P4A
Rolling ElementsBall
Item Weight2.64 kg (5.82 lb)
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed8,000 rpm grease; 13,000 rpm oil-air
Harmonization Code8482.10.50
Contact Angle15°
Mounting ArrangementUniversally matchable (back-to-back, face-to-face or tandem)
Industry Termssuper precision angular contact bearing; spindle bearing; machine tool bearing; universally matchable single; extra light preload bearing
Common MisspellingsSKF 7219 CDGA P4A; SKF 7219CDGA/P4A; SKF7219 CDGA/P4A; SKF 7219 CD GA P4A
Application TypesMachine tool spindles; grinding spindles; high-speed precision shafts

Cross-References

Cross Reference 1FAG B7219-C-T-P4S-UL - light preload
Cross Reference 2Fafnir 2MM219WI CR SUL - light preload
Cross Reference 3NSK 7219CTYNSULP4 - light preload, polyamide cage
Seller Part Number: B-FI2#9WPCPK

Product Description

What this part is:

SKF 7219 CDGA/P4A is a super precision, high-capacity D design single-row angular contact ball bearing, supplied as a universally matchable single bearing for back-to-back, face-to-face or tandem sets. Unit Quantity: 1 Pc. Bore Diameter: 95 mm. Outside Diameter: 170 mm. Width: 32 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Closure Type: Open. Item Weight: 2.64 kg (5.82 lb).

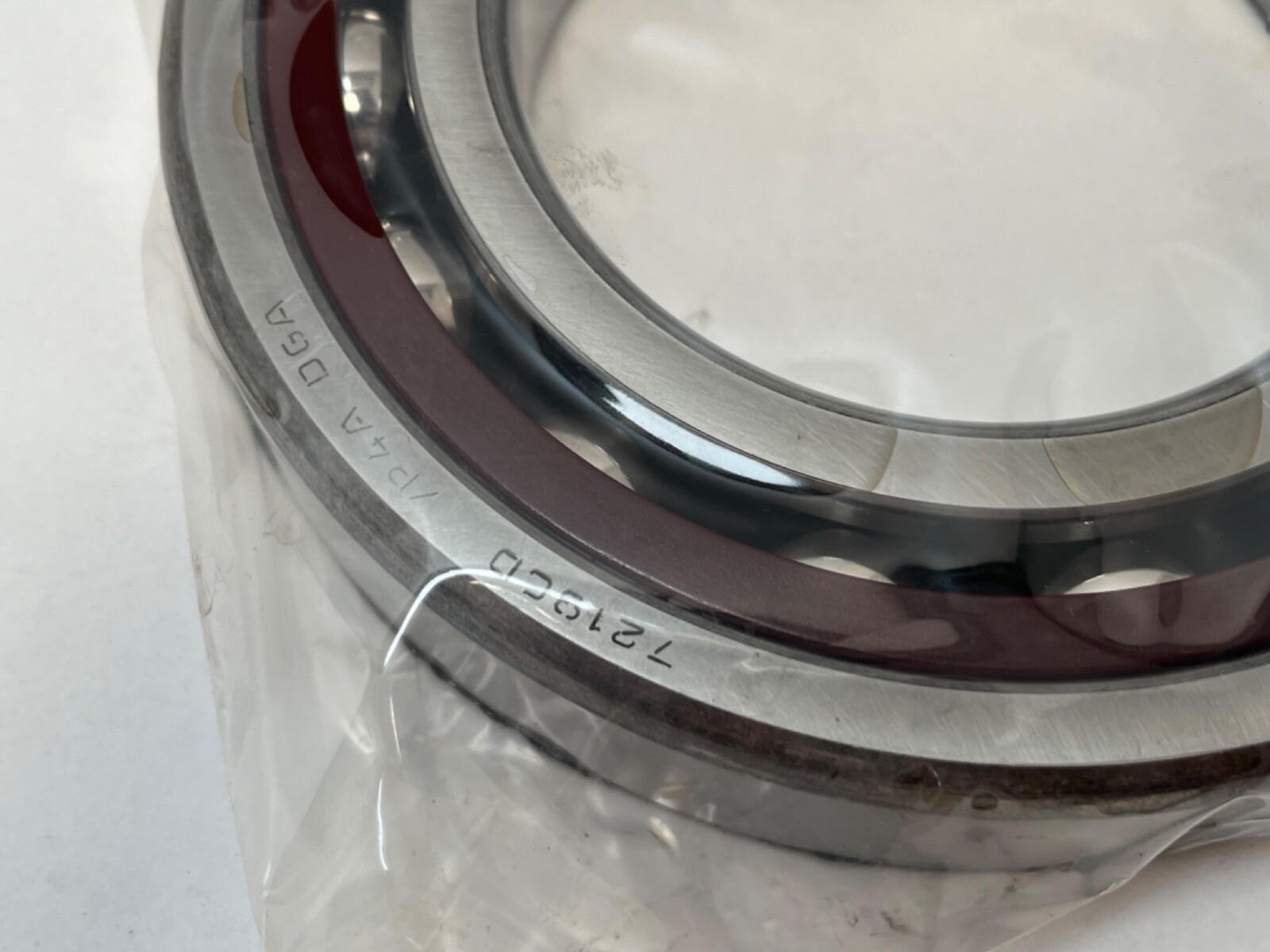

Decoding the designation:

7219 — ISO 72 series, bore code 19, 95 mm bore.

C — 15° contact angle.

D — SKF high-capacity D internal design.

GA — universally matchable single bearing, preload class A (extra light).

P4A — SKF tolerance class: ISO P4 dimensional accuracy with P2 running accuracy.

Specifications:

Dynamic Load Rating: 138,000 N. Static Load Rating: 120,000 N. Limiting Speed: 8,000 rpm on grease and 13,000 rpm on oil-air, single bearing. Preload: extra light, for back-to-back or face-to-face pairs. Axial Stiffness: 115 N/µm for a back-to-back pair. Ball Diameter: 23.812 mm. Number Of Balls: 15. Item Weight: 2.64 kg (5.82 lb). Series: 7200. Number Of Rows: 1.

Dimensions and mounting:

Shaft Abutment Diameter (da min): 107 mm. Housing Abutment Diameter (Da max): 158 mm. Fillet Radius (ra max): 2 mm. Chamfer (r1,2 min): 2.1 mm. Oil Nozzle Position (dn): 124.4 mm. Reference Grease Quantity: 34.3 cm³. Mounting Arrangement: universally matchable, back-to-back, face-to-face or tandem.

Compatibility and replacement:

Cross-references at the same size, 15° contact angle and P4-level precision but light preload: FAG B7219-C-T-P4S-UL; Fafnir 2MM219WI CR SUL; NSK 7219CTYNSULP4 (polyamide cage).

Frequently asked questions:

What are the size and contact angle of the SKF 7219 CDGA/P4A?

Bore 95 mm, outside diameter 170 mm, width 32 mm, with a 15° contact angle.

What do the GA and P4A suffixes mean?

GA is a universally matchable single bearing with preload class A (extra light). P4A is ISO P4 dimensional accuracy with P2 running accuracy.

What are the load ratings of this bearing?

Dynamic load rating 138,000 N and static load rating 120,000 N.
