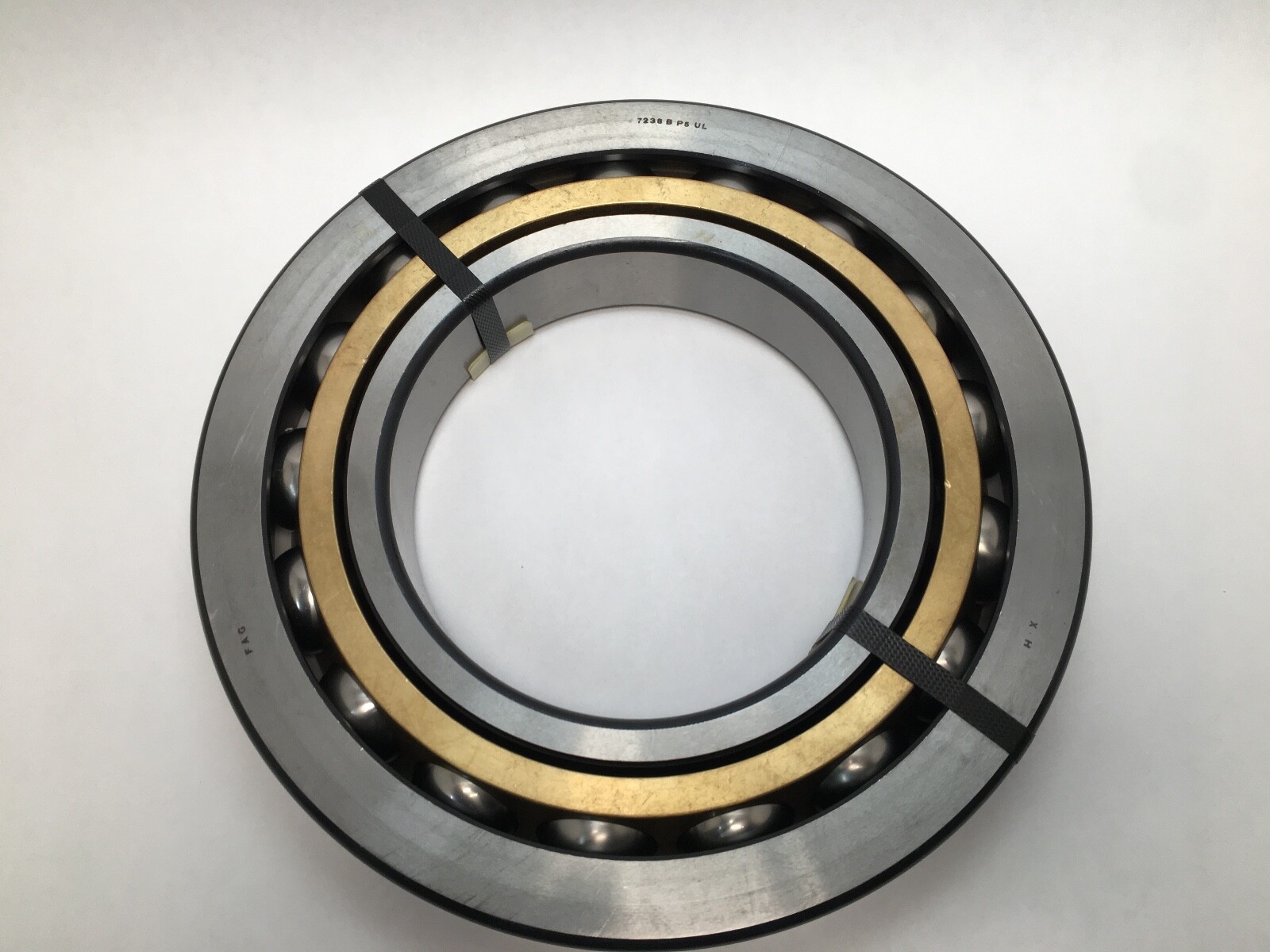

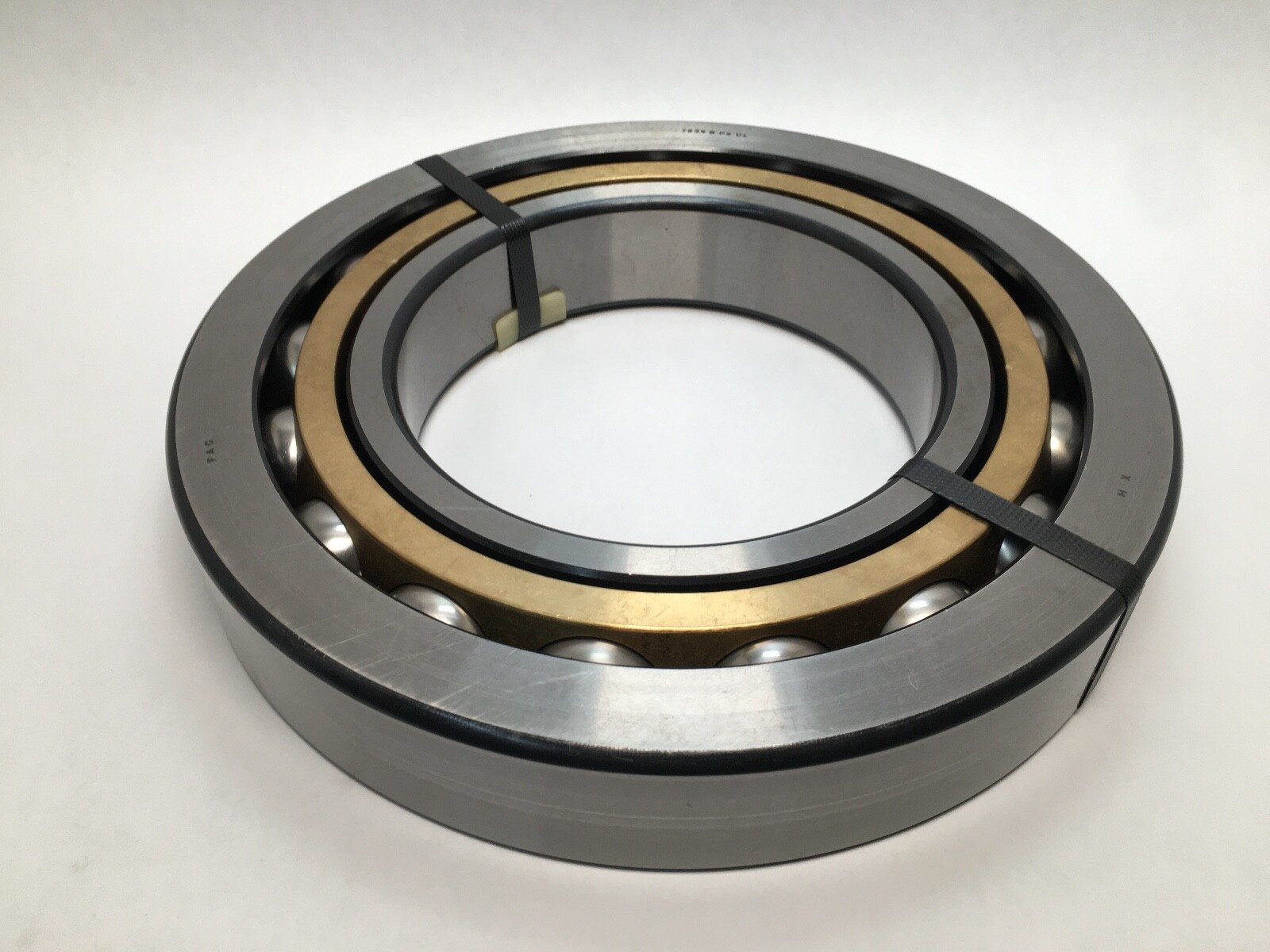

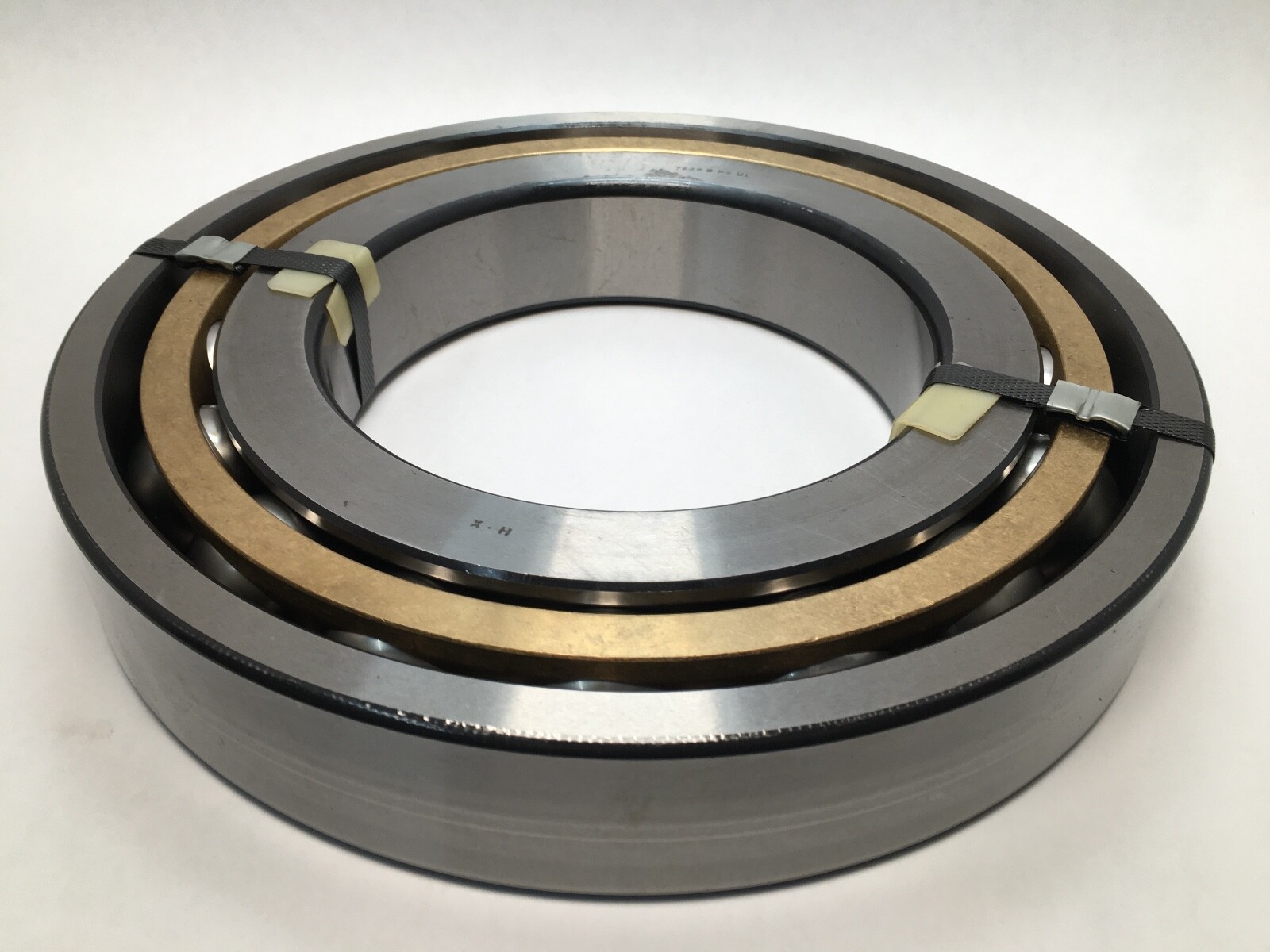

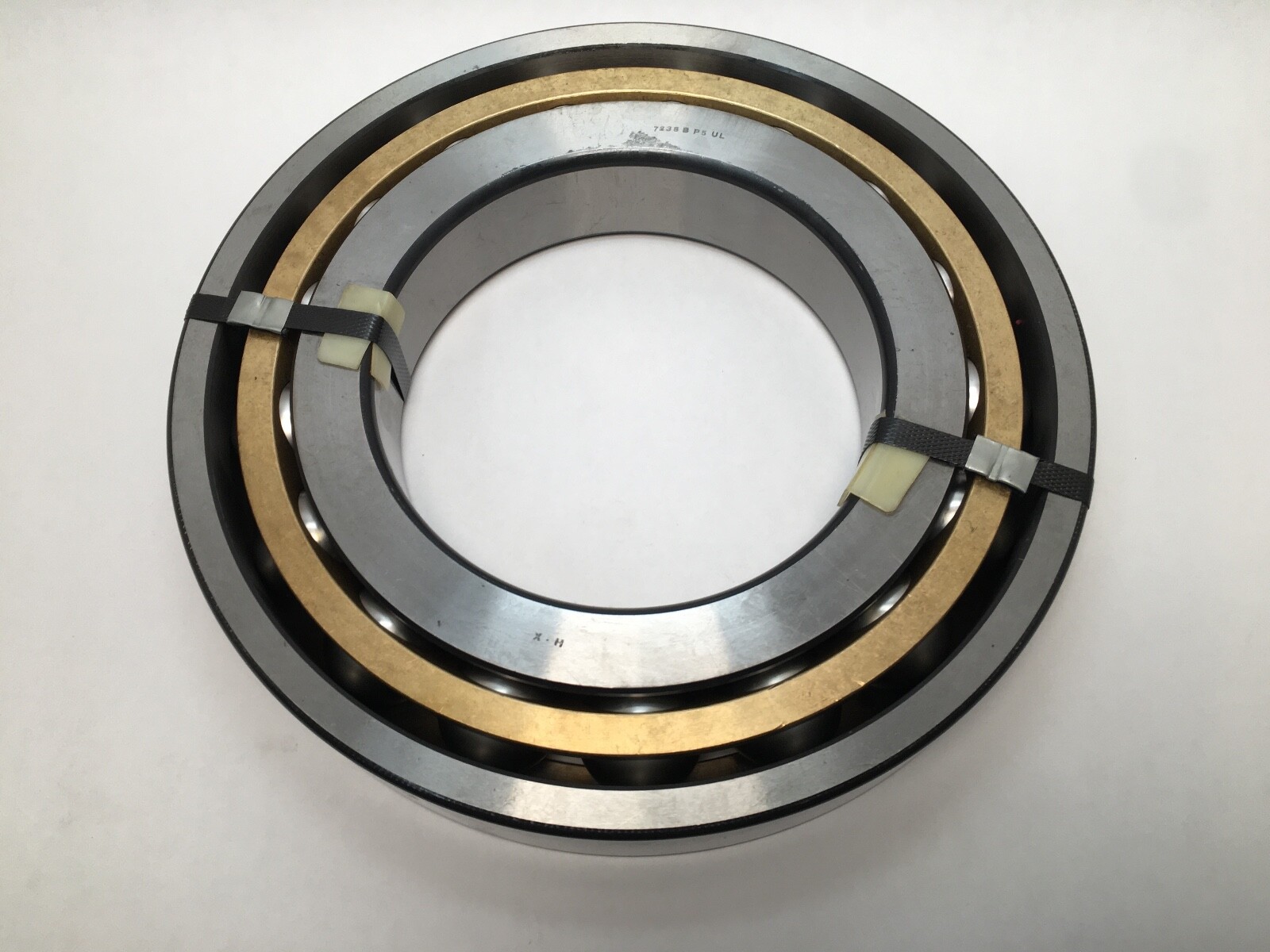

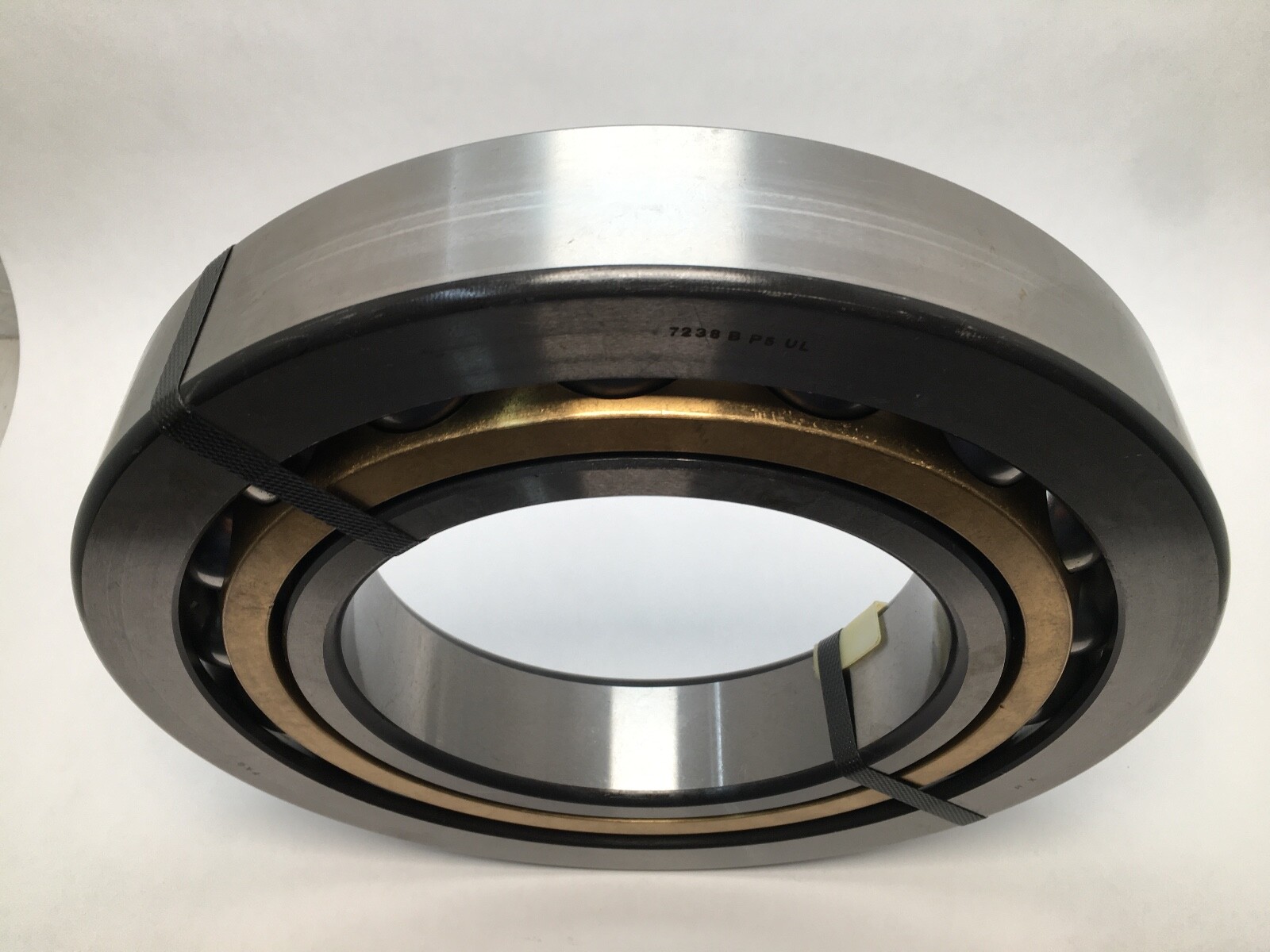

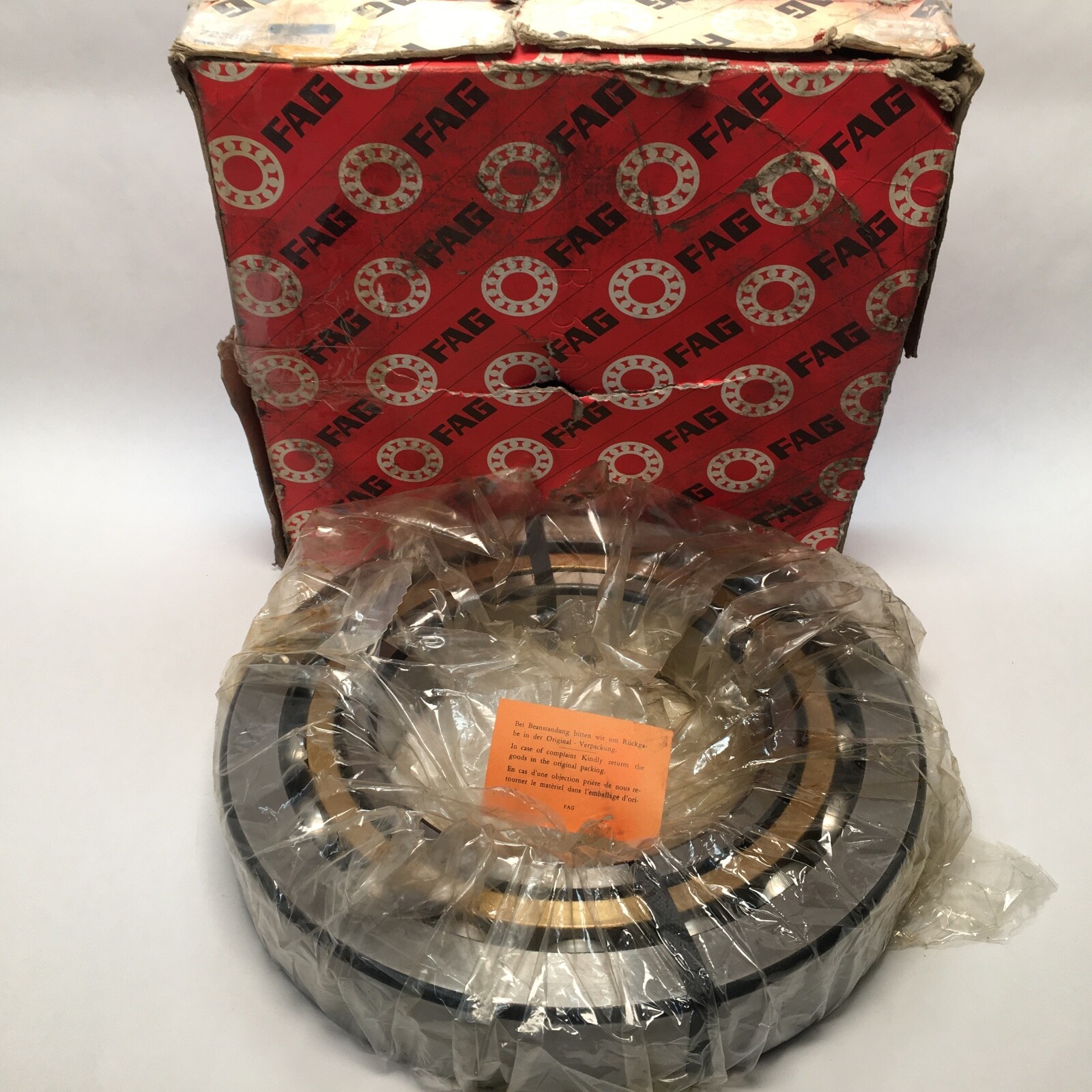

Single-row angular contact ball bearing, 190 x 340 x 55 mm, 40°, Light preload, P5 precision, solid brass cage. Dynamic load rating 300,000 N, universal.
List Price
$1,627.03
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle

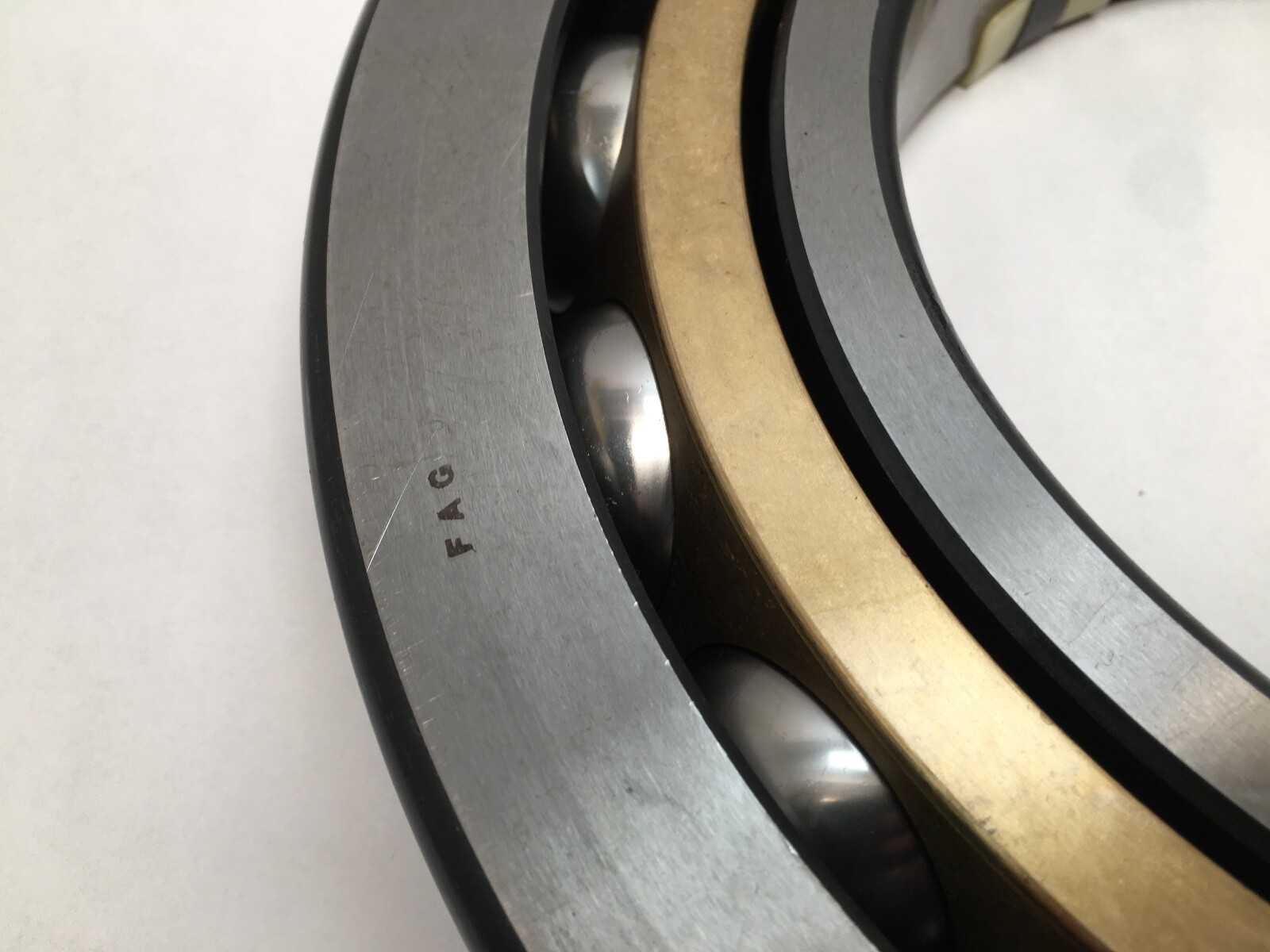

| MFR / Brand | FAG |
|---|---|
| MPN | 7238-B-MP-P5-UL |
| Model | 7238BMP.P5.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 190 mm |
| OD | 340 mm |
| Width | 55 mm |
| Material | Steel |
|---|---|
| Series | 72 |
| Preload | Light |
| Mpn Variants | 7238-B-MP-P5-UL, 7238BMP.P5.UL, 7238B-MP-P5-UL, 7238BMPP5UL, 7238B |
| Precision Class | ABEC 5 / P5 |
| Cage Type | Solid machined, ball guided |
| Dynamic Load Rating | 300,000 N |
| Static Load Rating | 425,000 N |
| Rolling Elements | Balls |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Mounting Arrangement | Universal (DB or DF), light preload |
| Cross Reference 1 | SKF 7238 BCBM |
|---|---|
| Cross Reference 2 | NSK 7238BW |
FAG 7238-B-MP-P5-UL is a single-row angular contact ball bearing in the 72 series, in P5 precision with light universal preload. Bore Diameter: 190 mm. Outside Diameter: 340 mm. Overall Width: 55 mm. Contact Angle: 40°. Preload: Light. Precision Class: ABEC 5 / P5. Rolling Elements: Ball.

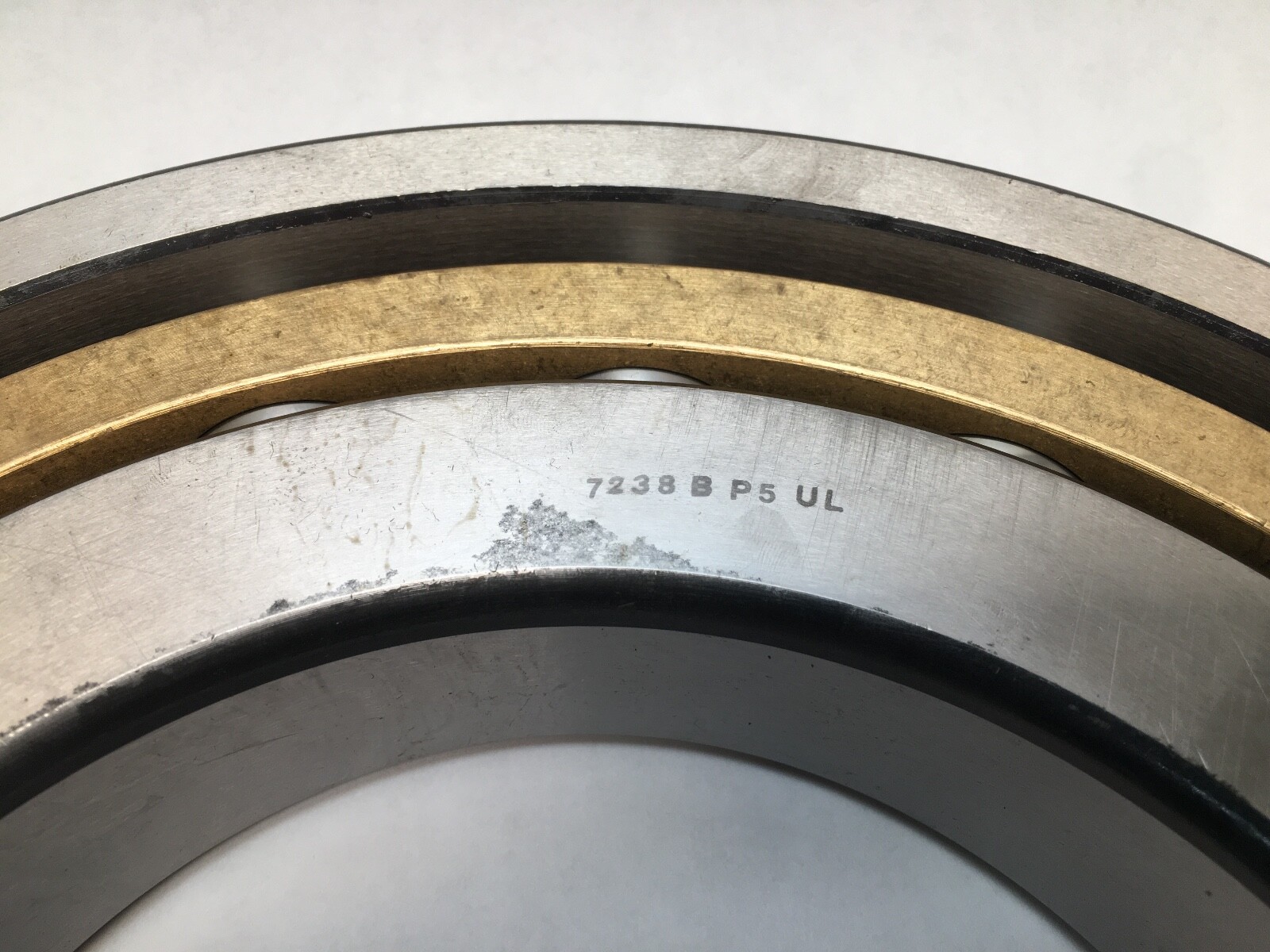

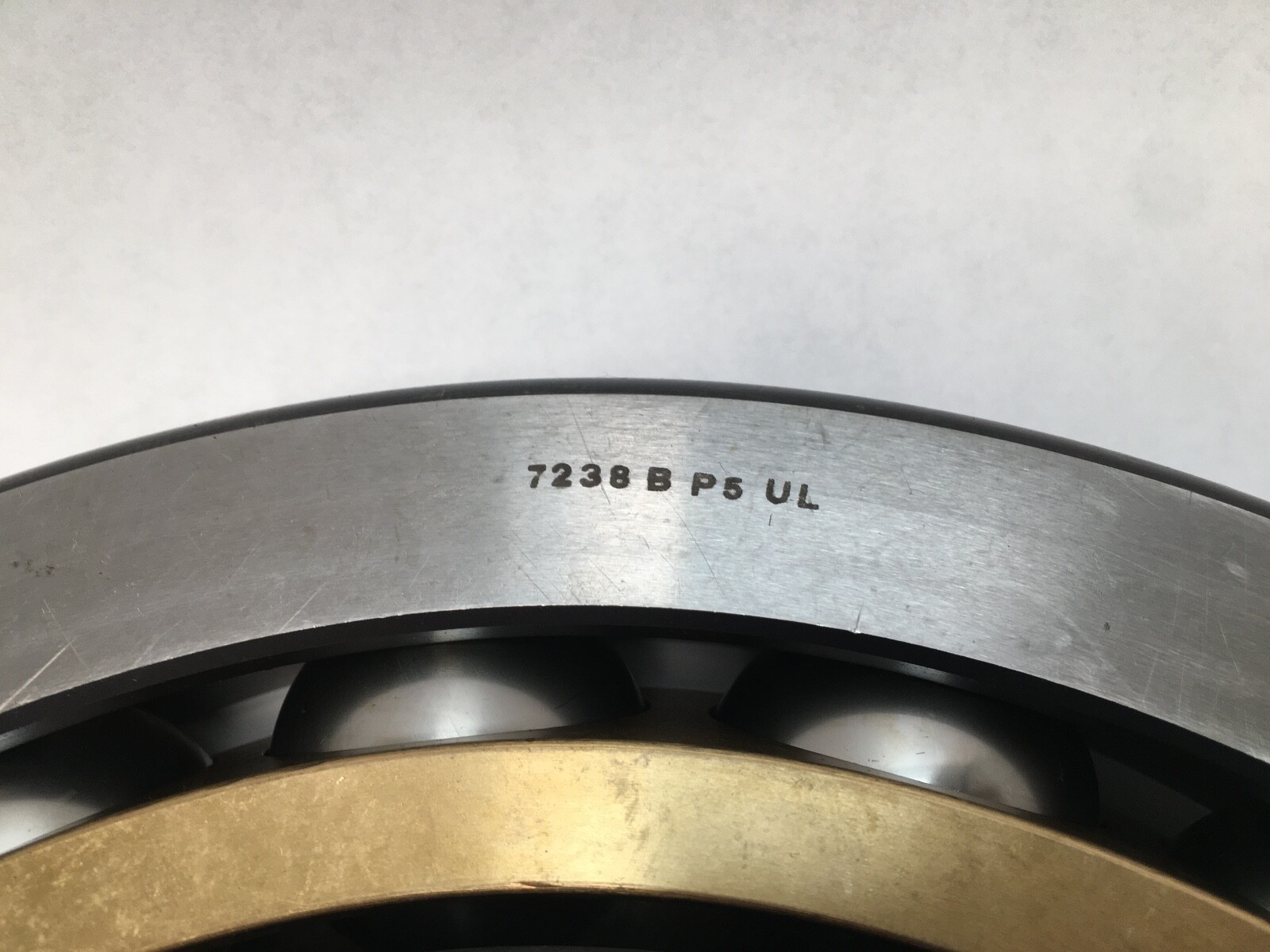

7238 — single-row angular contact, ISO dimension series 02; bore code 38 = 190 mm.
B — contact angle 40°.

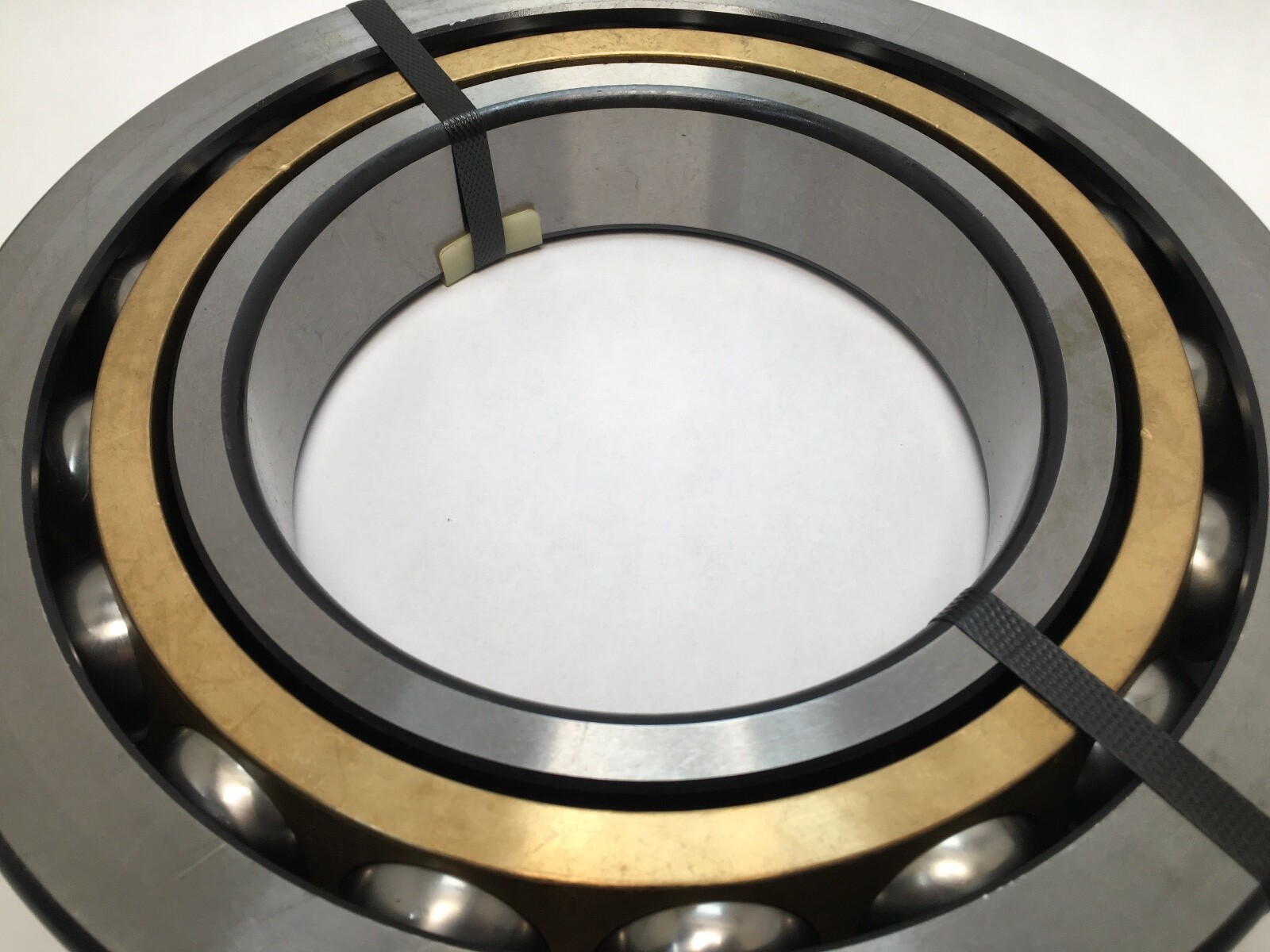

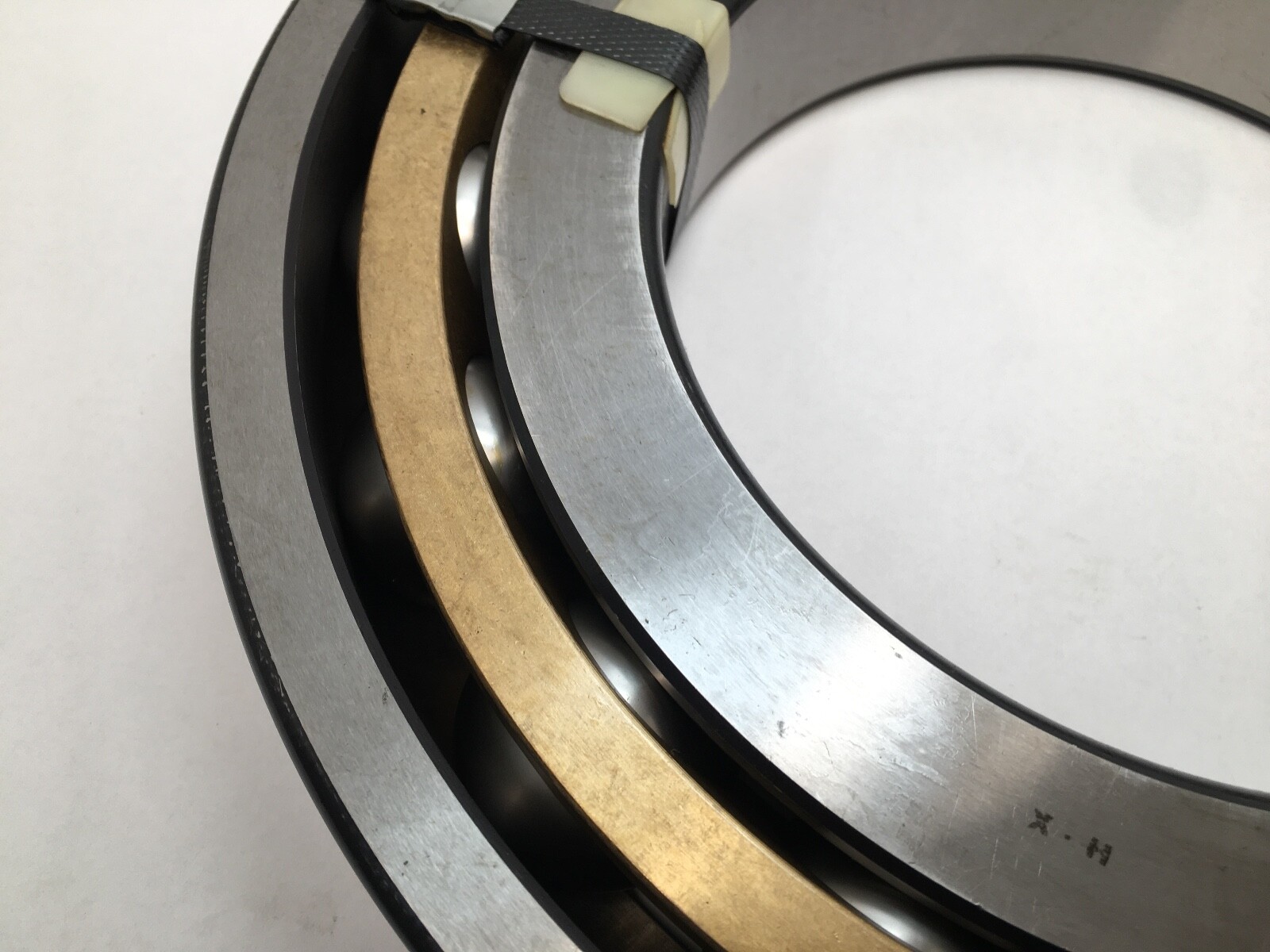

MP — solid machined brass cage, ball guided.
P5 — tolerance class ISO P5 / ABEC 5.
UL — universal bearing, Light preload when paired in back-to-back or face-to-face arrangement.
Dynamic Load Rating: 300,000 N. Static Load Rating: 425,000 N. Fatigue Load Limit: 13,600 N. Cage Material: Machined brass. The 40° angle and brass cage suit heavy combined radial and axial load; P5 running accuracy suits machine-tool and gearbox duty.
Shaft Shoulder Diameter: 207 mm min. Housing Shoulder Diameter: 323 mm max (331 mm on the back face). Inner Ring Shoulder Diameter: 250 mm. Outer Ring Shoulder Diameter: 281 mm. Pressure Cone Apex Distance: 138.7 mm. Minimum Chamfer: 4 mm (r), 1.5 mm (r1). Maximum Fillet Radius: 3 mm.
Same envelope and 40° angle as FAG 7238-B-MP, 7238-B-MP-UA and 7238-B-MP-UO, and as SKF 7238 BCBM and NSK 7238BW; tolerance class and preload differ between these executions.
