Availability:
1 in stock
Single-row tapered roller bearing cone, 3.5000 in bore, 2.2650 in inner ring width, imperial 850 series. Cone only; matching cups Timken 852 and 854.
List Price
$47.31
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 855 |
| Model | 855 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 3.5000 in |
| Width | 2.2650 in |
| Series | 850 |
|---|---|
| Material | Case-Carburized Steel |
| Dynamic Load Rating | 458,000 N |
| Static Load Rating | 630,000 N |
| Precision Rating | Not specified |
| Rolling Elements | Tapered Roller |
| Item Weight | 16.288 kg (35.91 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Base Number | 855 |
| Overall Width | 2.2650 in |
| Mpn Variants | 855, TIM-855, T855 |
| Compatible With Replaces | SKF 855, FAG K-855, NSK 855, NTN 4T-855, Koyo 855, Fersa 855, Bower 855, PEER 855 |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 458,000 N |
| Dynamic Axial Rating Ca90 | 68,000 N |
| K Factor | 1.74 |
| Cup Part Number | 852, 854 |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cone Part Number | 855 |
| Cone Width | 2.2650 in |
| Effective Center Location | -0.6 in (-15.2 mm) |
| Cross Reference 1 | SKF 855 |
|---|---|
| Cross Reference 2 | FAG K-855 |
| Cross Reference 3 | NSK 855 |
| Cross Reference 4 | NTN 4T-855 |
| Cross Reference 5 | Koyo 855 |
| Cross Reference 6 | Fersa 855 |
| Cross Reference 7 | Bower 855 |
| Cross Reference 8 | PEER 855 |

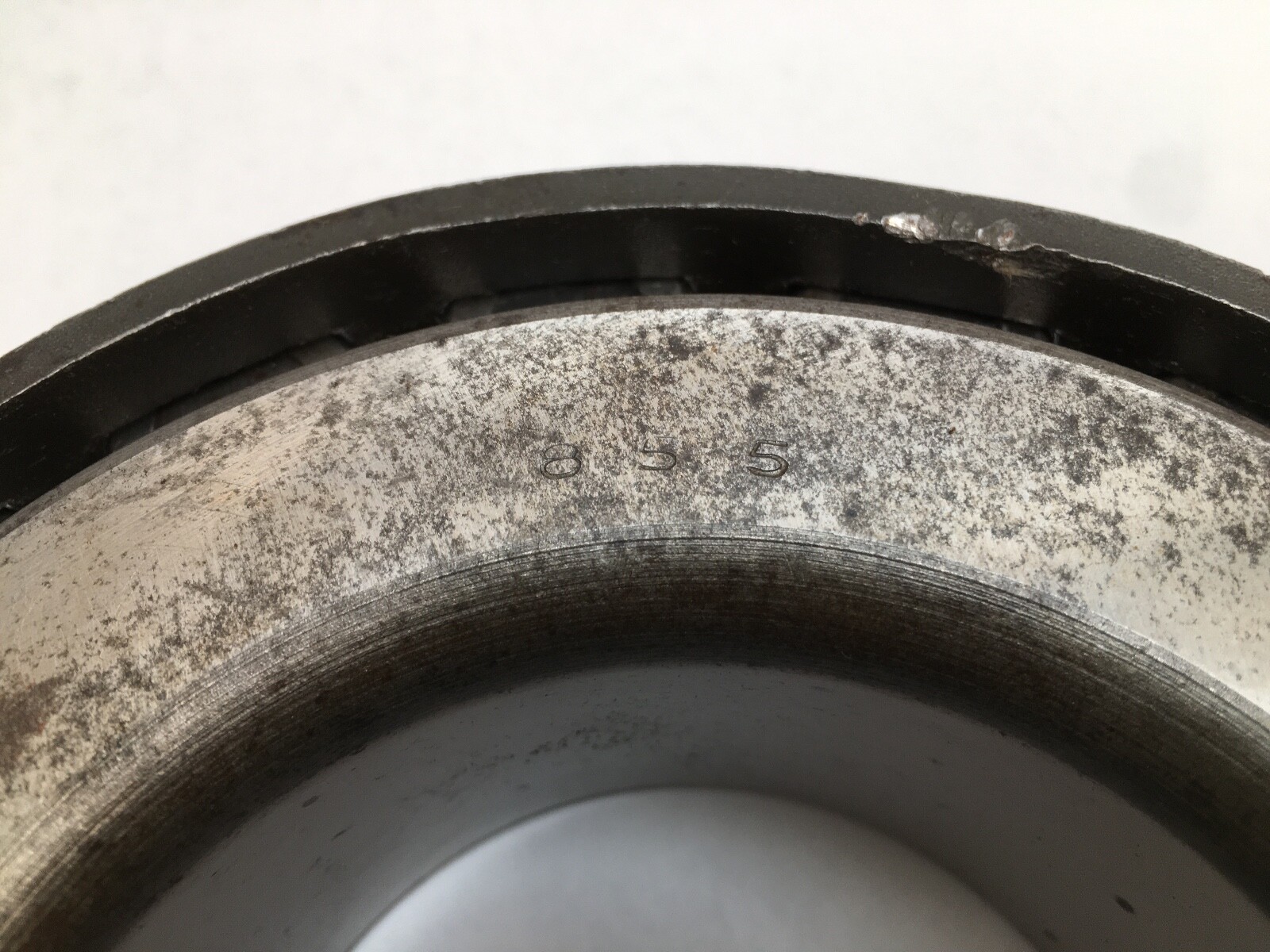

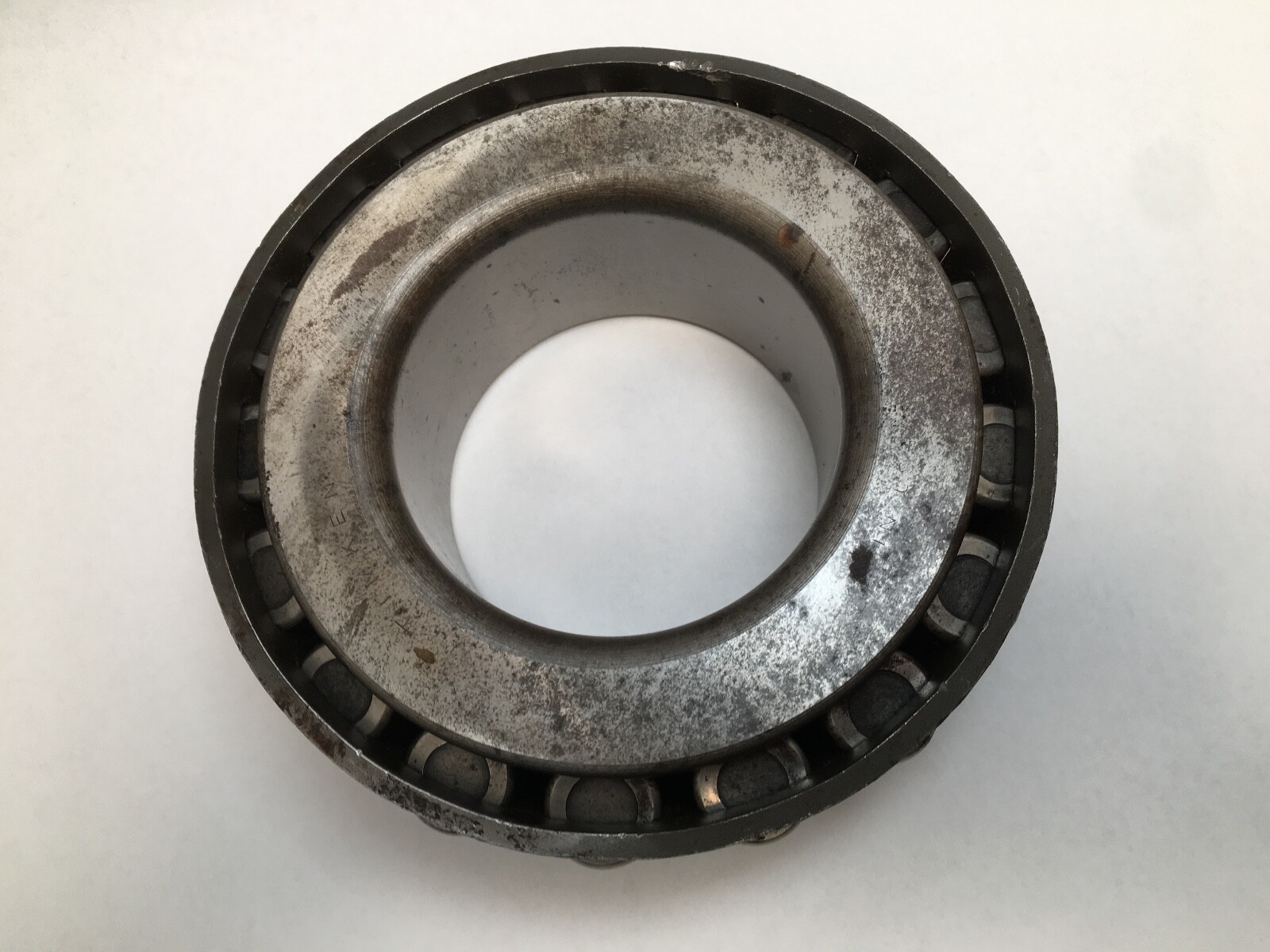

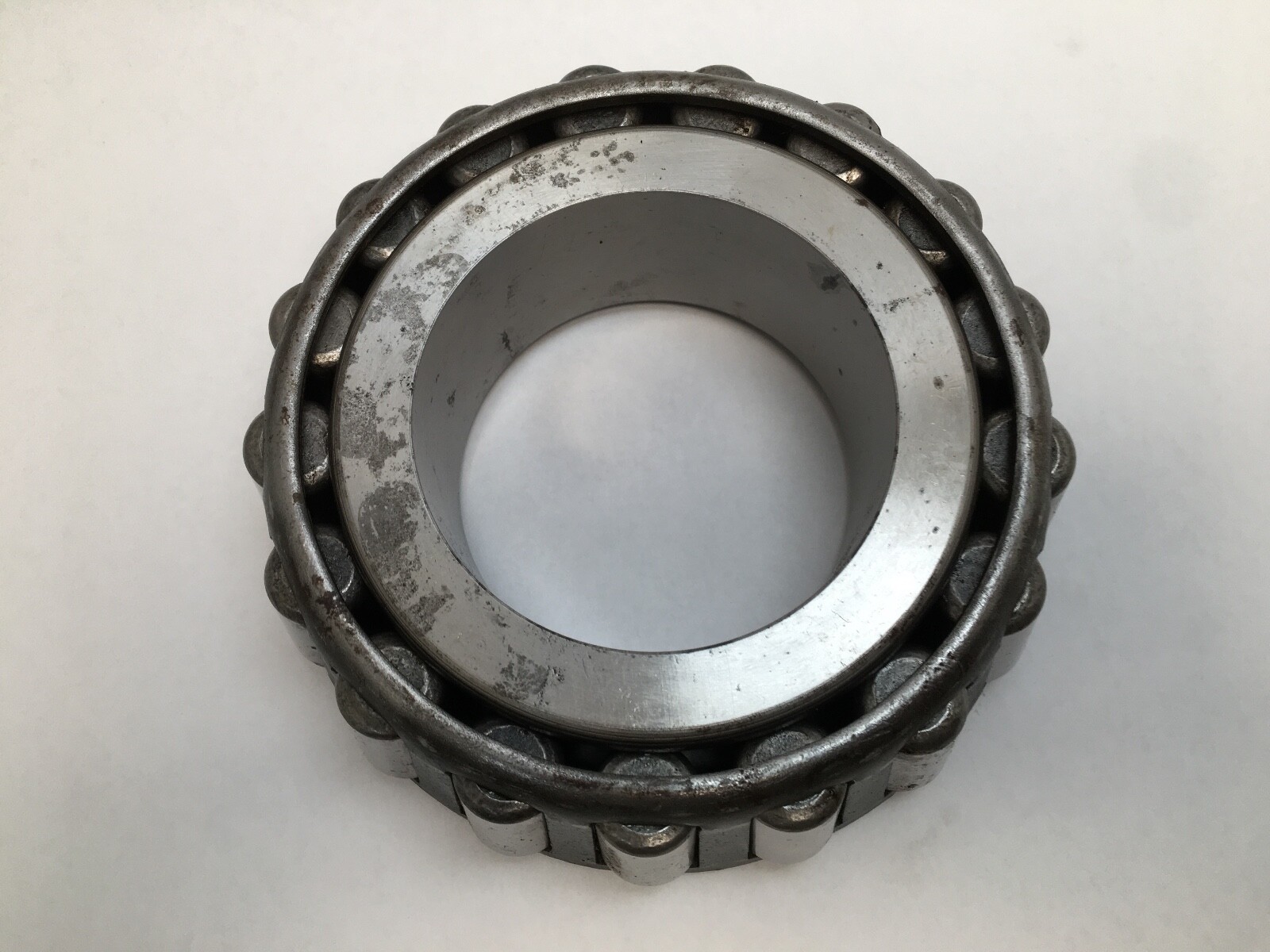

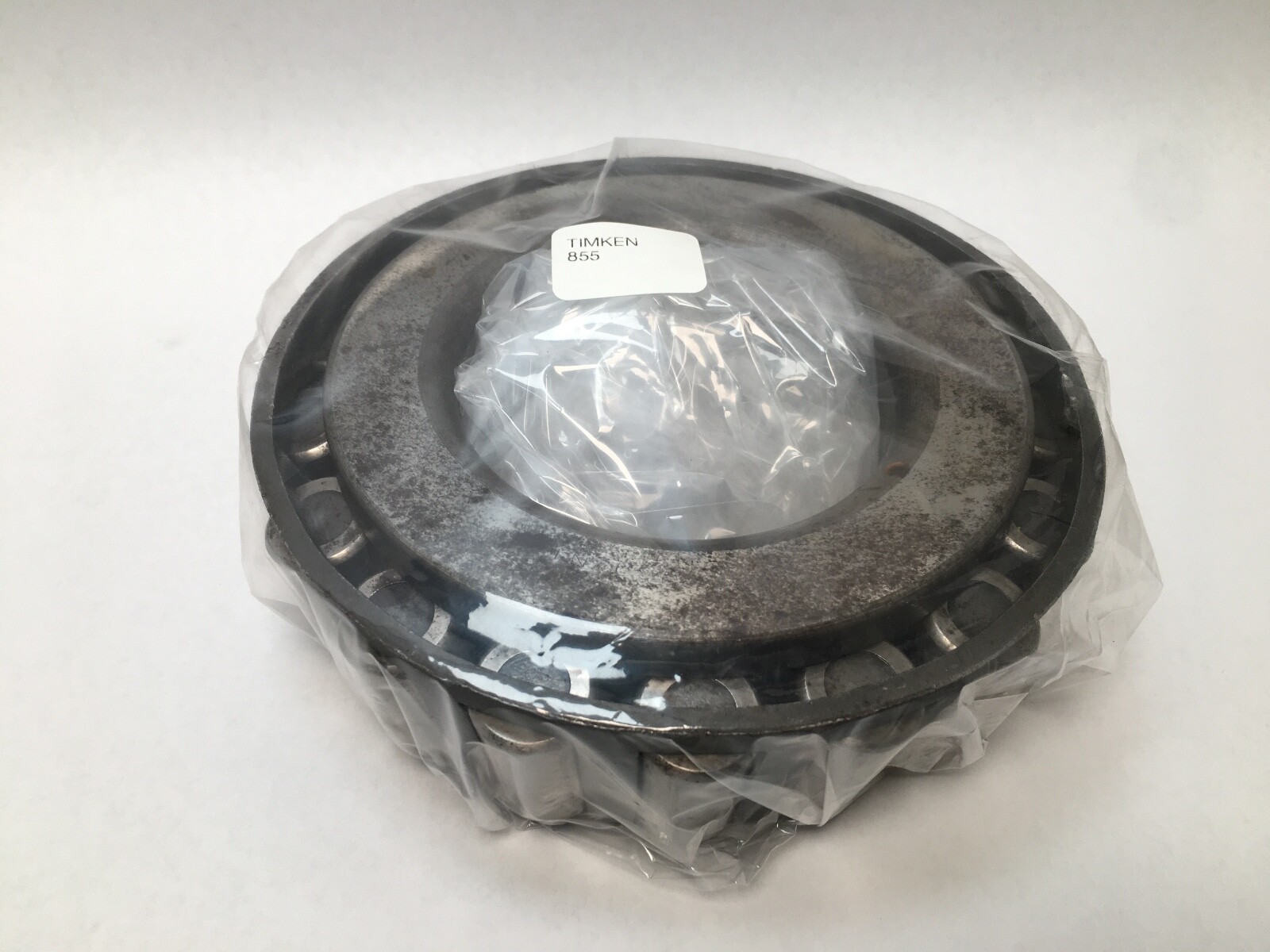

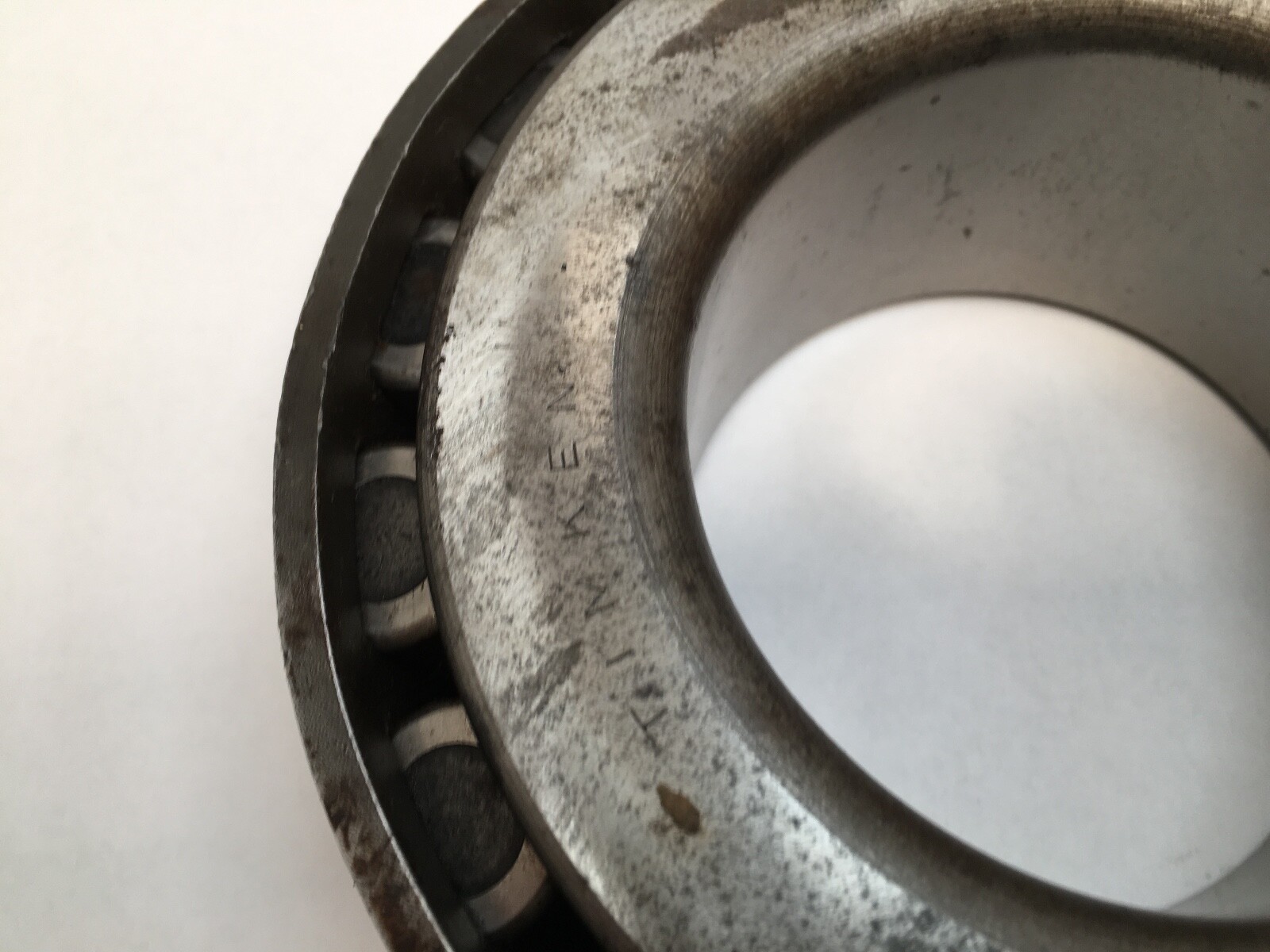

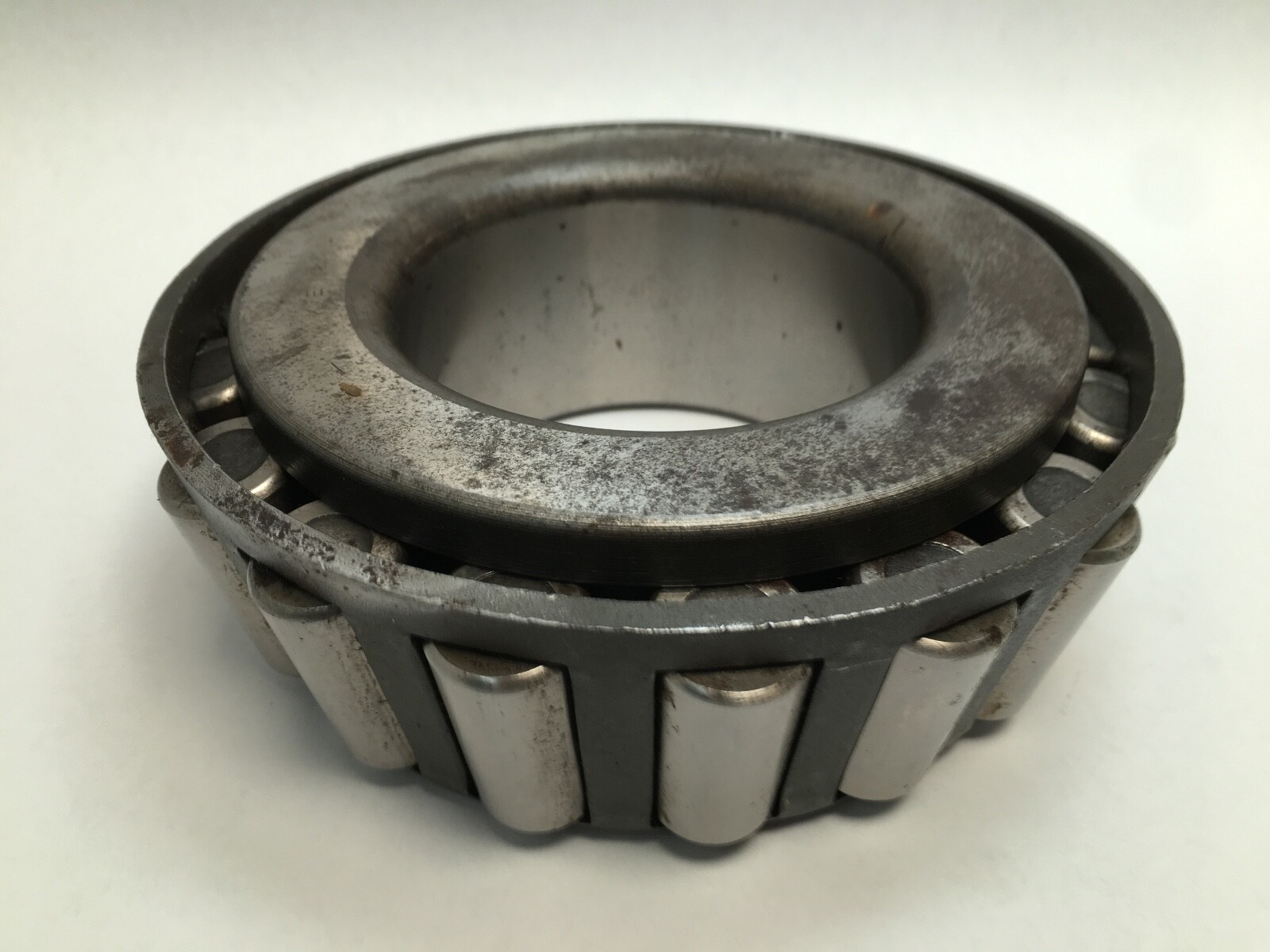

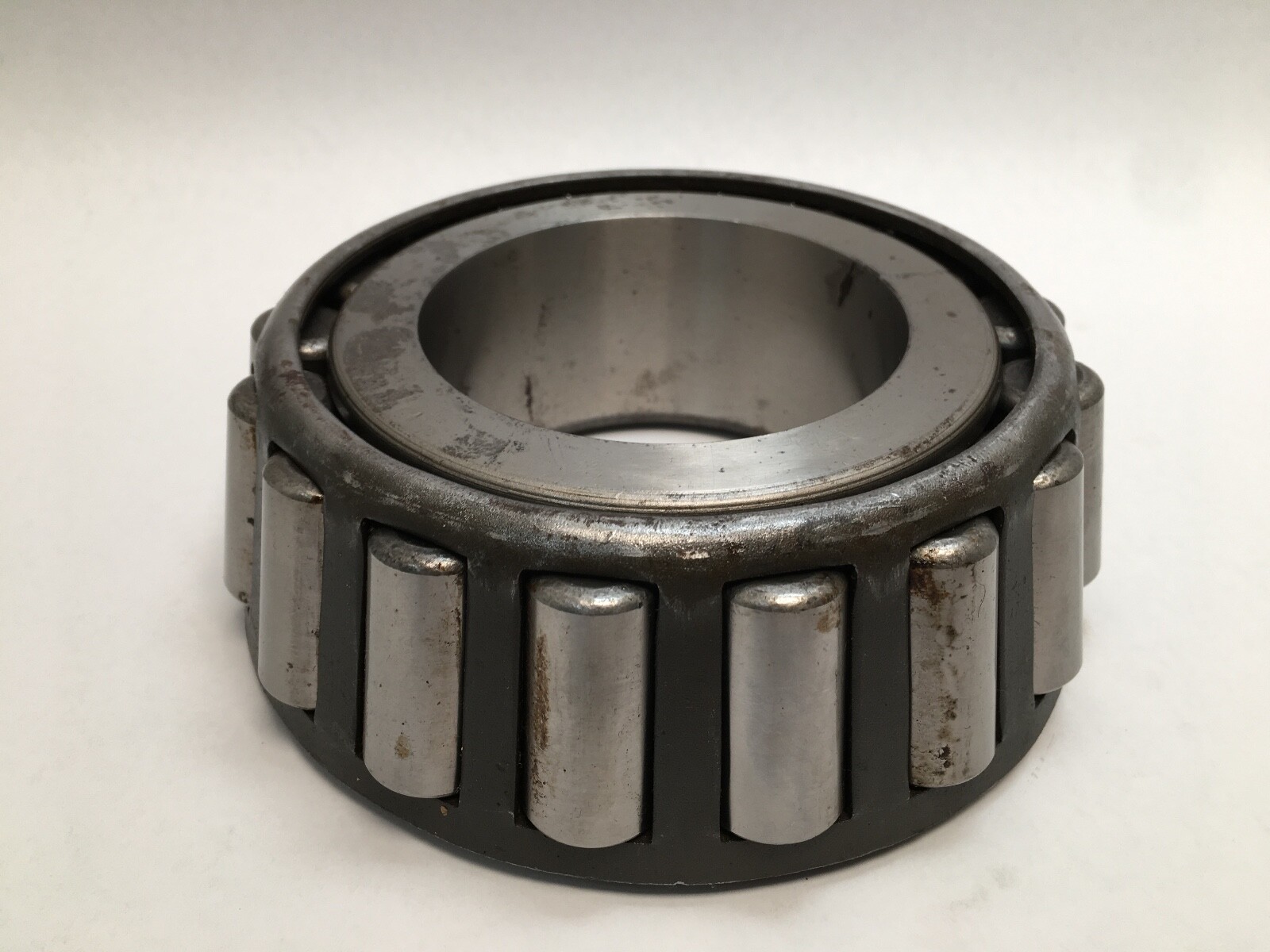

Timken 855 single-row tapered roller bearing cone, imperial 850 series. Cone only: the inner ring, tapered rollers and cage as one separable unit. Matching cups: Timken 852 and 854. Unit Quantity: 1 Pc.
855 — plain, unsuffixed Timken imperial cone number in the 850 series.
852 and 854 — Timken cup numbers that mate with the 855 cone.
Cone Part Number: 855. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-Carburized Steel. Design Units: Imperial. Item Weight: 16.288 kg (35.91 lb). Harmonization Code: 8482.20.00. Country of Origin: United States.
Dynamic Radial Load Rating (C1, 1M revs): 458,000 N (103,000 lbf). Dynamic Radial Load Rating (C90, 90M revs): 119,000 N (26,700 lbf). Dynamic Axial Rating (Ca90): 68,000 N (15,300 lbf). Static Radial Load Rating (C0): 630,000 N (142,000 lbf). K Factor: 1.74. G1 Factor: 264.1. G2 Factor: 44.9. Geometry Factor (Cg): 0.107.
Bore Diameter (d): 3.5000 in (88.9 mm). Inner Ring Width (B): 2.2650 in (57.531 mm). Effective Center Location: –0.6 in (–15.2 mm). Max Shaft Fillet Radius: 0.310 in (7.9 mm).
Shaft Backing Shoulder Diameter, frontface (da): 4.06 in (103 mm). Backface (db): 4.65 in (118 mm). Cage Location relative to Backface (Aa): 0.15 in (3.8 mm). Cage Location relative to Frontface (Ab): 0.06 in (1.5 mm).
Cross-references: SKF 855, FAG K-855, NSK 855, NTN 4T-855, Koyo 855, Fersa 855, Bower 855, PEER 855. Mating cups: Timken 852 and 854.
Bore Diameter: 3.5000 in (88.9 mm). Inner Ring Width: 2.2650 in (57.531 mm).
Timken 852 and 854.
Dynamic Radial Load Rating (C1): 458,000 N. Static Radial Load Rating (C0): 630,000 N.
