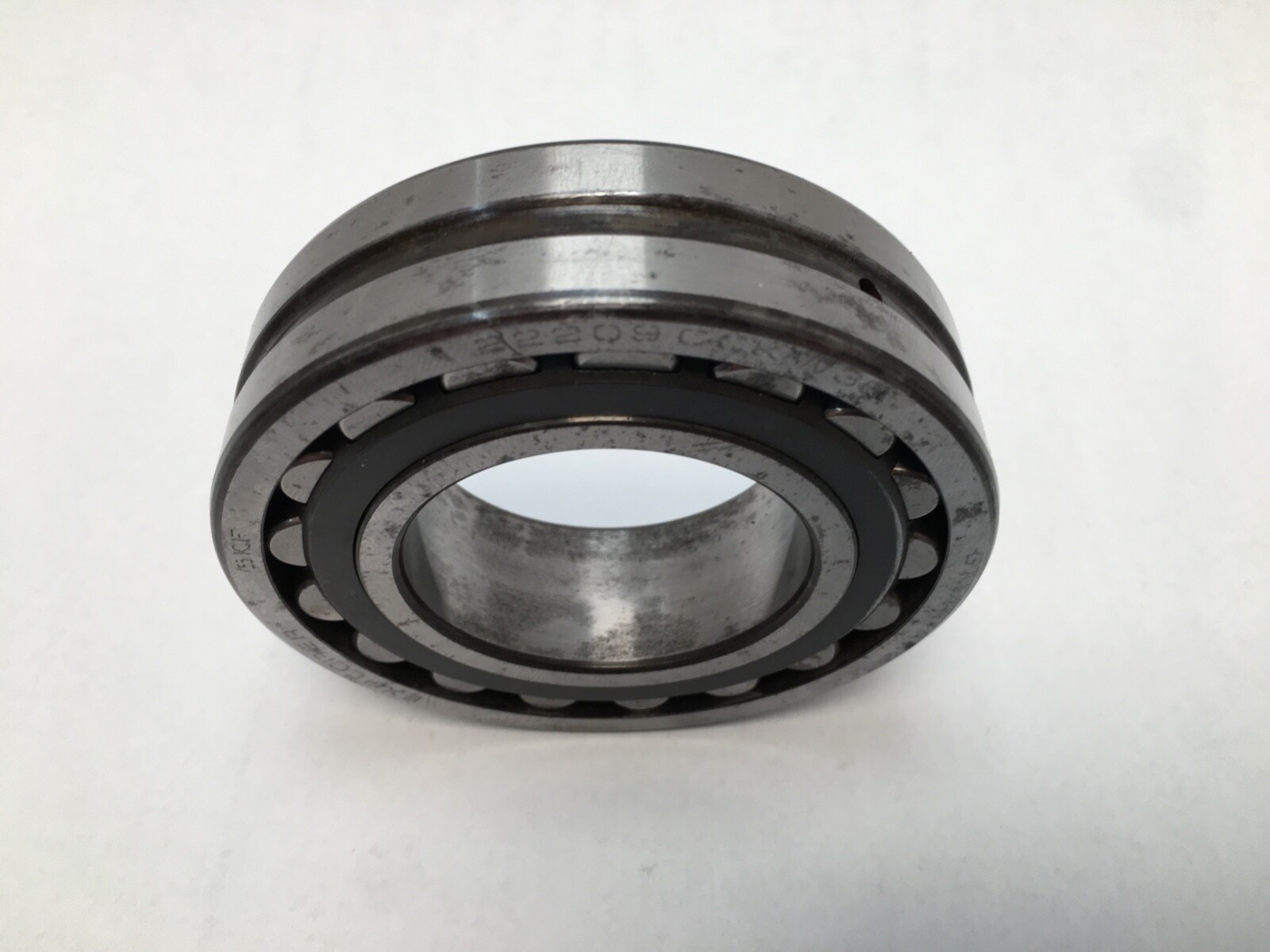

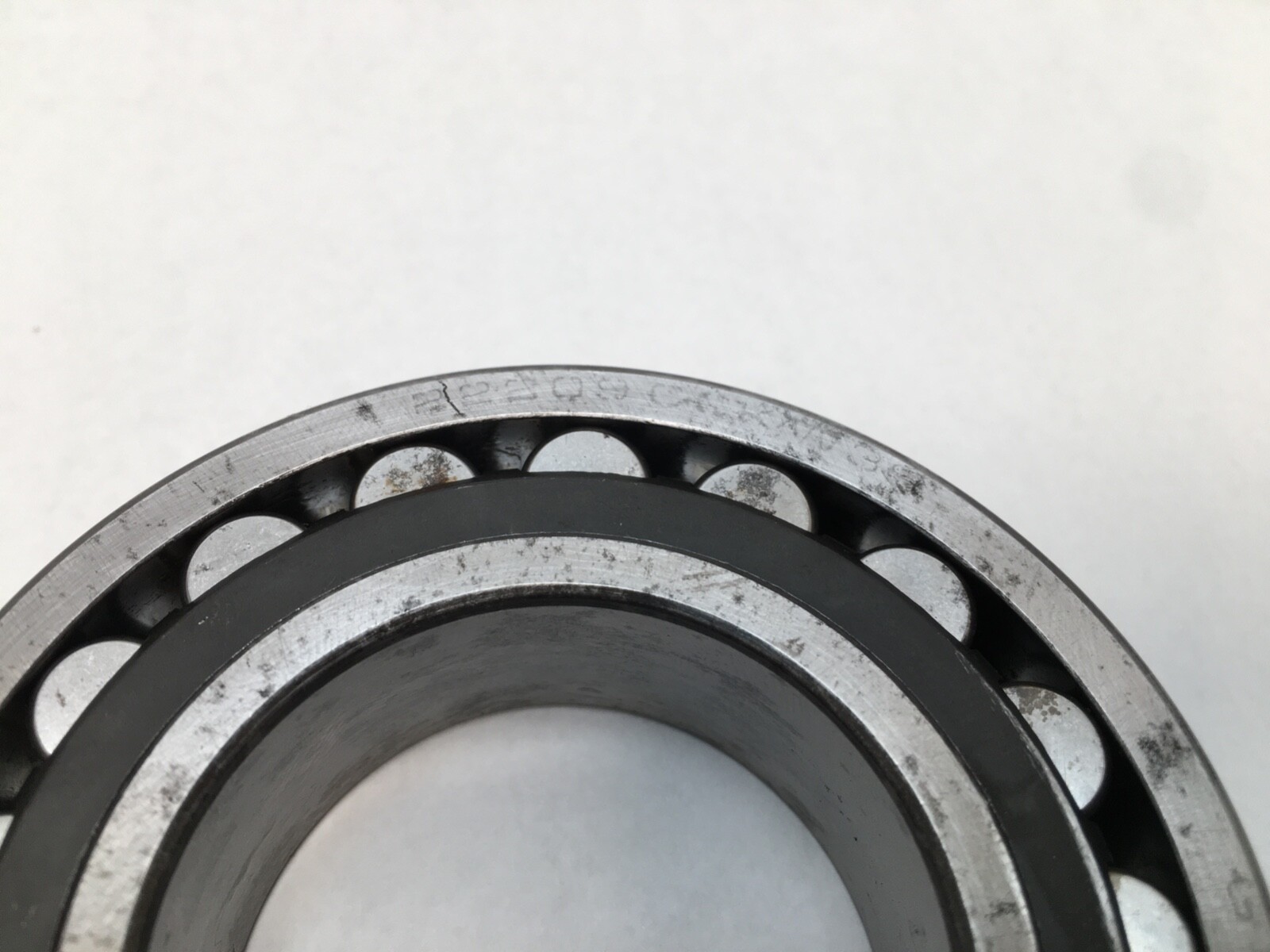

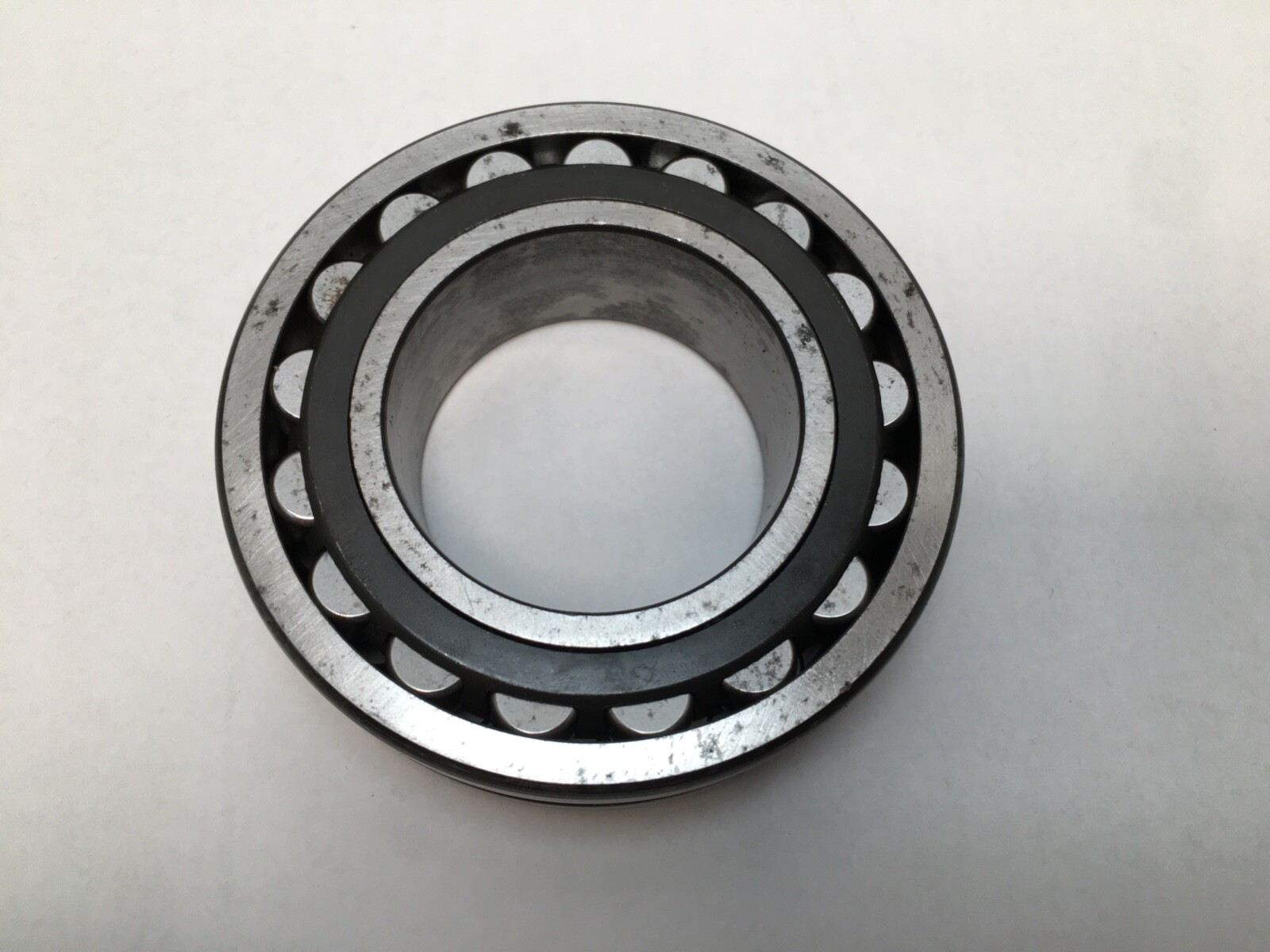

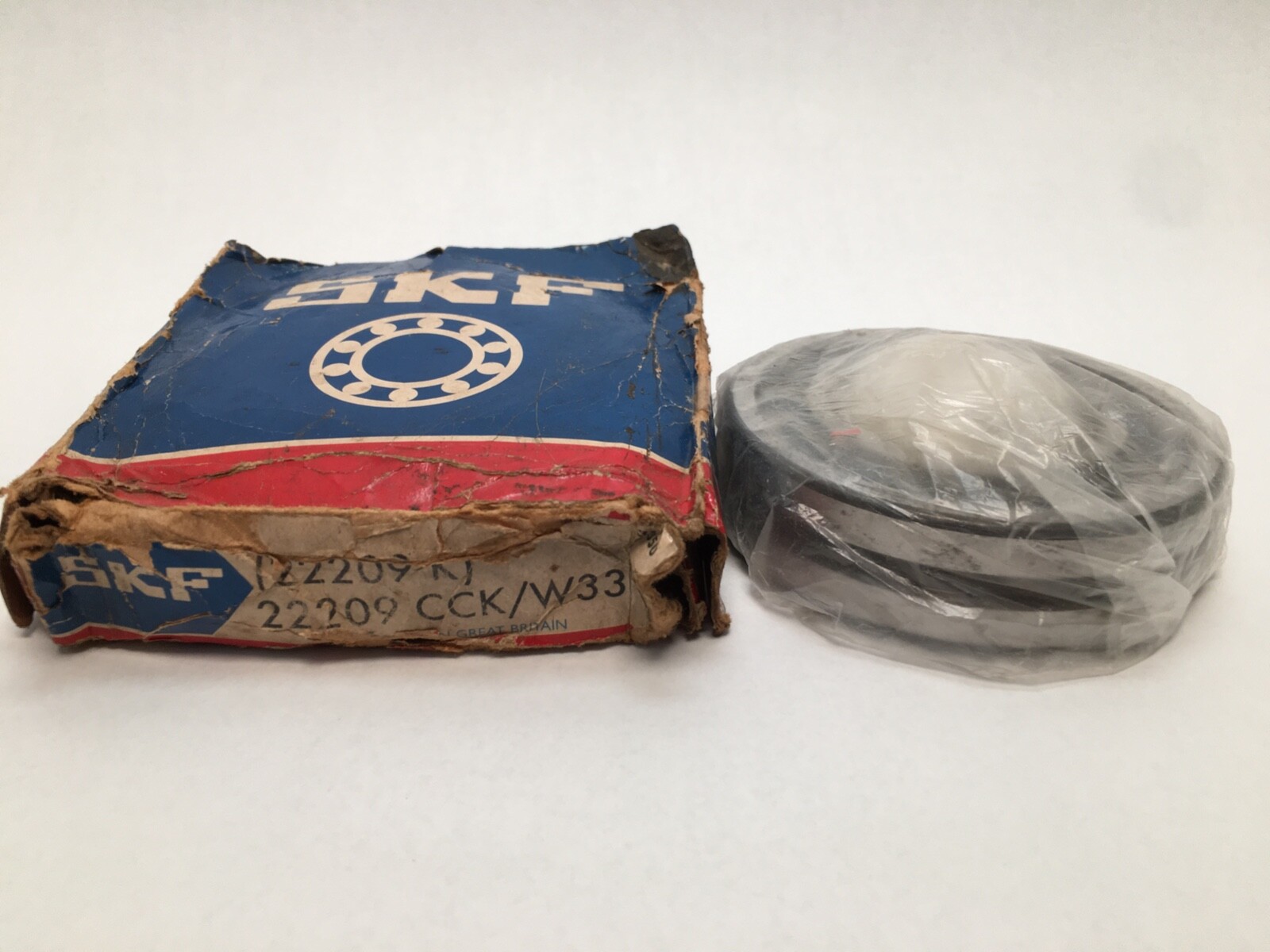

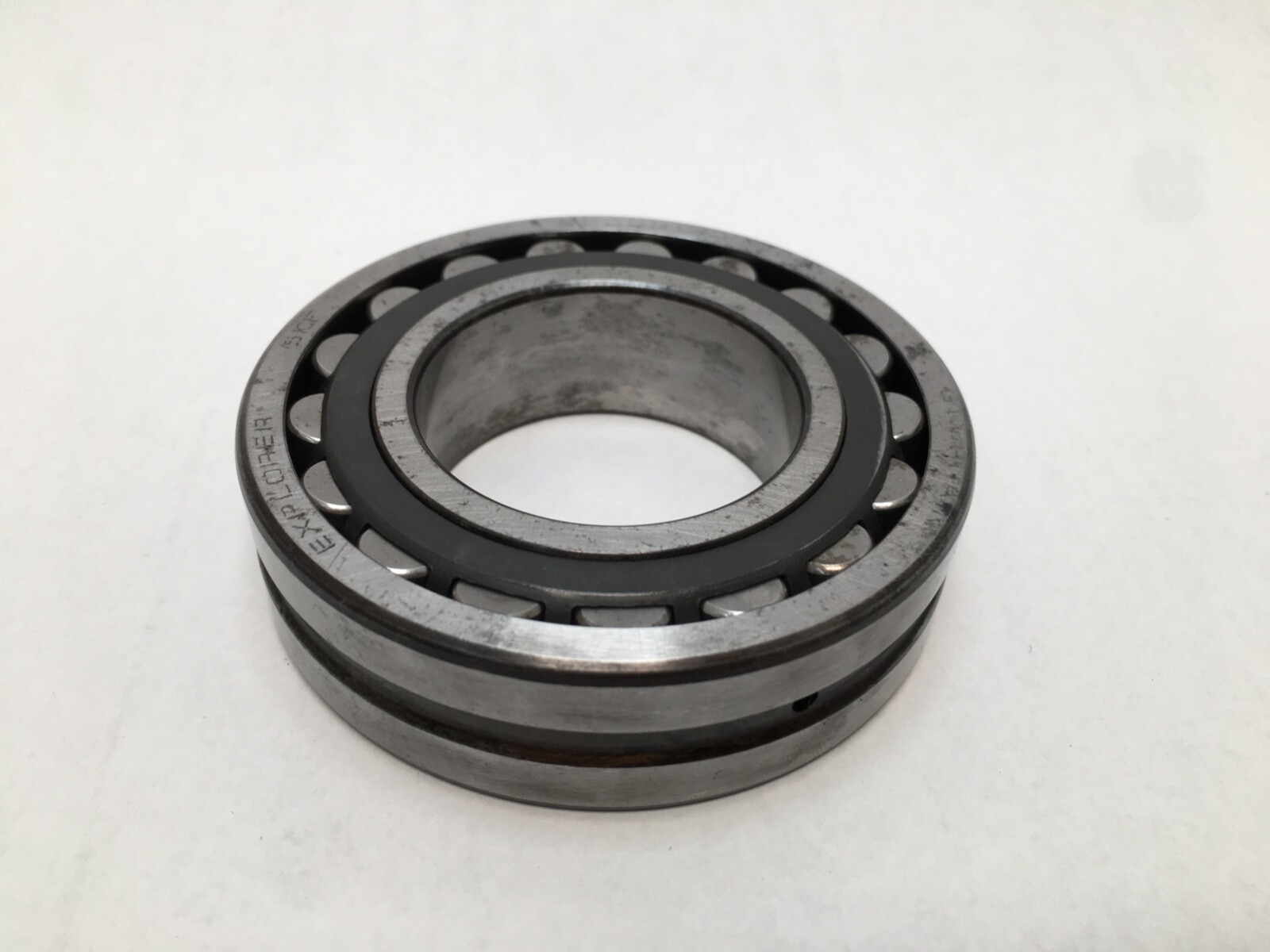

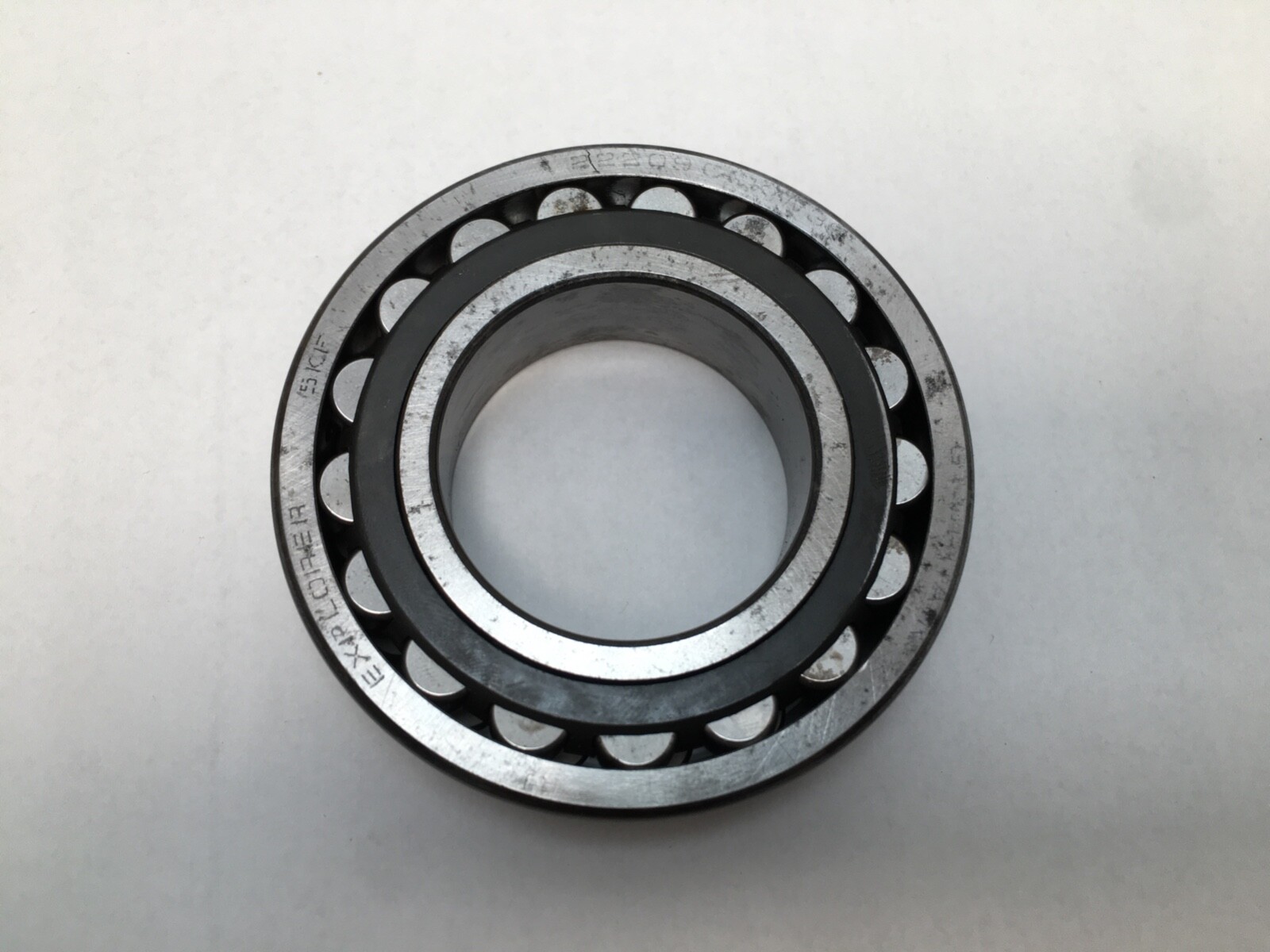

Spherical roller bearing, 45 mm tapered bore (1:12), 85 mm OD, 23 mm wide, W33 lubrication groove. SKF 22209 CCK/W33 with CC pressed steel cages.
List Price
$41.58
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 CCK/W33 |
| GTIN | 7316576652004 |
| Model | 22209CCKW33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 222 |
|---|---|
| Material | Bearing Steel |
| Cage Type | Window-type, pressed, with guide ring |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Internal Clearance | CN |
| Base Number | 22209 |
| Overall Width | 23 mm |
| Mpn Variants | 22209CCKW33, 22209 CC K W33, 22209-CCK-W33, 22209CCK/W33 |
| Compatible With Replaces | H309 adapter sleeve, 40 mm shaft |
| Lubricant | grease or oil |
| Relubrication Feature | W33 groove with three lubrication holes |
| Harmonization Code | 8482.30.00 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; tapered bore spherical roller; W33 groove bearing; double row roller bearing |
| Common Misspellings | SKF 22209CCKW33; SKF 22209 CC K W33; SKF 22209-CCK-W33; SKF 22209CCK/W33 |
| Application Types | Gearboxes; conveyors; fans and blowers; vibrating screens; general industrial machinery |
| Cross Reference 1 | FAG 22209-E1-K - E1 design, higher capacity |
|---|---|
| Cross Reference 2 | NSK 22209CKE4 - E design, higher capacity |
| Cross Reference 3 | NTN 22209BK - B design |
| Cross Reference 4 | Timken 22209KEJW33 - E design, higher capacity |
| Cross Reference 5 | SNR 22209EAKW33 - EA design, pressed steel cage |
The SKF 22209 CCK/W33 is a double-row spherical roller bearing from the 222 series with a 1:12 tapered bore and a relubrication groove in the outer ring. The sphered outer raceway lets the bearing self-align under shaft deflection or mounting misalignment.
22209 — SKF spherical roller bearing, 222 dimension series, bore code 09 = 45 mm.
CC — two window-type pressed steel cages with a loose guide ring.
K — tapered bore, taper 1:12.

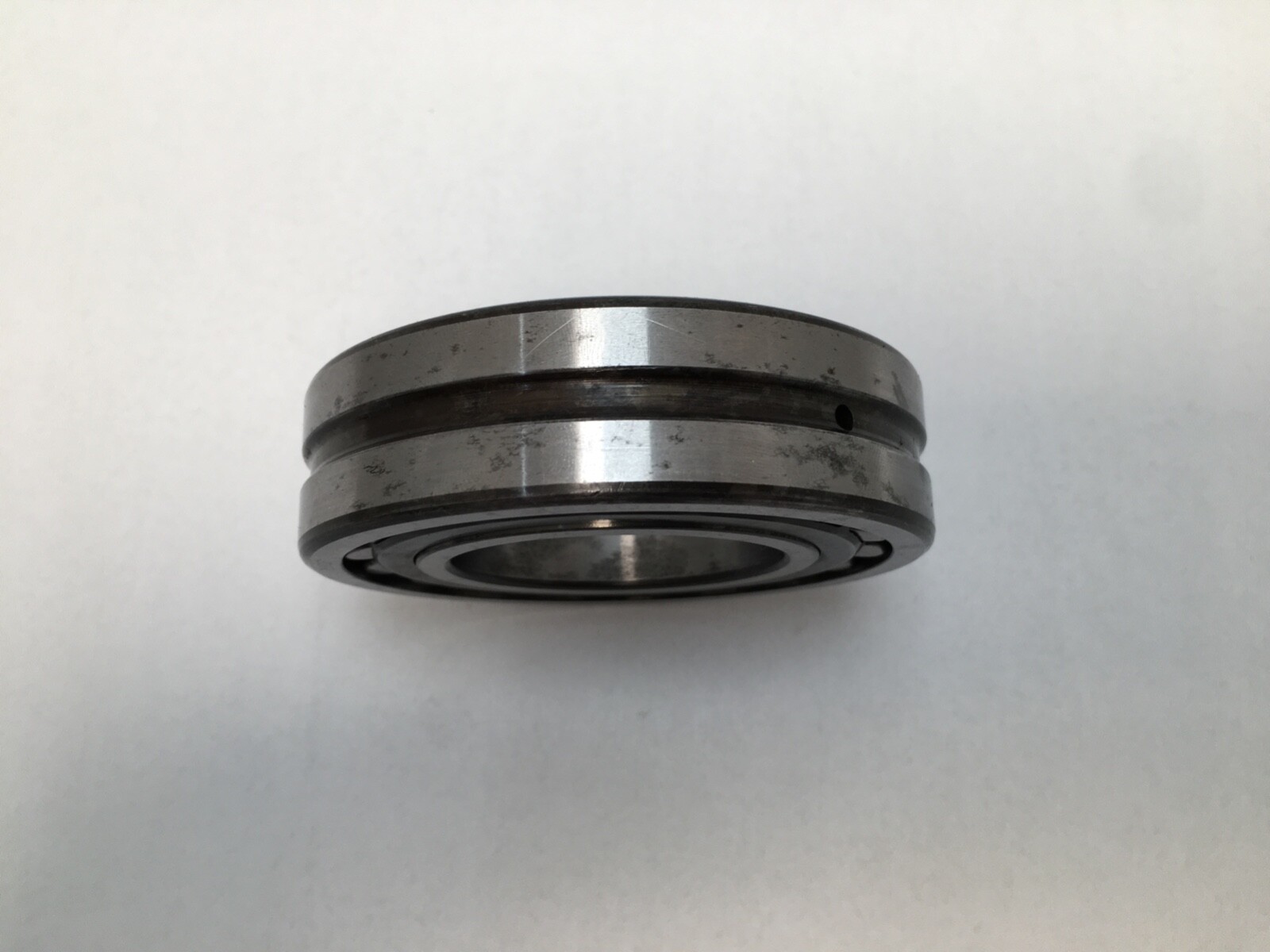

W33 — annular groove with three radial lubrication holes in the outer ring.
Bearing Type: Spherical Roller Bearing. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered 1:12. Cage Type: Window-type, pressed, with guide ring. Cage Material: Pressed steel. Closure Type: Open. Internal Clearance: CN. Lubricant: grease or oil. Series: 222.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. The tapered bore mounts on an H309 adapter sleeve for a 40 mm shaft, with a KM9 locknut and MB9 lock washer.
Same envelope as FAG 22209-E1-K, NSK 22209CKE4, NTN 22209BK, Timken 22209KEJW33 and SNR 22209EAKW33. Tapered-bore, W33-grooved executions from these makers share the 45 x 85 x 23 mm boundary dimensions.
45 mm, tapered at 1:12. It mounts on an H309 adapter sleeve for a 40 mm shaft.
Yes. It is a double-row spherical roller bearing with a sphered outer raceway, so it self-aligns to accommodate shaft misalignment.
An H309 adapter sleeve with a KM9 locknut and MB9 lock washer on a 40 mm shaft.
