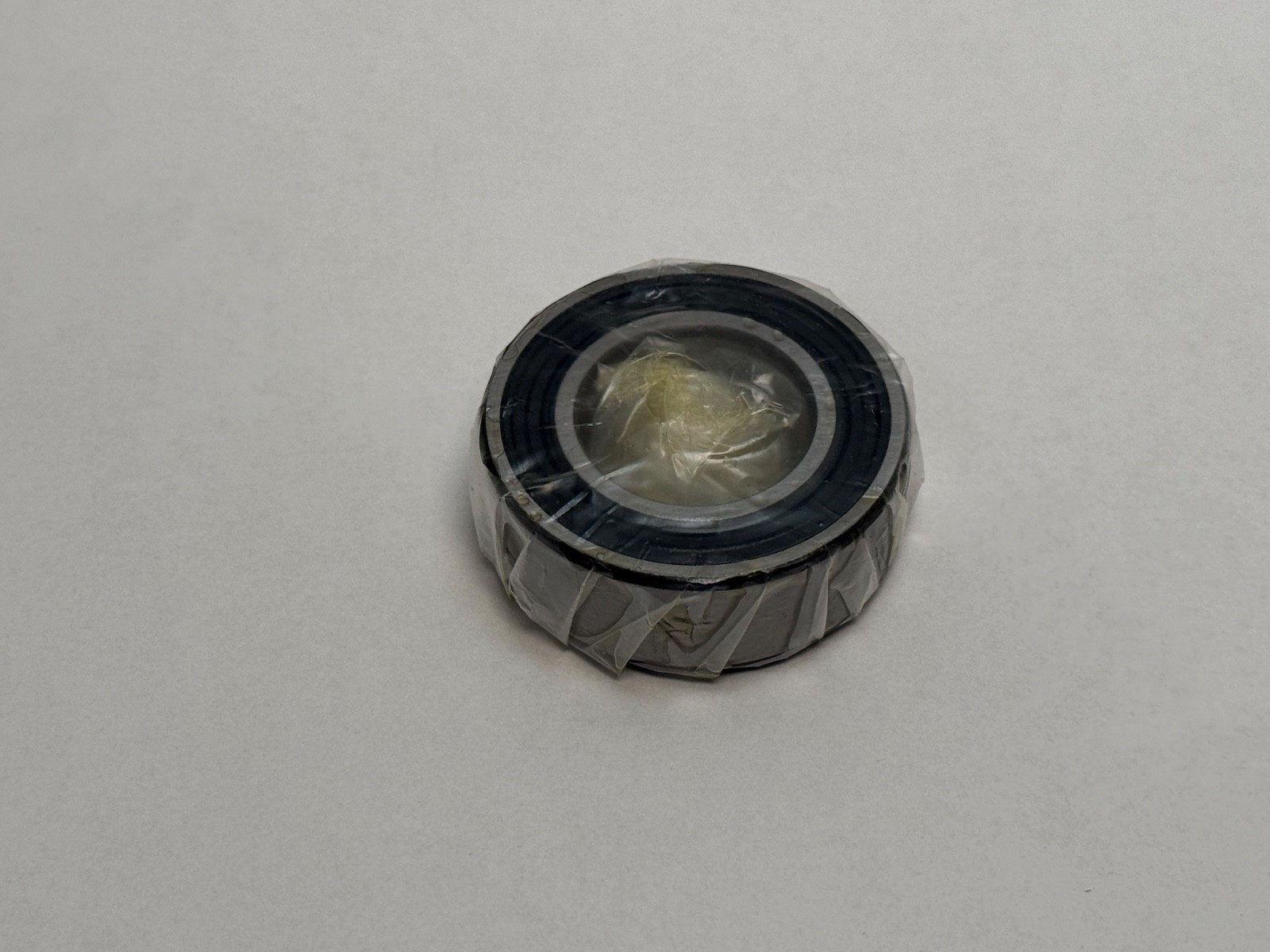

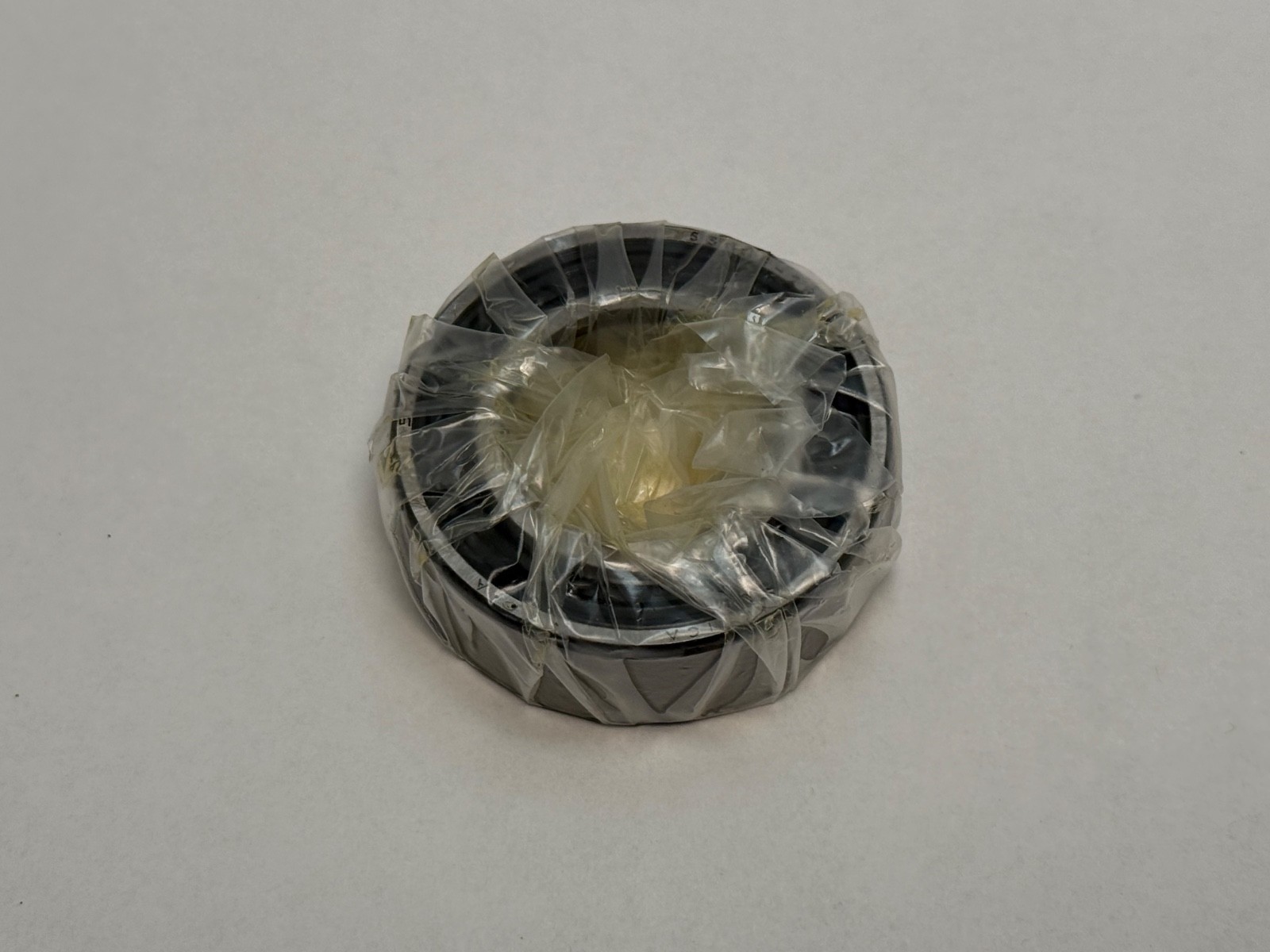

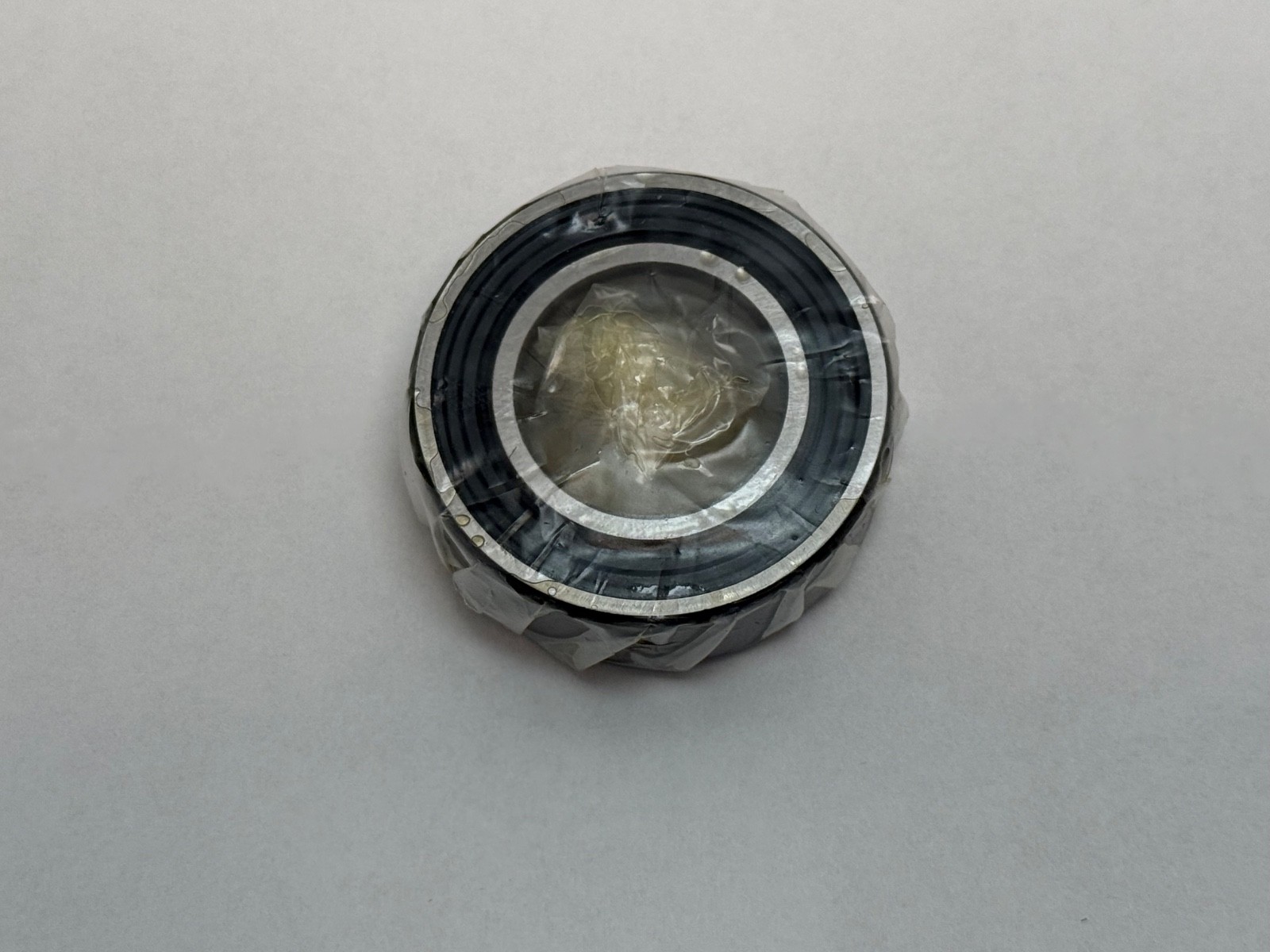

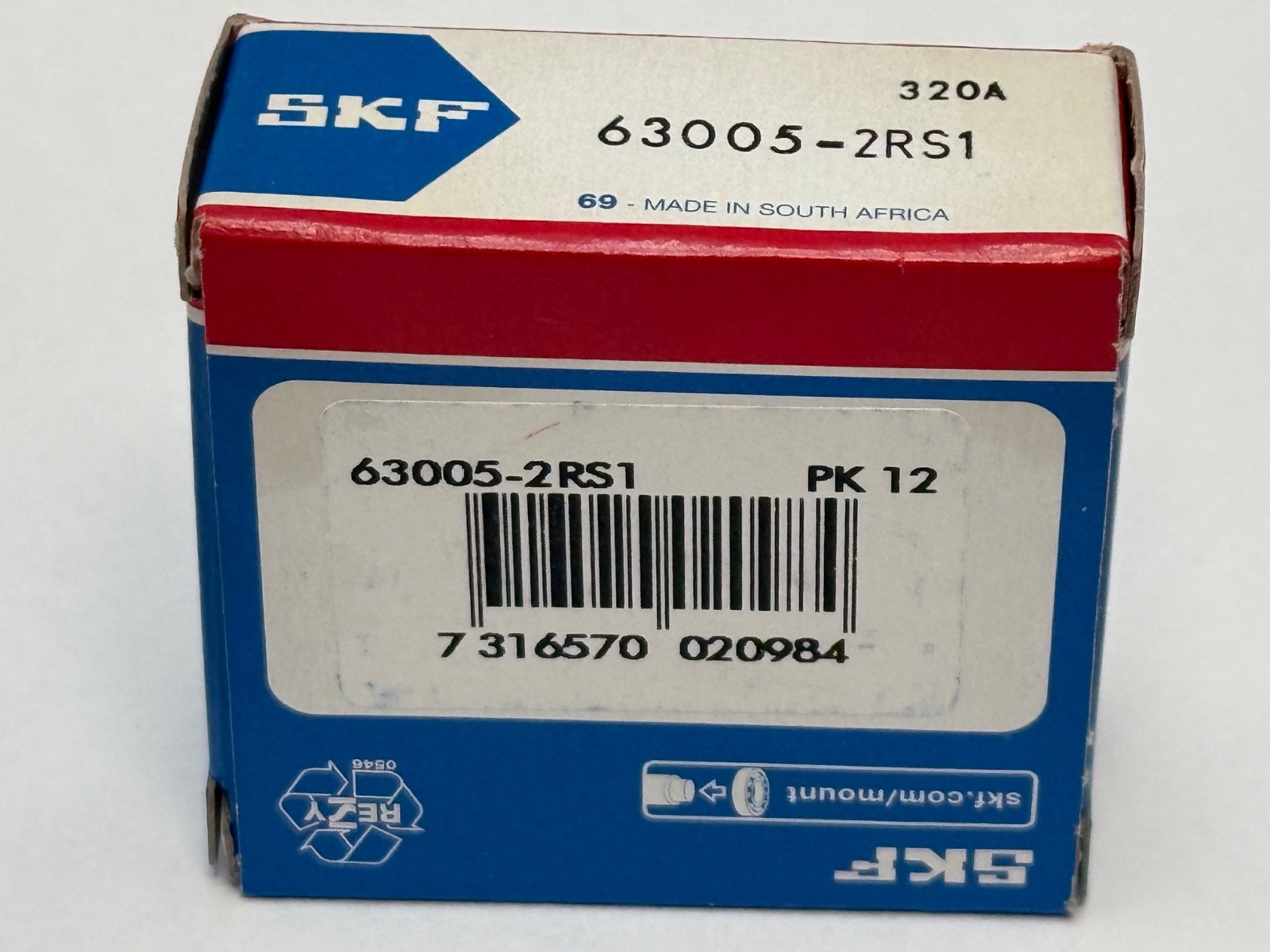

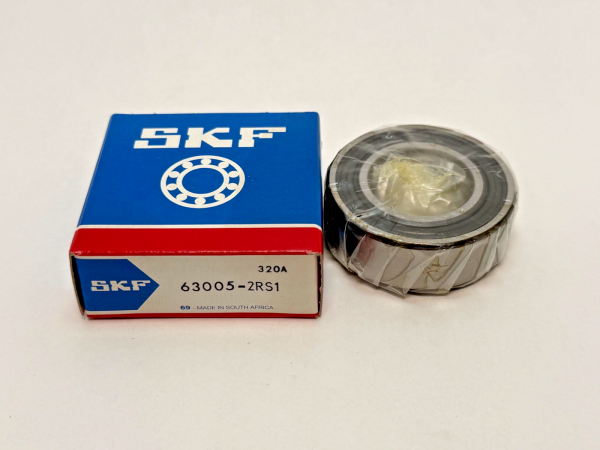

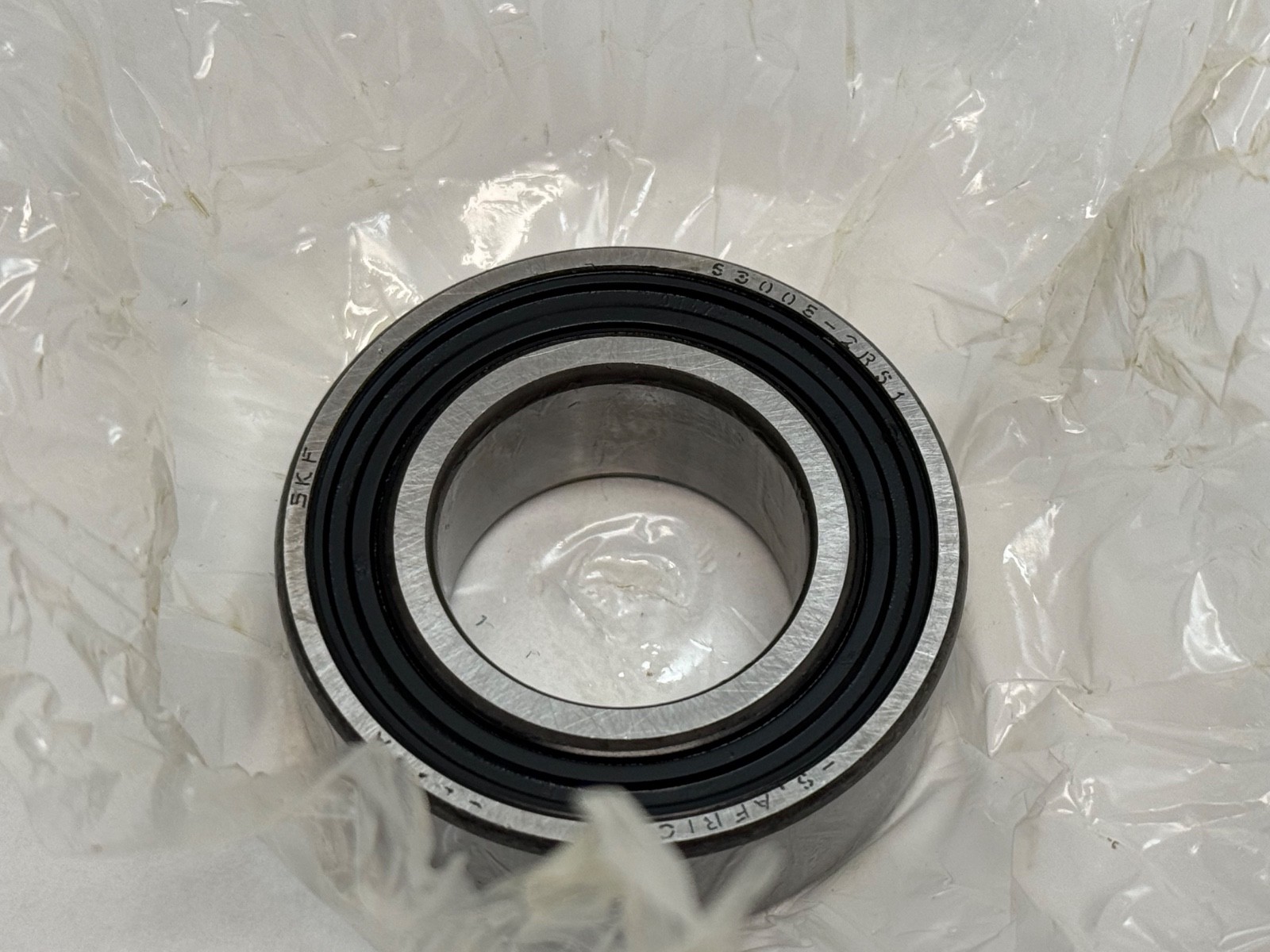

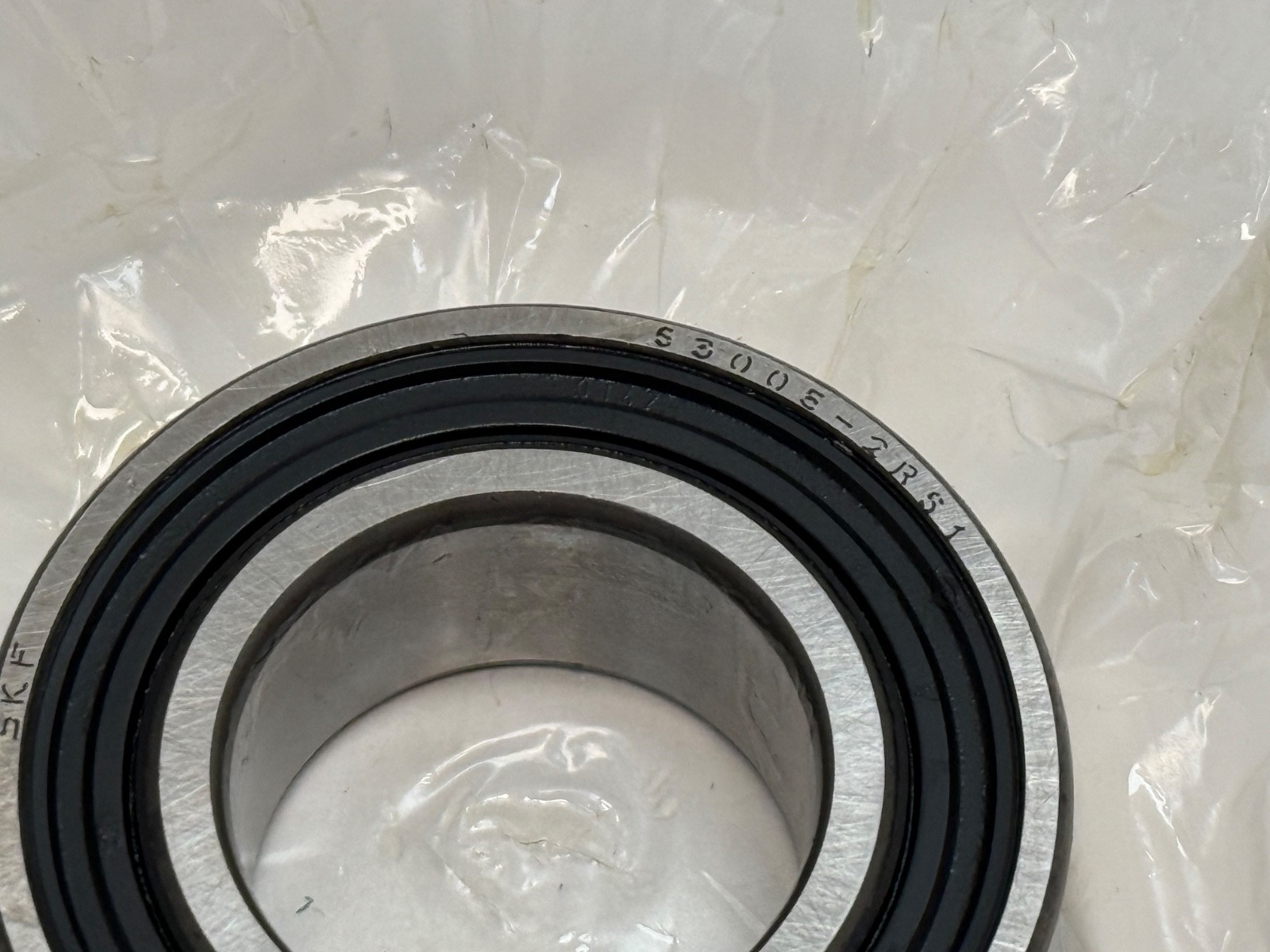

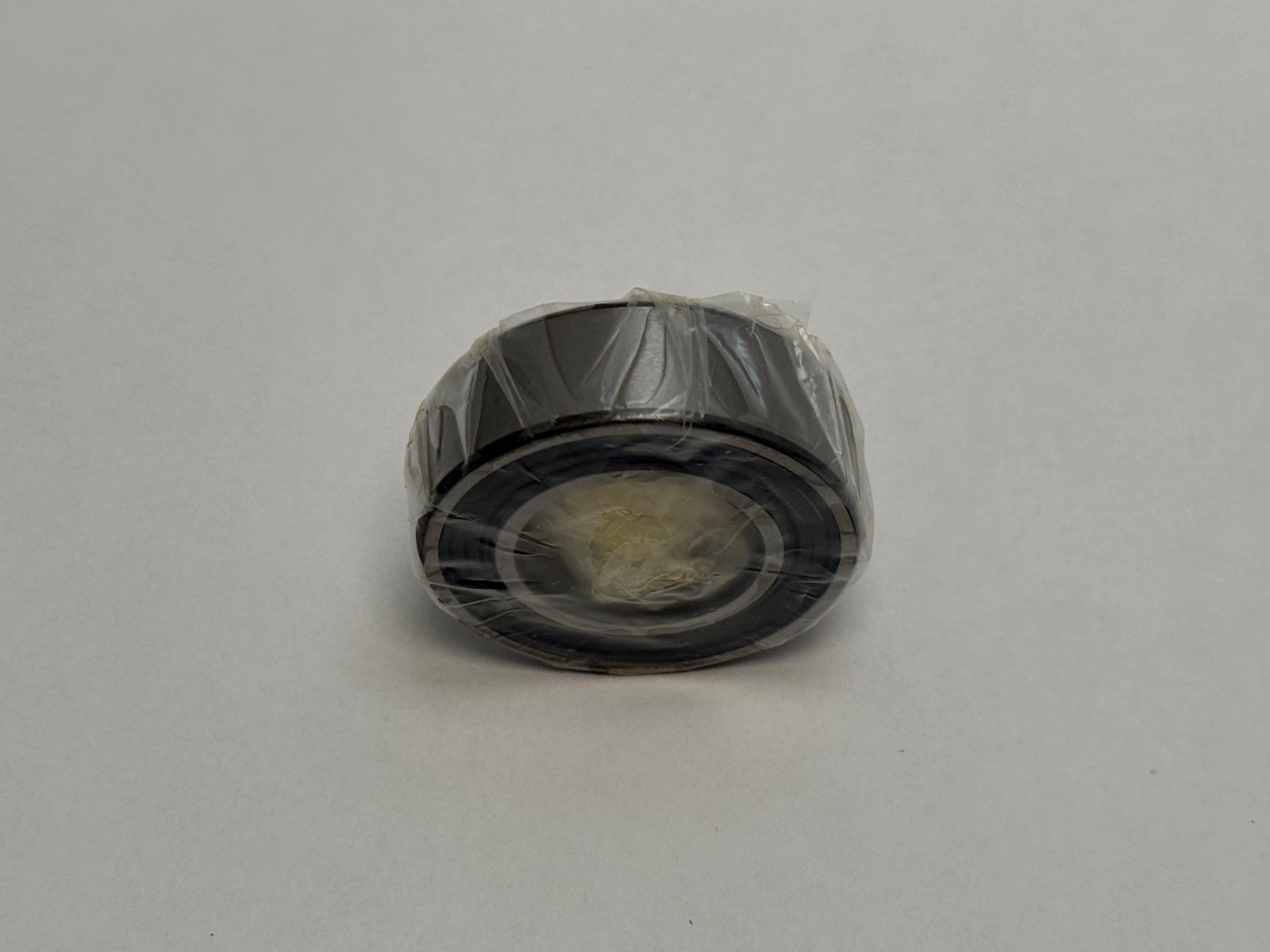

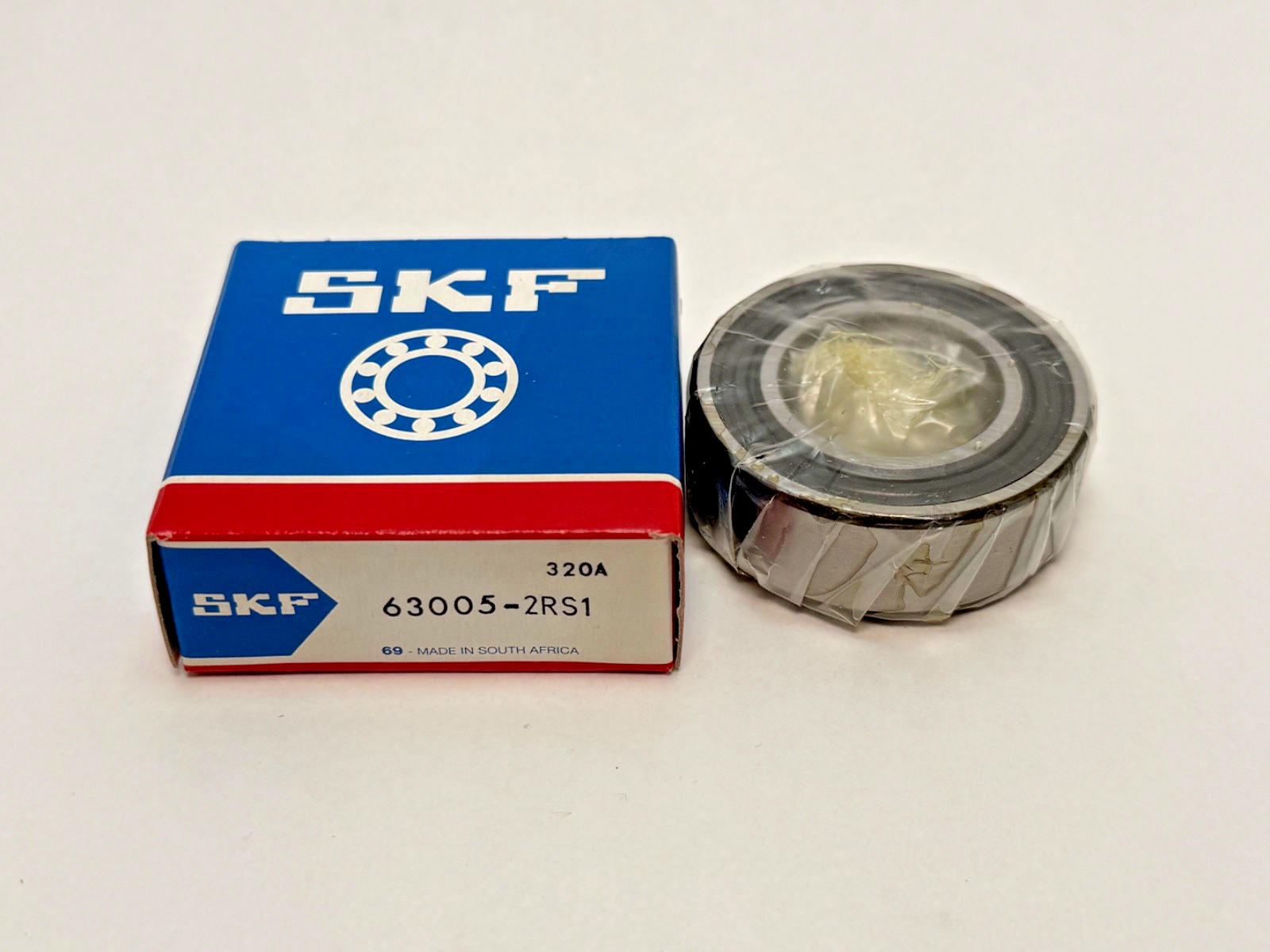

SKF63005-2RS1Deep Groove Ball Bearing – 25 mm Bore, 47 mm OD, 16 mm Width, Contact Rubber Seals Both Sides, CN Clearance

Condition: New

Availability:

5 in stock

Categories: ,

SKF 63005-2RS1 deep groove ball bearing, 25 x 47 x 16 mm, contact rubber seals both sides, 11.2 kN dynamic load rating. Set of 10 individual bearings.

List Price

$80.99

5 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

5 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN63005-2RS1
GTIN7316570020984
Model63005-RS
Bearing TypeBall Bearing, Contact rubber seals both sides
ID25 mm
OD47 mm
Width16 mm

Technical Specifications

MaterialChrome Steel
Series630
LubricantGrease
Base Number63005
Bore Shaft Size25 mm
Mpn Variants63005-2RS1; 63005 2RS1; 63005-2RS; 63005RS; 63005 2RS; 63005
Dynamic Load Rating11.2 kN
Static Load Rating6.55 kN
Rolling ElementsBall
Item Weight0.23 lb (0.106 kg) each
Cage MaterialPressed steel
Limiting Speed9500
Number Of Rows1
Bore TypeStraight
Internal ClearanceCN
Mounting ArrangementSingle
Design UnitsMetric
Bearing MaterialChrome Steel
Part Number63005-2RS1
Industry Terms63005 2RS1 bearing; sealed deep groove ball bearing 25x47x16; wide series 6005 bearing; 25 mm bore rubber sealed ball bearing
Common MisspellingsSKF 63005 2RS1; SKF 63005-2RS-1; SKF 630052RS1; SFK 63005-2RS1; SKF 63005 2RSI
Application TypesSealed ball bearing positions; grease-filled rotating shafts; general machinery bearing positions
Closure TypeContact rubber seals both sides

Cross-References

Cross Reference 1SKF 63005-2RS
Cross Reference 2SKF 63005-2Z – shields, not seals
Cross Reference 3SKF 6005-2RS1 – 12 mm width, lower ratings
Seller Part Number: BM3#FIUMWE

Product Description

What this part is:

SKF 63005-2RS1 single-row deep groove ball bearing with contact rubber seals on both sides, in the wide 630 series. Unit Quantity: 10 Pcs. Ten individual bearings, each sealed on both sides on a straight bore.

Decoding the designation:

63005 — the wide-section variant of the 6005 size: the same 25 mm bore and 47 mm outside diameter in a 16 mm width instead of 12 mm.

2RS1 — a contact rubber seal pressed into each side of the outer ring, retaining the factory grease charge.

No clearance suffix — normal radial internal clearance, CN.

Specifications:

Dynamic Load Rating: 11.2 kN. Static Load Rating: 6.55 kN. Limiting Speed: 9500 r/min. Closure Type: Contact rubber seals both sides. Cage Material: Pressed steel. Internal Clearance: CN. Bearing Material: Chrome steel. Lubricant: Grease. Item Weight: 0.106 kg (0.23 lb) each. GTIN: 7316570020984.

Dimensions and mounting:

Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 16 mm. Bore Type: Straight. Number Of Rows: 1. Mounting Arrangement: Single. Series: 630.

Compatibility and replacement:

Cross-references: SKF 63005-2RS (same execution under the shortened seal code); SKF 63005-2Z (shields instead of seals); SKF 6005-2RS1 (12 mm width, lower ratings). Designation forms: 63005-2RS1, 63005 2RS1, 63005-2RS, 63005RS, 63005 2RS, 63005.

Frequently asked questions:

What are the dimensions of the SKF 63005-2RS1?

Bore Diameter 25 mm, Outside Diameter 47 mm, Overall Width 16 mm.

What does 2RS1 mean in the designation?

A contact rubber seal is fitted on each side of the outer ring.

How many bearings are in this listing?

Unit Quantity is 10 Pcs: ten individual SKF 63005-2RS1 bearings.
