Availability:
1 in stock

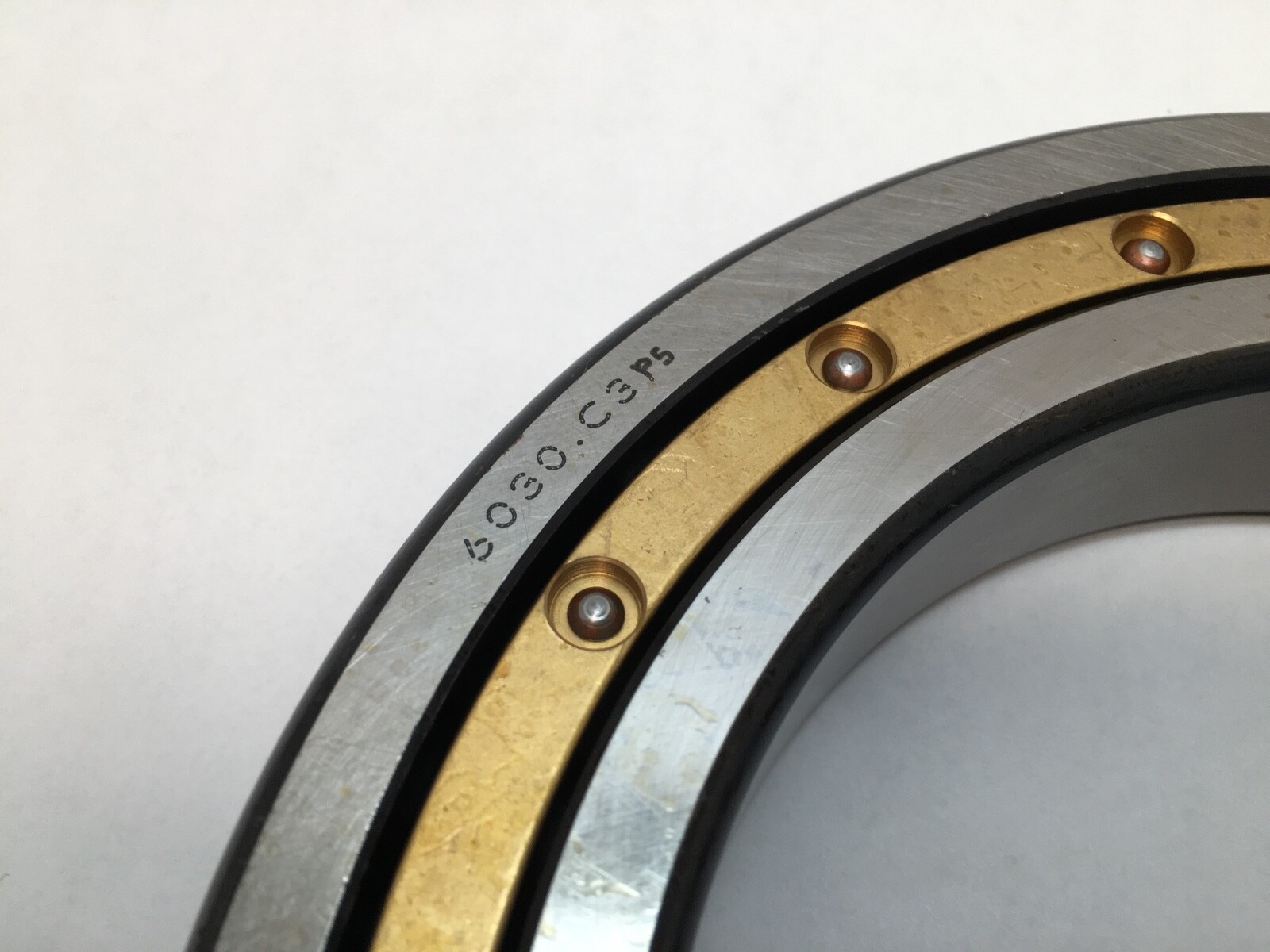

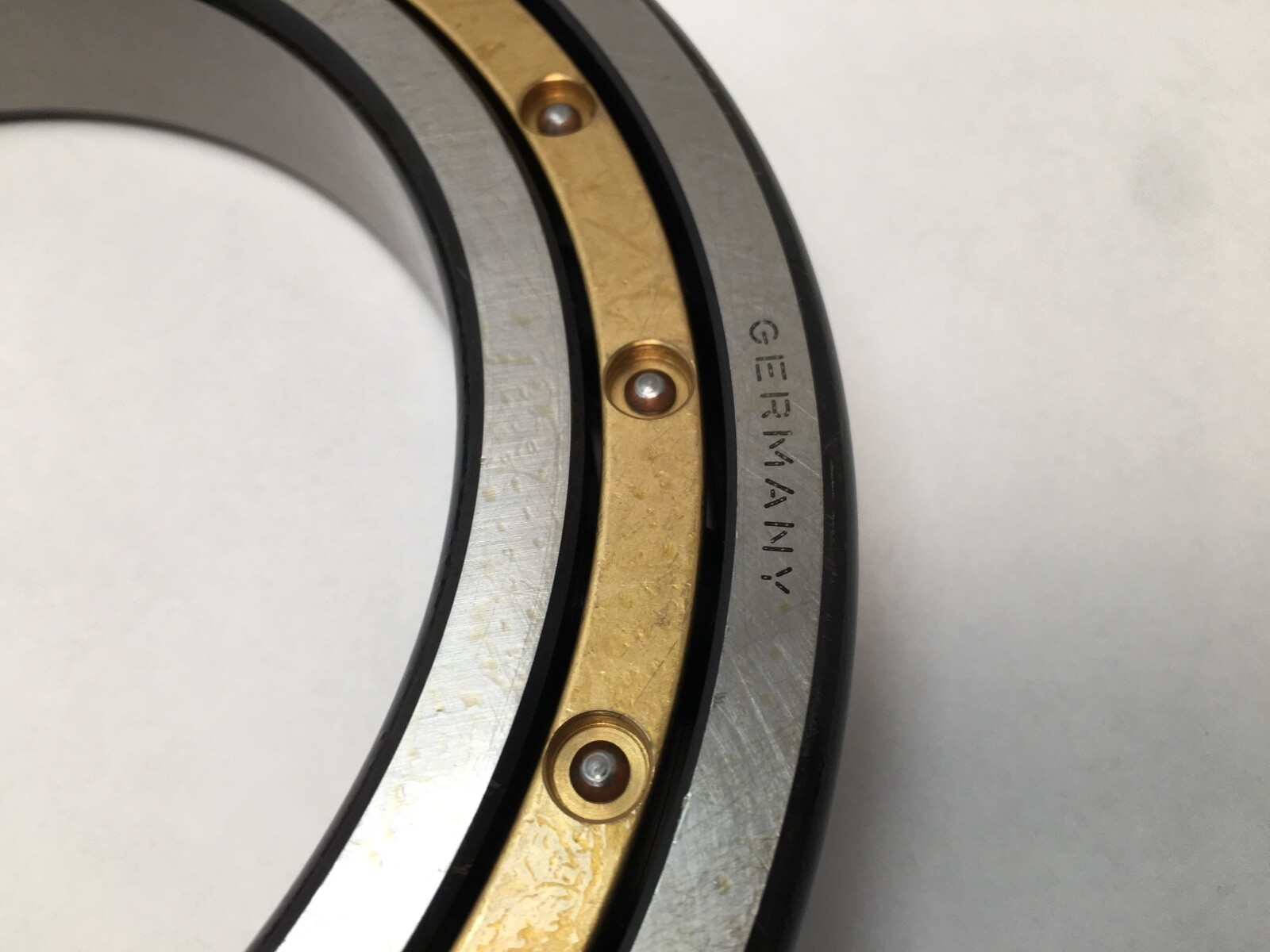

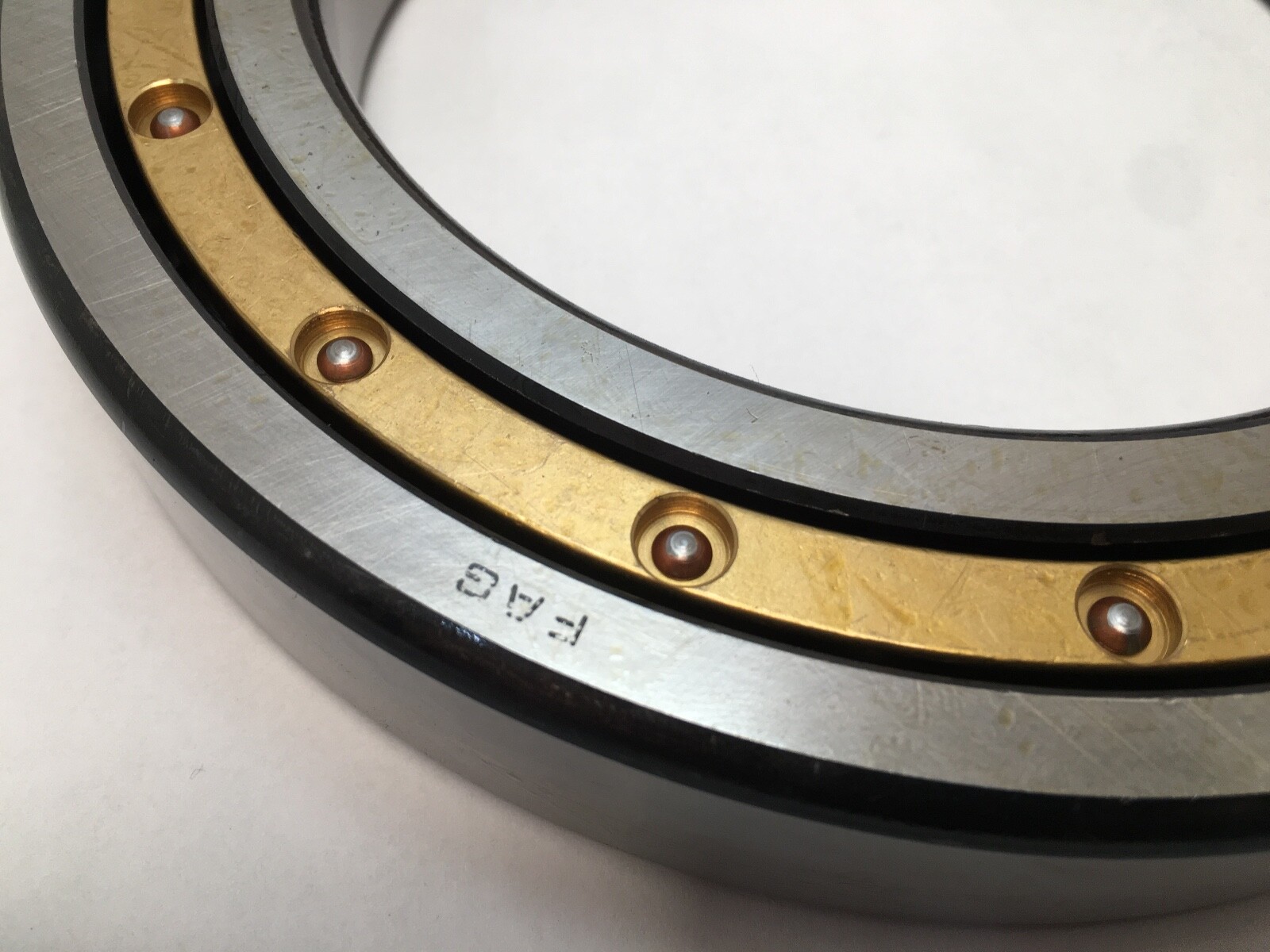

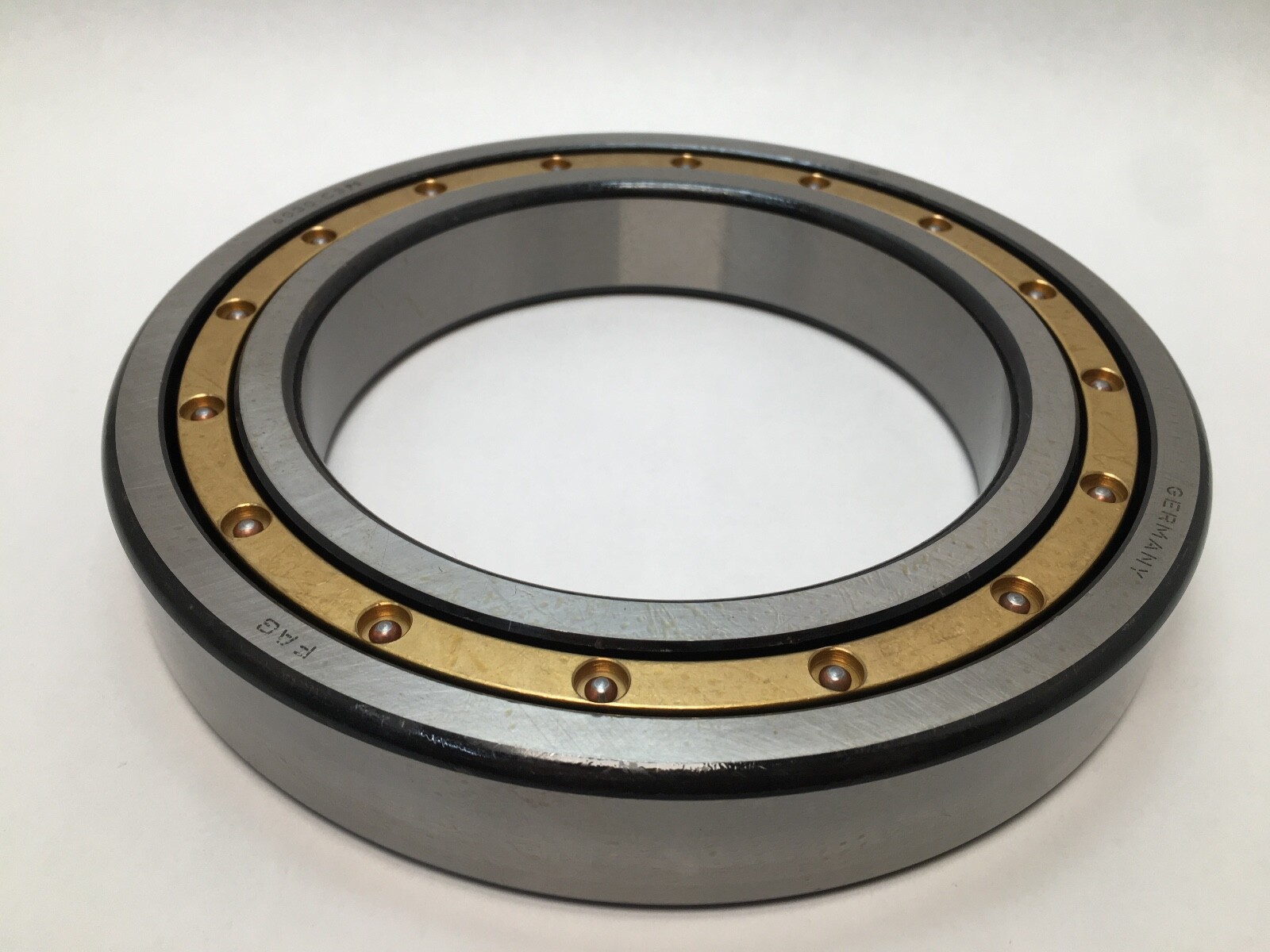

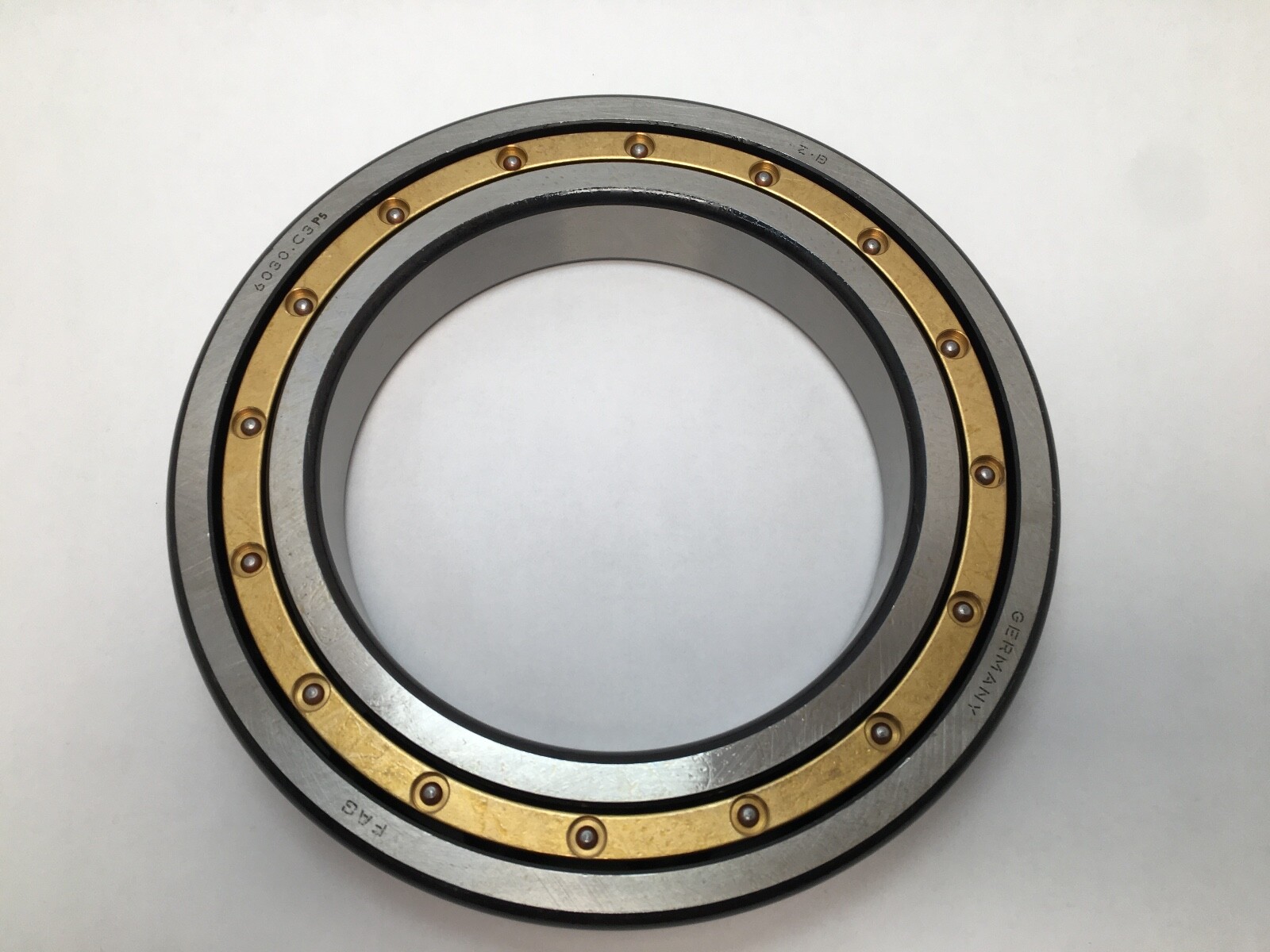

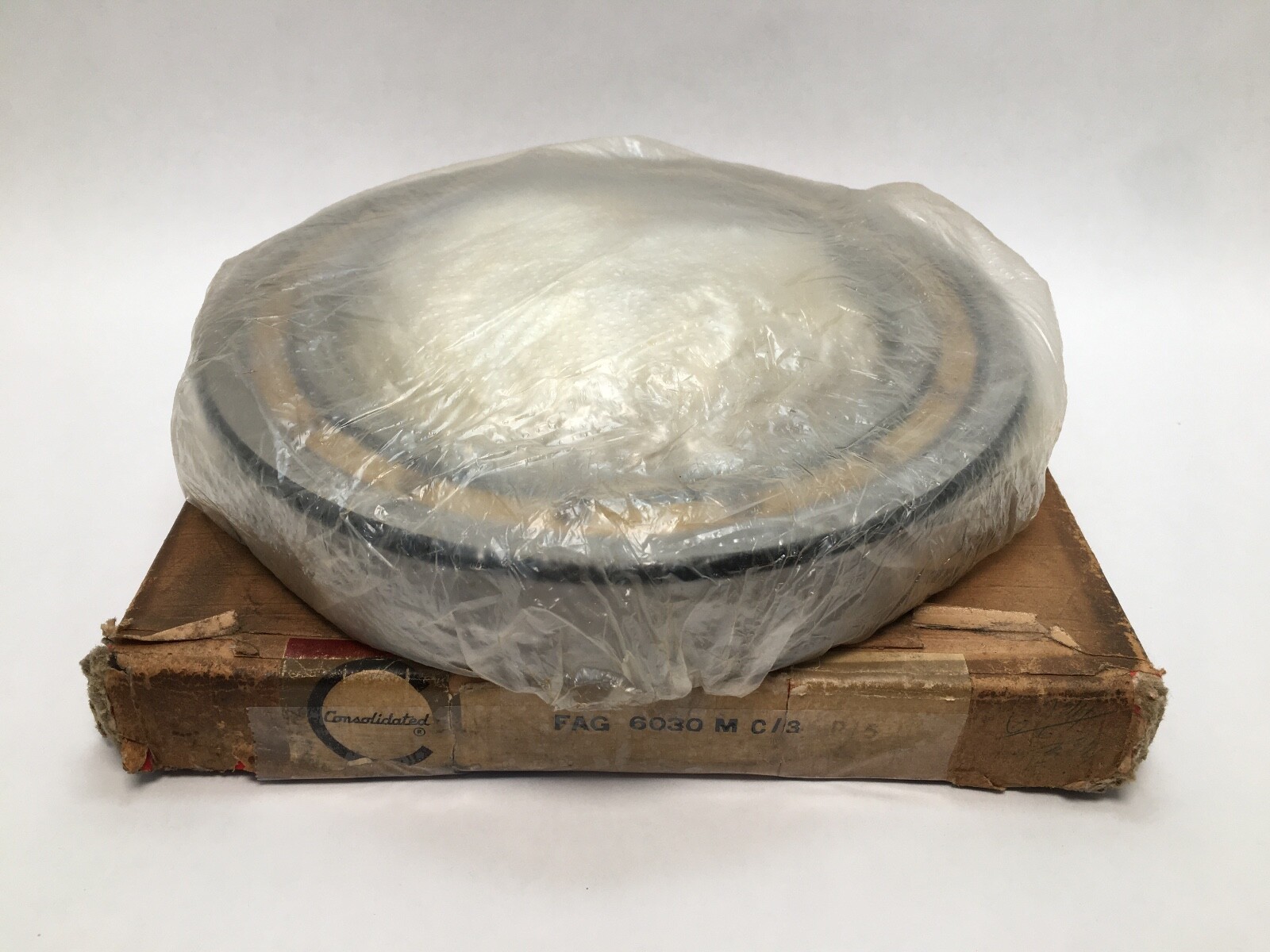

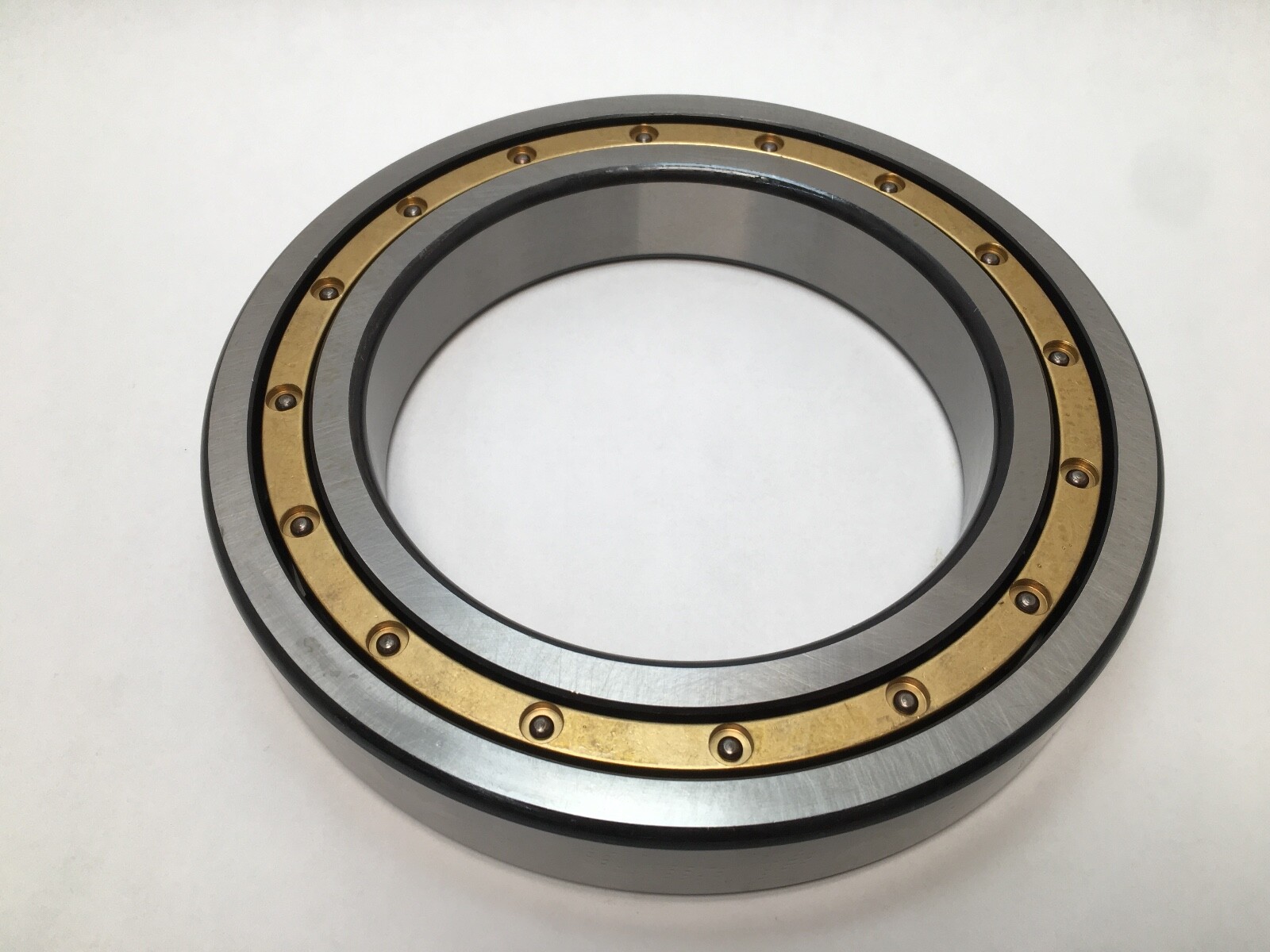

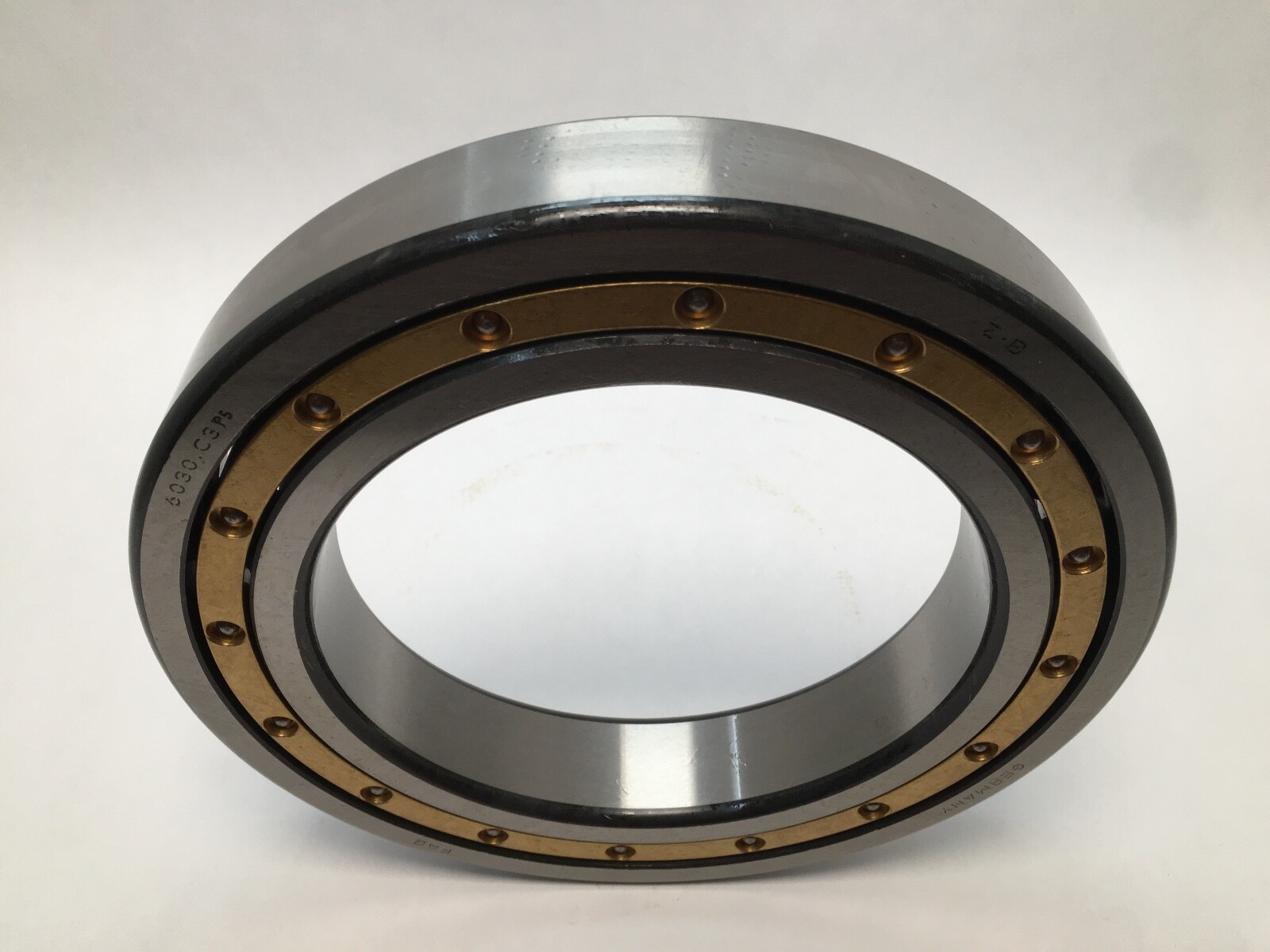

Deep groove ball bearing, 150 mm bore x 225 mm OD x 35 mm wide, machined brass cage, C3 clearance, ABEC 5 / P5 precision. Consolidated (FAG 6030-M-C3-P5).
List Price
$351.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6030MC3P5 |
| Model | 6030 M C3 P5 / 3L30 / 9130 |
| Bearing Type | Ball Bearing, Open |
| ID | 150 mm |
| OD | 225 mm |
| Width | 35 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6000 |
| Lubricant | Grease or oil |
| Overall Width | 35 mm |
| Mpn Variants | 6030MC3P5, 6030-M-C3-P5, 6030 M C3 P5, 6030-M-P53, 6030MC3, 3L30, 9130, Consolidated 6030MC3P5 |
| Precision Class | ABEC 5 / P5 |
| Cage Type | Solid, rolling-element guided |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 6030 M/C3 – brass cage, normal class |
|---|---|
| Cross Reference 2 | NSK 6030C3 – normal class, not P5 |
| Cross Reference 3 | NTN 6030C3 – normal class, not P5 |
| Cross Reference 4 | Koyo 6030C3 – normal class, not P5 |
Consolidated 6030MC3P5 (FAG designation), a single-row deep groove ball bearing in the 60 series. Bore Diameter: 150 mm. Outside Diameter: 225 mm. Width: 35 mm. Bore Type: Straight. Cage Material: Machined brass. Internal Clearance: C3. Precision Class: ABEC 5 / P5. Closure Type: Open. Lubricant: grease or oil.
60 — deep groove ball bearing, dimension series 10.
30 — bore code, 30 x 5 = 150 mm.
M — solid machined brass cage, rolling-element guided.
C3 — internal clearance greater than normal.
P5 — tolerance class ABEC 5 / P5.
Radial load with moderate axial load in both directions. The machined brass cage tolerates vibration and shock better than a pressed cage. C3 clearance allows for interference fits and thermal growth; P5 tolerances give tighter bore, OD and running accuracy than normal class. Rolling Elements: Ball. Number Of Rows: 1.
Minimum Chamfer Dimension: 2.1 mm. Maximum Fillet Radius: 2.1 mm. Minimum Shaft Shoulder Diameter: 160.2 mm. Maximum Housing Shoulder Diameter: 214.8 mm. Inner Ring Shoulder Diameter: 174.36 mm. Outer Ring Shoulder Diameter: 201.42 mm.
Unit Quantity: 1 Pc. Single bearing, open.
SKF 6030 M/C3 has the same size, machined brass cage and C3 clearance. NSK 6030C3, NTN 6030C3 and Koyo 6030C3 share the size and C3 clearance. All four are normal precision class, not P5. Also carried as 3L30 and 9130.
