SNFASEB120-7CE1DULSuper Precision Angular Contact Ball Bearing Matched Pair 120 x 165 x 22 mm, 15° Contact Angle, ABEC 7 Class, Extra-Thin 719 Section, Duplex Light Preload, 2 Pieces

Product Description

What this part is

A matched pair of super precision angular contact ball bearings from SNFA’s SEB spindle range — 120 mm bore, 165 mm outside diameter, 22 mm width per bearing. That envelope corresponds to ISO 71924, in the extra-thin 719 dimension series. Universally ground and supplied as a duplex set with light preload built in.

Decoding the designation

SEB — SNFA super precision spindle bearing series built on the ISO 719 envelope. (SNFA’s SEA series sits on the 718 envelope; SEB is the 719 step up.)
120 — bore diameter, 120 mm. The full envelope is 120 x 165 x 22 mm, matching ISO 71924.
7 — ABEC 7 precision class. In this SNFA scheme the digit ahead of CE is the tolerance grade, so a SEB120-9CE1 would be the ABEC 9 version of the same bearing.
CE1 — the trailing 1 is the contact angle code: 15°.
DUL — duplex, universally ground, light preload.

What these specs mean in practice

The 719 series is the thinnest section made in a spindle bearing. At 120 mm bore the ring wall is only 22.5 mm of radial section, and that slimness is the whole design intent: less mass to accelerate, a compact outside diameter so the spindle housing stays small, and a smaller ball pitch diameter than a 70xx or 72xx section would give at the same bore. All of that raises the speed the bearing can run. The cost is load capacity and sensitivity to the seat — a thin ring in a large diameter takes up whatever shape the housing gives it, so the housing bore has to be continuous, round and evenly supported.

The 15° contact angle points the same way. A shallow angle keeps the ball from climbing the raceway shoulder, which cuts ball spin, friction and heat, so the bearing runs faster and cooler than a 25° bearing of the same envelope. What you trade away is thrust capacity and axial stiffness. Light preload completes the picture — minimum internal friction, minimum heat generation, the highest permissible speed of the three preload classes. Thin section, shallow angle, light preload: this is an unambiguously speed-oriented specification, the kind of bearing that goes into a high-speed milling or grinding spindle rather than a heavy boring head.

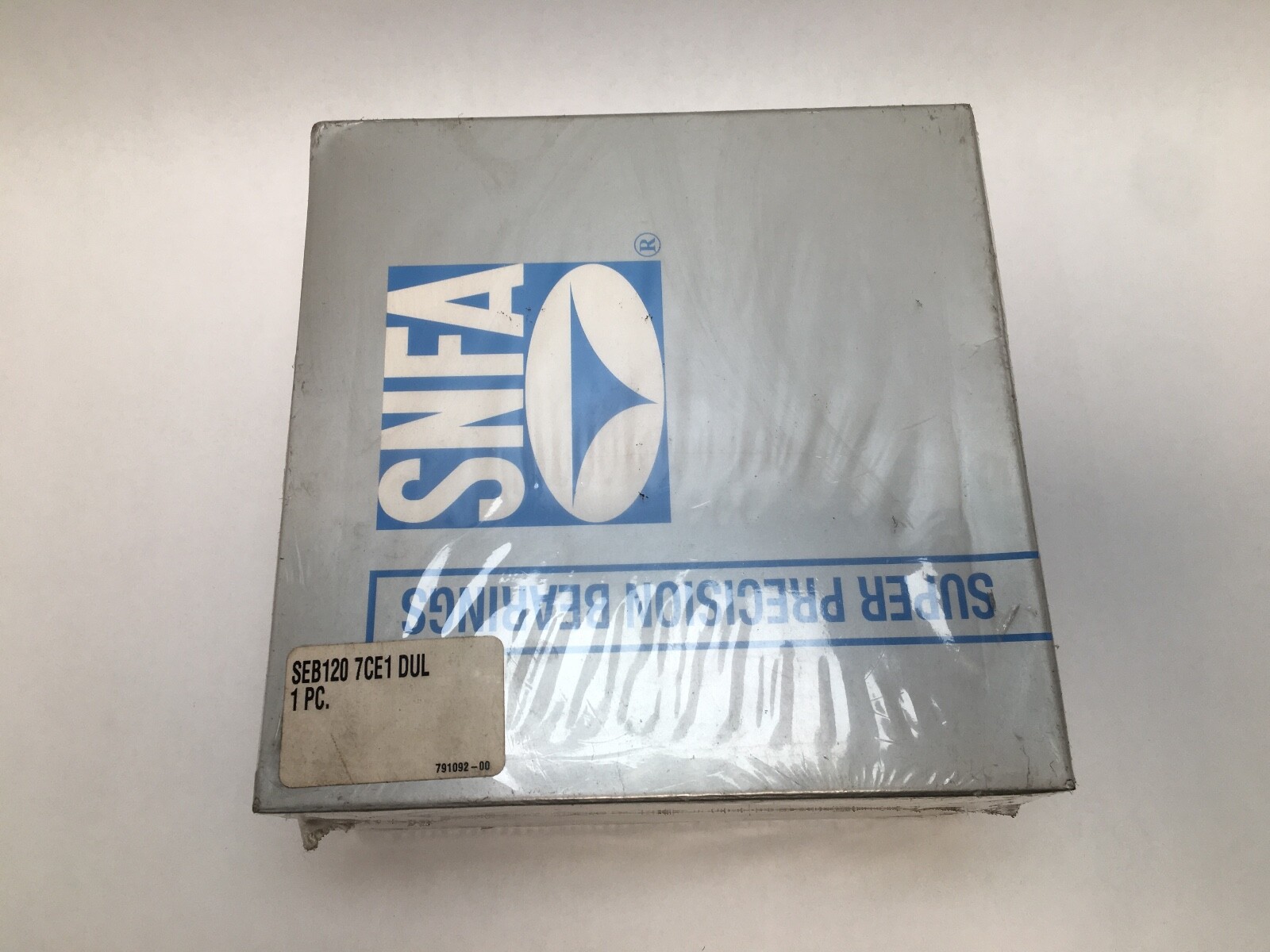

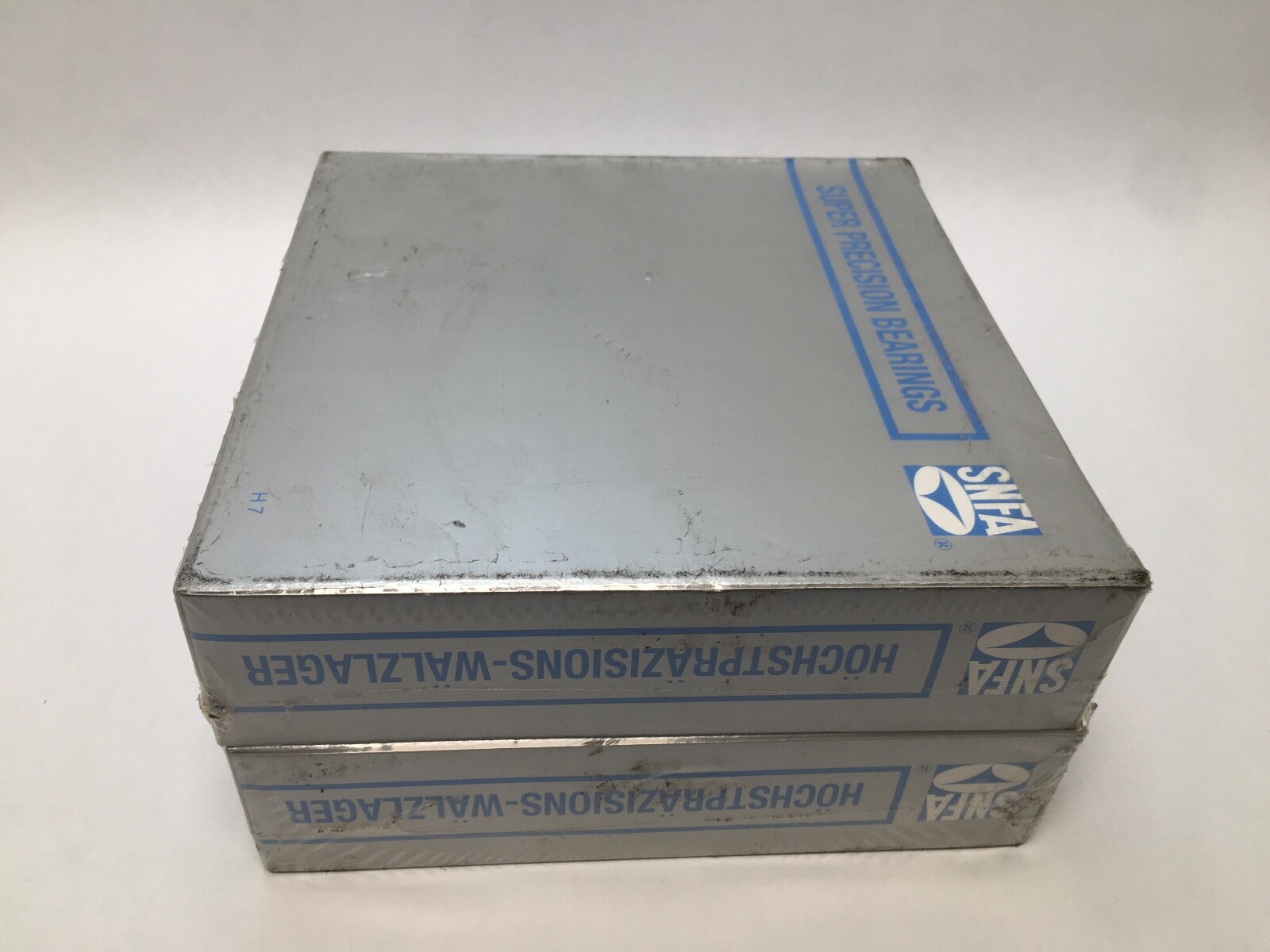

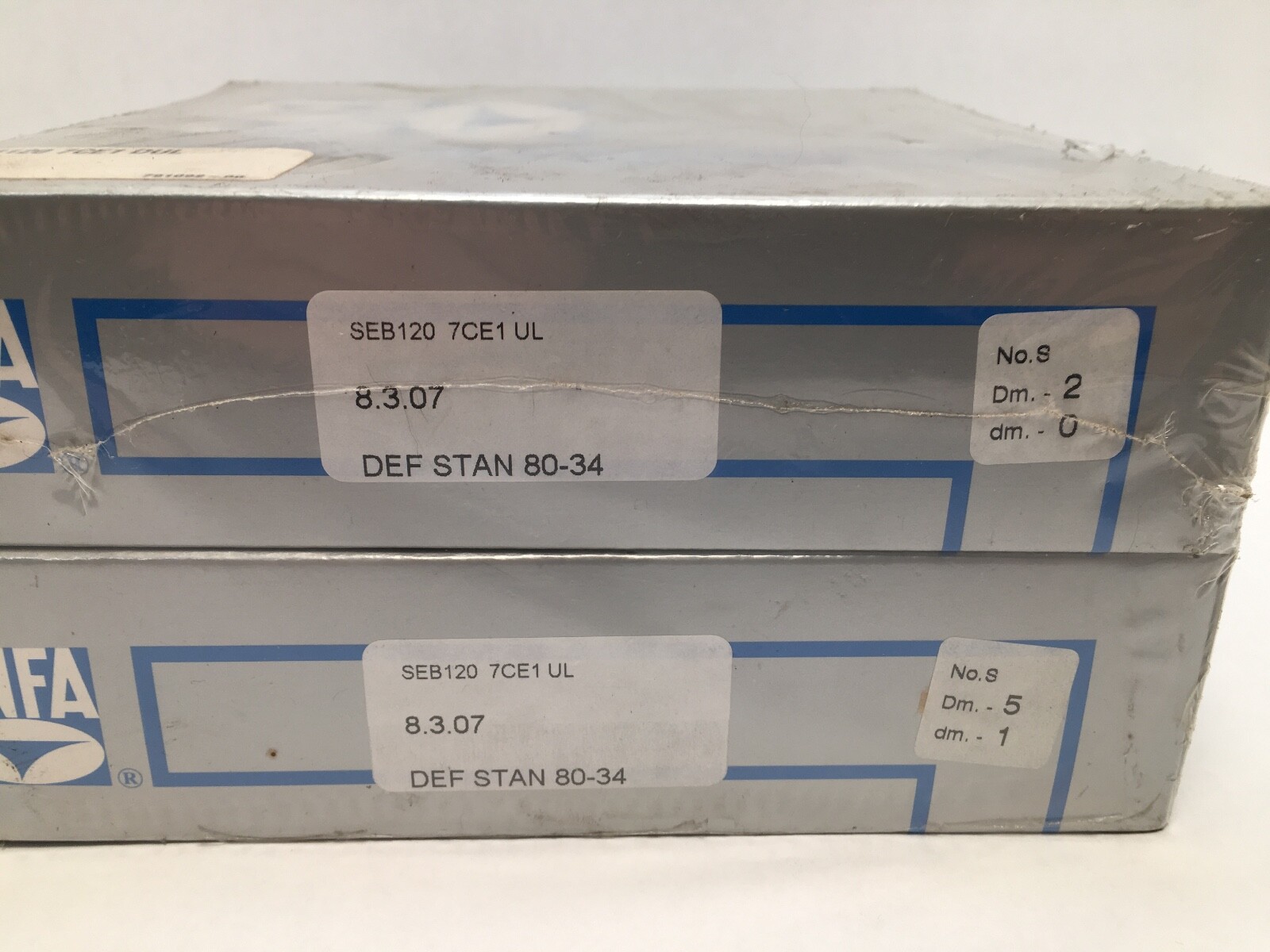

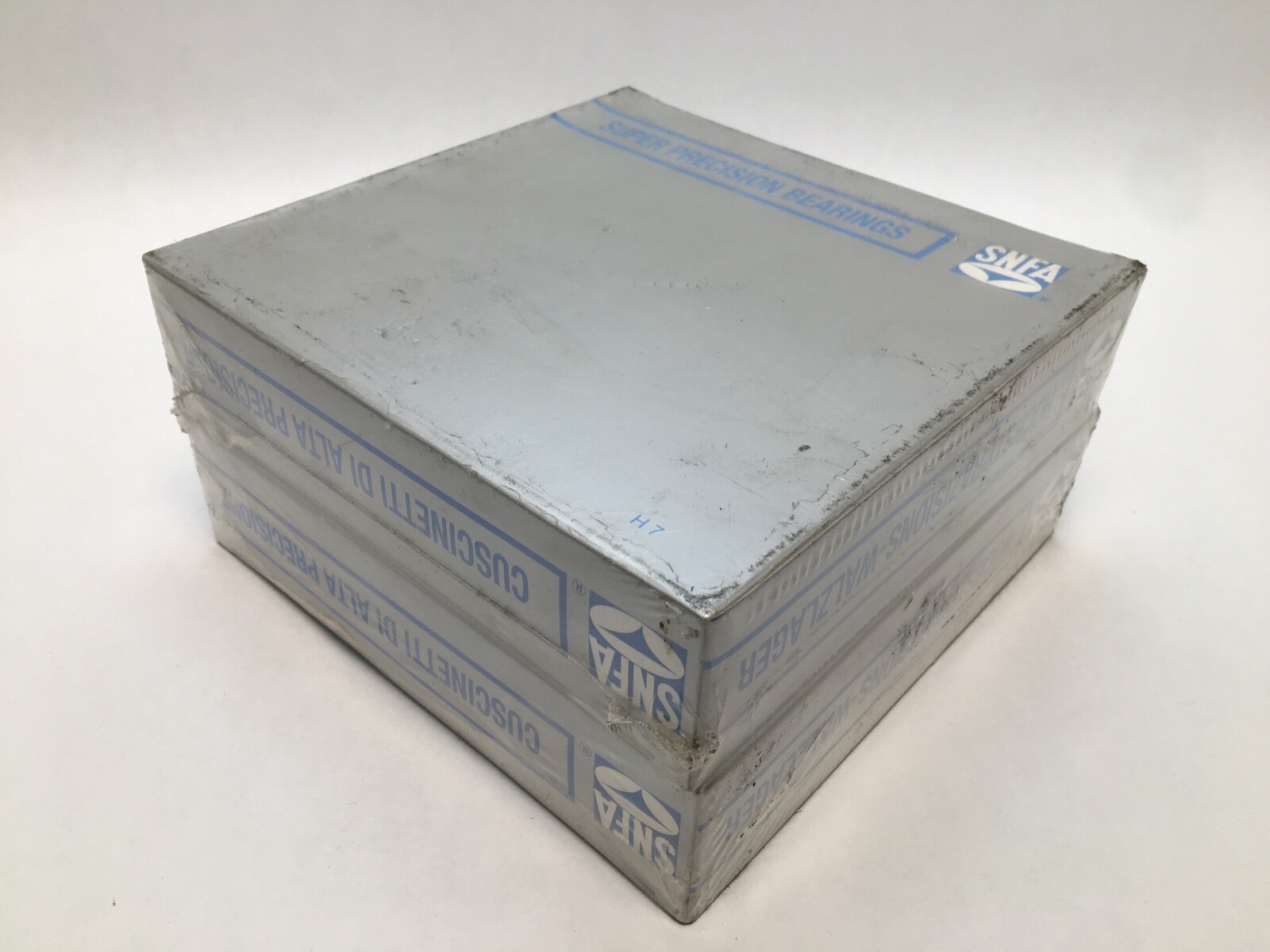

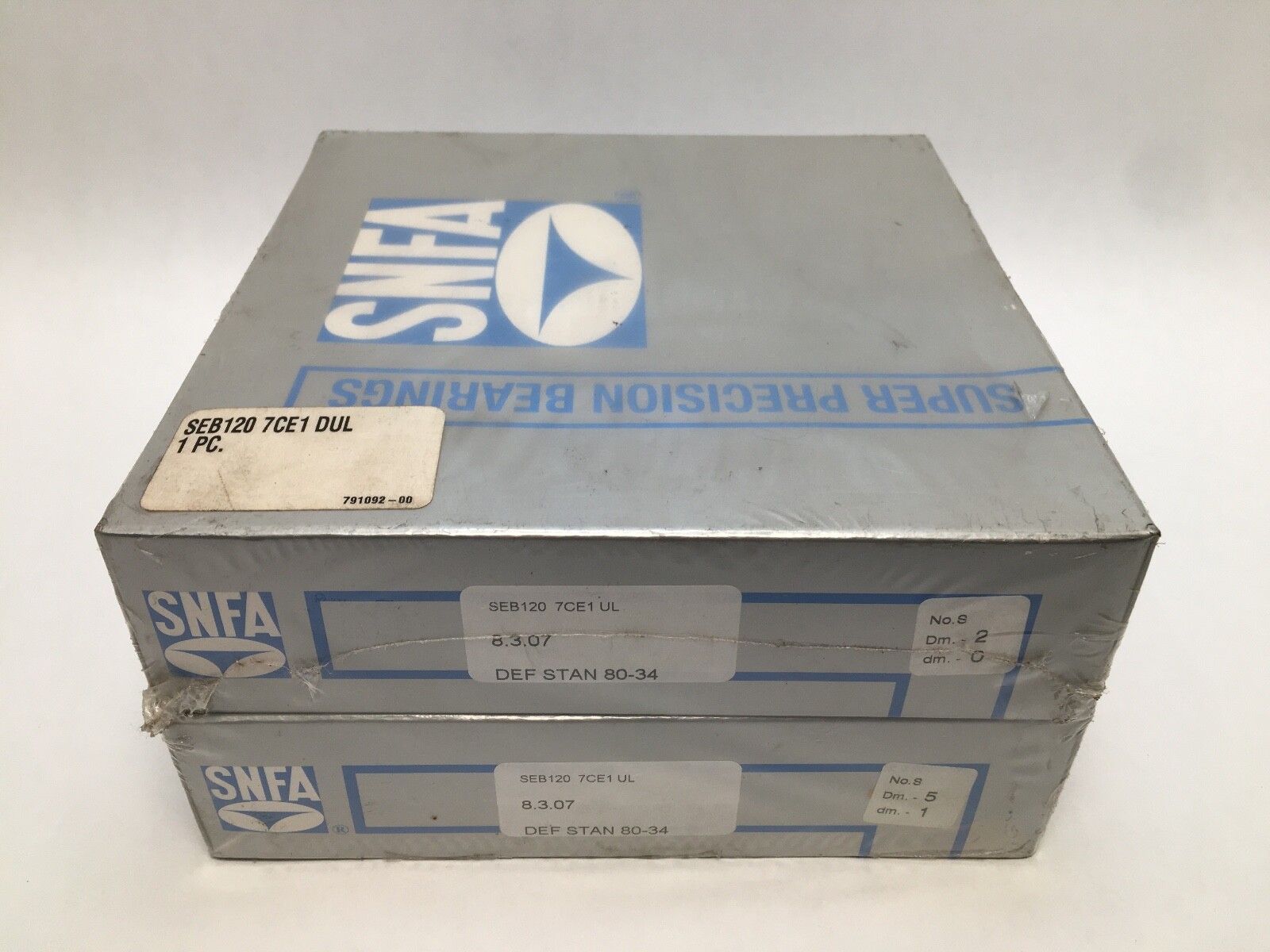

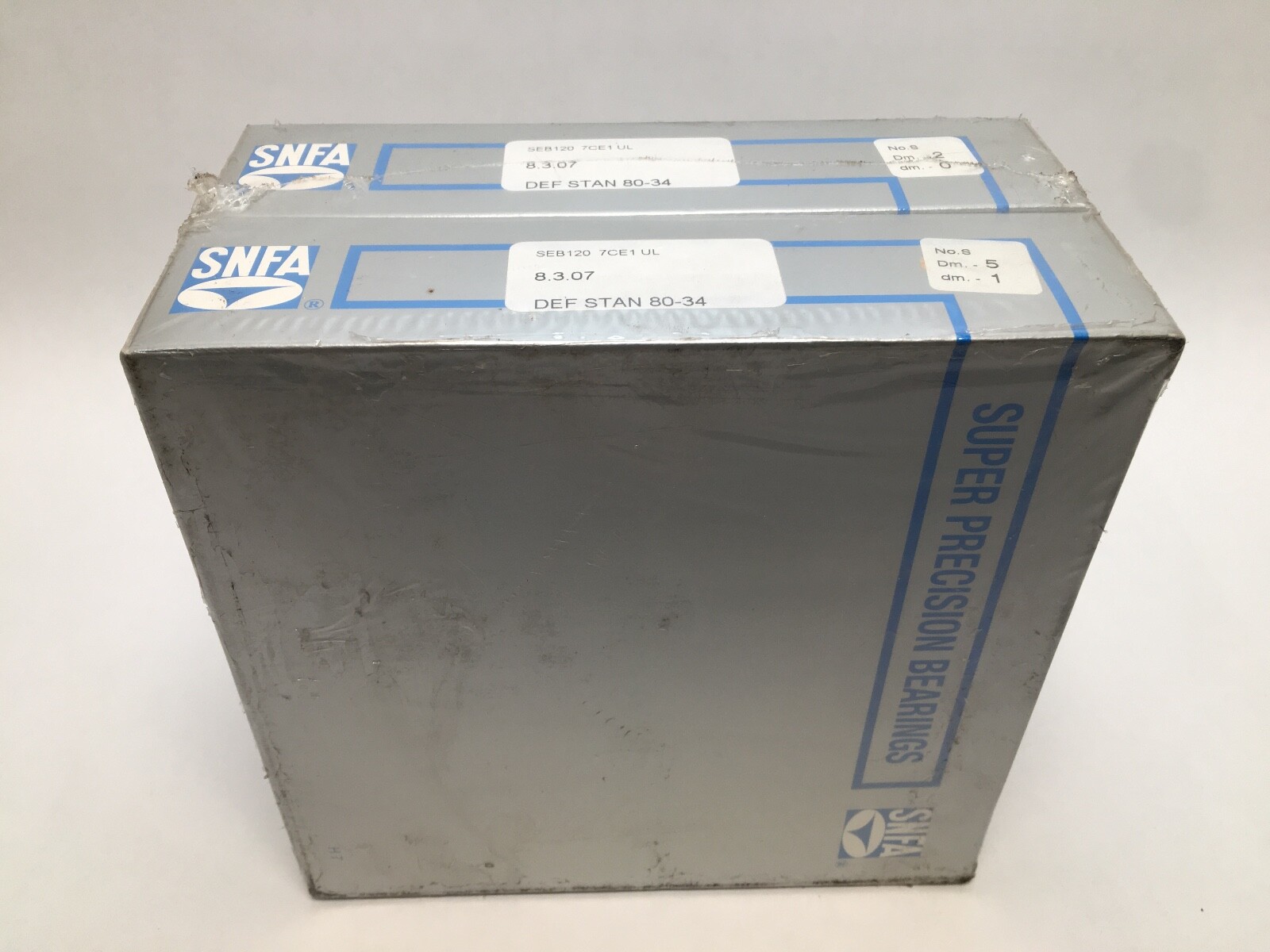

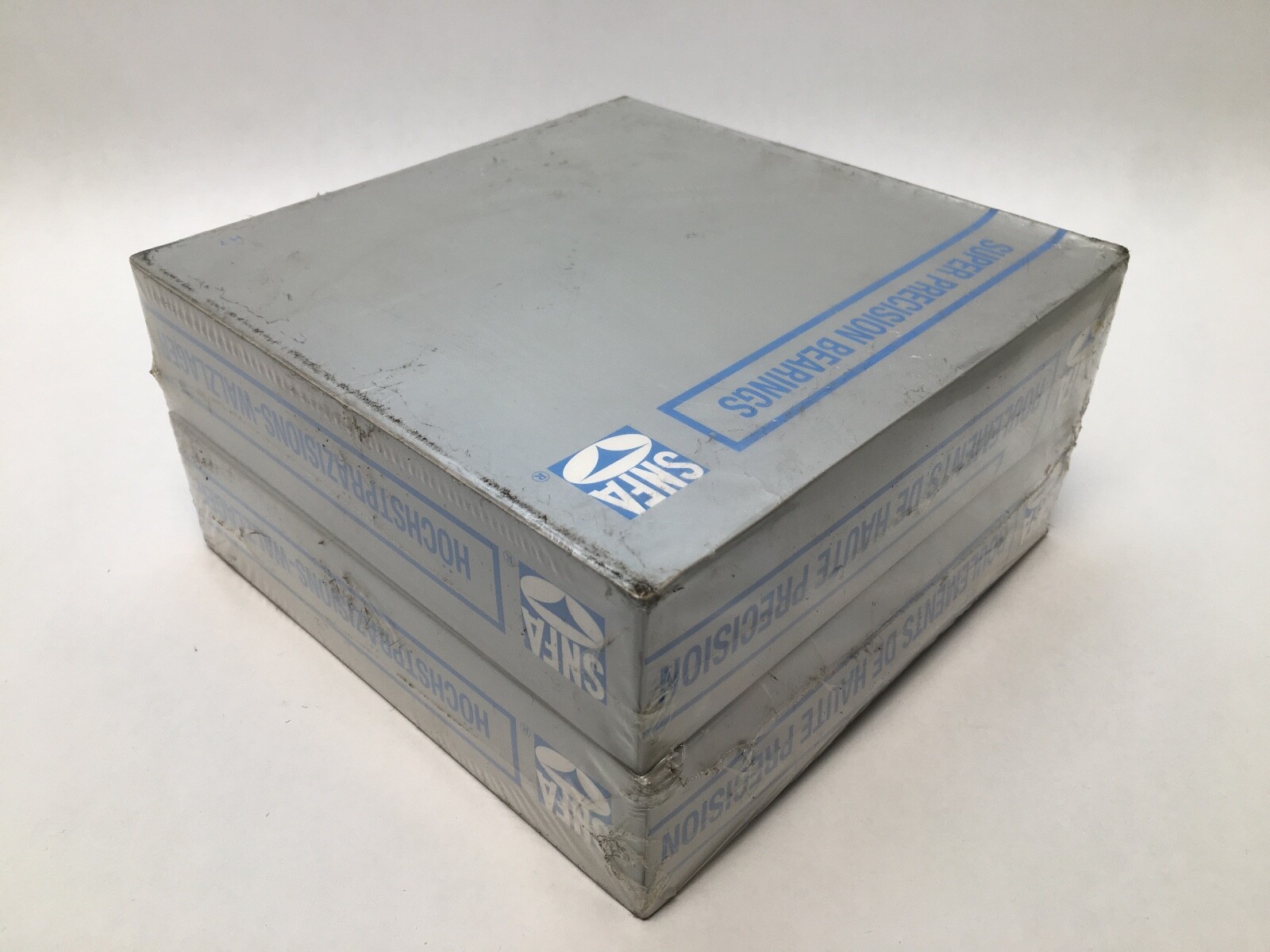

Quantity and configuration

This listing is a set of 2 pieces — a duplex pair ground together. Universal grinding means you can stack them back to back (DB) for maximum moment stiffness and thrust in both directions, face to face (DF) where the housing bores may be slightly misaligned, or in tandem (DT) to double thrust capacity in one direction. Clamping the pair between the shaft shoulder and the locknut develops the built-in light preload; adding a spacer changes the preload and defeats the matching.

Fitting notes

A 719-section bearing is more sensitive to its mounting than most, because the thin rings will conform to whatever the seats give them. Hold shaft journal and housing bore runout and roundness to a few microns, keep the abutment faces square, and make sure the housing bore is continuous rather than a bolted assembly with soft spots. At 120 mm bore, thermal mounting is the practical method: heat the inner ring evenly in an induction heater or oil bath to a controlled temperature and slide it onto the journal. Never press through the balls and never use a torch. Keep the pair oriented as marked; reversing one bearing changes the preload and can turn a light-preload pair into a clamped one. Lubricate with a spindle grease or an oil mist or oil-air system sized for the bore and speed, and keep the fill light — on a bearing built for speed, excess grease is the quickest route to a thermal failure.

Interchange guidance

SNFA is a French maker and its super precision range is now part of SKF — a useful trail to know, because current literature for these bearings appears under the SKF name. Same-envelope 15° equivalents include SKF 71924 CD/P4ADGA, FAG B71924-C-T-P4S-UL, NSK 71924C, NTN 71924C and RHP 71924-C-T-DUL-P4, all in the corresponding precision grade. The 7924-C designation carried on this listing is the common short form of 71924 and is consistent on contact angle too: C denotes 15° in FAG and NSK nomenclature, matching the SNFA CE1 code. The 25° version of the same envelope is SEB120-7CE3 or SKF 71924 ACD/P4A — same dimensions, different contact angle, and not a substitute inside an existing preloaded pair.
