Availability:
5 in stock
Double-row spherical roller bearing, 55 x 100 x 25 mm, 1:12 tapered bore, W33 lubrication groove, CN clearance, open. Fits an H311 adapter sleeve.
List Price
$48.99
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22211KW33BR |
| Model | 22211KW33BR |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Material | Chrome Steel |
|---|---|
| Series | 222 |
| Lubricant | Grease or oil |
| Base Number | 22211 |
| Industry Terms | Double row spherical roller bearing; self-aligning roller bearing; tapered bore spherical roller; adapter sleeve mounted bearing; W33 spherical roller |
| Bore Shaft Size | 55 mm |
| Locking Method | H311 adapter sleeve with KM11 locknut and MB11 lockwasher, or a 1:12 tapered shaft journal |
| Mpn Variants | 22211-K-W33-BR; 22211 K W33 BR; 22211 K W33 BR F4; 22211KW33; 22211K |
| Compatible With Replaces | Mounts on an H311 adapter sleeve. Related part: 22211CJW33, same envelope with a straight cylindrical bore |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove with three radial holes |
| Harmonization Code | 8482.30.00 |
| Part Number | 22211KW33BR |
| Maximum Permissible Misalignment | 1.5° |
| Common Misspellings | Torington 22211KW33BR; Torrington 22211 KW33 BR; Torrington 22211K W33; Torrinton 22211KW33BR |
| Application Types | Gearboxes; conveyors; fans and blowers; general heavy-load machinery |
| Closure Type | Open |
| Cross Reference 1 | Timken 22211KEJW33 - EJ steel cage, W33 groove, 1:12 bore |
|---|---|
| Cross Reference 2 | NSK 22211EAKE4 - EA design, E4 groove, 1:12 bore |
| Cross Reference 3 | SKF 22211 EK - E design, 1:12 bore, pressed steel cage |
| Cross Reference 4 | FAG 22211-E1-XL-K - E1-XL design, 1:12 bore, steel cage |

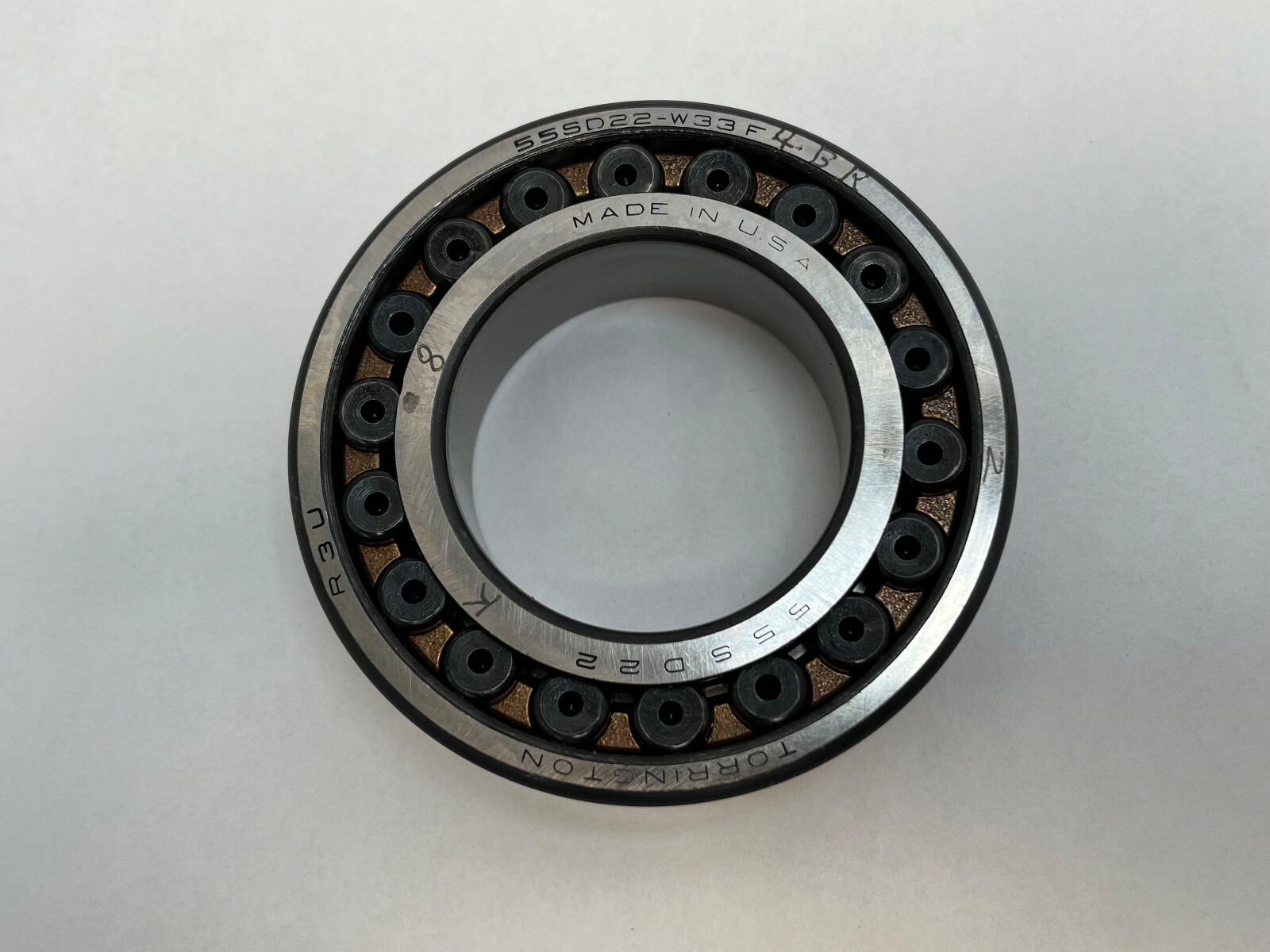

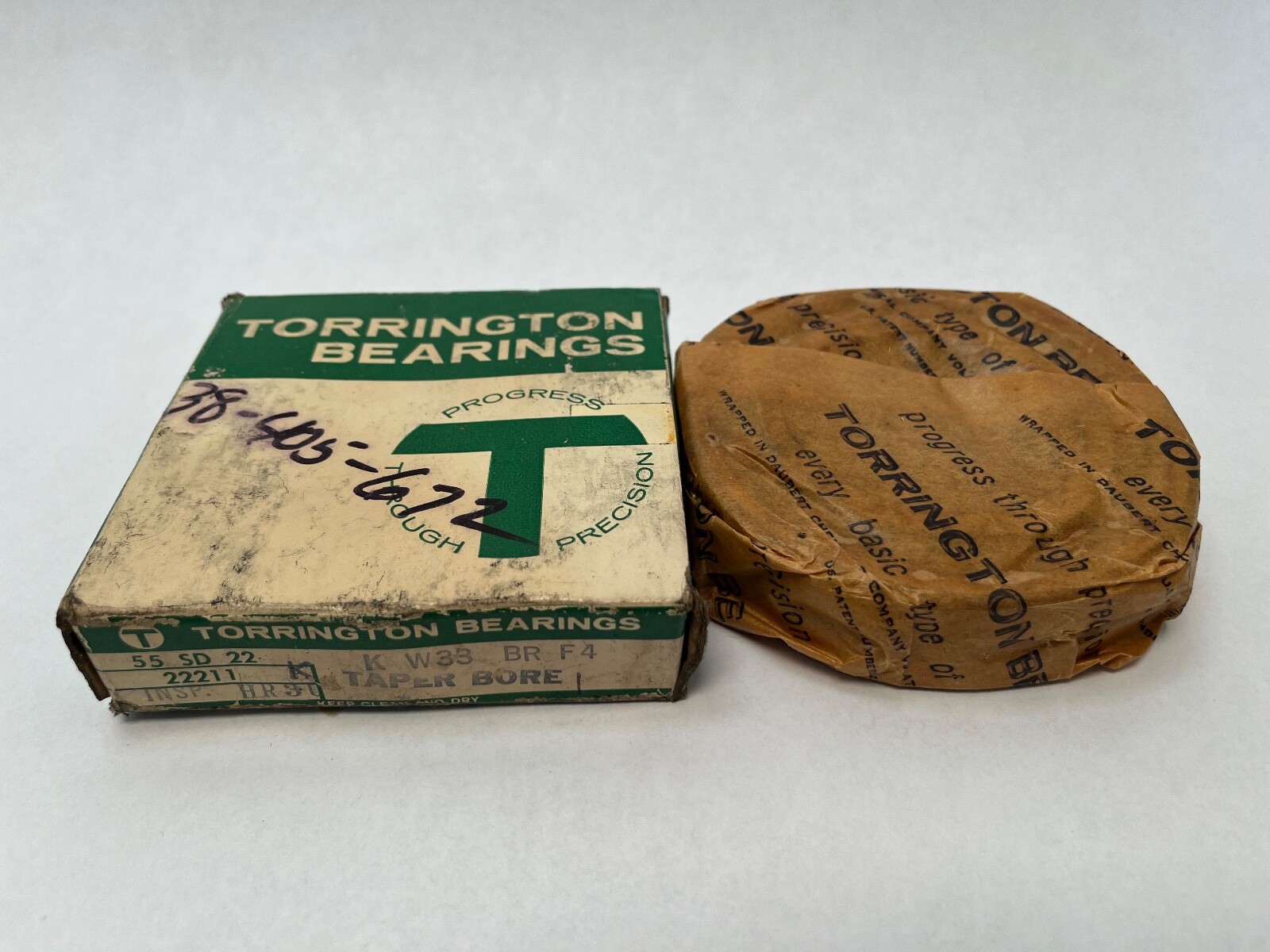

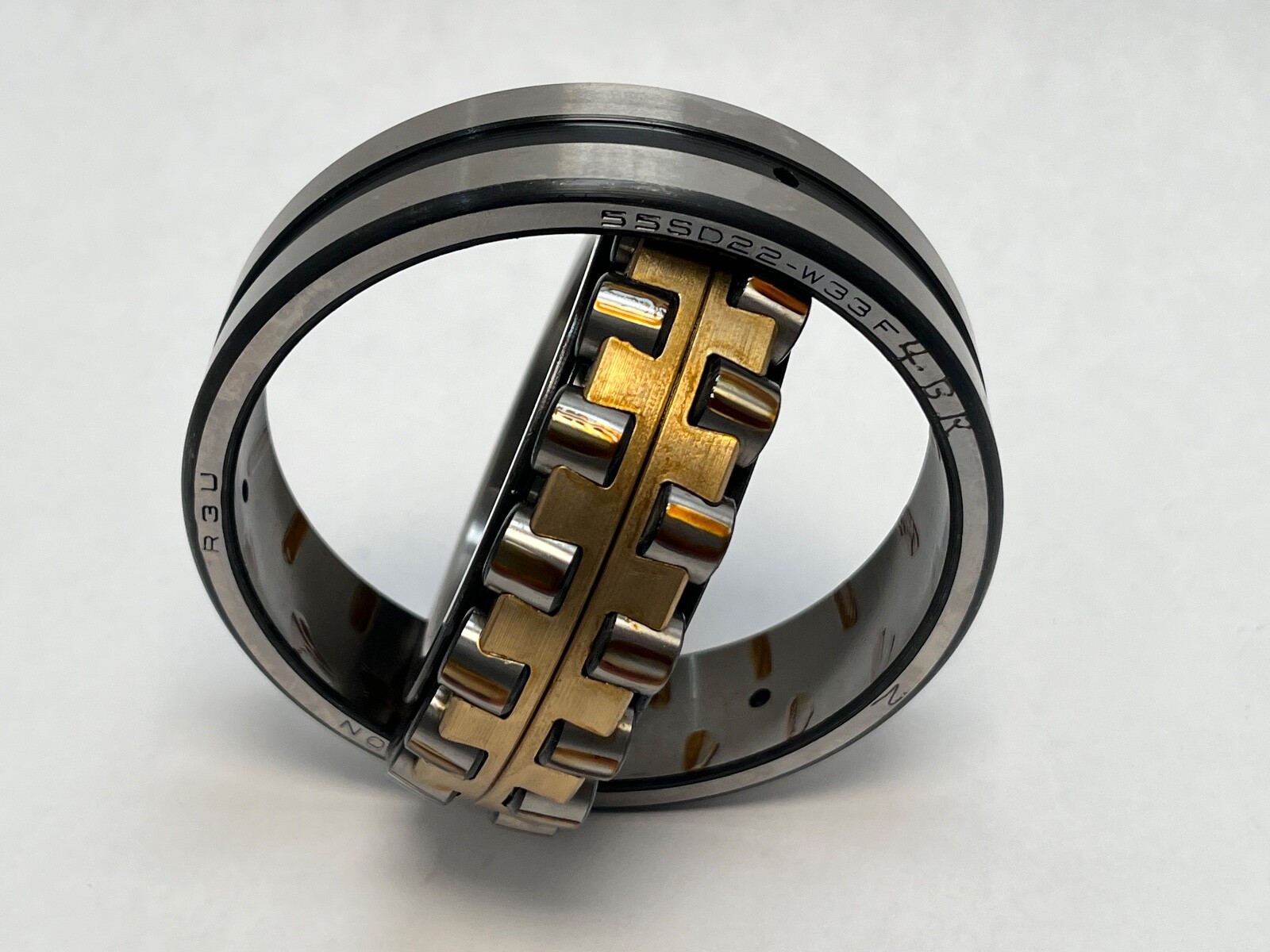

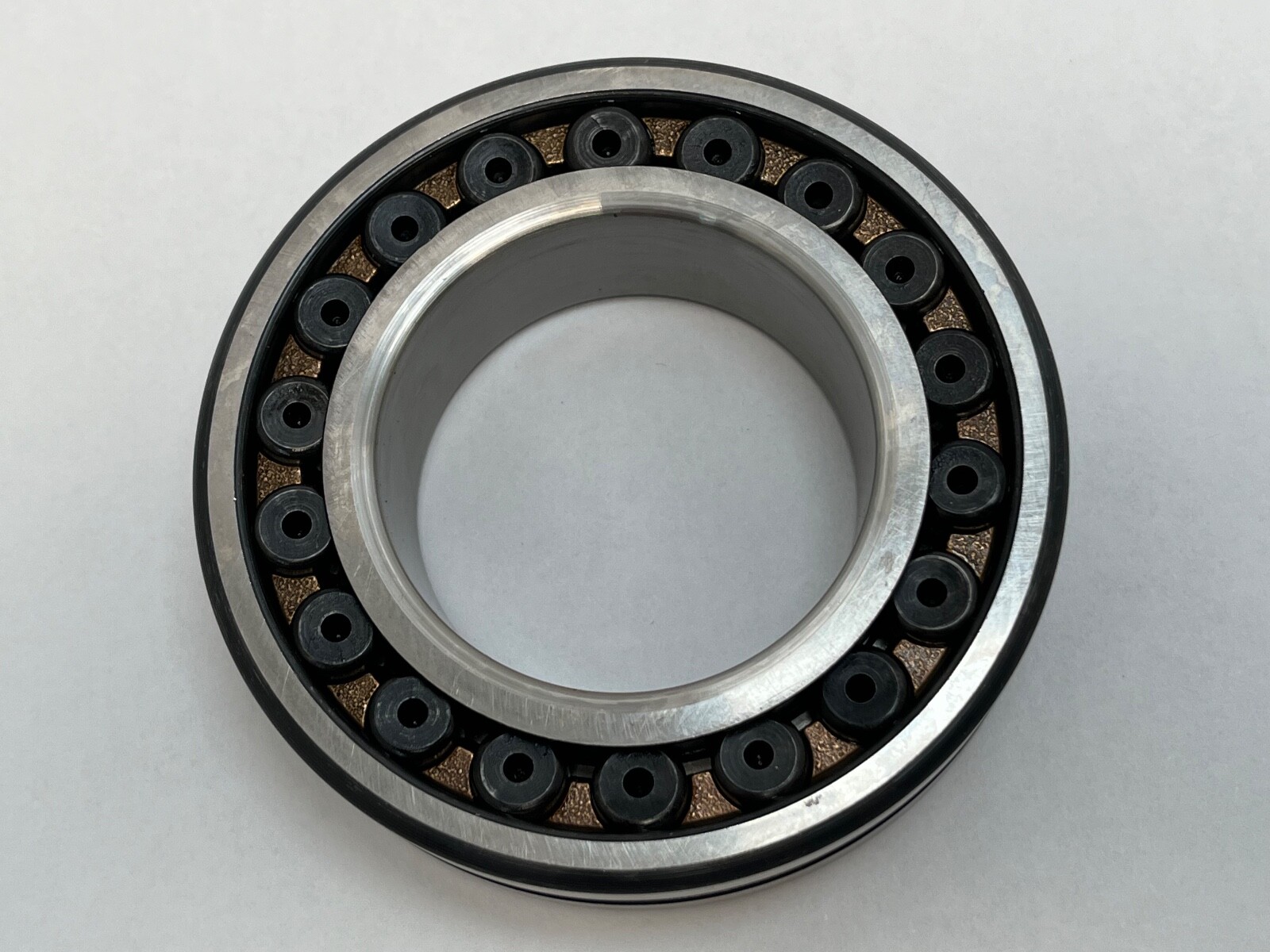

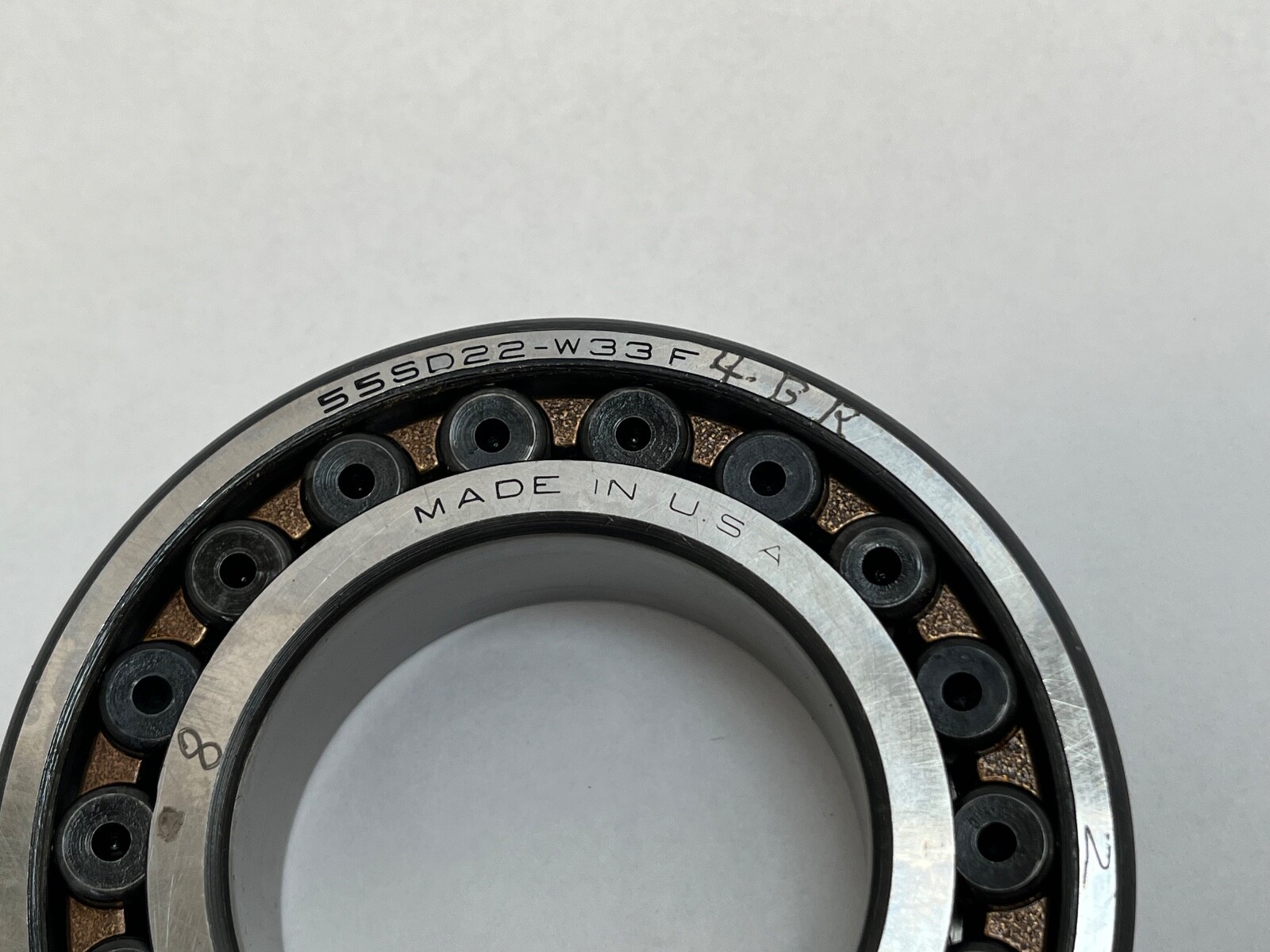

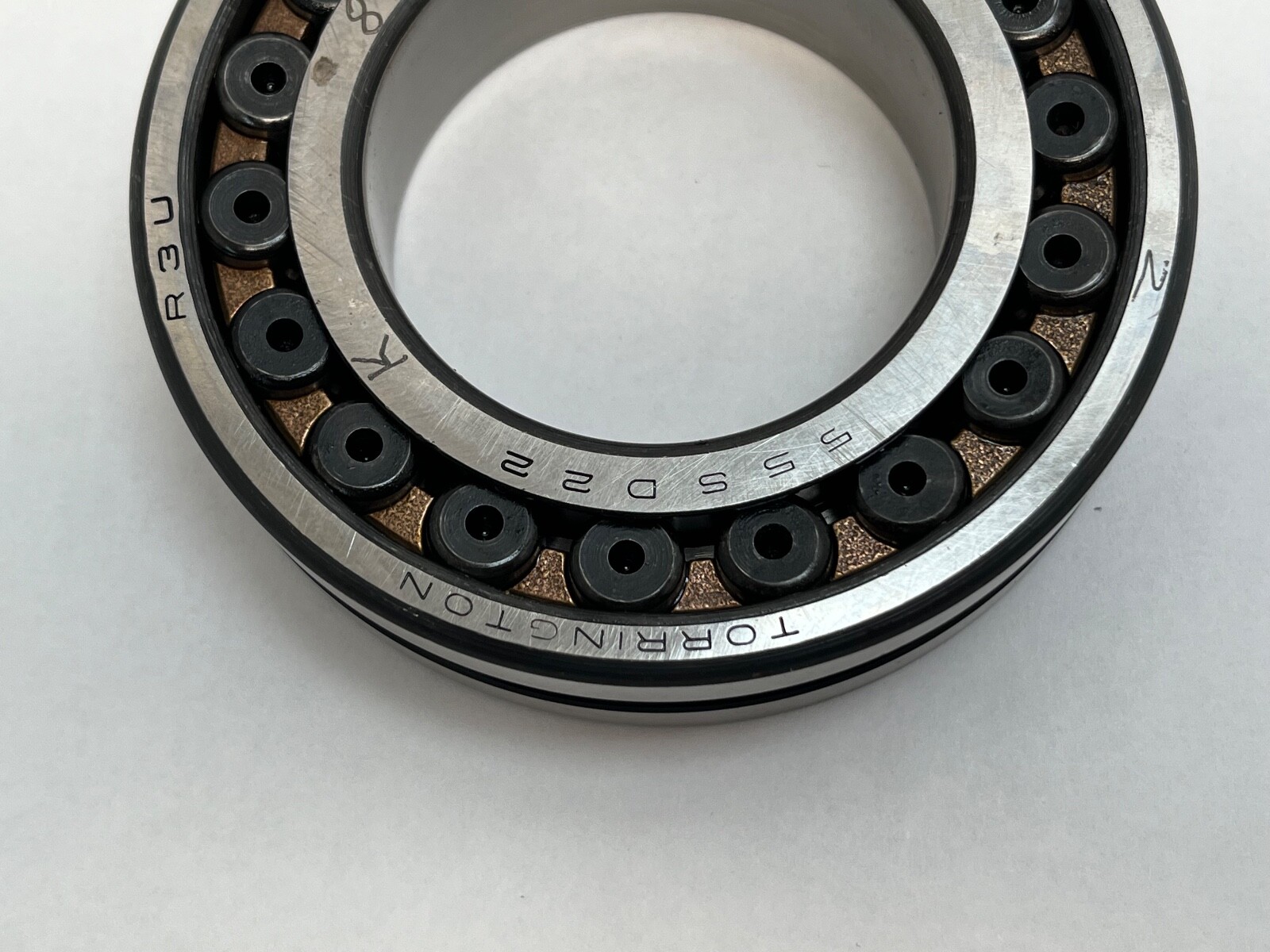

Torrington 22211KW33BR is a double-row spherical roller bearing, 222 series, 55 mm bore, 100 mm outside diameter, 25 mm width, with a 1:12 tapered bore, a W33 lubrication groove and CN radial clearance. Open. Unit Quantity: 1 Pc. Country of origin: United States.
222 — double-row spherical roller bearing series.
11 — bore code, 55 mm bore.
K — tapered bore, 1:12 taper.

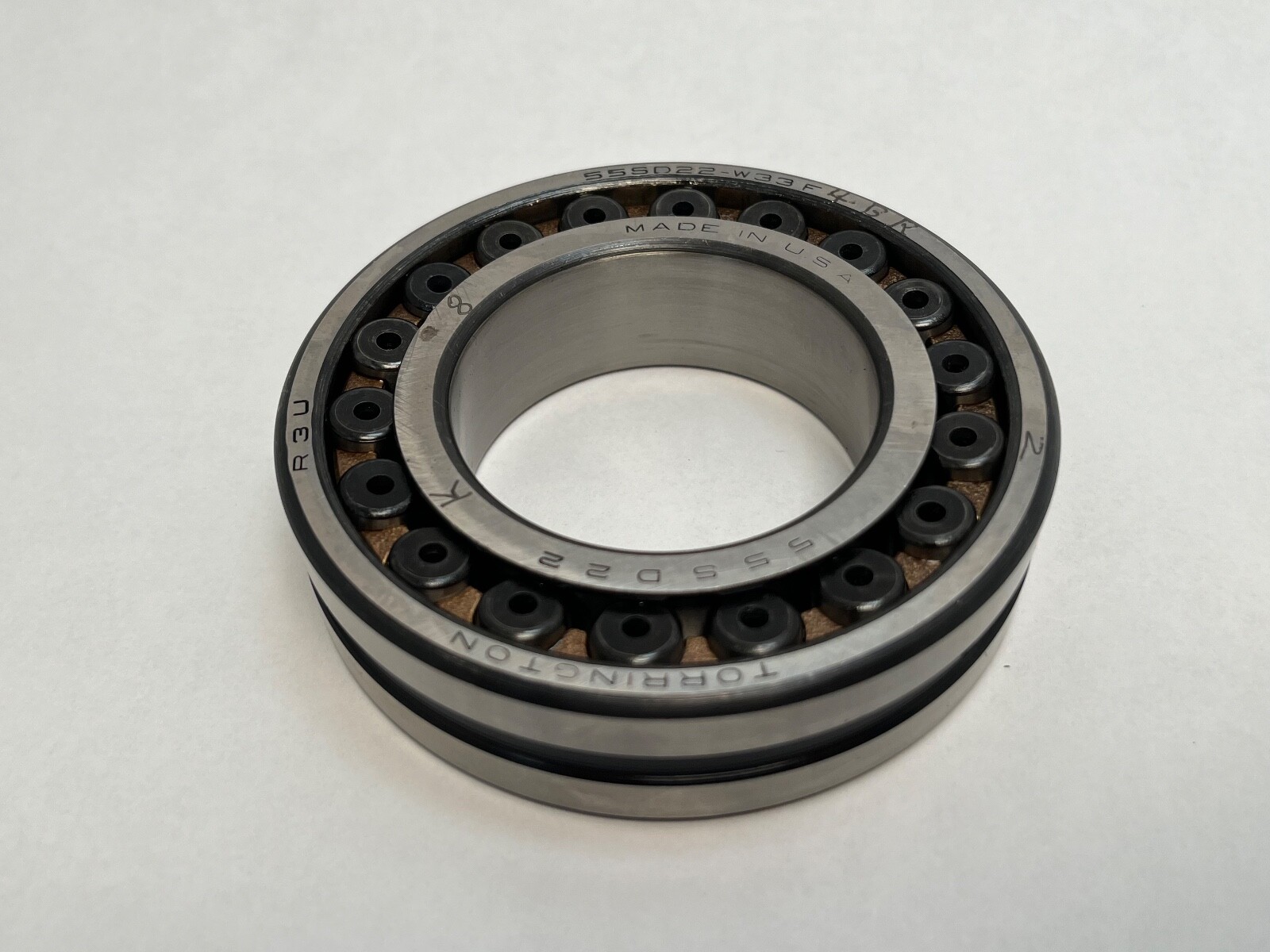

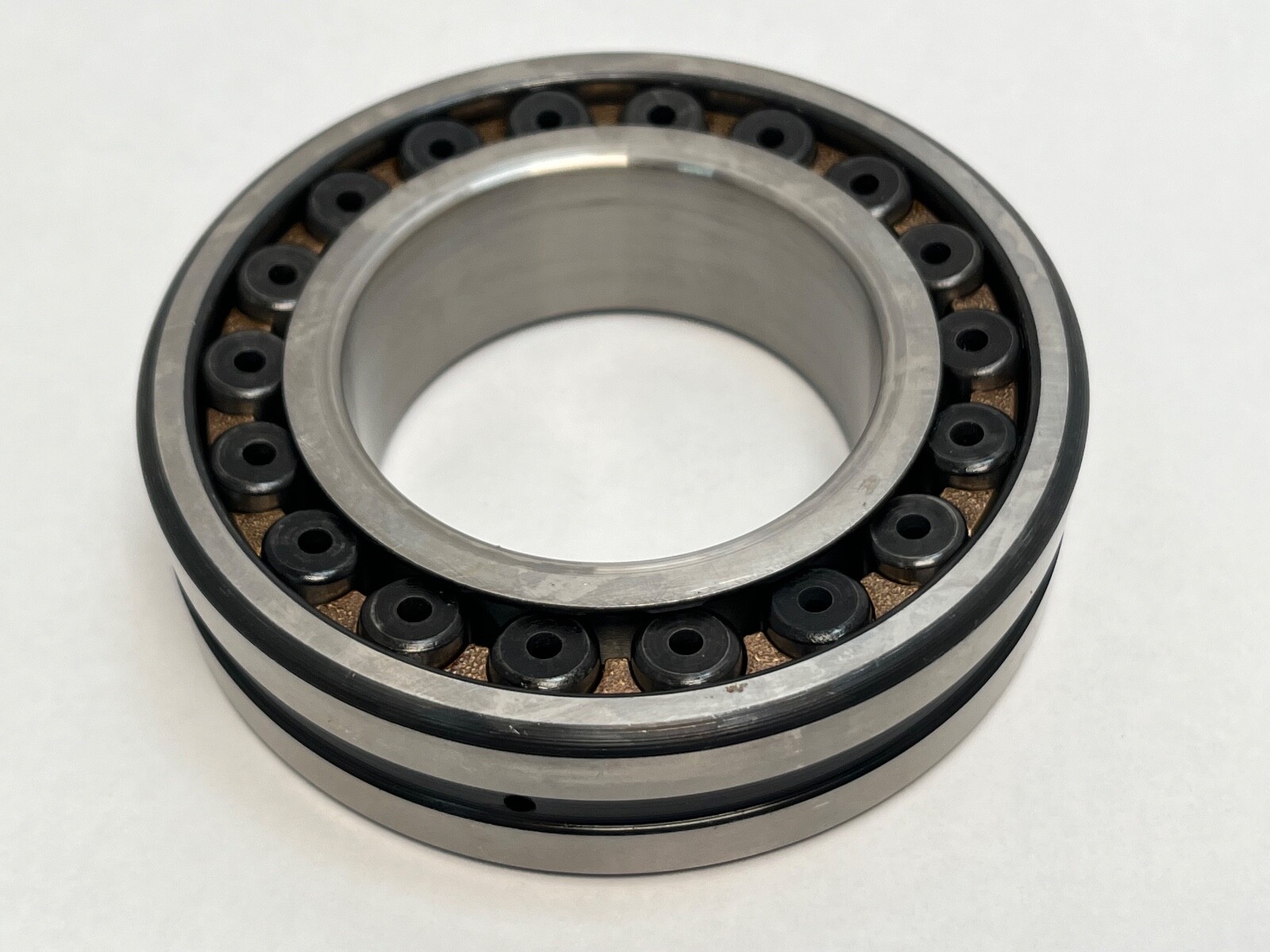

W33 — annular lubrication groove in the outer ring outside diameter with three radial holes through to the rollers.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Spherical rollers. Closure Type: Open. Internal Clearance: CN. Series: 222. Base Number: 22211. Maximum Permissible Misalignment: 1.5°. Relubrication Feature: W33 groove with three radial holes. Lubricant: grease or oil. Material: Chrome steel. Harmonization Code: 8482.30.00.
Tapered-bore execution, 1:12. Mounts on an H311 adapter sleeve, which has a 50 mm cylindrical shaft seat and a 55 mm tapered outside diameter, with a KM11 locknut and an MB11 lockwasher. Also mounts directly on a shaft journal machined to a 1:12 taper.
Timken 22211KEJW33: EJ steel cage, W33 groove, 1:12 bore. NSK 22211EAKE4: EA design, E4 groove, 1:12 bore. SKF 22211 EK: E design, 1:12 bore, pressed steel cage. FAG 22211-E1-XL-K: E1-XL design, 1:12 bore, steel cage. Related part: 22211CJW33, same 55 x 100 x 25 mm envelope with a straight cylindrical bore.
Bore 55 mm, outside diameter 100 mm, width 25 mm.
K is a 1:12 tapered bore. W33 is a lubrication groove in the outer ring outside diameter with three radial holes.
The H311 adapter sleeve, with a KM11 locknut and an MB11 lockwasher.
