FAG6207-Z-P6Deep Groove Ball Bearing – 35 mm ID, 72 mm OD, 17 mm Width, Single Shield, P6 / ABEC 3

Product Description

What this part is:

FAG 6207-Z-P6 single-row deep groove ball bearing with one non-contact steel shield. Bore Diameter: 35 mm. Outside Diameter: 72 mm. Width: 17 mm. Closure Type: Shield one side. Precision Class: ABEC 3 / P6.

Decoding the designation:

62 — deep groove ball bearing, 02 light diameter series.

07 — bore code, 7 x 5 = 35 mm bore.

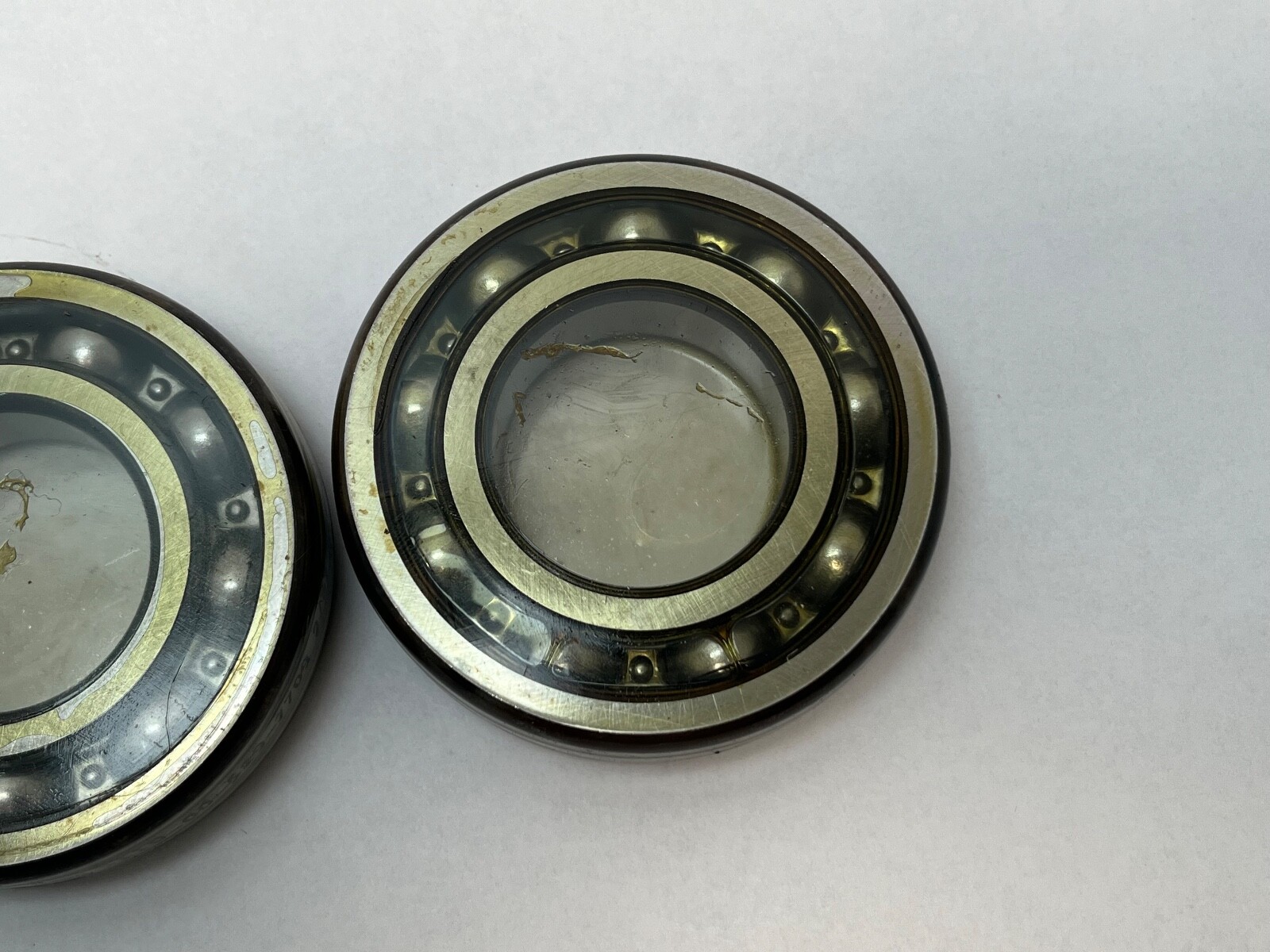

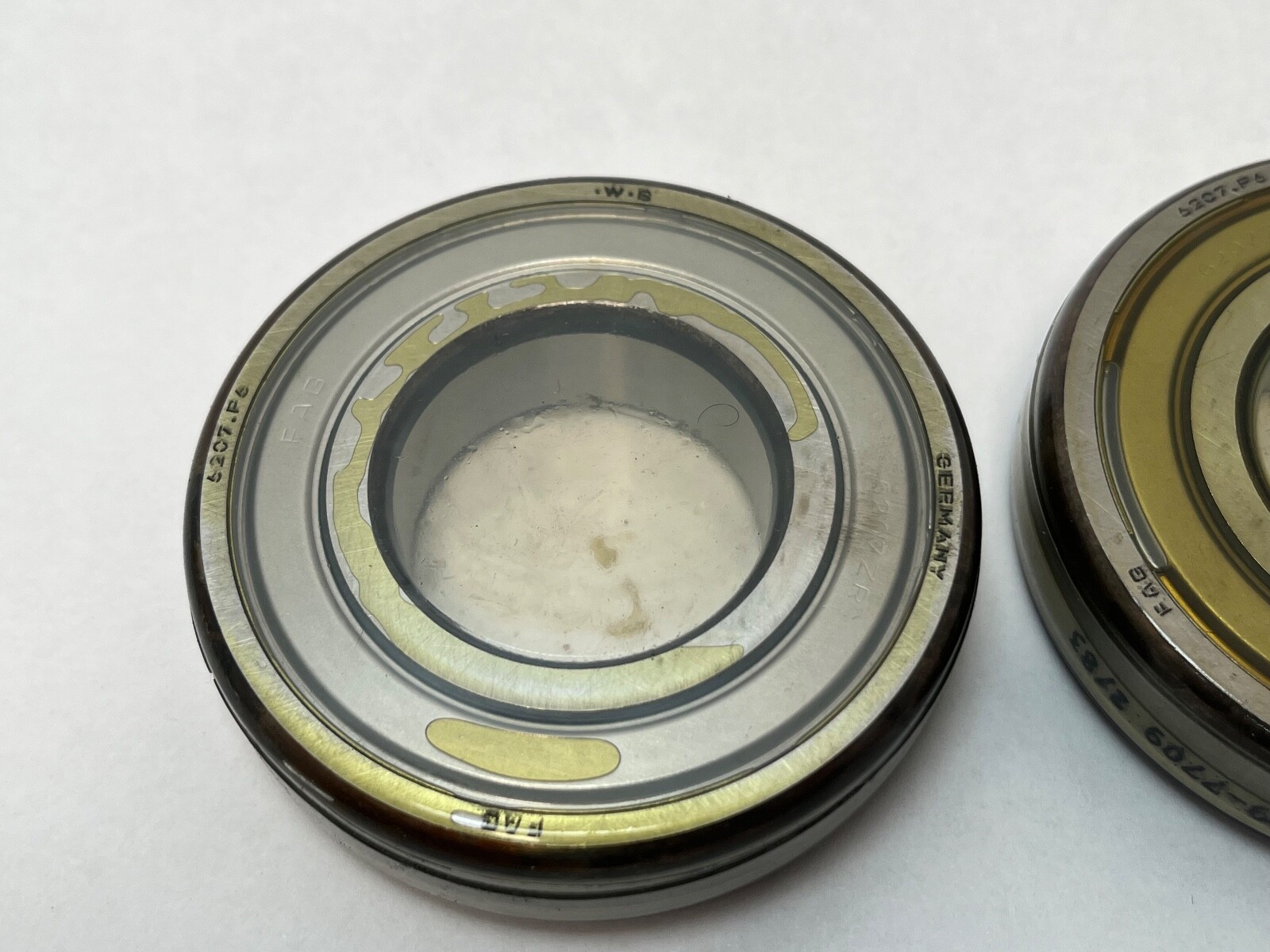

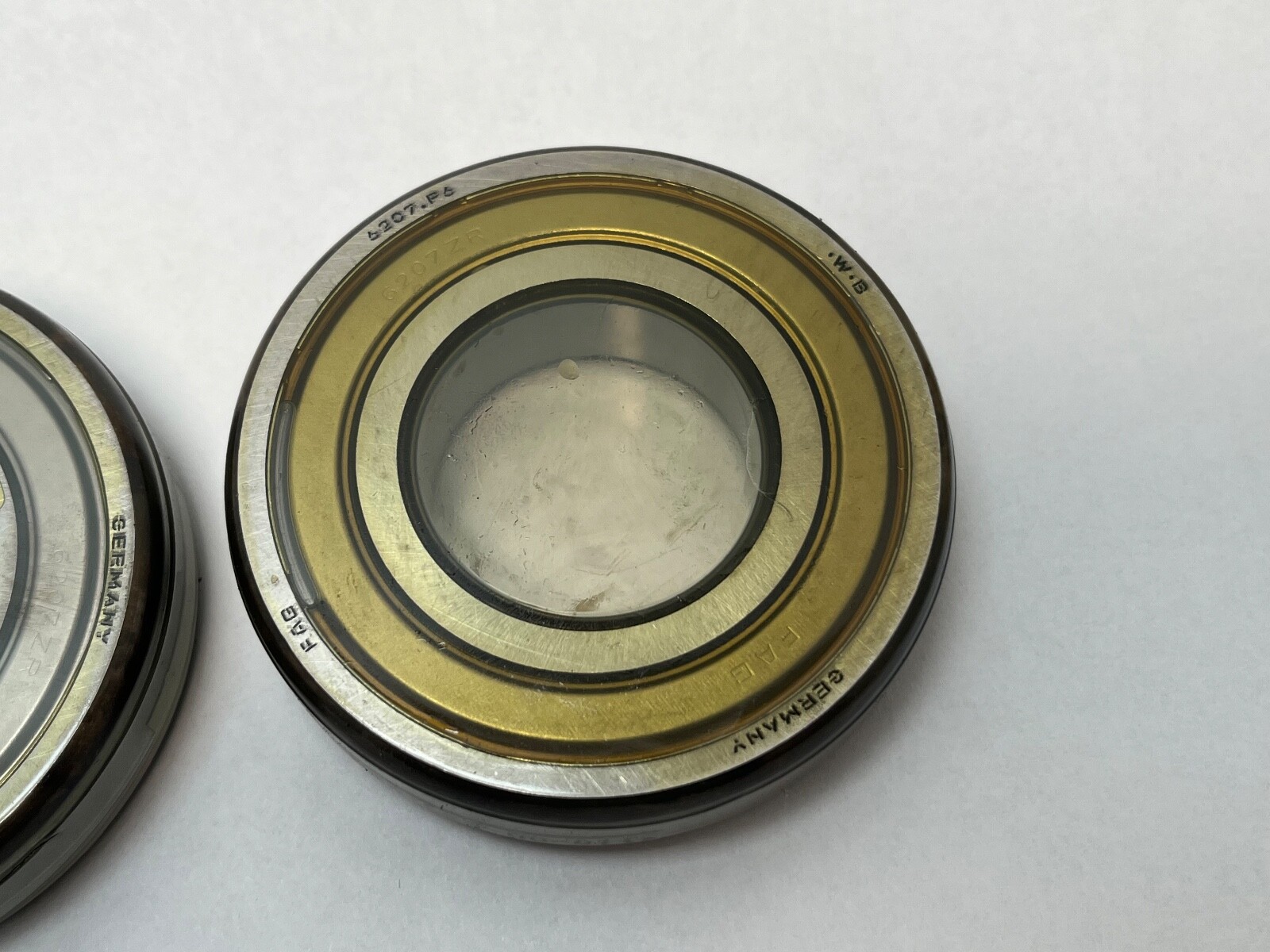

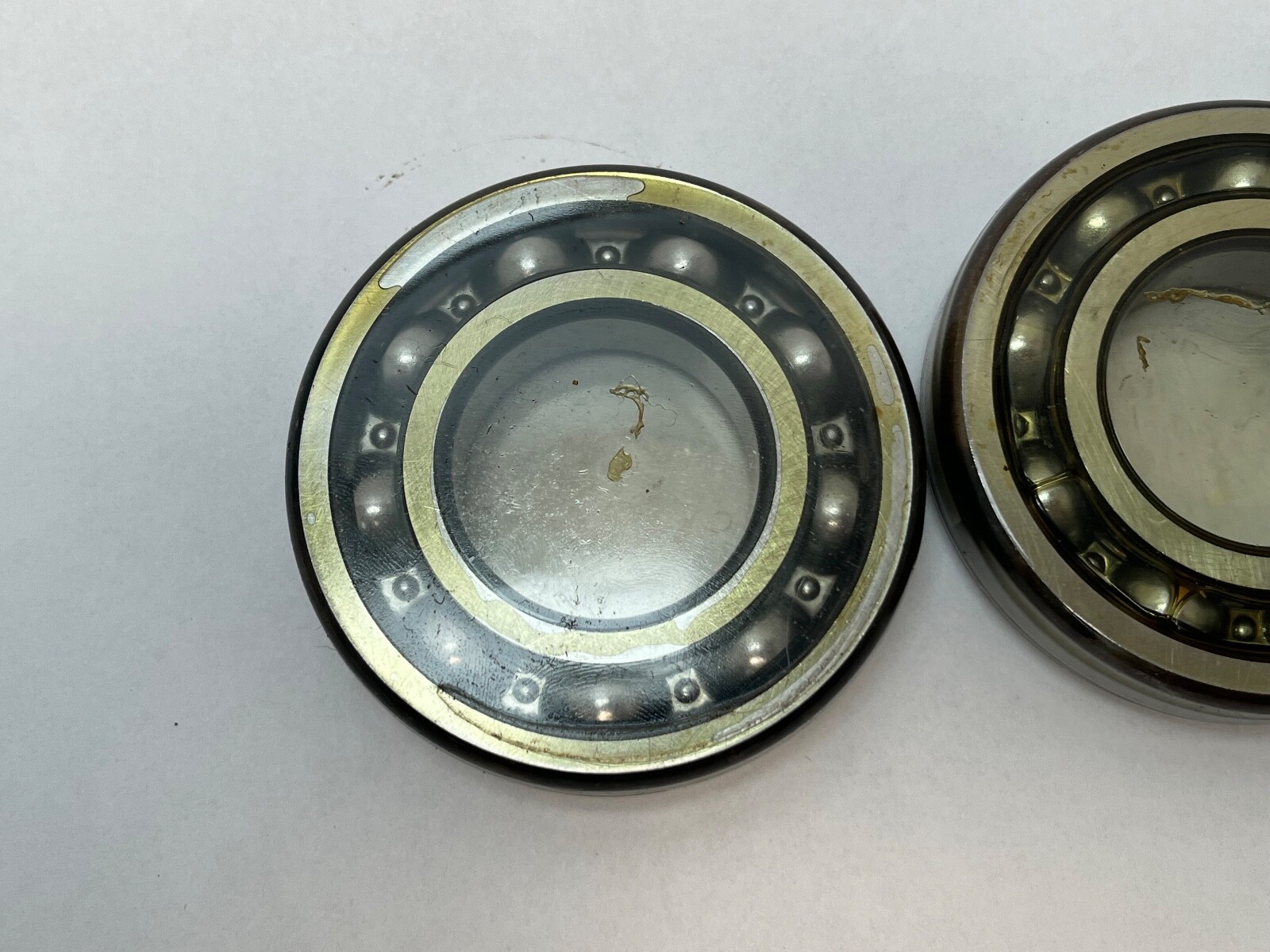

Z — one non-contact steel shield; the opposite face is open.

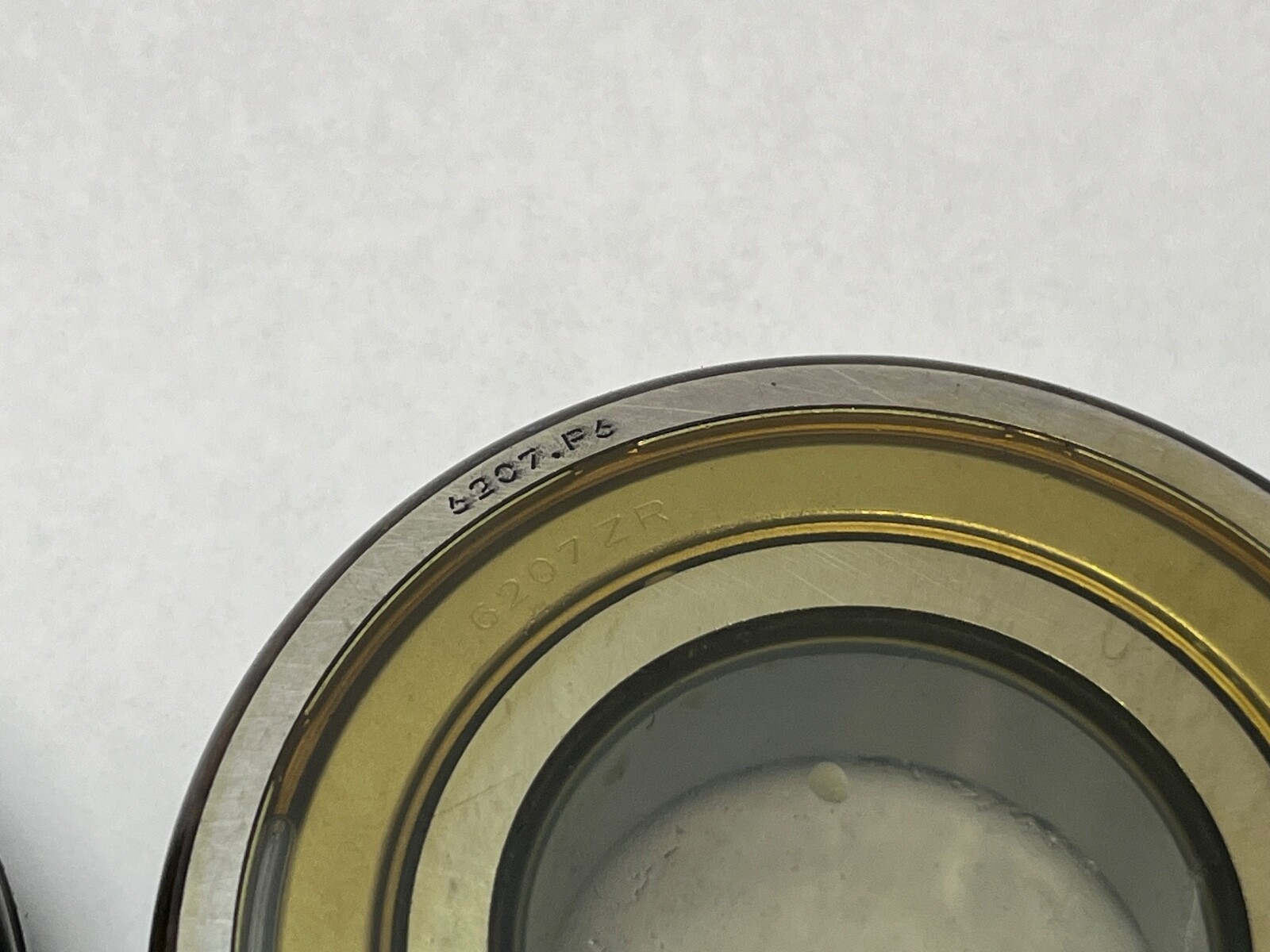

P6 — ISO tolerance class P6, tighter than normal PN, equivalent to ABEC 3.

What these specs mean in practice:

Dynamic Load Rating: 27,500 N. Static Load Rating: 15,300 N. Cage Material: Pressed steel. Item Weight: 0.279 kg (0.62 lb). Rolling Elements: Ball. The P6 class holds bore, OD and running accuracy tighter than a standard bearing, for quieter running and more consistent fits.

Mounting data:

Minimum shaft shoulder diameter: 42 mm. Maximum housing shoulder diameter: 65 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1.1 mm.

Quantity and configuration:

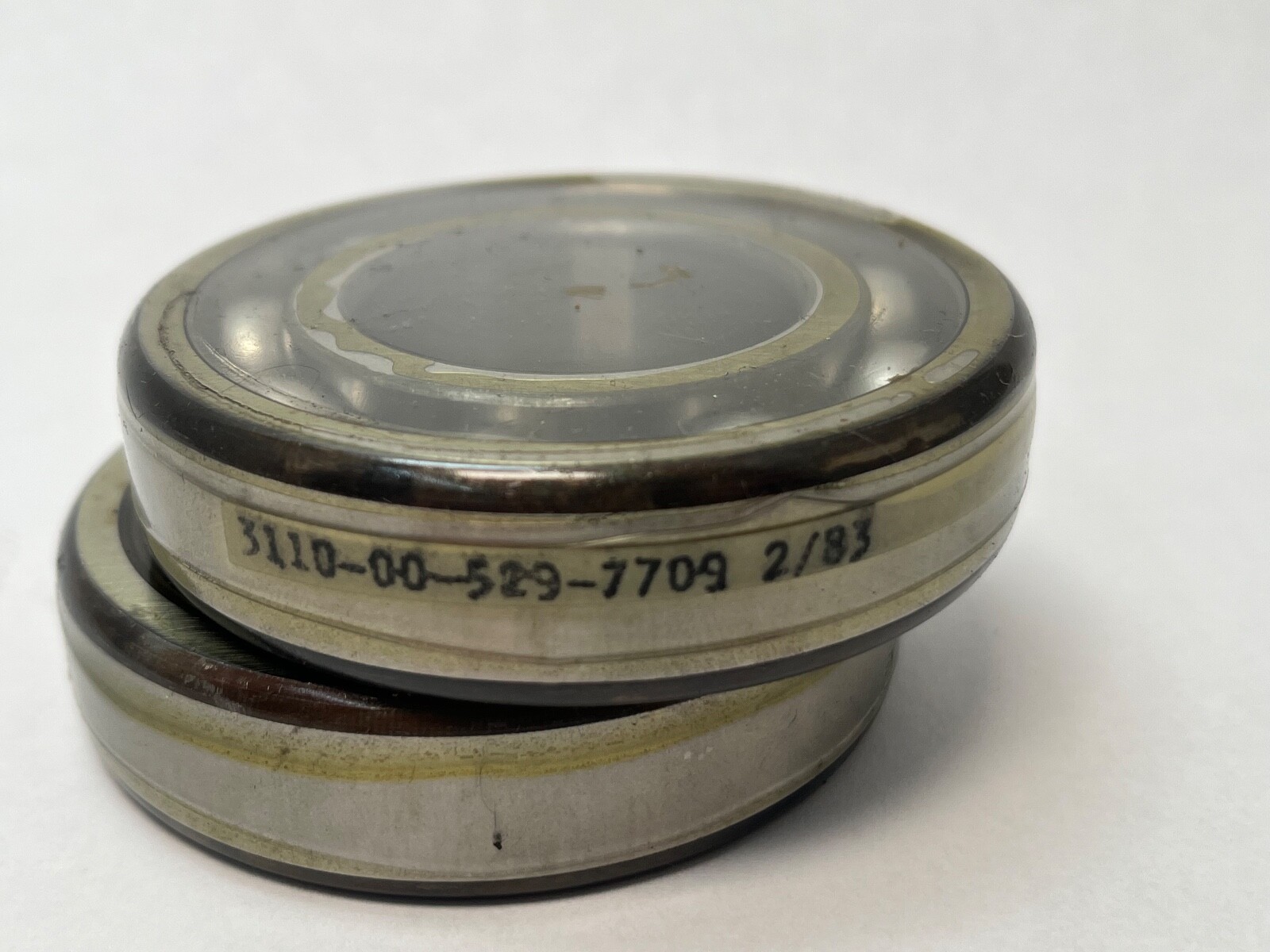

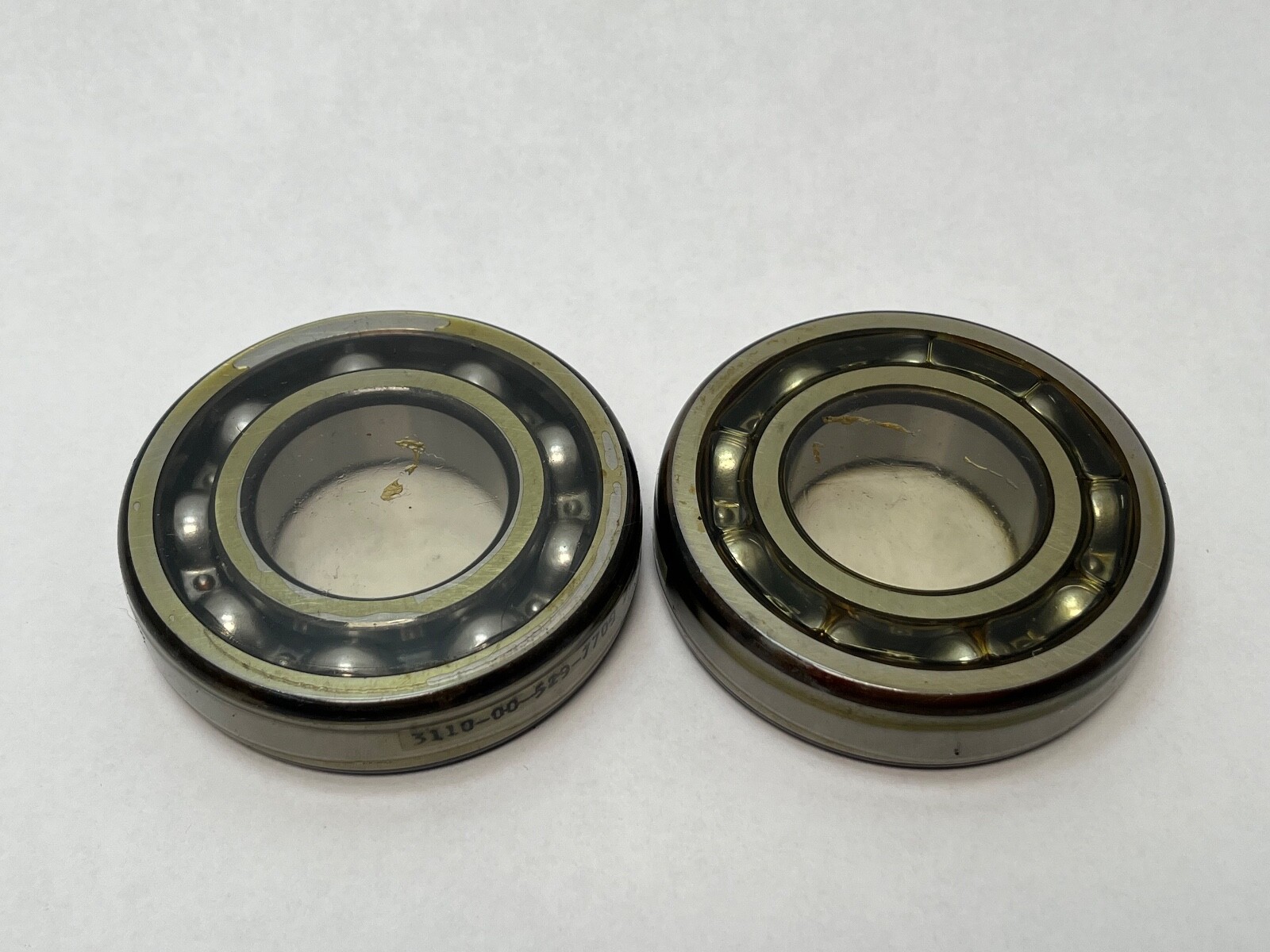

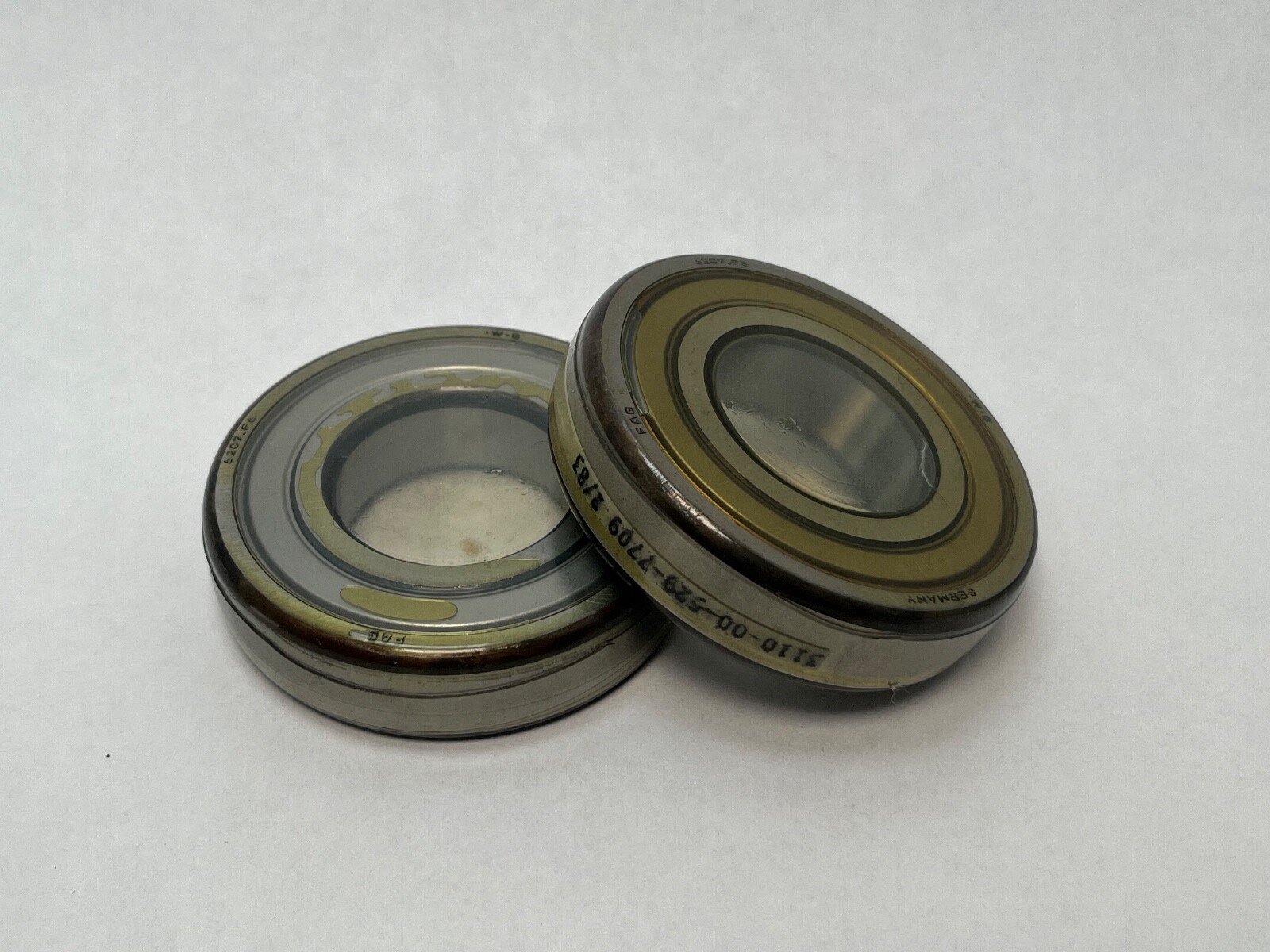

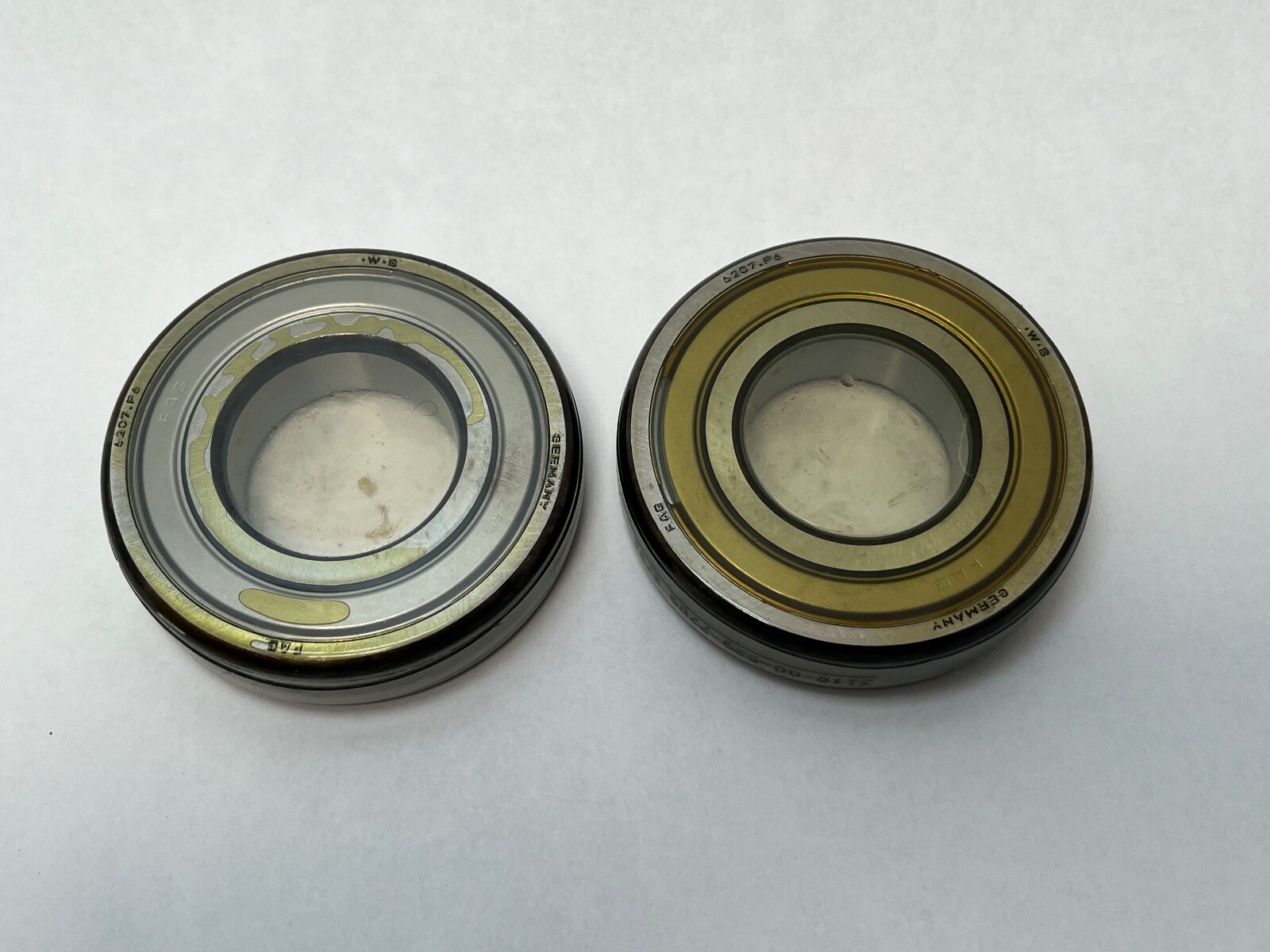

Unit Quantity: 2 Pcs. Two single-shield bearings.

Interchange guidance:

Same 35 x 72 x 17 mm single-shield envelope: SKF 6207-Z/P6 (same tolerance class); NSK 6207Z, NTN 6207Z, Koyo 6207Z at normal tolerance.
