Availability:
2 in stock
Single-row deep groove ball bearing, 70 x 150 x 35 mm, straight bore, open both faces, normal internal clearance, no snap ring groove. 1 Pc.
List Price
$52.41
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 6314TCC782 |
| Model | 6314 TC C782 6314 TC/C782 / ABEC5 P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6300 |
| Condition | New – Open box |
| Lubricant | None |
| Base Number | 6314 |
| Industry Terms | deep groove ball bearing; single row radial ball bearing; open ball bearing; heavy series ball bearing; Conrad bearing |
| Common Misspellings | 6314 TC C782; 6314-TCC782; 6314 TCC 782 |
| Application Types | electric motors; gearboxes; fans and blowers; pumps and general industrial shafting |

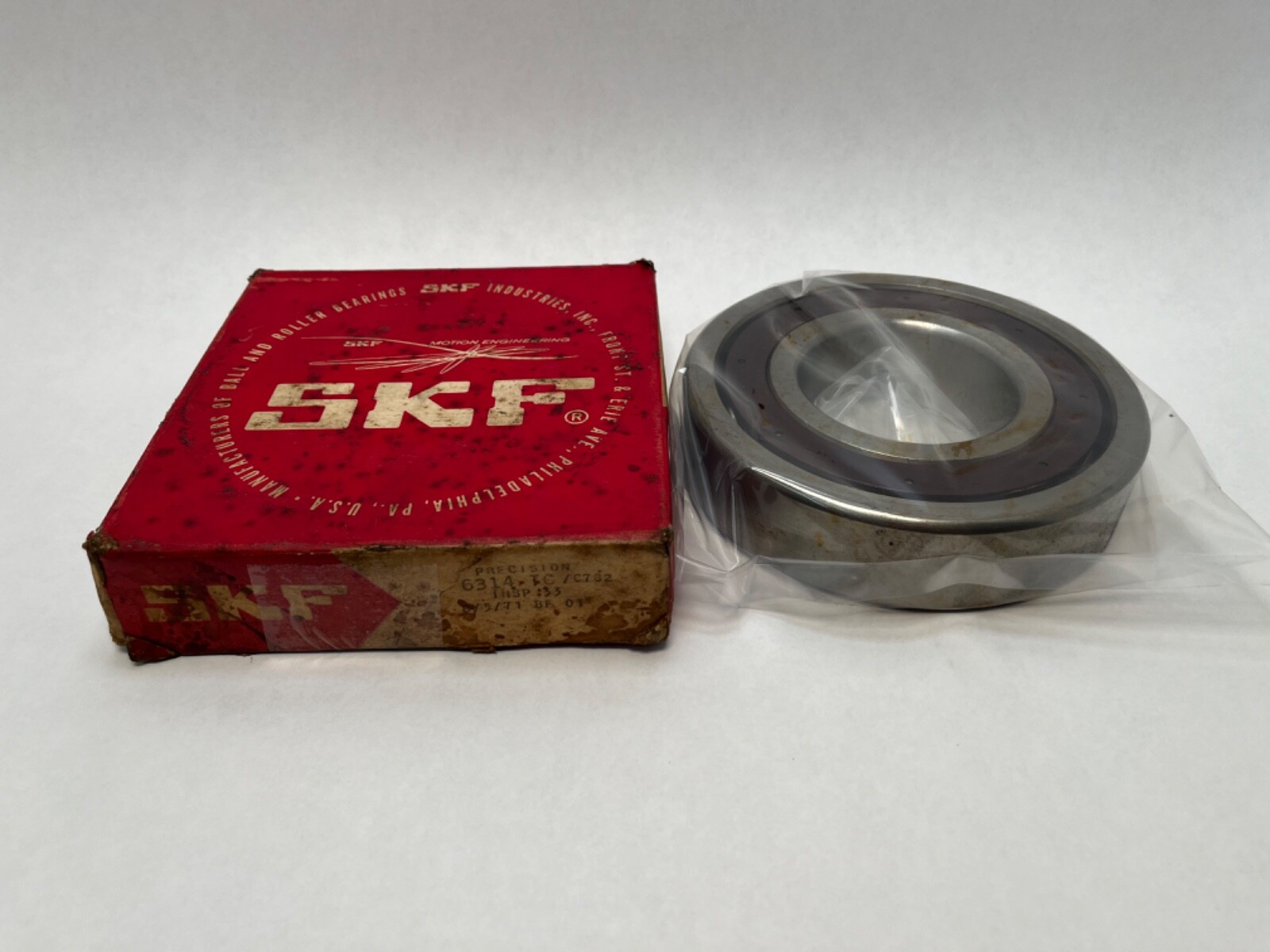

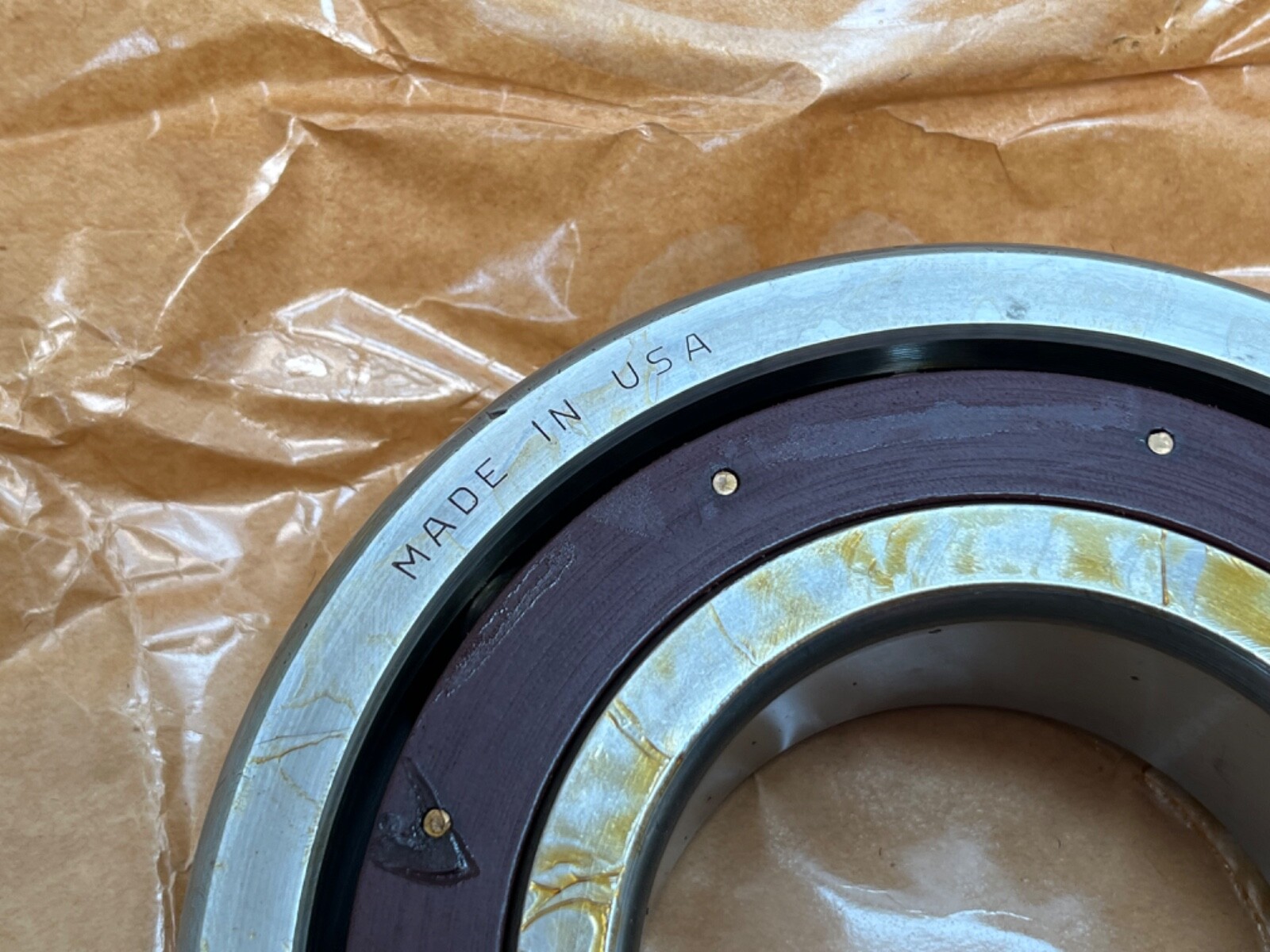

| Condition Note | Made In USA, New Old Stock |
| Bore Shaft Size | 70 mm (2.7559 in) |
| Mpn Variants | 6314 TC/C782; 6314TCC782; 6314-TC-C782; 6314 TC C782; 6314 |
| Additional Attributes | Takes moderate thrust in both directions from a single row. |
| Min Temp | -30 °C |
| Dynamic Load Rating | 111 kN / 24953 lbf |
| Static Load Rating | 68 kN / 15287 lbf |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 5.51 lbs |
| Limiting Speed | 6300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No - outer ring has no snap ring groove |
| Harmonization Code | 8482.10.50.00 |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 6314 TC/C782 |
| Cross Reference 1 | 6314 (ISO base number, 70 x 150 x 35 mm) |
|---|---|
| Cross Reference 2 | FAG 6314 |
| Cross Reference 3 | NSK 6314 |
| Cross Reference 4 | NTN 6314 |
| Cross Reference 6 | TC (SKF design block, unverified) |
| Cross Reference 7 | C782 |

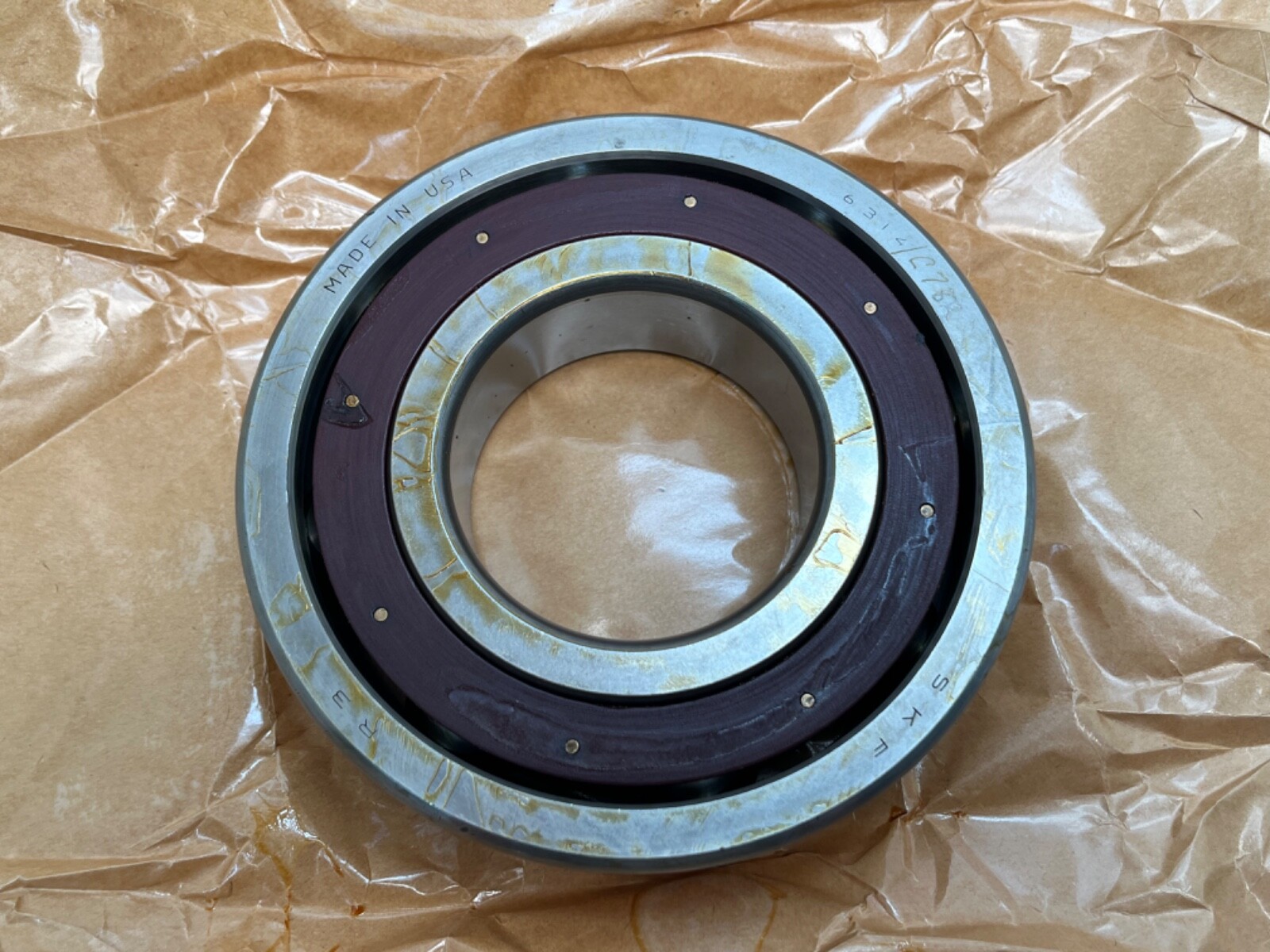

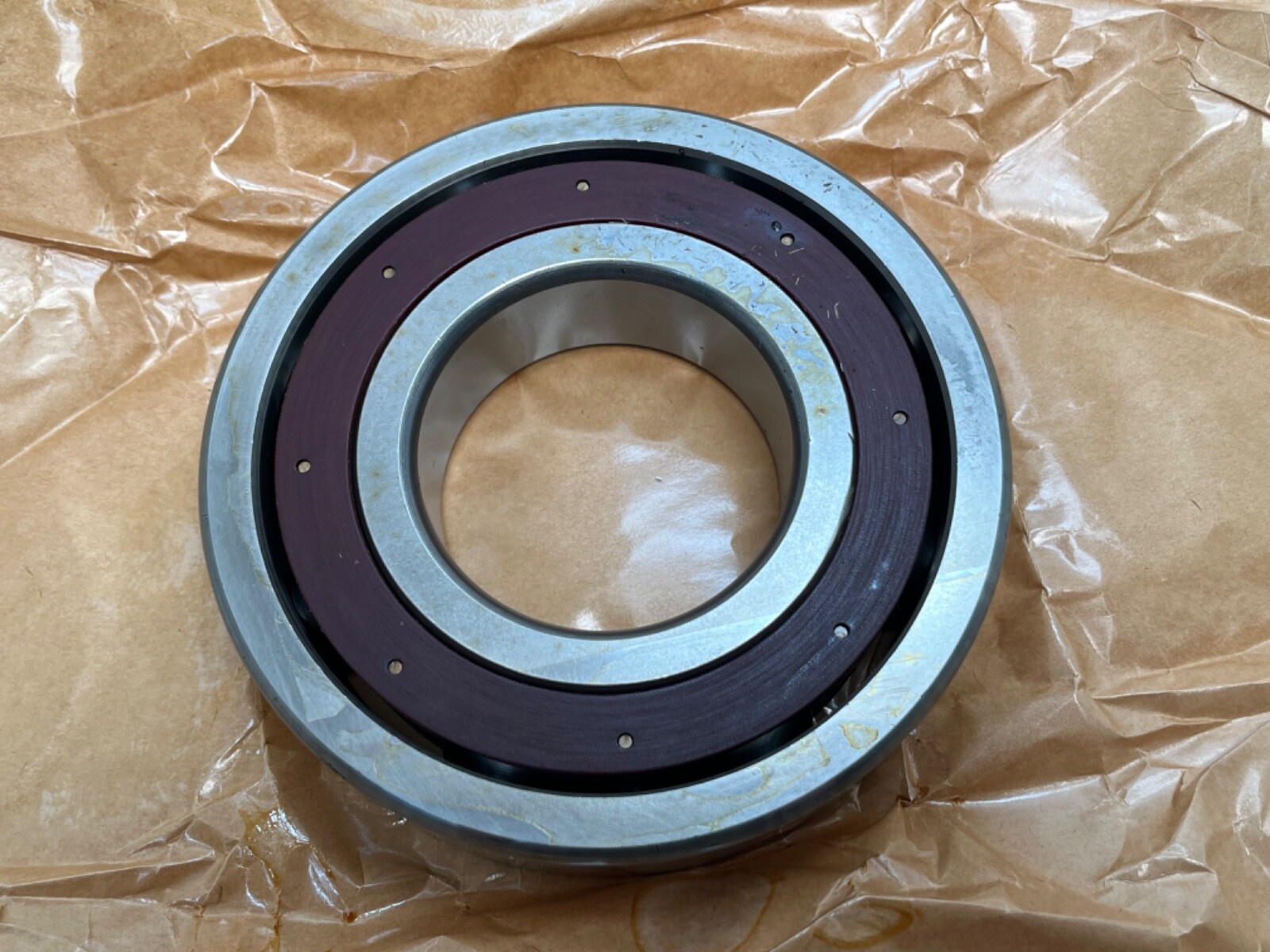

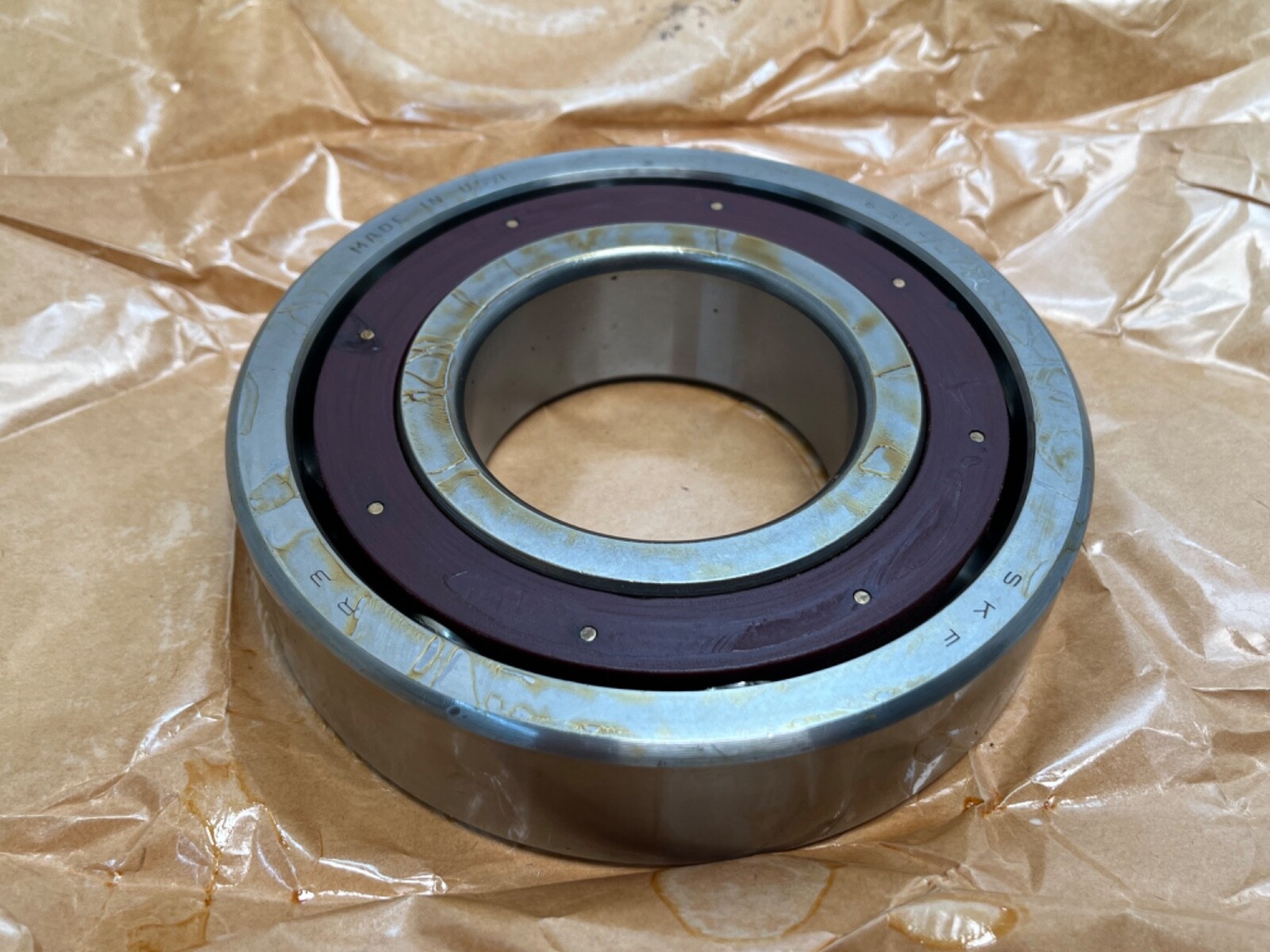

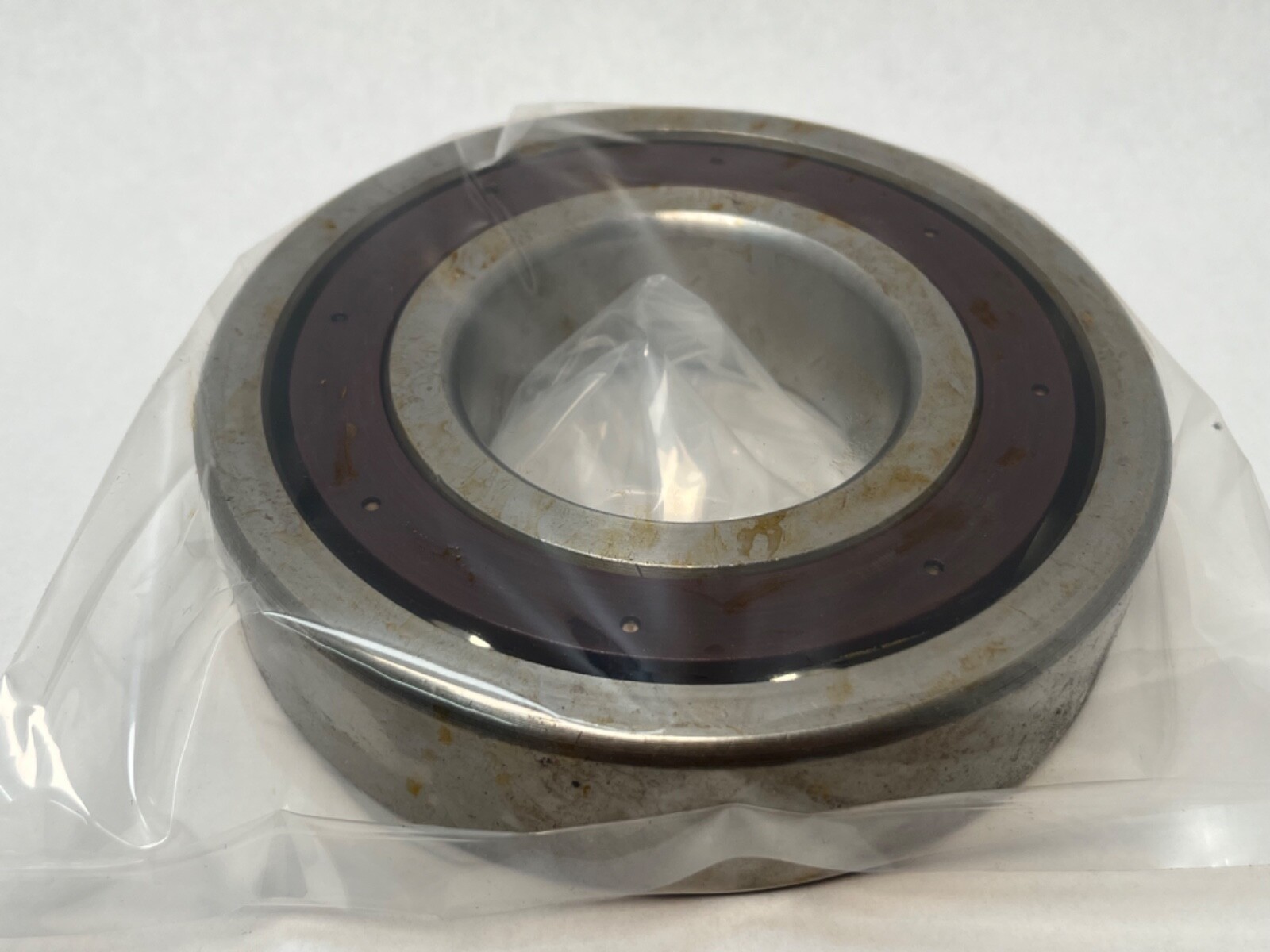

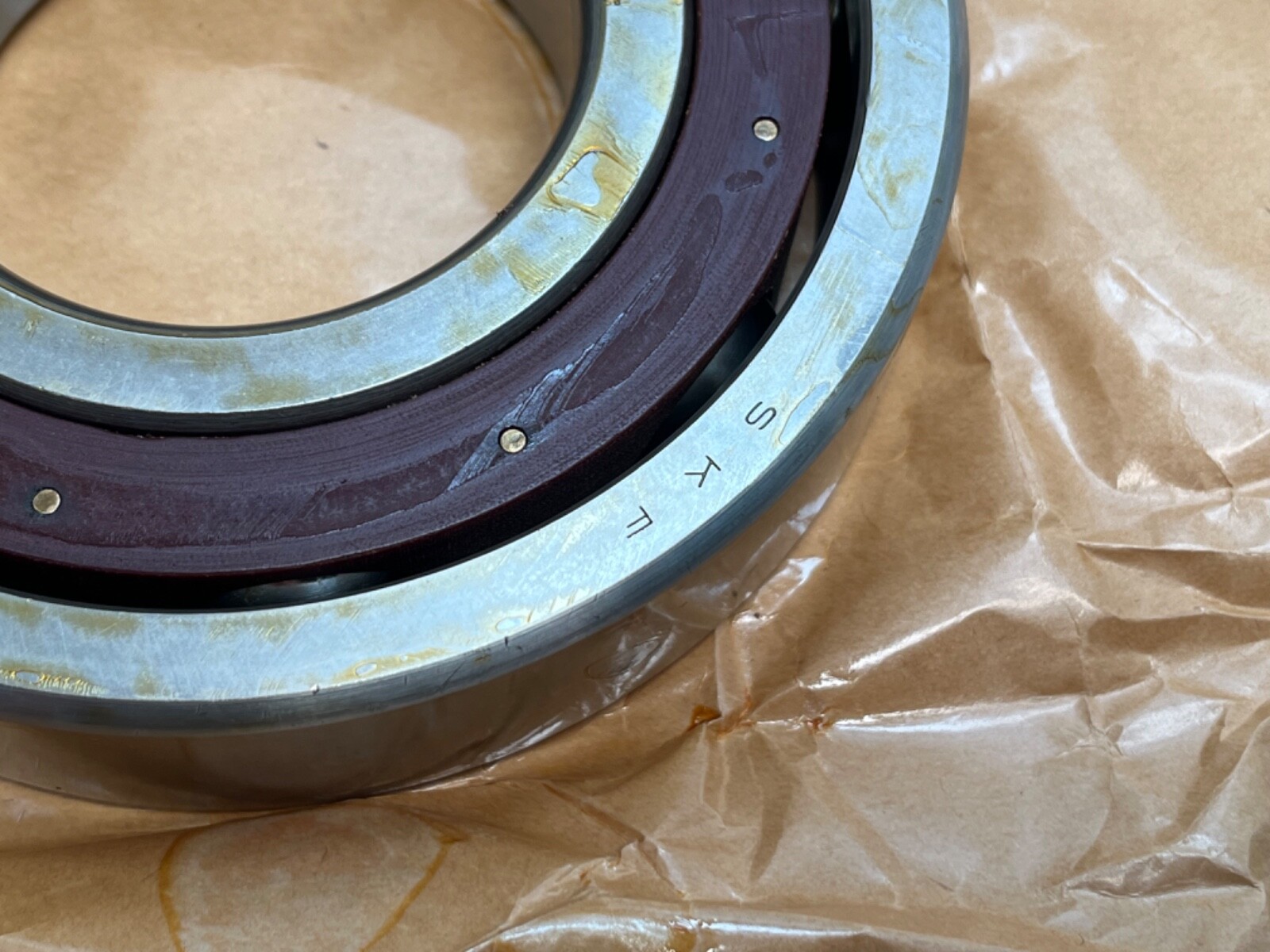

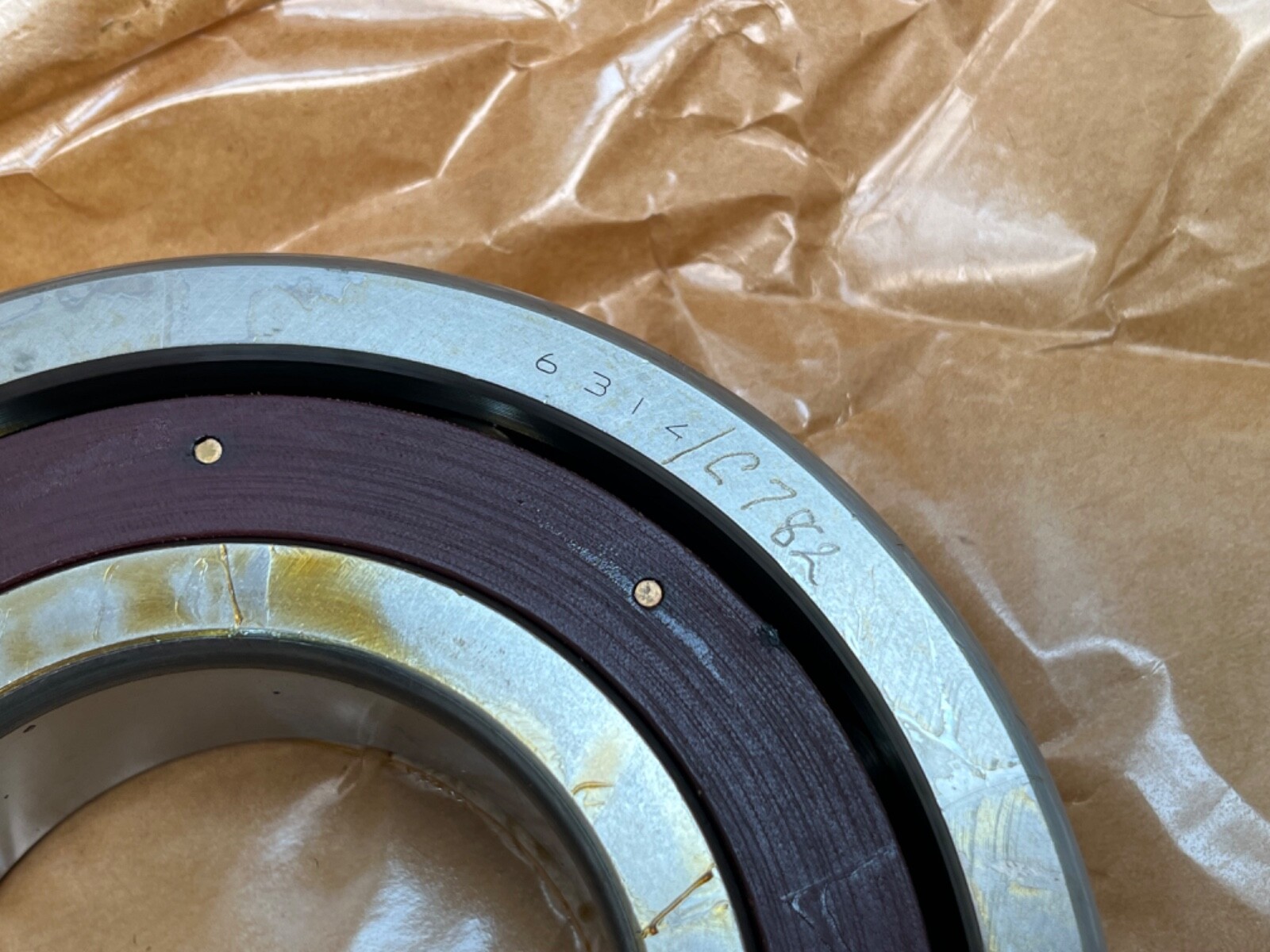

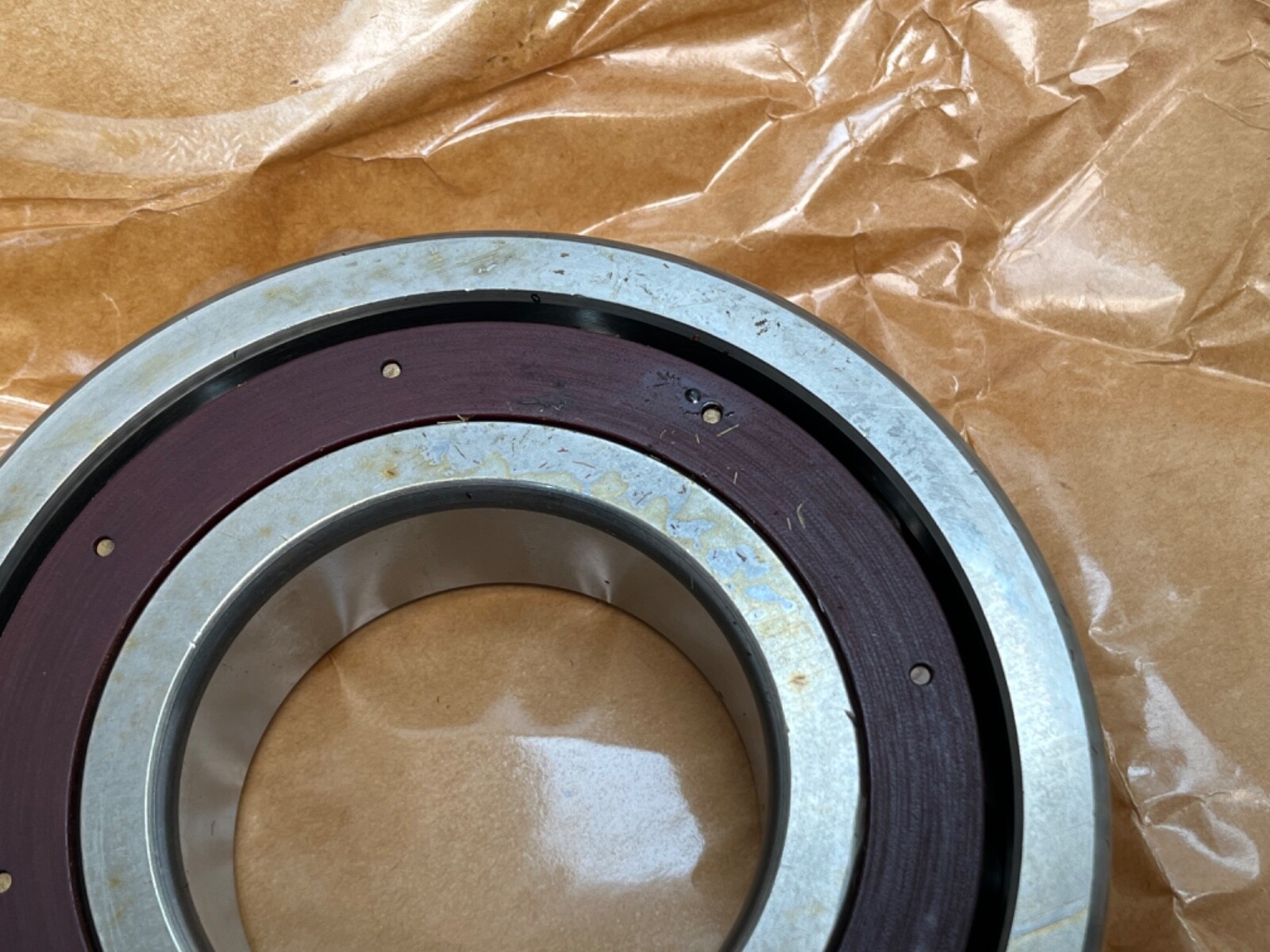

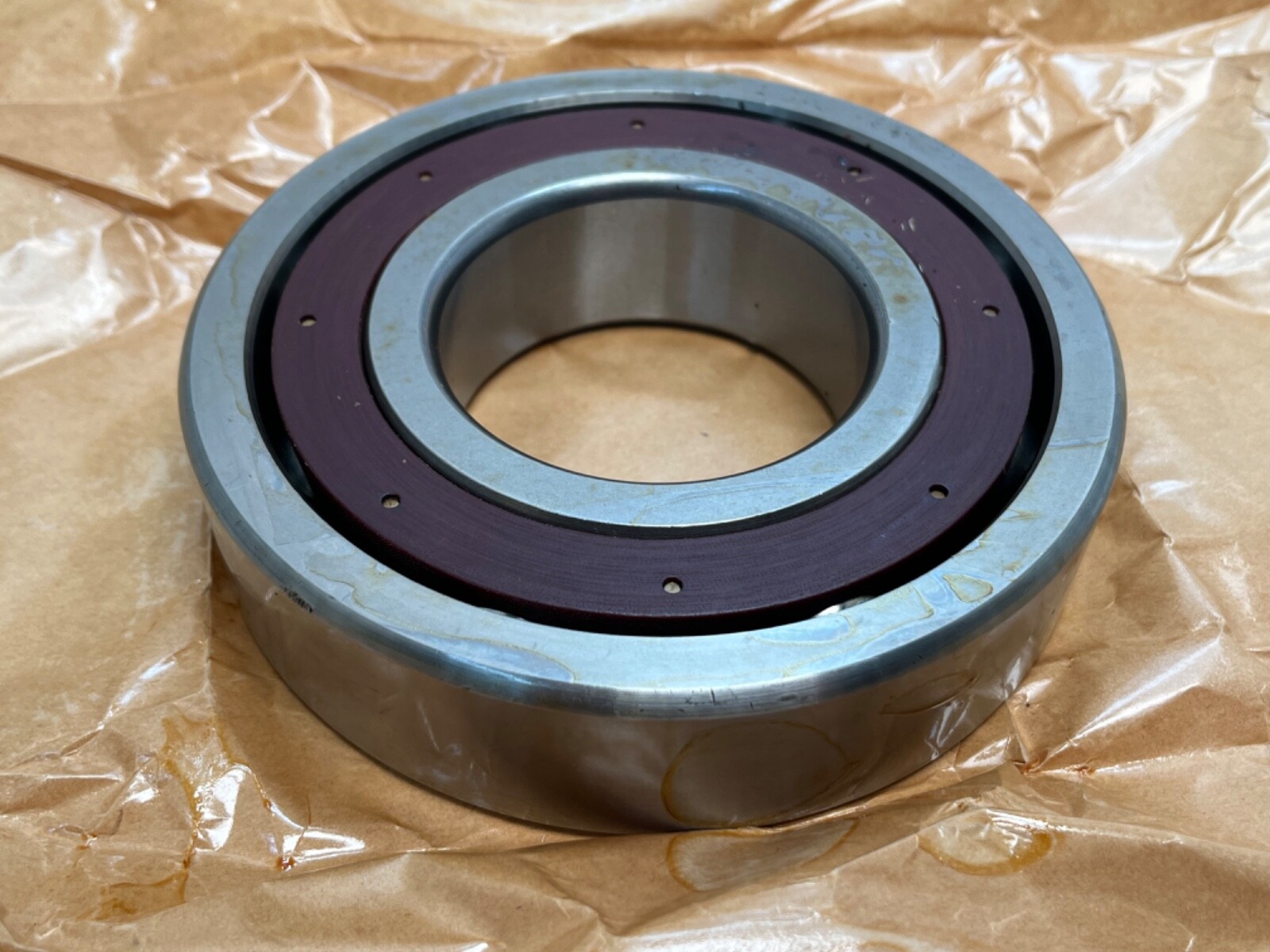

An SKF 6314 single-row deep groove ball bearing, 70 mm bore, 150 mm outside diameter, 35 mm width, open on both faces. The balls run in deep circumferential grooves cut in both rings, and it is that groove depth which lets a deep groove bearing take axial load in either direction as well as radial load.
The 63 dimension series is the heavy deep groove series, carrying a larger outside diameter and ball size than a 62 of the same bore, and the trailing 14 is the bore code, giving 70 mm. There is no closure suffix, so both faces are open, and no N or NR, so the outer ring has no snap ring groove. With no clearance suffix, radial internal clearance is normal, CN. The TC and C782 blocks are not part of the published SKF suffix scheme and are carried here as searchable references rather than as specifications.
A deep groove ball bearing is the lowest-friction and highest-speed of the common bearing types for a given envelope, carrying radial load together with moderate thrust in both directions from a single row. The heavy 63 series trades outside diameter for capacity, so a 6314 carries substantially more load than a 6214 on the same 70 mm shaft while needing a larger housing bore. Normal CN clearance is the general-purpose setting for a shaft and housing running at similar temperatures with standard fits. With both faces open, lubrication and sealing are provided by the housing rather than by the bearing.
1 Pc. Straight bore, mounting directly onto a cylindrical shaft seat. Open both faces. No snap ring supplied and no groove to take one.
Mounting force is applied through the ring being fitted and is never transmitted across the balls from one ring to the other. An interference fit on the inner ring of a bearing this size is normally made by even heating rather than by pressing.
Same-spec equivalents on the ISO number are FAG 6314, NSK 6314, NTN 6314 and Koyo 6314, all 70 x 150 x 35 mm, open, CN. A 6314-2RS1 or 6314-2Z adds seals or shields, a 6314/C3 widens the clearance, and a 6314 N or NR adds a snap ring groove or a groove plus ring; those are related sizes rather than substitutions. A 6214 is the lighter 62 series on the same bore.
