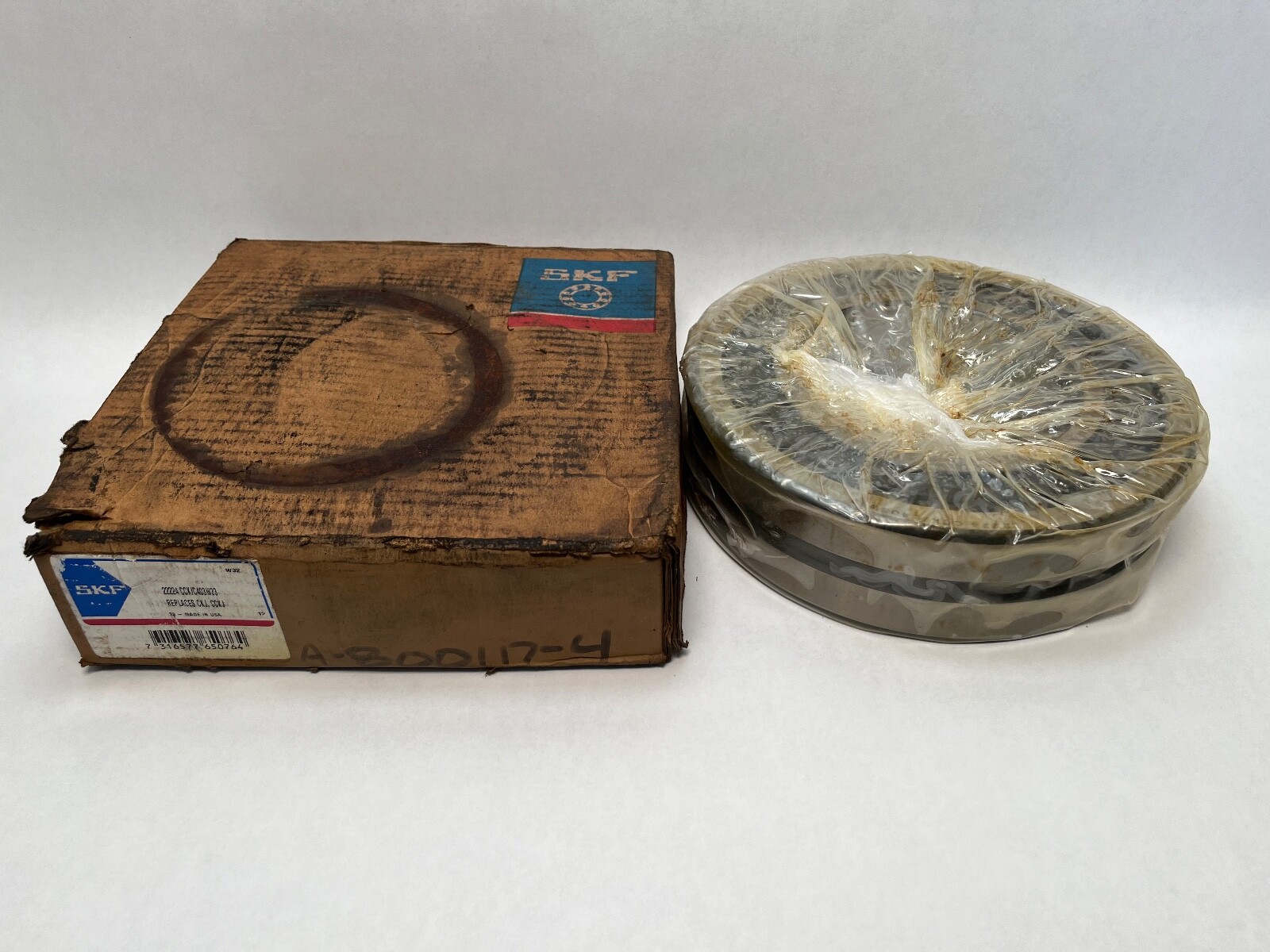

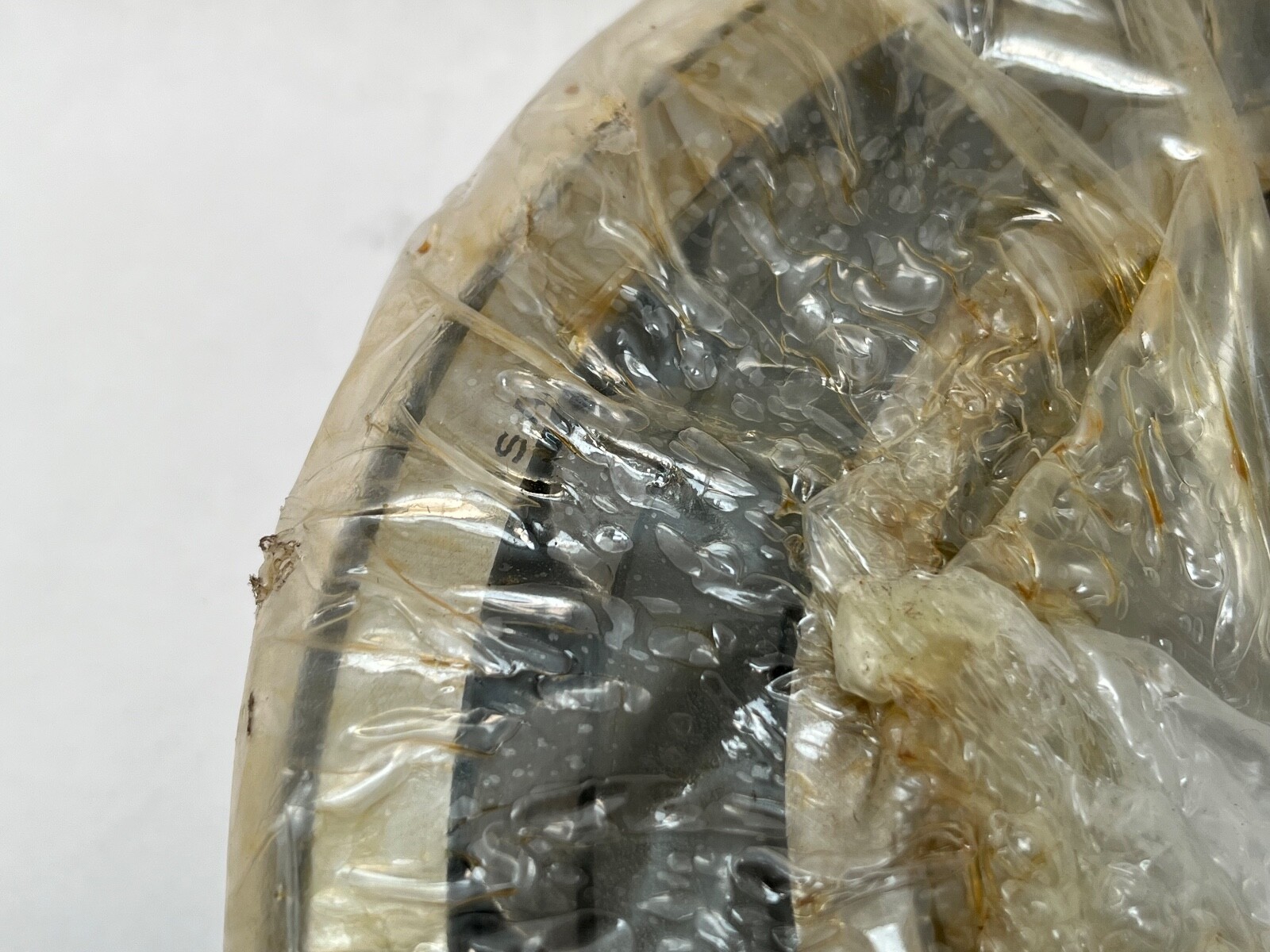

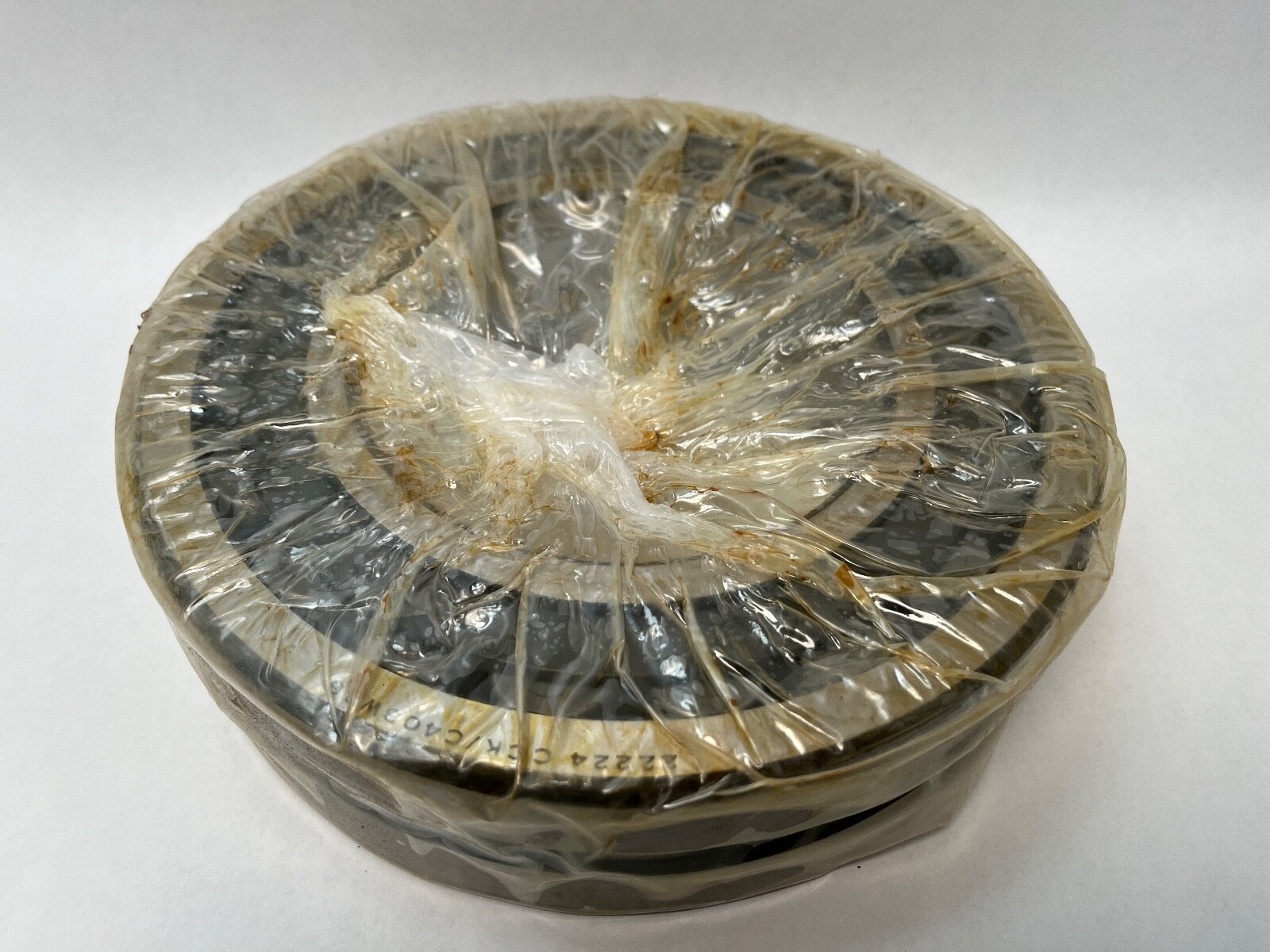

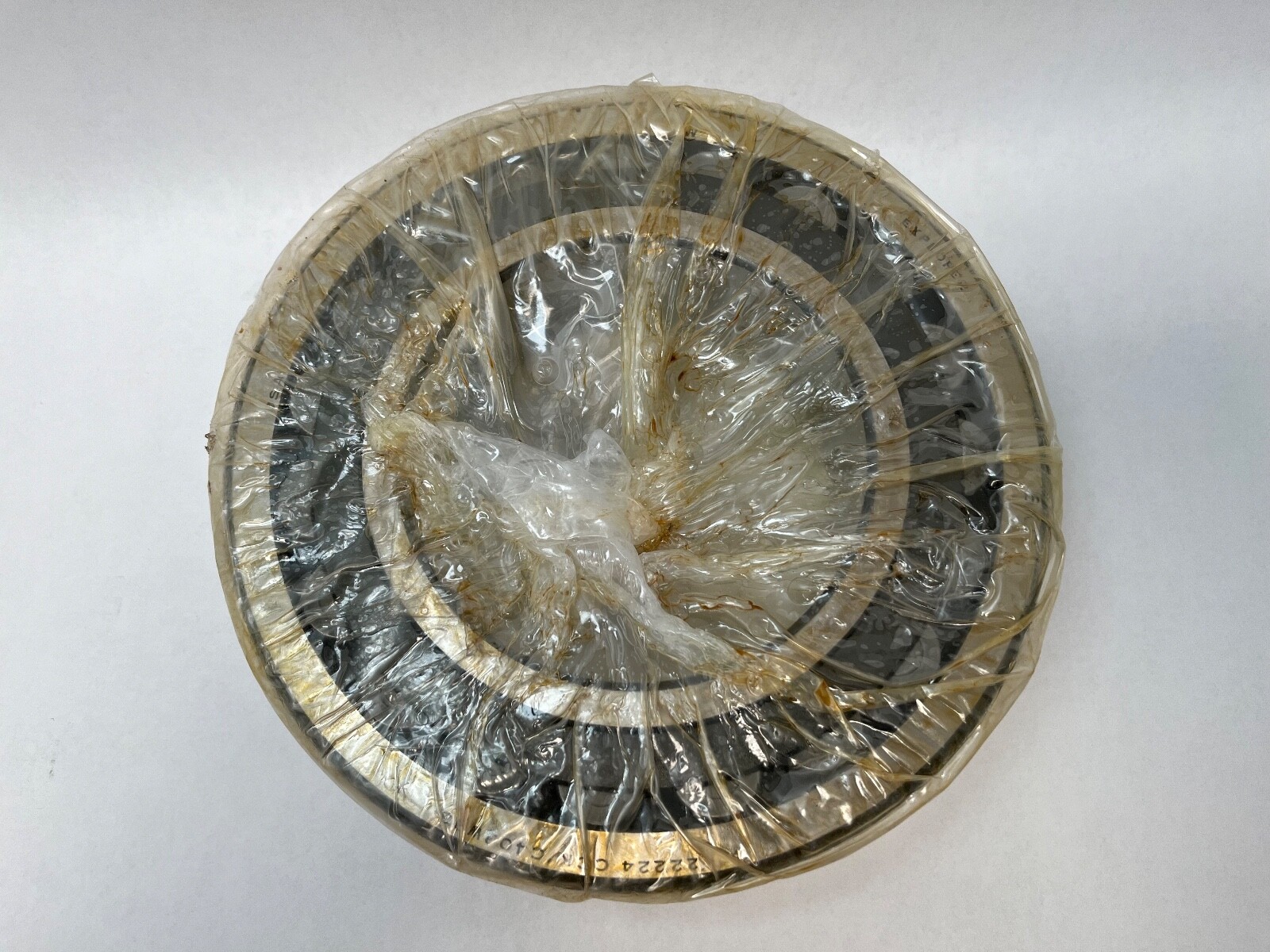

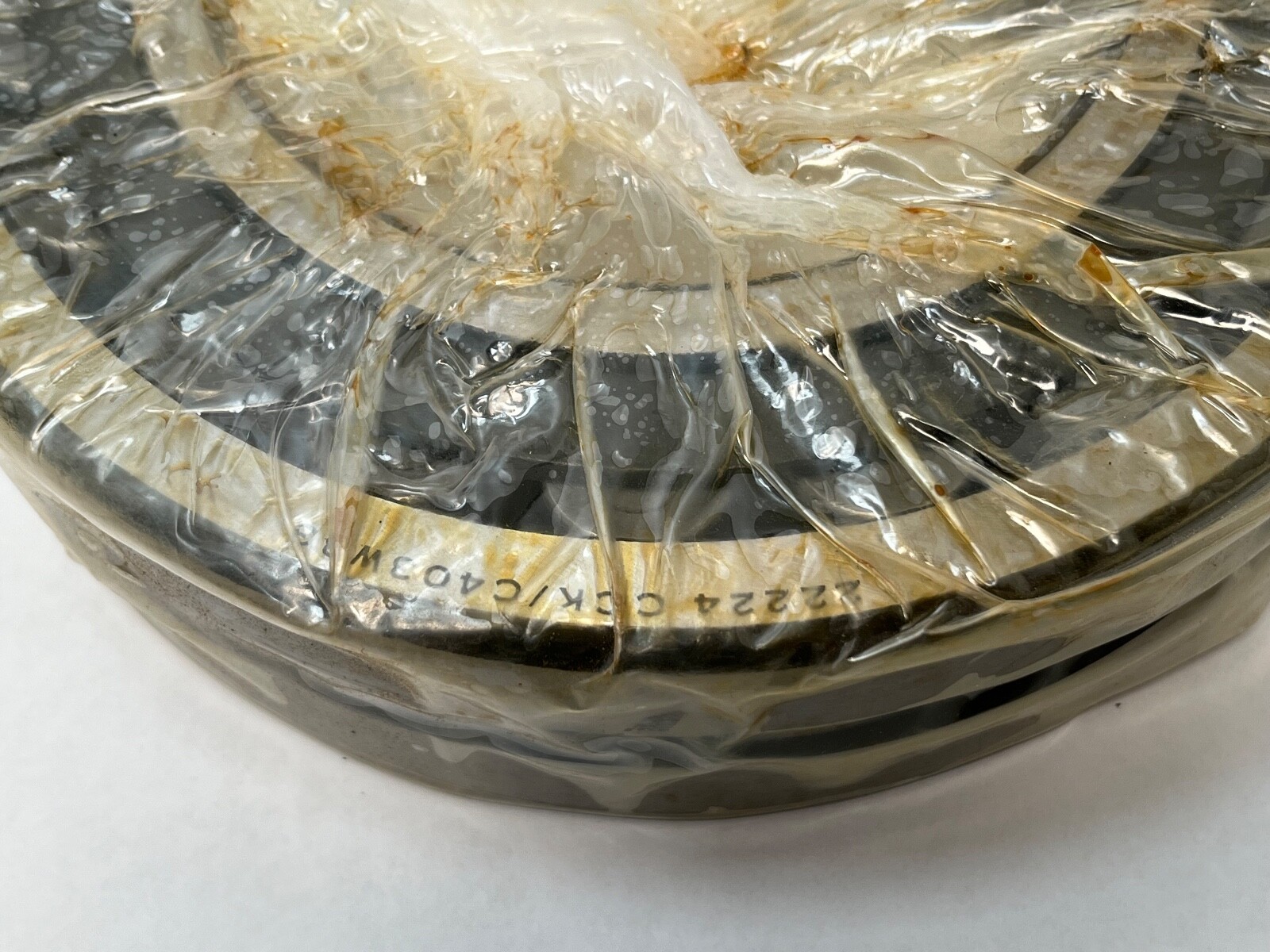

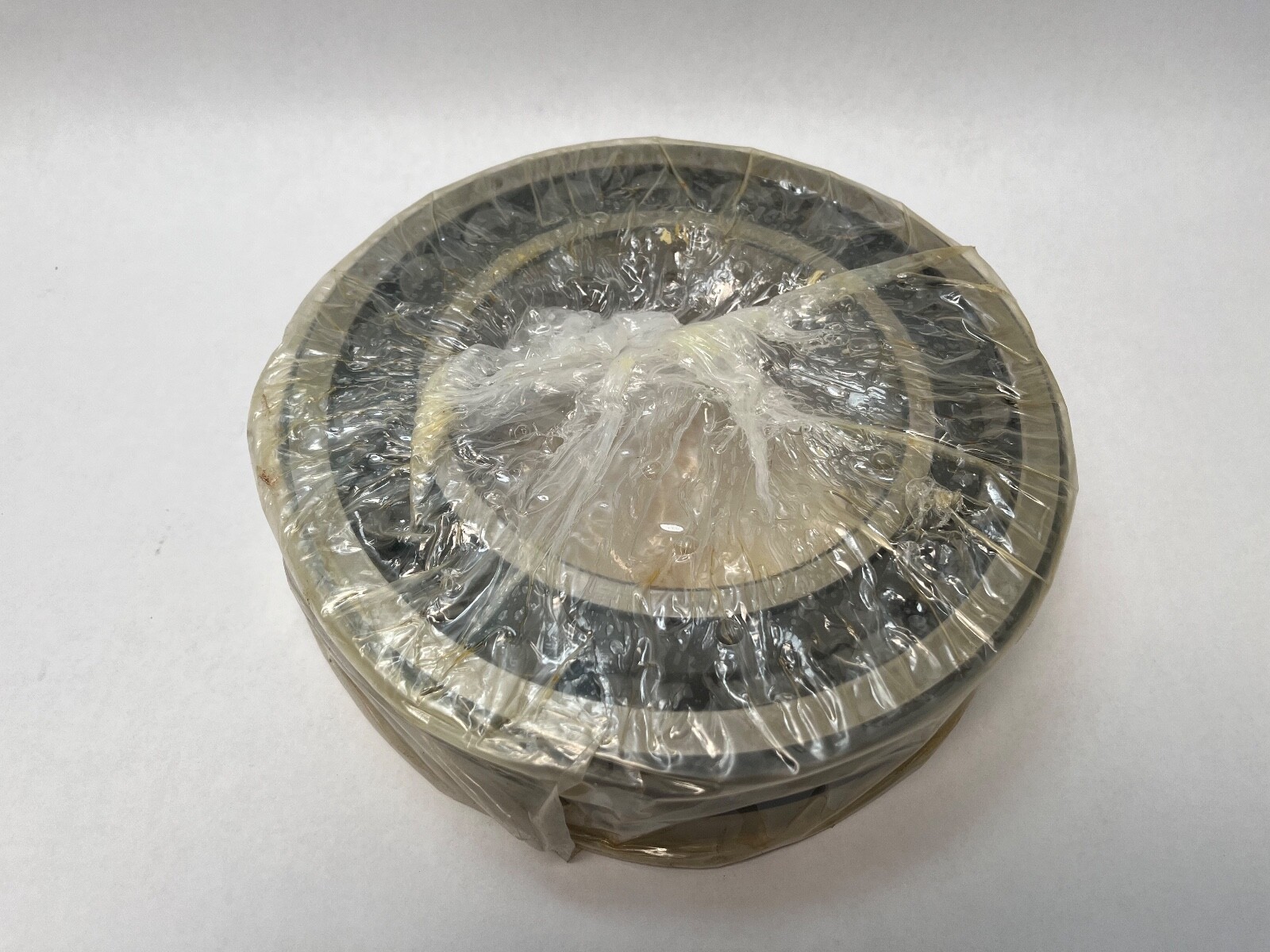

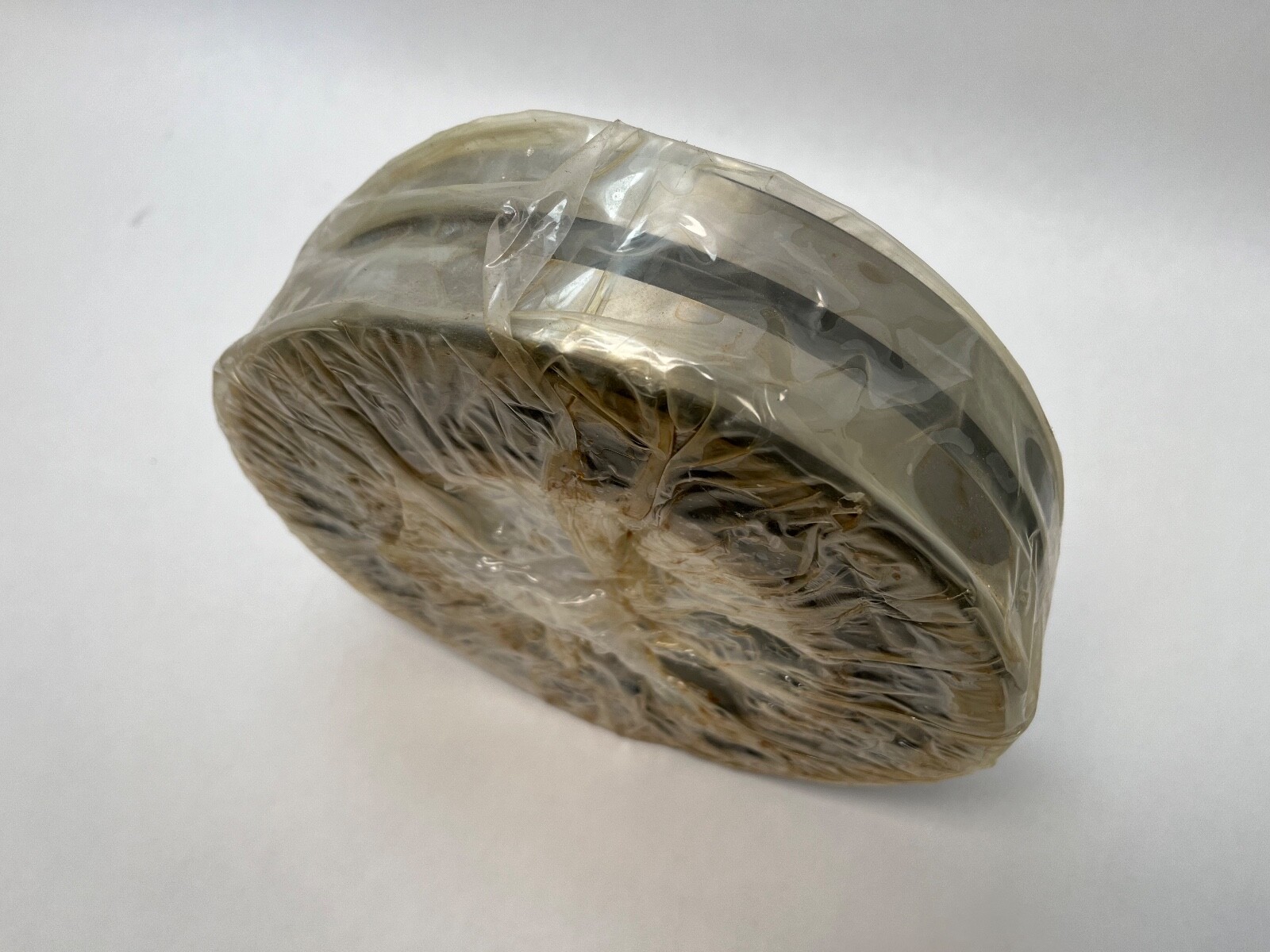

SKF 22224 CCK/C403W33 double-row spherical roller bearing, 120 x 215 x 58 mm, tapered 1:12 bore, pressed steel window cages, W33 lubrication groove.
List Price
$269.86
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22224 CCK/C403W33 |
| Model | 22224CCKC403W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Base Number | 22224K |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, taper bore bearing, adapter sleeve bearing, SRB |
| Common Misspellings | 22224CCK C403W33, 22224CKC403W33, 2224CCKC403W33, 22224CC K C403 W33, spherical rolller bearing |
| Application Types | Conveyor pulleys and drums, fans and blowers, crushers and screens, gearboxes, pumps, plummer blocks |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 22224CCKC403W33, 22224 CCK/C403W33, 22224-CC-K-C403-W33, 22224CCKC403, C403, 22224CCK/W33 |
| Compatible With Replaces | Adapter sleeve H324 (110 mm shaft seat) |
| Cage Type | Window type |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Part Number | 22224CCK/C403W33 |
| Closure Type | Open |
| Cross Reference 1 | SKF 22224 CCK/W33 - standard clearance |
|---|---|
| Cross Reference 2 | NSK 22224EAKE4 - standard clearance |
| Cross Reference 3 | Timken 22224EJKW33 - standard clearance |
| Cross Reference 4 | FAG 22224-E1-XL-K-TVPB-W33 - polyamide cage |
SKF 22224 CCK/C403W33 is a double-row spherical roller bearing with a 1:12 tapered bore, supplied as 1 piece (bearing only). Bore Diameter: 120 mm (4.7244 in), tapered 1:12. Outside Diameter: 215 mm (8.4646 in). Width: 58 mm (2.2835 in).
222 — double-row spherical roller bearing, dimension series 22.
24 — bore code, 24 x 5 = 120 mm bore.
CC — SKF cage execution with two window-type pressed steel cages and a loose guide ring.
K — 1:12 tapered bore.
W33 — lubrication groove in the outer ring with three radial holes.
Bore Diameter: 120 mm (4.7244 in), tapered 1:12. Outside Diameter: 215 mm (8.4646 in). Width: 58 mm (2.2835 in). Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Cage Type: Window type. Bore Type: Tapered. Closure Type: Open. Lubricant: grease or oil. Relubrication Feature: W33 groove and three holes. Unit Quantity: 1 Pc.
Series: 22200, dimension series 22. Base Number: 22224K. Mounts on adapter sleeve H324 (110 mm shaft seat).
Standard-clearance form of the same bearing: SKF 22224 CCK/W33. Other makers at standard clearance: NSK 22224EAKE4, Timken 22224EJKW33, FAG 22224-E1-XL-K-TVPB-W33 (polyamide cage).
Bore Diameter: 120 mm tapered 1:12. Outside Diameter: 215 mm. Width: 58 mm.
W33 is a lubrication groove in the outer ring with three radial holes. Lubricant: grease or oil.
Adapter sleeve H324, 110 mm shaft seat.
