Availability:
1 in stock
Double-row spherical roller bearing, 120 x 215 x 58 mm, straight bore, C3 clearance, W33 outer-ring lubrication groove and three holes. Sold as 1 Pc.
List Price
$198.87
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:

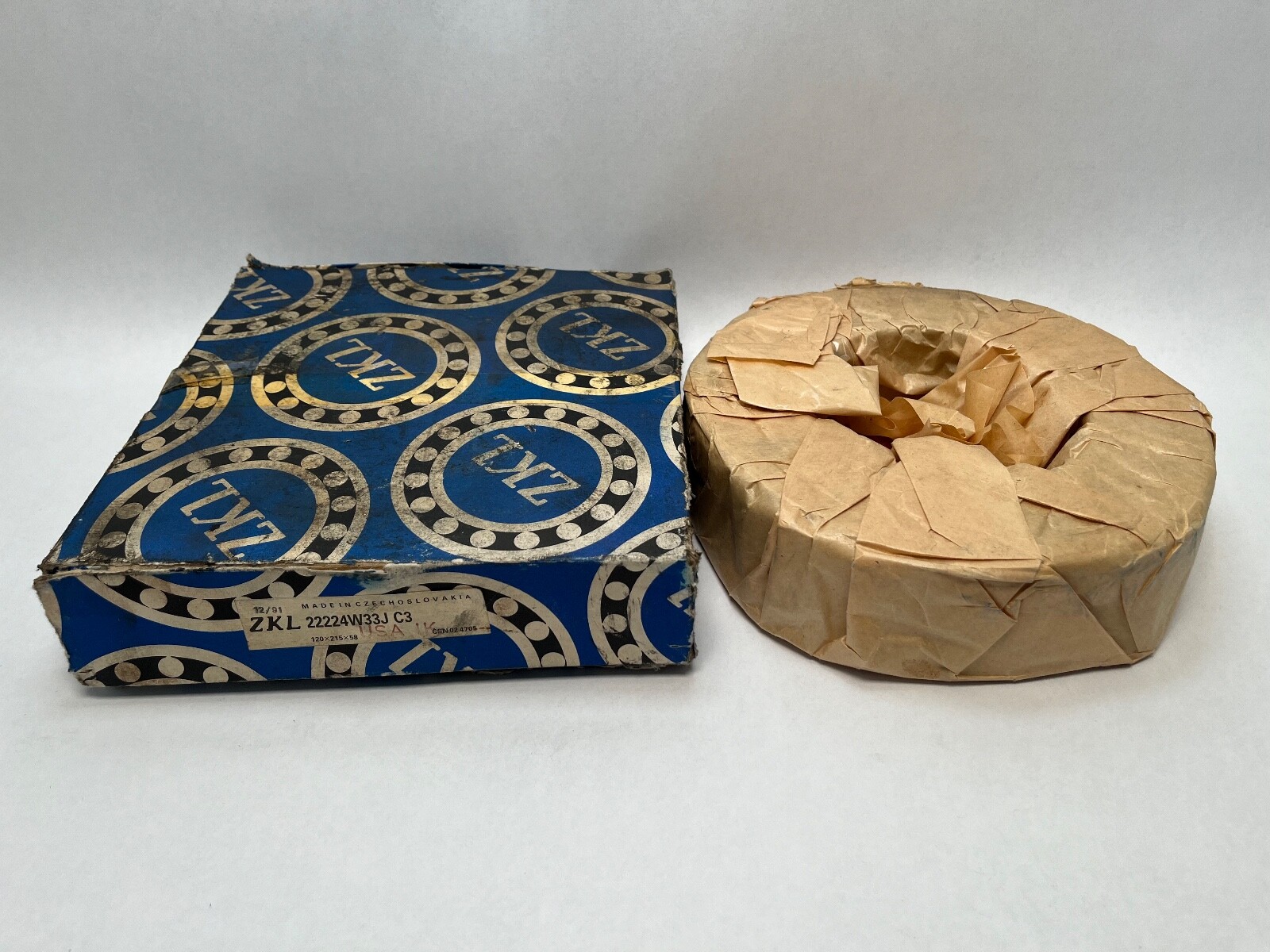

| MFR / Brand | ZKL |
|---|---|
| MPN | 22224W33JC3 |
| Model | 22224 CC/C/CJ / 22224 J W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Relubrication | W33 outer-ring lubrication groove with three radial holes |
| Base Number | 22224 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row roller bearing, W33 bearing, straight bore spherical roller, barrel roller bearing |
| Common Misspellings | 22224W33JC3, 22224 W33JC 3, 2224W33JC3, 22224WJ33C3, ZKL 22224 W33 JC3 |
| Application Types | Conveyor pulleys, crushers, vibrating screens, fans and blowers, gearbox shafts, paper machinery |
| Bore Shaft Size | 120 mm (4.7244 in) |
| Mpn Variants | 22224W33JC3, 22224 W33 J C3, 22224-W33-J-C3, 22224JW33C3, 22224 J W33 C3, 22224CJ |
| Arrangement Configuration | Straight cylindrical bore, self-aligning, no adapter sleeve |
| Min Temp | -40 °C |
| Cage Type | Stamped Steel |
| Dynamic Load Rating | 610 kN |
| Static Load Rating | 800 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical |
| Max Temp | 200 °C |
| Item Weight | 18.60 lbs |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Internal Clearance | C3 |
| Part Number | 22224W33JC3 |
| Cross Reference 1 | 22224 E/C3 W33 |
|---|---|
| Cross Reference 2 | 22224EAE4C3 |
| Cross Reference 3 | 22224EJW33C3 |
| Cross Reference 4 | 22224CCW33C3 |

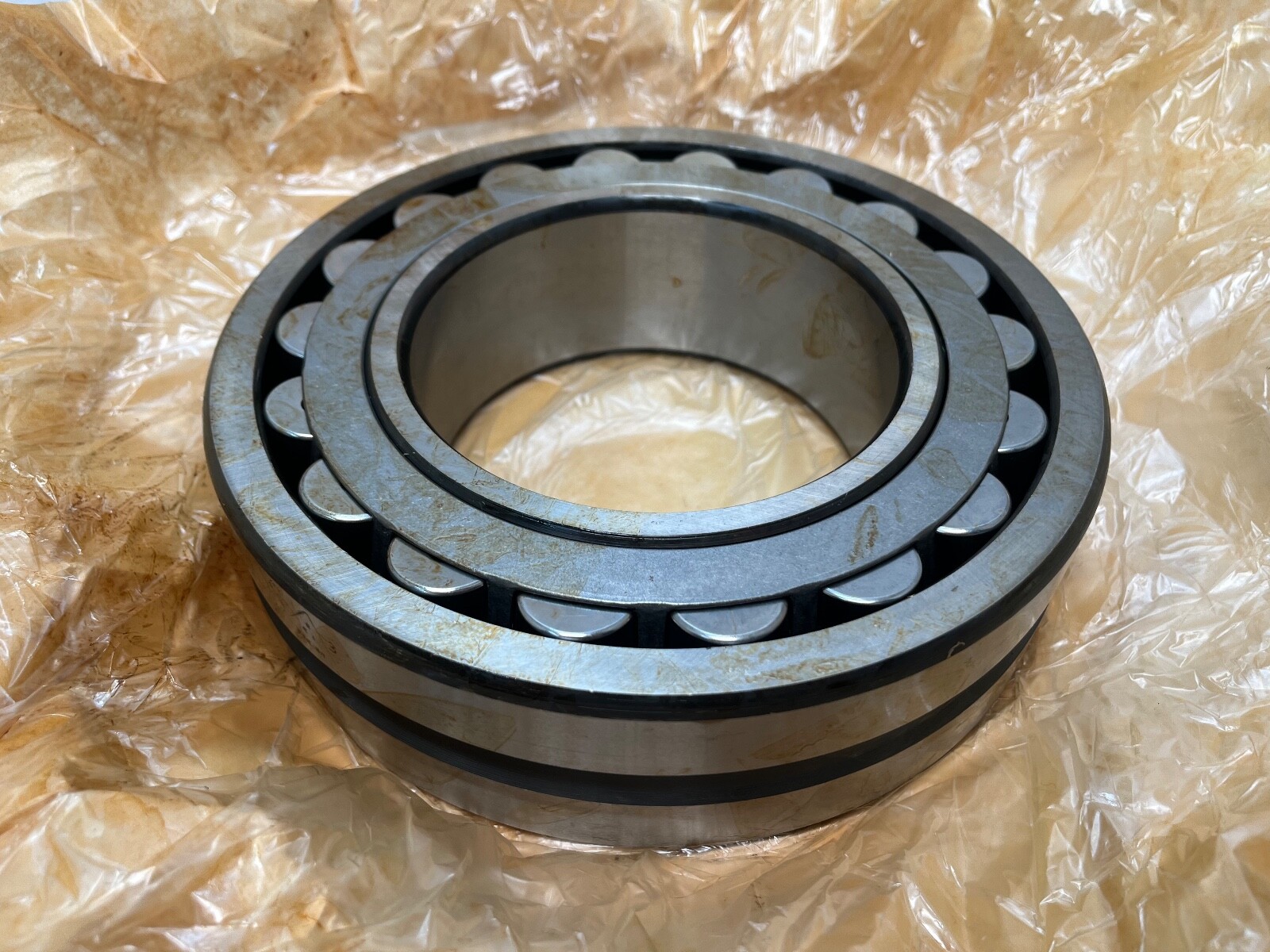

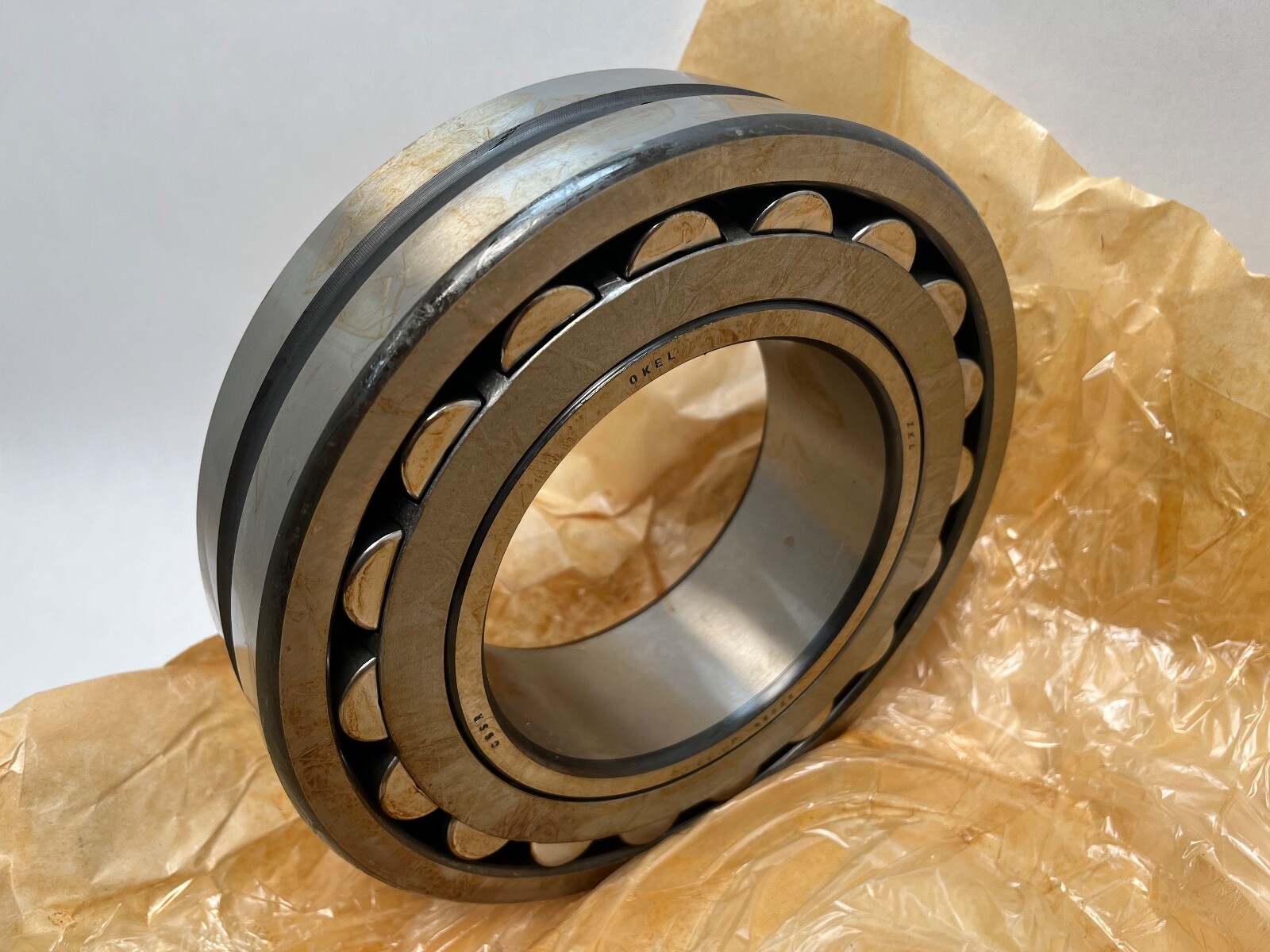

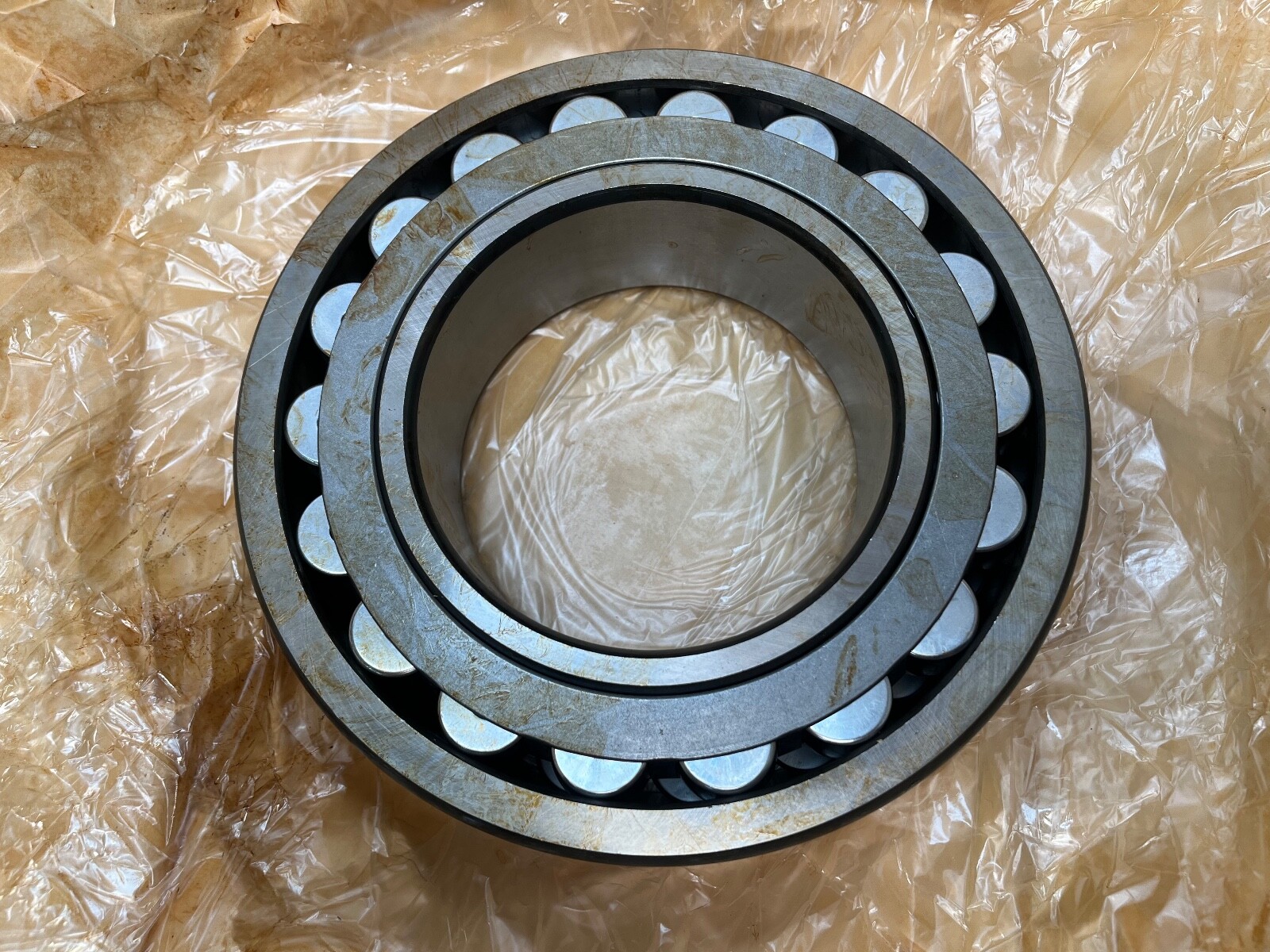

A double-row spherical roller bearing, 120 mm bore, 215 mm outside diameter, 58 mm width, with a cylindrical (straight) bore. Two rows of barrel rollers run on a common spherical outer raceway, so the bearing is self-aligning and carries heavy radial load together with thrust in both directions.

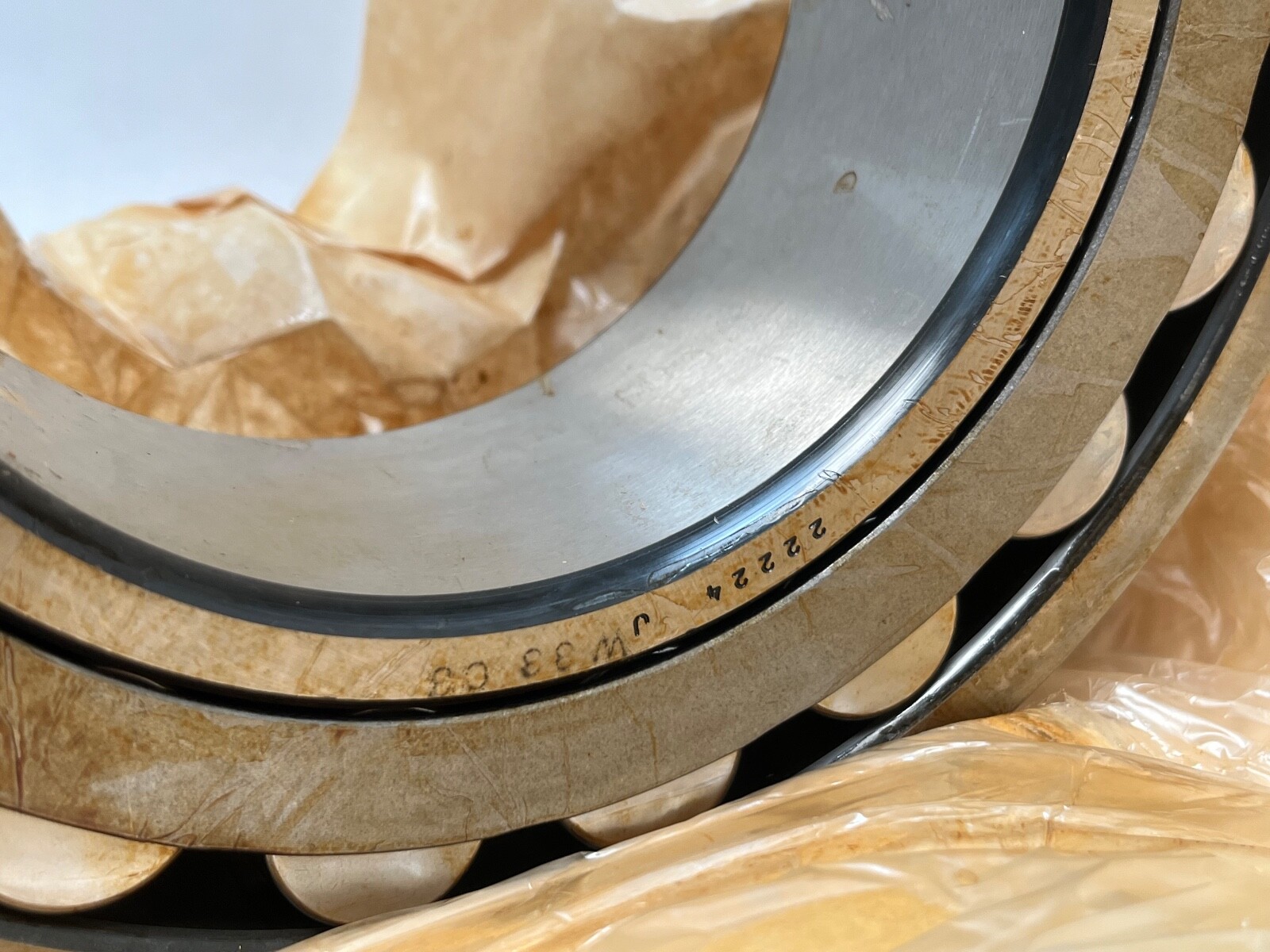

22224 — double-row spherical roller bearing, 222 dimension series, bore code 24 = 120 mm
W33 — lubrication groove in the outer ring plus three radial lubrication holes
J — pressed steel cage
C3 — radial internal clearance greater than normal
No K — straight cylindrical bore, mounted directly on the shaft seat
Self-alignment through the spherical outer raceway absorbs shaft deflection and housing misalignment, which is why this family is used in conveyor pulleys, crushers, fans, vibrating screens and gearbox output shafts. The W33 groove and holes let grease reach the roller path directly through the housing, so relubrication intervals can be met without dismantling. C3 clearance leaves extra running room for the thermal growth and press fits found on shafts running hot or on interference-fitted seats. A pressed steel cage suits general industrial speeds; machined brass executions of the same size run faster and carry shock better.
1 Pc. Straight-bore execution, so the bearing mounts on a cylindrical shaft seat and no adapter sleeve forms part of the assembly.
The bore goes onto a cylindrical seat, heated or pressed to the interference fit called for by the shaft tolerance, with force applied to the inner ring only. Housing lubrication ports are aligned to the W33 groove so grease enters the outer-ring holes. Radial internal clearance is measured before and after mounting to confirm the fit has taken up the intended amount.
Genuine equivalents are straight-bore 22224 W33 C3 spherical roller bearings under other schemes, such as an SKF 22224 E/C3 with W33, an FAG 22224-E1-XL-K equivalent in straight bore, an NSK 22224EAE4C3 or a Timken 22224EJW33C3. Tapered-bore 22224K executions, C4 or CN clearance variants, and cage variants such as CC or CA are related sizes rather than interchanges.
