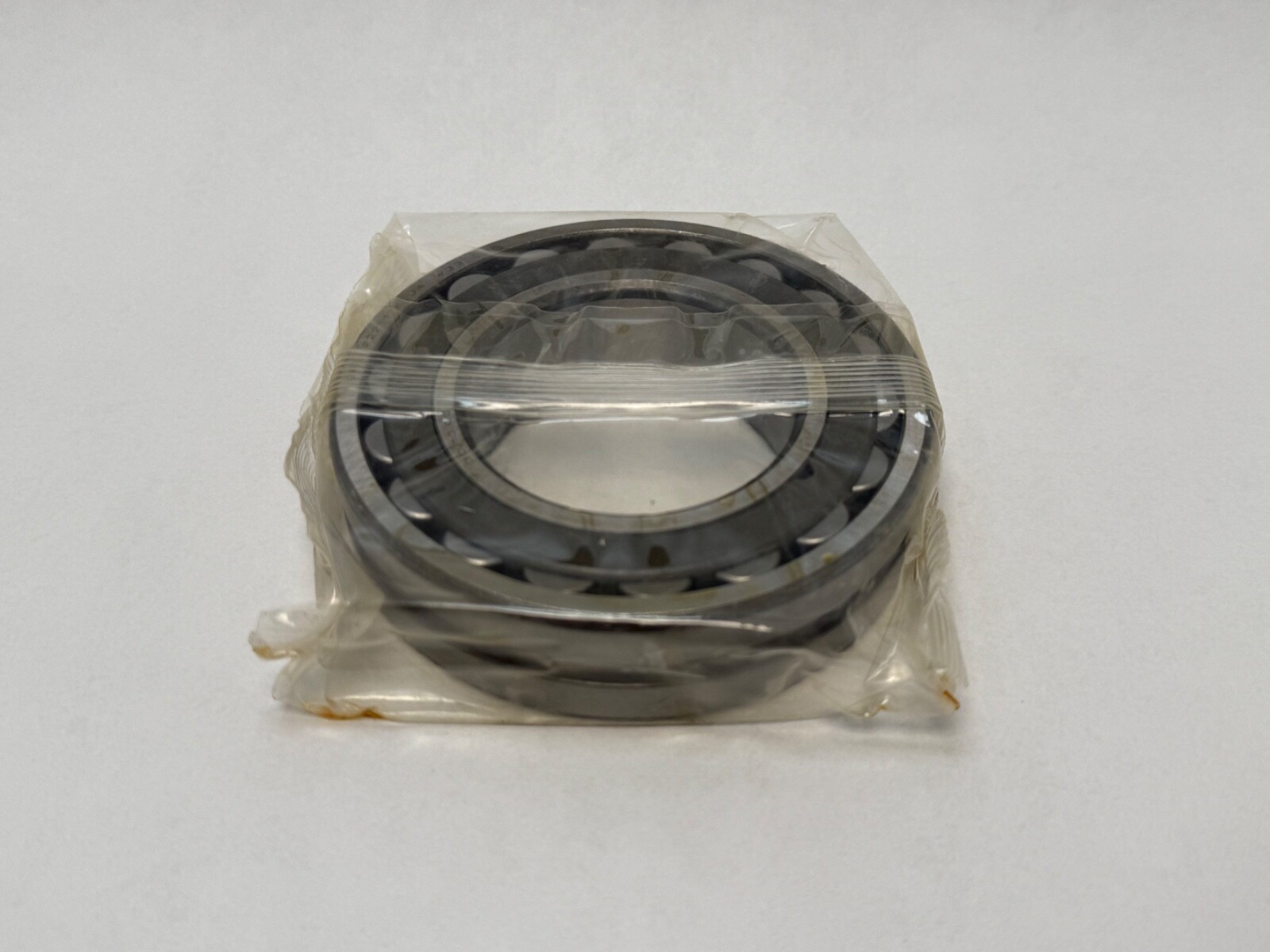

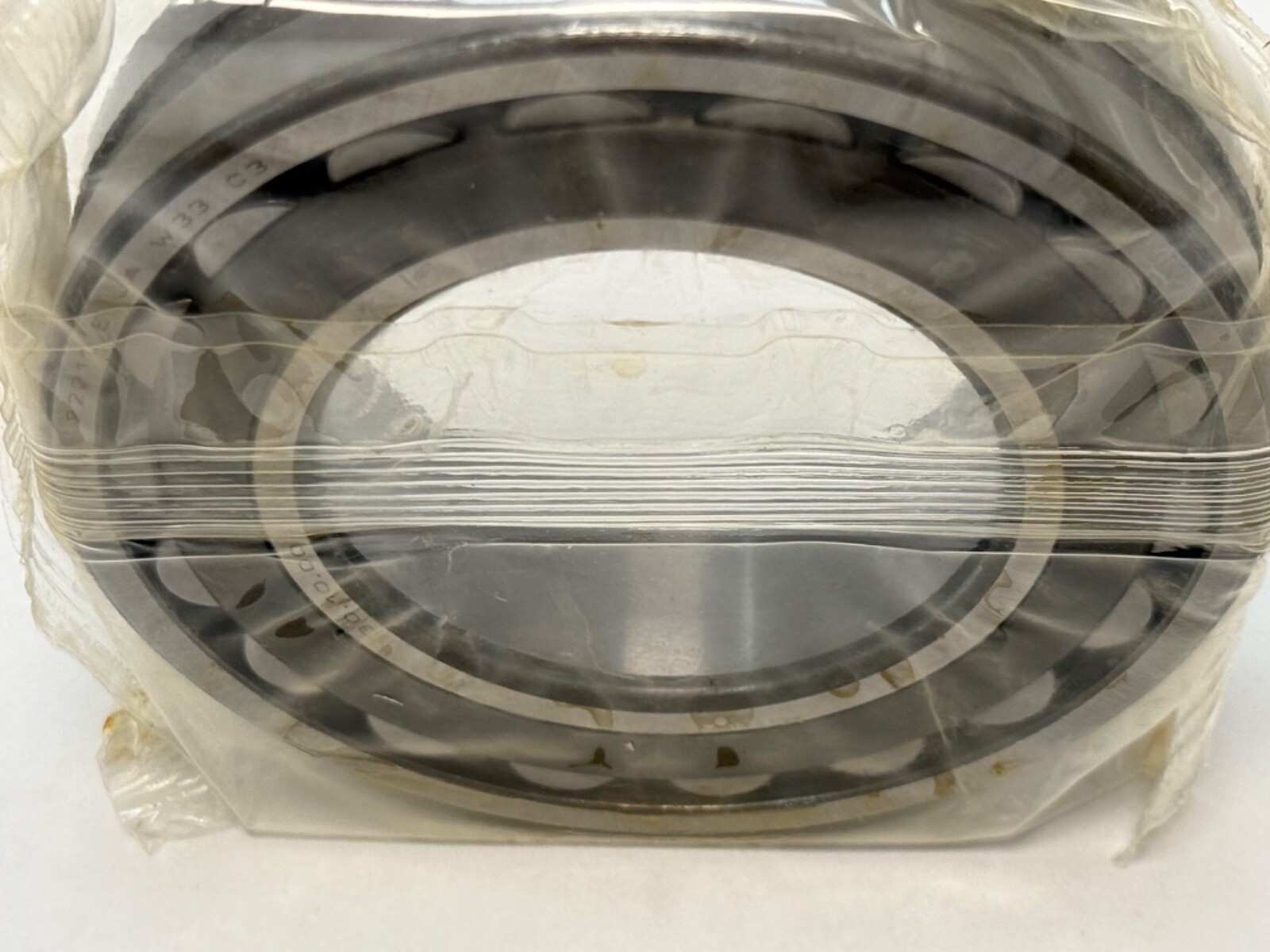

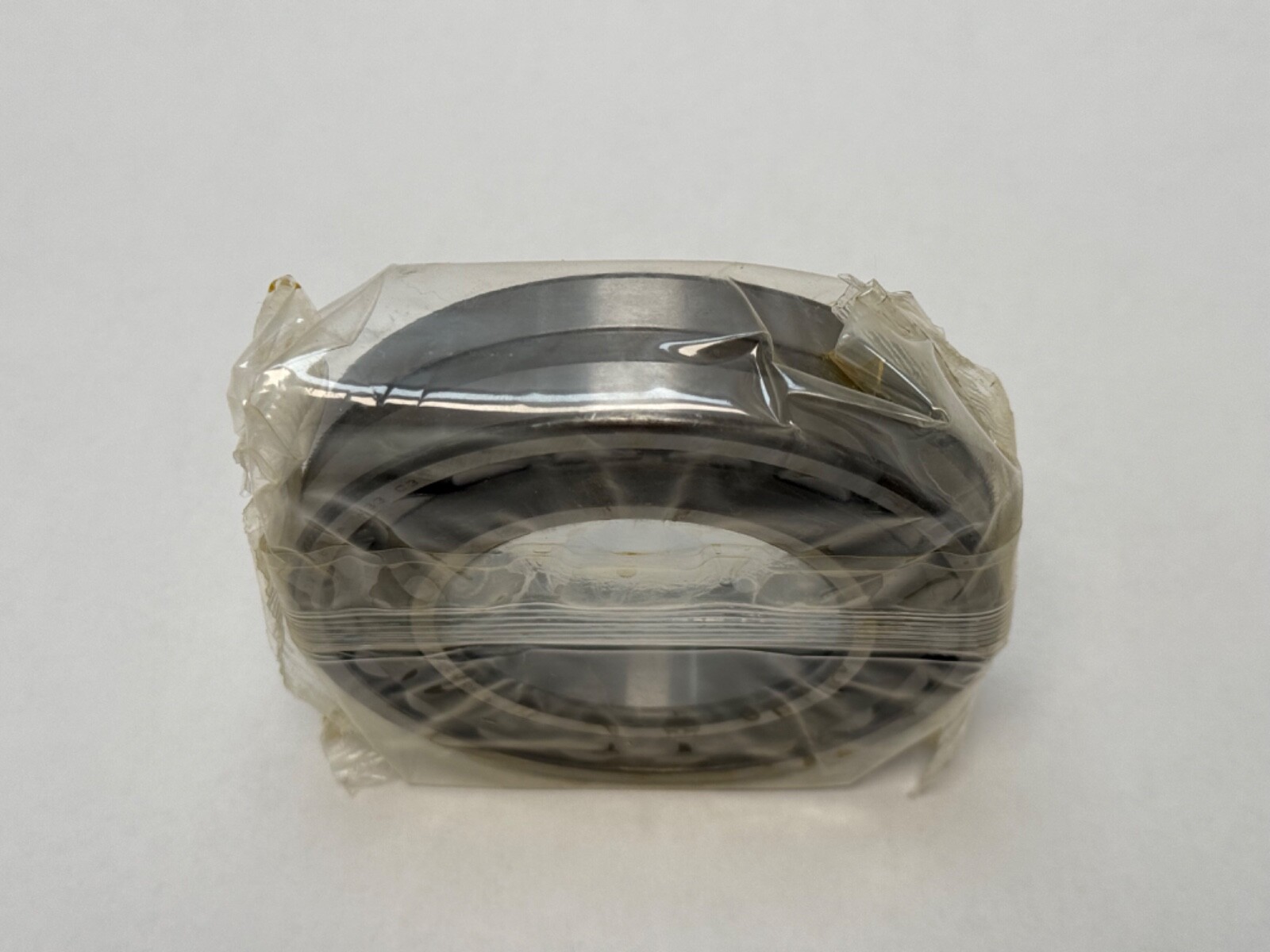

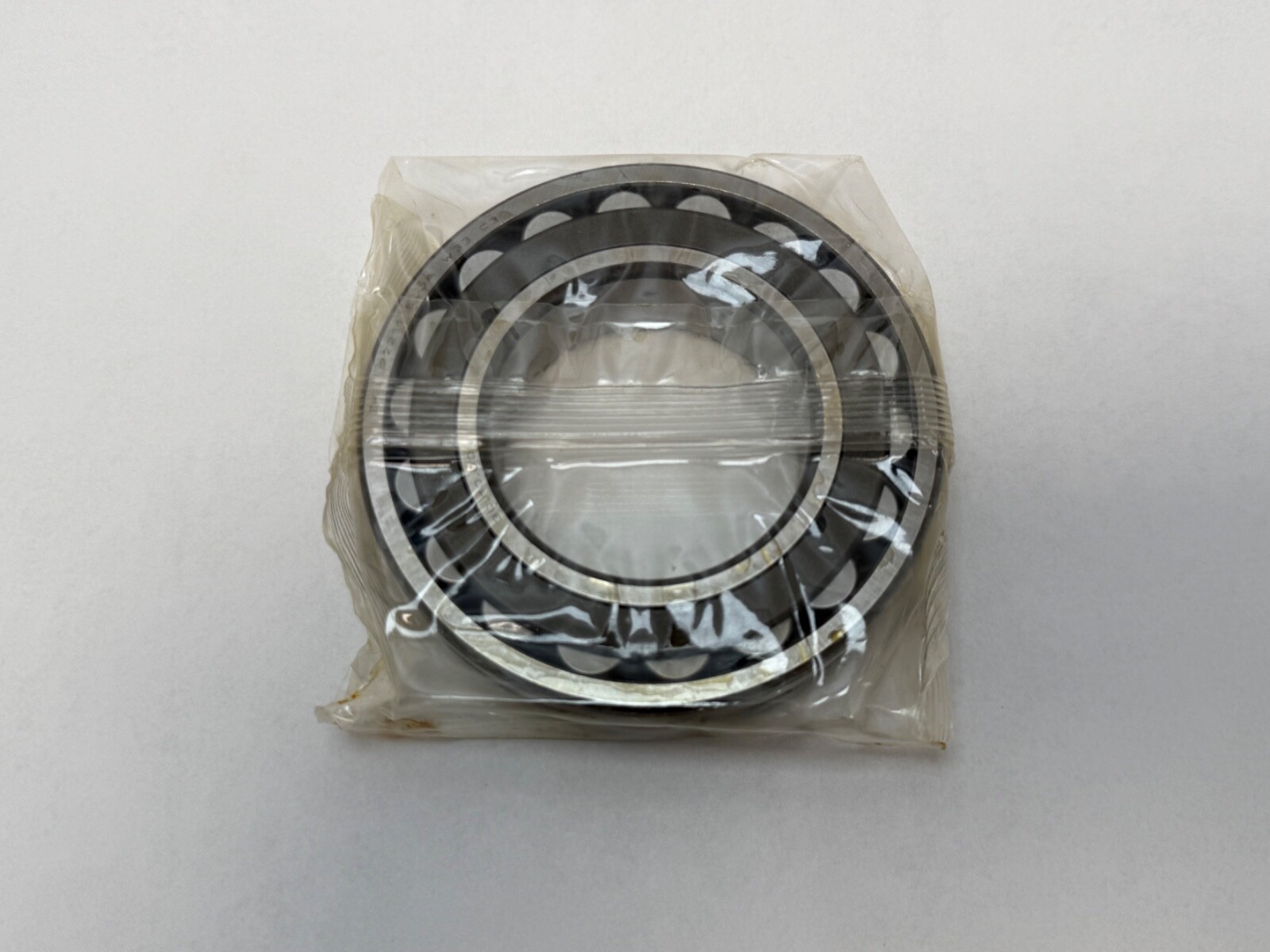

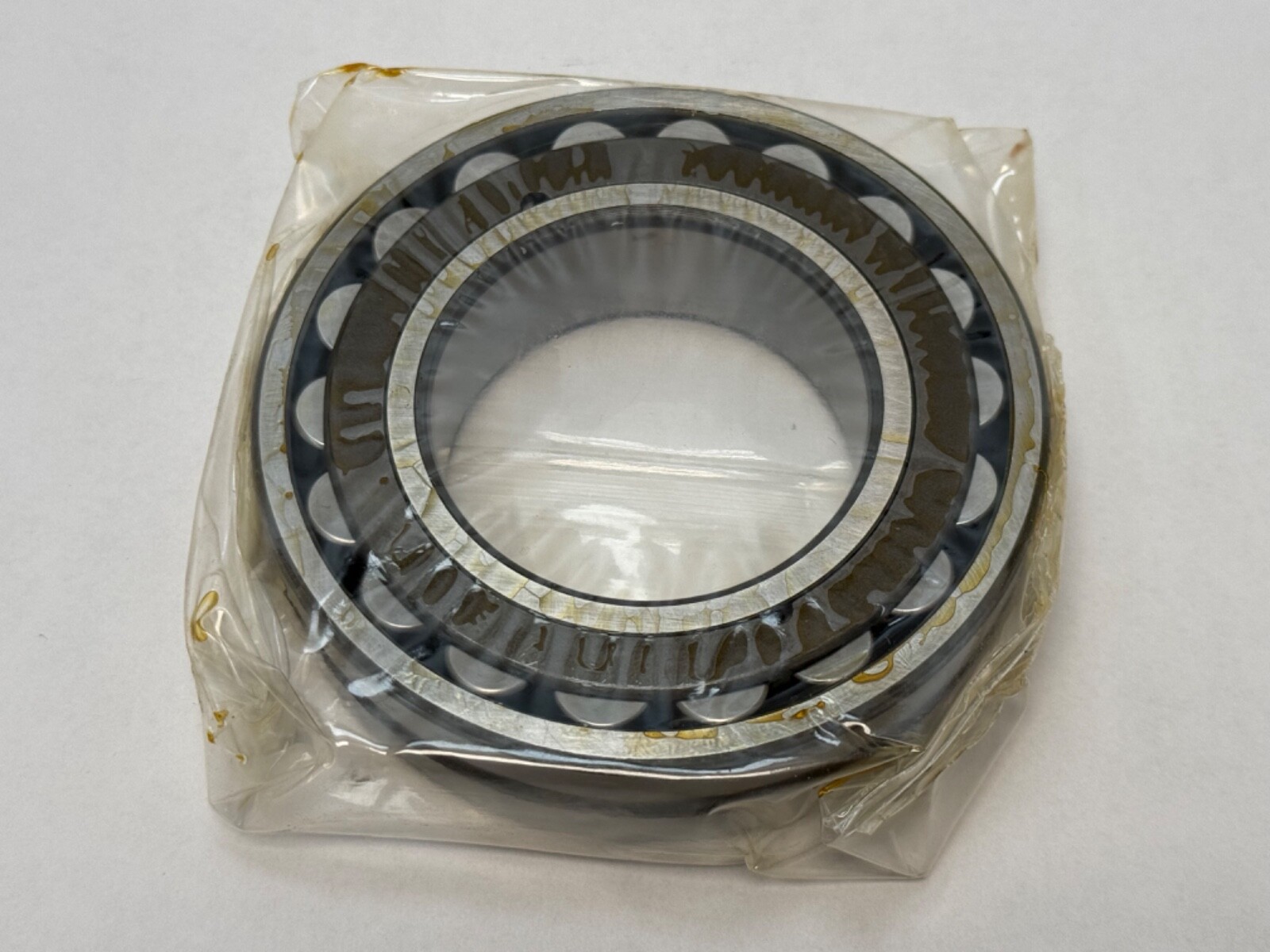

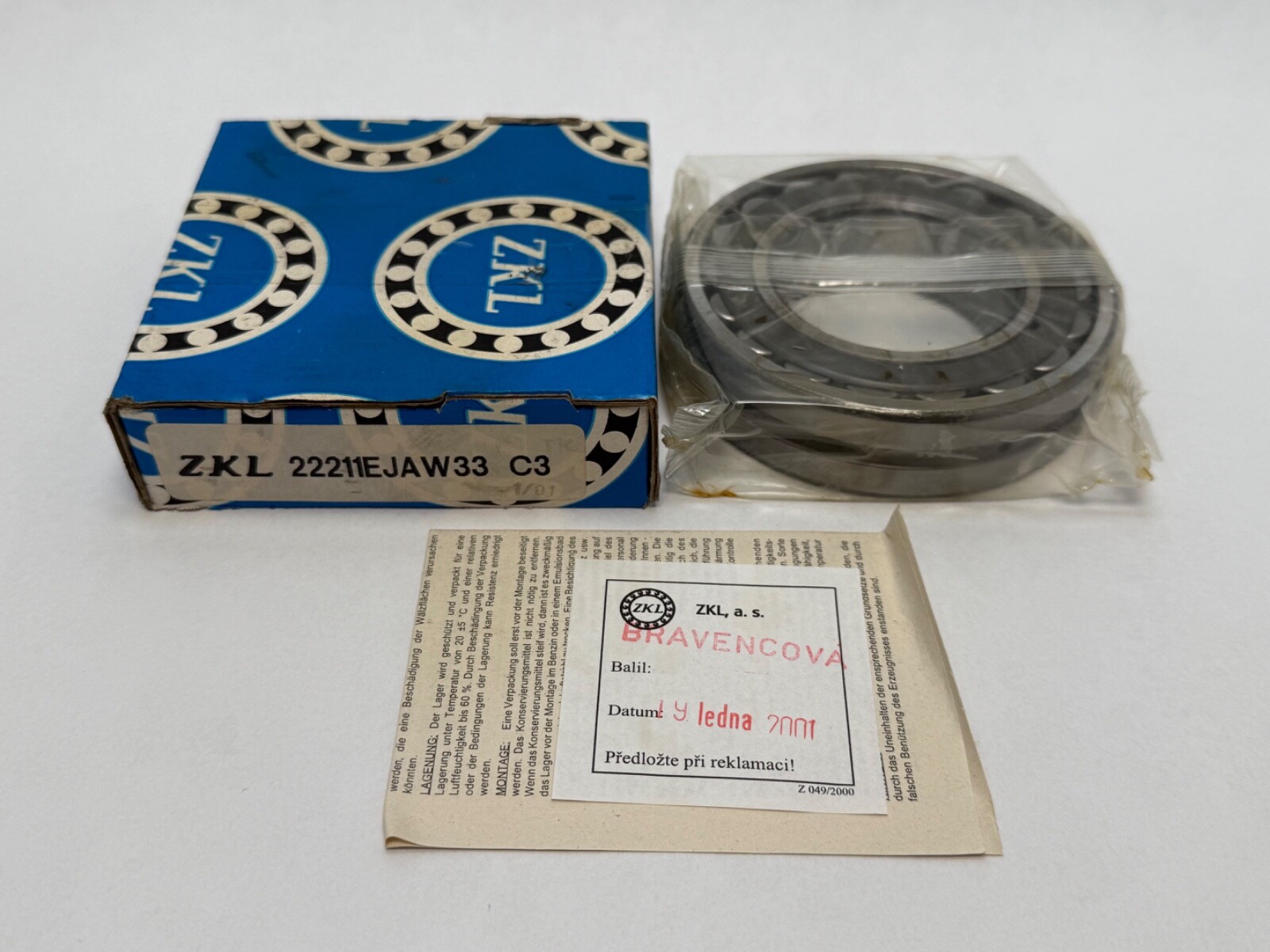

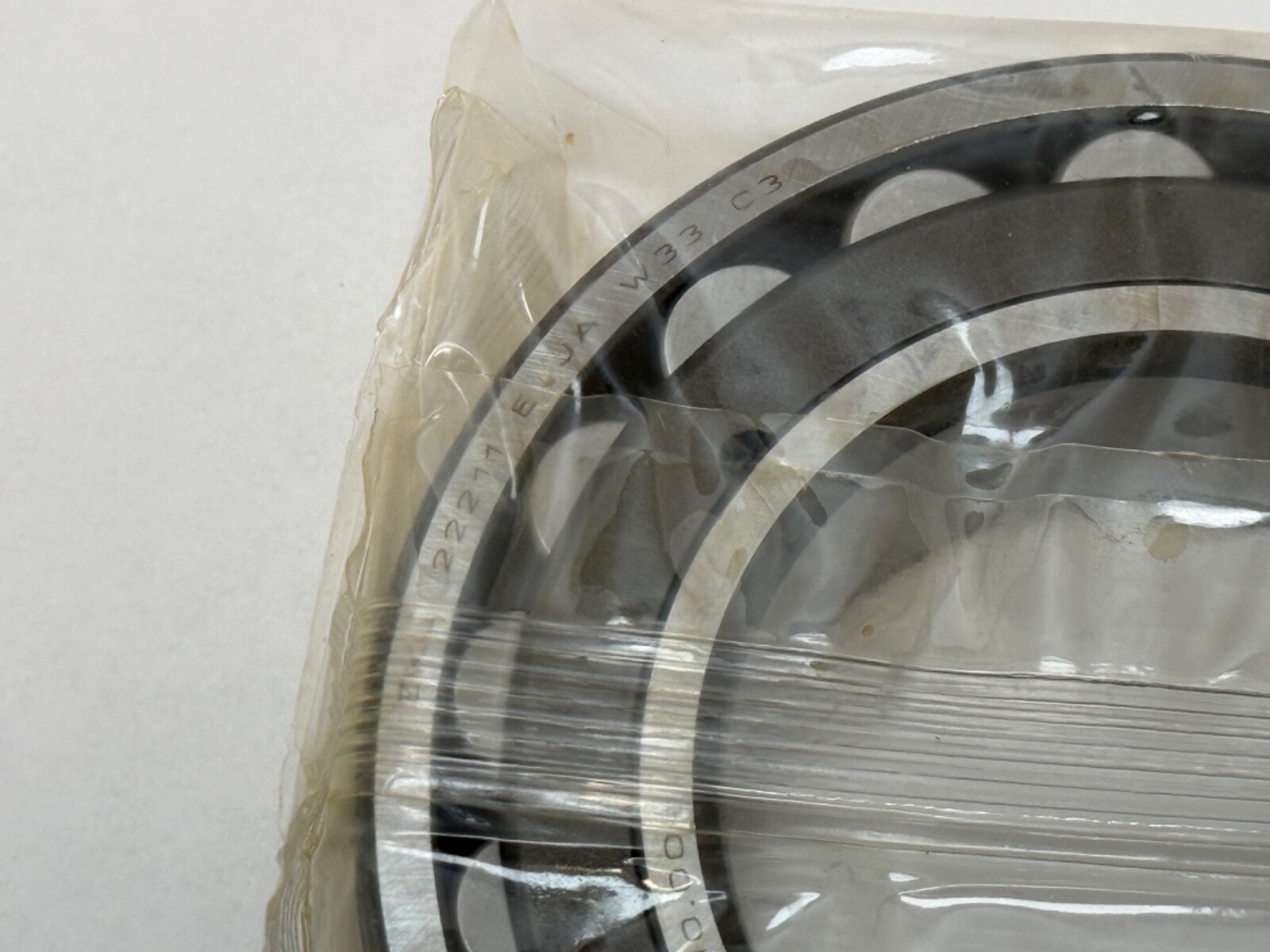

ZKL 22211 EJA W33 C3 spherical roller bearing, 55 mm bore, 100 mm OD, 25 mm wide, steel cage, C3 clearance, W33 lubrication groove and three holes.
List Price
$46.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | ZKL |
|---|---|
| Model | 22211-E-J-A-W33-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25mm |
| Series | 22200 |
|---|---|
| Bore | Straight Bore |
| Material | Bearing Steel |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 84823000 |
| Internal Clearance | C3 |
| Overall Width | 25 mm |
| Mpn Variants | 22211EJAW33C3, 22211-E-J-A-W33-C3, 22211 E J A W33 C3, 22211E |
| Lubricant | grease or oil |
| Cross Reference 1 | SKF 22211 E/C3 (no W33 groove) |
|---|---|
| Cross Reference 2 | FAG 22211-E1-C3 (no W33 groove) |
| Cross Reference 3 | Timken 22211EJW33C3 |
| Cross Reference 4 | NSK 22211EAE4C3 |
| Cross Reference 5 | NTN 22211EAW33C3 |
ZKL 22211 EJA W33 C3 is a double-row spherical roller bearing with a cylindrical bore and a steel cage. Two rows of rollers run on a common spherical outer raceway, carrying heavy radial load with some axial load and accepting shaft misalignment.
222 — ISO dimension series 22 spherical roller bearing.
11 — bore code, 11 x 5 = 55 mm bore.
J — ZKL steel cage.
W33 — lubrication groove and three radial holes in the outer ring, for grease or oil feed.
C3 — internal radial clearance greater than normal.
Bearing Type: Spherical roller bearing. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Cylindrical. Cage Material: Steel. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Series: 22200.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. ISO 15 boundary dimensions for the 22211 size.
Cross-References: SKF 22211 E/C3 (no W33 groove), FAG 22211-E1-C3 (no W33 groove), Timken 22211EJW33C3, NSK 22211EAE4C3, NTN 22211EAW33C3. The tapered-bore version, 22211 K, mounts on an H311 adapter sleeve and is a different part.
What size is a 22211 spherical roller bearing?
55 mm bore, 100 mm outside diameter, 25 mm wide.
What cage does the 22211 EJA have?
A steel cage, coded J in the ZKL designation.
What does W33 mean?
A lubrication groove with three radial holes in the outer ring, for grease or oil.
