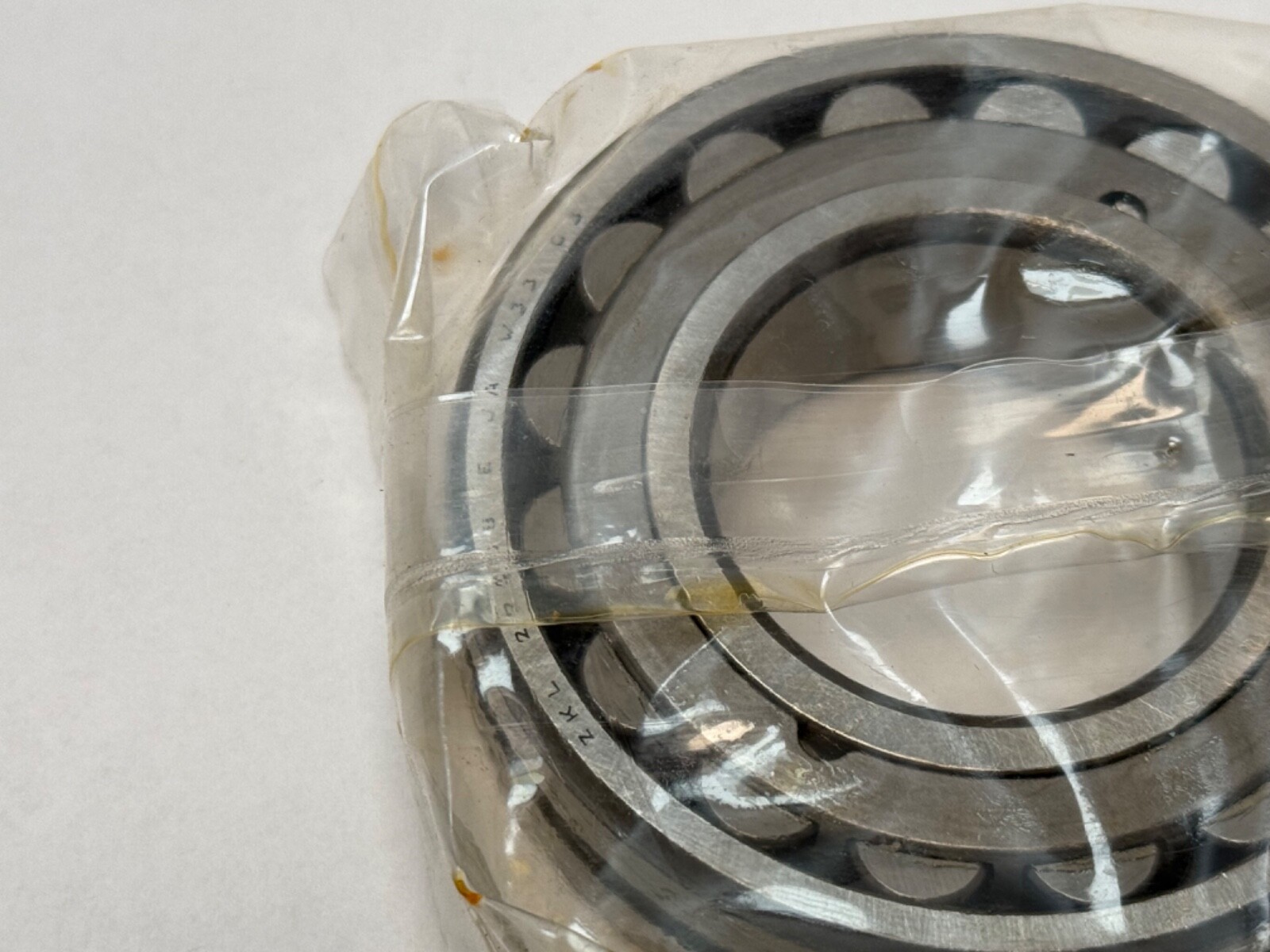

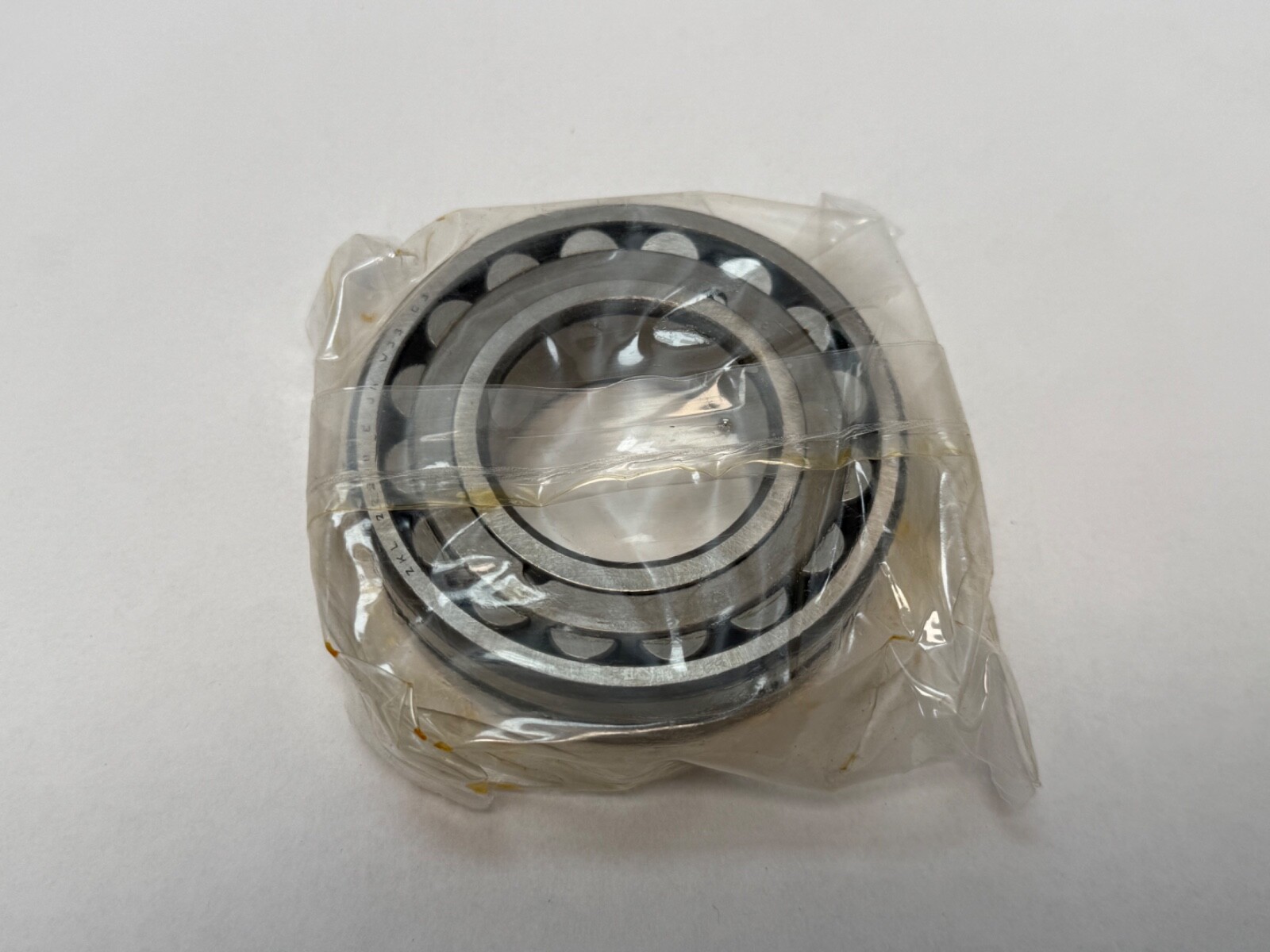

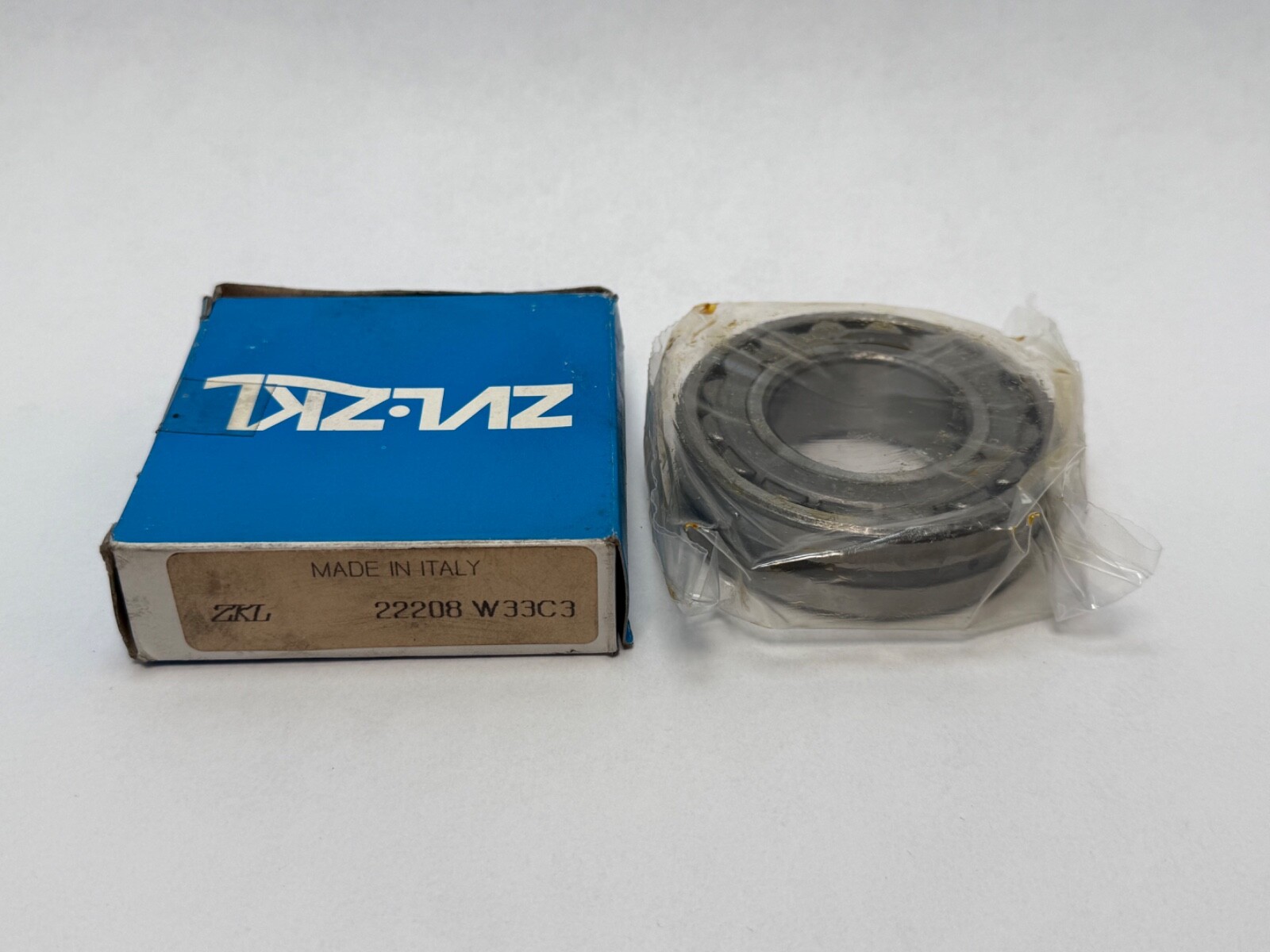

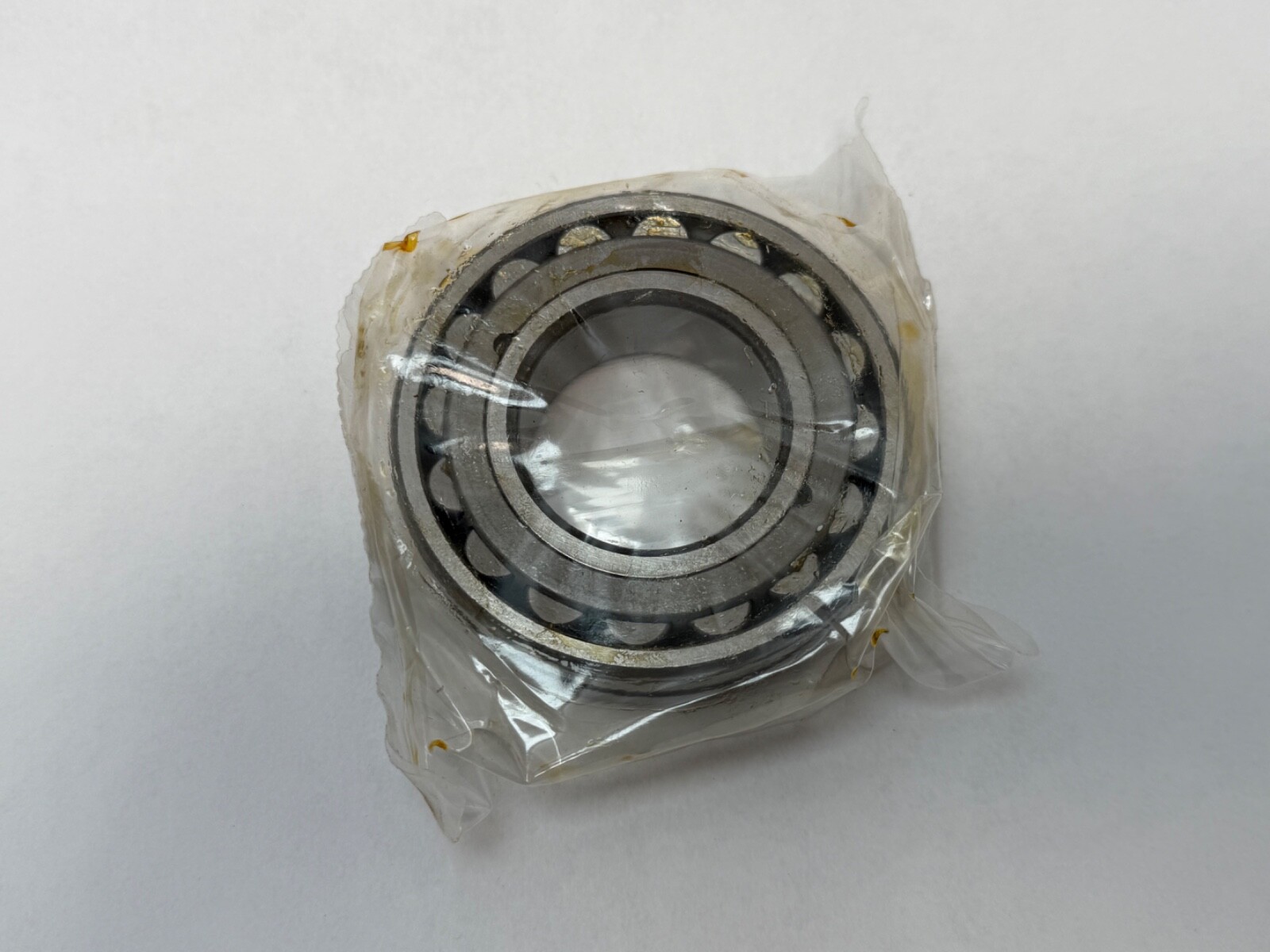

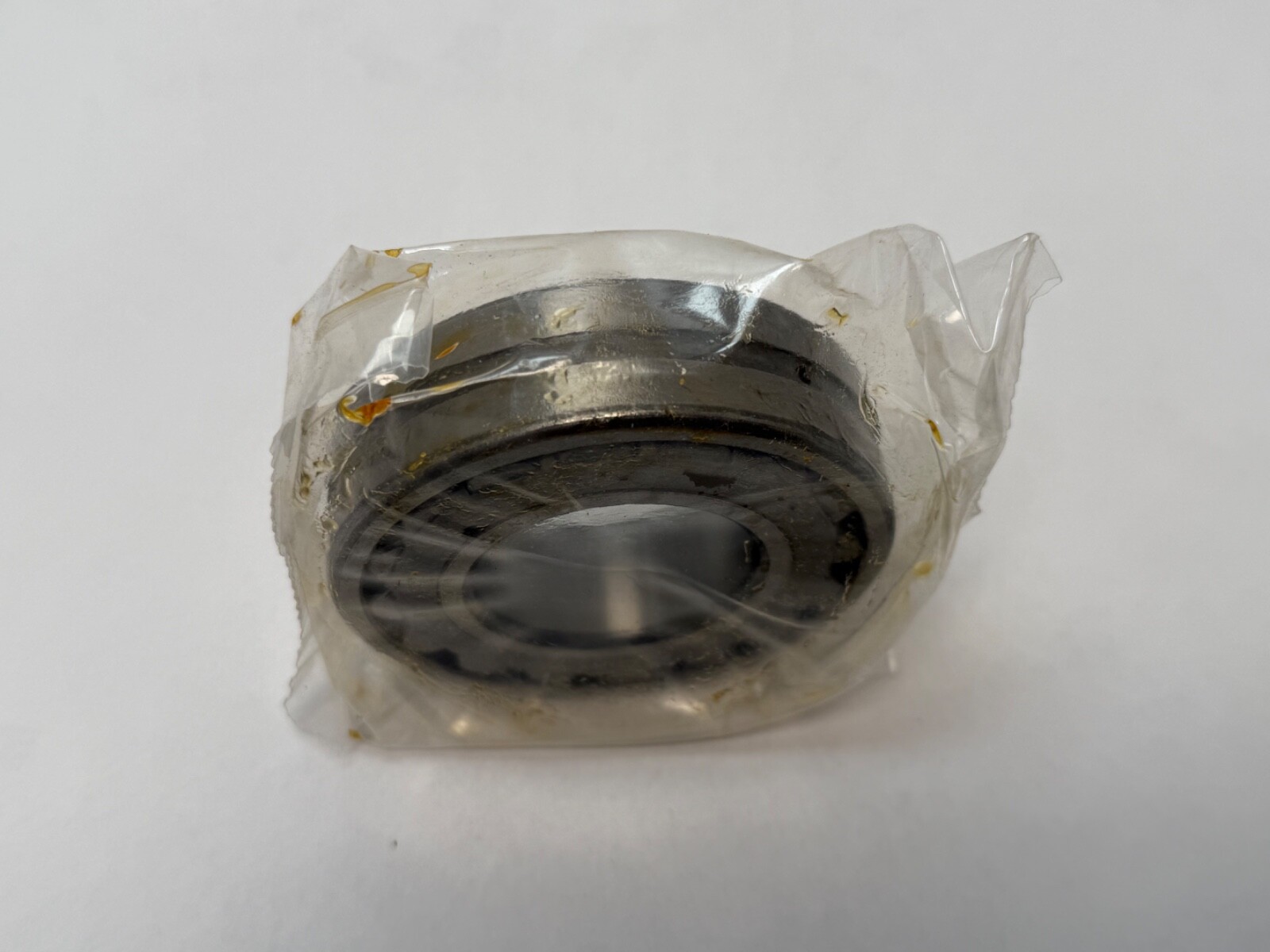

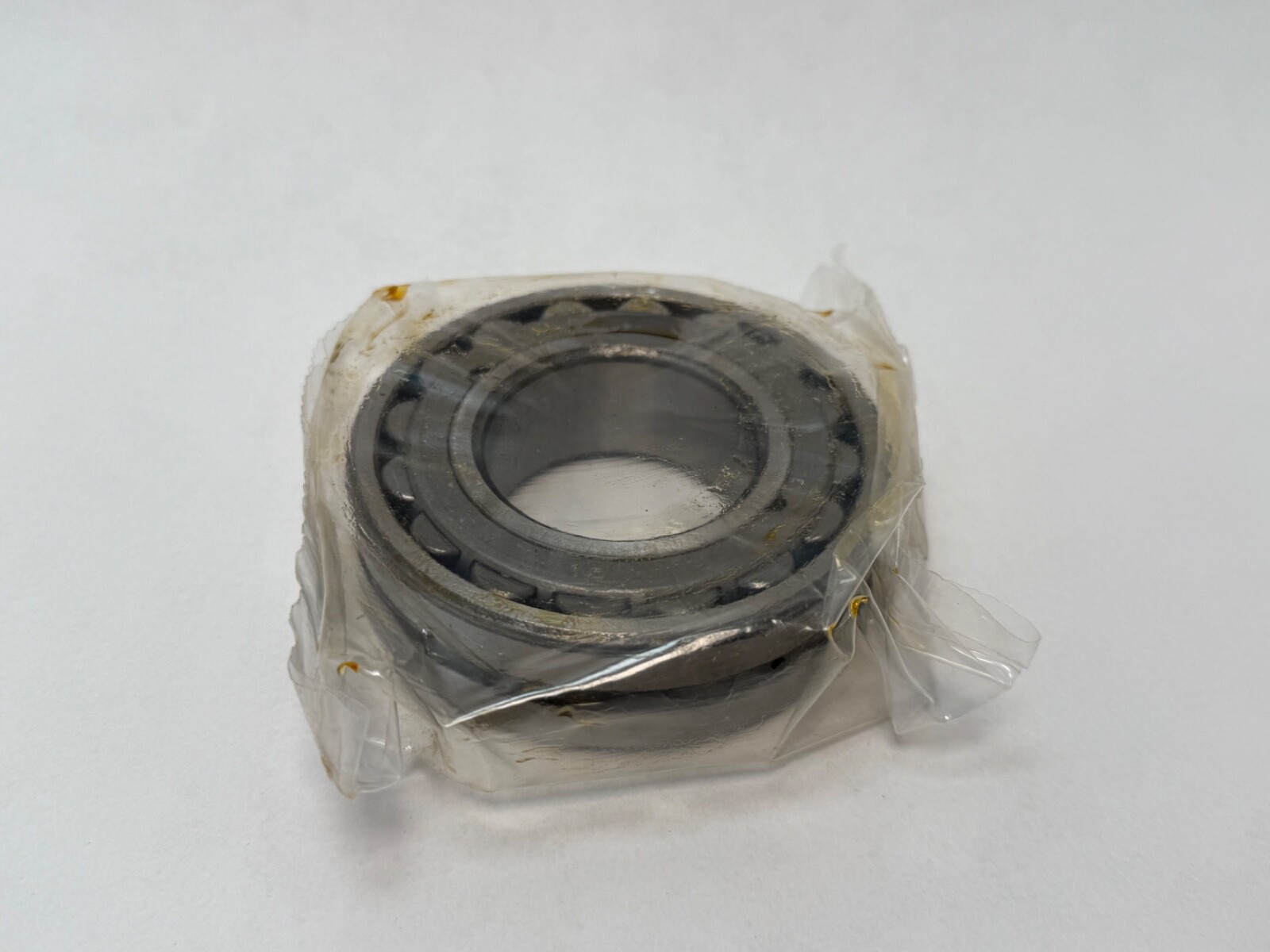

ZKL 22208 W33 C3 spherical roller bearing, 40 mm bore, 80 mm OD, 23 mm wide, straight bore, C3 clearance, W33 groove and holes for grease or oil feed.
List Price
$34.88
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | ZKL |
|---|---|
| MPN | 22208 W33 C3 |
| Model | 22208-W33-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Bore | Straight Bore |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Overall Width | 23 mm |
| Mpn Variants | 22208W33C3, 22208-W33-C3, 22208 W33 C3, 22208CC, 22208C |
| Lubricant | grease or oil |
| Relubrication Feature | W33 groove and three holes in outer ring |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; W33 groove bearing; 40x80x23 bearing |
| Common Misspellings | ZKL 22208W33C3; ZKL 22208 W 33 C3; ZKL22208; Z.K.L. 22208 W33 |
| Application Types | Conveyors; fans and blowers; gearboxes; vibrating screens |
| Cross Reference 1 | Timken 22208EJW33C3 |
|---|---|
| Cross Reference 2 | NTN 22208EAW33C3 |
| Cross Reference 3 | NSK 22208EAE4C3 |
| Cross Reference 4 | SKF 22208 E/C3 - no W33 groove |
| Cross Reference 5 | FAG 22208-E1-C3 - no W33 groove |
ZKL 22208 W33 C3 is a double-row spherical roller bearing with a cylindrical bore, open, with a W33 lubrication groove and C3 clearance. Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the bearing carries heavy radial load with some axial load and accepts shaft misalignment. Unit Quantity: 1 Pc.
222 — ISO dimension series 22 spherical roller bearing.
08 — bore code, 08 x 5 = 40 mm bore.
W33 — lubrication groove and three radial holes in the outer ring, for grease or oil feed.
C3 — internal radial clearance greater than normal.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 23 mm. Bore Type: Cylindrical. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Series: 22200. Relubrication Feature: W33 groove and three holes in outer ring.
ISO 15 boundary dimensions for the 22208 size: 40 x 80 x 23 mm. The tapered-bore version is a different part, the 22208 K.
Cross-references on the 22208 envelope: Timken 22208EJW33C3, NTN 22208EAW33C3, NSK 22208EAE4C3, SKF 22208 E/C3 (no W33 groove), FAG 22208-E1-C3 (no W33 groove). Search forms: 22208W33C3, 22208-W33-C3, 22208 W33 C3, 22208CC, 22208C.
40 mm bore, 80 mm outside diameter, 23 mm wide.
A lubrication groove with three radial holes in the outer ring, for grease or oil.
Internal radial clearance greater than normal (CN).
