Availability:
1 in stock

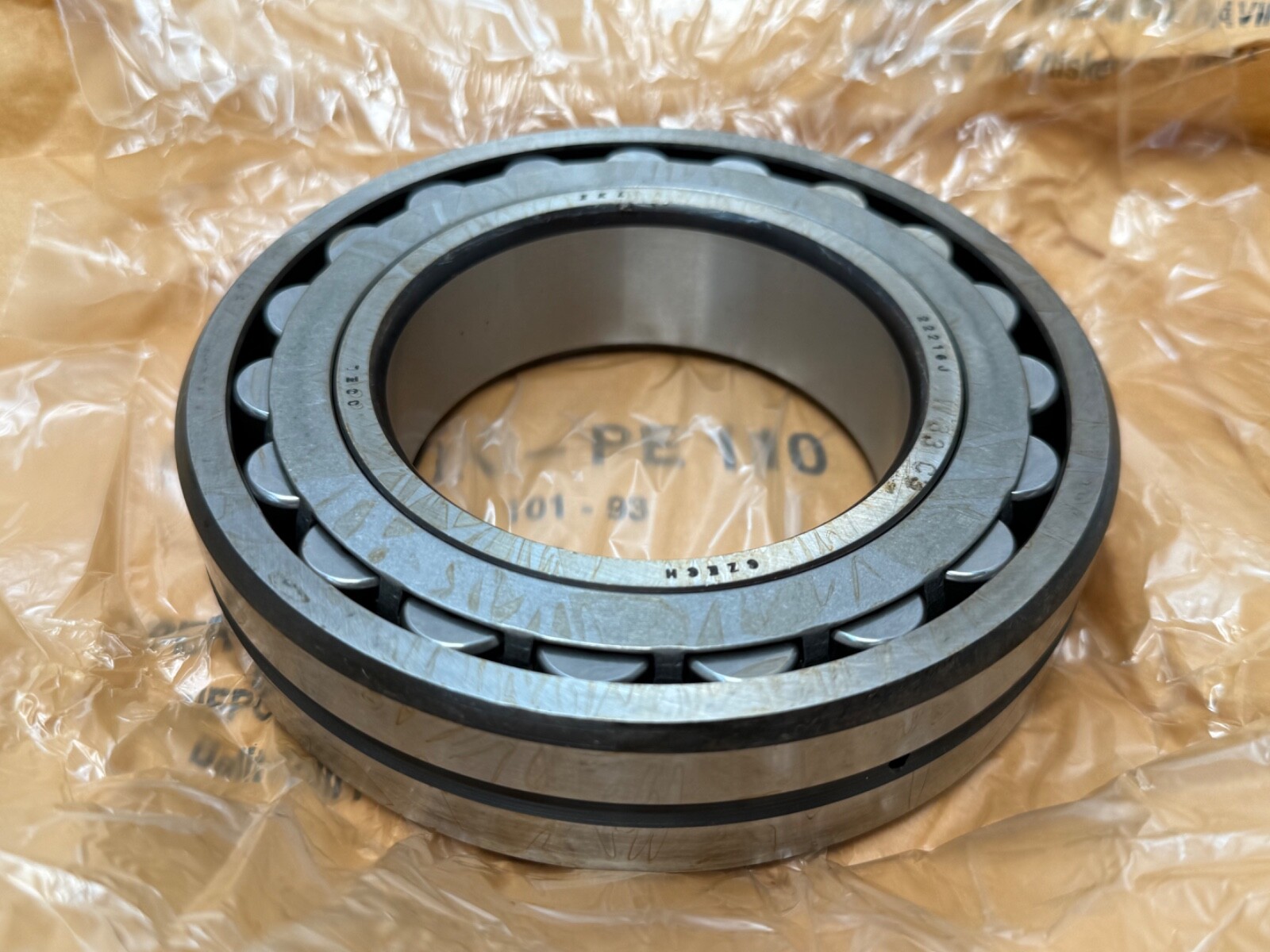

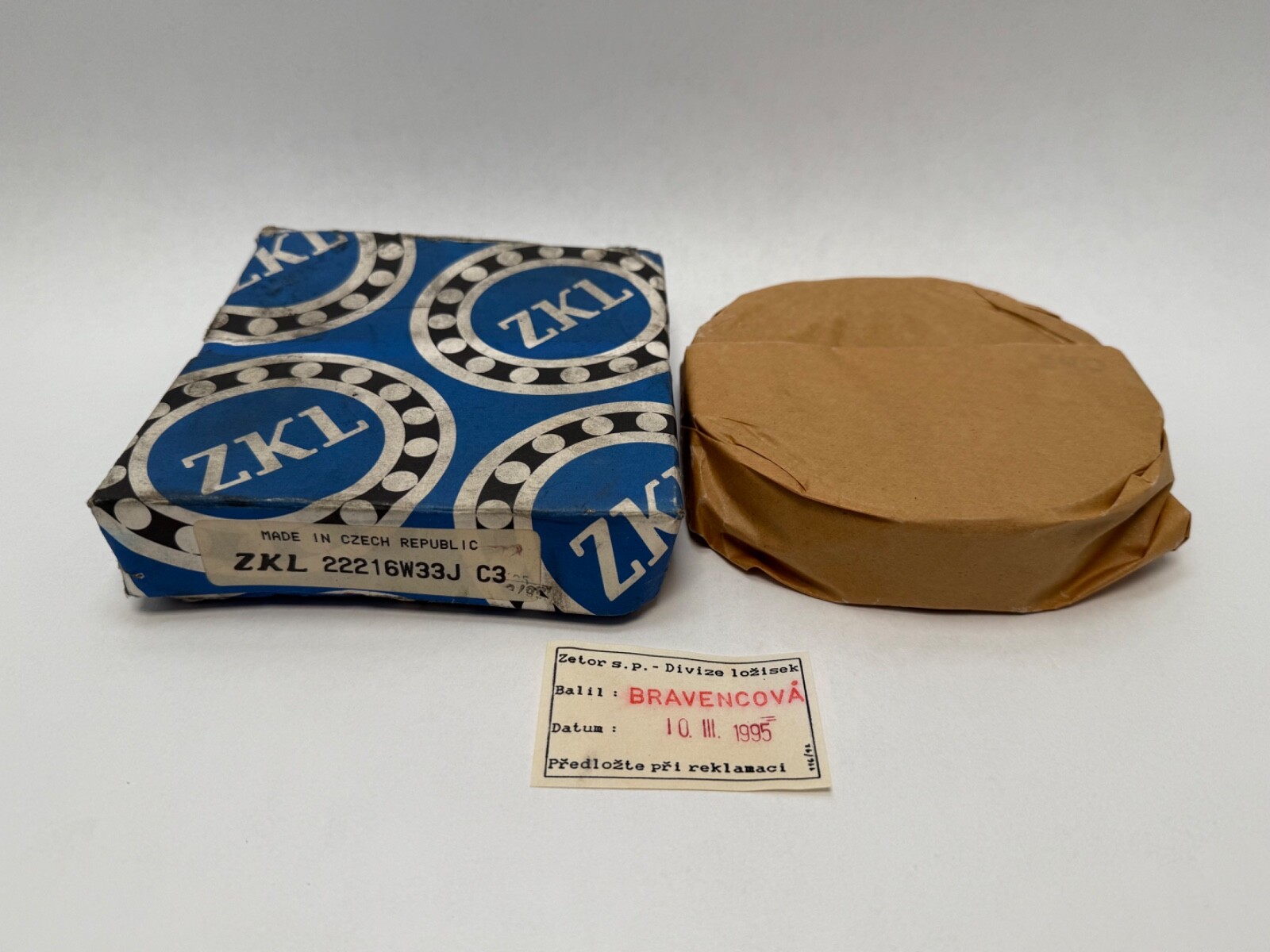

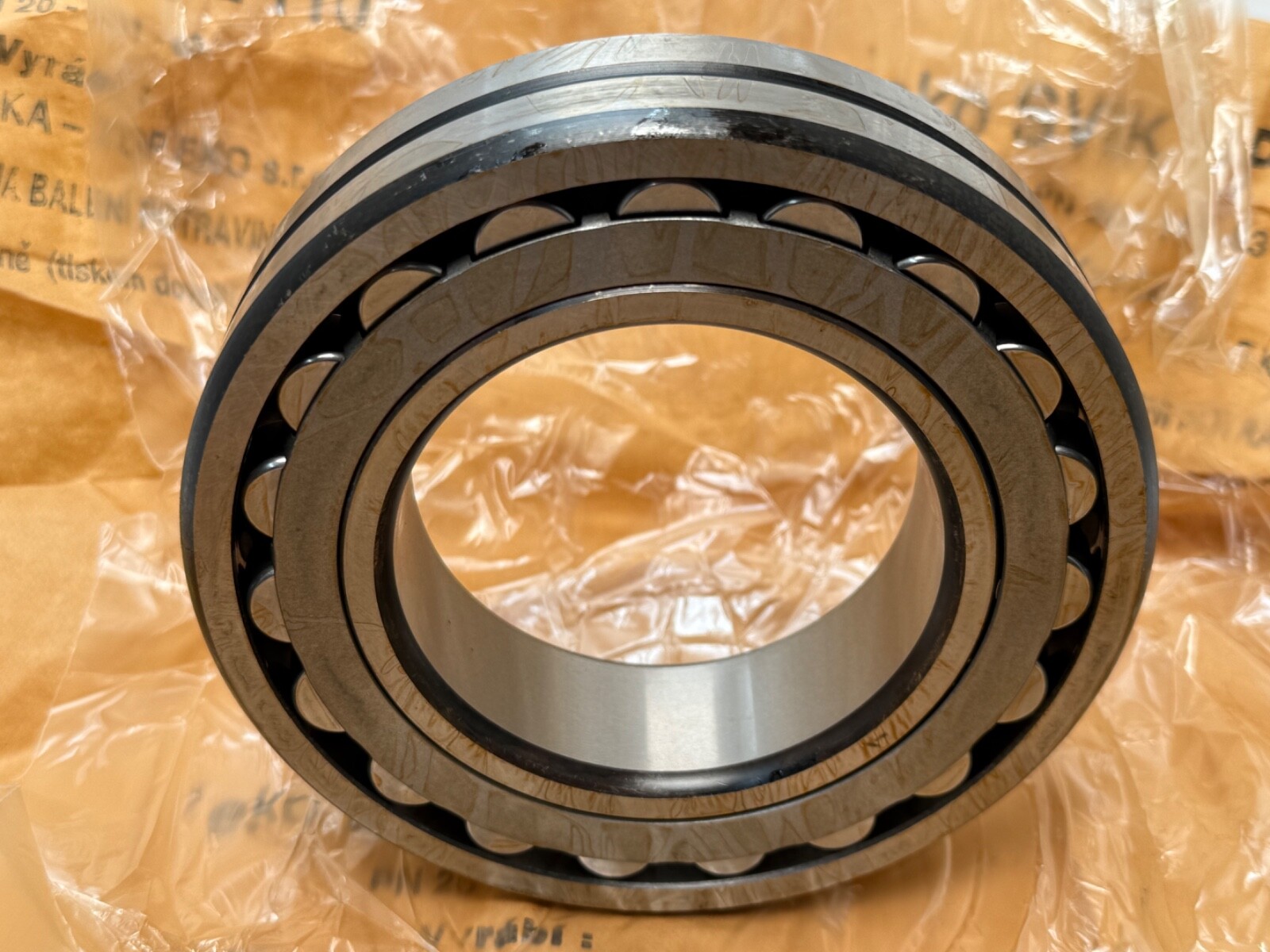

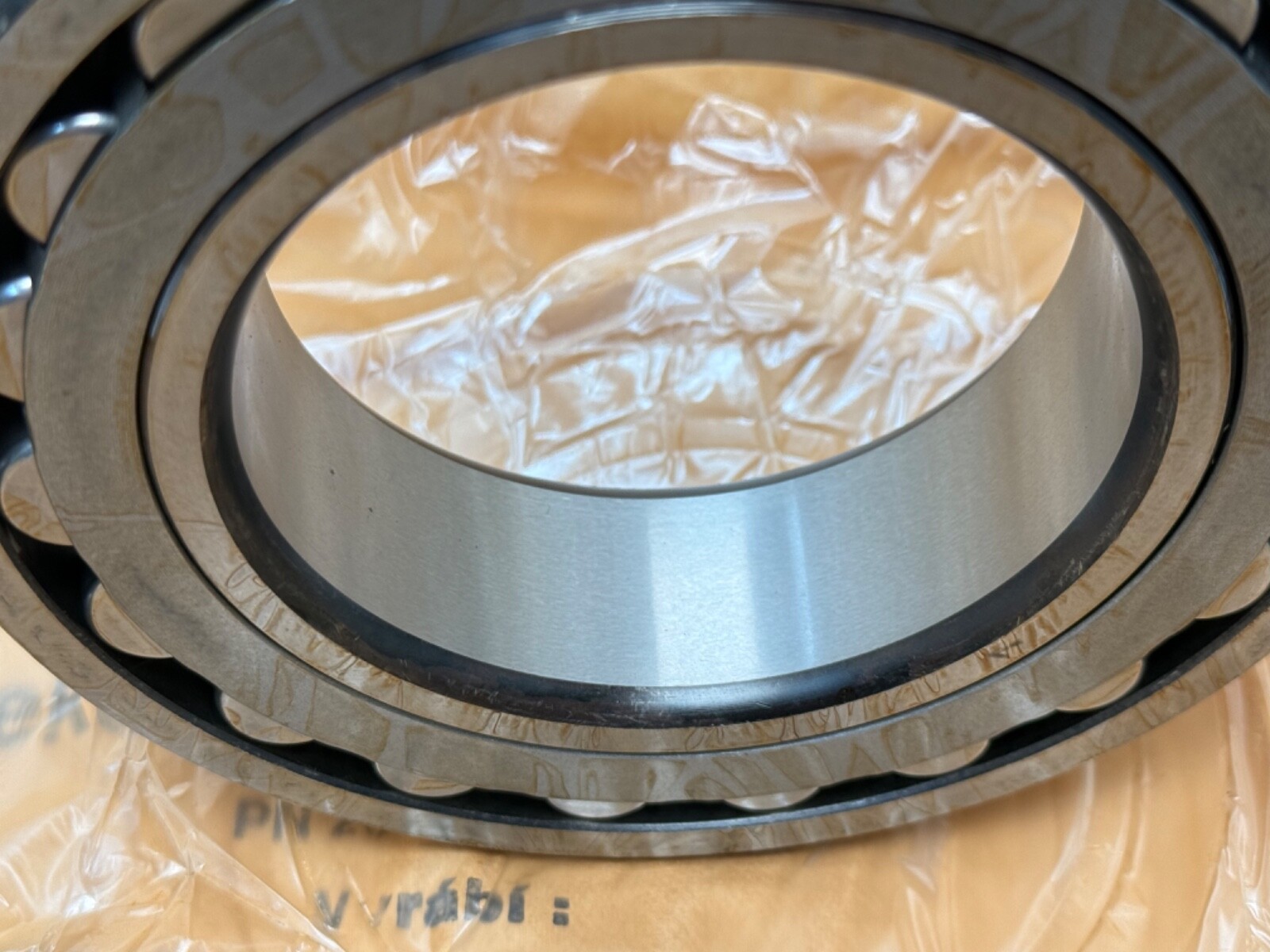

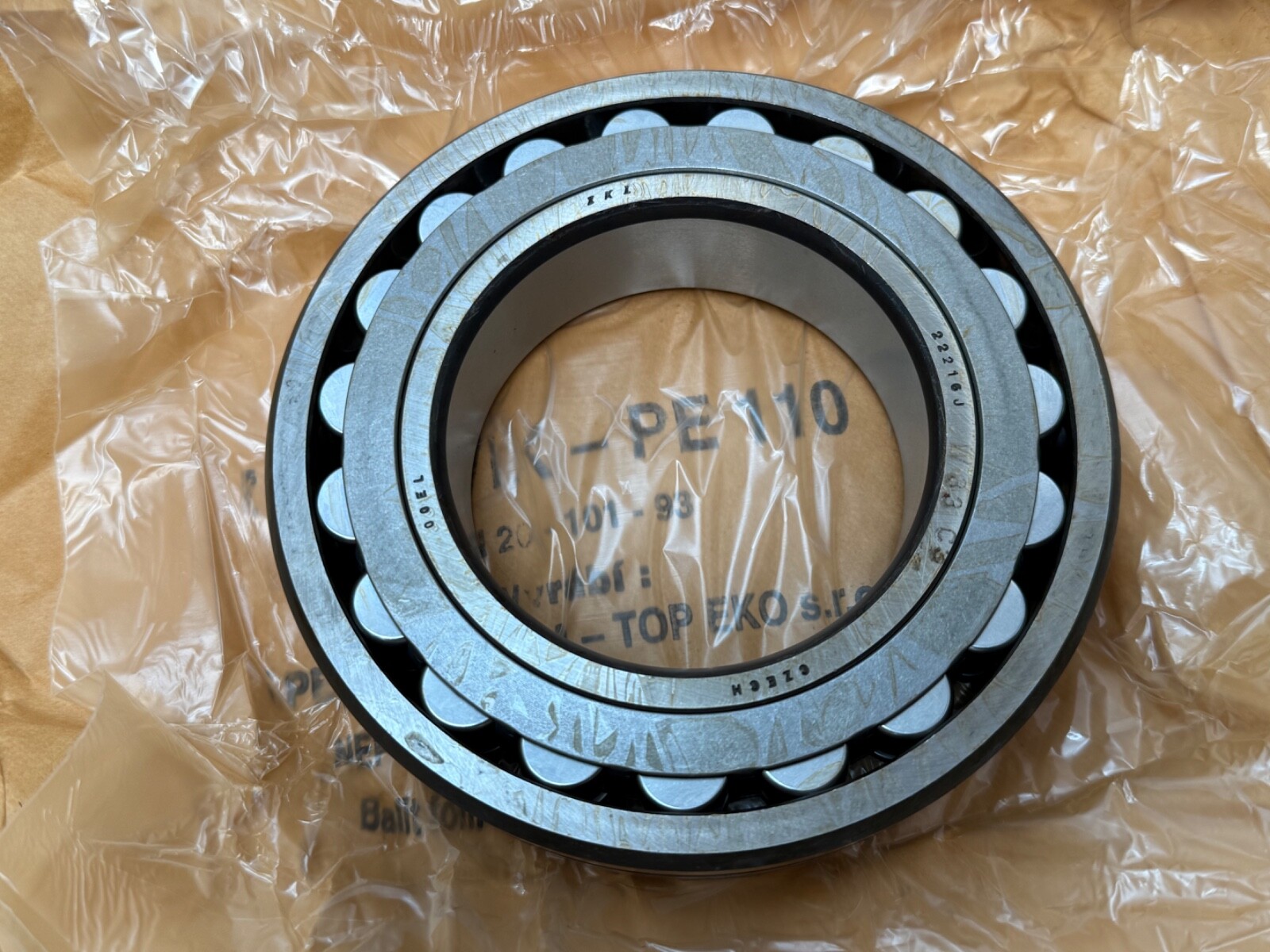

ZKL 22216 W33 J C3 spherical roller bearing, 80 mm bore, 140 mm OD, 33 mm wide, steel cage, C3 clearance, W33 groove and holes for grease or oil feed.
List Price
$44.70
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | ZKL |
|---|---|
| MPN | 22216 W33 J C3 |
| Model | 22216-W33-J-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Bore | Straight Bore |
| Material | Bearing Steel |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 8482.3 |
| Internal Clearance | C3 |
| Overall Width | 33 mm |
| Mpn Variants | 22216W33JC3, 22216-W33-J-C3, 22216 W33 J C3, 22216J, 22216C, 22216CC |
| Cross Reference 1 | SKF 22216 E/C3 |
|---|---|
| Cross Reference 2 | FAG 22216-E1-C3 |
| Cross Reference 3 | Timken 22216EJW33C3 |
| Cross Reference 4 | NSK 22216EAE4C3 |
| Cross Reference 5 | NTN 22216EAW33C3 |

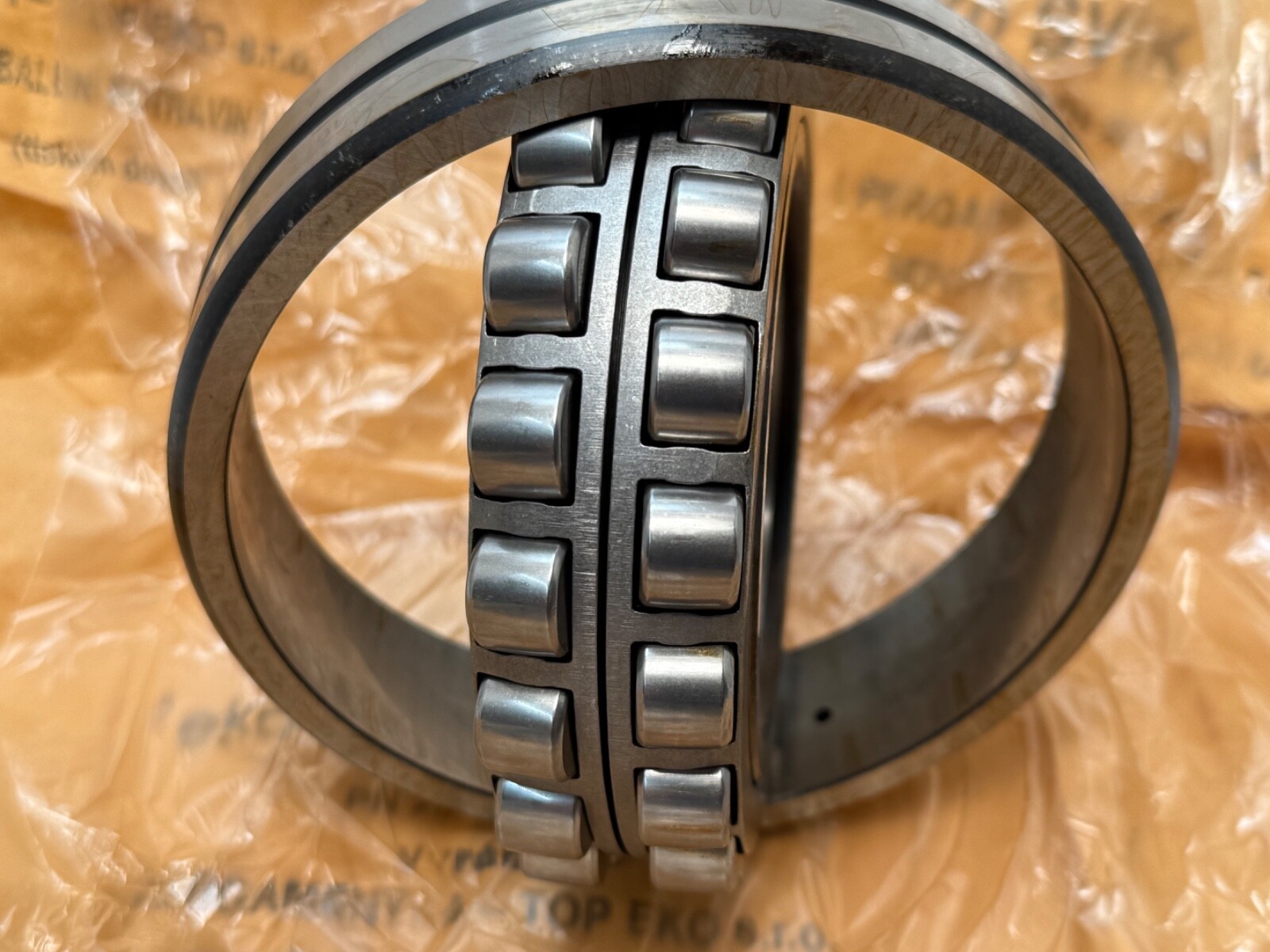

ZKL 22216 W33 J C3 is a double-row spherical roller bearing with a cylindrical bore and a steel cage. Two rows of rollers run on a common spherical outer raceway, carrying heavy radial load with some axial load and accepting shaft misalignment.
222 — ISO dimension series 22 spherical roller bearing.
16 — bore code, 16 x 5 = 80 mm bore.

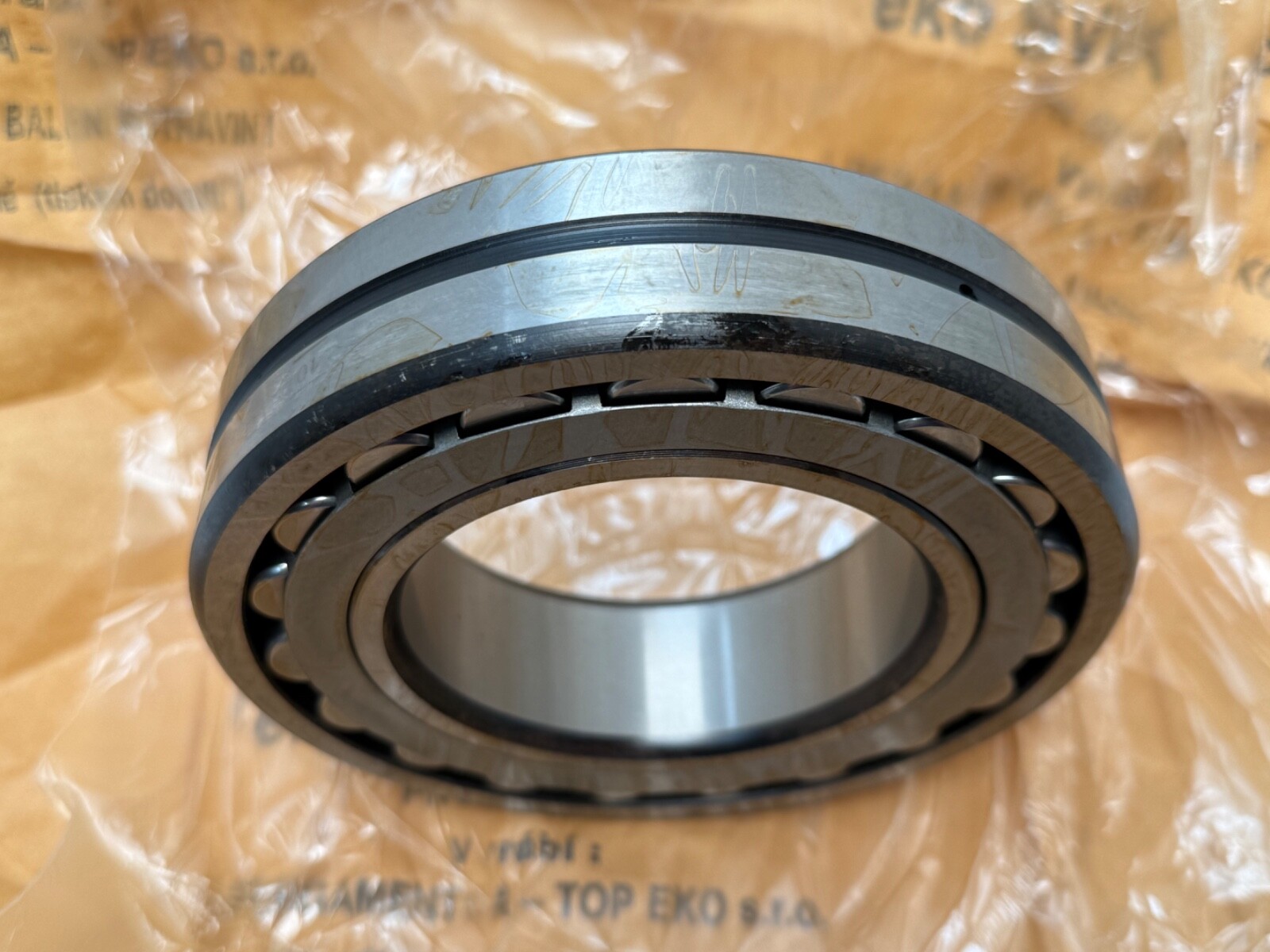

W33 — lubrication groove and three radial holes in the outer ring, for grease or oil feed.

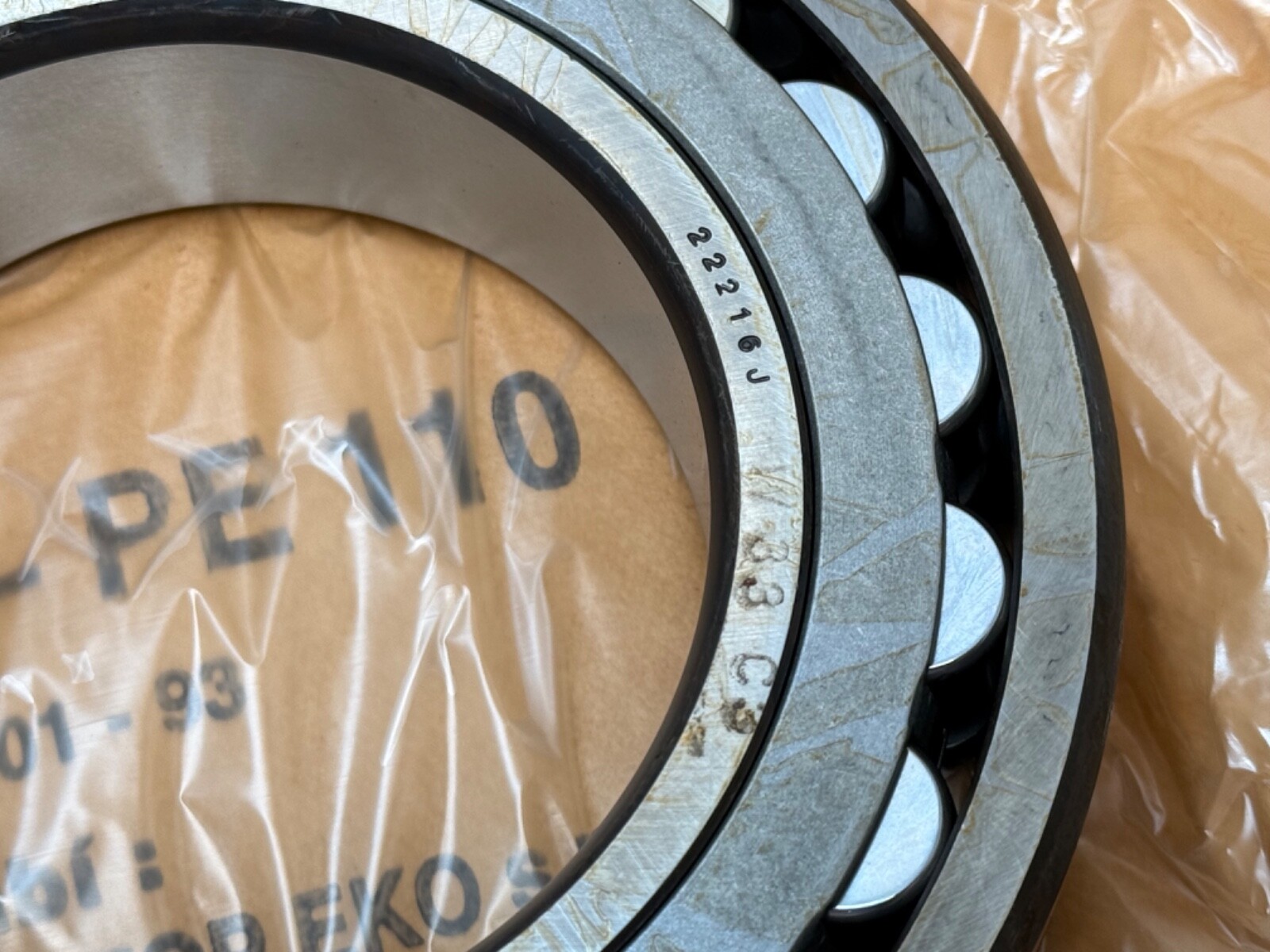

J — ZKL steel cage.
C3 — internal radial clearance greater than normal.
Bearing Type: Spherical roller bearing. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Cylindrical. Cage Material: Steel. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Series: 22200.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. ISO 15 boundary dimensions for the 22216 size.
The 22216 envelope is standardised, so the part interchanges dimensionally with the 22216 C3 W33 execution from other makers, including SKF 22216 E/C3, FAG 22216-E1-C3, Timken 22216EJW33C3, NSK 22216EAE4C3 and NTN 22216EAW33C3. The tapered-bore version, 22216 K, mounts on an H316 adapter sleeve and is a different part.
What size is a 22216 spherical roller bearing?
80 mm bore, 140 mm outside diameter, 33 mm wide.
What does the J mean on a ZKL bearing?
J is ZKL’s code for a steel cage.
What does W33 mean?
A lubrication groove with three radial holes in the outer ring, for grease or oil.
