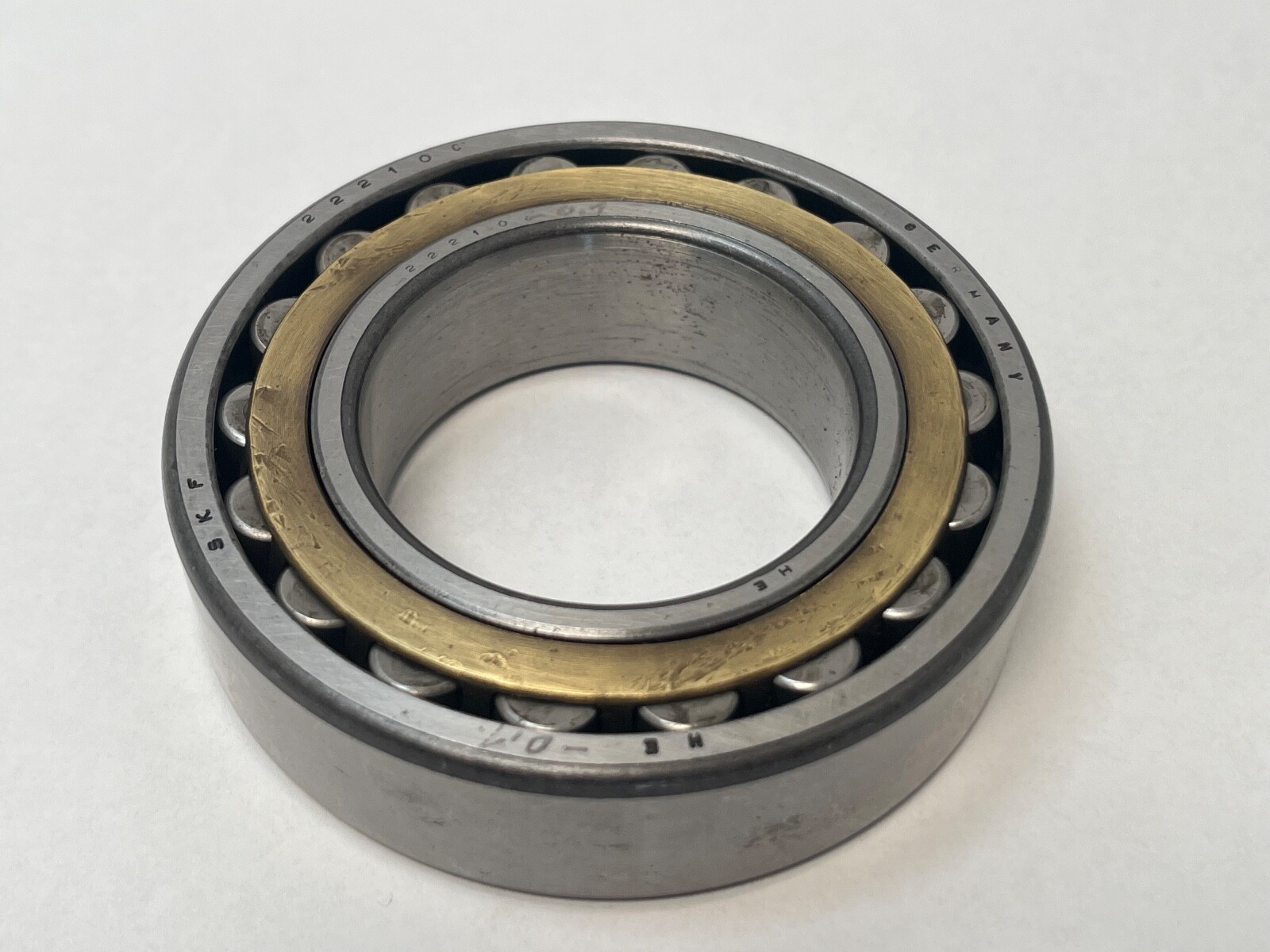

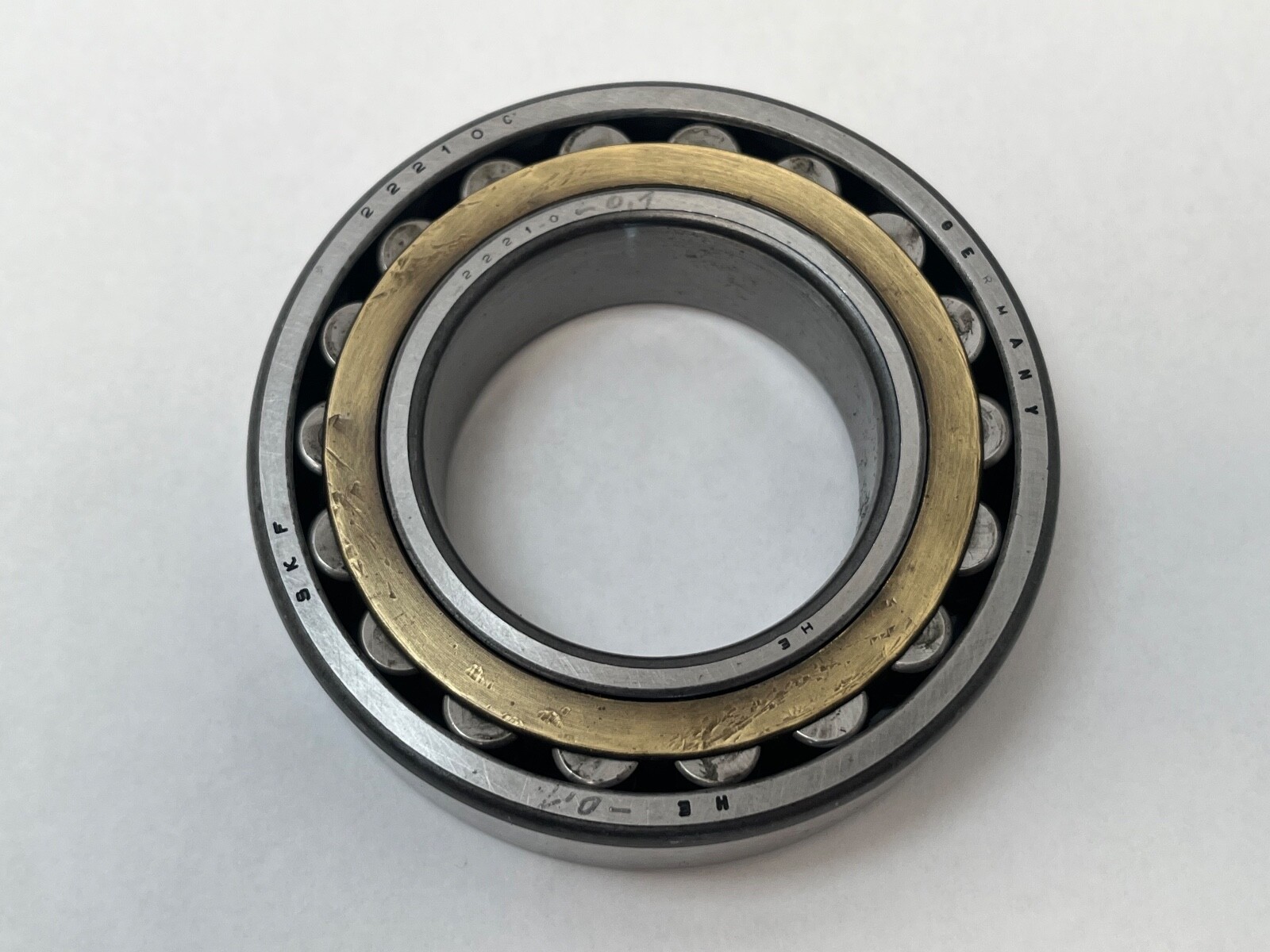

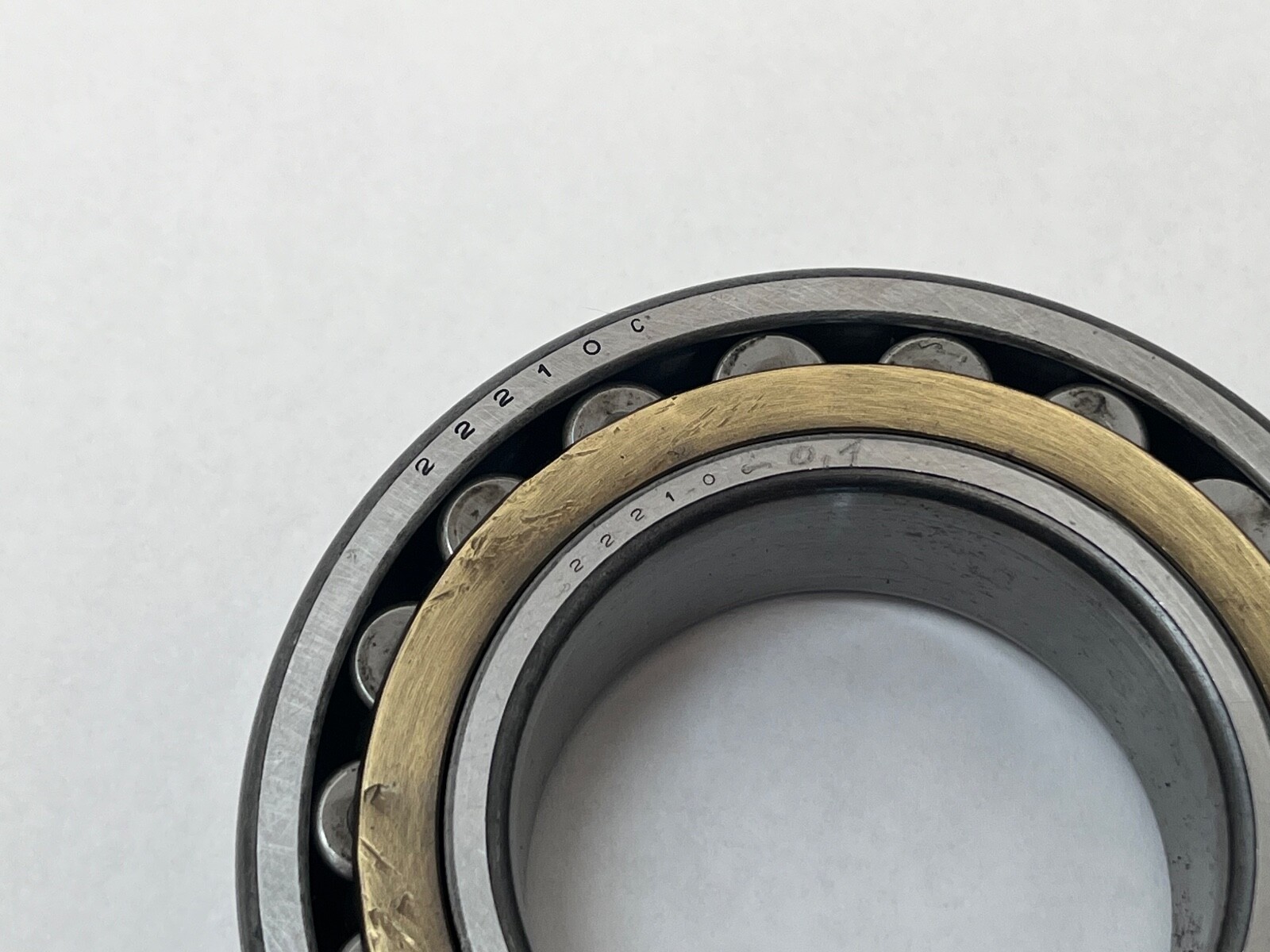

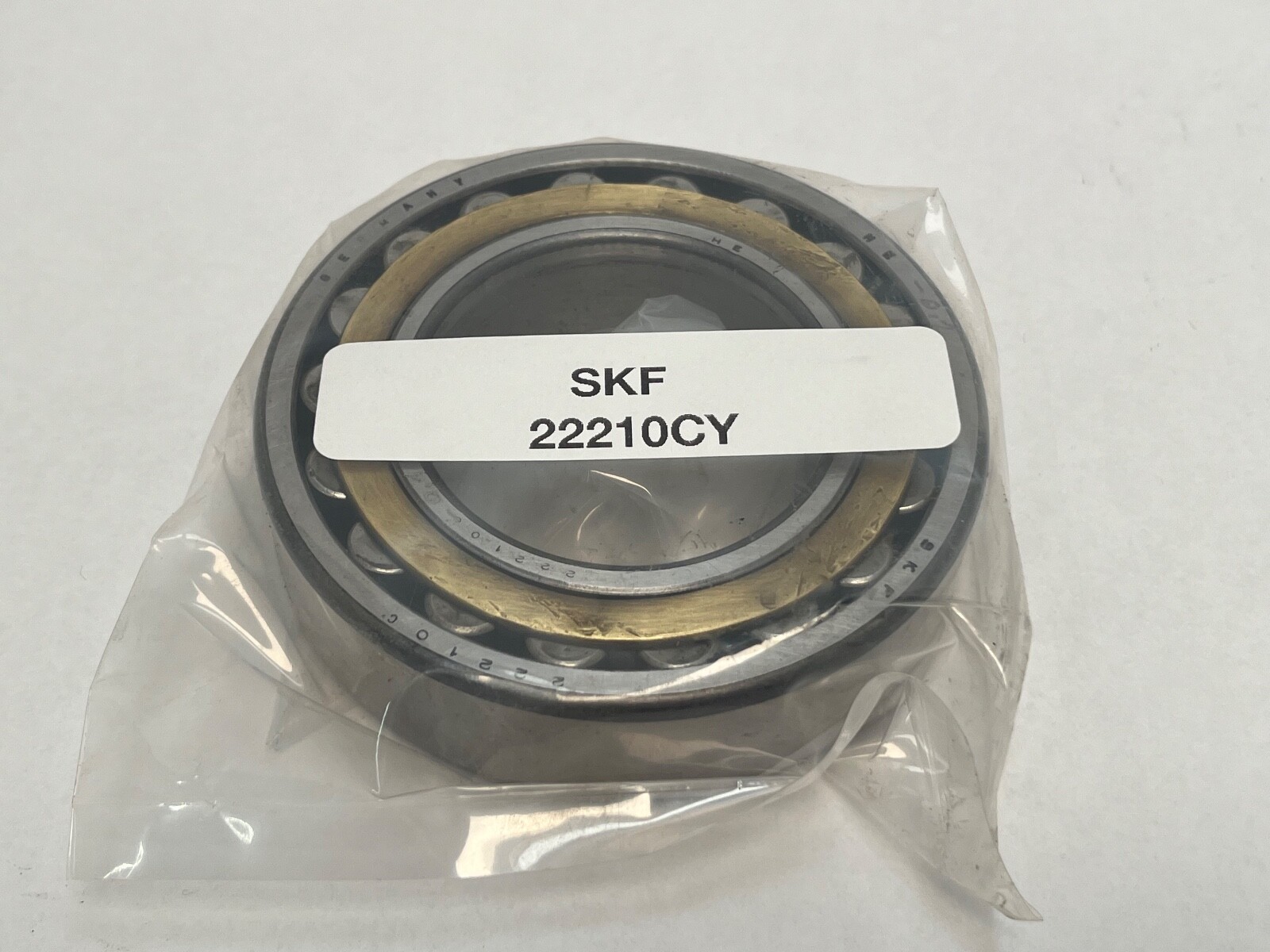

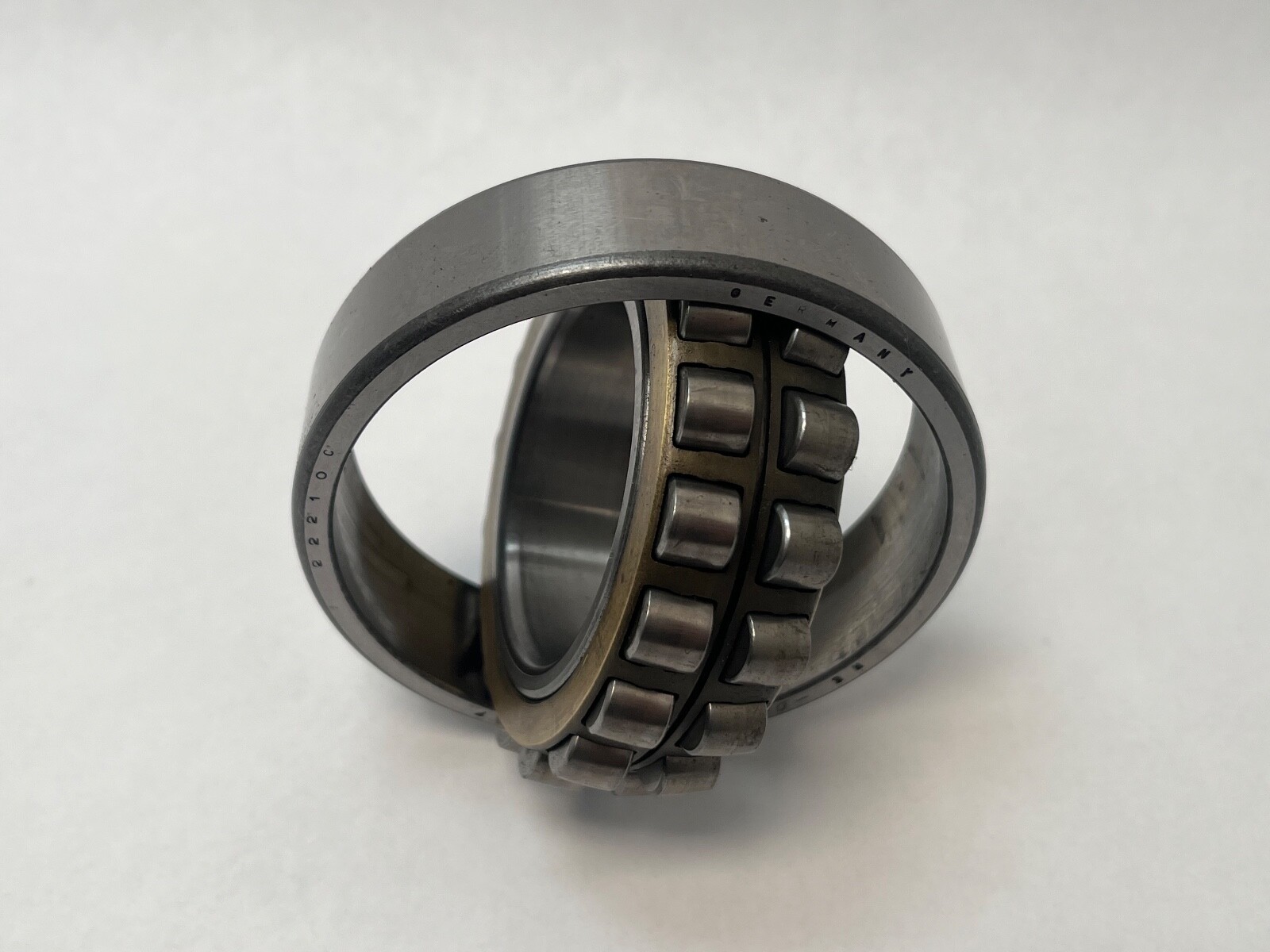

SKF 22210 CY spherical roller bearing, 50 mm bore, 90 mm OD, 23 mm wide, pressed brass cage, straight bore, double row. New old stock, open box.
List Price
$32.28
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22210 CY |
| Model | 22210 CC Y / 22210 C Y |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Lubricant | Grease or oil |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.0080 |
| Overall Width | 23 mm |
| Mpn Variants | 22210 CY, 22210CY, 22210-CY, 22210-C-Y, 22210 CCY, 22210 C Y |
| Cage Type | Window-type |
| Bearing Material | Bearing steel |
| Industry Terms | 22210 spherical roller bearing; 50x90x23 spherical roller; double row self-aligning roller bearing; brass cage spherical roller bearing |
| Common Misspellings | SFK 22210 CY; SKF 22210CY; SKF 22210 C Y; Spherical roller 22210 CCY |
| Application Types | Gearboxes; Pumps; Fans and blowers; Conveyors; Industrial machinery |
| Cross Reference 1 | SKF 22210 E - E design, higher ratings |
|---|---|
| Cross Reference 2 | NSK 22210 EAE4 - E design, higher ratings |
| Cross Reference 3 | Koyo 22210 RHR |
| Cross Reference 4 | Timken 22210 |
| Cross Reference 5 | ZKL 22210 CC |
SKF 22210 CY is a double row spherical roller bearing with a straight bore and a pressed brass window cage. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 23 mm. Number Of Rows: 2. Bore Type: Straight. Unit Quantity: 1 Pc.
222 — spherical roller bearing, 22 dimension series.
10 — bore code, 10 x 5 = 50 mm.
C — SKF C internal design.
Y — pressed brass window-type cage.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Pressed brass. Cage Type: Window-type. Closure Type: Open. Bore Type: Straight. Lubricant: Grease or oil. Series: 22200. Harmonization Code: 8482.30.0080.
Self-aligning spherical outer raceway. Runs on oil or grease.
Cross-references: current SKF 22210 E (E design, higher ratings), NSK 22210 EAE4 (E design, higher ratings), Koyo 22210 RHR, Timken 22210 and ZKL 22210 CC. Load ratings differ between internal designs. Also marked 22210-C-Y and 22210 CCY.
50 mm bore, 90 mm outside diameter, 23 mm width.
A pressed brass window-type cage.
No, the bore is straight.
