Availability:
1 in stock
Spherical roller bearing, 90 x 160 x 40 mm, cylindrical bore, C3 clearance. SKF CC design with pressed steel cages, W33 groove and Solid Oil (W64) fill.
List Price
$207.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22218 CC/C3W33W64C |
| Model | 22218 CC C3 W33 W64-C / 22218C 22218CJ 22218CCJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Solid Oil |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, Solid Oil bearing, W64 |
| Mpn Variants | 22218 CC/C3W33W64C, 22218CCC3W33W64C, 22218-CC-C3-W33-W64C, 22218C, 22218CJ, 22218CCJ |
| Cage Type | Two window-type cages with floating guide ring |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | W33 groove and three lubrication holes |
| Harmonization Code | 8482.30.00 |
| Common Misspellings | SKF 22218 CC C3 W33 W64; SKF 22218CC/C3W33W64; SKF 22218-CC-C3W33; SFK 22218 CC |
| Application Types | industrial machinery shaft supports; gearboxes; fans and blowers; conveyors |
| Closure Type | Open |
| Cross Reference 1 | SKF 22218 E/C3 - no Solid Oil, E design |
|---|---|
| Cross Reference 2 | FAG 22218-E1-C3 - no Solid Oil, E1 design |
| Cross Reference 3 | NSK 22218EAE4C3 - no Solid Oil, EA design |
| Cross Reference 4 | Timken 22218EJW33C3 - no Solid Oil, EJ design |
| Cross Reference 5 | NTN 22218EAD1C3 - no Solid Oil, EA design |

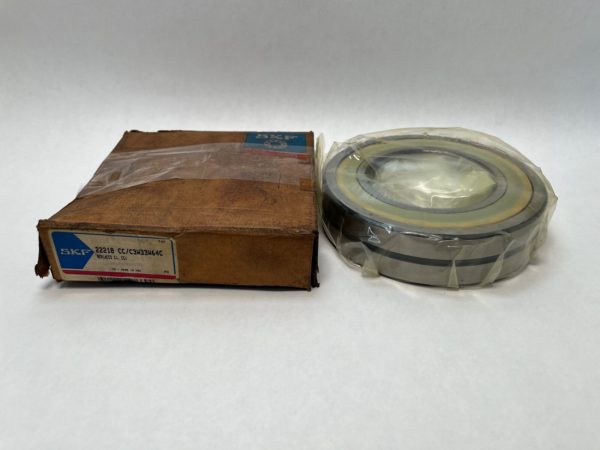

SKF 22218-CC/C3W33W64C double-row spherical roller bearing in SKF’s CC design with a cylindrical bore, C3 radial internal clearance, a W33 relubrication groove and a Solid Oil fill. Open bearing, no seals. Unit Quantity: 1 Pc.
22218 — ISO 222 series spherical roller bearing, 90 mm bore.
CC — SKF CC internal design: two pressed steel window-type cages with a floating guide ring between the roller rows.
C3 — radial internal clearance greater than normal.
W33 — lubrication groove and three lubrication holes in the outer ring.
W64 — SKF Solid Oil: the free space is filled with an oil-saturated polymer matrix.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Width: 40 mm. Bore Type: Cylindrical. Number Of Rows: 2. Rolling Elements: Spherical Roller. Internal Clearance: C3. Cage Material: Pressed steel. Cage Type: Two window-type cages with floating guide ring. Closure Type: Open. Lubricant: Solid Oil. Relubrication Feature: W33 groove with three lubrication holes. Series: 22200.
Envelope: 90 x 160 x 40 mm. Cylindrical bore. Outer ring with W33 lubrication groove and three lubrication holes.
Standard grease-lubricated executions in the 90 x 160 x 40 mm size with C3 clearance, none with the Solid Oil fill: SKF 22218 E/C3, FAG 22218-E1-C3, NSK 22218EAE4C3, Timken 22218EJW33C3, NTN 22218EAD1C3. Load ratings differ between designs.
Bore 90 mm, outside diameter 160 mm, width 40 mm, cylindrical bore.
W33 is a lubrication groove with three lubrication holes in the outer ring. W64 is SKF Solid Oil: the free space is filled with an oil-saturated polymer matrix.
CC design with two pressed steel window-type cages and a floating guide ring between the roller rows. Radial internal clearance C3.
