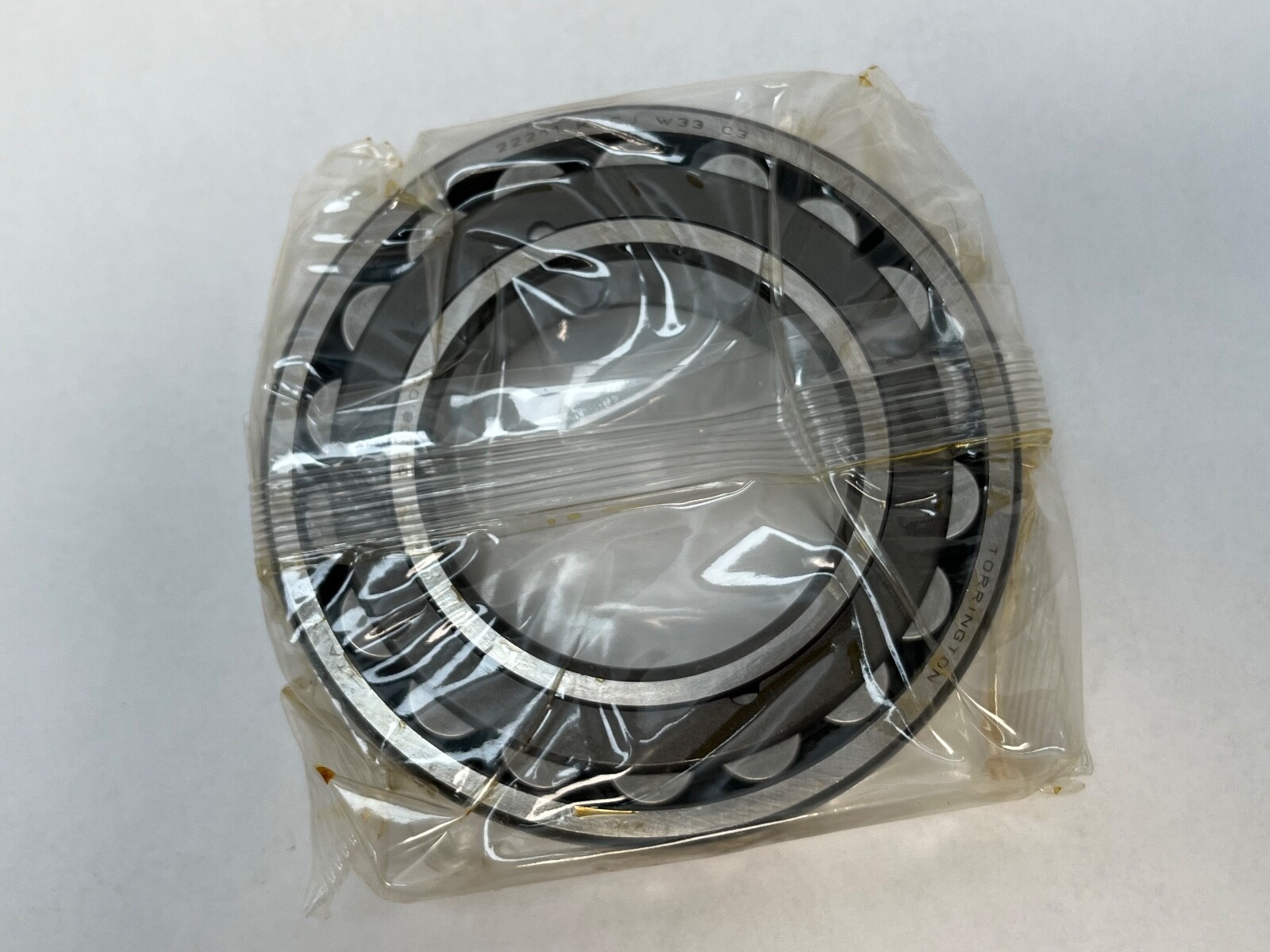

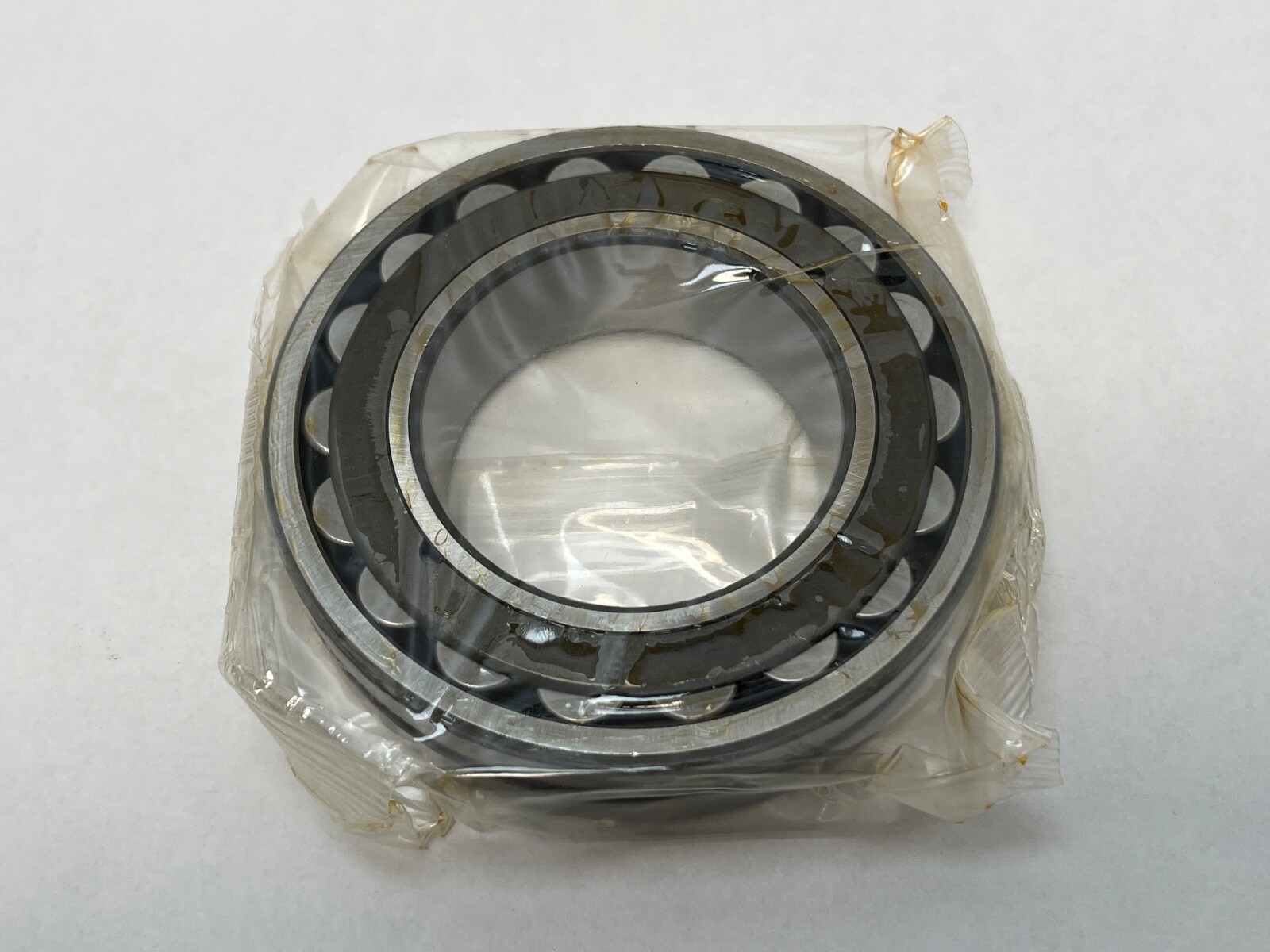

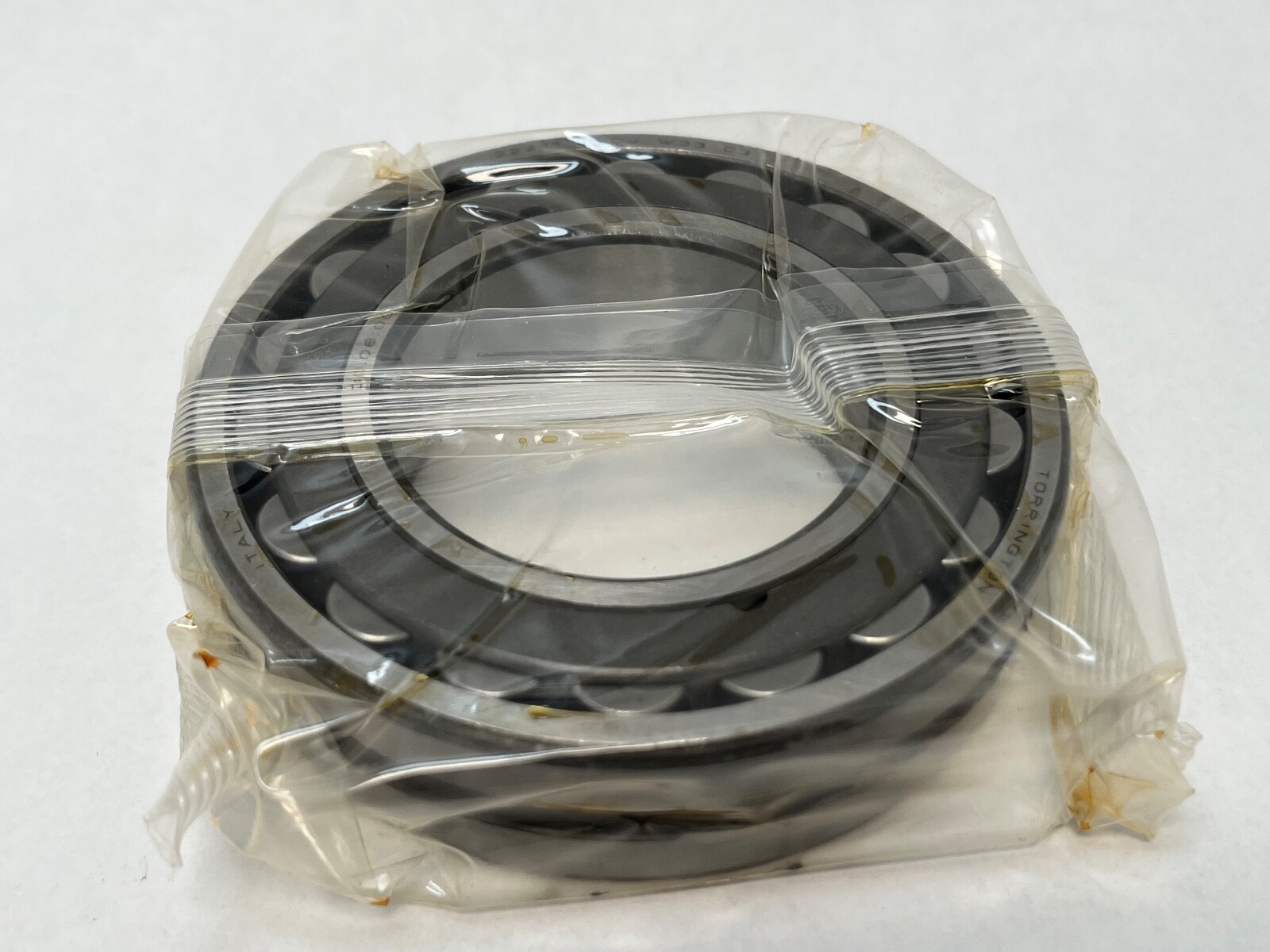

Torrington 22210KCJW33 double-row spherical roller bearing, 50 mm 1:12 tapered bore, 90 mm OD, 23 mm wide, steel cage, W33 groove, normal clearance. 1 Pc.
List Price
$51.53
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22210KCJW33 |
| Model | 22210 K CJ W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Bore | Taper Bore |
| Cage Type | Two-piece window |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Mpn Variants | 22210KCJW33, 22210-K-C-J-W33, 22210CKJ, 22210 K CJ W33 |
| Compatible With Replaces | Timken 22210KEJW33 (current successor design) |
| Additional Attributes | Shaft backing shoulder 59 mm; housing backing shoulder 82 mm; max fillet radius 1 mm; adapter sleeve H310 |
| Design Units | Metric |
| Closure Type | Open |
| Cross Reference 1 | Timken 22210KEJW33 - EJ design, current part |
|---|---|
| Cross Reference 2 | SKF 22210 EK - E design, no W33 groove |
| Cross Reference 3 | FAG 22210-E1-K - E1 design, no W33 groove |
| Cross Reference 4 | NSK 22210EAKE4 - EA design |
| Cross Reference 5 | NTN 22210EAKW33 - EA design |
Torrington 22210KCJW33 double-row spherical roller bearing: 50 mm tapered bore, 90 mm outside diameter, 23 mm width, steel cage, W33 lubrication groove, normal clearance. Unit Quantity: 1 Pc, one complete bearing. Torrington is a Timken brand; the current Timken design is 22210KEJW33.
222 — spherical roller bearing, ISO dimension series 22.
10 — bore code; 10 x 5 = 50 mm bore.
K — 1:12 tapered bore for adapter-sleeve or tapered-journal mounting.
CJ — Torrington internal design with a two-piece steel window cage.
W33 — lubrication groove with three radial holes in the outer ring.
Bore Diameter: 50 mm. Bore Type: Tapered, 1:12. Outside Diameter: 90 mm. Overall Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Cage Type: Two-piece window. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil.
Bore: 50 mm, 1:12 taper. Outside diameter: 90 mm. Width: 23 mm. Shaft Backing Shoulder Diameter: 59 mm. Housing Backing Shoulder Diameter: 82 mm. Maximum Fillet Radius: 1 mm. Related part: H310 adapter sleeve with KM10 locknut and MB10 lockwasher. The W33 groove feeds grease or oil to the centre of both roller rows.
Tapered-bore, normal-clearance 50 x 90 x 23 mm bearings from other makers, each a different internal design: Timken 22210KEJW33, SKF 22210 EK, FAG 22210-E1-K, NSK 22210EAKE4, NTN 22210EAKW33.
The bore is 50 mm with a 1:12 taper, the outside diameter is 90 mm and the width is 23 mm.
W33 is a lubrication groove with three radial holes in the outer ring.
The current Timken design is 22210KEJW33.
