Spherical roller bearing, 50 mm tapered bore (1:12), 90 mm OD, 23 mm wide, C3 clearance. W33 lubrication groove and holes; mounts on an H310 adapter sleeve.
List Price
$53.49
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22210CKW33C3 |
| Model | 22210 C K W33 C3 22210C 22210CC 22210CJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Base Number | 22210 |
| Mpn Variants | 22210CKW33C3, 22210-C-K-W33-C3, 22210CKD1C3, 22210 C K W33 C3 |
| Compatible With Replaces | Adapter sleeve H310 (KM10 locknut, MB10 washer) |
| Cage Type | Pressed, two-piece |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | W33 groove and three holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; tapered bore spherical roller bearing; W33 groove bearing; double row roller bearing |
| Common Misspellings | 22210 CK W33 C3; 22210CKW33 C3; NTN 22210 CKD1 C3; 22210CKD1C3 |
| Application Types | Industrial gearboxes; conveyors; fans and blowers; vibrating screens; pumps |
| Closure Type | Open |
| Cross Reference 1 | SKF 22210 EK/C3 - E design, higher ratings |
|---|---|
| Cross Reference 2 | FAG 22210-E1-K-C3 - E design, higher ratings |
| Cross Reference 3 | NSK 22210EAKE4C3 - EA design, higher ratings |

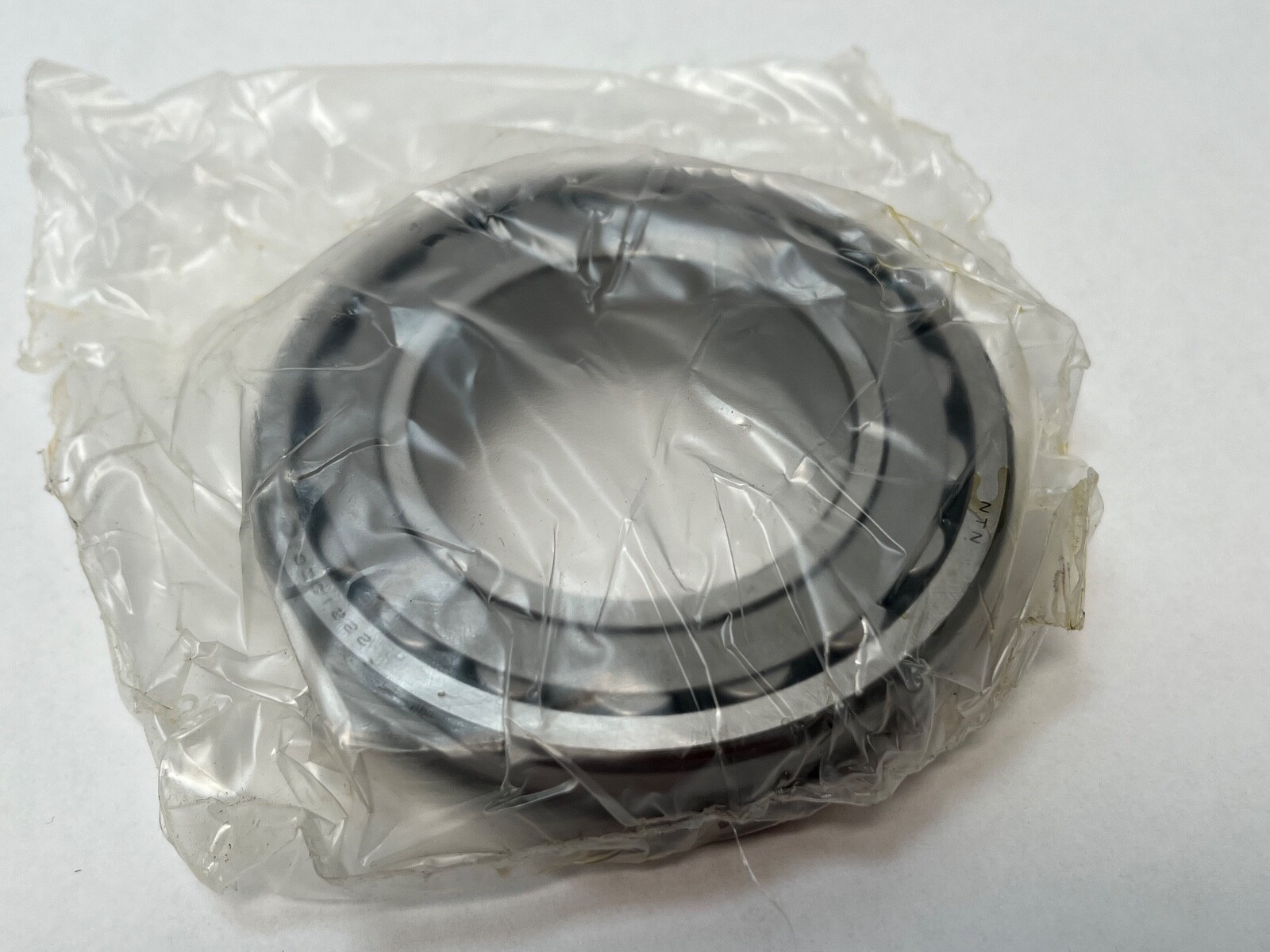

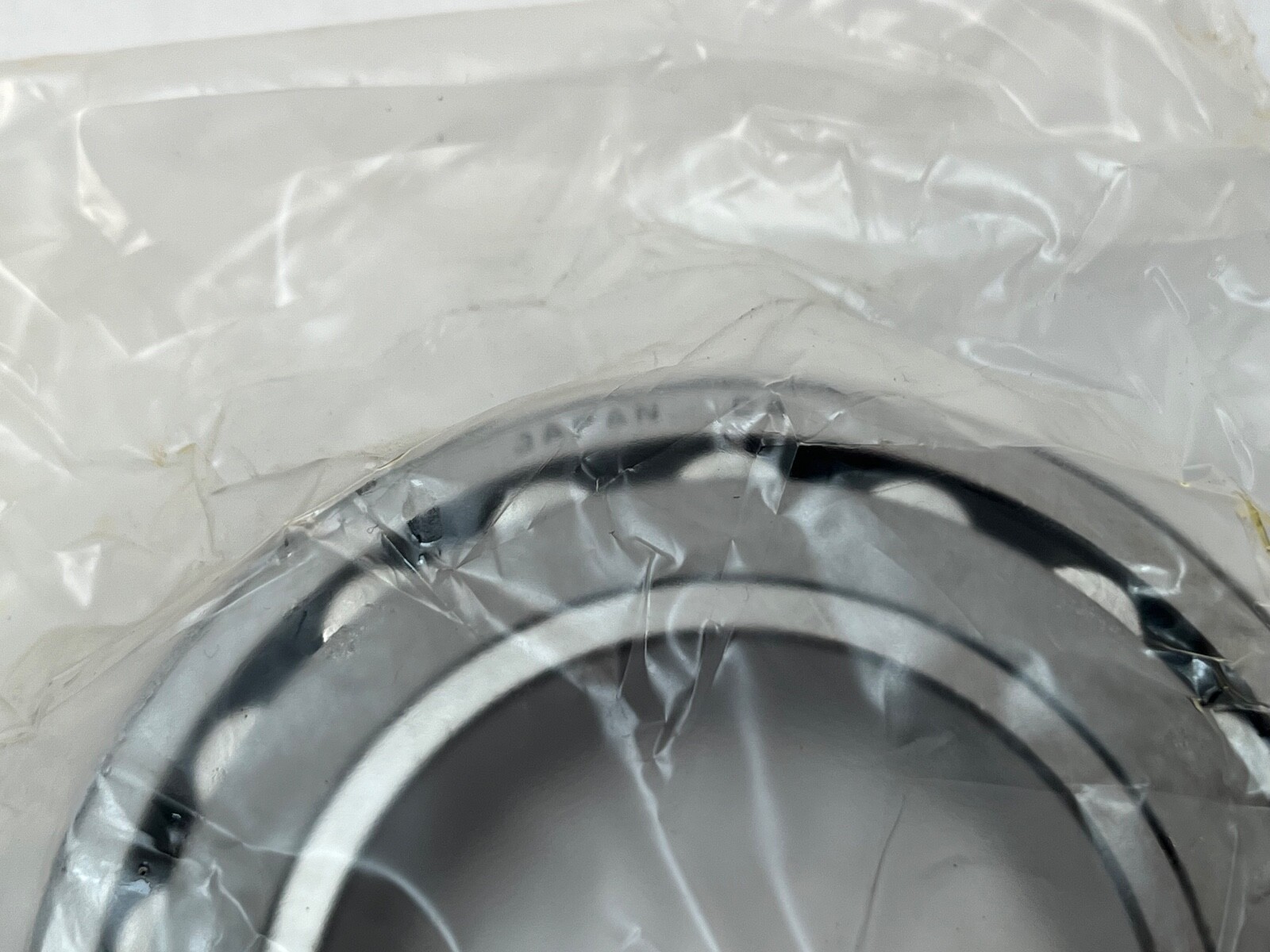

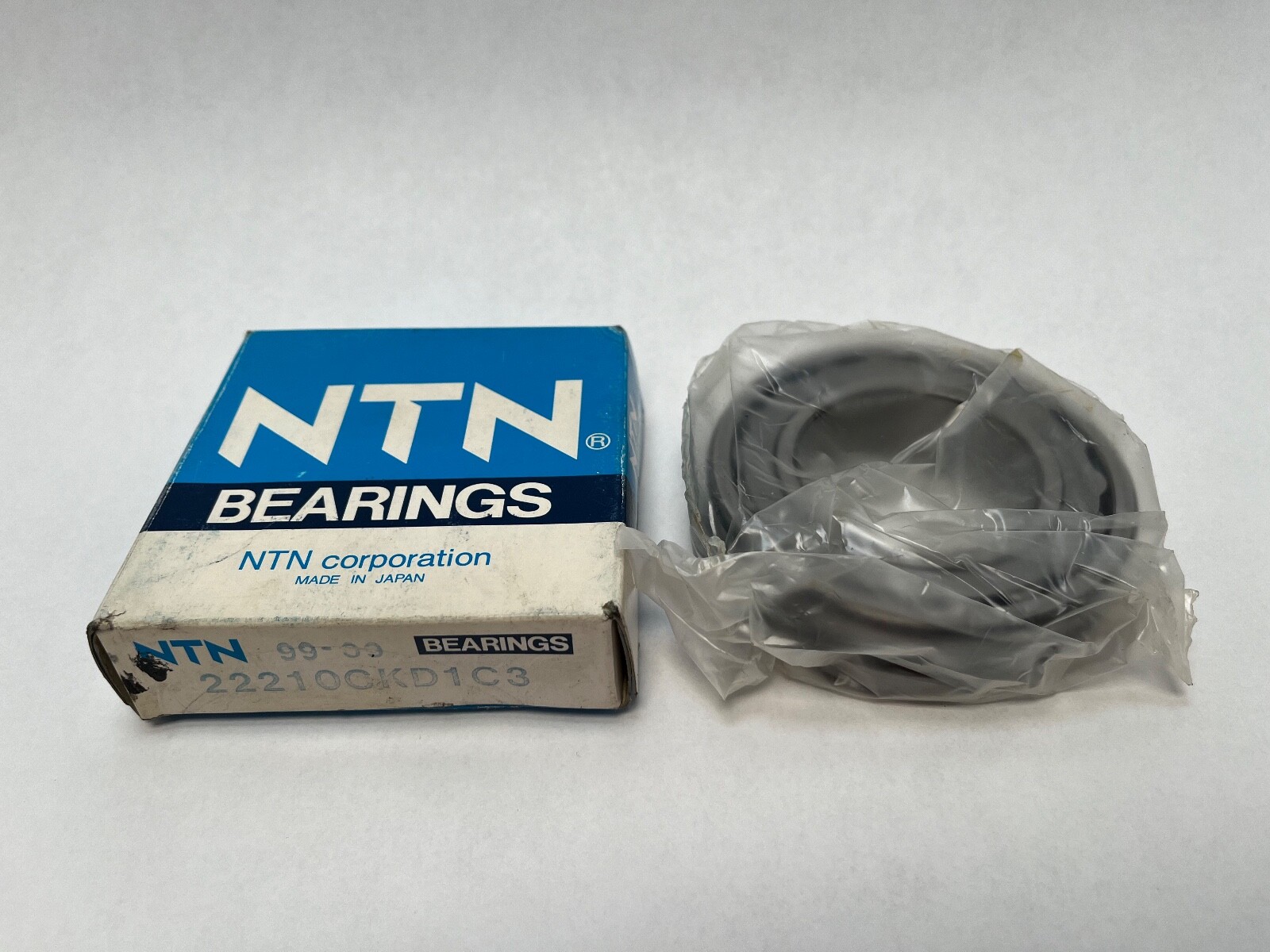

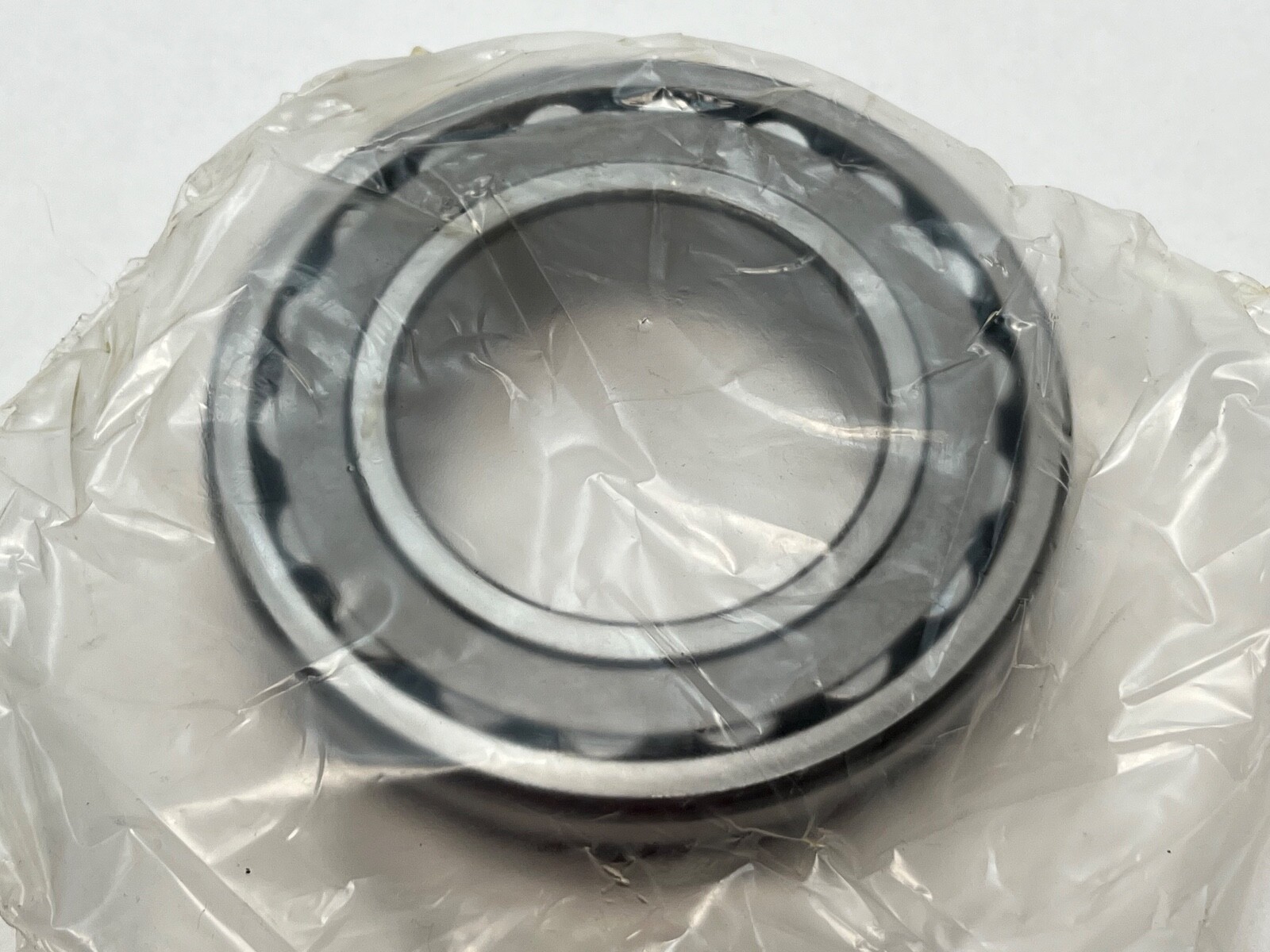

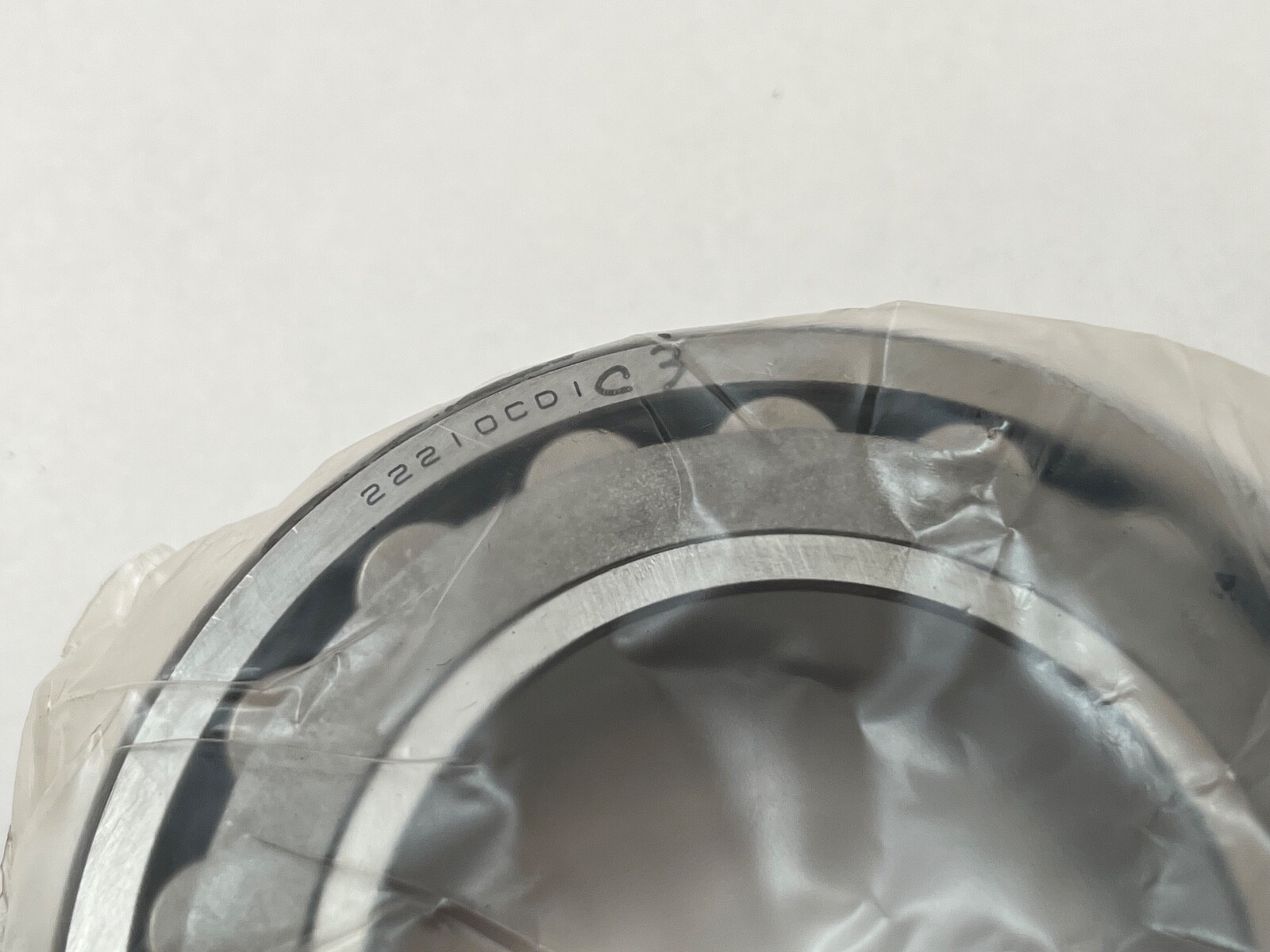

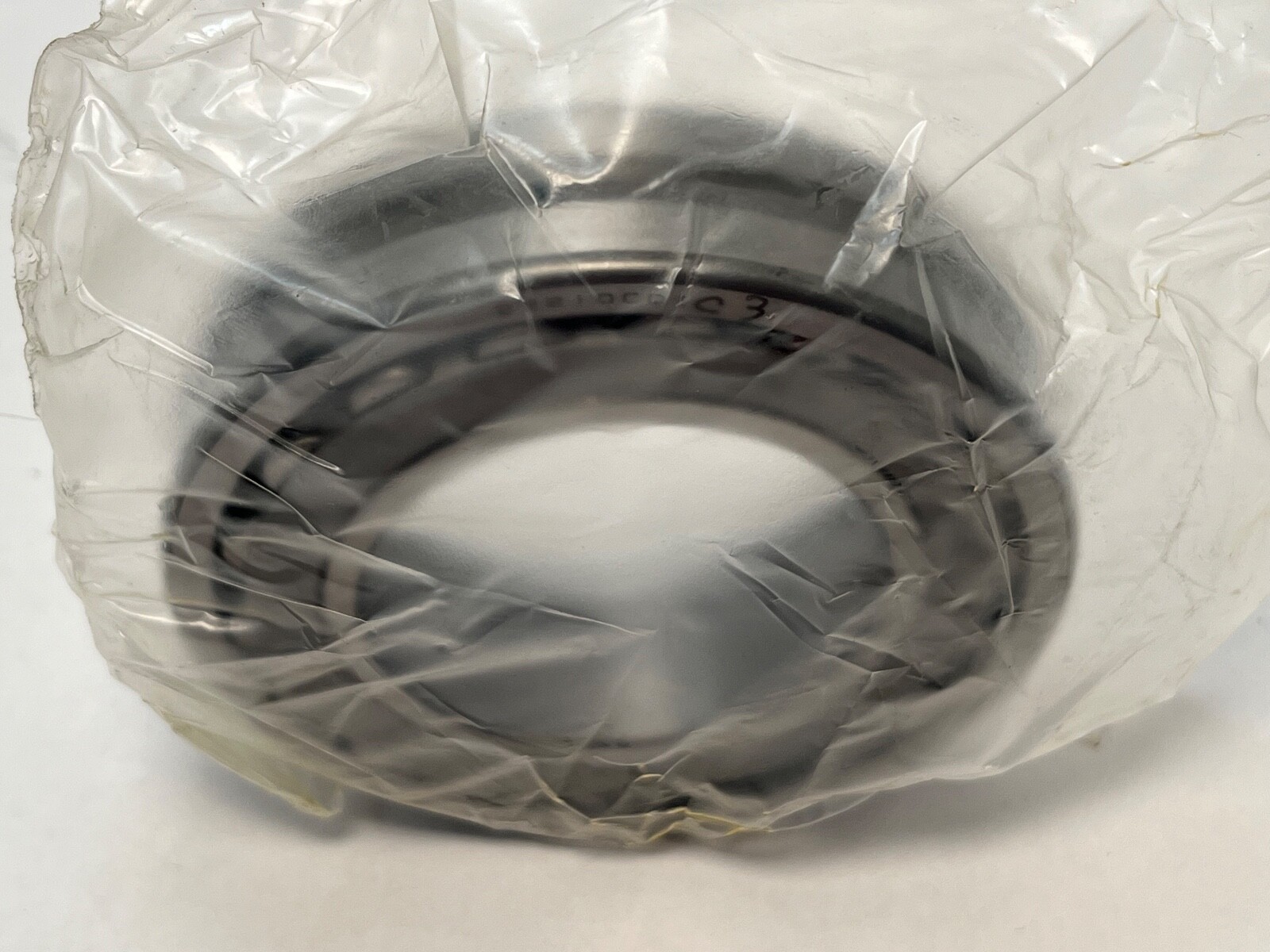

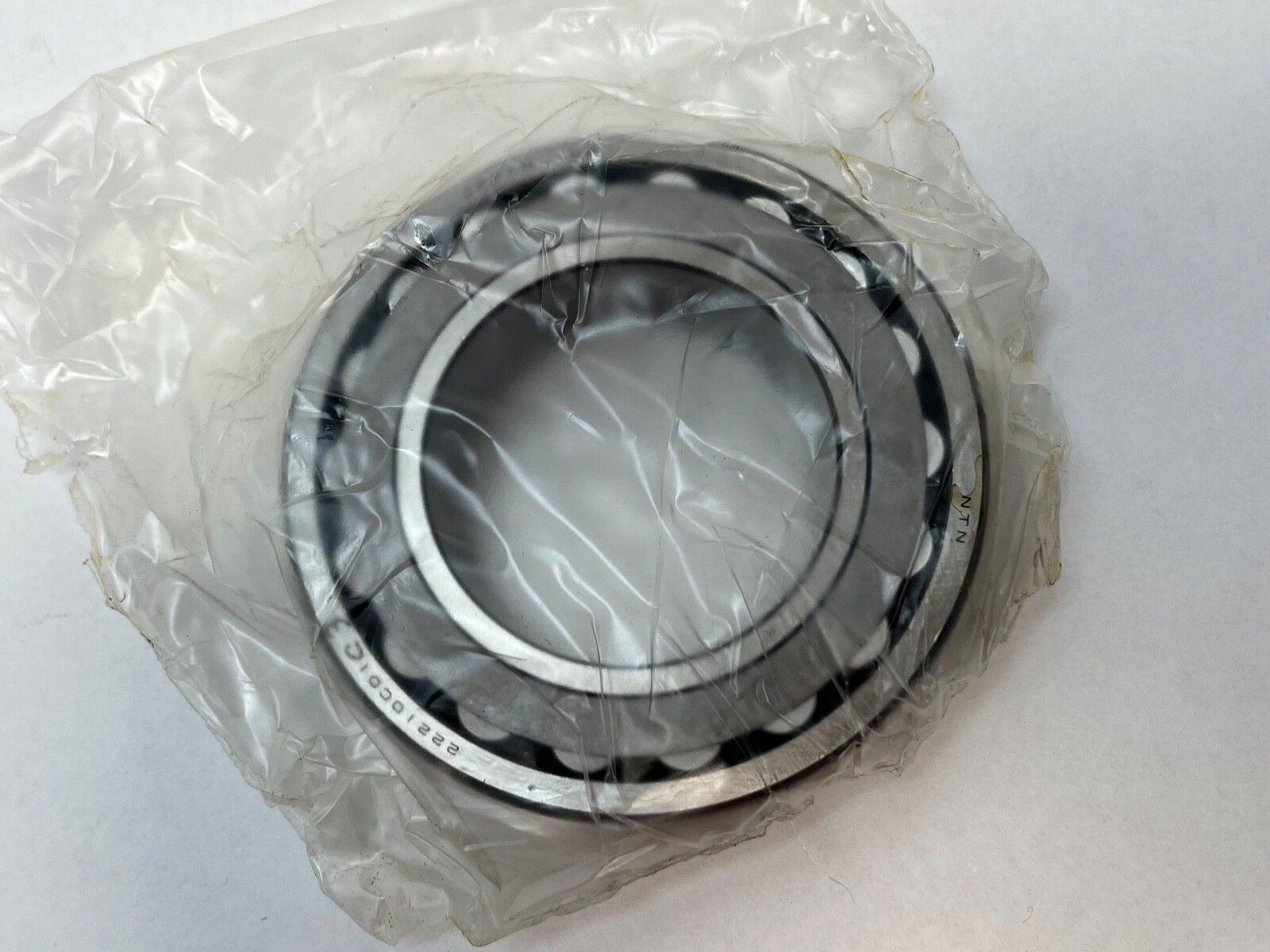

NTN 22210CKW33C3 is a double-row spherical roller bearing with a 1:12 tapered bore, outer ring lubrication groove and C3 internal clearance. Unit Quantity: 1 Pc.
22210 — NTN spherical roller bearing, 222 series, 50 mm bore.
C — NTN C design: two pressed cages with symmetrical rollers.
K — 1:12 tapered bore.
W33 — lubrication groove and three holes in the outer ring (also marked D1).
C3 — radial internal clearance greater than normal.
Bearing Type: Spherical Roller Bearing. Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Tapered 1:12. Internal Clearance: C3. Cage Type: Pressed, two-piece. Closure Type: Open. Lubricant: grease or oil. Relubrication Feature: W33 groove and three holes in outer ring. Material: High Carbon Chrome Steel. Harmonization Code: 8482.30.00.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 23 mm. Mounts on an H310 adapter sleeve (45 mm shaft) with KM10 locknut and MB10 washer.
Other makers’ 50 x 90 x 23 mm tapered-bore designs with W33 groove and C3 clearance: SKF 22210 EK/C3, FAG 22210-E1-K-C3, NSK 22210EAKE4C3. These current E-type executions carry higher ratings than the C design. Searchable forms of the number: 22210CKW33C3, 22210-C-K-W33-C3, 22210CKD1C3, 22210 C K W33 C3.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 23 mm.
W33 is a lubrication groove with three holes in the outer ring, also marked D1. Lubricant: grease or oil.
The H310 adapter sleeve for a 45 mm shaft, with KM10 locknut and MB10 washer.
