Availability:
1 in stock

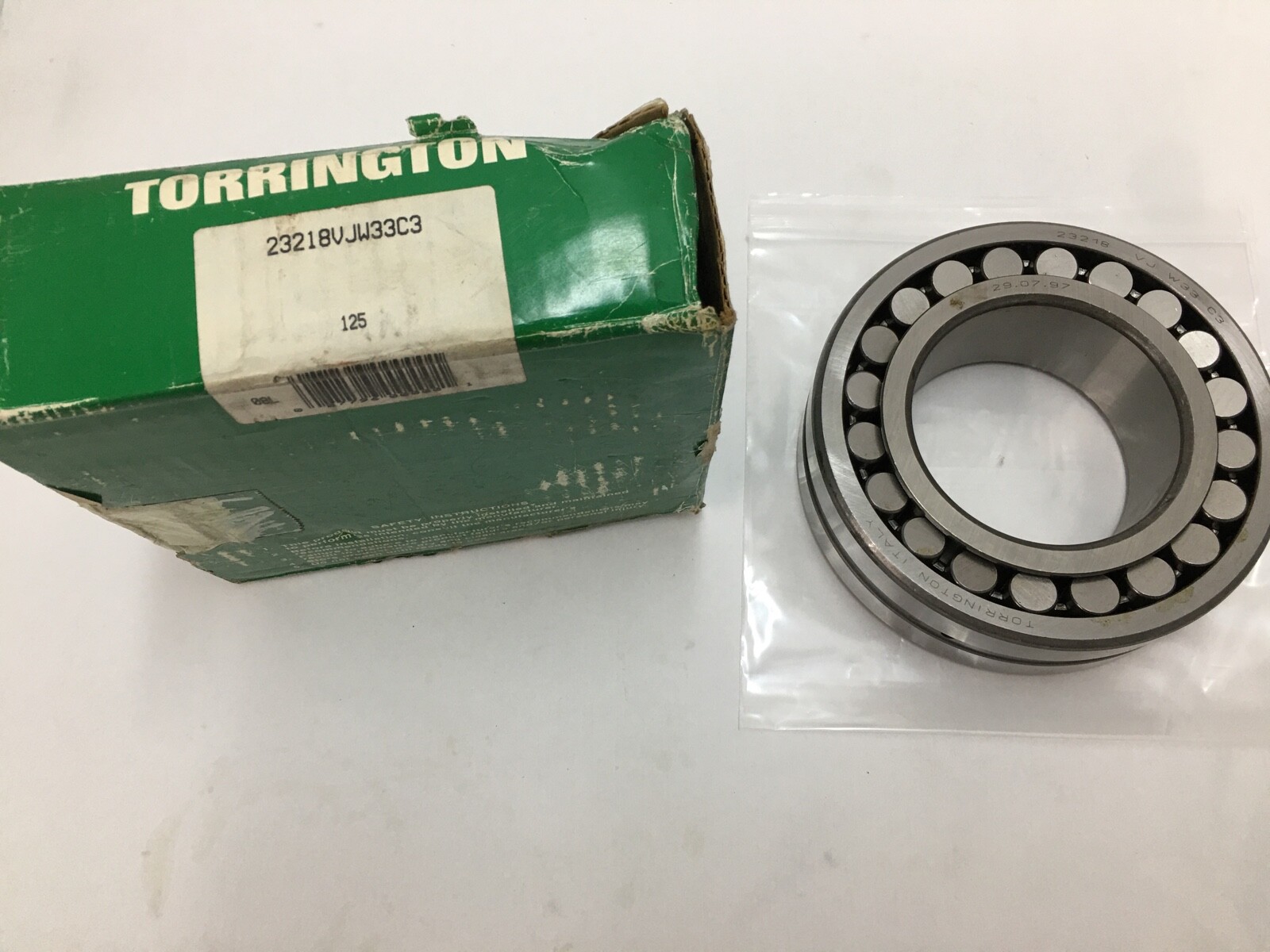

Torrington 23218VJW33C3 spherical roller bearing, 90 mm bore x 160 mm OD x 52.4 mm wide, steel cage, W33 lube groove, C3 clearance. Successor: Timken 23218EJW33C3.
List Price
$180.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 23218VJW33C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 52.4 mm |
| Common Misspellings | 2318VJW33C3 |
|---|---|
| Mpn Variants | 23218VJW33C3, 23218-VJ-W33-C3, 23218 W33 C3, 2318VJW33C3 |
| Compatible With Replaces | Timken 23218EJW33C3 (current successor design) |
| Additional Attributes | Successor 23218EJW33C3 data: e factor 0.3; Y0 2.23; Y1 2.28; Y2 3.4; shaft backing shoulder 107 mm; housing backing shoulder 147 mm; max fillet radius 2 mm |
| Dynamic Load Rating | 436,000 N (Successor 23218EJW33C3 data) |
| Static Load Rating | 521,000 N (Successor 23218EJW33C3 data) |
| Series | 23200 |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Design Units | Metric |
| Cross Reference 1 | Timken 23218EJW33C3 |
|---|---|
| Cross Reference 2 | SKF 23218 CC/C3W33 |
| Cross Reference 3 | NSK 23218CE4C3 |

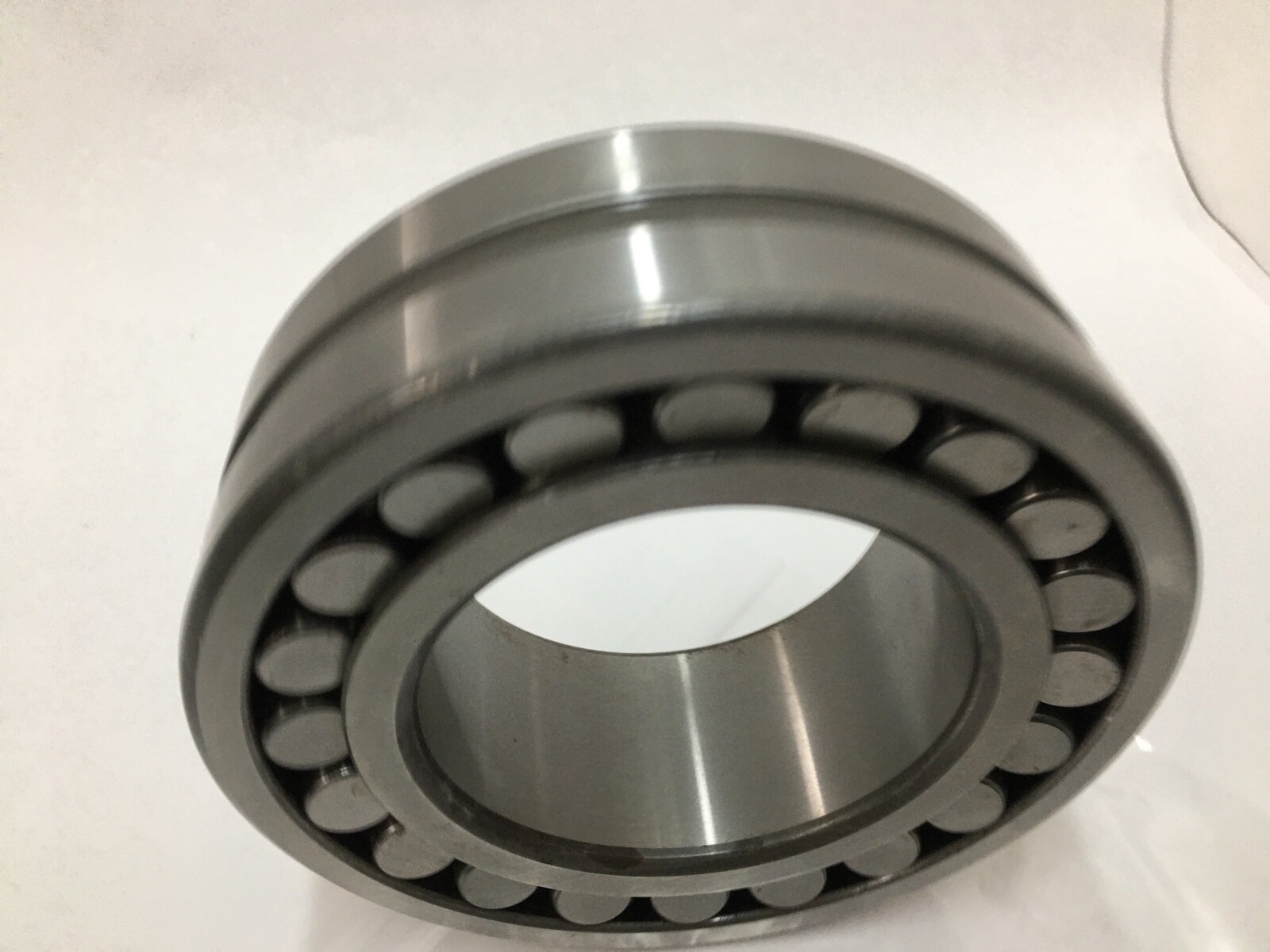

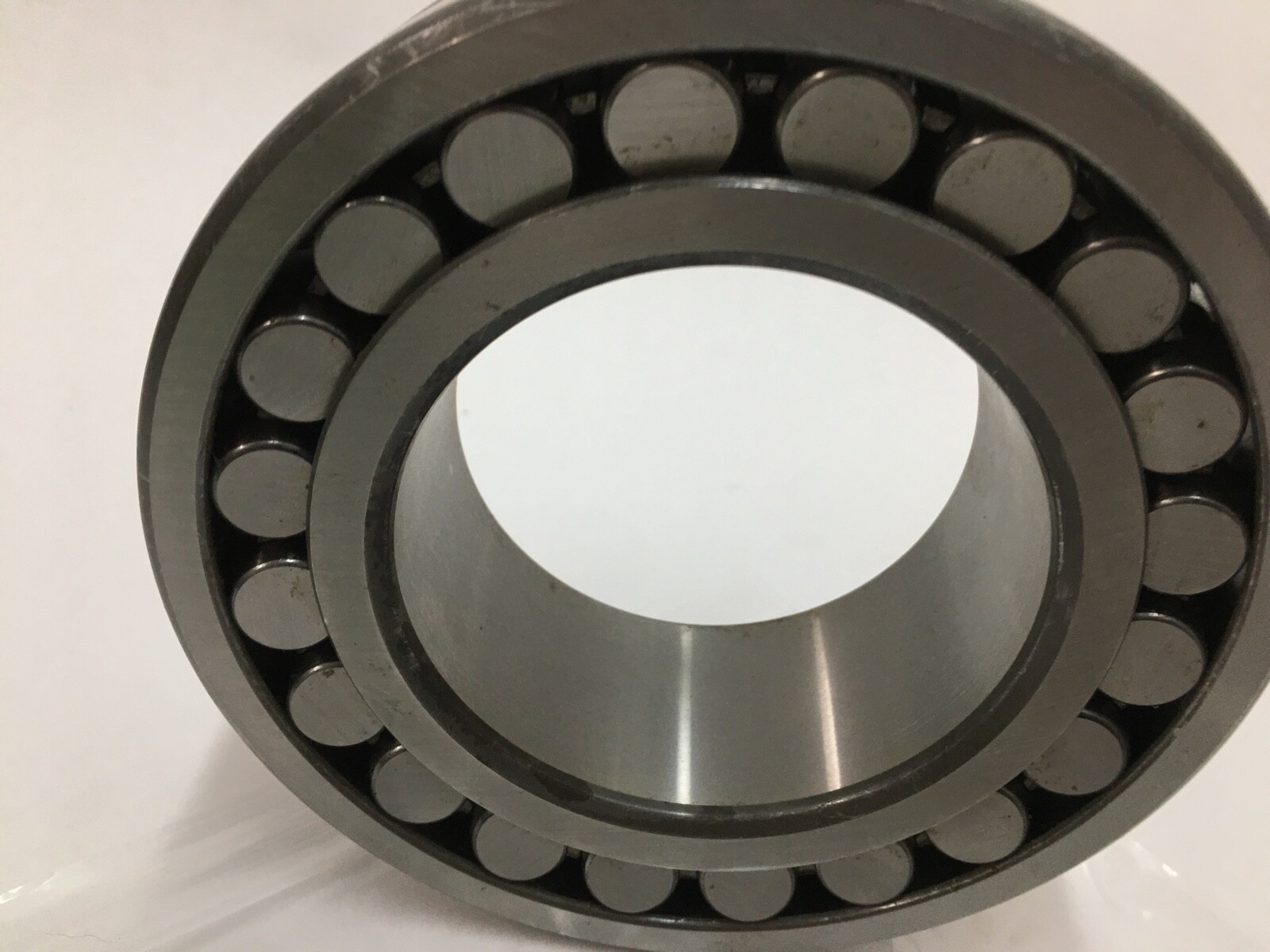

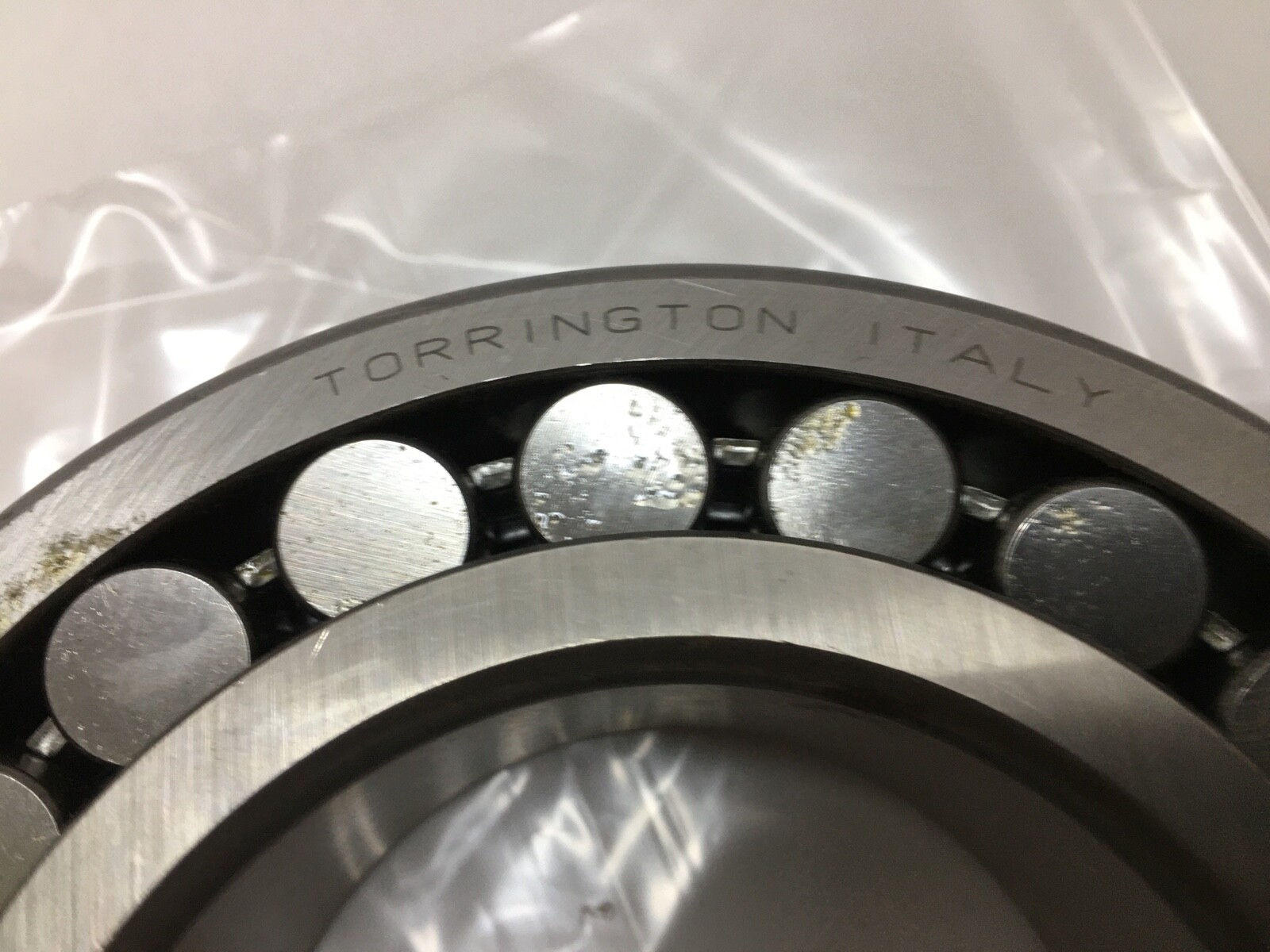

Torrington 23218VJW33C3 double-row spherical roller bearing: 90 mm straight bore, 160 mm outside diameter, 52.4 mm width, steel cage, W33 lubrication groove, C3 clearance. Torrington is a Timken brand; the current Timken design is 23218EJW33C3.

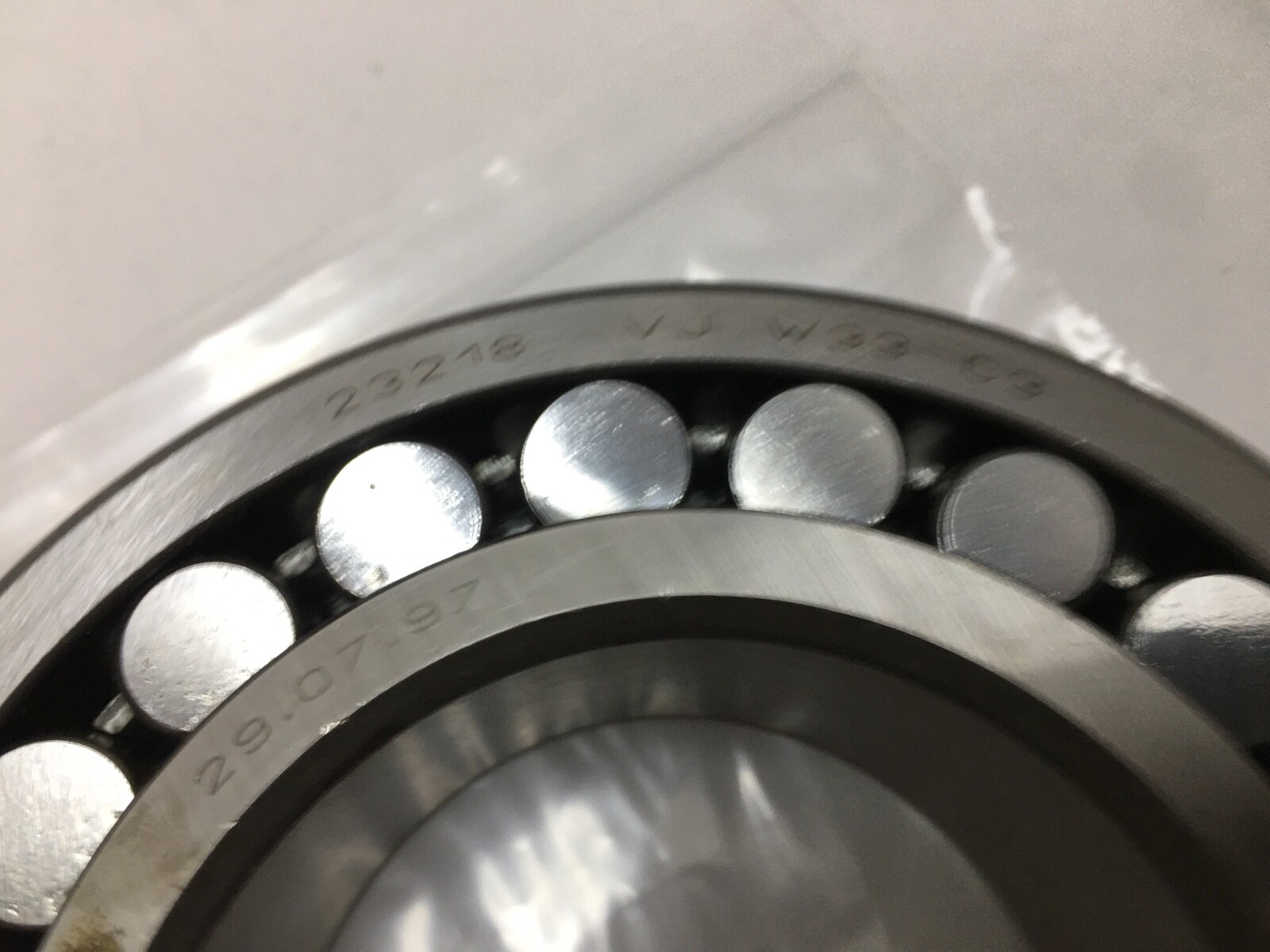

232 — spherical roller bearing, ISO dimension series 32: wider than the 222 series on the same bore and OD.
18 — bore code. 18 × 5 = 90 mm bore.
VJ — Torrington internal design with steel cage.

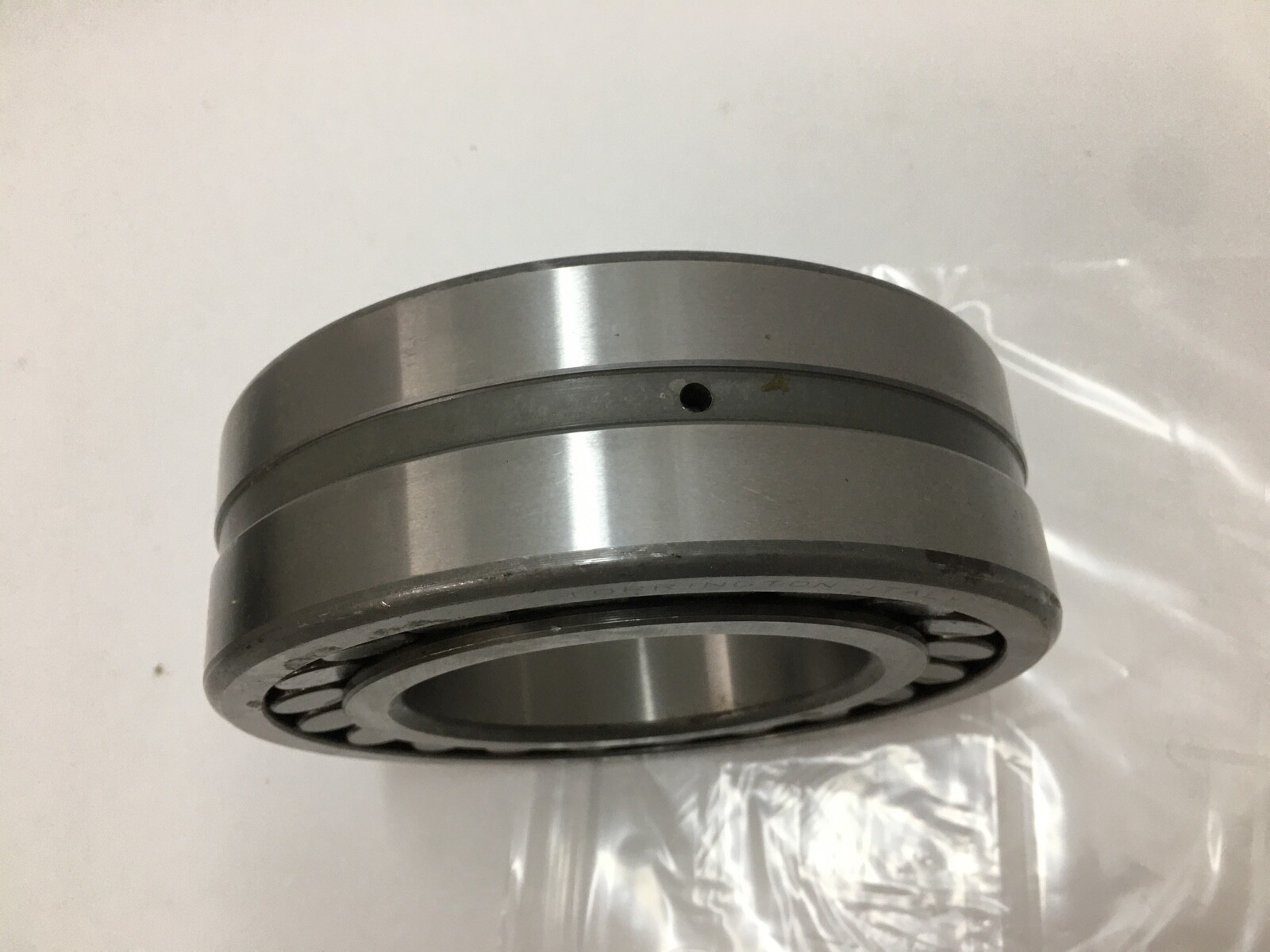

W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 52.4 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.
Successor 23218EJW33C3 data: Dynamic Load Rating: 436,000 N. Static Load Rating: 521,000 N. Reference Speed: 2,600 rpm grease; 3,000 rpm oil. e factor: 0.3. Y1: 2.28. Y2: 3.4. Y0: 2.23.
The wider 232 section carries longer rollers than a 22218, raising radial capacity within the same 90 × 160 mm envelope. The spherical outer raceway self-aligns under shaft deflection.
Successor 23218EJW33C3 data: Shaft Backing Shoulder Diameter: 107 mm. Housing Backing Shoulder Diameter: 147 mm. Maximum Fillet Radius: 2 mm.
Unit Quantity: 1 Pc. One complete bearing.
Same 90 × 160 × 52.4 mm straight-bore C3 envelope: Timken 23218EJW33C3, SKF 23218 CC/C3W33, NSK 23218CE4C3.
