Double-row spherical roller bearing, 80 x 140 x 33 mm, 1:12 tapered bore for an H316 adapter sleeve. Open, W33 lube groove, C3 internal clearance.
List Price
$83.36
6 in stock
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | TORRINGTON |
|---|---|
| MPN | 22216KVJW33C3 |
| GTIN | 087796023406 |
| Model | 22216 K VJ W33 C3 22216 CKJ KCJ CCKJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Base Number | 22216 |
| Industry Terms | Self-aligning roller bearing, taper bore spherical roller, adapter mount roller bearing |
| Application Types | Conveyor head and tail shafts, fans and blowers, crushers, vibrating screens, gearbox and pillow block shafts |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Relubrication | W33 lubrication groove in the outer ring with three radial feed holes |
| Mpn Variants | 22216KVJW33C3, 22216 K VJ W33 C3, 22216KVJW33, 22216CKJ, 22216KCJ, 22216CCKJ |
| Compatible With Replaces | Mounts on an H316 adapter sleeve (70 mm shaft seat), with KM16 locknut and MB16 lockwasher |
| Cage Type | Roller Guided |
| Dynamic Load Rating | 224 kN / 50360 lbf |
| Static Load Rating | 240 kN / 53950 lbf |
| Rolling Elements | Spherical (barrel-shaped) rollers |
| Max Temp | 200 °C |
| Item Weight | 4.15 lbs |
| Cage Material | Steel |
| Limiting Speed | 4,500 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Not applicable |
| Internal Clearance | C3 |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Part Number | 22216KVJW33C3 |
| Cross Reference 1 | SKF 22216 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 22216-E1-K-C3 |
| Cross Reference 3 | Timken 22216KCJW33C3 |
| Cross Reference 4 | NSK 22216HKC3 |

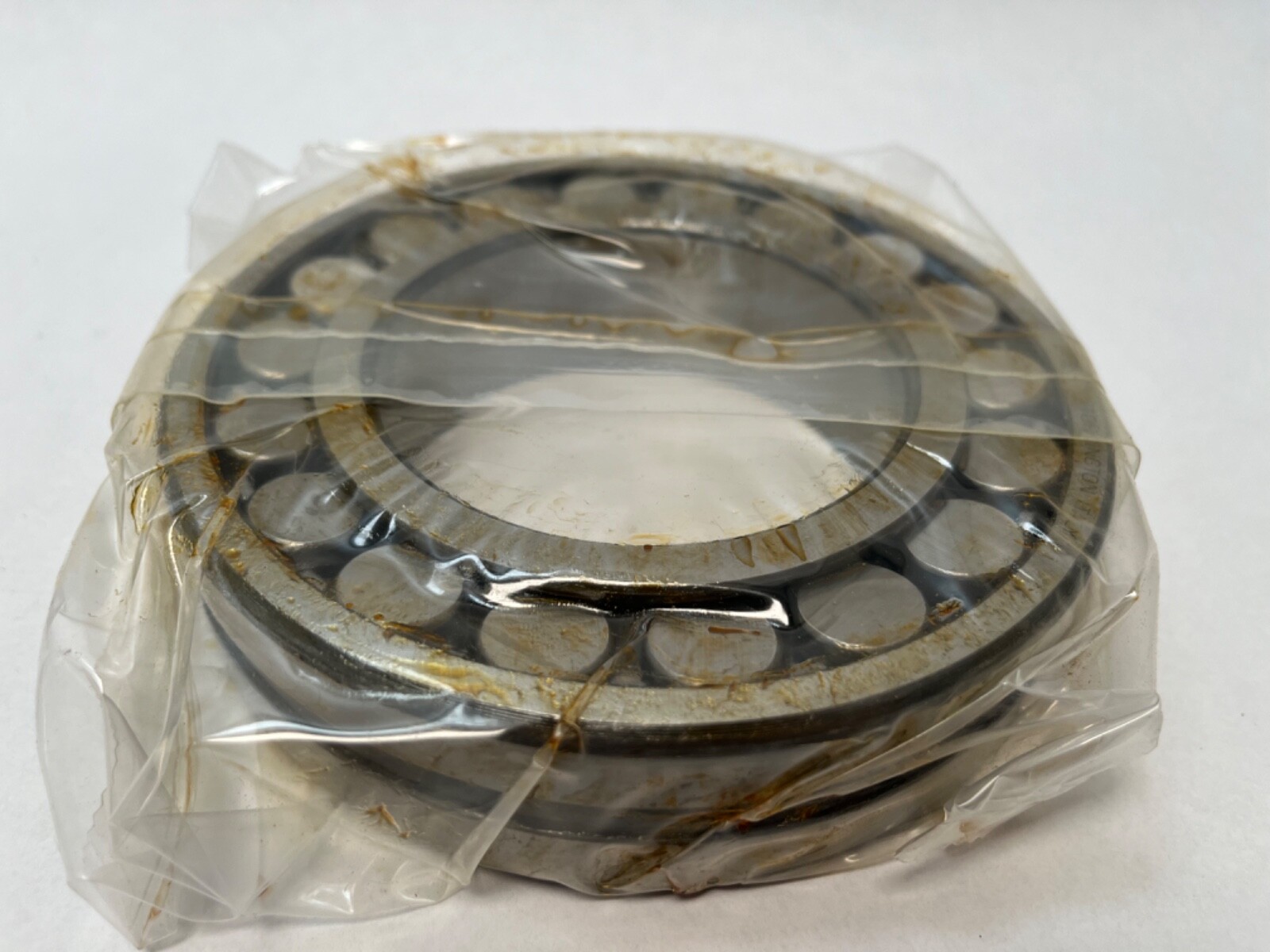

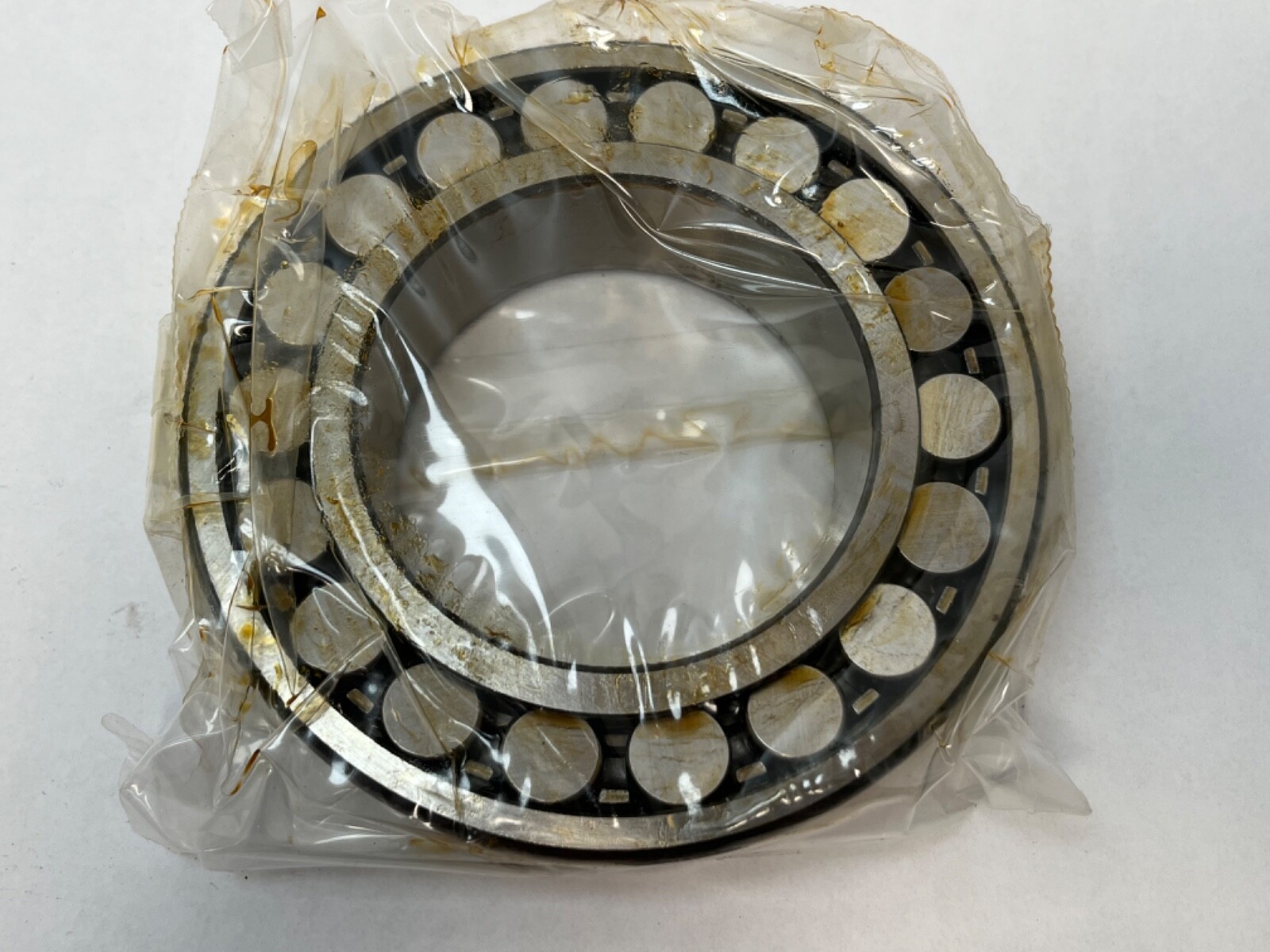

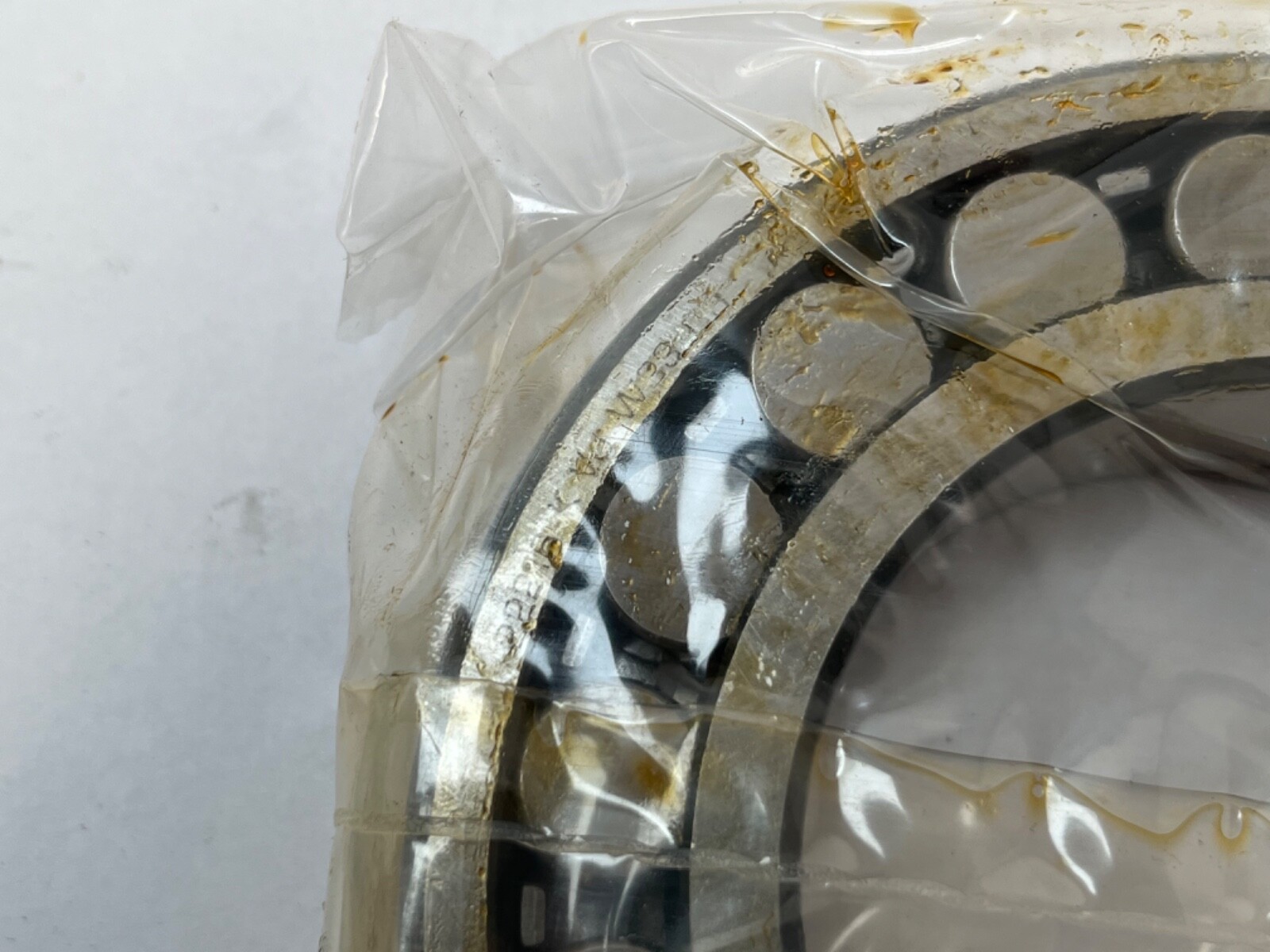

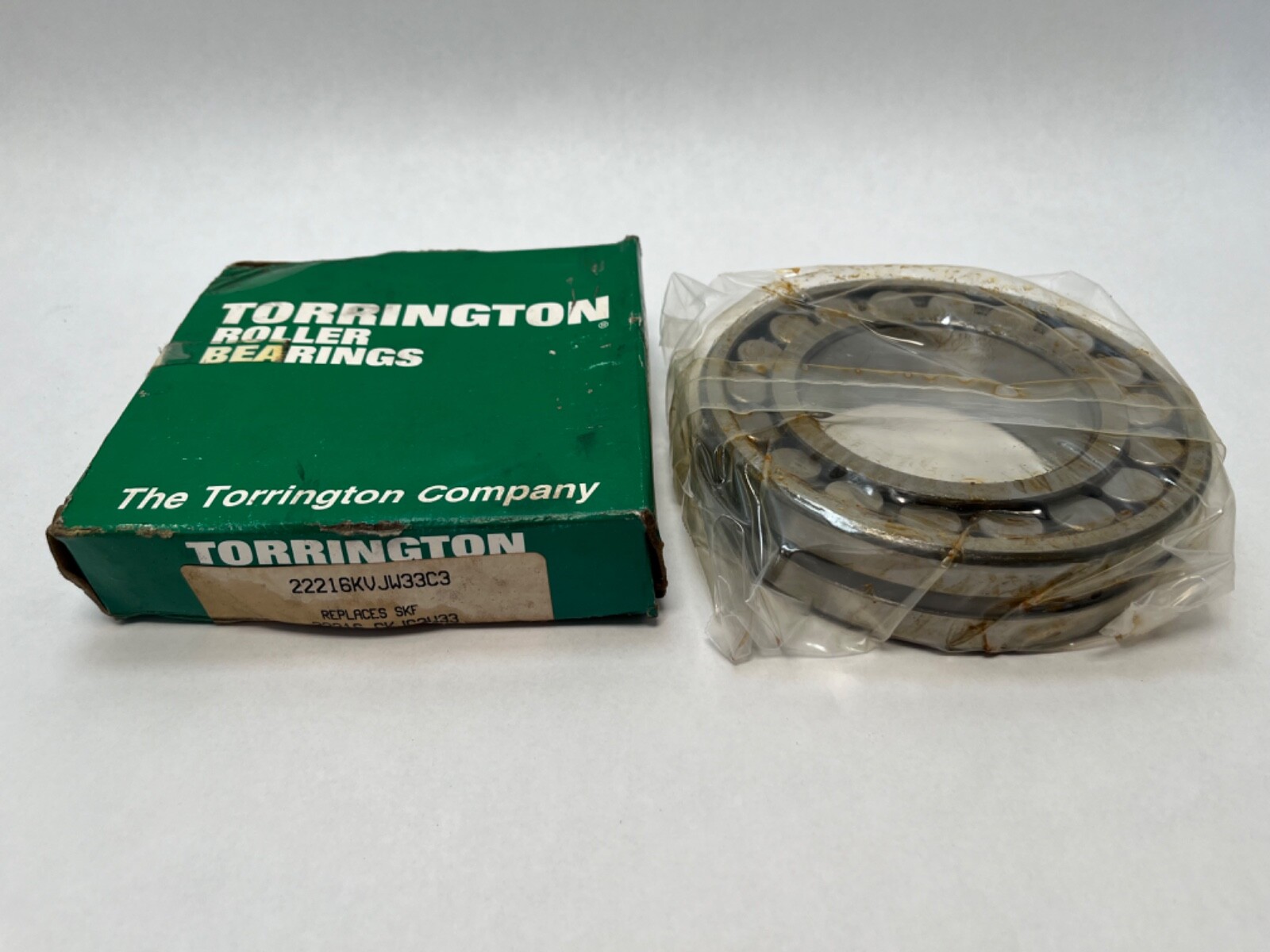

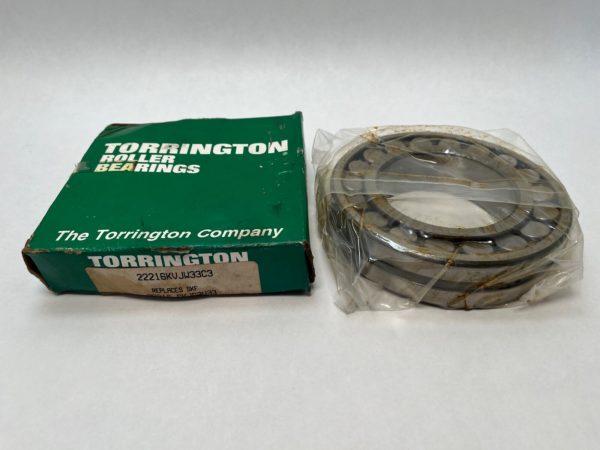

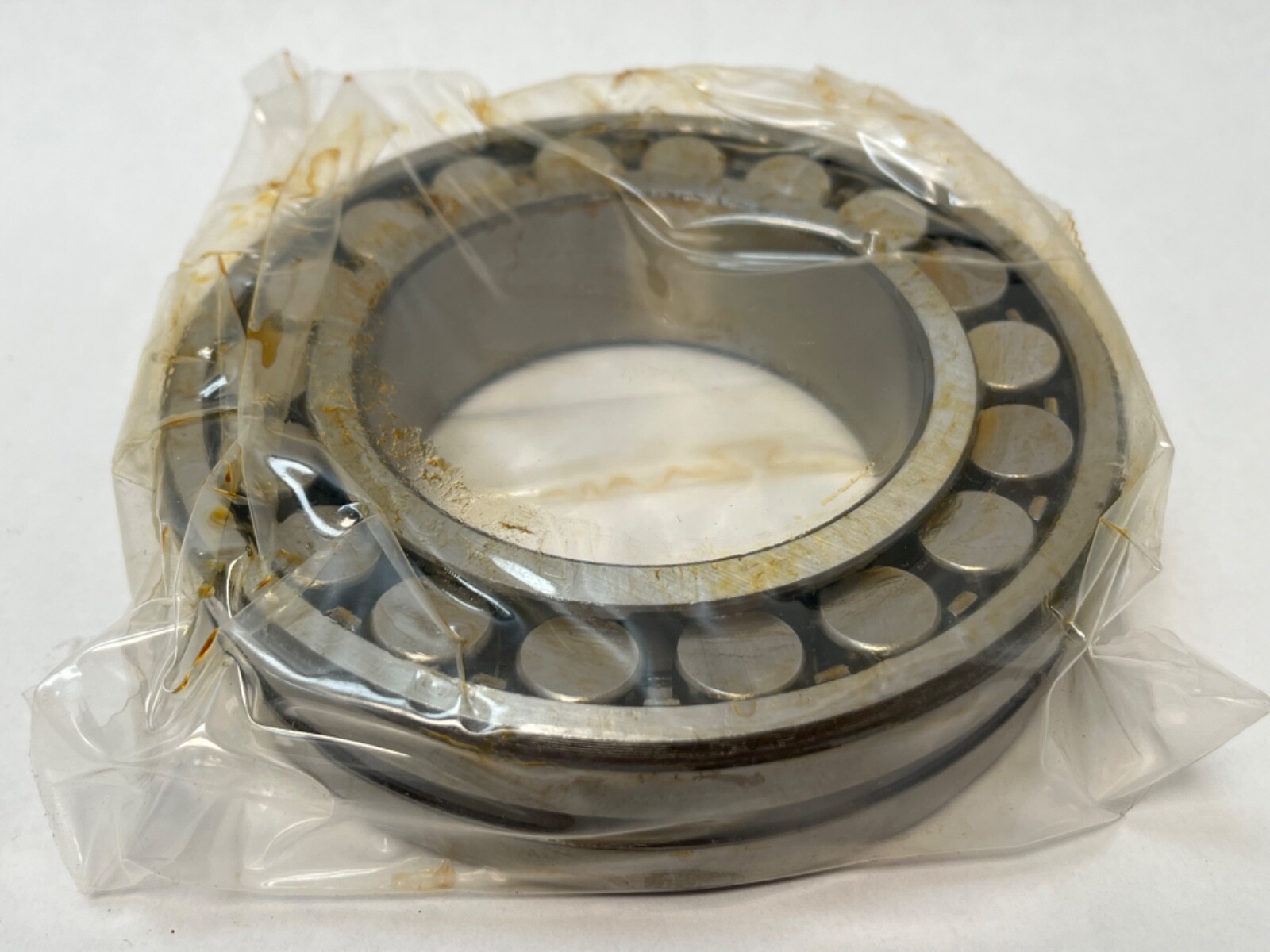

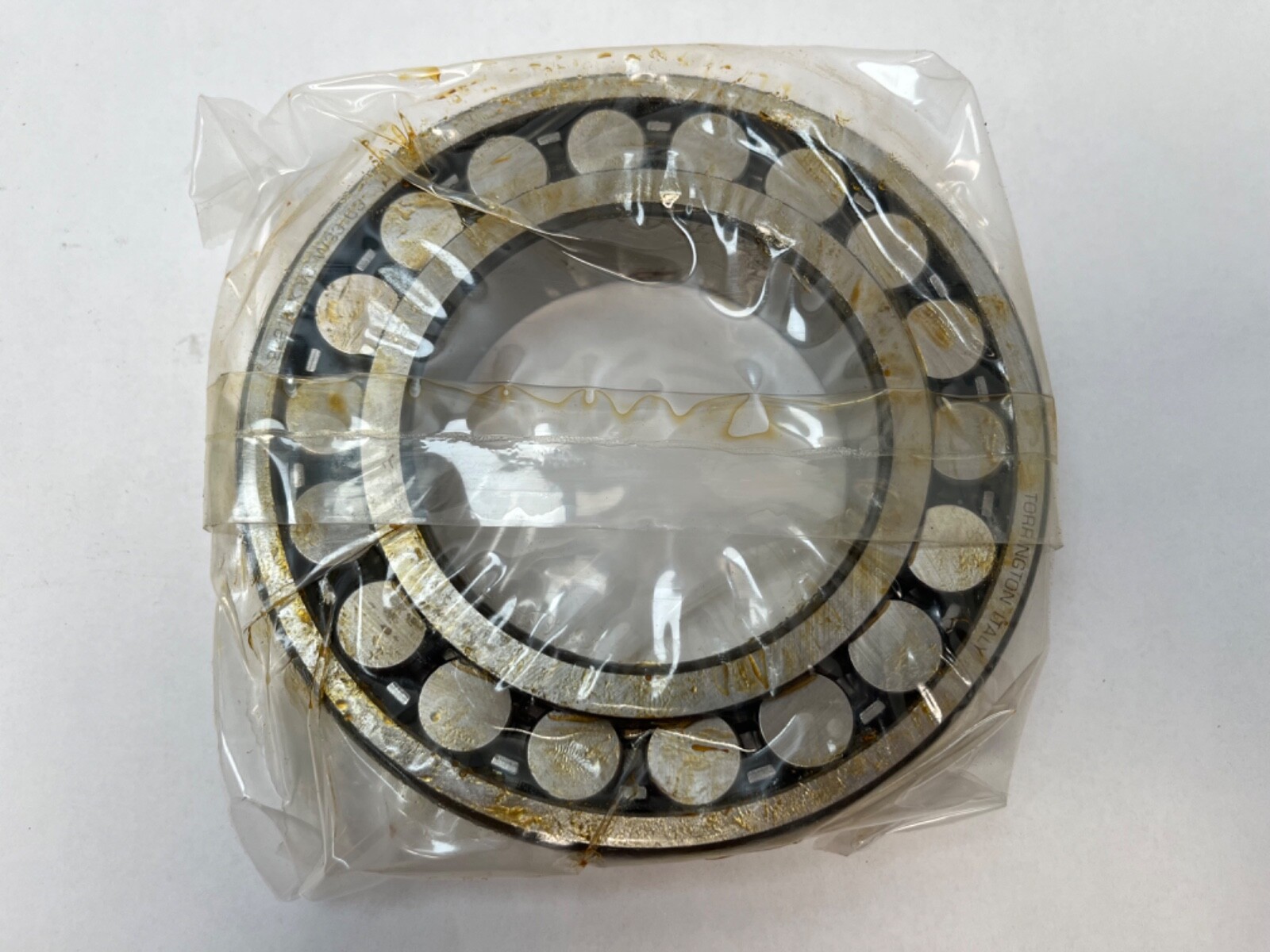

Torrington 22216KVJW33C3 double-row spherical roller bearing. Bore: 80 mm. Outside diameter: 140 mm. Width: 33 mm. Series: 22200. Bore form: 1:12 tapered. Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the bearing carries heavy radial load together with axial load in both directions and accommodates shaft deflection and housing misalignment.

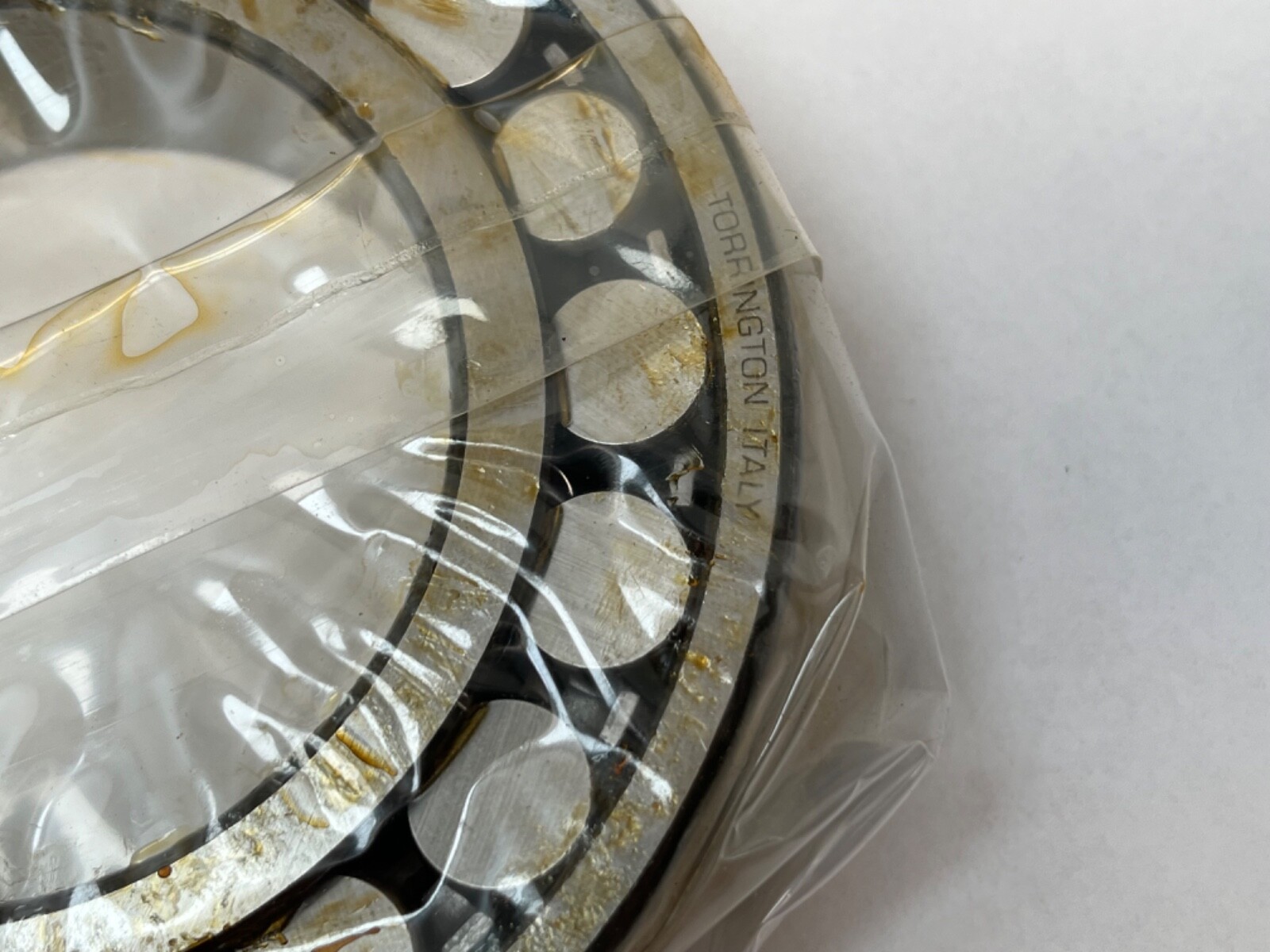

K: tapered bore, 1:12 taper. W33: a lubrication groove in the outer ring with three radial feed holes. C3: internal radial clearance greater than normal. Internal Clearance: C3. Bore Type: Tapered 1:12. Country of origin on this item: Italy.
A greater-than-normal C3 clearance leaves running clearance after the interference fit of a tapered-bore mounting and after thermal growth of the inner ring, which suits shafts that run warm. The W33 groove feeds grease or oil straight to both roller rows through the outer ring, so the bearing is relubricated in service without dismounting.
The 1:12 tapered bore seats on an H316 adapter sleeve, which has a 70 mm shaft seat and an 80 mm tapered outside diameter matching this bore. The sleeve is secured with a KM16 locknut and an MB16 lockwasher. Driving the bearing further up the taper reduces radial internal clearance, and that is how final mounted clearance is set.
One bearing, open on both faces. Unit Quantity: 1 Pc.
Same-envelope tapered-bore equivalents in the 22216 K W33 C3 execution include SKF 22216 EK/C3, FAG 22216-E1-K-C3, Timken 22216KCJW33C3 and NSK 22216HKC3. Cage design and published load ratings differ between makers at this size, so the interchange holds on envelope, bore form and clearance.
