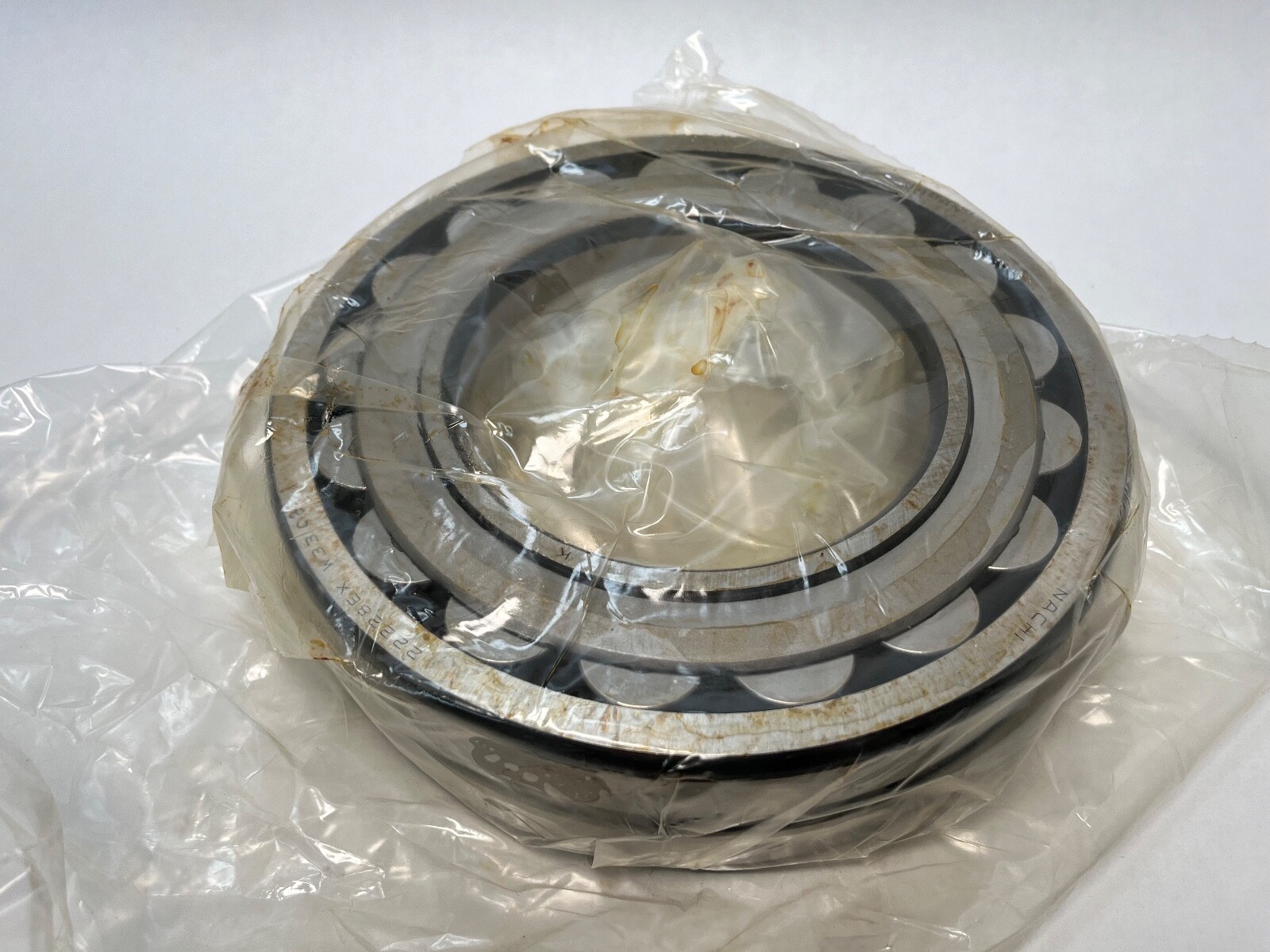

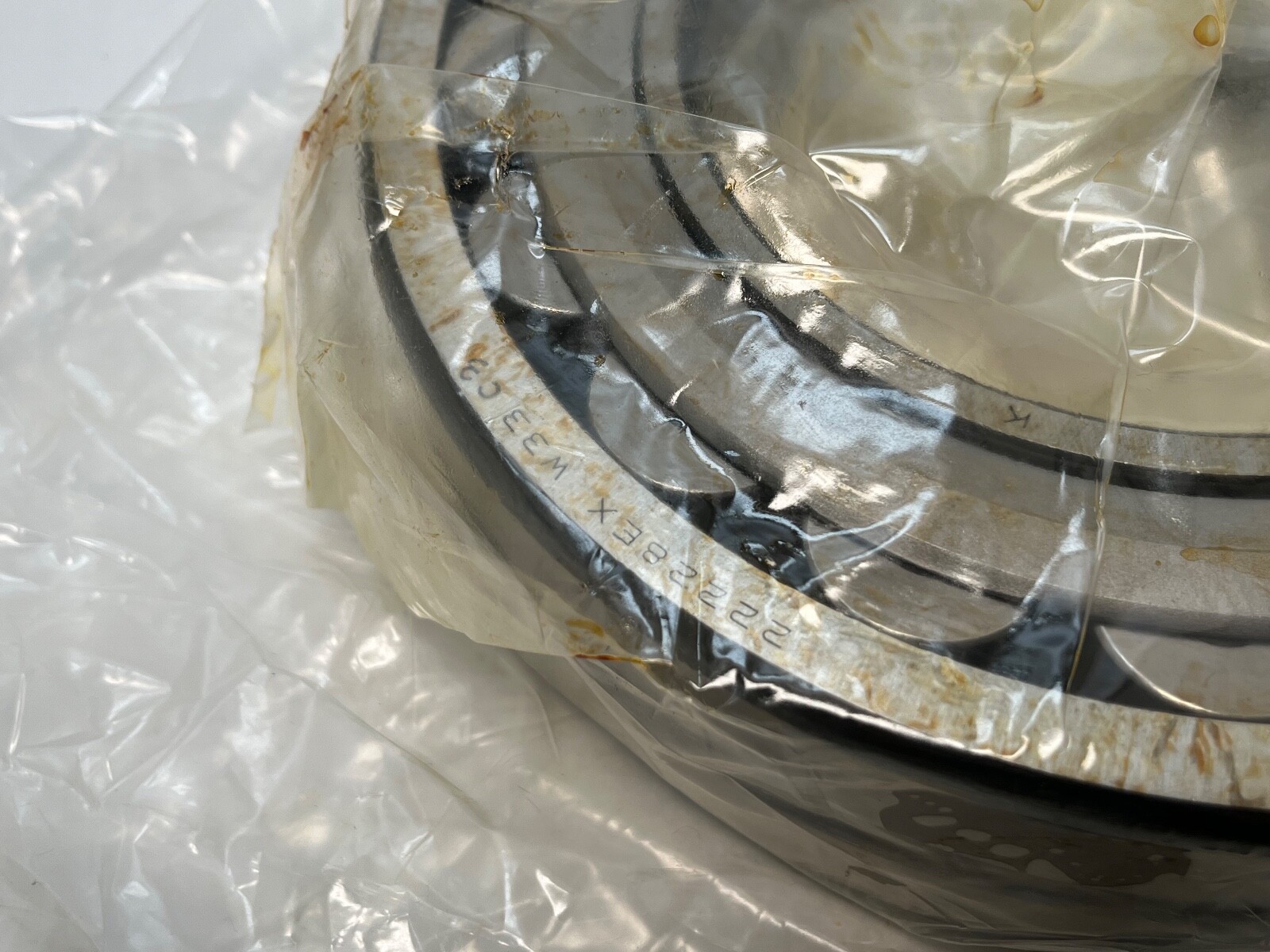

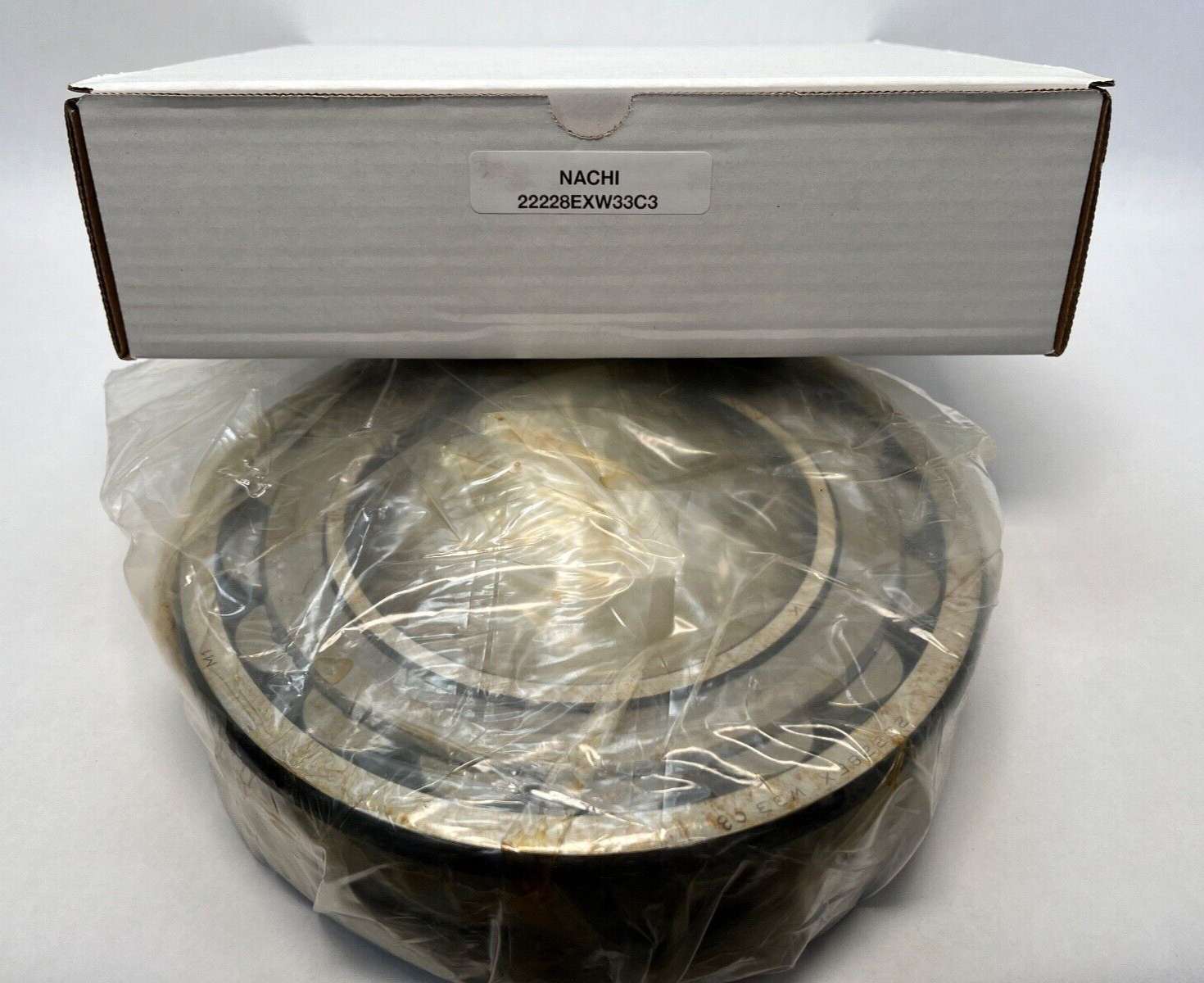

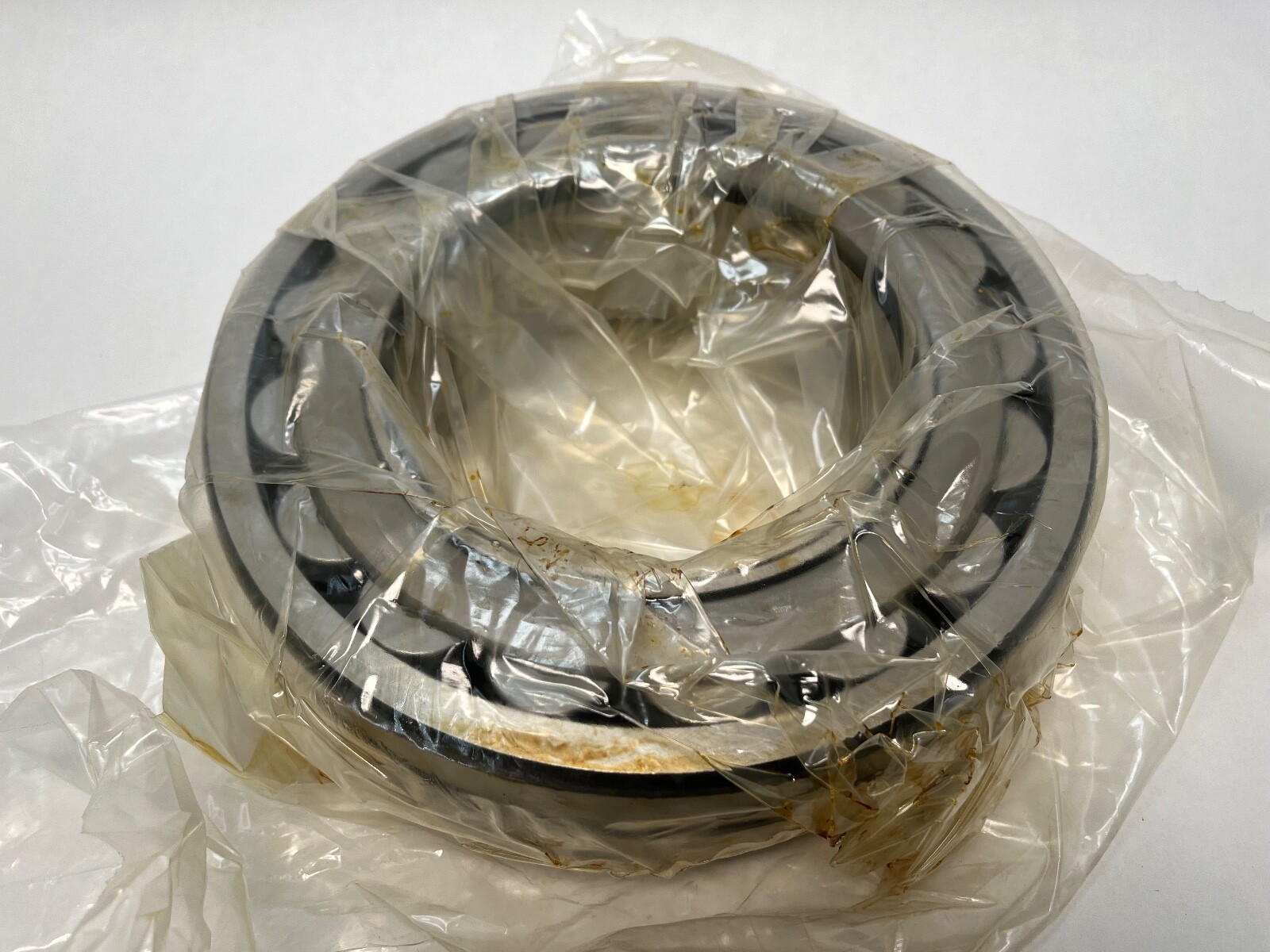

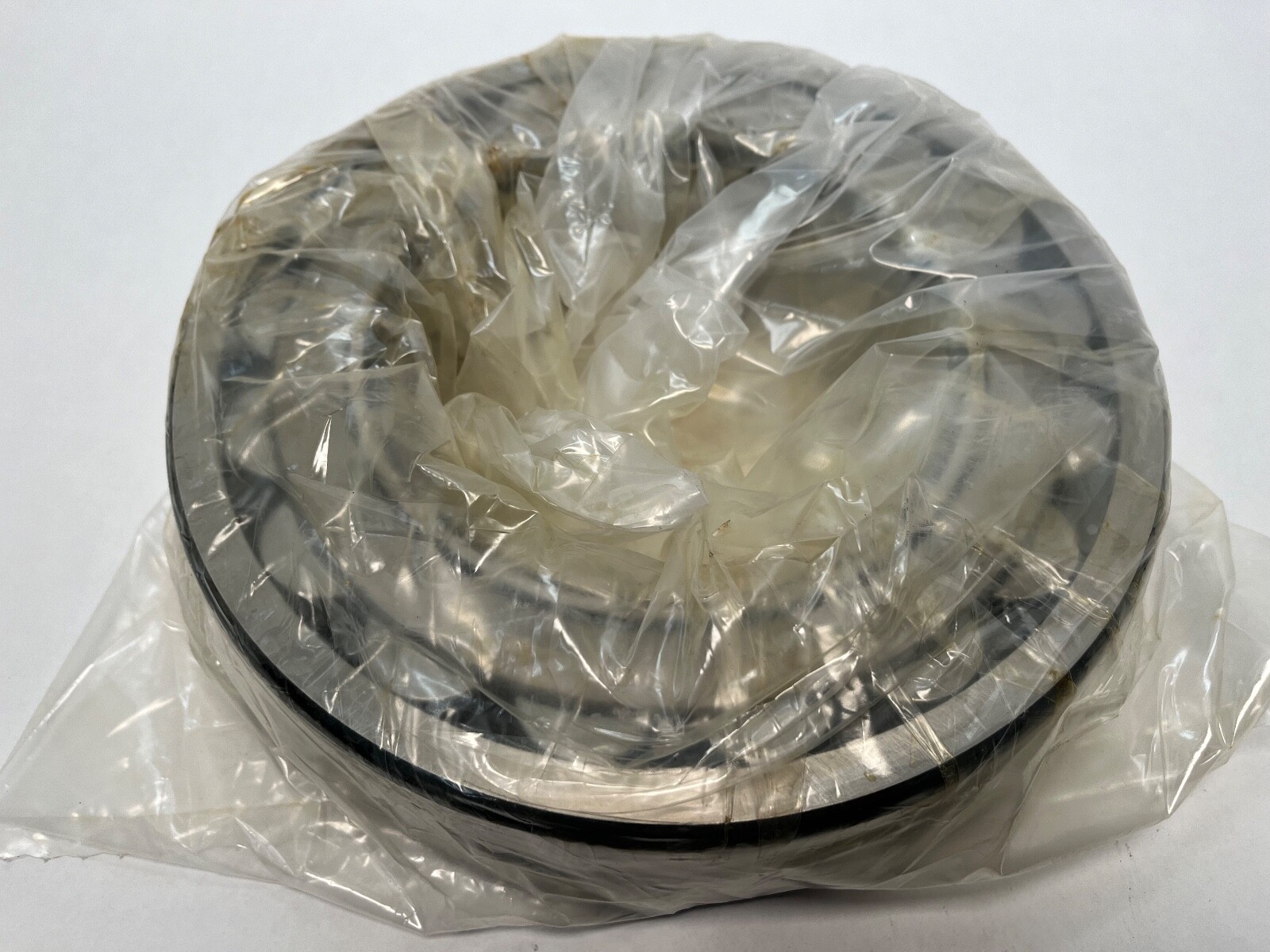

Double-row spherical roller bearing, 140 x 250 x 68 mm, straight bore, C3 clearance, W33 lubrication groove with three outer-ring holes.
List Price
$330.20
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 22228EXW33C3 |
| Model | 22228 EX W33 C3 / 22228E |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 140 mm |
| OD | 250 mm |
| Width | 68 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Lubricant | Oil/Grease |
| Base Number | 22228 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row roller bearing, W33 relubrication groove |
| Bore Shaft Size | 140 mm |
| Relubrication | W33 lubrication groove with three outer-ring holes |
| Mpn Variants | 22228EXW33C3, 22228 EX W33 C3, 22228-E-X-W33-C3, 22228EX W33 C3, 22228E, 22228EXC3W33 |
| Compatible With Replaces | H3128 adapter sleeve, KM28 locknut and MB28 washer apply to the tapered-bore 22228K version |
| Min Temp | -30 °C |
| Cage Type | Pressed steel |
| Dynamic Load Rating | 850.0 kN |
| Static Load Rating | 1080.0 kN |
| Precision Rating | ABEC 1 / P0 (normal) |
| Rolling Elements | Spherical rollers |
| Max Temp | Not specified |
| Item Weight | 31.00 lbs |
| Cage Material | Pressed steel |
| Limiting Speed | 2400 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C3 - greater than normal |
| Relubrication Feature | W33 lubrication groove with three outer-ring holes |
| Harmonization Code | 8482.30.00 |
| Bearing Material | Bearing steel |
| Part Number | 22228EXW33C3 |
| Cross Reference 1 | SKF 22228 CC/C3W33 |
|---|---|
| Cross Reference 2 | FAG 22228-E1-C3 |
| Cross Reference 3 | 22228CC (carton designation) |
| Cross Reference 4 | NSK 22228K (related size, 1:12 tapered bore for an H3128 adapter sleeve) |
NSK 22228EXW33C3 is a double-row spherical roller bearing. Series: 22200. Bore: 140 mm. Outside Diameter: 250 mm. Width: 68 mm. Bore form: straight. Internal Clearance: C3. Cage: pressed steel. Closure: open. Searchable forms of the designation are 22228EXW33C3, 22228 EX W33 C3, 22228-E-X-W33-C3 and 22228EX W33 C3.
Bore form: straight, with no taper and no adapter sleeve in the mounting. W33: lubrication groove in the outer ring plus three radial feed holes. C3: internal clearance greater than normal. Precision Class: normal, ABEC 1 / P0.
A double-row spherical roller bearing carries heavy radial load and takes thrust in both directions. The self-aligning raceway absorbs shaft deflection and housing misalignment. C3 clearance leaves room for thermal growth on a shaft running warm or on an interference fit. The W33 groove and holes feed lubricant to the roller path from the housing, which suits relubrication in service on conveyors, fans, crushers and gearboxes.
Unit Quantity: 1 Pc. One complete bearing, two rows of rollers, pressed steel cage.
The straight bore mounts directly on a cylindrical shaft seat. Relubrication runs through the outer-ring groove and holes, so the housing feed port aligns with the groove.
SKF 22228 CC/C3W33 and FAG 22228-E1-C3 are equivalents on the same envelope. Related parts: NSK 22228K, the 1:12 tapered-bore version, which mounts on an H3128 adapter sleeve with a KM28 locknut and MB28 washer. Country of Origin: Japan.
