Timken44143WTapered Roller Bearing Cone – 1.4375 in Bore, 0.9330 in Width, Carburized Steel

Product Description

What this part is

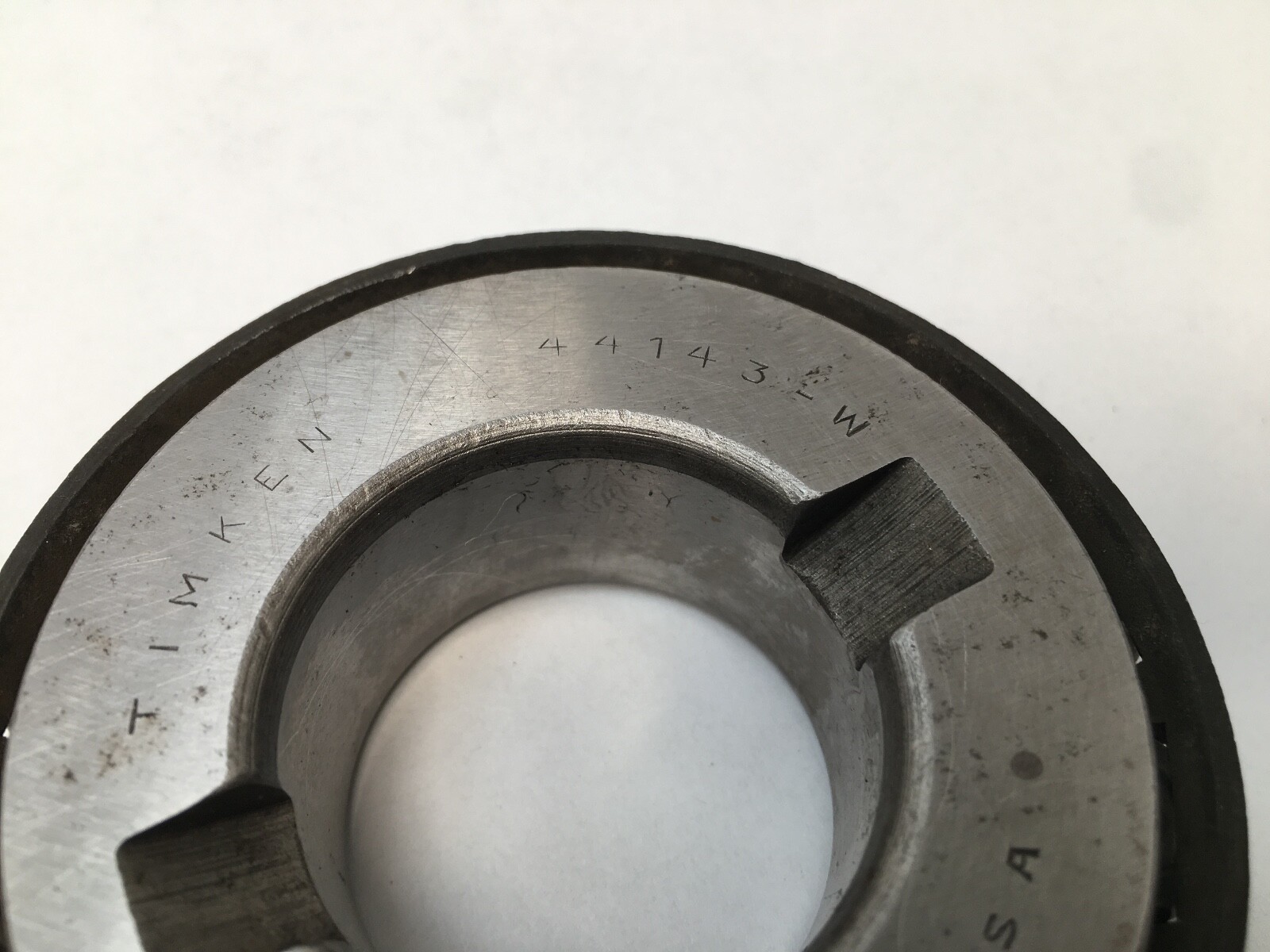

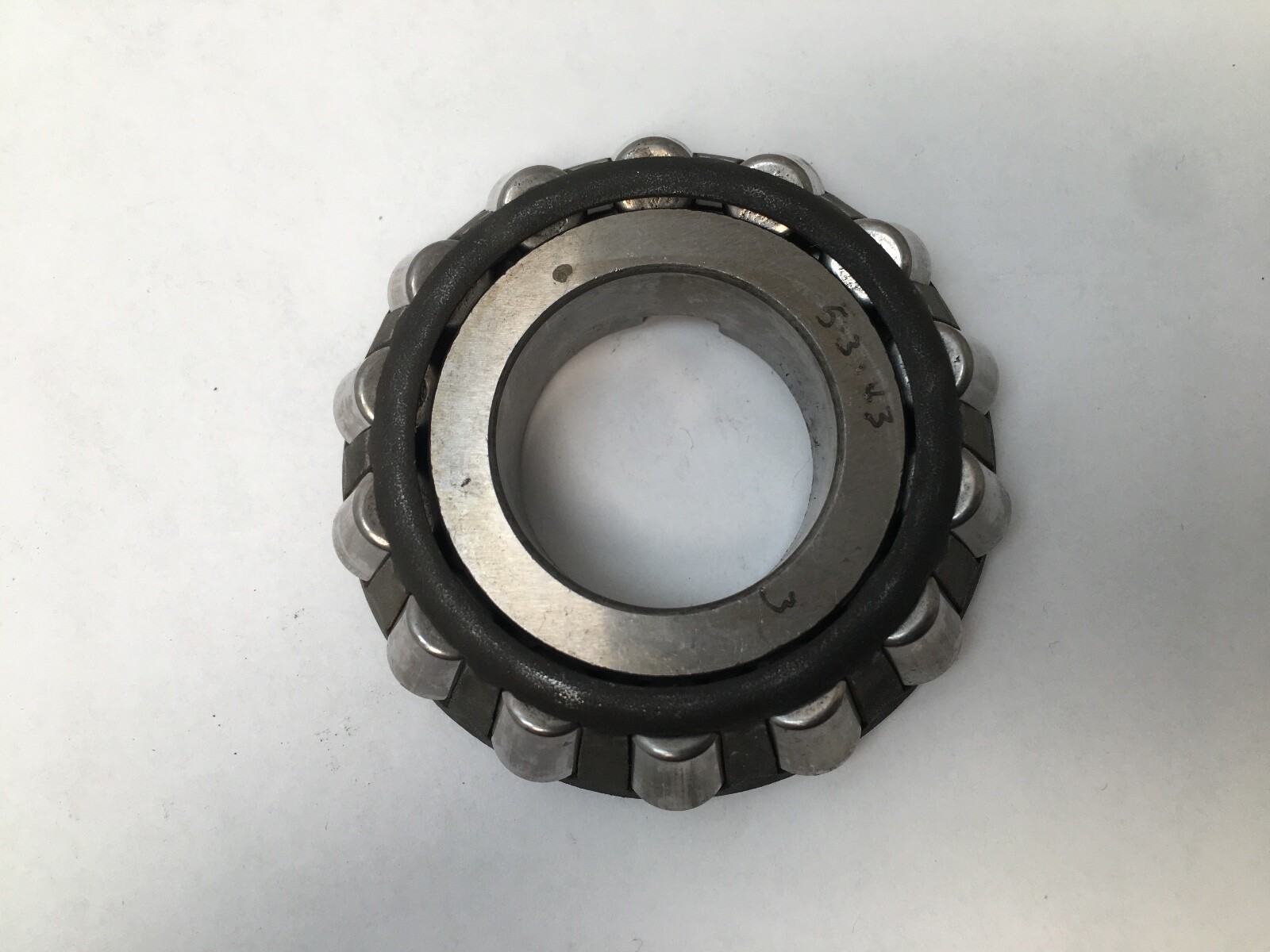

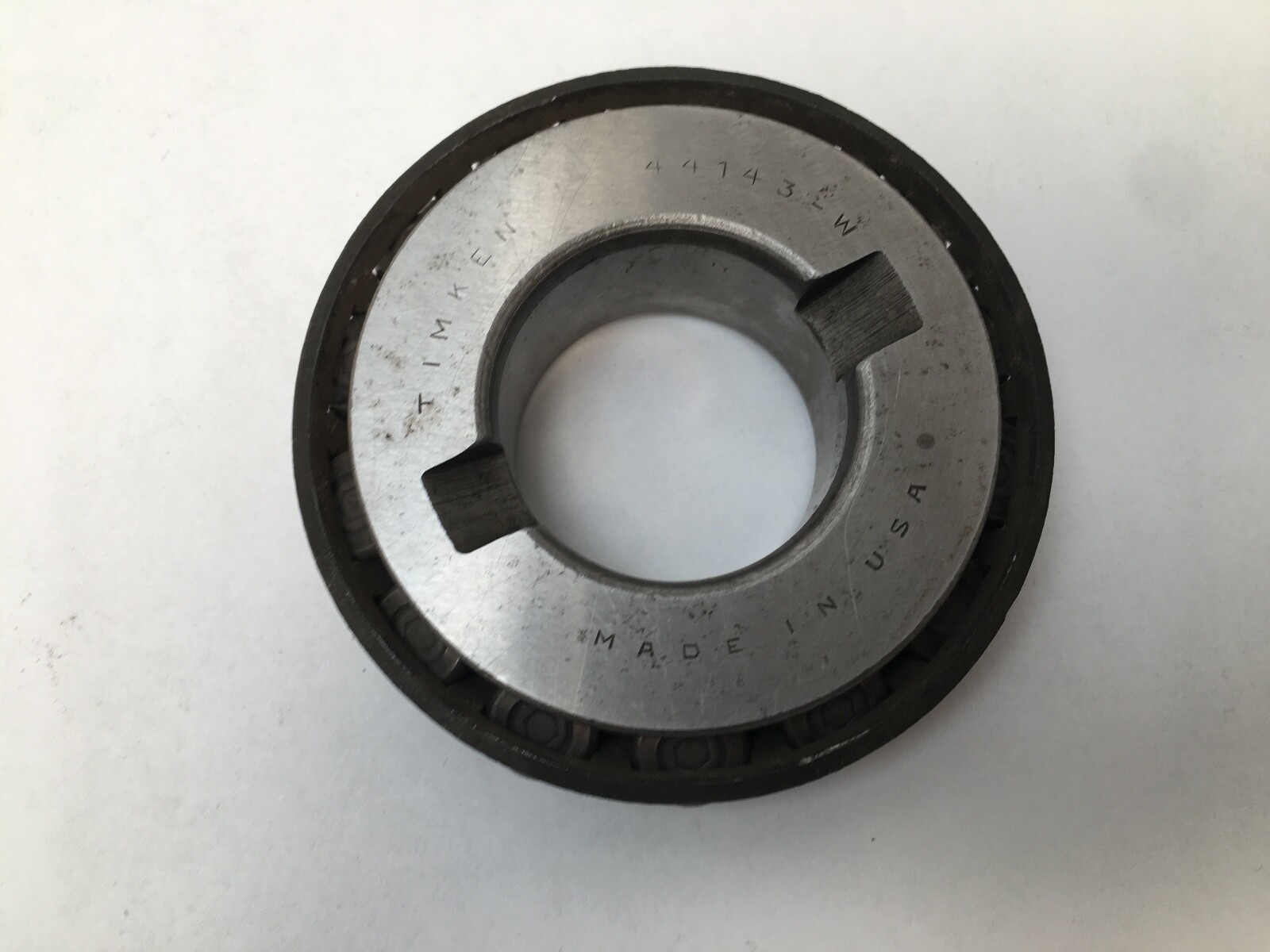

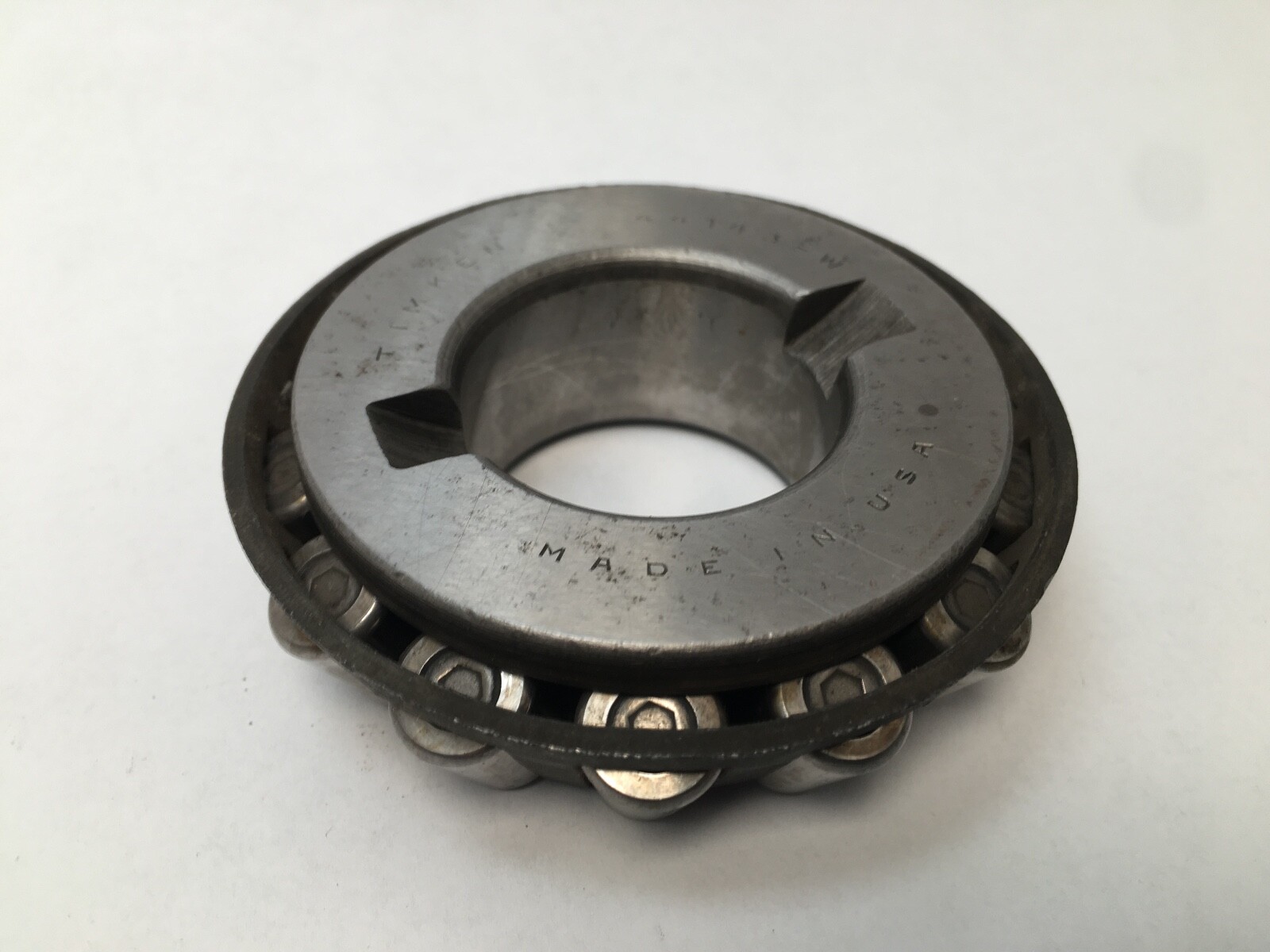

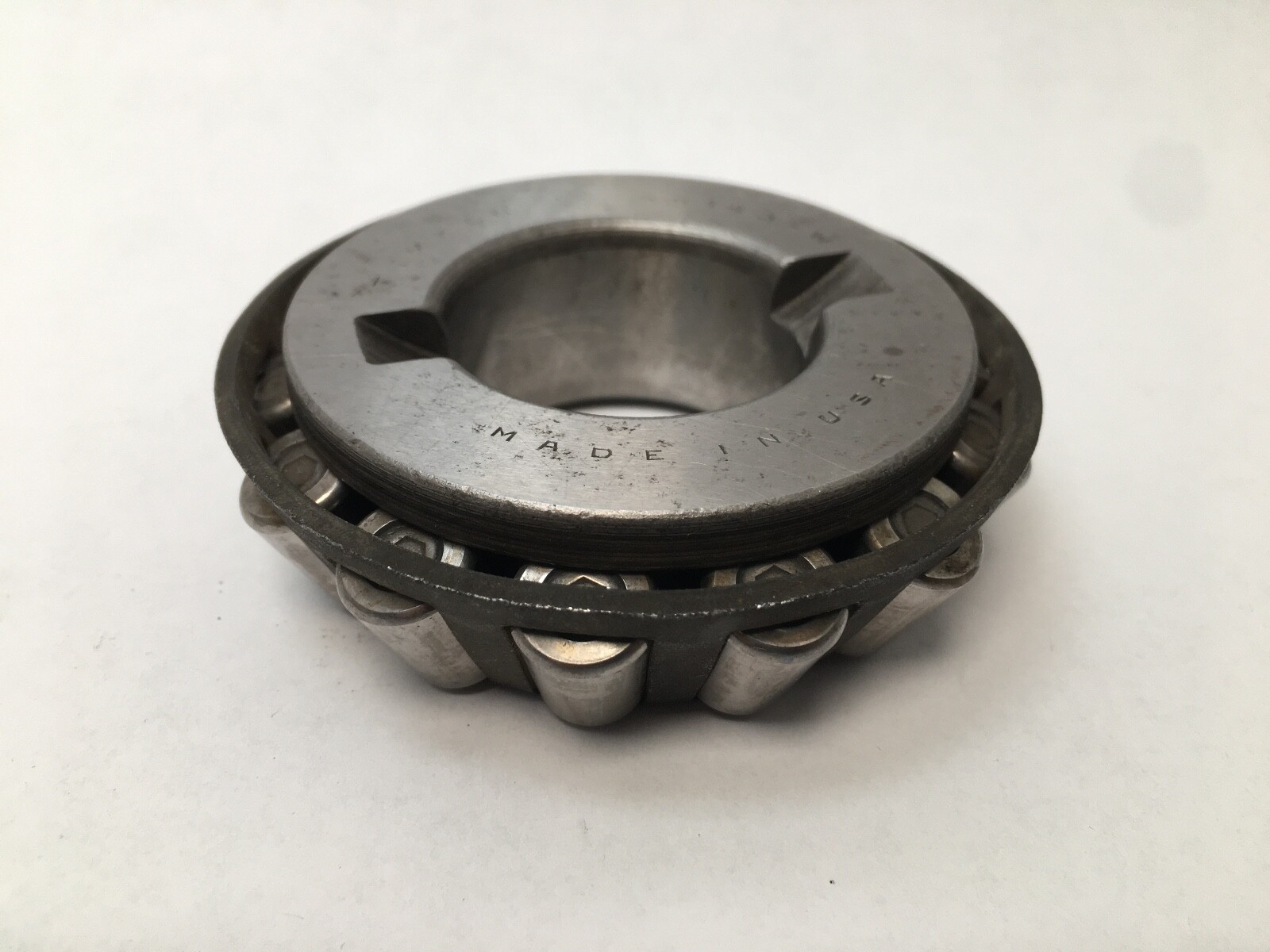

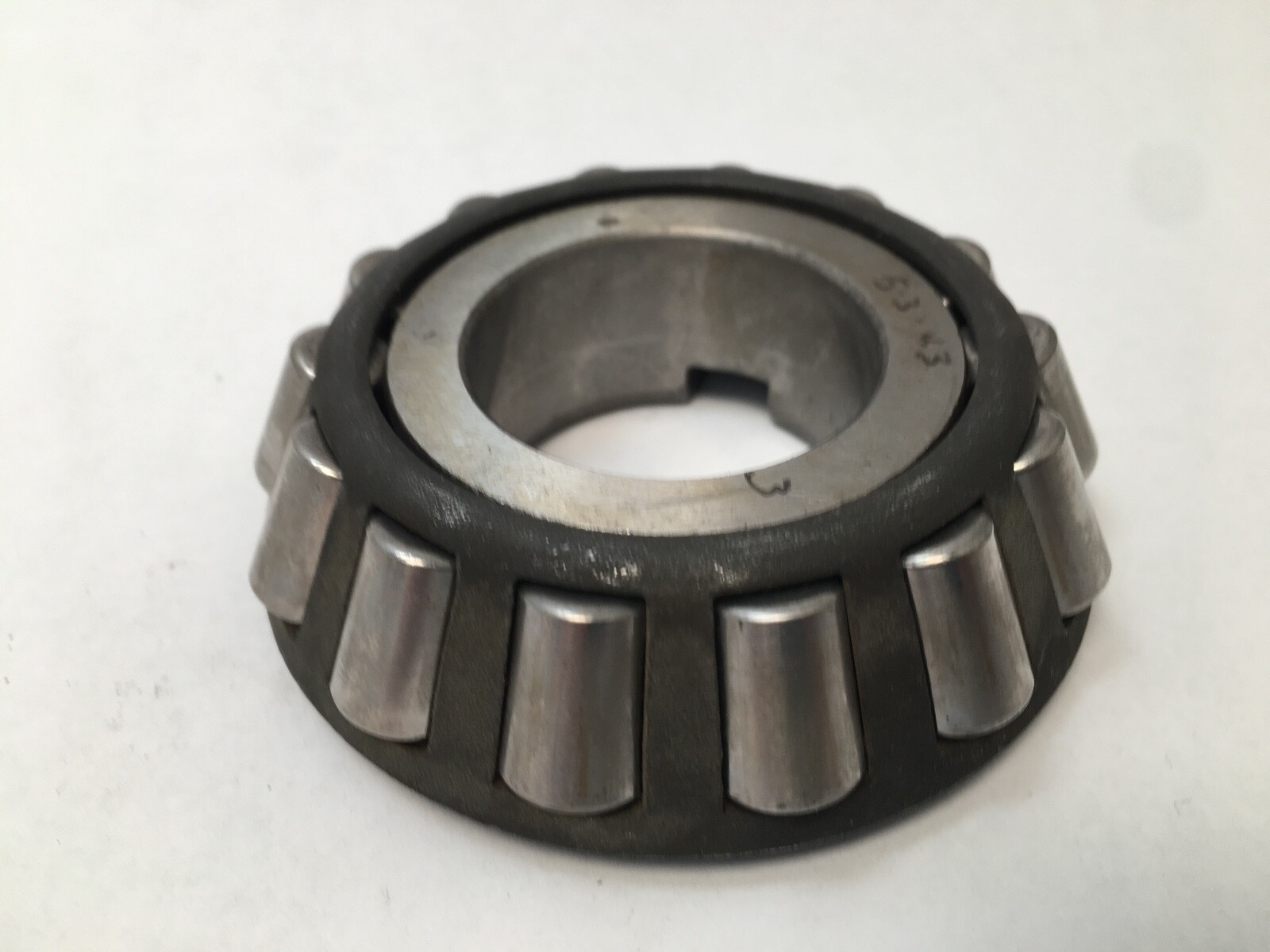

Timken 44143-W single tapered roller bearing cone — the inner ring, roller and cage assembly of a TS-design tapered roller bearing. Bore (d): 1 7/16 in (36.513 mm). Inner Ring Width (B): 0.9330 in (23.698 mm). Series: 441. Bearing Material: Carburized Steel. Design Units: Imperial.

Decoding the designation

44143 — the cone number, which fixes the bore, the cone width and the raceway angle.

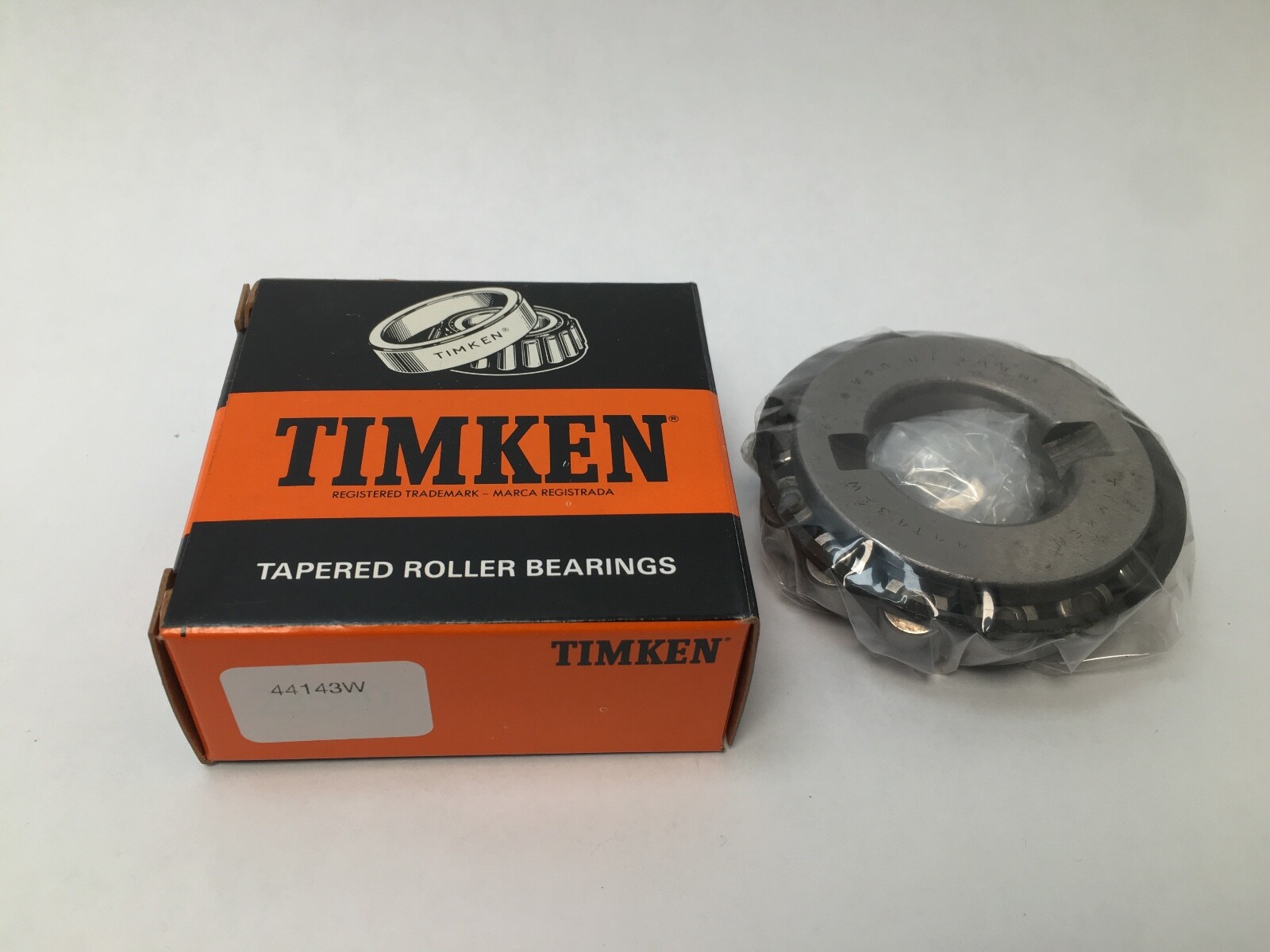

W — a Timken execution suffix carried on the carton and recorded here as part of the full part number.

What these specs mean in practice

Dynamic Radial Load Rating (C1, 1M revs): 99,800 N (22,400 lbf). Dynamic Radial Load Rating (C90, 90M revs): 25,900 N (5,810 lbf). Dynamic Axial Rating (Ca90): 34,600 N (7,770 lbf). Static Radial Load Rating (C0): 88,600 N (19,900 lbf). K Factor: 0.75. A K factor of 0.75 marks a steep raceway angle, so this cone carries a high thrust share for its size — the axial rating of 34,600 N is a third of the radial figure. G1 Factor: 22.9. G2 Factor: 8.7. Geometry Factor (Cg): 0.0899. Item weight: 1.671 kg (3.68 lb).

Mounting data

Effective Center Location: 0.09 in (2.3 mm). Max Shaft Fillet Radius: 0.09 in (2.3 mm). Shaft Backing Shoulder Diameter – Frontface (da): 1.97 in (50 mm). Shaft Backing Shoulder Diameter – Backface (db): 2.13 in (54 mm). Cage Location relative to Backface (Aa): 0.12 in (3 mm). Cage Location relative to Frontface (Ab): 0.15 in (3.8 mm).

Quantity and configuration

Cone only. The matching cups are the Timken 44348 and the Timken 44354. Unit Quantity: 1 Pc. Number Of Rows: 1. Rolling Elements: Tapered Roller.

Interchange guidance

The 44143 base number is carried across the trade: SKF 44143, FAG K-44143, NSK 44143, NTN 4T-44143, Koyo 44143, Fersa 44143, BCA/Bower 44143 and PEER 44143. Searchable forms of the designation: 44143W, 44143-W, 44143 W, 44143.
