Availability:
1 in stock

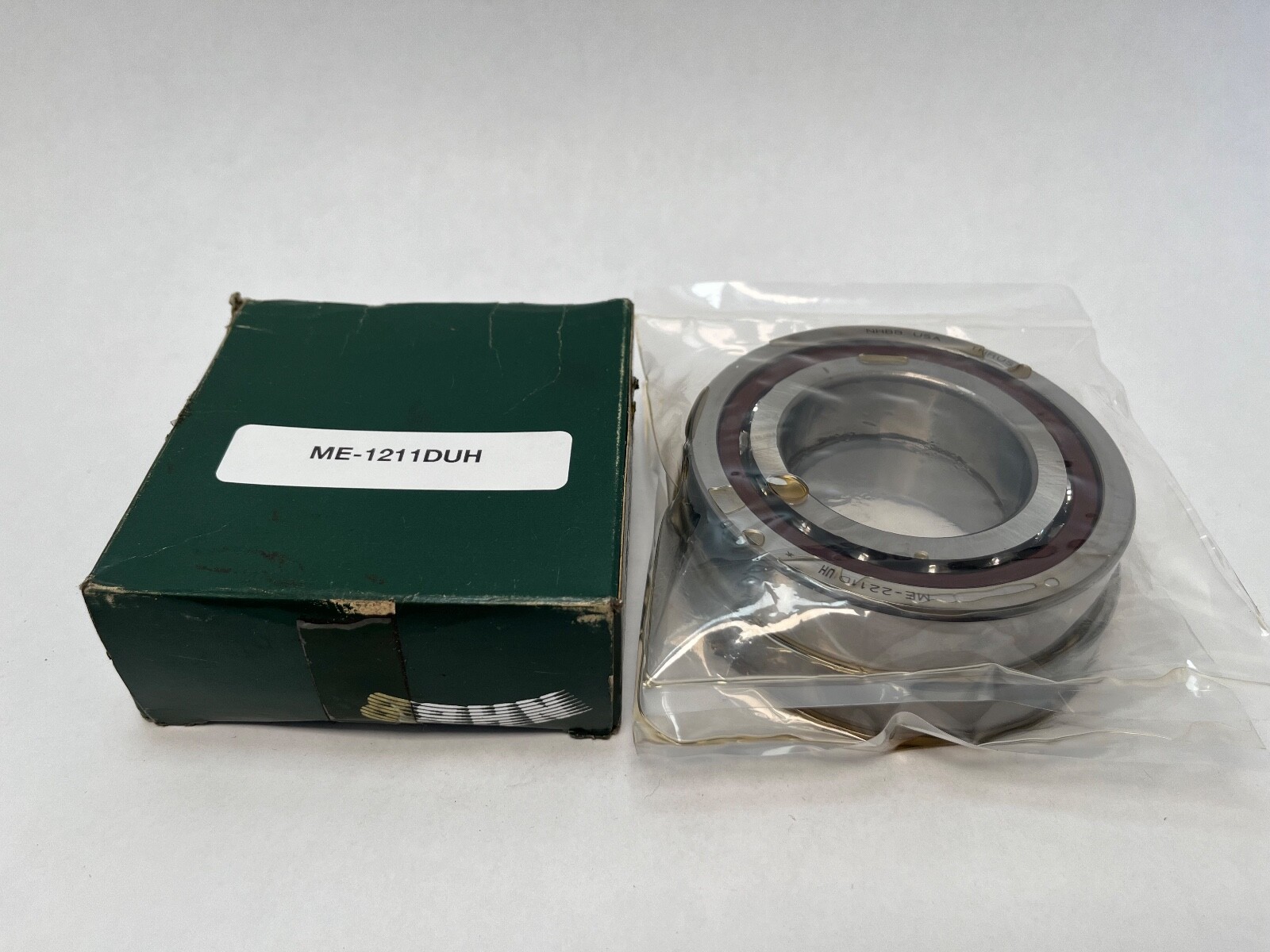

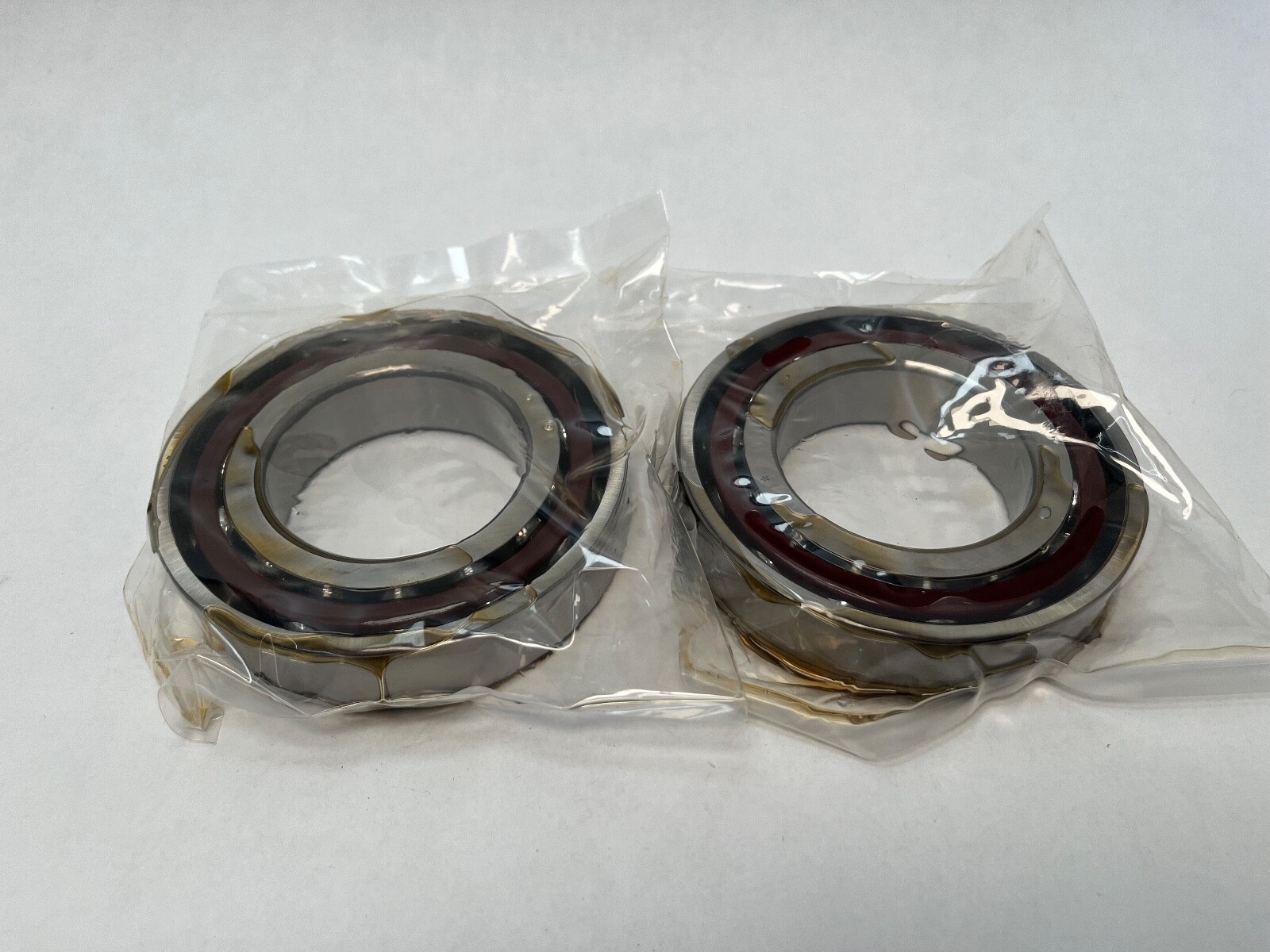

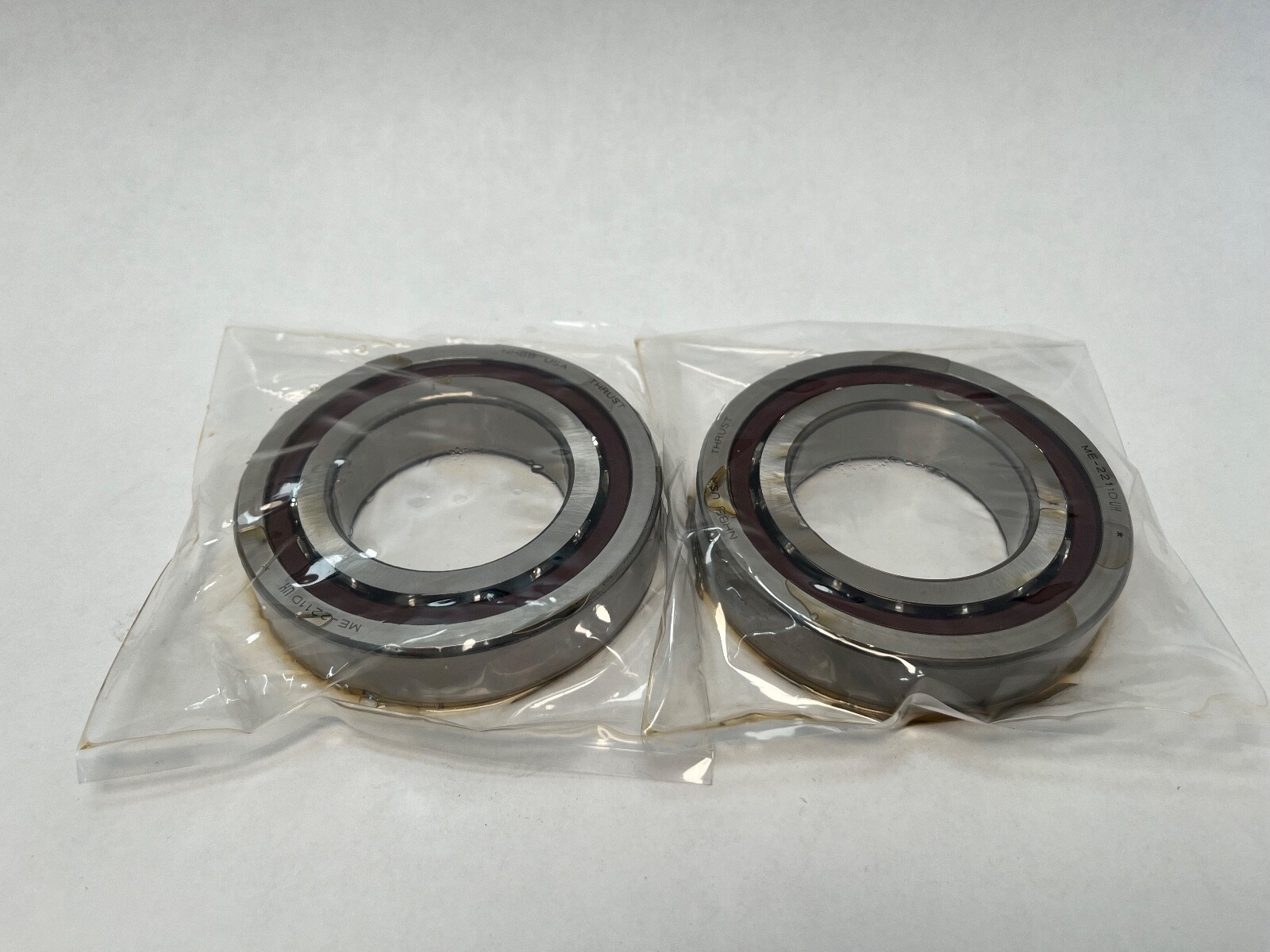

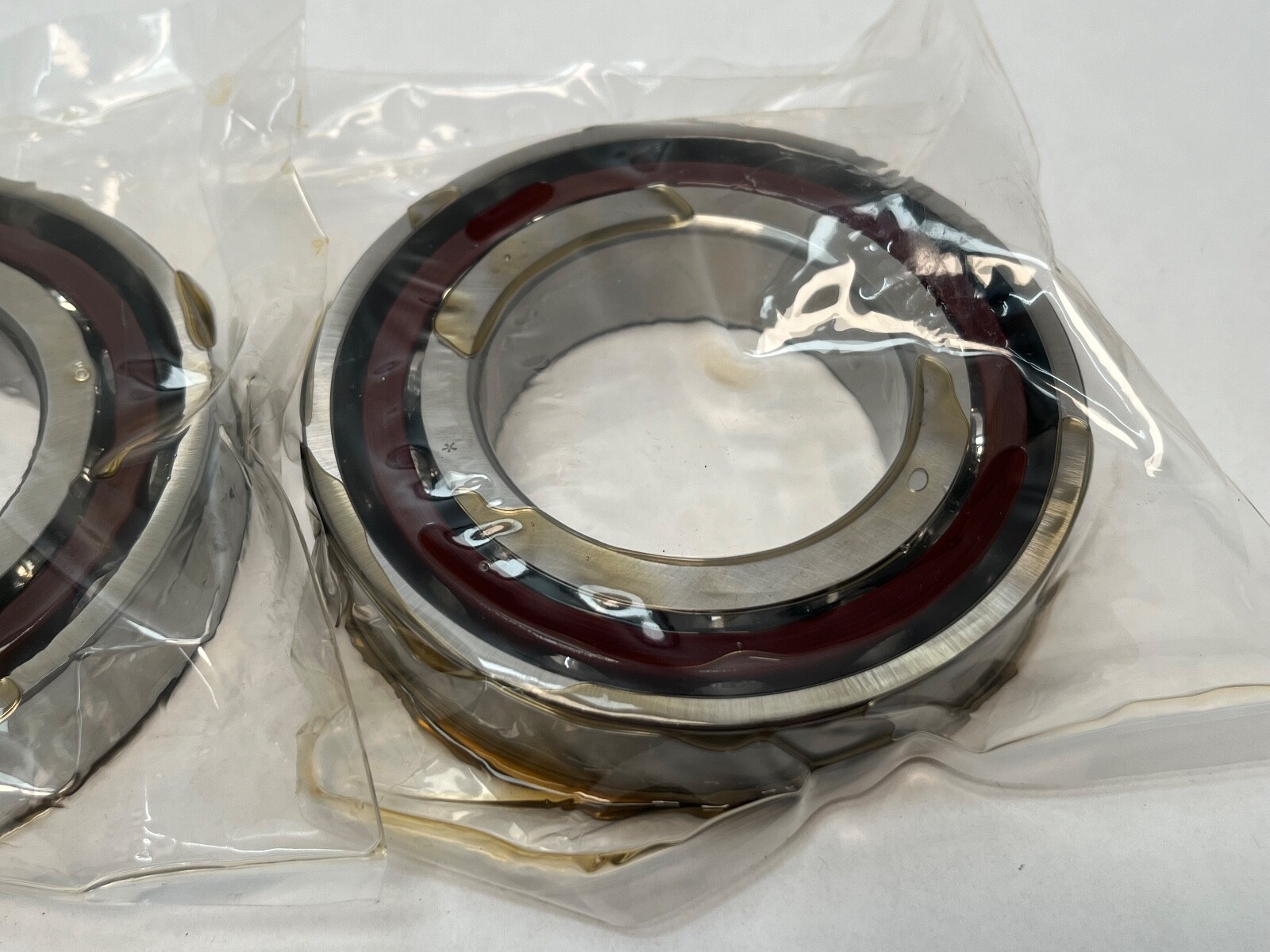

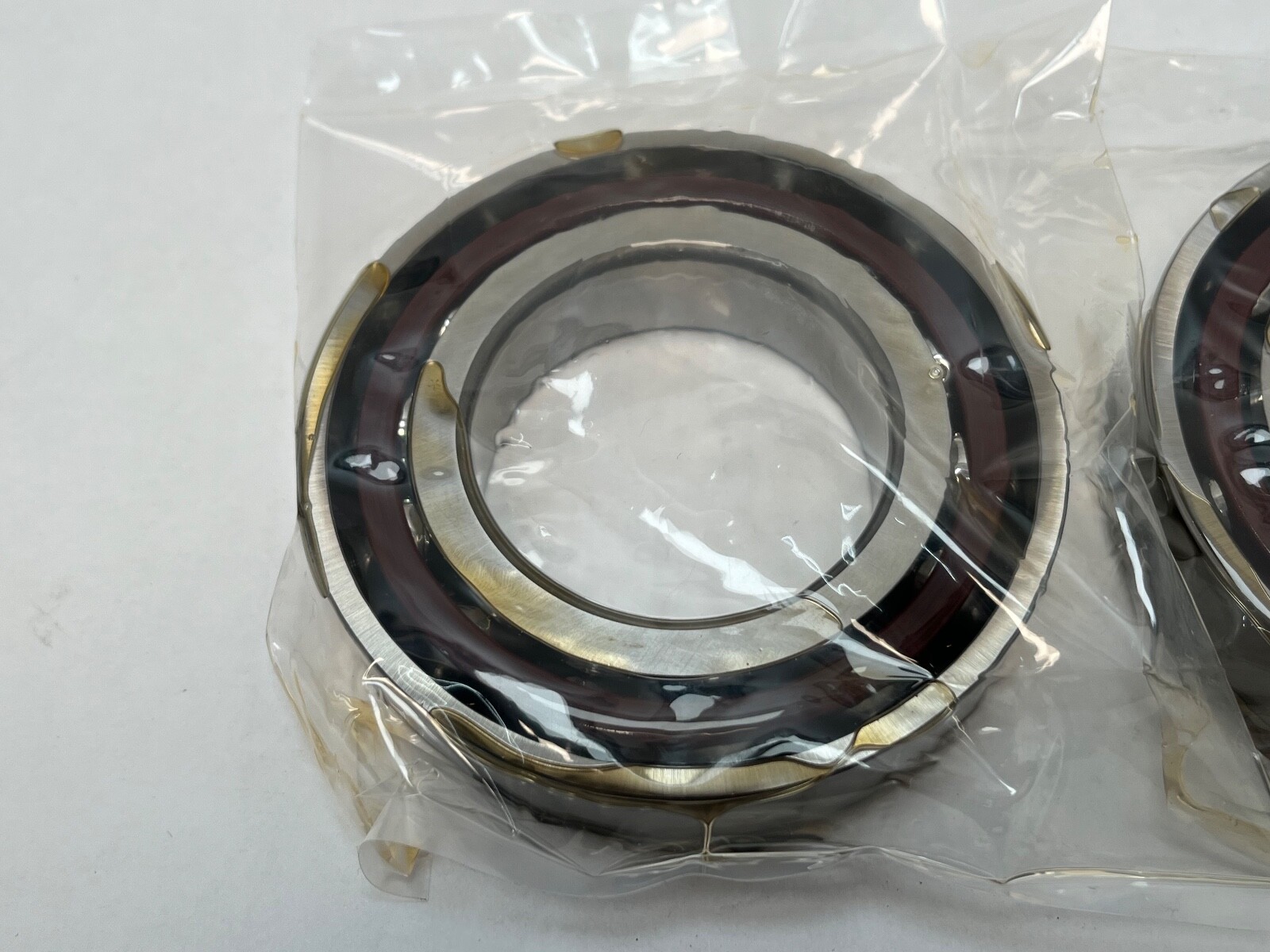

Super-precision angular contact ball bearing pair, 55 x 100 x 21 mm, 15° contact angle, ABEC 7 / P4, heavy preload. Matched duplex set, 2 Pcs, phenolic cage.
List Price
$272.44
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NHBB |
|---|---|
| MPN | ME-1211DH |
| Model | ME-1211-DUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Material | Bearing Steel |
|---|---|
| Series | MER |
| Preload | Heavy |
| Dynamic Load Rating | 12,100 lbf |
| Static Load Rating | 9,150 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Base Number | MER-211 |
| Mpn Variants | ME-1211DH, ME-1211-DUH, ME-1211-DH, ME1211DH, 7211-C-TPA-P4-DUH, MER-211 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Ball complement: 14 x 9/16 in. Inner land diameter: 2.713 in. Outer land diameter: 3.389 in. Max fillet radius: 0.059 in. |
| Contact Angle | 15° |
| Cross Reference 1 | Fafnir 2MM211WI-CR-DUH – same envelope, 15°, heavy preload |
|---|---|
| Cross Reference 2 | FAG B7211-C-T-P4S-DUH – 15°, P4S class, heavy preload |
| Cross Reference 3 | NSK 7211CTYNDUHP4 – 15°, P4, heavy preload, polyamide cage |
| Cross Reference 4 | SKF 7211 CD/P4ADGC – same envelope, 15°, medium preload |
| Cross Reference 5 | NHBB ME-1211DM – same bearing, medium preload |
| Cross Reference 6 | NHBB ME-1211DL – same bearing, light preload |

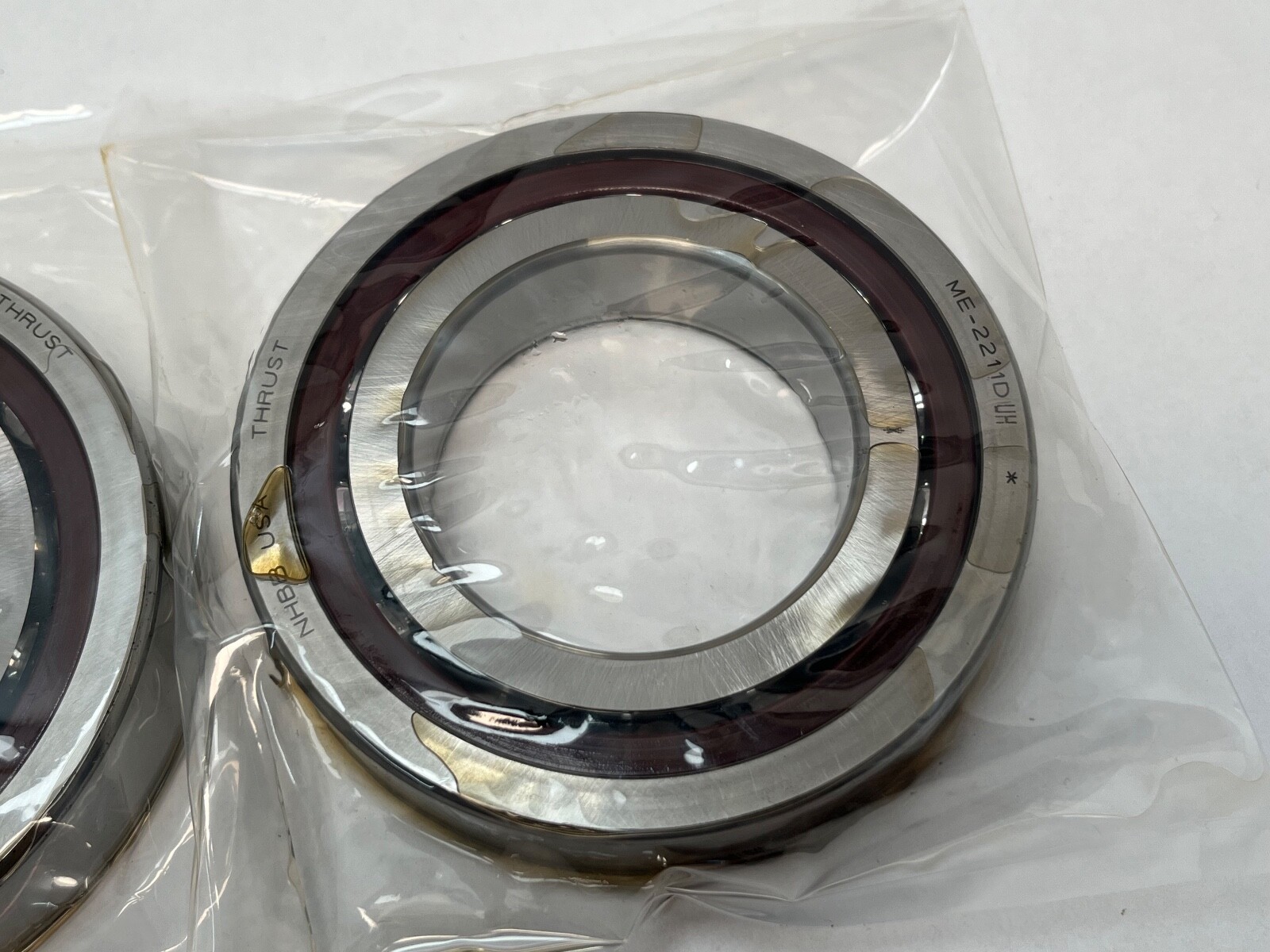

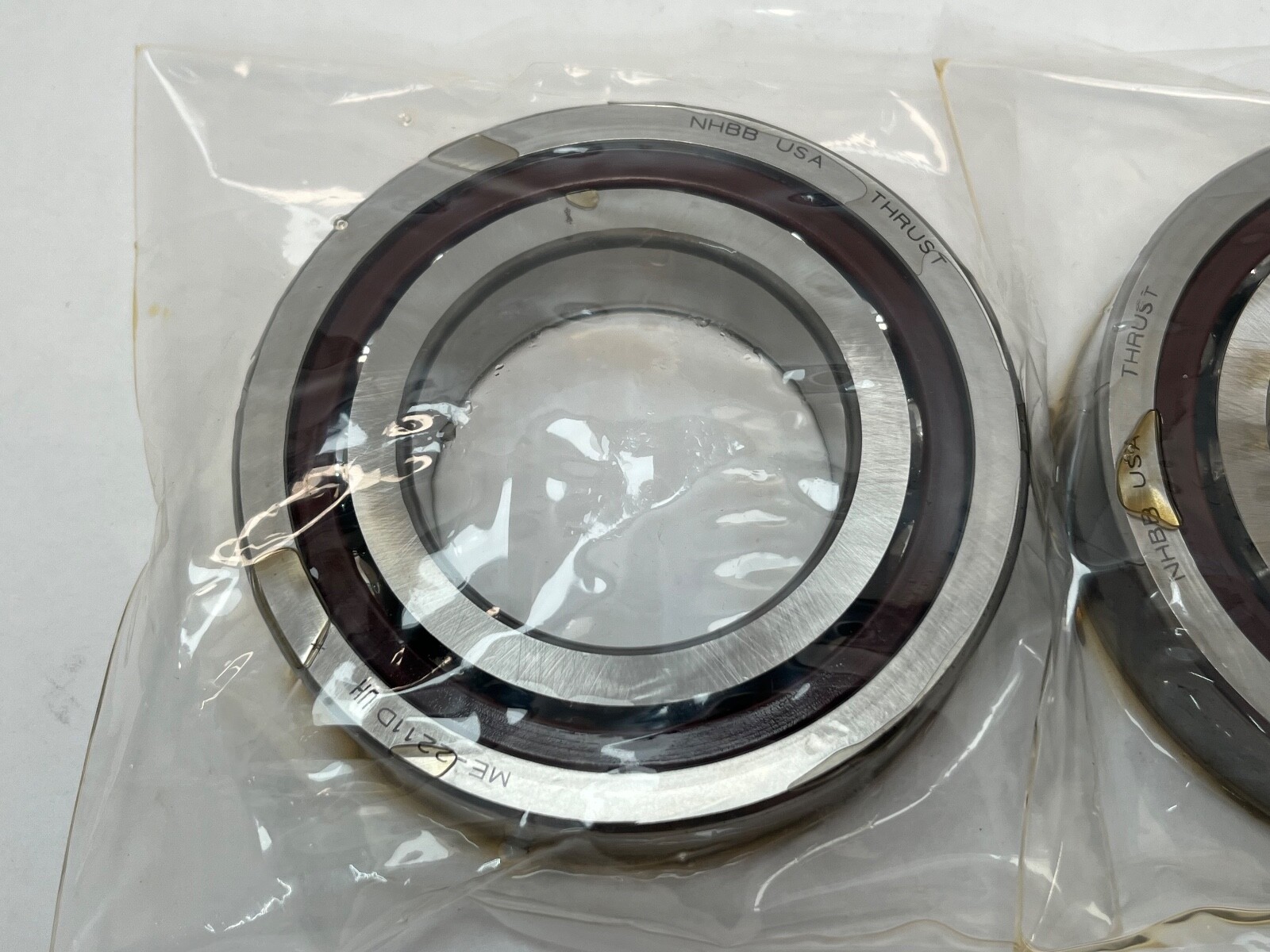

NHBB ME-1211DH is a matched pair of super-precision angular contact ball bearings in the 7211 envelope, built by NHBB’s HiTech Division for machine tool spindles. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
ME-1211 — NHBB metric angular contact size on basic number MER-211: dimension series 02, 55 mm bore, outer ring relieved, non-separable.
DH / DUH — duplex universal set, heavy preload. The carton cross 7211-C-TPA-P4-DUH reads the same.
7211-C-TPA-P4 — ISO 7211 envelope, 15° contact angle, phenolic cage, P4 tolerance.
Dynamic Load Rating: 12,100 lbf per bearing. Static Load Rating: 9,150 lbf per bearing. Rolling Elements: 14 balls, 9/16 in diameter. Cage Material: Phenolic. Closure Type: Open. Heavy preload gives the highest spindle stiffness of the light, medium and heavy preload levels.
Maximum shaft or housing fillet radius: 0.059 in. Inner land diameter: 2.713 in. Outer land diameter: 3.389 in. Bore Type: Straight. Snap ring: No.
Unit Quantity: 2 Pcs, one matched duplex pair. Preload: Heavy. Mounting Arrangement: Universal, for back-to-back, face-to-face or tandem mounting.
Same envelope, angle, class and heavy preload: FAG B7211-C-T-P4S-DUH, NSK 7211CTYNDUHP4 (polyamide cage), Fafnir 2MM211WI DUH. The SKF 7211 CD/P4ADGC is the same envelope and angle at medium preload, the NHBB ME-1211DM is medium preload and the ME-1211DL is light preload.
