Availability:
2 in stock
Super-precision angular contact ball bearing pair, 55 x 90 x 18 mm, 15° contact angle, ABEC 7 / P4, light preload. Matched duplex set, 2 Pcs, phenolic cage.
List Price
$265.00
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NHBB |
|---|---|
| MPN | ME-1111DL |
| Model | ME-1111DL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 90 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | MER |
| Preload | Light |
| Dynamic Load Rating | 8,700 lbf |
| Static Load Rating | 7,050 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Base Number | MER-111 |
| Mpn Variants | ME-1111DL, ME-1111-DL, ME1111DL, 7011-C-TPA-P4-DUL, MER-111 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Ball complement: 17 x 7/16 in. Inner land diameter: 2.592 in. Outer land diameter: 3.116 in. Max fillet radius: 0.039 in. |
| Cross Reference 1 | SKF 7011 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7011-C-T-P4S-DUL |
| Cross Reference 3 | NSK 7011CTYNDULP4 |
| Cross Reference 4 | Fafnir 2MM9111WI DUL |

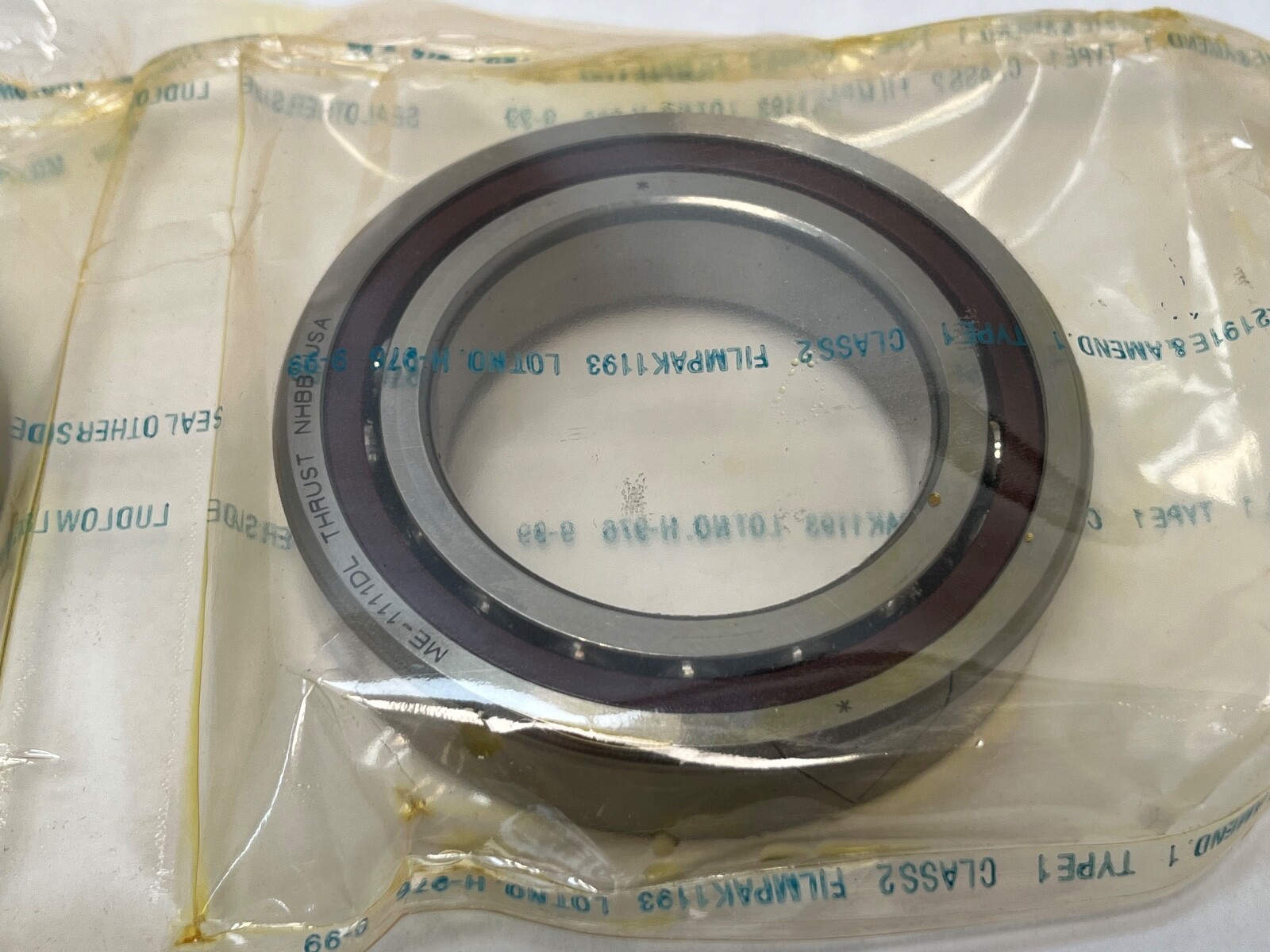

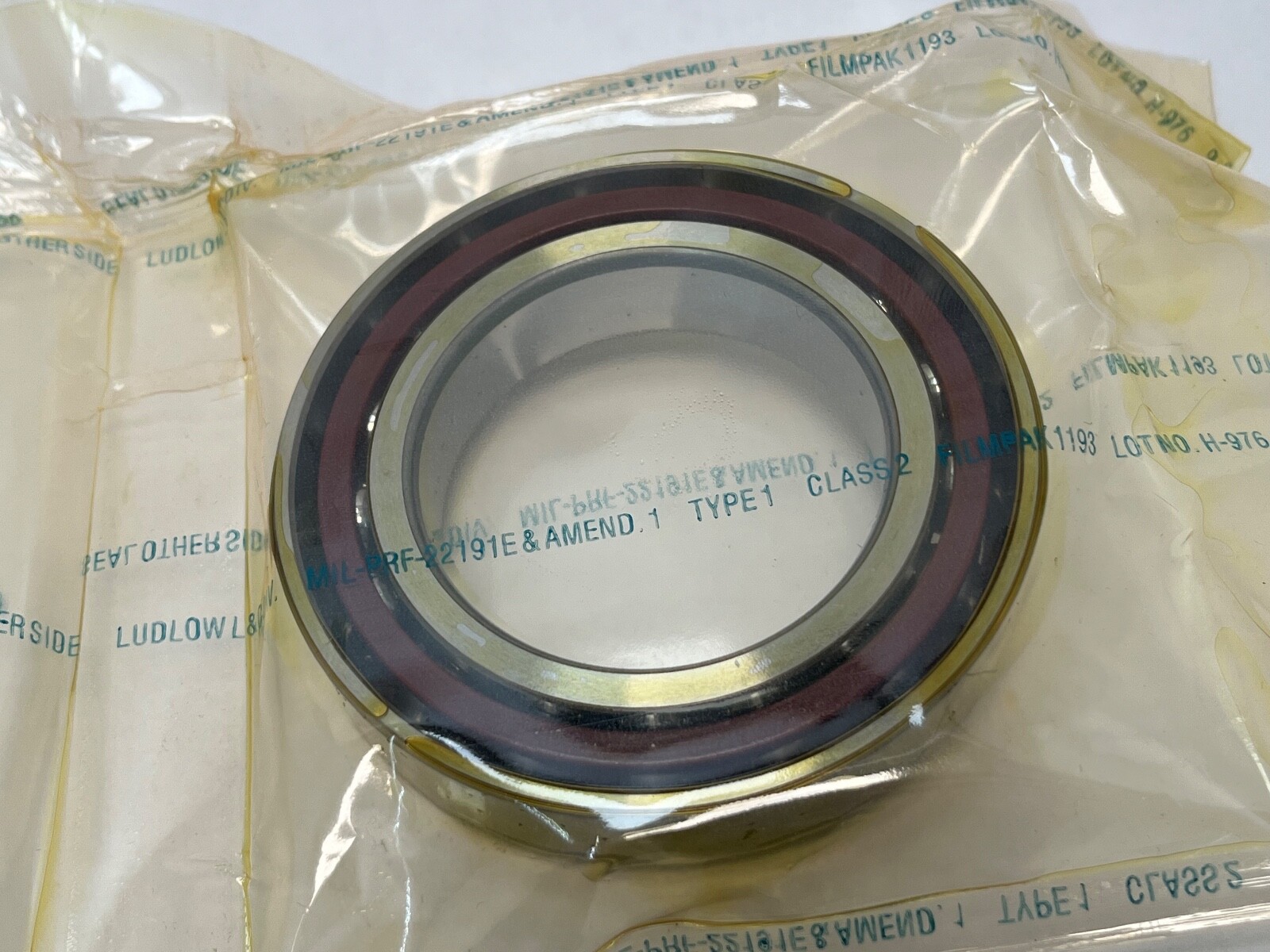

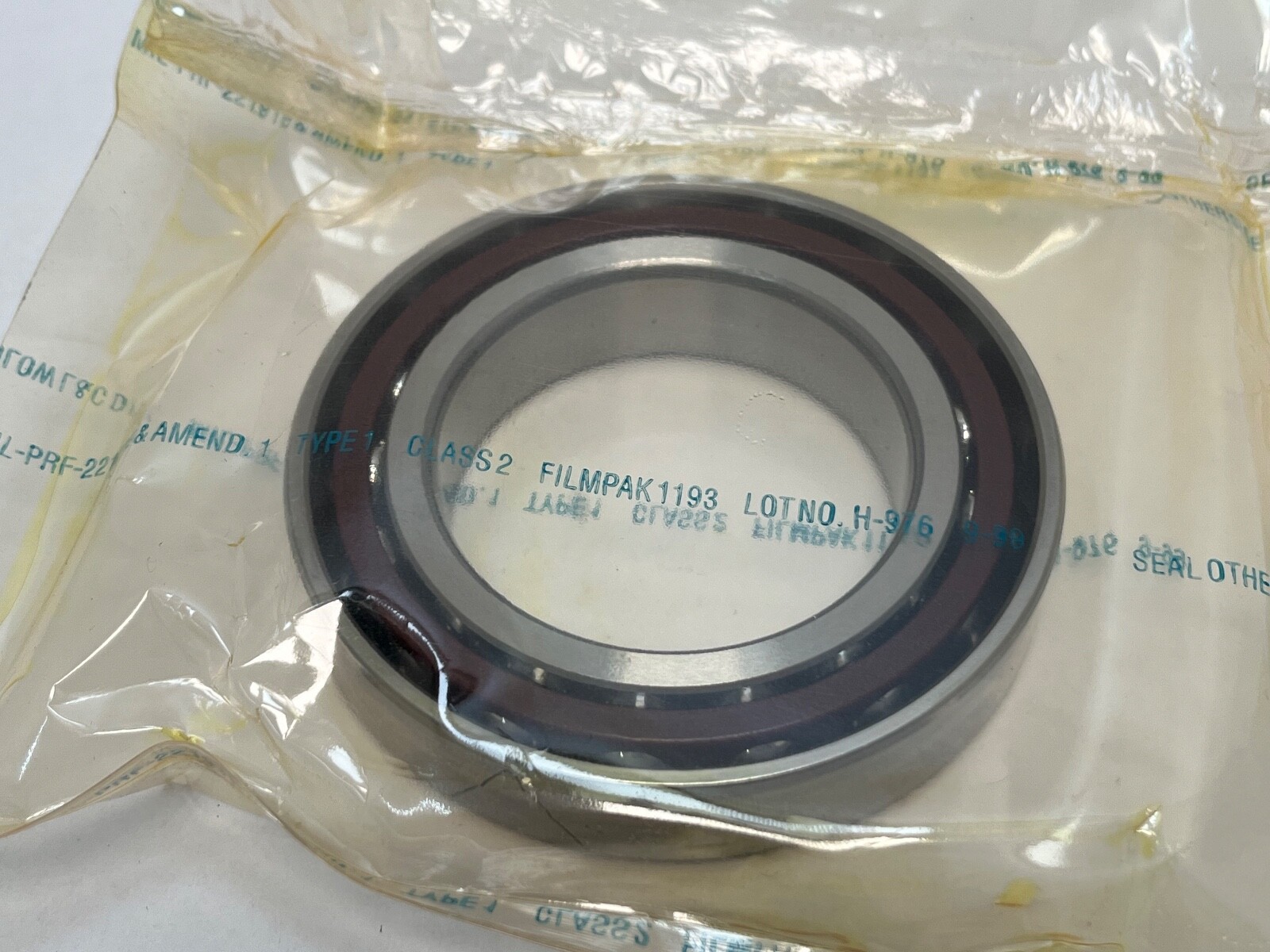

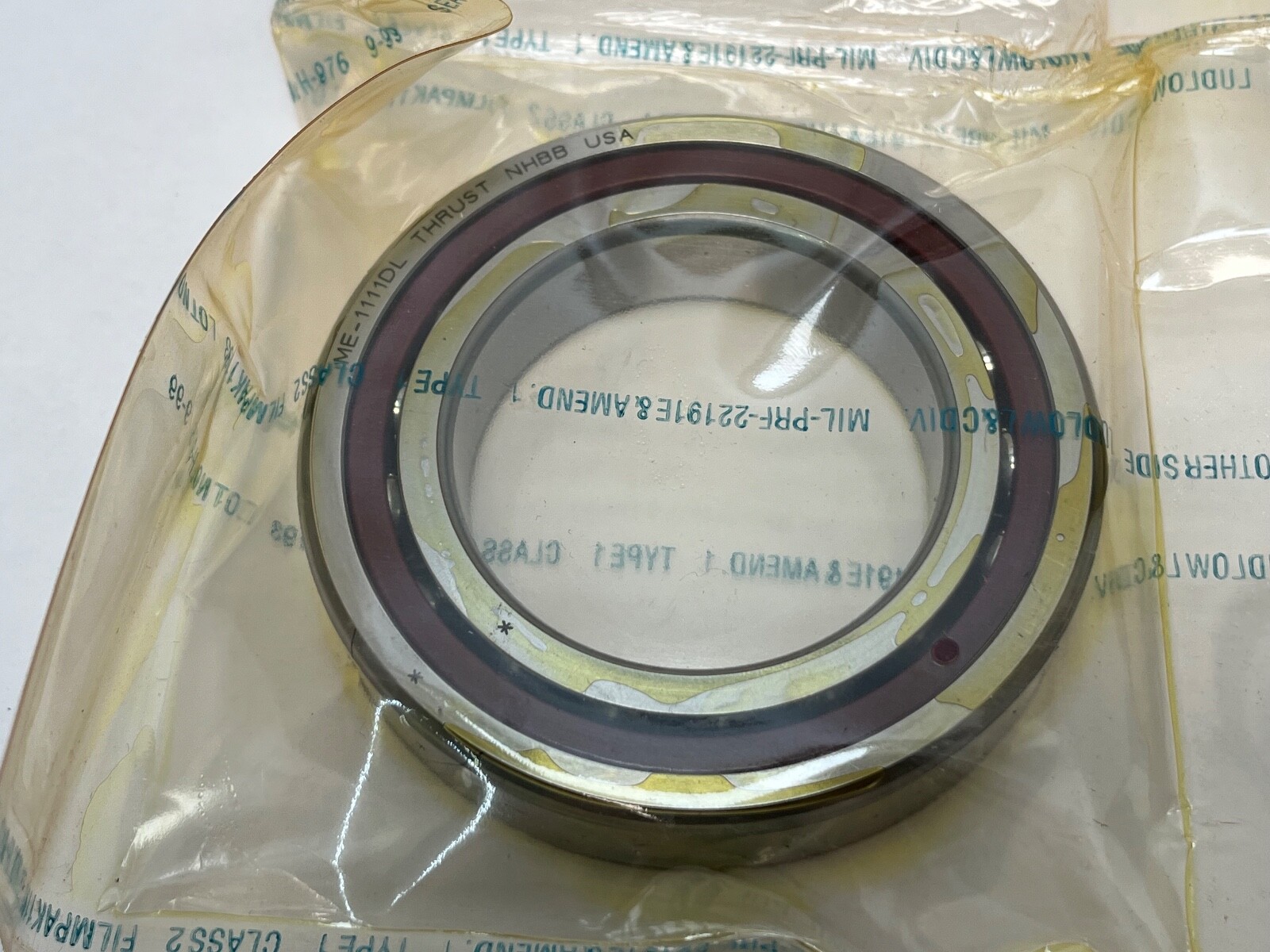

NHBB ME-1111DL is a matched pair of super-precision angular contact ball bearings in the 7011 envelope, built by NHBB’s HiTech Division for machine tool spindles. Bore Diameter: 55 mm. Outside Diameter: 90 mm. Overall Width: 18 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
ME-1111 — NHBB metric angular contact size on basic number MER-111: dimension series 10, 55 mm bore, outer ring relieved, non-separable.
DL — duplex set, light preload. The carton cross 7011-C-TPA-P4-DUL reads the same: duplex universal, light preload.
7011-C-TPA-P4 — ISO 7011 envelope, 15° contact angle, phenolic cage, P4 tolerance.
Dynamic Load Rating: 8,700 lbf per bearing. Static Load Rating: 7,050 lbf per bearing. Rolling Elements: 17 balls, 7/16 in diameter. Cage Material: Phenolic. Closure Type: Open. The 15° angle favours speed and radial stiffness over axial capacity.
Maximum shaft or housing fillet radius: 0.039 in. Inner land diameter: 2.592 in. Outer land diameter: 3.116 in. Bore Type: Straight. Snap ring: No.

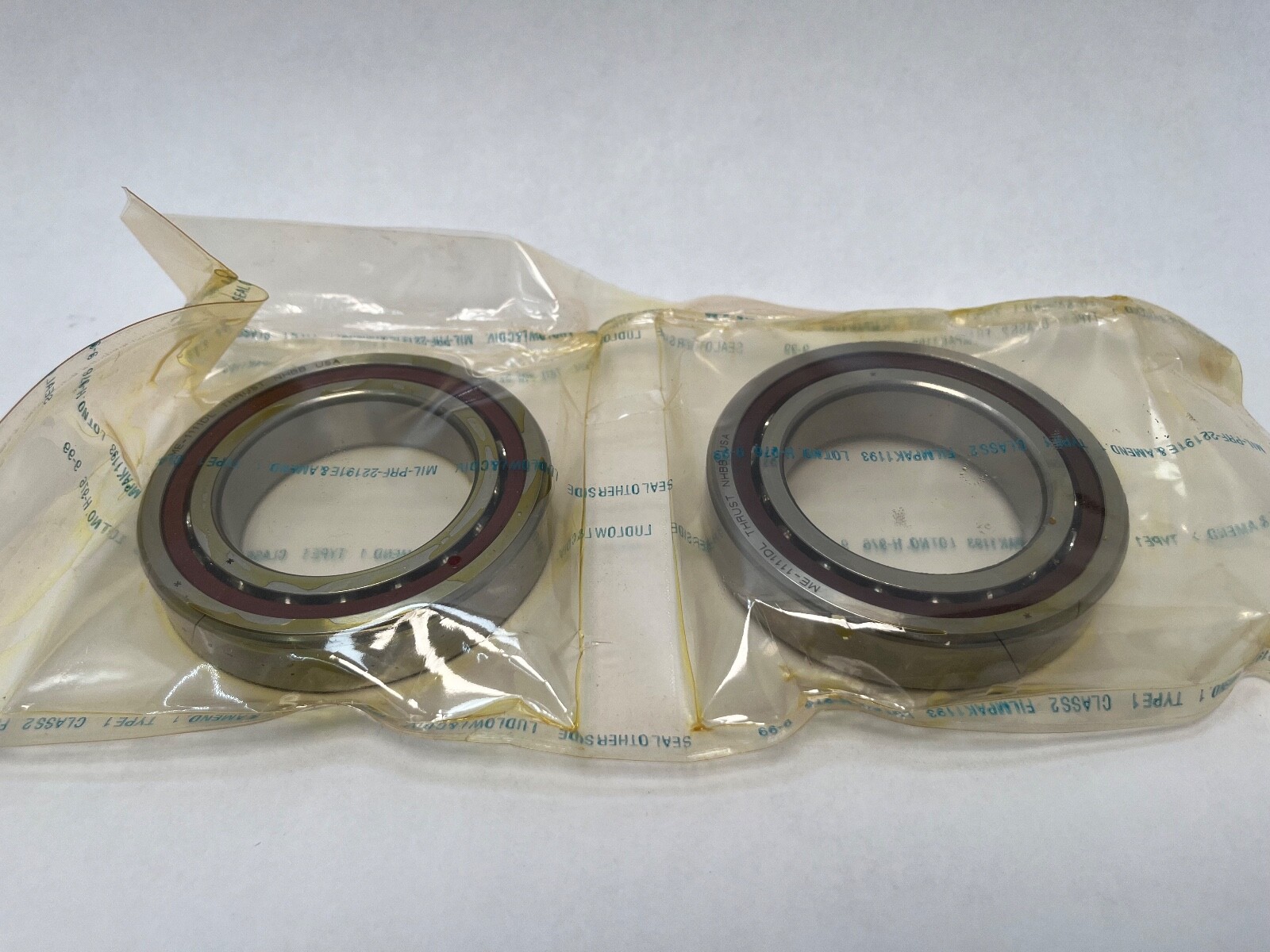

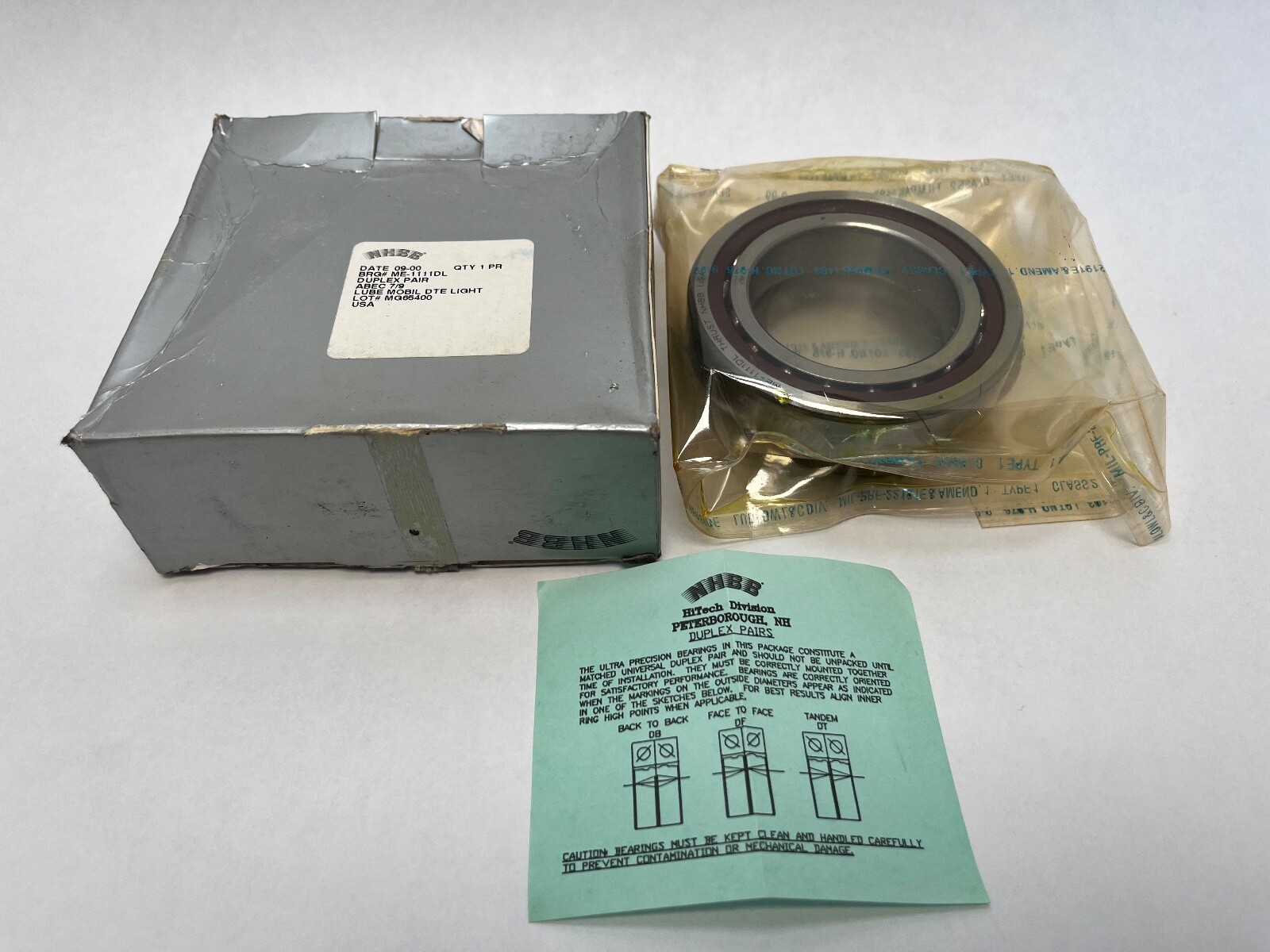

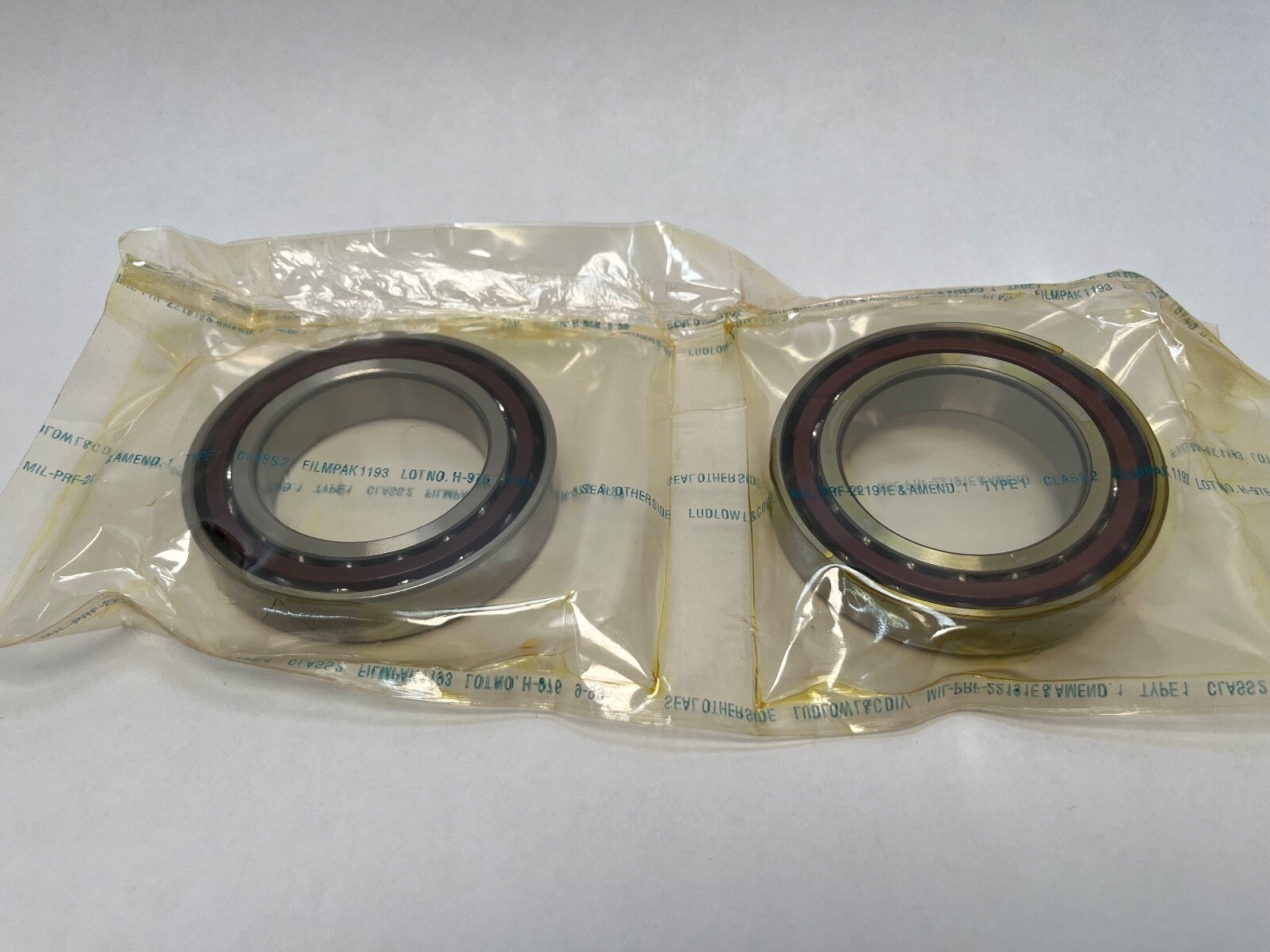

Unit Quantity: 2 Pcs, one matched duplex pair. Preload: Light. Mounting Arrangement: Universal, for back-to-back, face-to-face or tandem mounting.
Same envelope, angle and class: SKF 7011 CD/P4ADGA, FAG B7011-C-T-P4S-DUL, NSK 7011CTYNDULP4, Fafnir 2MM9111WI DUL.
