Availability:
7 in stock

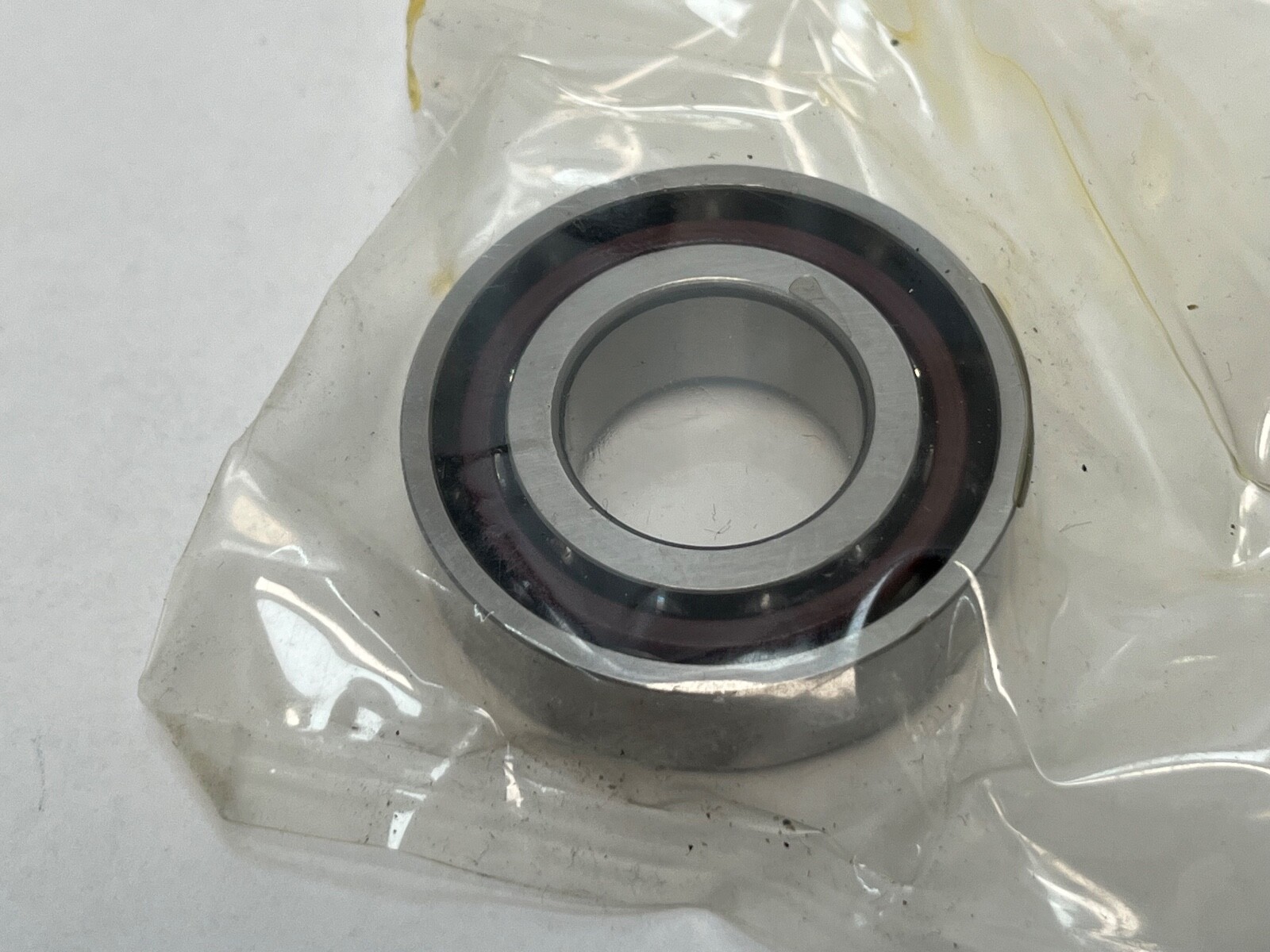

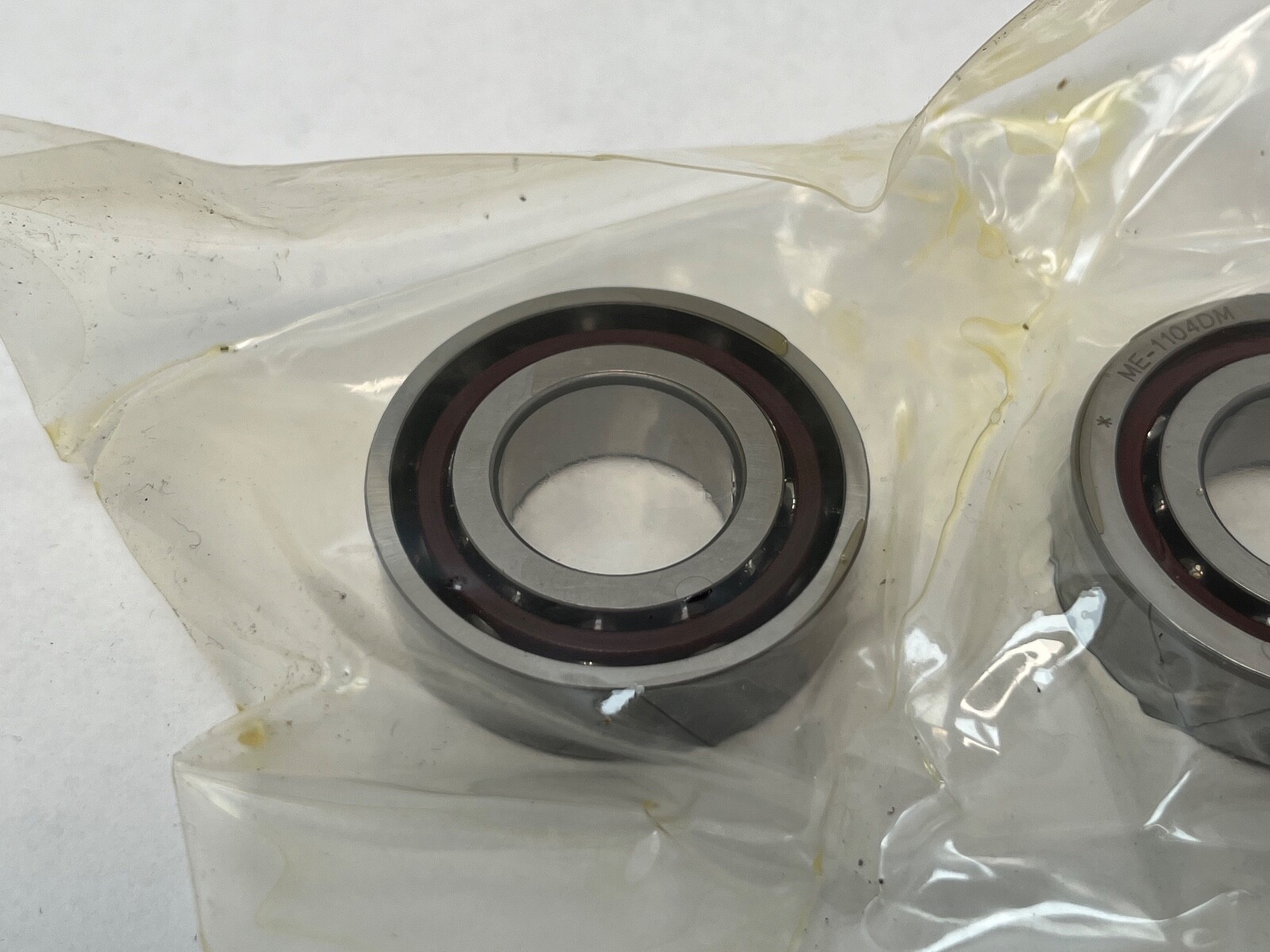

Super-precision angular contact ball bearing pair, 20 x 42 x 12 mm, 15° contact angle, ABEC 7 / P4, medium preload. Matched duplex set, 2 Pcs, phenolic cage.
List Price
$135.64
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NHBB |
|---|---|
| MPN | ME-1104DM |
| Model | ME-1104DM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 42 mm |
| Width | 12 mm |
| Material | 52100 Chrome Steel |
|---|---|
| Series | MER |
| Preload | Medium |
| Dynamic Load Rating | 2,400 lbf |
| Static Load Rating | 1,350 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Base Number | MER-104 |
| Mpn Variants | ME-1104DM, ME-1104-DM, ME1104DM, 7004-C-TPA-P4-DUM, MER-104 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Ball complement: 11 x 1/4 in. Inner land diameter: 1.075 in. Outer land diameter: 1.395 in. Max fillet radius: 0.024 in. |
| Cross Reference 1 | SKF 7004 CD/P4ADGB |
|---|---|
| Cross Reference 2 | FAG B7004-C-T-P4S-DUM |
| Cross Reference 3 | NSK 7004CTYNDUMP4 |
| Cross Reference 4 | Fafnir 2MM9104WI DUM |

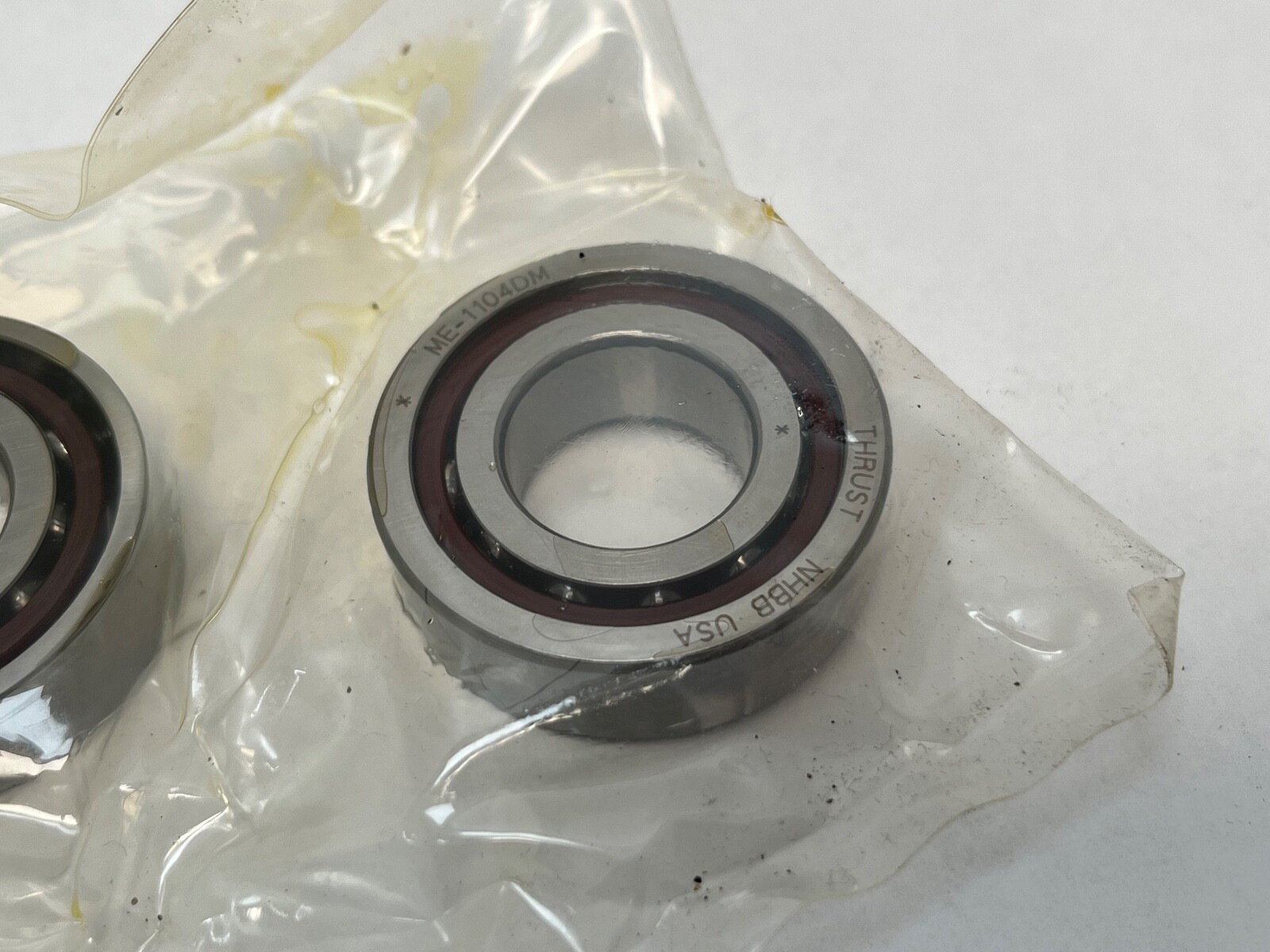

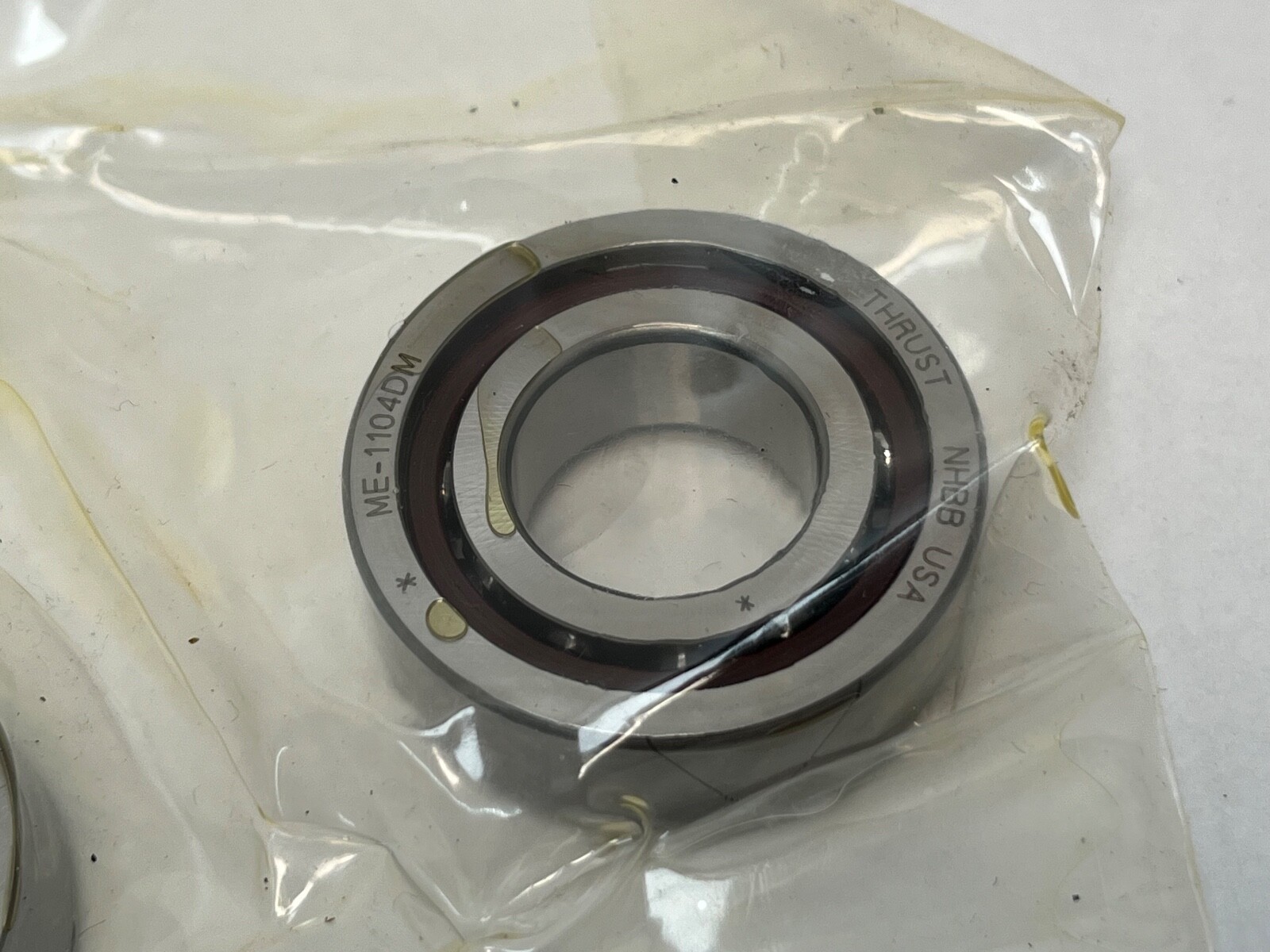

NHBB ME-1104DM is a matched pair of super-precision angular contact ball bearings in the 7004 envelope, built by NHBB’s HiTech Division for machine tool spindles. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
ME-1104 — NHBB metric angular contact size on basic number MER-104: dimension series 10, 20 mm bore, outer ring relieved, non-separable.
DM — duplex set, medium preload. The carton cross 7004-C-TPA-P4-DUM reads the same: duplex universal, medium preload.
7004-C-TPA-P4 — ISO 7004 envelope, 15° contact angle, phenolic cage, P4 tolerance.
Dynamic Load Rating: 2,400 lbf per bearing. Static Load Rating: 1,350 lbf per bearing. Rolling Elements: 11 balls, 1/4 in diameter. Cage Material: Phenolic. Closure Type: Open. Medium preload gives higher spindle stiffness than a light-preload set at the same size.
Maximum shaft or housing fillet radius: 0.024 in. Inner land diameter: 1.075 in. Outer land diameter: 1.395 in. Bore Type: Straight. Snap ring: No.

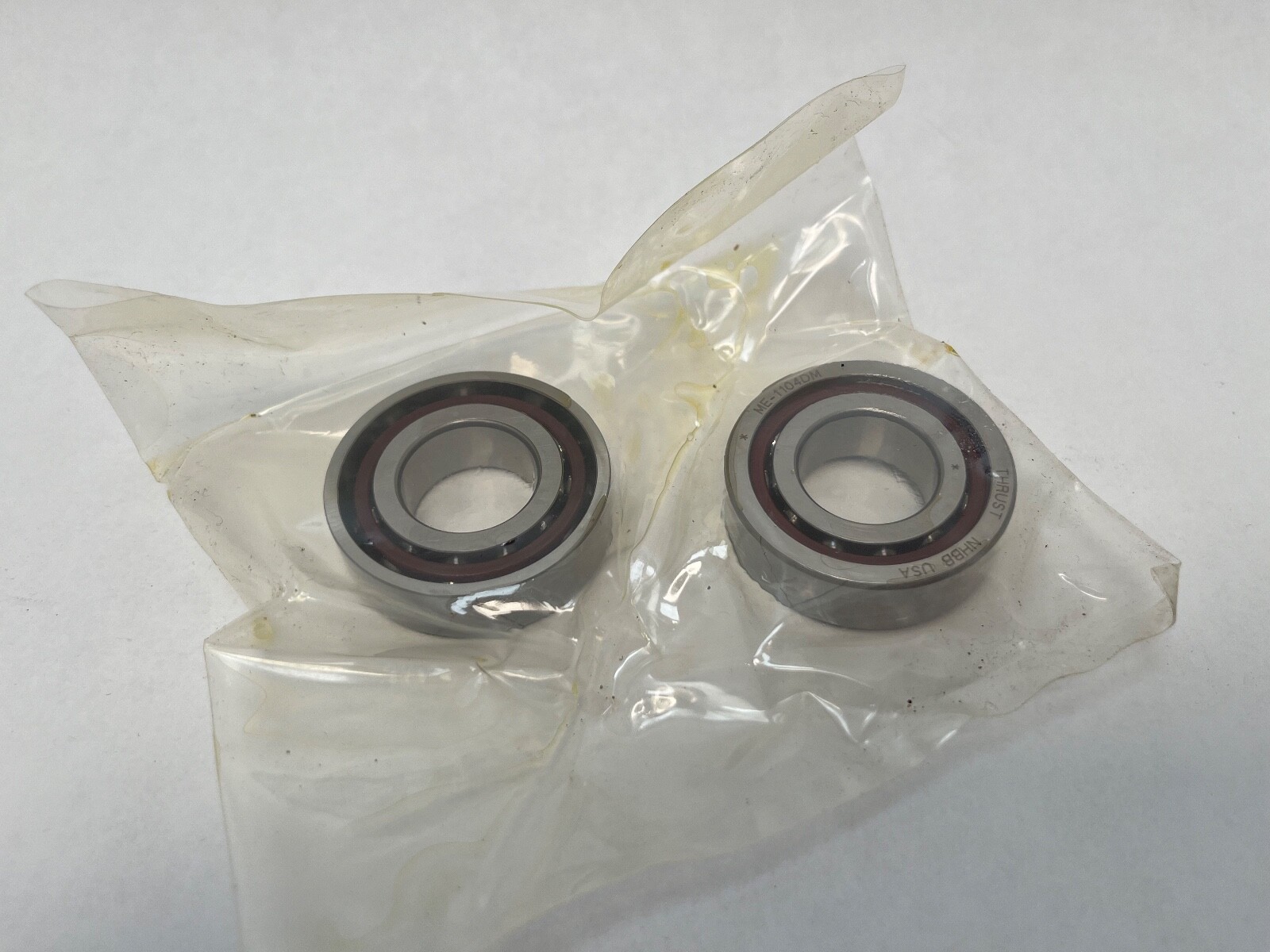

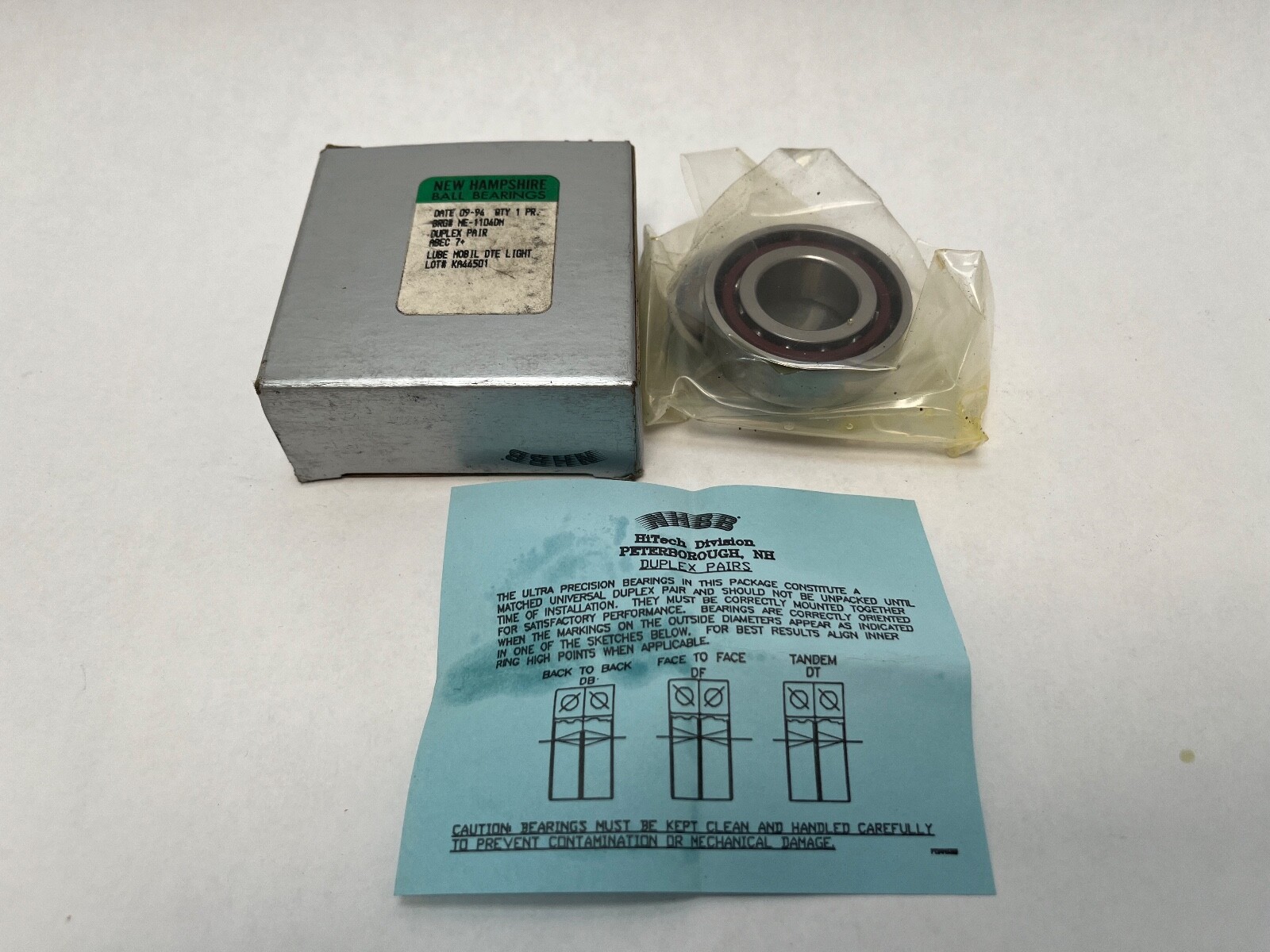

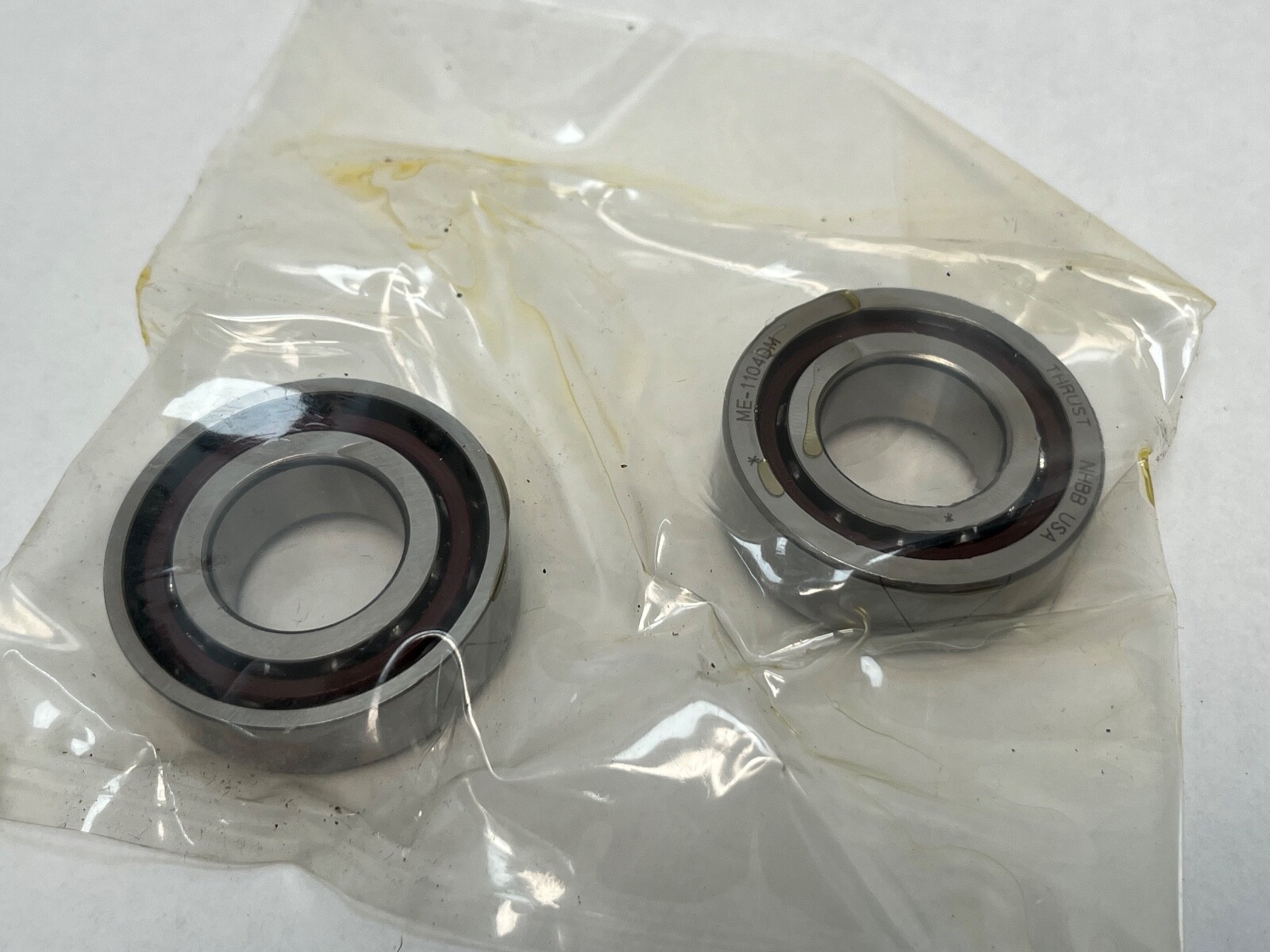

Unit Quantity: 2 Pcs, one matched duplex pair. Preload: Medium. Mounting Arrangement: Universal, for back-to-back, face-to-face or tandem mounting.
Same envelope, angle and class: SKF 7004 CD/P4ADGB, FAG B7004-C-T-P4S-DUM, NSK 7004CTYNDUMP4, Fafnir 2MM9104WI DUM.
