Availability:
1 in stock
Super-precision angular contact ball bearing, 35 x 55 x 10 mm, 15° contact angle, ABEC 7 / P4, phenolic cage. One bearing from an NHBB duplex set, 1 Pc.
List Price
$105.51
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NHBB |
|---|---|
| MPN | ME-11907DH |
| Model | ME-11907DH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 55 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Series | MER |
| Dynamic Load Rating | 3,200 lbf |
| Static Load Rating | 2,450 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Base Number | MER-1907 |
| Mpn Variants | ME-11907DH-1/2PR, ME-11907DH, ME-11907-DH, 71907-C-TPA-P4-UL, 7907, MER-1907 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Ball complement: 18 x 1/4 in. Inner land diameter: 1.644 in. Outer land diameter: 1.942 in. Max fillet radius: 0.024 in. |
| Contact Angle | 15° |
| Cross Reference 1 | SKF 71907 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B71907-C-T-P4S |
| Cross Reference 3 | NSK 7907CTYNP4 |
| Cross Reference 4 | Fafnir 2MM9307WI |

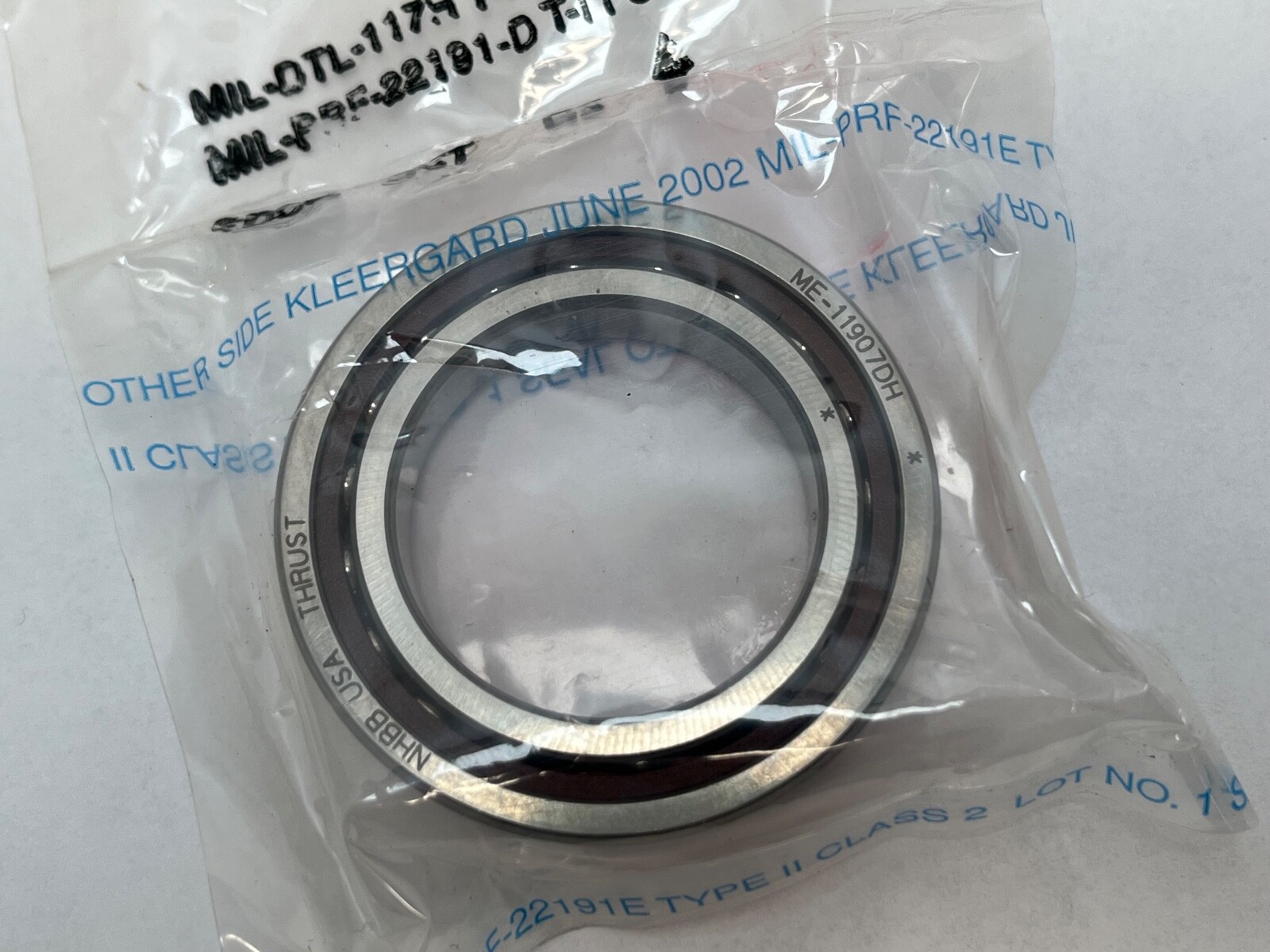

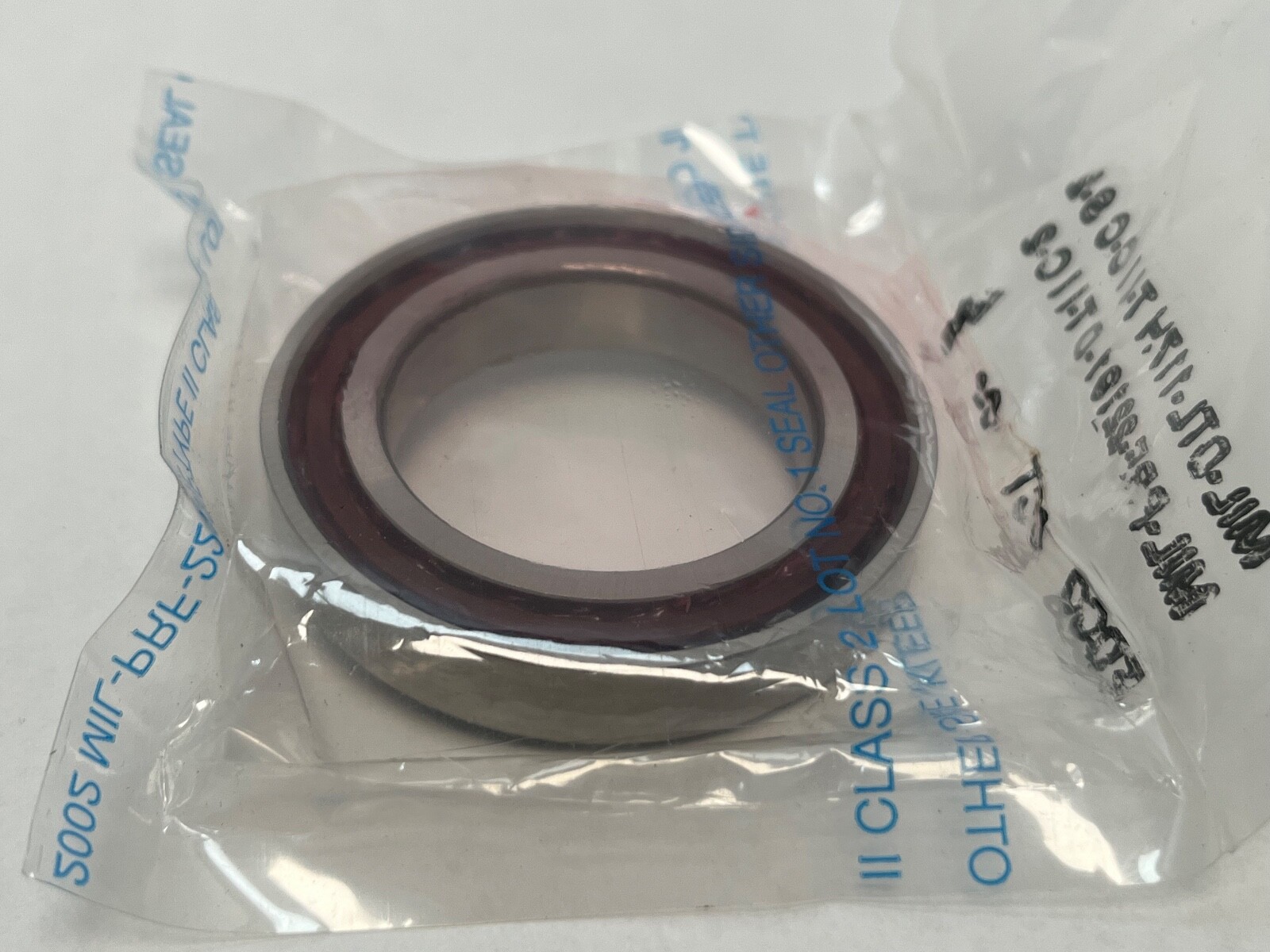

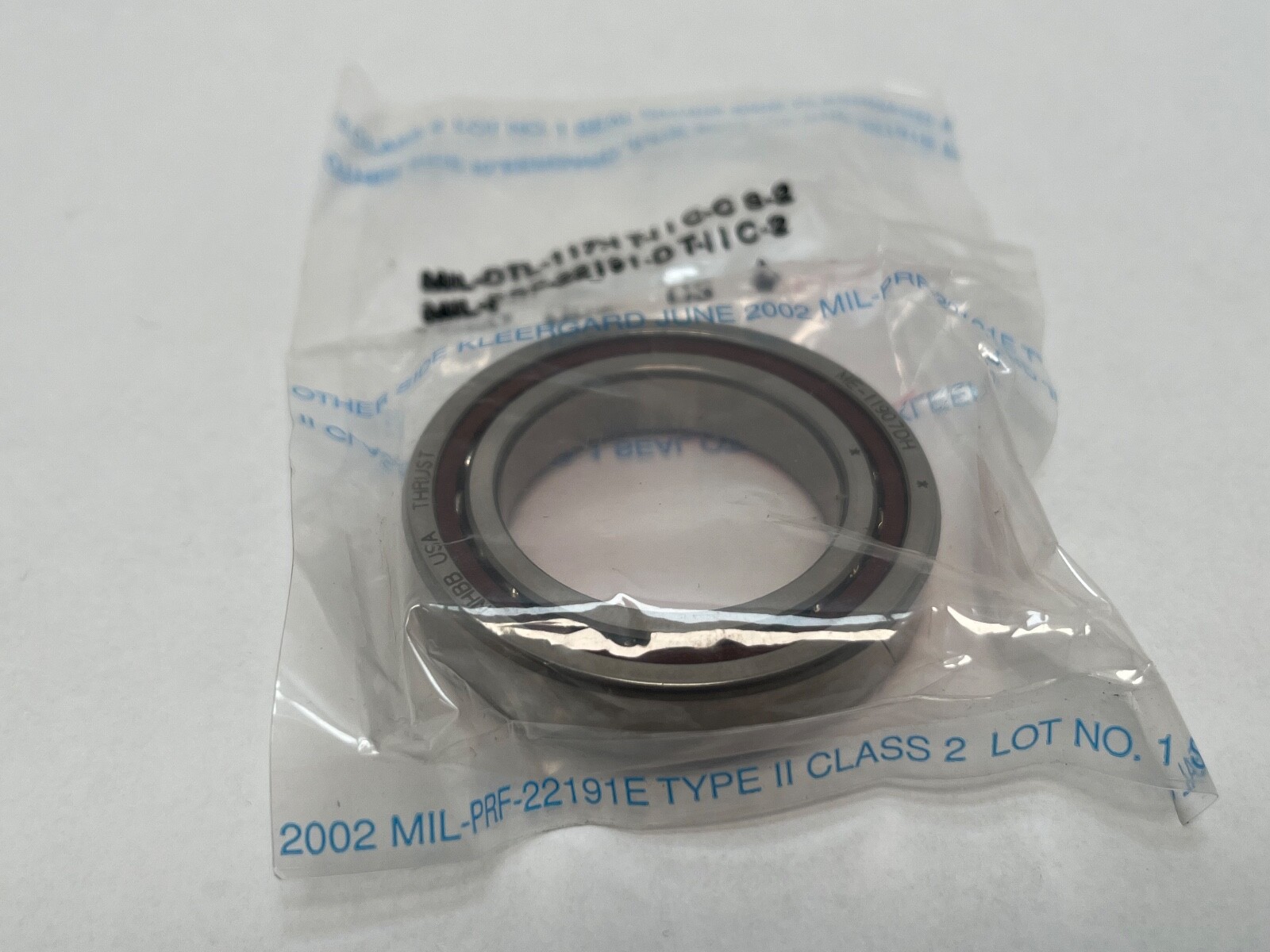

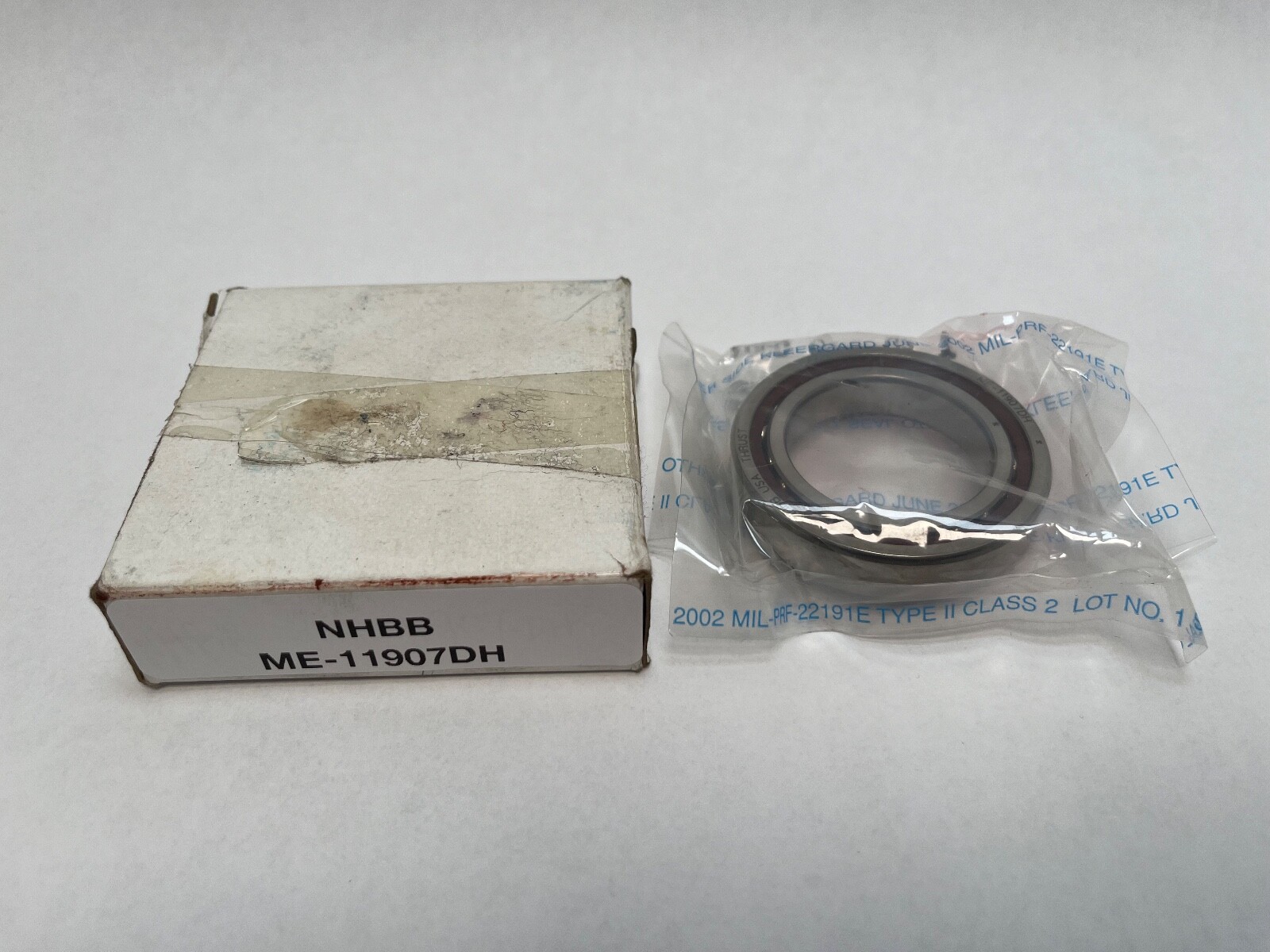

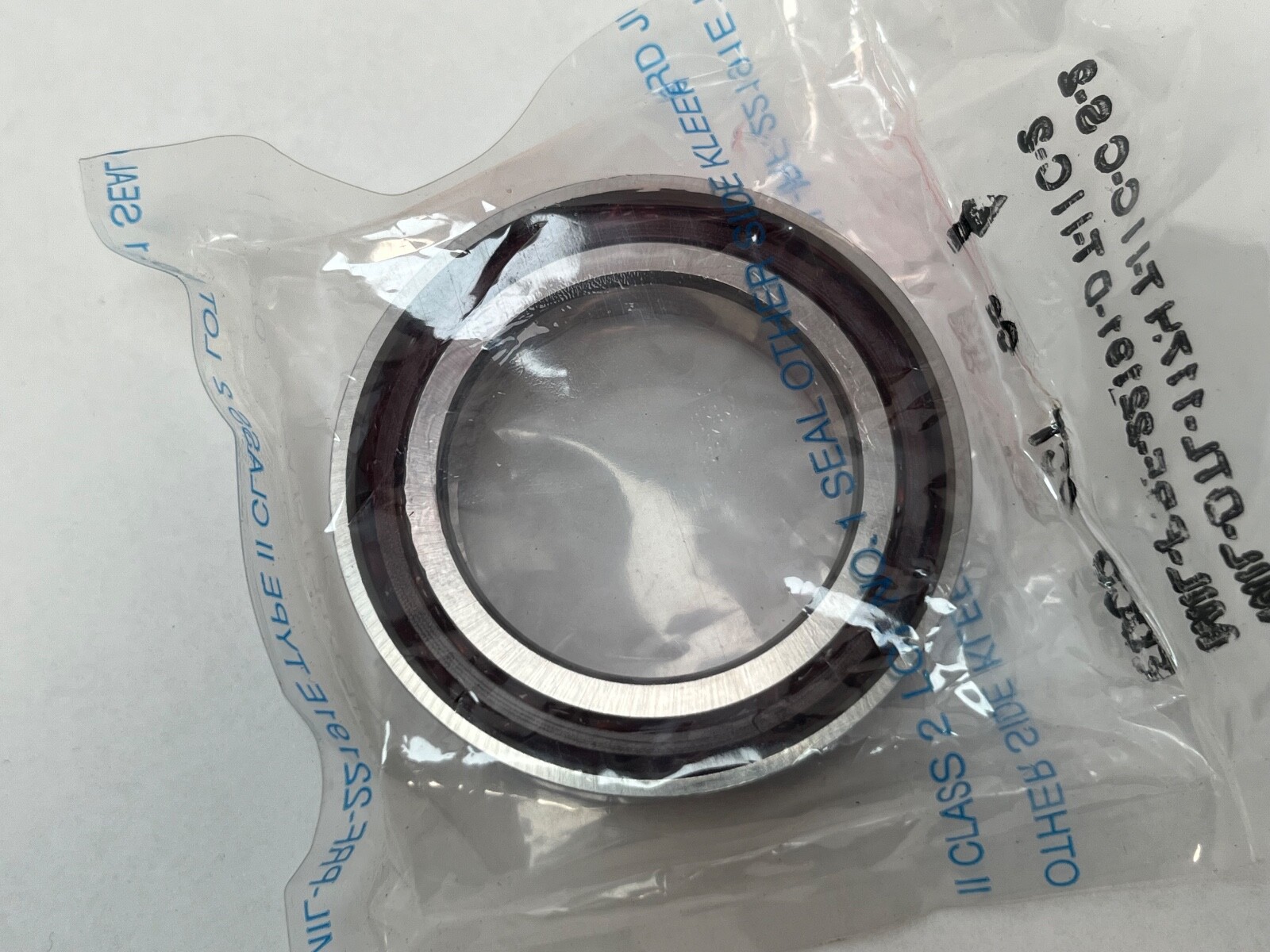

NHBB ME-11907DH-1/2PR is one super-precision angular contact ball bearing from a matched duplex set, in the 71907 ultra-light envelope, built by NHBB’s HiTech Division for machine tool spindles. Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
ME-11907 — NHBB metric angular contact size on basic number MER-1907: dimension series 19, 35 mm bore, outer ring relieved, non-separable.
D — duplex-ground bearing.
-1/2PR — one half of a duplex pair: a single bearing.
71907-C-TPA-P4 — ISO 71907 envelope, 15° contact angle, phenolic cage, P4 tolerance.
Dynamic Load Rating: 3,200 lbf. Static Load Rating: 2,450 lbf. Rolling Elements: 18 balls, 1/4 in diameter. Cage Material: Phenolic. Closure Type: Open. The thin 19-series section suits compact, high-speed spindles.
Maximum shaft or housing fillet radius: 0.024 in. Inner land diameter: 1.644 in. Outer land diameter: 1.942 in. Bore Type: Straight. Snap ring: No.
Unit Quantity: 1 Pc, one bearing from a factory duplex pair.
Same envelope, angle and class: SKF 71907 CD/P4A, FAG B71907-C-T-P4S, NSK 7907CTYNP4, Fafnir 2MM9307WI.
