Availability:
1 in stock
Super-precision angular contact ball bearing pair, 60 x 110 x 22 mm, 15° contact angle, ABEC 7 / P4, heavy preload. Matched duplex set, 2 Pcs, phenolic cage.
List Price
$310.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NHBB |
|---|---|
| Model | ME-1212-DH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | MER |
| Preload | Heavy |
| Dynamic Load Rating | 14,700 lbf |
| Static Load Rating | 11,300 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Base Number | MER-212 |
| Mpn Variants | ME-1212DH, ME-1212-DH, ME1212DH, 7212-C-TPA-P4-DUH, MER-212 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Ball complement: 14 x 5/8 in. Inner land diameter: 2.971 in. Outer land diameter: 3.722 in. Max fillet radius: 0.059 in. |
| Cross Reference 1 | Fafnir 2MM212WI DUH |
|---|---|
| Cross Reference 2 | NSK 7212CTYNDUHP4 |
| Cross Reference 3 | SKF 7212 CD/P4ADGC – medium preload, not heavy |

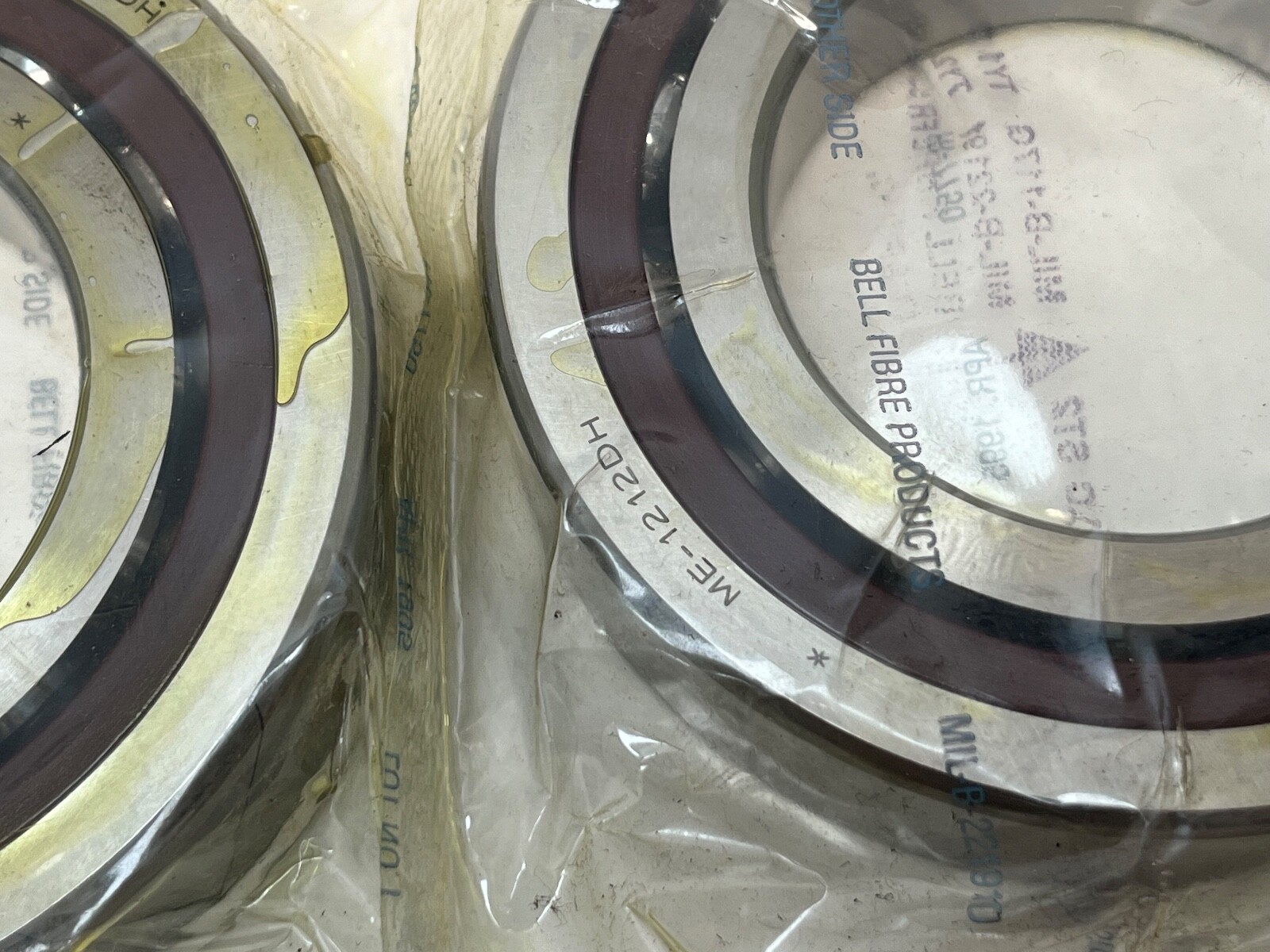

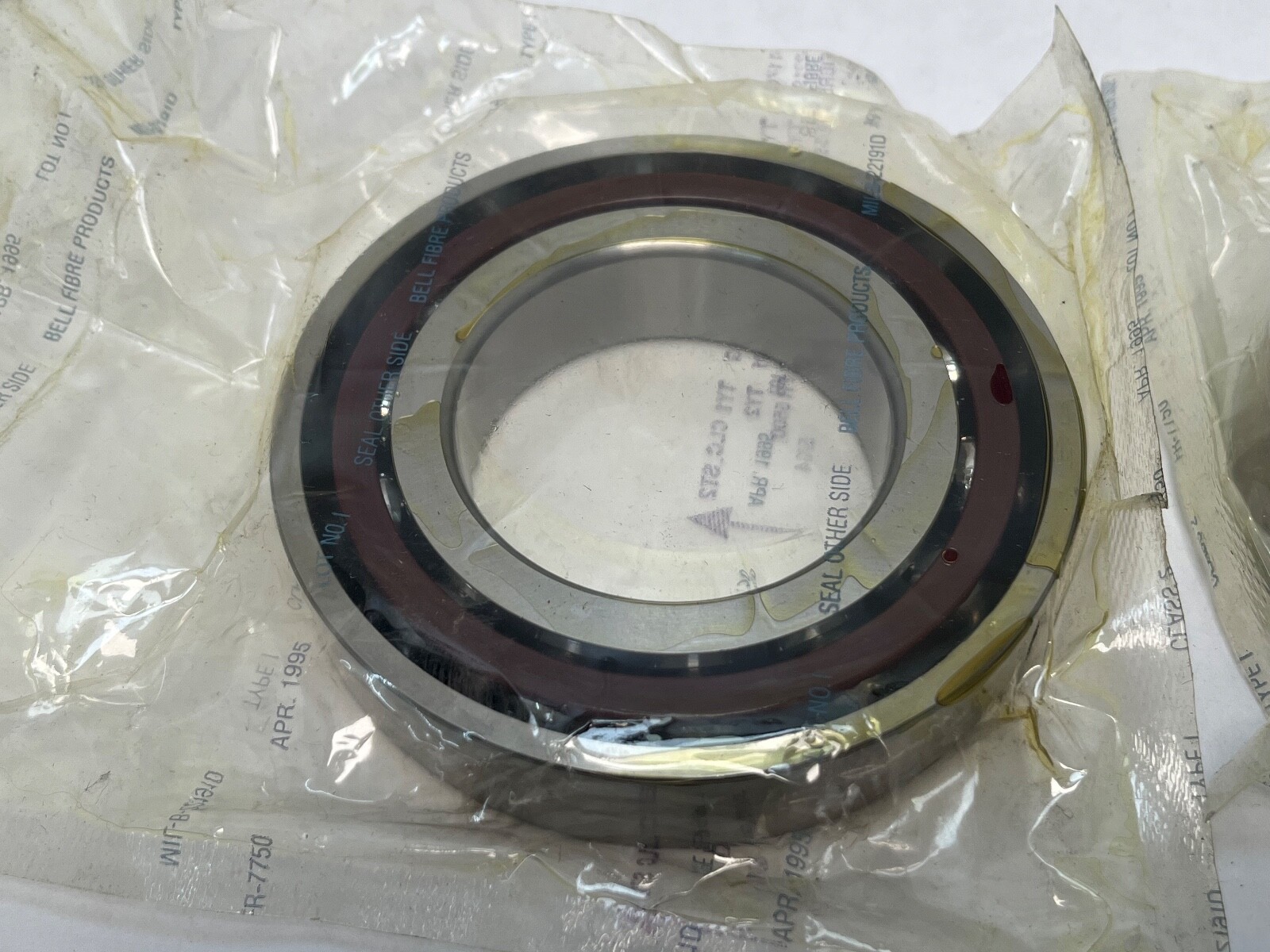

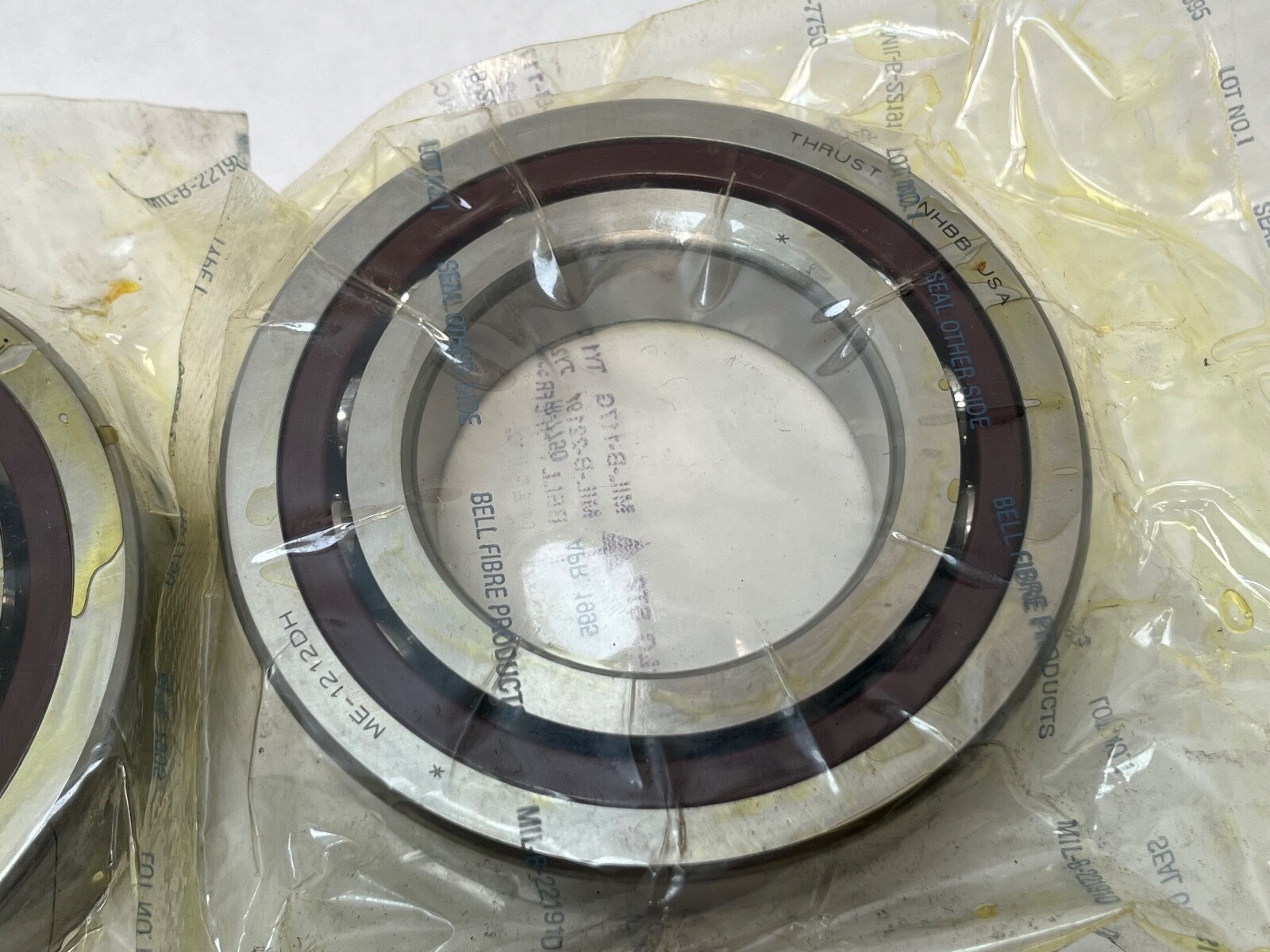

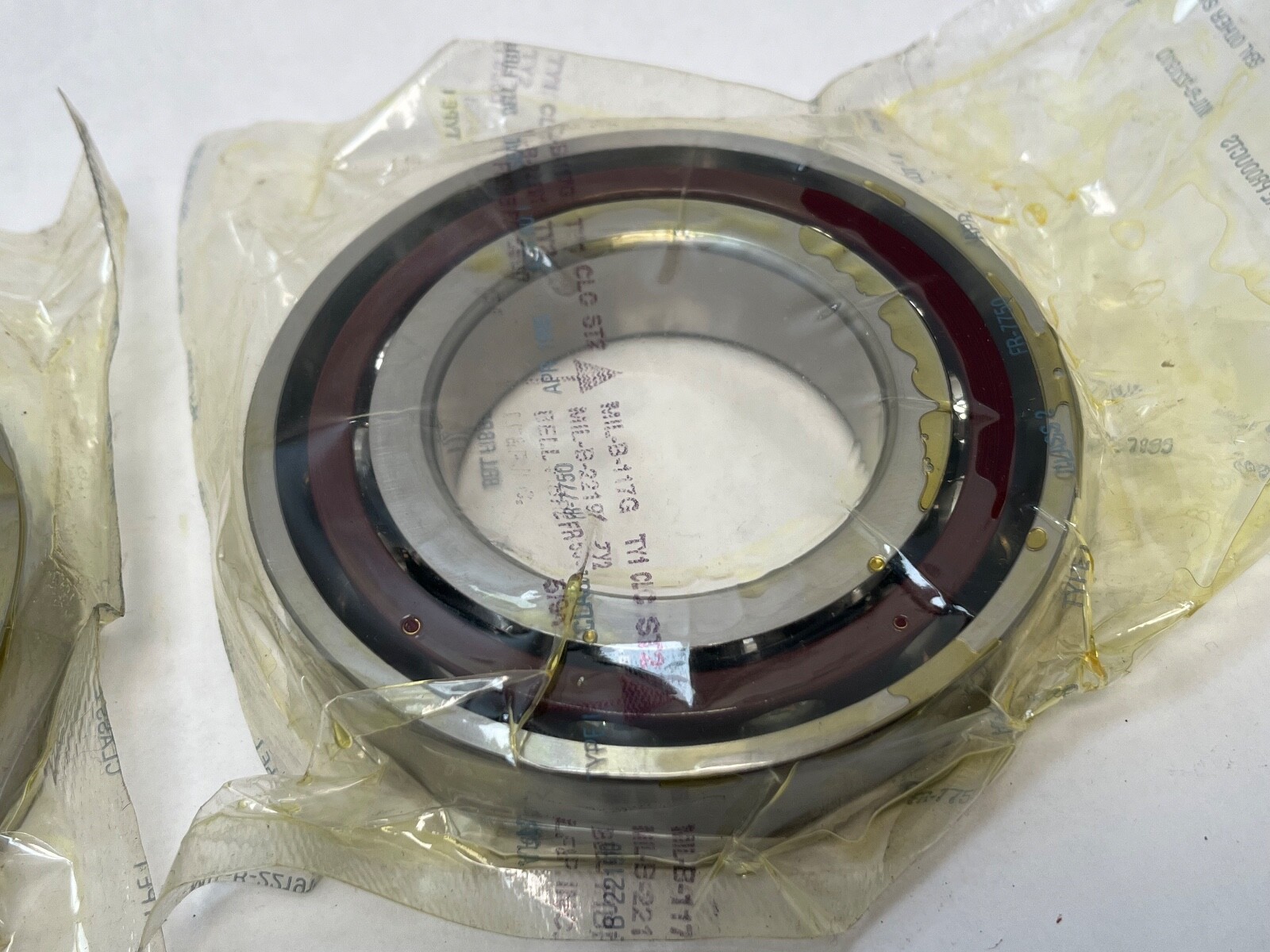

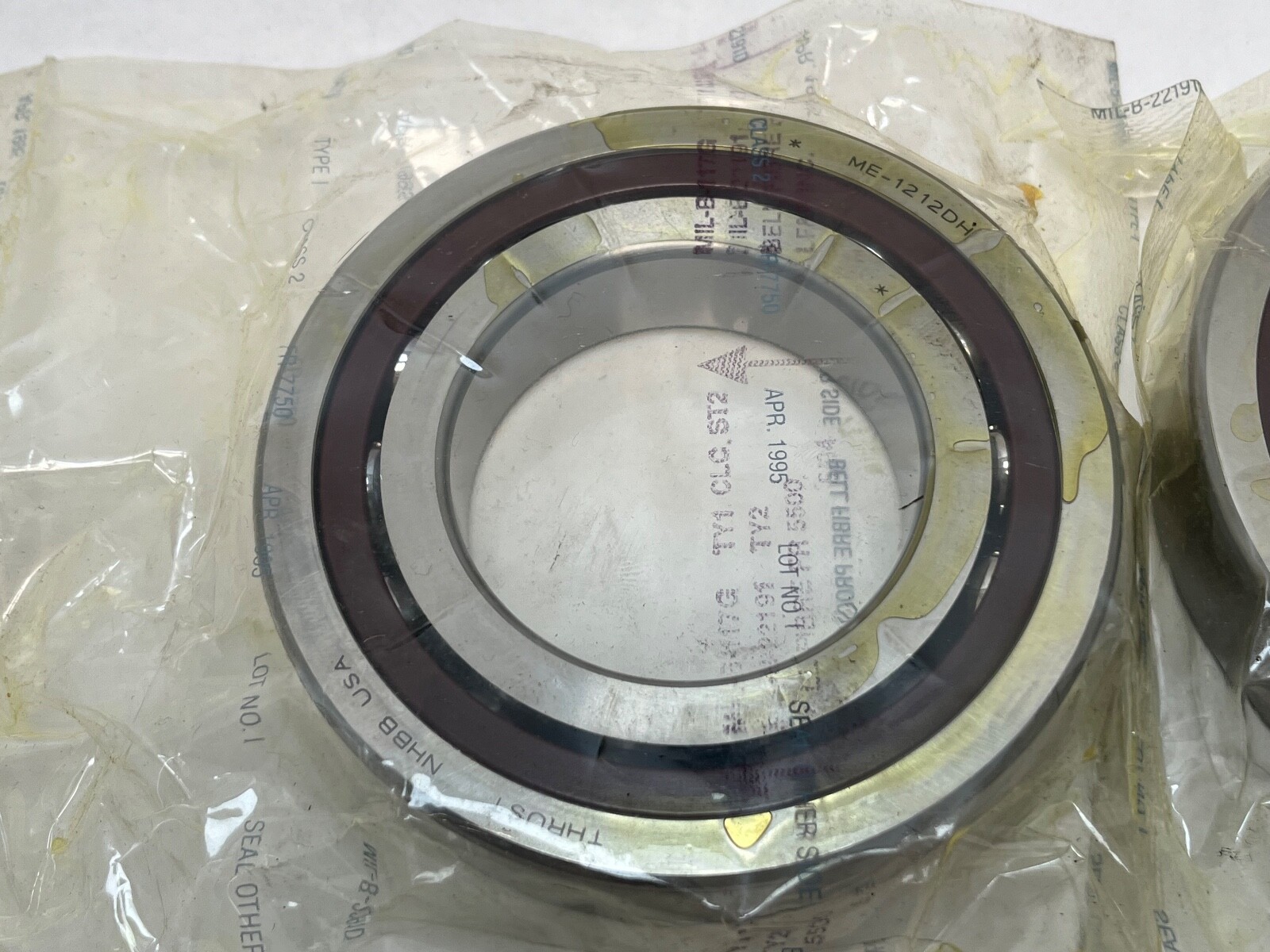

NHBB ME-1212DH is a matched pair of super-precision angular contact ball bearings in the 7212 envelope, built by NHBB’s HiTech Division for machine tool spindles. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
ME-1212 — NHBB metric angular contact size on basic number MER-212: dimension series 02, 60 mm bore, outer ring relieved, non-separable.
DH — duplex set, heavy preload. The carton cross 7212-C-TPA-P4-DUH reads the same: duplex universal, heavy preload.
7212-C-TPA-P4 — ISO 7212 envelope, 15° contact angle, phenolic cage, P4 tolerance.
Dynamic Load Rating: 14,700 lbf per bearing. Static Load Rating: 11,300 lbf per bearing. Rolling Elements: 14 balls, 5/8 in diameter. Cage Material: Phenolic. Closure Type: Open. Heavy preload gives the highest spindle stiffness of the light, medium and heavy preload levels.
Maximum shaft or housing fillet radius: 0.059 in. Inner land diameter: 2.971 in. Outer land diameter: 3.722 in. Bore Type: Straight. Snap ring: No.

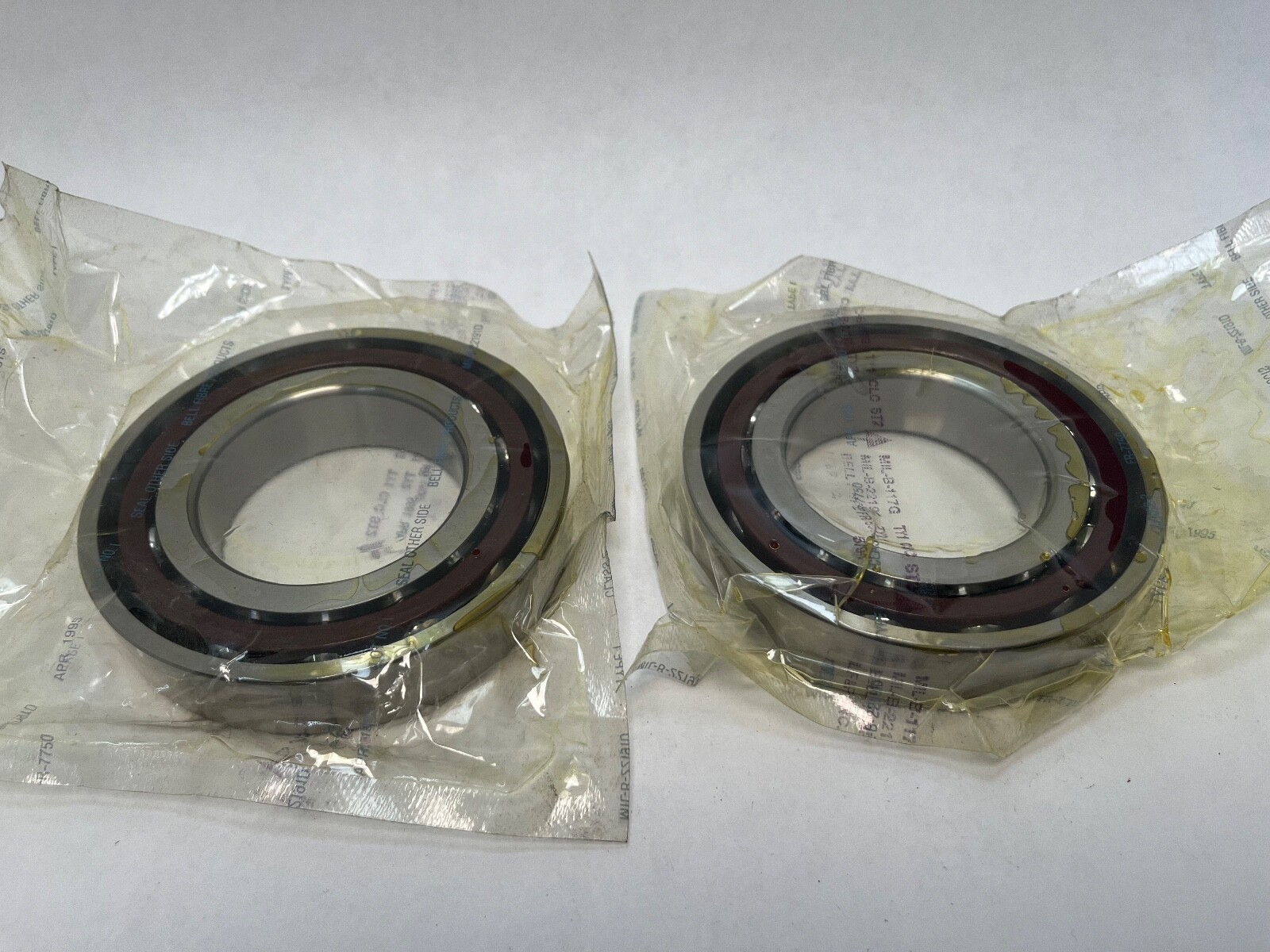

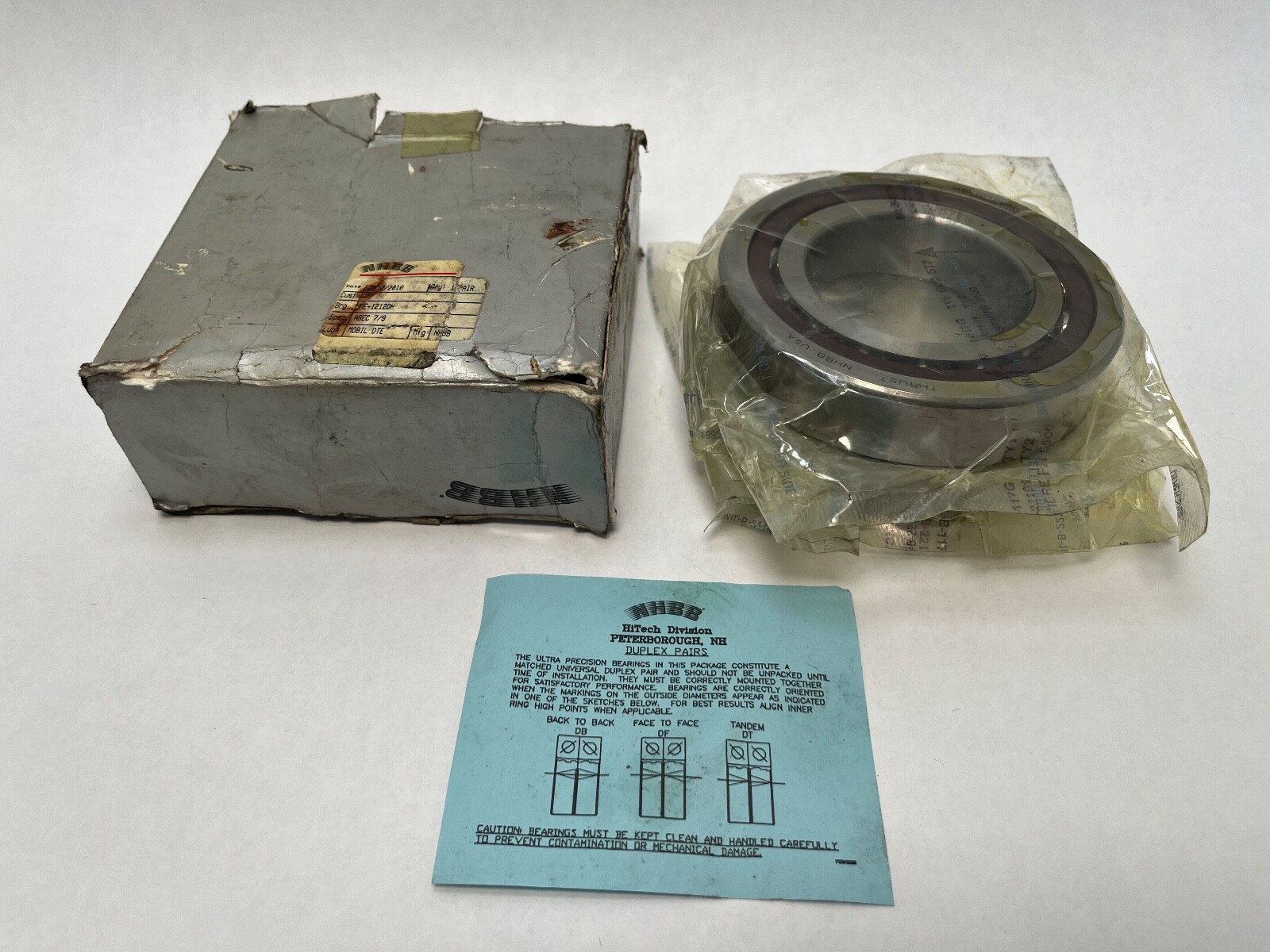

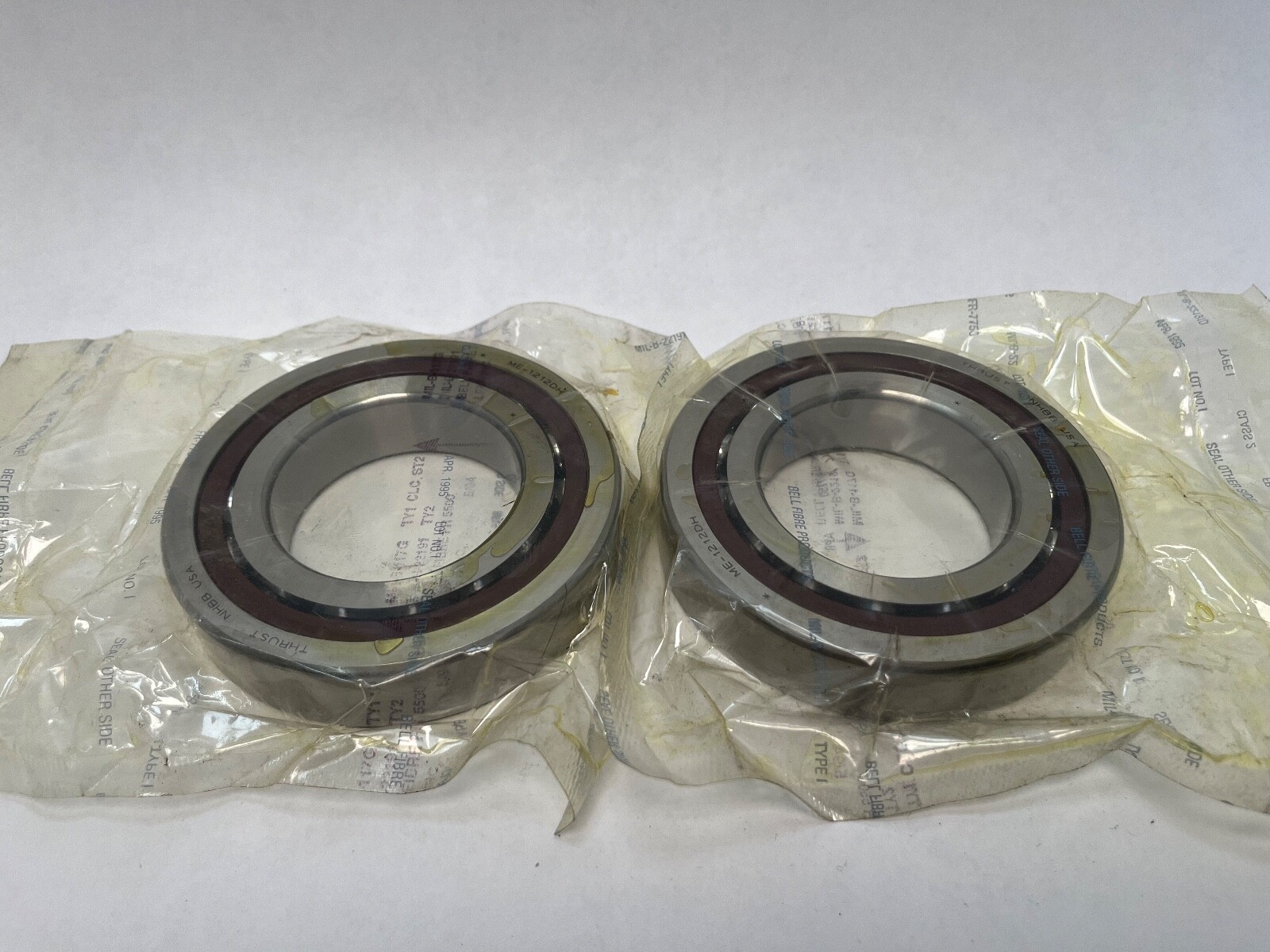

Unit Quantity: 2 Pcs, one matched duplex pair. Preload: Heavy. Mounting Arrangement: Universal, for back-to-back, face-to-face or tandem mounting.
15° contact angle, ABEC 7 / P4, heavy preload: Fafnir 2MM212WI DUH, NSK 7212CTYNDUHP4. SKF 7212 CD/P4ADGC has medium preload, not heavy.
