SKF7005 ACD/P4ADGAAngular Contact Ball Bearing – 25 mm Bore, 47 mm OD, 12 mm Width, 25° Contact Angle, ABEC 7 / P4A, Extra Light Preload

Product Description

What this part is:

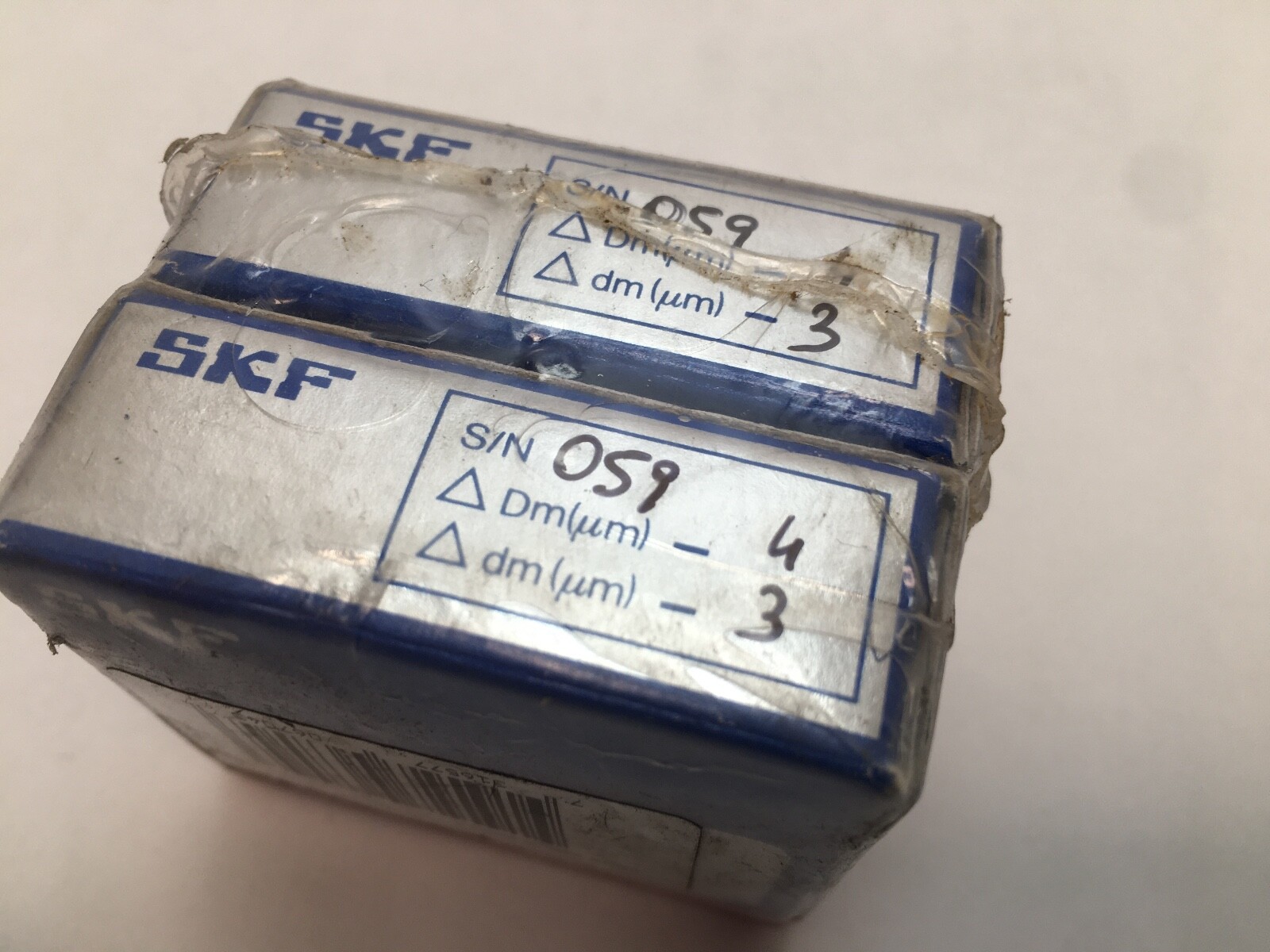

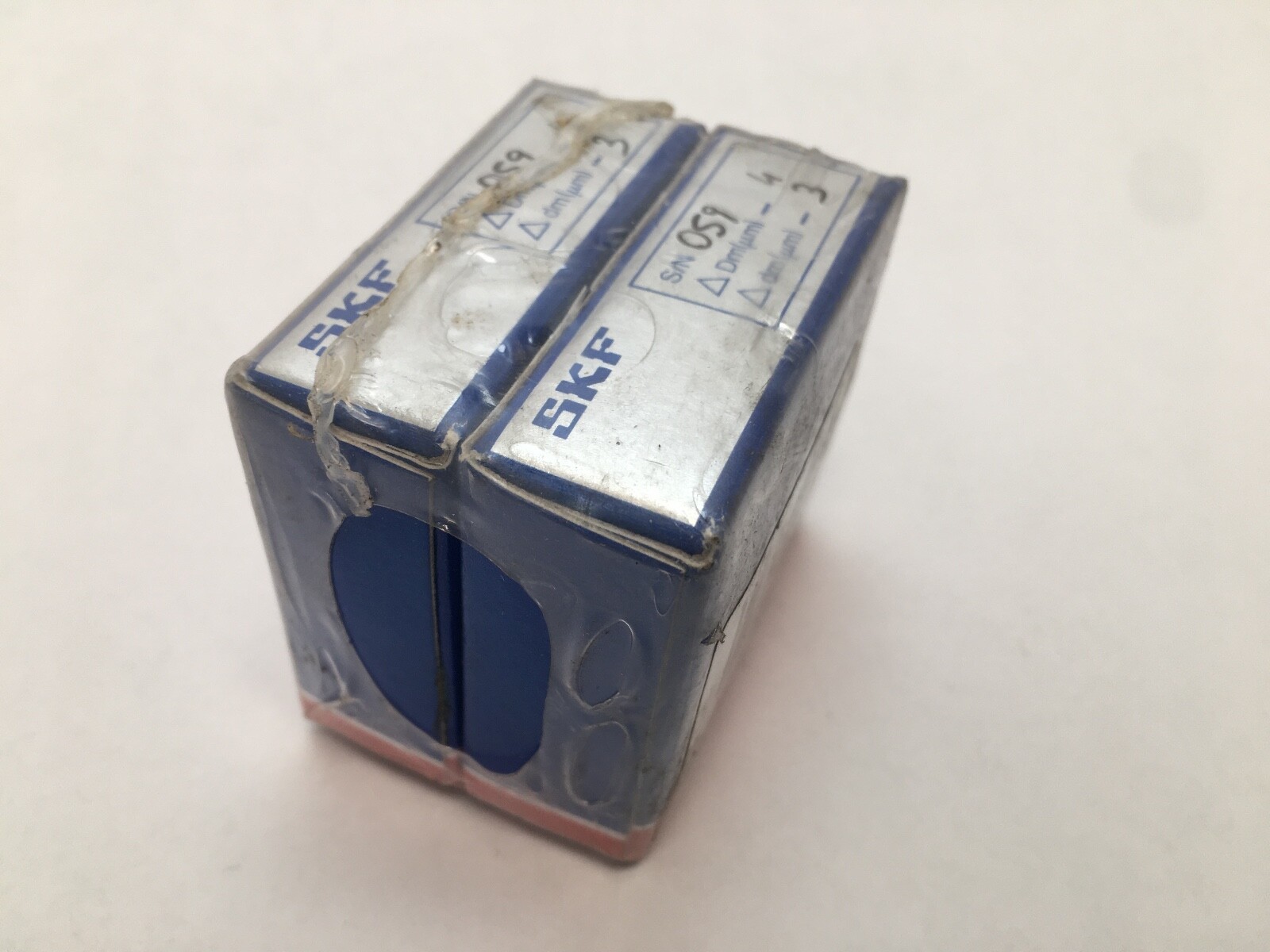

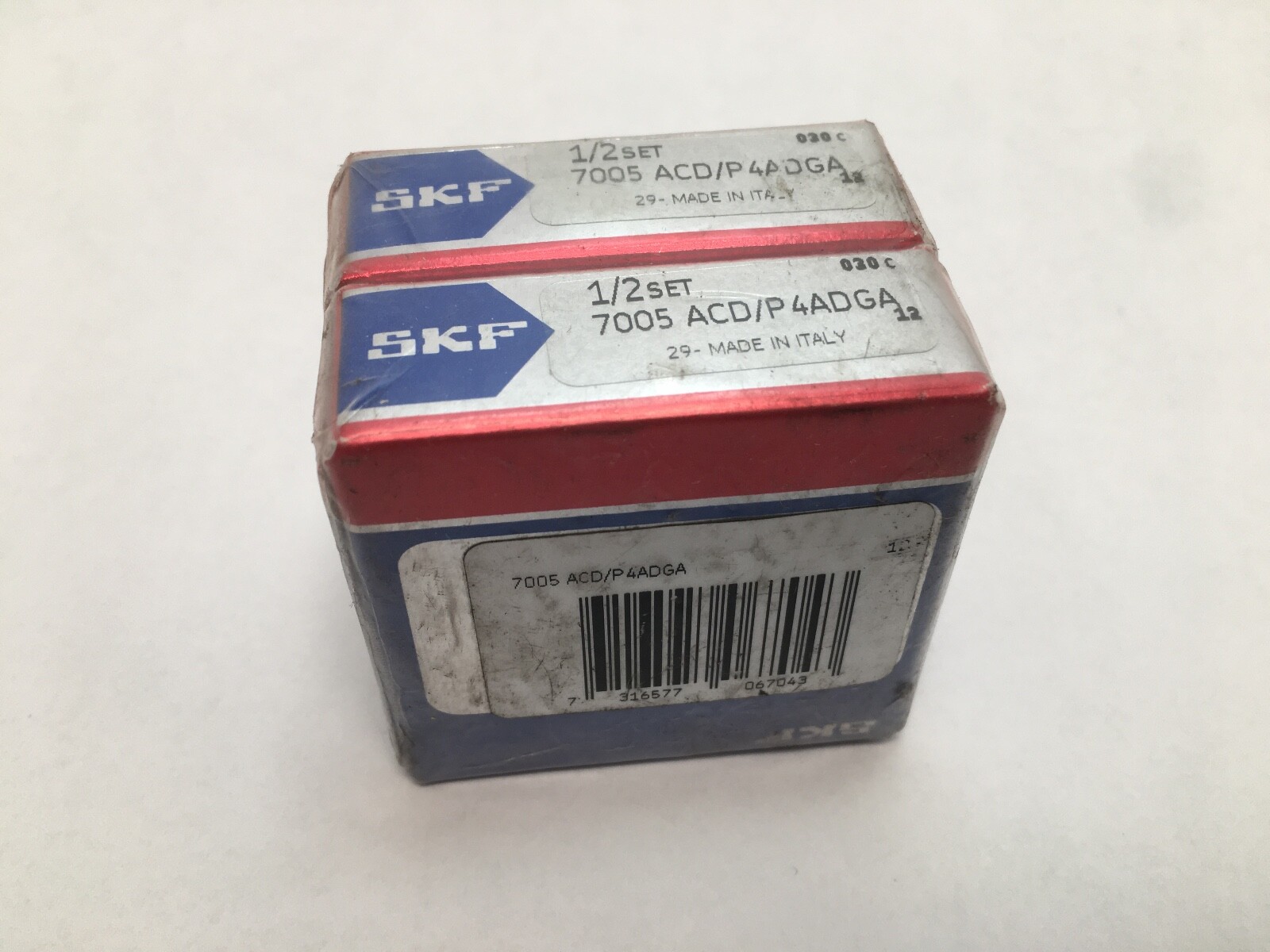

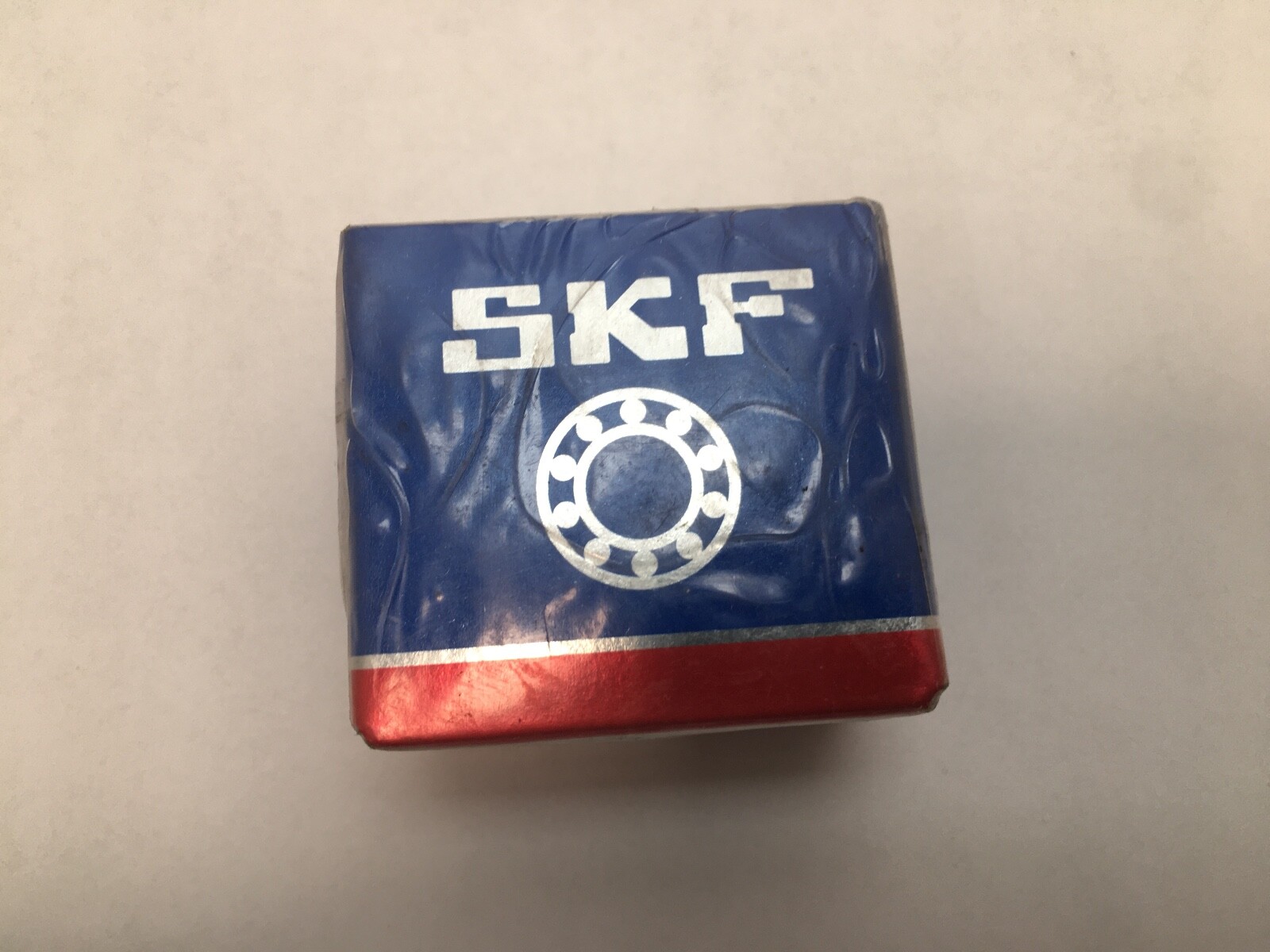

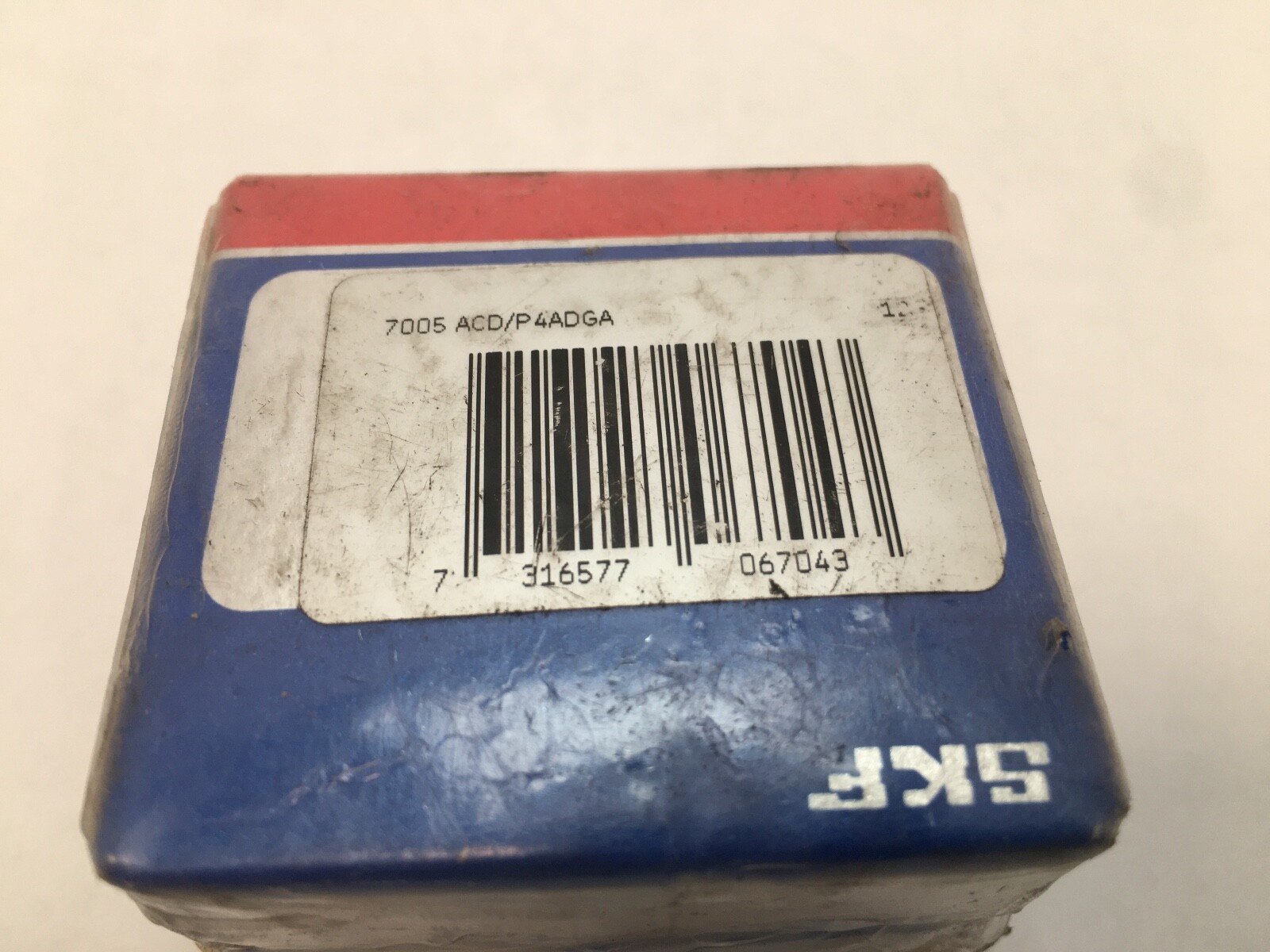

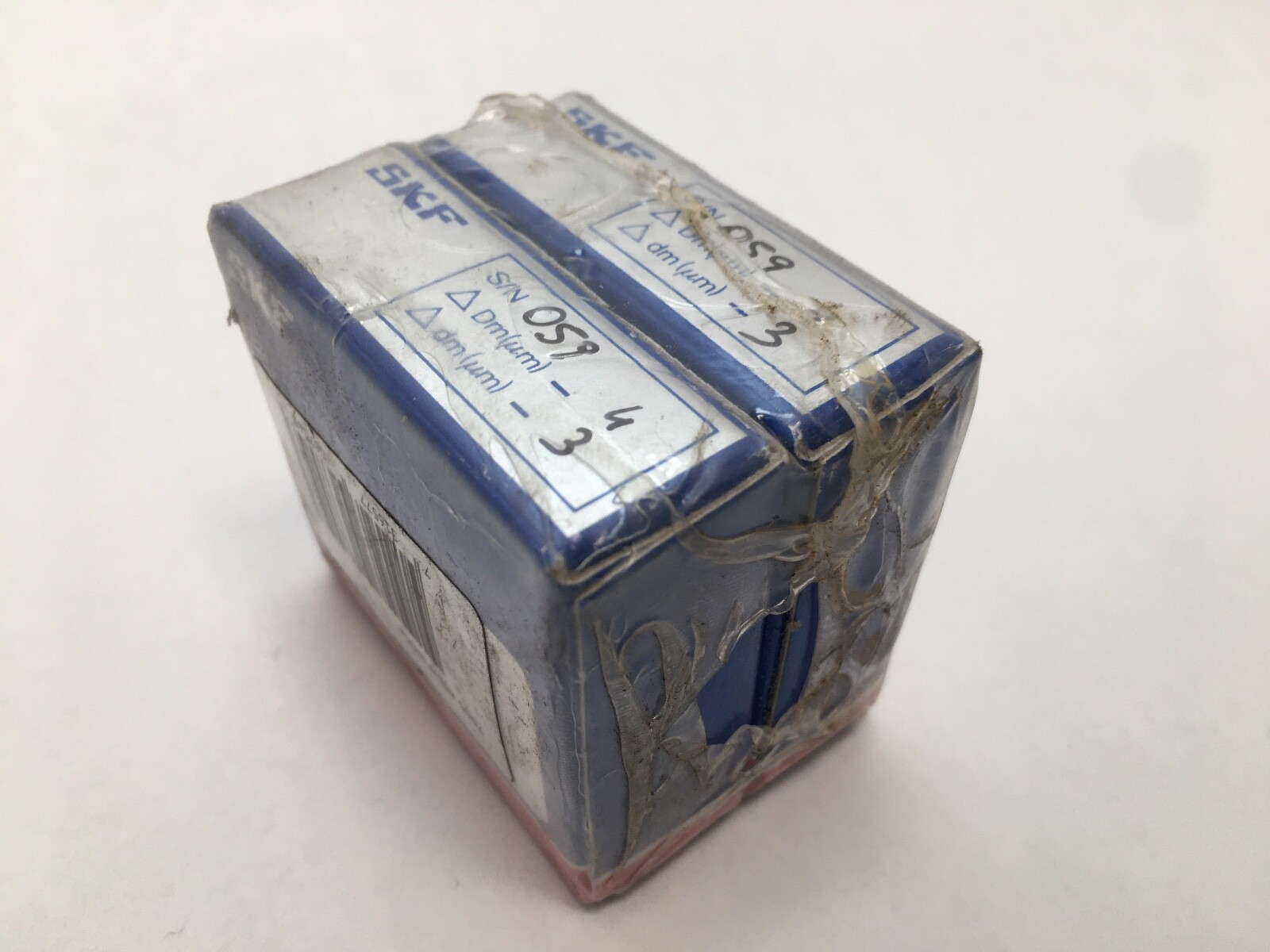

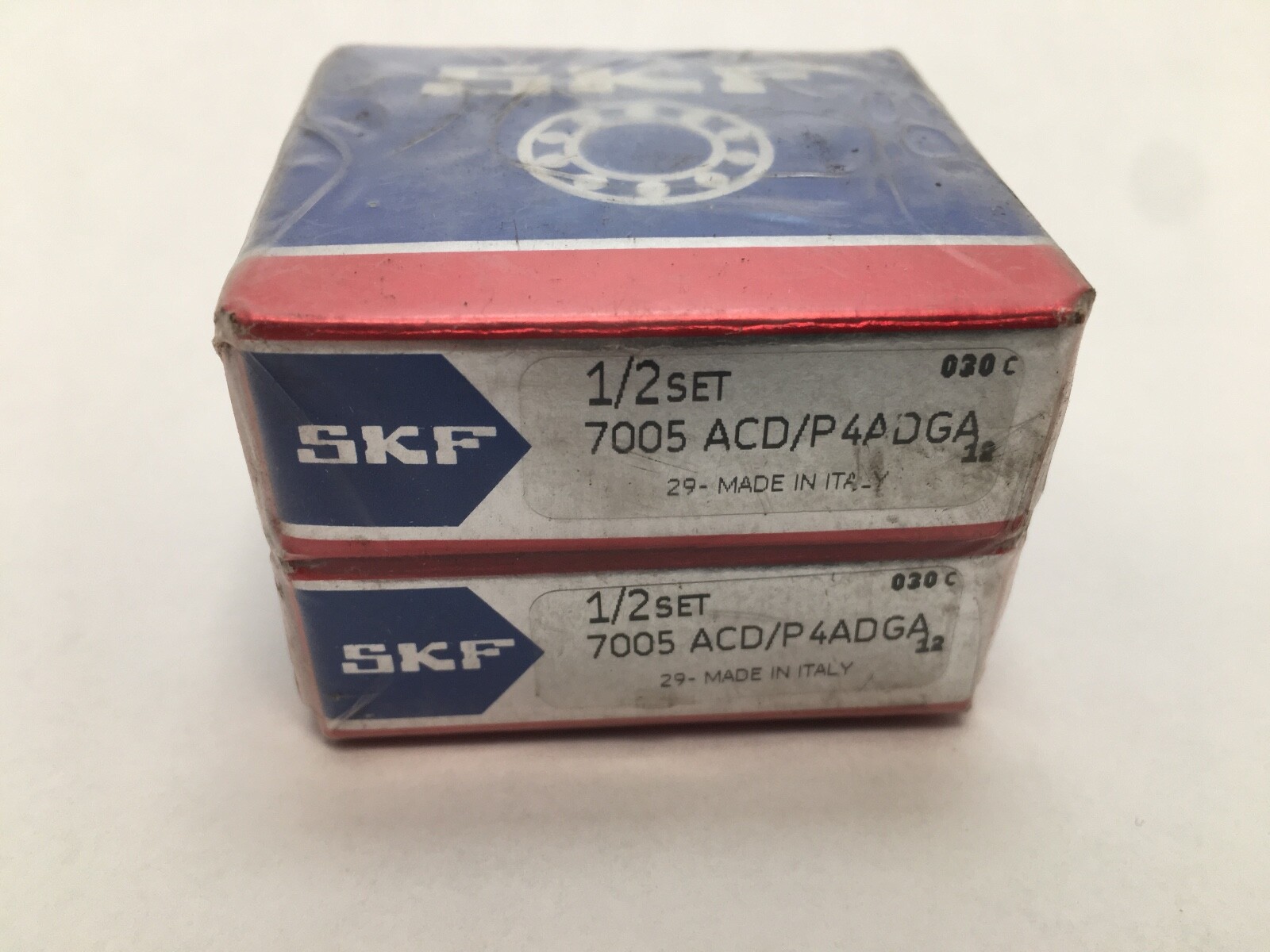

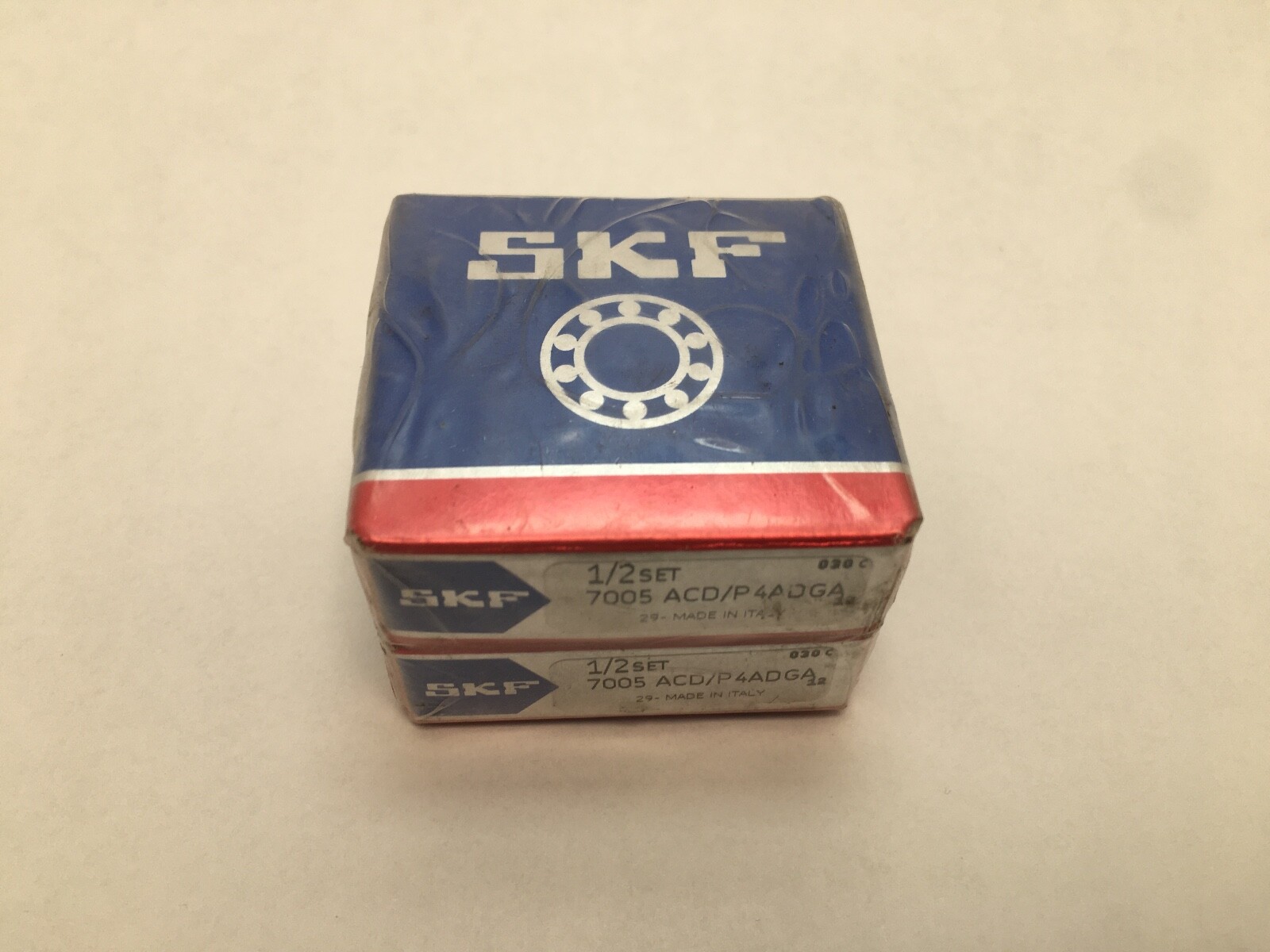

SKF 7005 ACD/P4ADGA matched set of two super-precision, high-capacity D design, single-row angular contact ball bearings, universally matchable. Unit Quantity: 2 Pcs. Country of Origin: Italy. GTIN: 7316576638237.

Decoding the designation:

7005 — ISO 70 light dimension series, bore code 05, giving a 25 x 47 x 12 mm envelope per bearing.

ACD — high-capacity D design ground to a 25° contact angle.

P4A — SKF super-precision tolerance class P4A, ABEC 7 running accuracy.

DGA — universally matchable set of two bearings, extra light preload.

Specifications:

Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm per bearing. Total Width: 24 mm across the matched pair. Contact Angle: 25°. Precision Class: ABEC 7 / P4A. Dynamic Load Rating: 14,800 N for the matched set. Static Load Rating: 10,000 N for the matched set. Preload: Extra light preload. Cage Type: Outer-ring shoulder-guided. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Item Weight: 0.154 kg (0.34 lb) per matched pair.

Dimensions and mounting:

Mounting Arrangement: universal matching, back-to-back (DB), face-to-face (DF) or tandem (DT). Contact type: normal contact (two-point). Ring type: one-piece inner and outer rings. Number of bearings in the matched set: 2. The set is preloaded and carries no internal clearance class. Harmonization Code: 8482.10.50. eCl@ss code: 23-05-08-04. UNSPSC code: 31171531. Indicative carbon footprint for a new product: 0.57 kg CO2e.

Compatibility and replacement:

Cross-references at 25° contact angle in 25 x 47 x 12 mm: FAG B7005-E-T-P4S; NSK 7005A5TYNSULP4 (single bearing, light preload); RHP 7005A5TDULP4. Part number forms: 7005 ACD/P4ADGA, 7005-ACD/P4ADGA, 7005ACDP4ADGA.

Frequently asked questions:

What contact angle does the SKF 7005 ACD/P4ADGA have?

25°, from the ACD design code.

What is included in the SKF 7005 ACD/P4ADGA set?

Two universally matchable single-row angular contact ball bearings, each 25 x 47 x 12 mm. Dynamic Load Rating 14,800 N and Static Load Rating 10,000 N apply to the set.

What do P4A and DGA mean?

P4A is the SKF super-precision tolerance class, ABEC 7 running accuracy. DGA is a universally matchable set with extra light preload.
