Availability:
2 in stock
Angular contact ball bearing, 25 x 47 x 12 mm, 30° contact angle, ball-guided cage, open design, ABEC 5 precision, straight bore, single row.
List Price
$66.39
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 7005ATYP5 |
| Model | 7005 A TY P5 / 3MM9105 WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Base Number | 7005 |
| Industry Terms | Angular contact ball bearing, precision ball bearing, 30 degree contact angle bearing, thrust ball bearing |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7005ATYP5, 7005-A-TY-P5, 7005A, 7005 A TY P5, 7005E, 3MM9105WICR, 3MM9105 WI CR |
| Precision Class | P5 (ABEC 5) |
| Min Temp | -30°C |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 15.4 kN |
| Static Load Rating | 8.0 kN |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Item Weight | 0.17 lbs |
| Cage Material | Not specified |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Plain outer ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 30° |
| Design Units | Metric |
| Bearing Material | Bearing Steel |
| Part Number | 7005ATYP5 |
| Cross Reference 1 | SKF 7005 ACD/P5 (related size, 25° contact angle) |
|---|---|
| Cross Reference 2 | FAG B7005-E-T-P5 (related size, 25° contact angle) |
| Cross Reference 3 | Fafnir 3MM9105WI-CR (related size, 25° contact angle) |

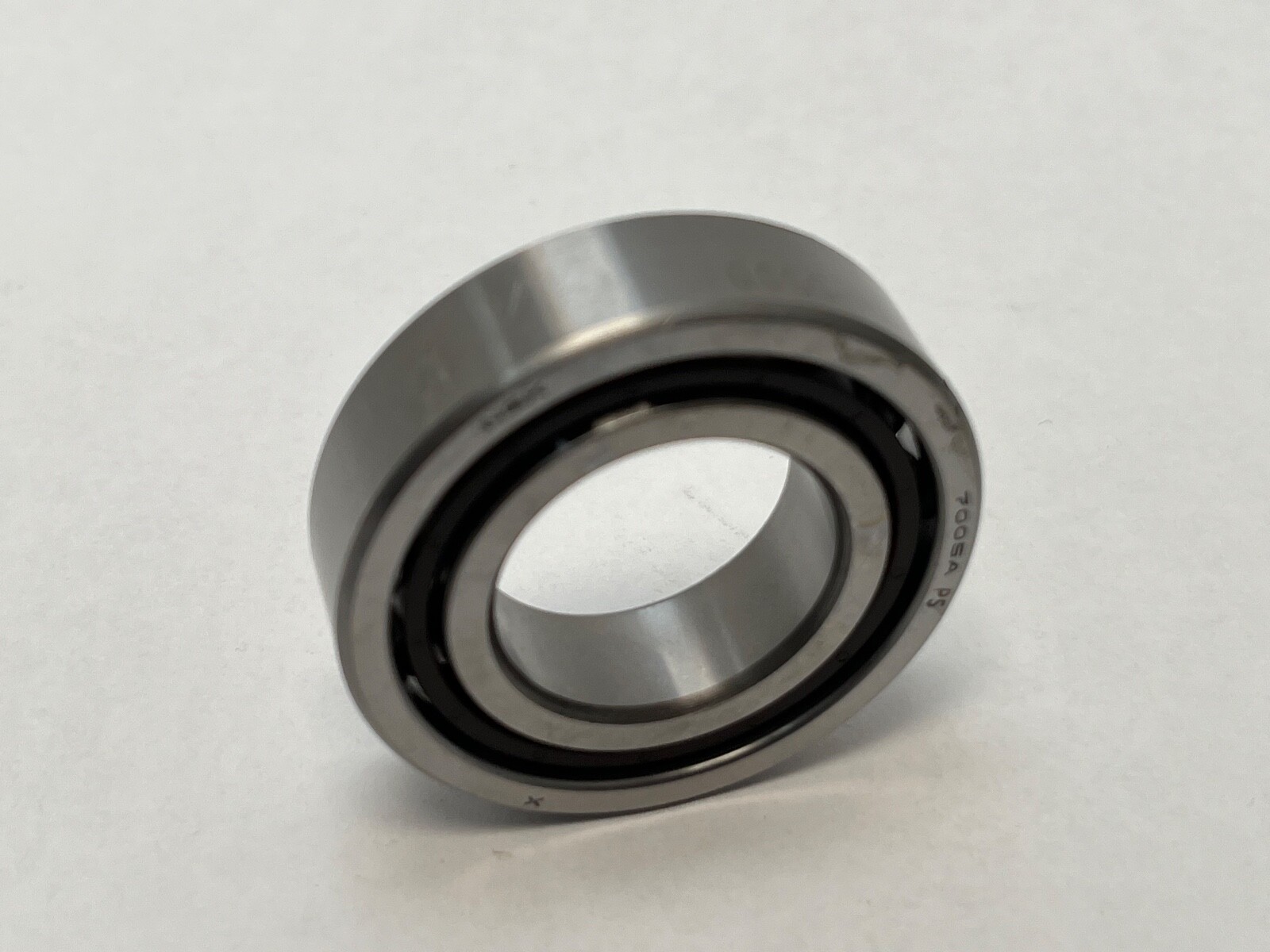

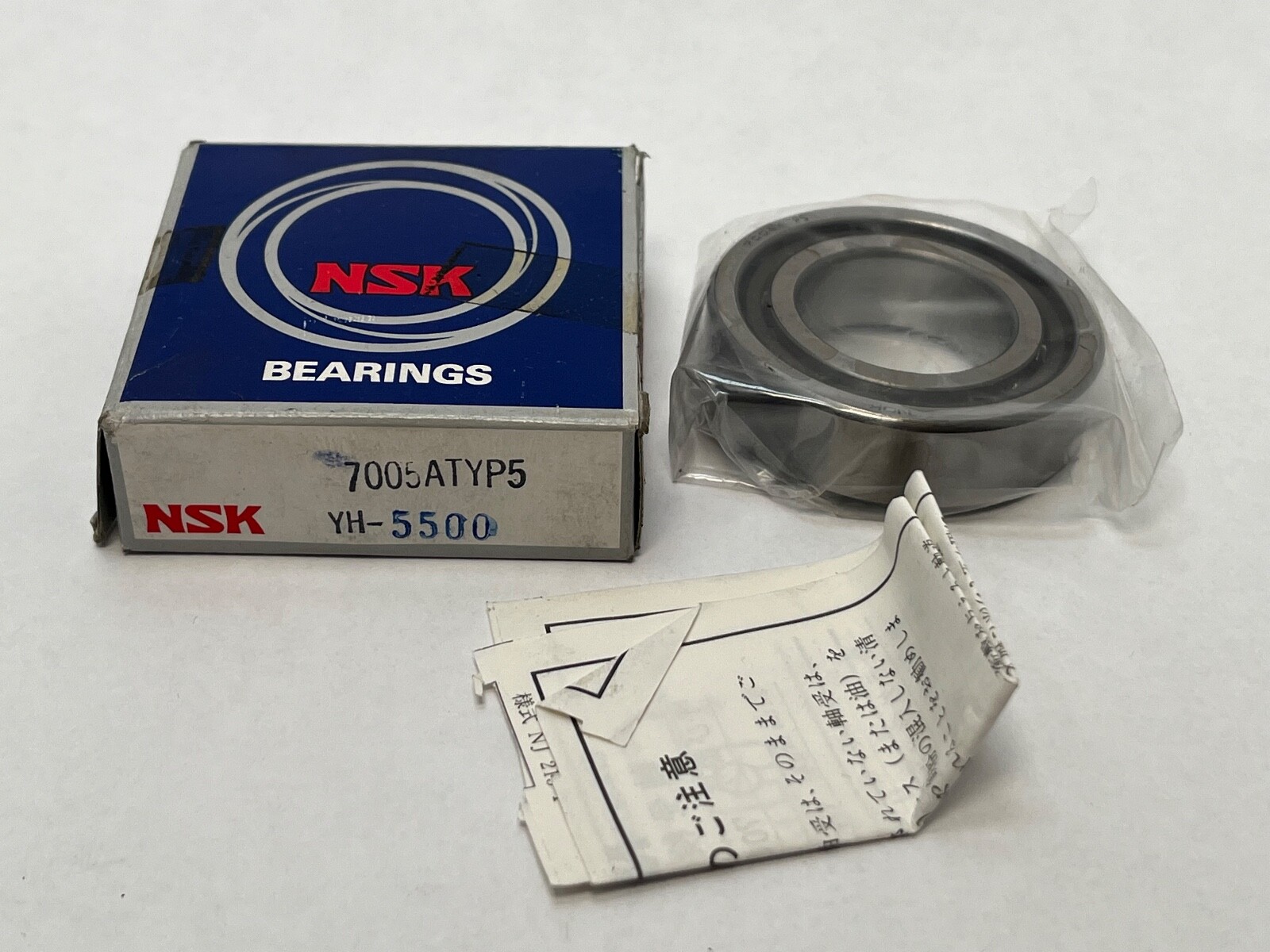

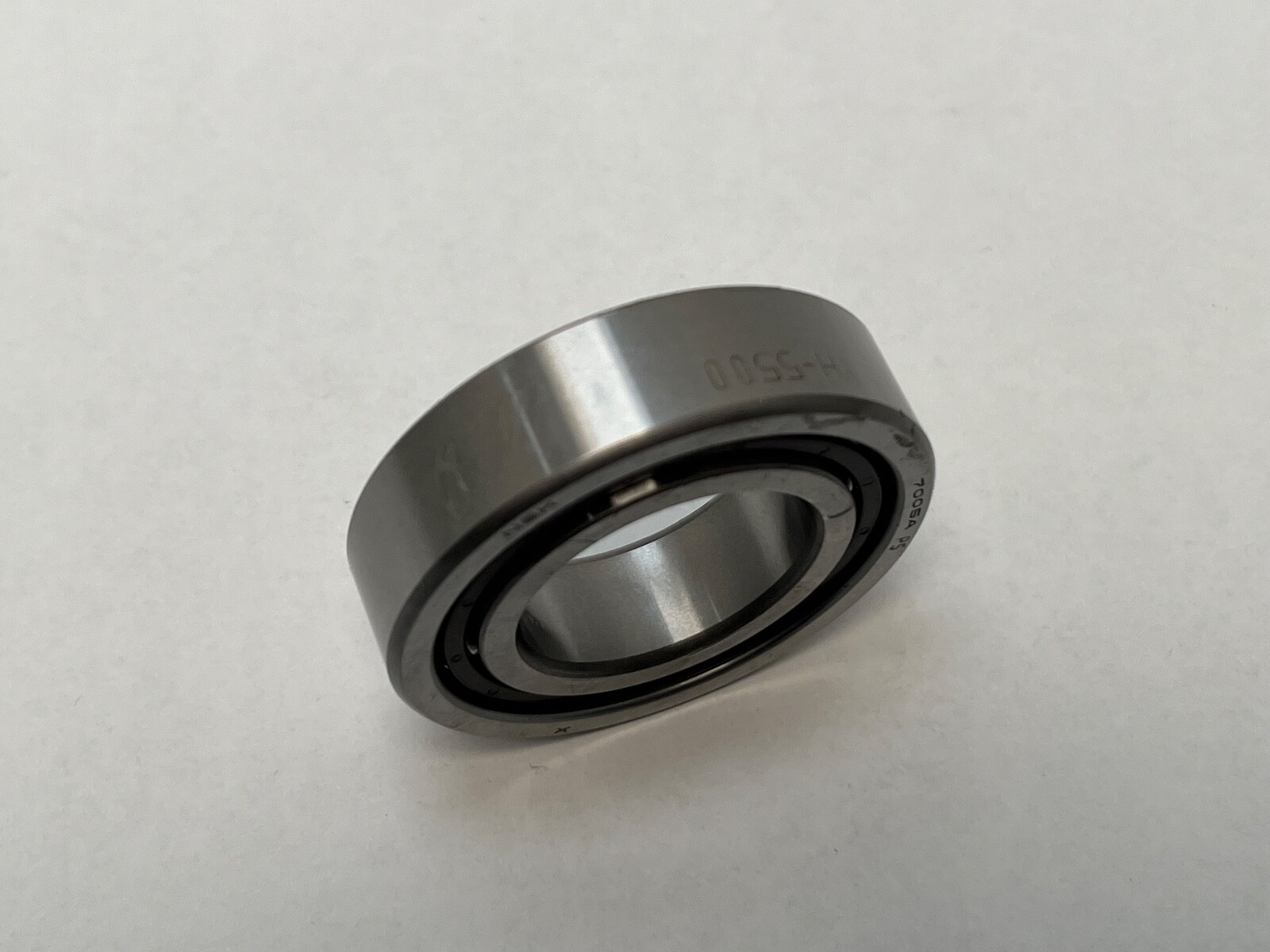

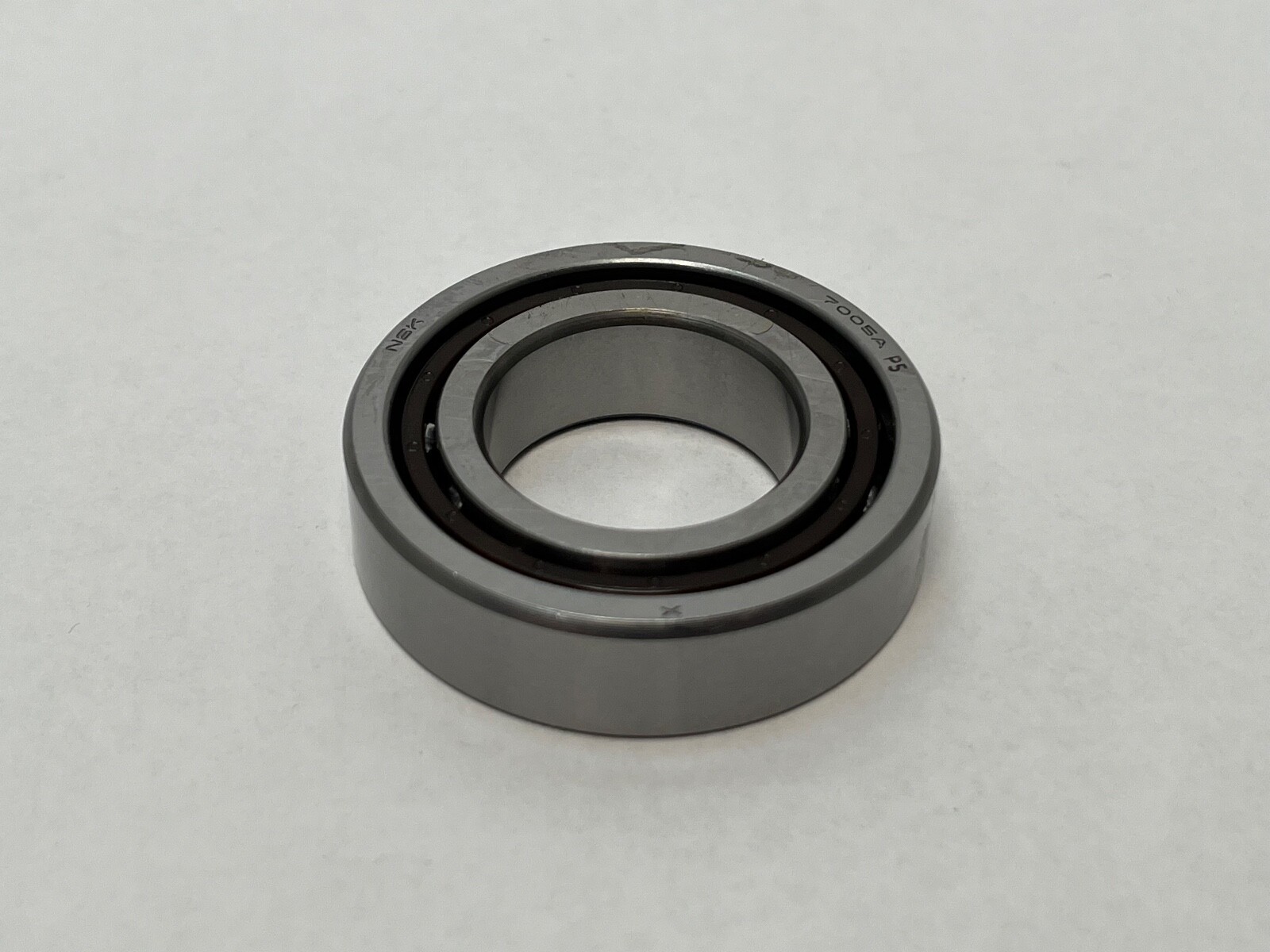

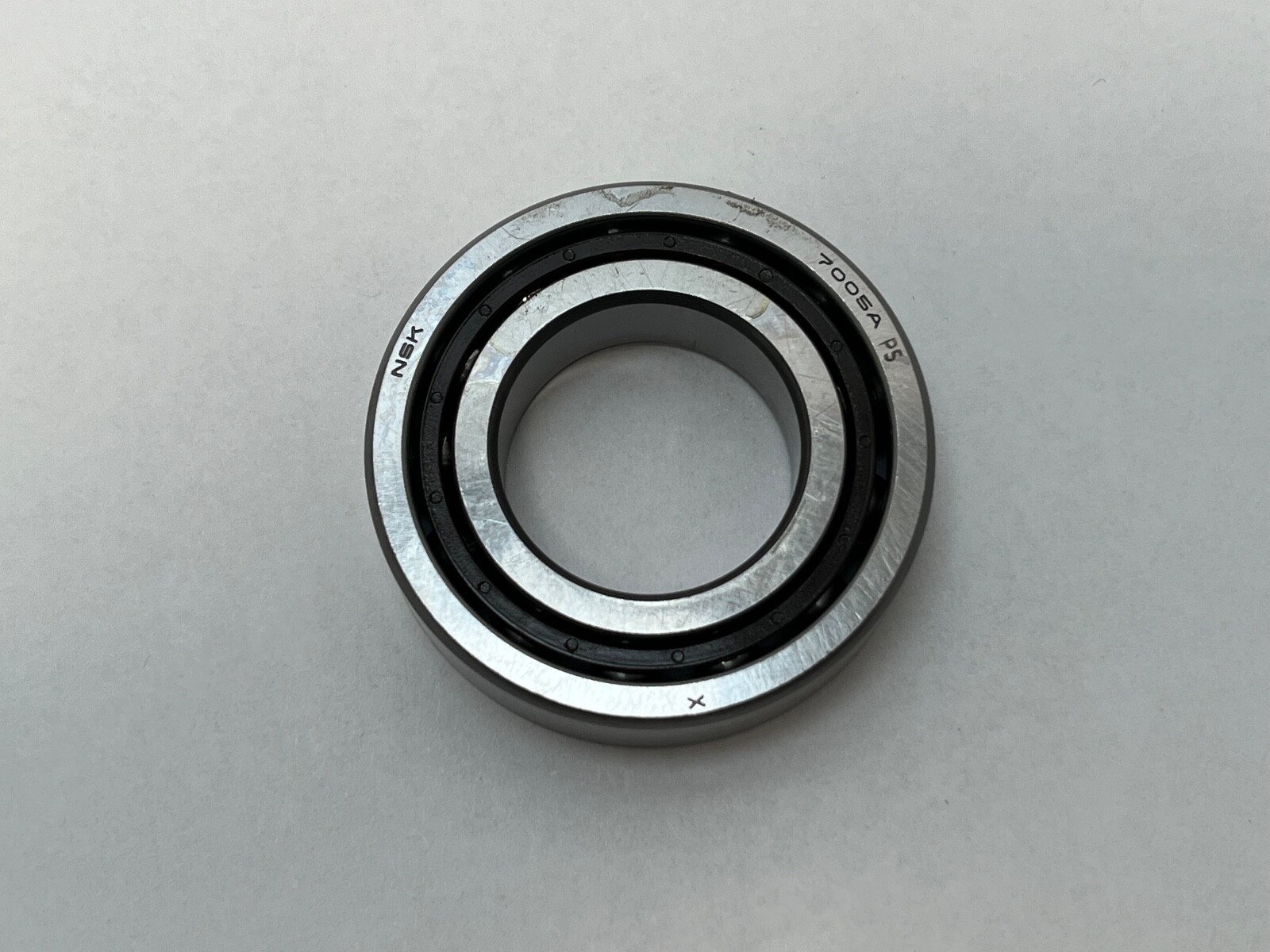

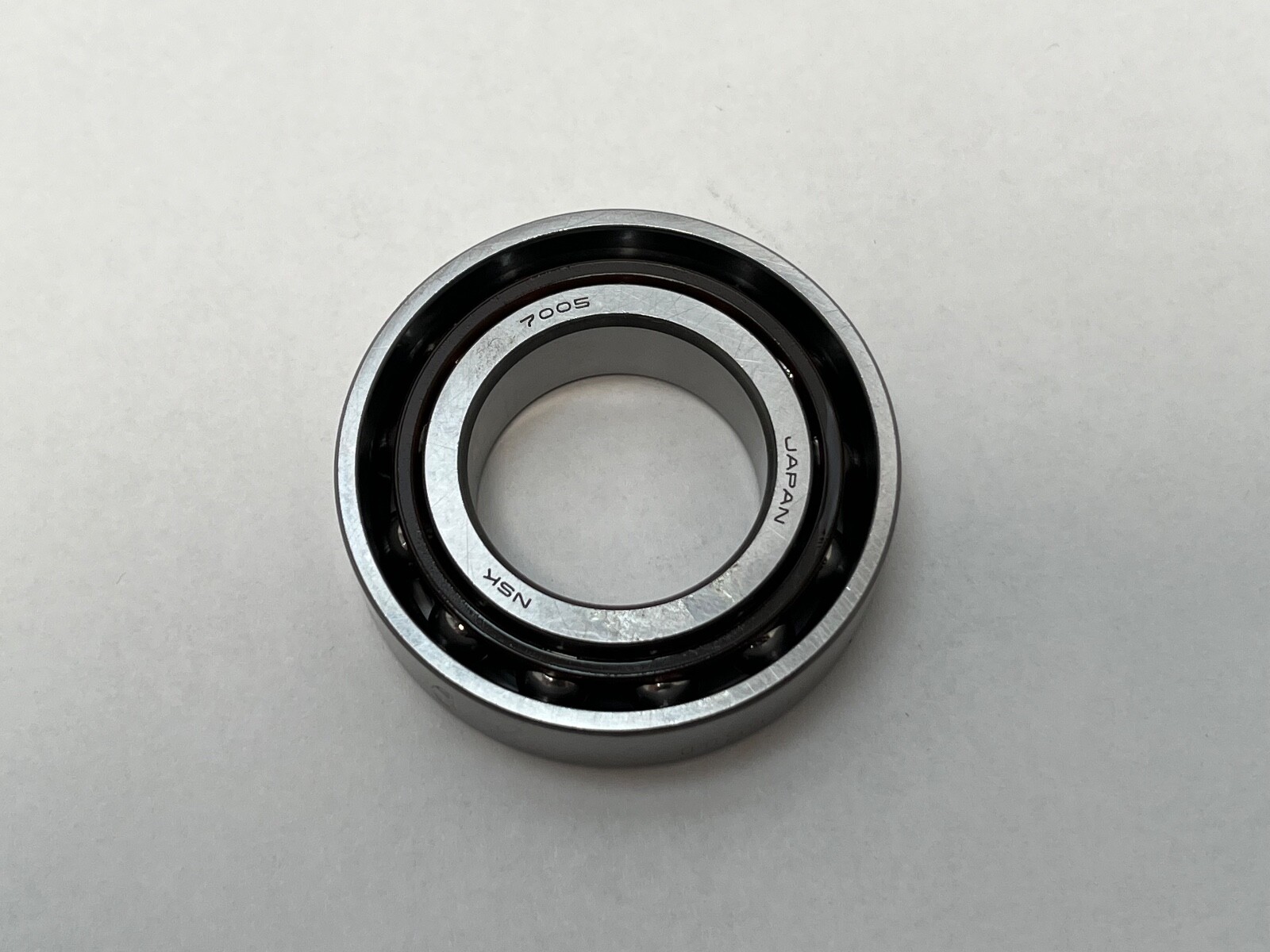

NSK 7005ATYP5 single-row angular contact ball bearing, ISO dimension series 10. Bore: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Contact Angle: 30°. Precision Class: P5 (ABEC 5). Cage Type: Ball-guided. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Balls. Bearing Material: Bearing steel. Series: 7000. Country of Origin: Japan.
7005 gives the ISO series 10 envelope at a 25 mm bore. A is the NSK contact angle code and fixes it at 30°. TY is the cage code and marks a ball-guided cage. P5 is the precision grade, ABEC 5.
A 30° contact angle is the highest-thrust option NSK offers in this series short of the 40° BTR family. It takes substantially more axial load than a 15° bearing on the same envelope and runs at a lower speed ceiling, which puts it in worm-drive, pump and vertical-shaft positions where thrust dominates. P5 tolerances hold bore and raceway runout tighter than a standard-class bearing, giving closer shaft location and lower running vibration. A ball-guided cage is located by the balls rather than by either ring land, so it runs with low drag.
Unit Quantity: 1 Pc.
Bore Type: Straight, for an interference fit on the shaft with the inner ring rotating. Closure Type: Open, so lubricant is supplied from the housing. Lubricant: grease or oil. A single-row angular contact bearing takes thrust in one direction only, so it works against a second bearing. Harmonization Code: 8482.10.50.28.
Cross-Reference 1: SKF 7005 ACD/P5 (related size, same envelope at a 25° contact angle). Cross-Reference 2: FAG B7005-E-T-P5 (related size, same envelope at a 25° contact angle). Cross-Reference 3: Fafnir 3MM9105WI-CR (related size, same envelope at a 25° contact angle, phenolic outer-land-riding cage). Searchable designation forms: 7005ATYP5, 7005-A-TY-P5, 7005A, 7005 A TY P5, 7005E and 3MM9105WICR.
