Availability:
1 in stock

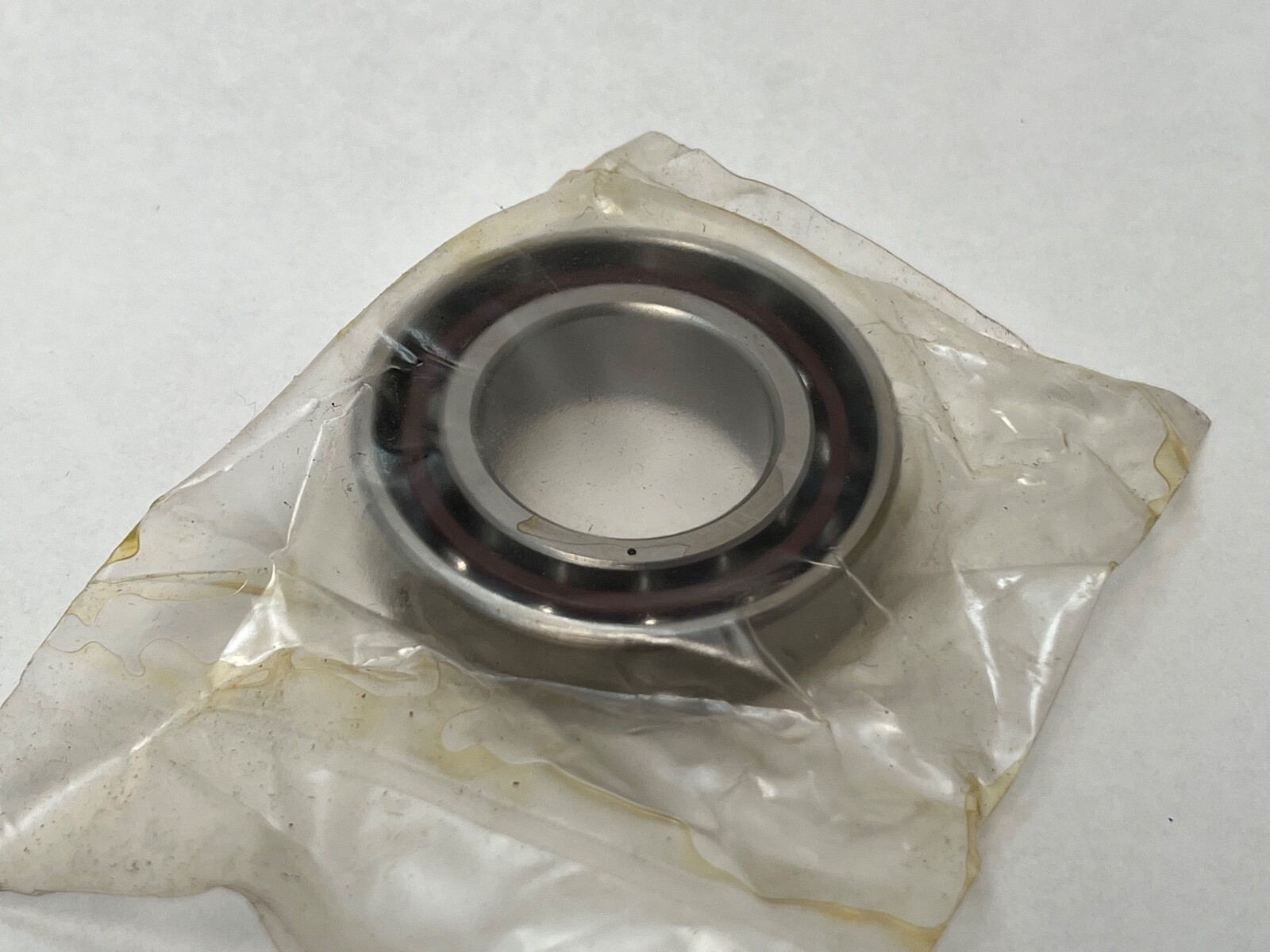

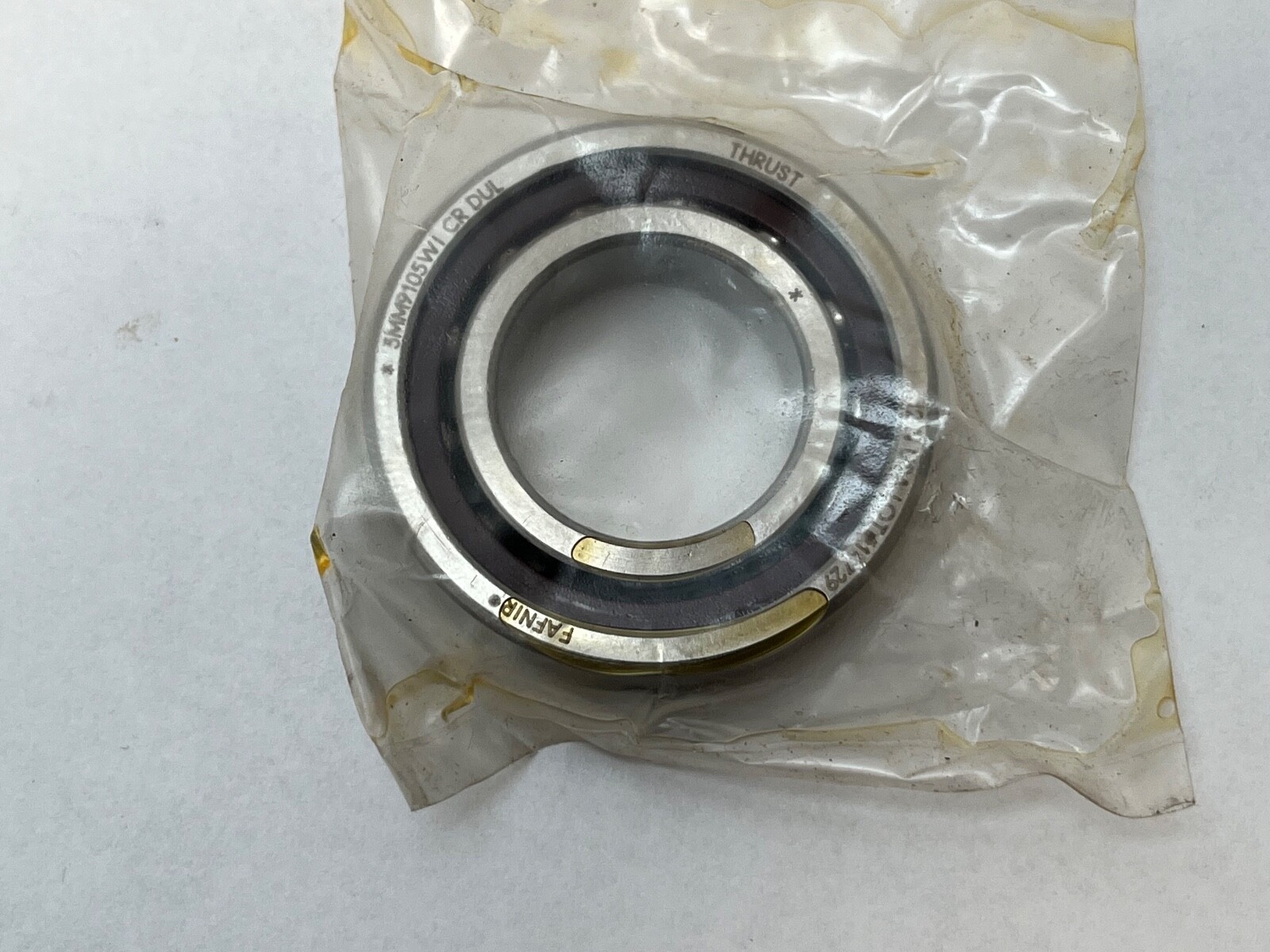

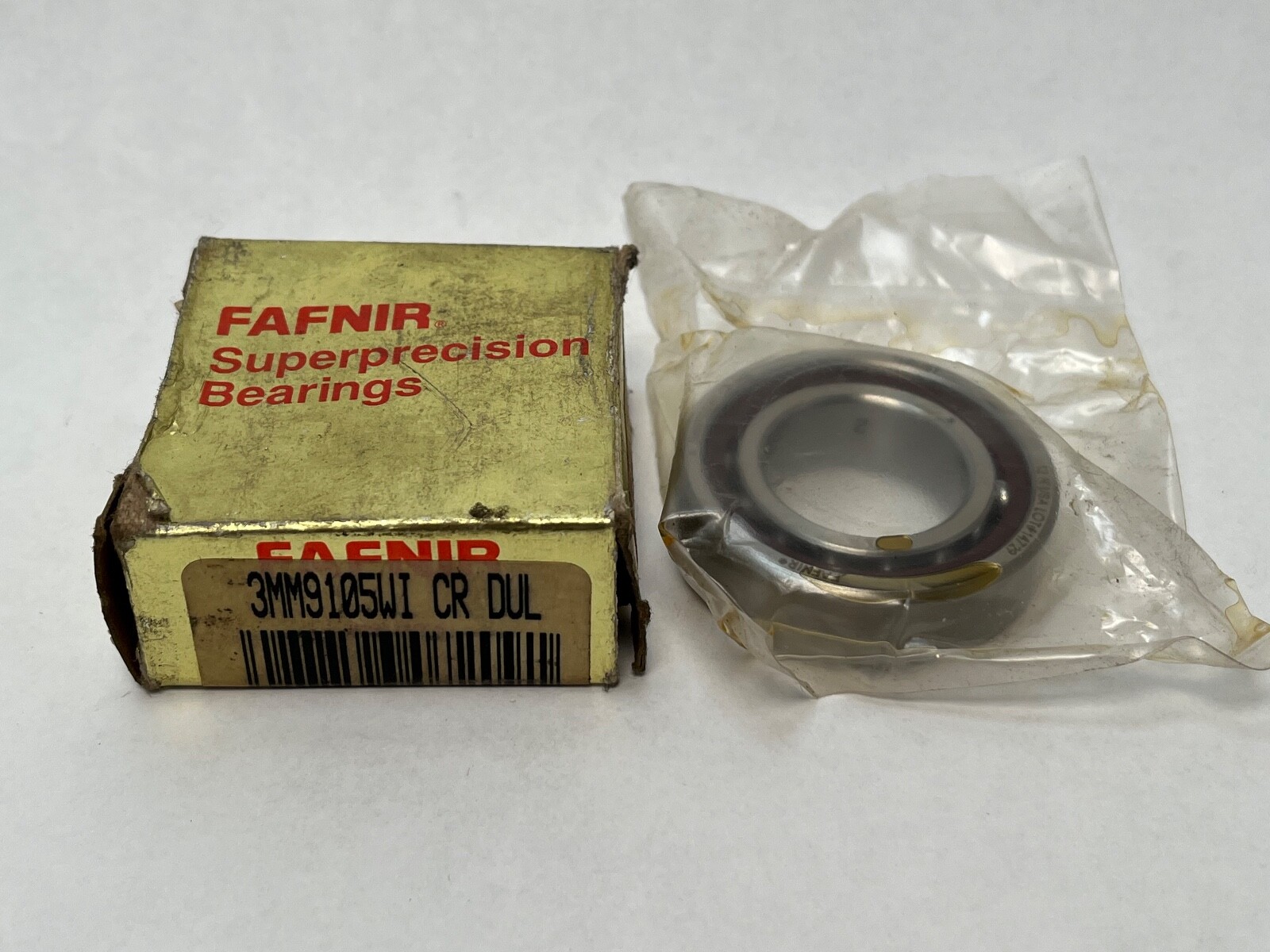

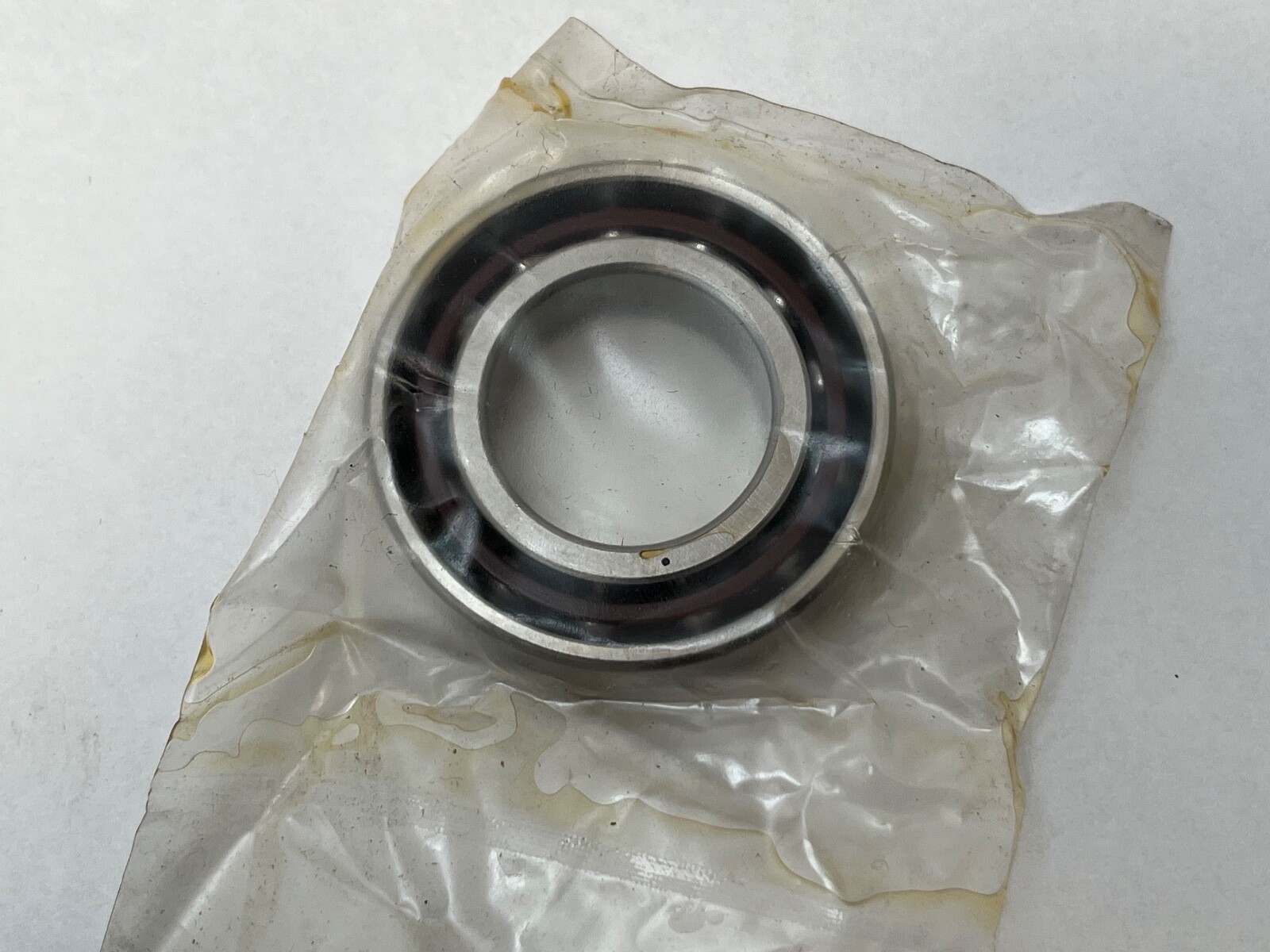

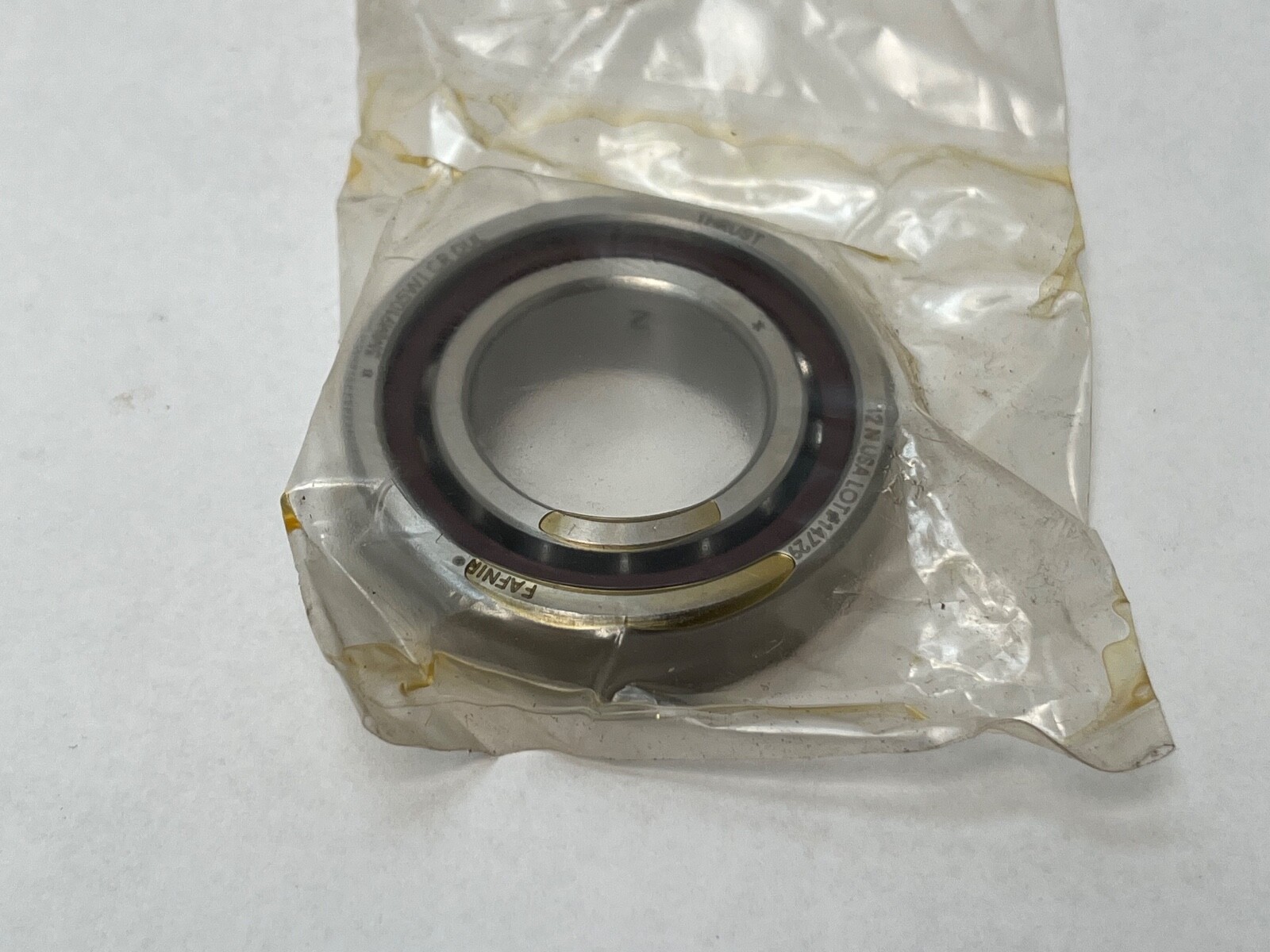

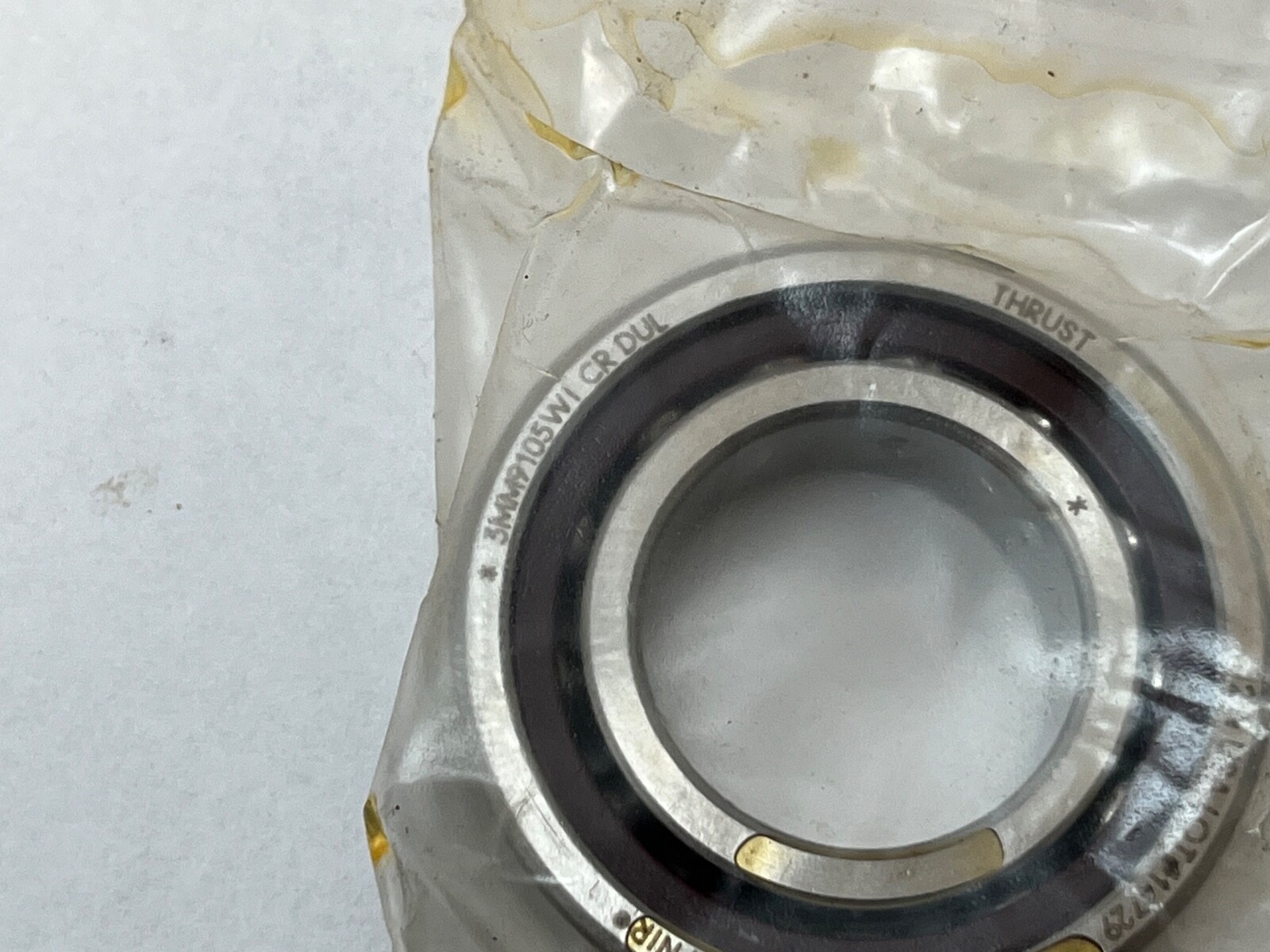

Fafnir 3MM9105WI SUL super-precision angular contact ball bearing, 25 x 47 x 12 mm, 25° contact angle. Open, phenolic cage, light preload, P4S.
List Price
$74.26
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM9105WI SUL |
| GTIN | 087796072091 |
| Model | 3MM 9105 WI CR DUL / 7005 AC/A5 TR/TY P4/P4Y |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Preload | Light |
|---|---|
| Material | Bearing Steel |
| Base Number | 3MM9105WI |
| Common Misspellings | Fafner 3MM9105WI; Fanfir 3MM9105WI; 3MM9105W1-SUL; 3M M9105WI SUL; 3mm 9105 wi sul |
| Total Width | 12 mm |
| Overall Width | 12 mm |
| Mpn Variants | 3MM9105WI SUL; 3MM9105WI-SUL; 3MM9105WISUL; 3MM9105WICRSUL; 3MM 9105 WI CR SUL; 3MM9105WI-DUL; 3MM9105WIDUL; 3MM-9105-WI-CR-DUL; 3MM204WIDUL; 7005E-T-P4S-SUL; 7005-A |
| Arrangement Configuration | Universal single (SU) |
| Precision Class | ABEC 7/9 / P4S |
| Dynamic Load Rating C1 | 12,300 N |
| Additional Attributes | Maximum shaft fillet radius 0.6 mm; shaft backing shoulder diameter 29.9 mm; housing backing shoulder diameter 42.6 mm; outer ring to-clear radius 0.6 mm; ISO dynamic radial rating per row 11,200 N |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 12,300 N |
| Static Load Rating | 7,100 N |
| Precision Rating | ABEC 7/9 / P4S |
| Series | 9100 |
| Rolling Elements | Ball |
| Item Weight | 0.077 kg (0.17 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 30,500 rpm grease; 55,600 rpm oil |
| Contact Angle | 25° |
| Design Units | Metric |
| Industry Terms | spindle bearing; super precision angular contact bearing; ABEC 7 bearing; 25 degree angular contact; machine tool spindle bearing; universally ground bearing; 25mm precision bearing |
| Application Types | Machine tool spindles; grinding and milling spindles; high-speed routers; precision boring heads; instrument and turbo shafts |
| Cross Reference 1 | Timken / Fafnir 3MM9105WI-CR-SUL |
|---|---|
| Cross Reference 2 | FAG B7005-E-T-P4S-UL (current designation, P4S class) |
| Cross Reference 3 | SKF 7005 ACD/P4A (25 deg angle) |
| Cross Reference 4 | NSK 7005 A5TYNSULP4 (25 deg angle) |
| Cross Reference 5 | NTN 7005 UCG/GNP4 (25 deg angle) |
| Cross Reference 6 | RHP 7005 A5TSU P4 |
| Cross Reference 7 | Koyo 7005 A5-5G |
| Cross Reference 8 | SNFA EX 25 7CE3 |
| Cross Reference 9 | SNR 7005 HV U J74 |
Fafnir 3MM9105WI SUL, a super-precision single row angular contact ball bearing built by The Timken Company. Open on both faces, universally ground single bearing. Unit Quantity: 1 Pc.
3MM — Fafnir super-precision spindle prefix carrying a 25° contact angle.
9105 — series and bore code. The 9100 range maps to the ISO 70xx light family, so a 9105 is the 7005 envelope: 25 x 47 x 12 mm.
WI — low shoulder on both rings.
CR — phenolic outer-land-riding cage, machined and guided on the outer ring land.
SU — single, universally ground, so any two pieces can be mounted back-to-back, face-to-face or in tandem without a spacer.
L — light preload.
World part number 7005E-T-P4S-SUL.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Number Of Rows: 1. Contact Angle: 25°. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Series: 9100. Base Number: 3MM9105WI. Precision Class: ABEC 7/9 / P4S. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Preload: Light. Dynamic Load Rating: 12,300 N. Static Load Rating: 7,100 N. ISO dynamic radial rating per row: 11,200 N. Limiting Speed: 30,500 rpm grease; 55,600 rpm oil. Item Weight: 0.077 kg (0.17 lb).
Maximum shaft fillet radius: 0.6 mm. Shaft backing shoulder diameter: 29.9 mm. Housing backing shoulder diameter: 42.6 mm. Outer ring to-clear radius: 0.6 mm. Bore Type: Straight.
Cross-references on the 7005 envelope at 25°: Timken / Fafnir 3MM9105WI-CR-SUL; FAG B7005-E-T-P4S-UL (current designation, P4S class); SKF 7005 ACD/P4A; NSK 7005 A5TYNSULP4; NTN 7005 UCG/GNP4; RHP 7005 A5TSU P4; Koyo 7005 A5-5G; SNFA EX 25 7CE3; SNR 7005 HV U J74. Other forms of the number: 3MM9105WI-SUL, 3MM9105WISUL, 3MM9105WICRSUL, 3MM 9105 WI CR SUL, 3MM9105WI-DUL, 3MM-9105-WI-CR-DUL, 3MM204WIDUL, 7005-A, 7005A5.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm.
Contact Angle: 25°. Preload: Light. Precision Class: ABEC 7/9 / P4S.
Limiting Speed: 30,500 rpm grease; 55,600 rpm oil.
