RHP7005-E-T-DUM-P4Super Precision Angular Contact Ball Bearing – 25 mm ID, 47 mm OD, 12 mm Width, Open, 25° Contact Angle, Medium Preload

Product Description

What this part is:

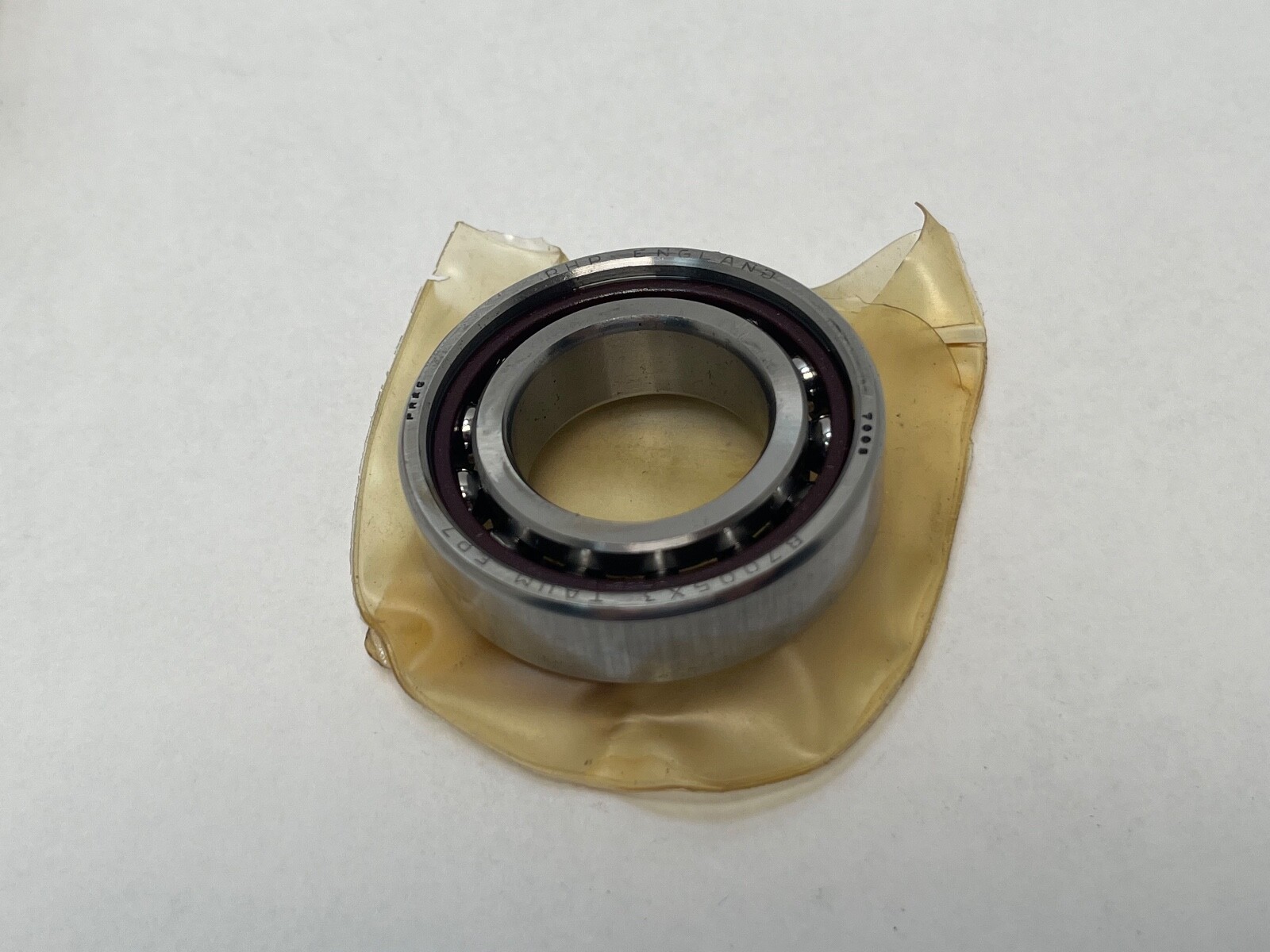

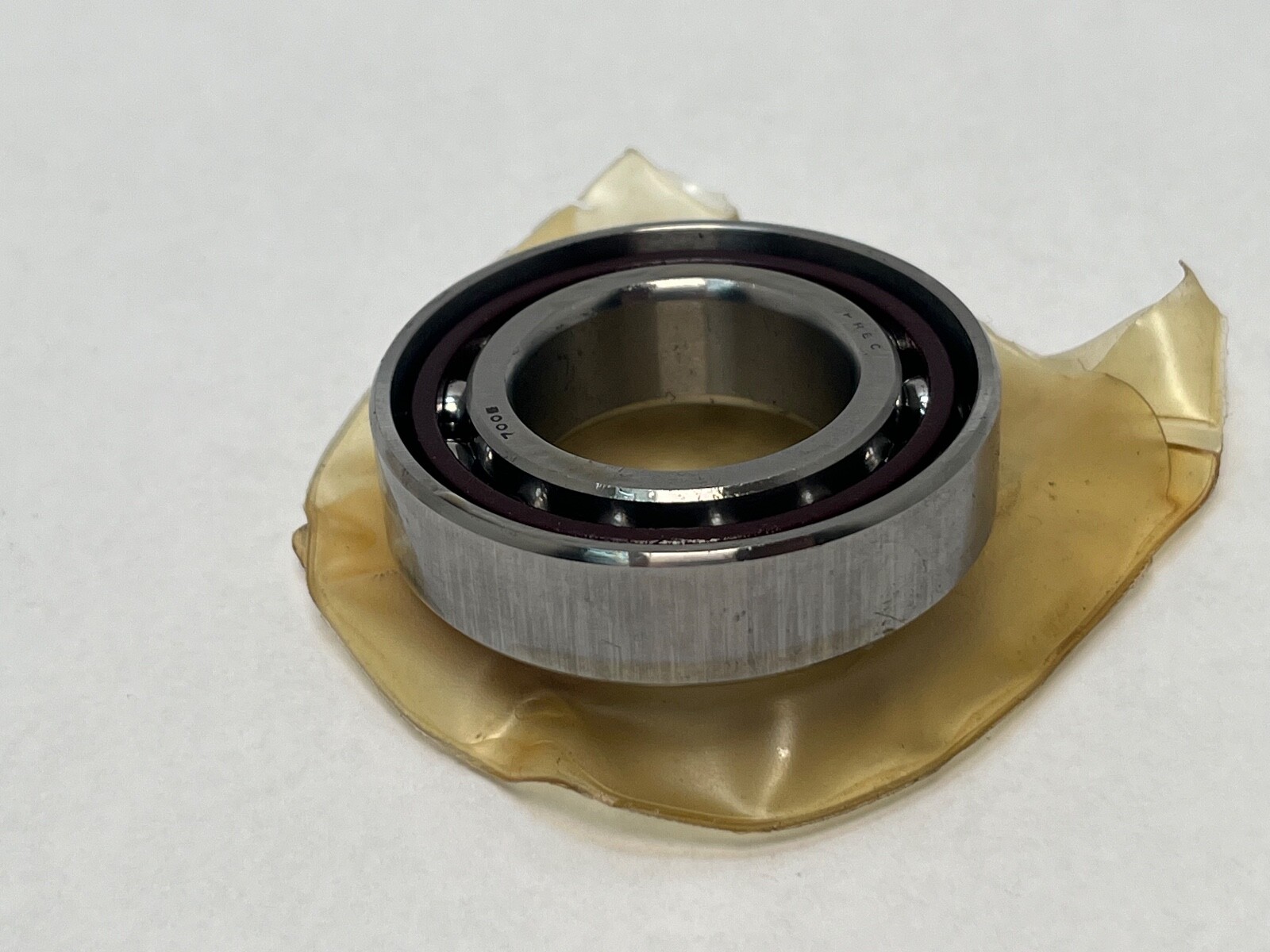

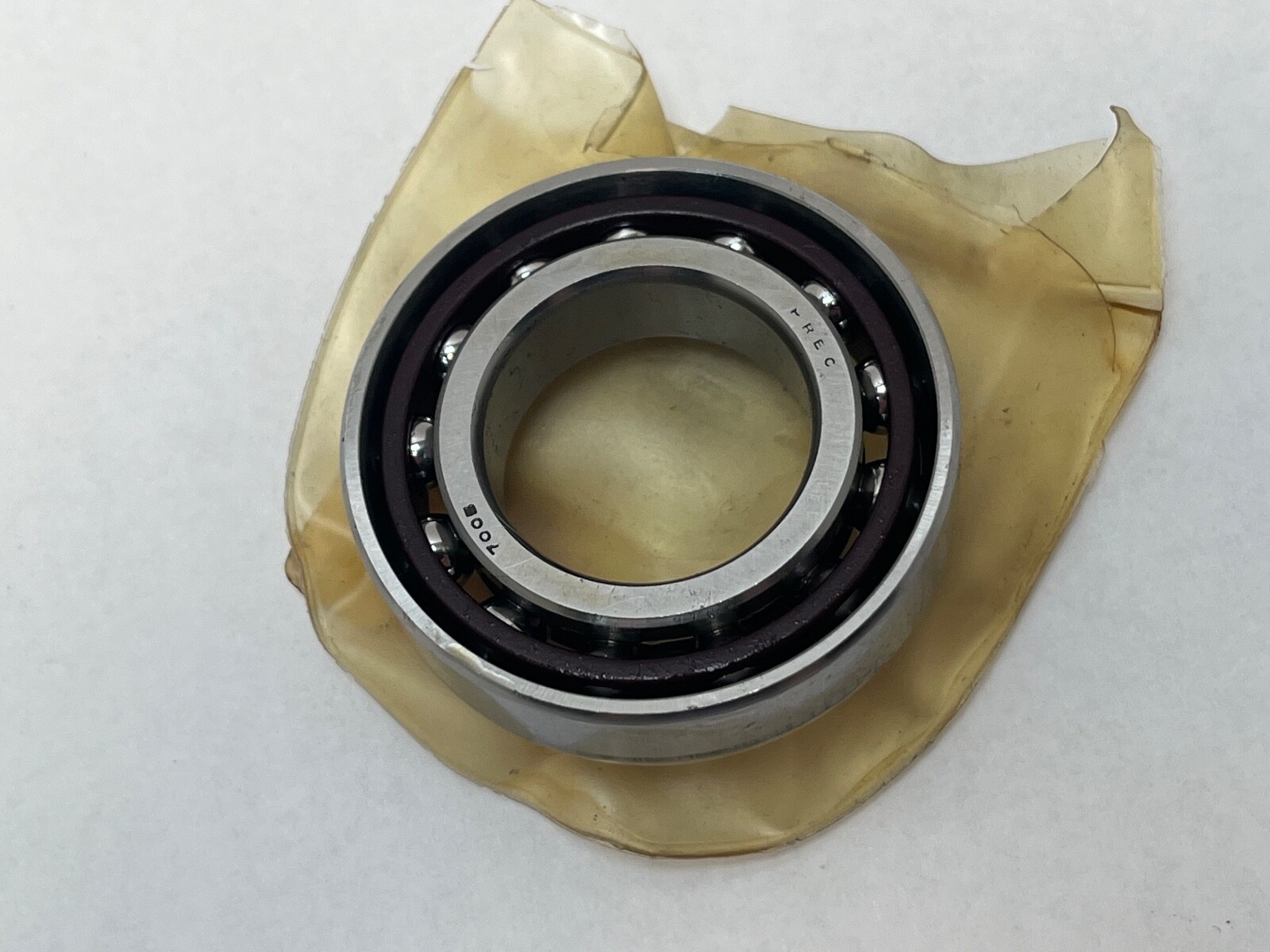

RHP 7005-E-T-DUM-P4 super precision single-row angular contact ball bearing, 25 x 47 x 12 mm, 25° contact angle, medium preload, ISO Class 4 (P4). Unit Quantity: 1 Pc, one piece from a factory duplex medium-preload pair.

Decoding the designation:

7005 — ISO 7000 series size, 25 x 47 x 12 mm.

E — 25° contact angle.

T — laminated phenolic resin cage, machined and outer-ring guided.

DU — duplex universal. Rings are ground to the same width so the bearing pairs back-to-back, face-to-face or in tandem.

M — medium preload.

P4 — RHP P4, ISO Class 4, ABEC 7, BS292 EP7.

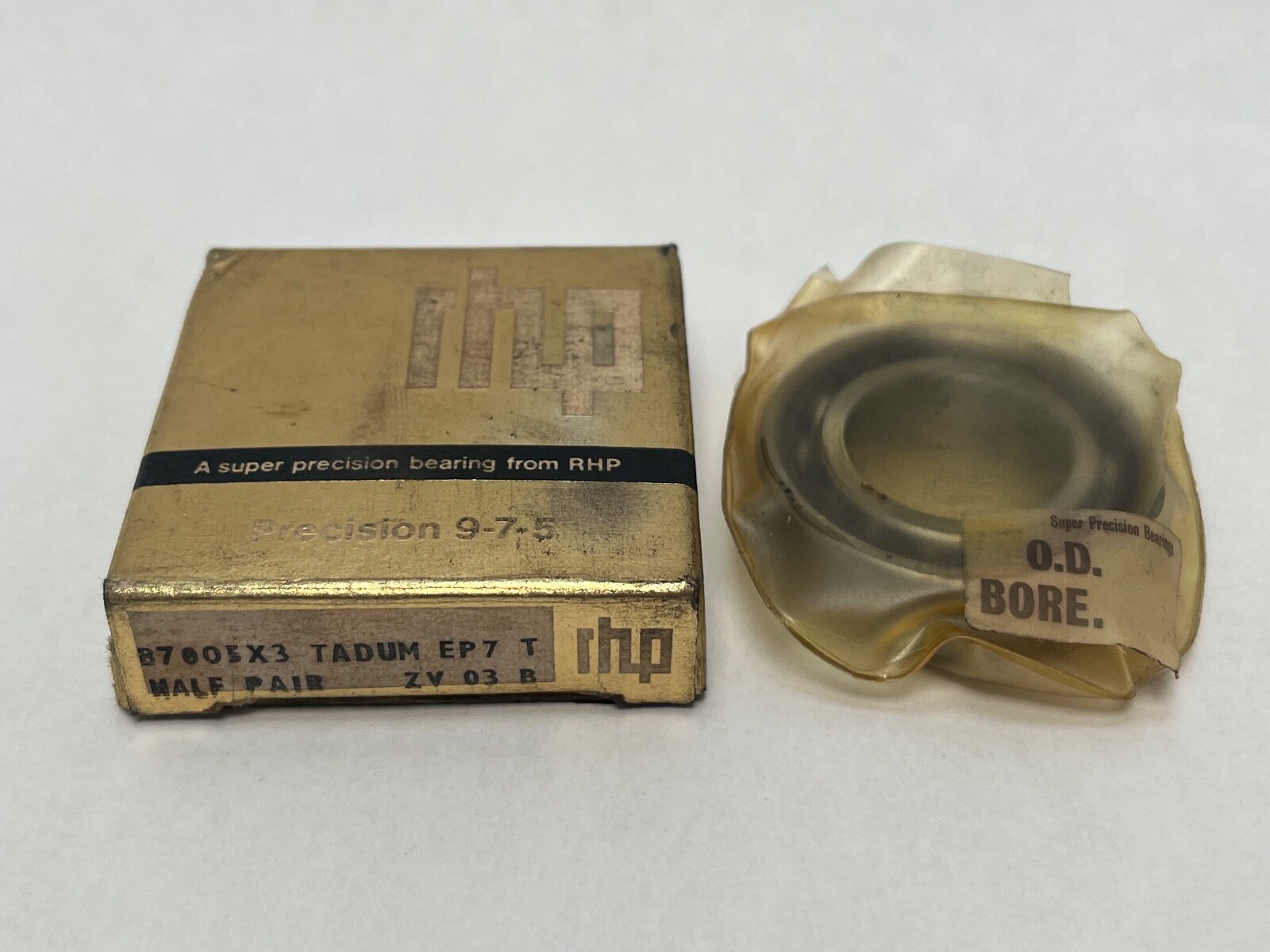

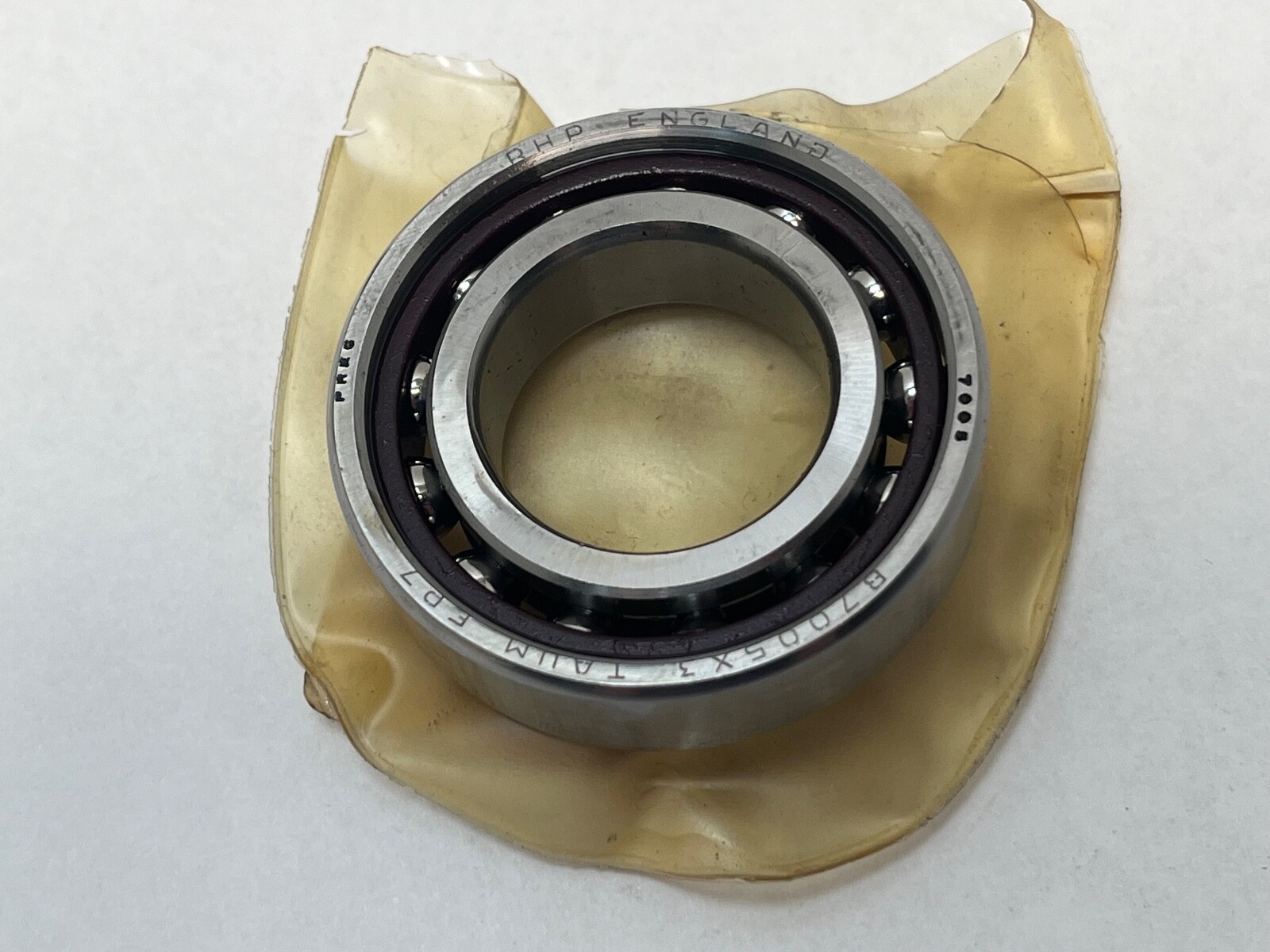

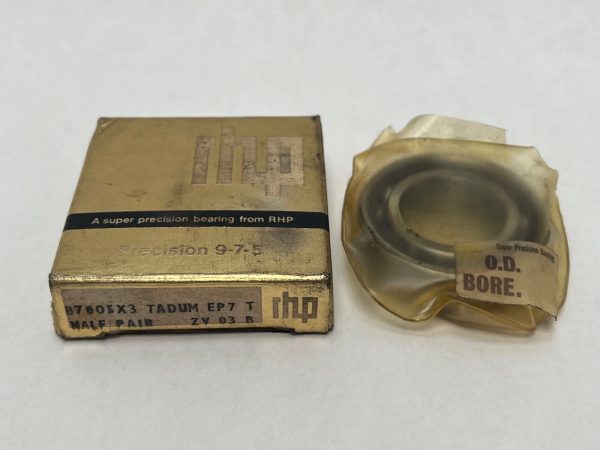

The carton carries the same bearing in three schemes: RHP 7005-E-T-DUM-P4, RHP B-series B7005 X3 TADUM EP7, and Fafnir 3MM9105WI-DUM.

Specifications:

Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Contact Angle: 25°. Preload: Medium. Precision Class: RHP P4, ISO Class 4, ABEC 7, BS292 EP7. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Dynamic Load Rating: 11,100 N. Static Load Rating: 7,100 N. Limiting Speed: 26,000 rpm grease; 42,000 rpm oil/air. Lubricant: grease or oil. Item Weight: 0.079 kg (0.17 lb). Series: 7000, ISO dimension series 10. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Bearing Material: Carbon chrome bearing steel, SAE 52100, through hardened.

Dimensions and mounting:

Effective Load Centre: 14.4 mm. Abutment Diameter, shaft, d1 min: 30 mm. Abutment Diameter, housing, D1 max: 42 mm. Housing Abutment D2 max: 44.5 mm. Chamfer r min: 0.6 mm. Chamfer r1 min: 0.3 mm. Internal Free Volume: 3.8 cm³. Pitch Circle Diameter of Lubrication Jets: 32.9 mm. Running Accuracy, radial and axial runout: P4. Mounting Arrangement: Duplex universal. Axial Preload, duplex medium pair: 440 N. Axial Stiffness, duplex medium pair: 99 N/µm. Internal clearance does not apply; the medium preload is set at manufacture.

Compatibility and replacement:

Cross-references: Fafnir 3MM9105WI-DUM (same bearing in the Fafnir scheme); SKF 7005 CE/P4ADGB (15° vs 25° contact angle). Harmonization Code: 8482.10.50.

Frequently asked questions:

What is the contact angle of the RHP 7005-E-T-DUM-P4?

25 degrees.

What are the dimensions?

25 mm bore, 47 mm outside diameter, 12 mm width.

What preload, precision class and load ratings does it carry?

Medium preload, ISO Class 4 (ABEC 7, P4). Dynamic 11,100 N, static 7,100 N.
