Availability:
1 in stock

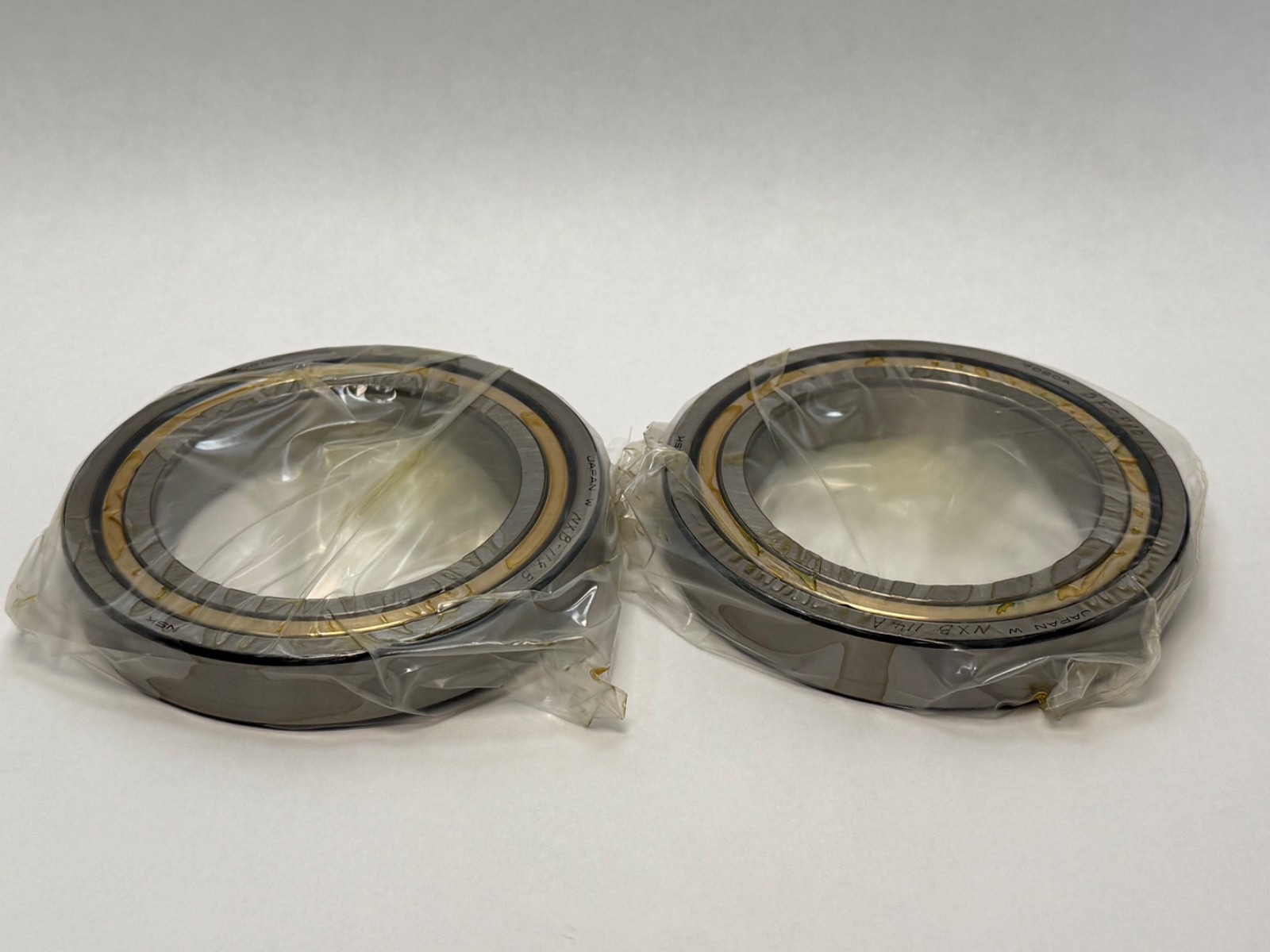

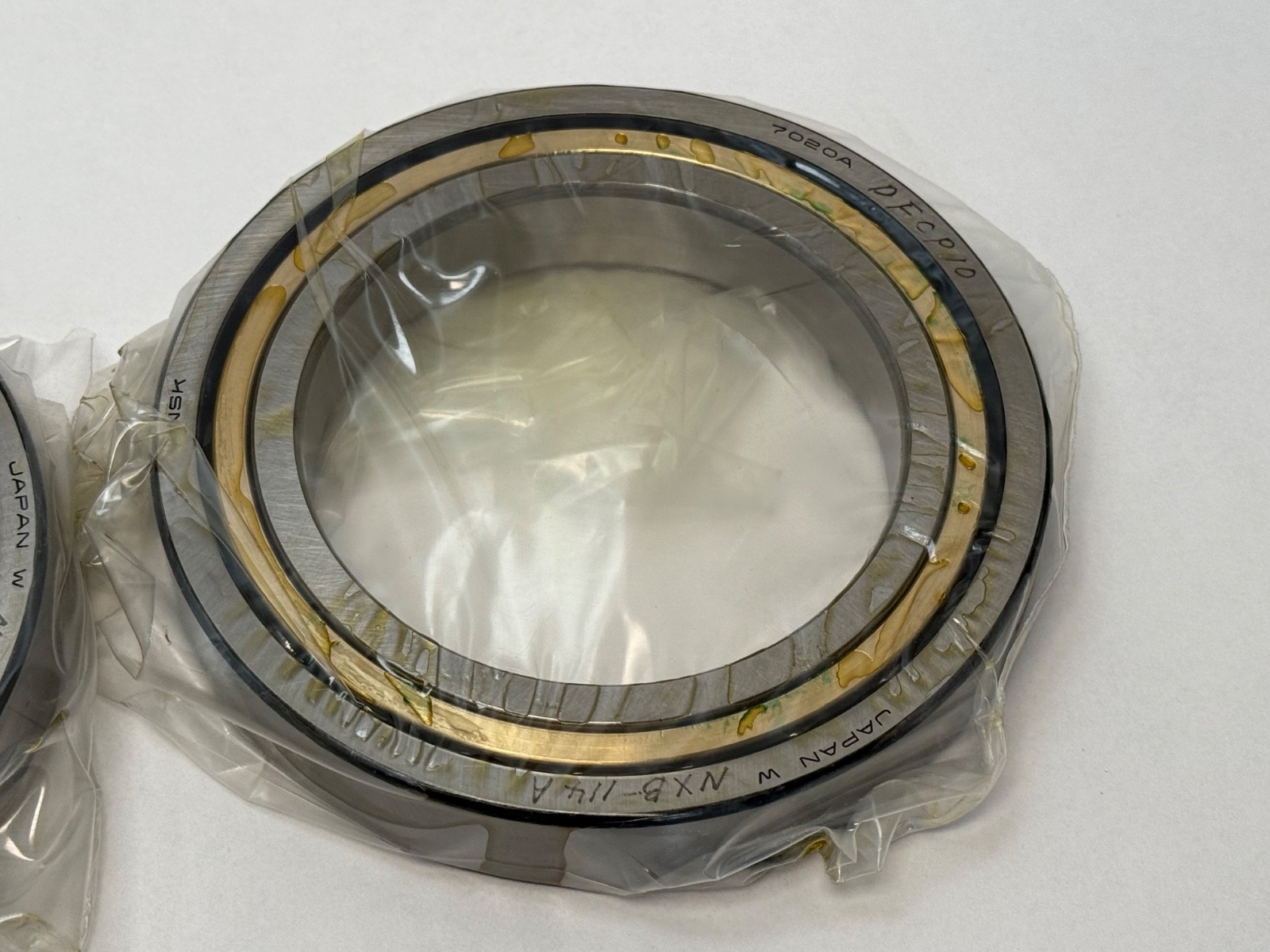

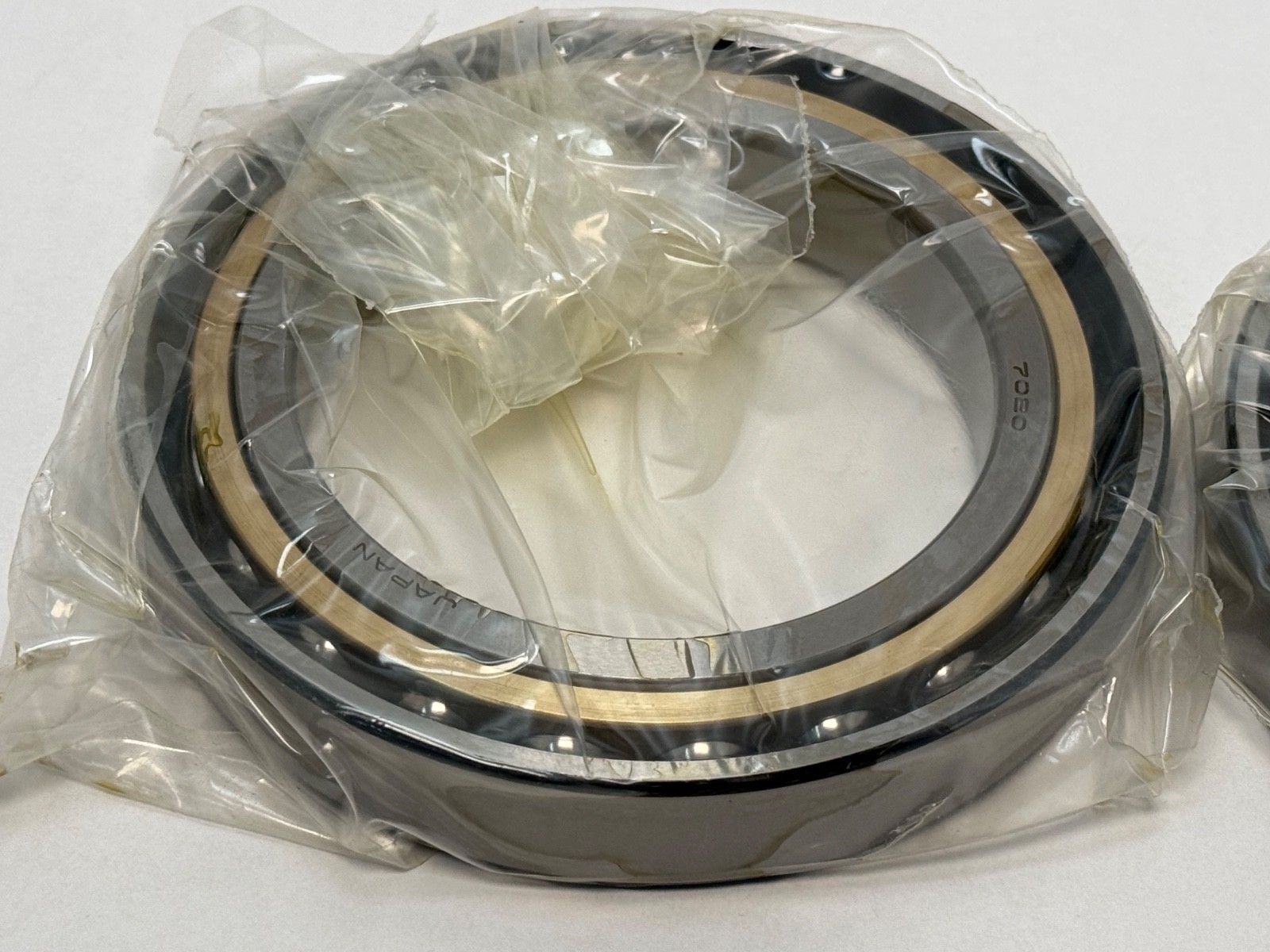

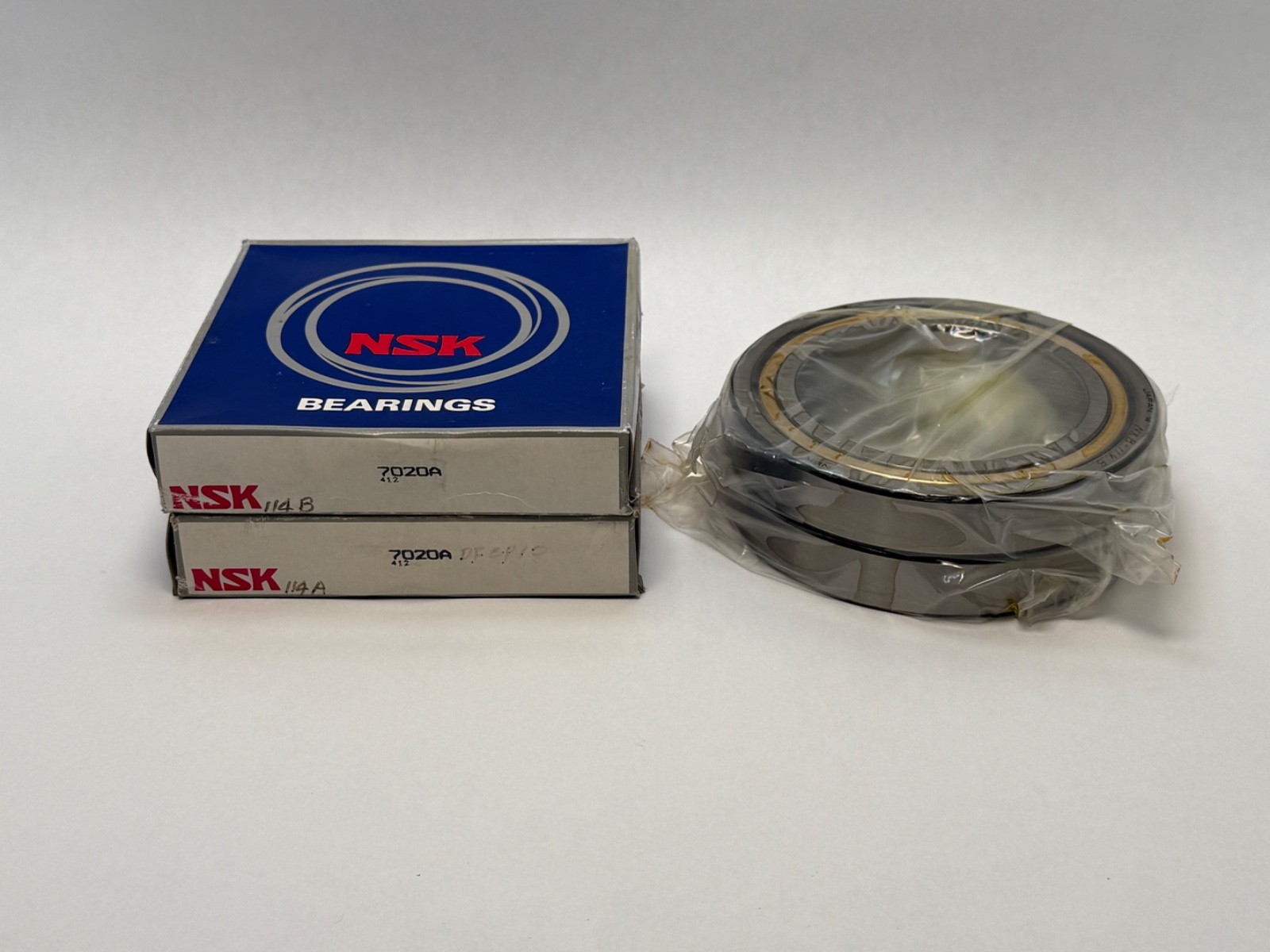

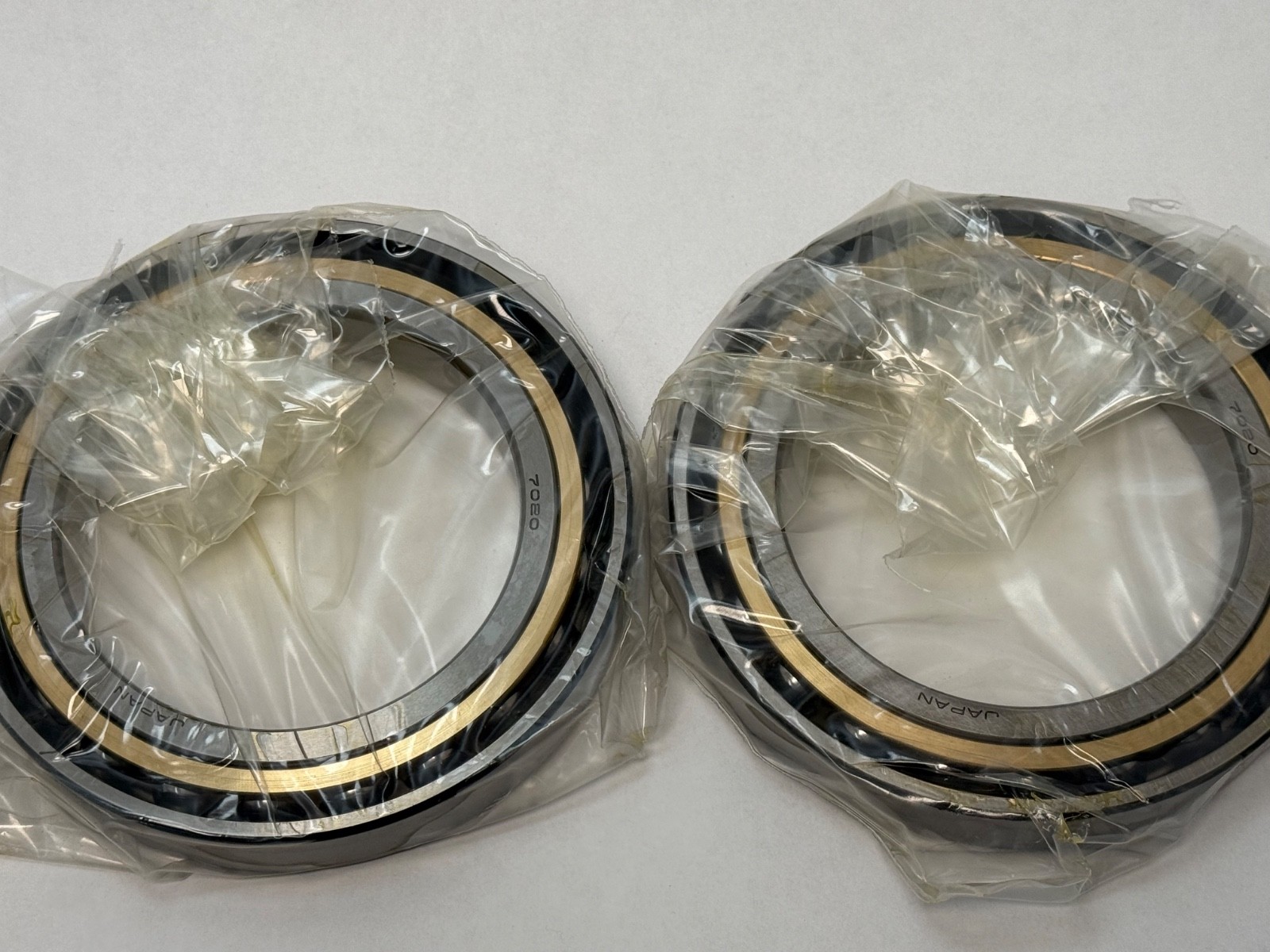

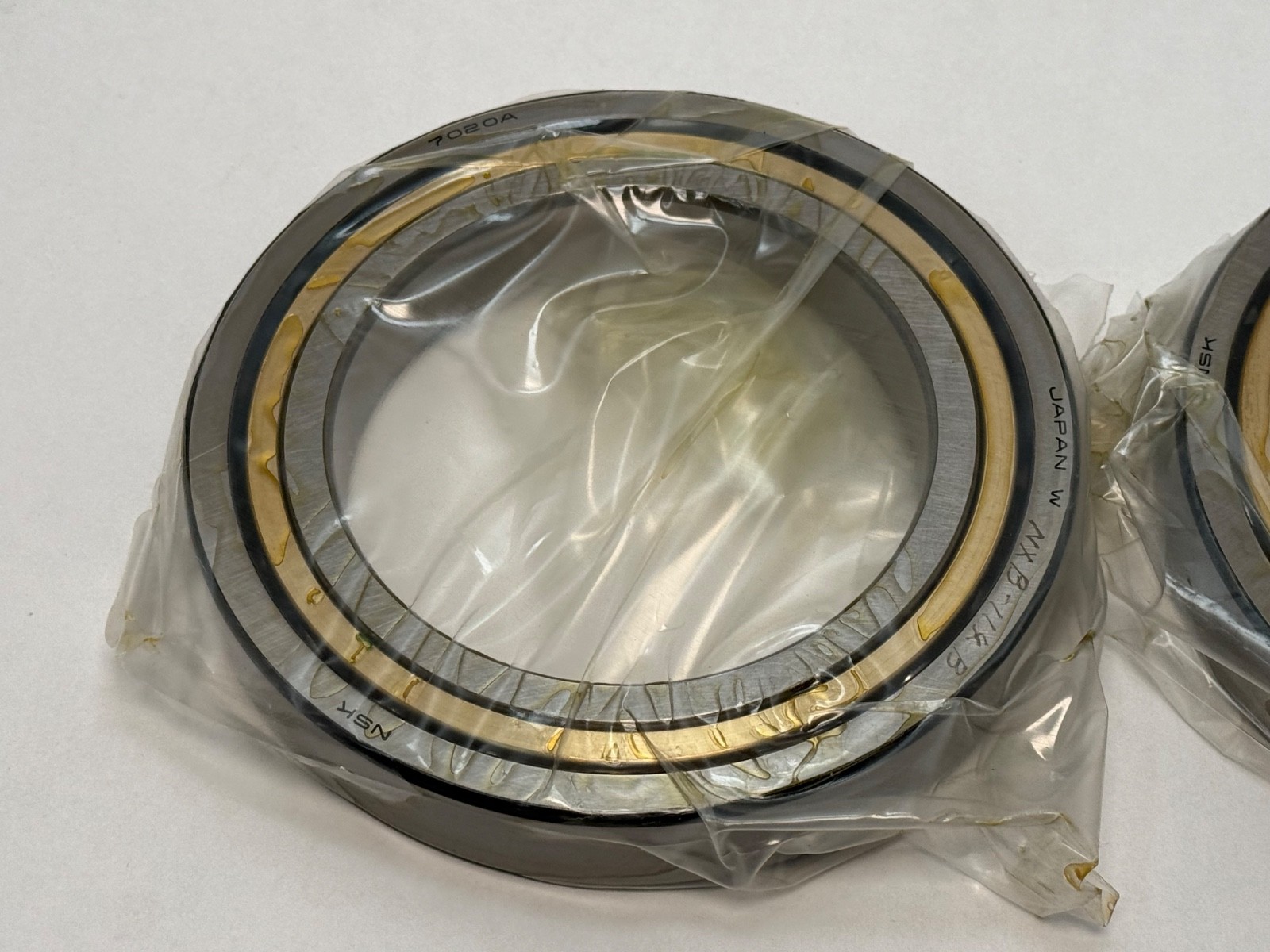

Angular contact ball bearing pair, 100 x 150 x 24 mm each, straight bore, open. Face-to-face matched duplex set, 109 mm shaft abutment, single row each.
List Price
$280.05
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7020ADFCP10 |
| Model | 7020A5 / 3MM9120WI-DFH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 7020 |
| Industry Terms | angular contact ball bearing; matched duplex pair; face-to-face bearing set; machine tool spindle bearing; 70-series spindle bearing |
| Common Misspellings | 7020ADF CP10; 7O20ADFCP10; 7020-A-DF-CP10; 7020 ADFCP10; 7020AFDCP10; 7020ADFCPIO |
| Application Types | Machine tool spindles; grinding spindles; precision gearboxes; rotary tables |
| Overall Width | 24 mm |
| Mpn Variants | 7020ADFCP10; 7020A DF CP10; 7020A-DF-CP10; 7020ADF; 7020A; 7020A5; CP10 |
| Additional Attributes | Shaft abutment da min: 109 mm; housing abutment Da max: 141 mm; abutment fillet ra max: 1.5 mm; bearing chamfer r min: 1.5 mm; r1 min: 1 mm |
| Series | 7000 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Mounting Arrangement | Face-to-face (DF) |
| Bearing Material | Bearing steel |
NSK 7020 series angular contact ball bearings, supplied as a face-to-face matched pair. Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm per bearing. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight. Number Of Rows: 1 per bearing. Series: 7000. Base Number: 7020. Mounting Arrangement: Face-to-face.

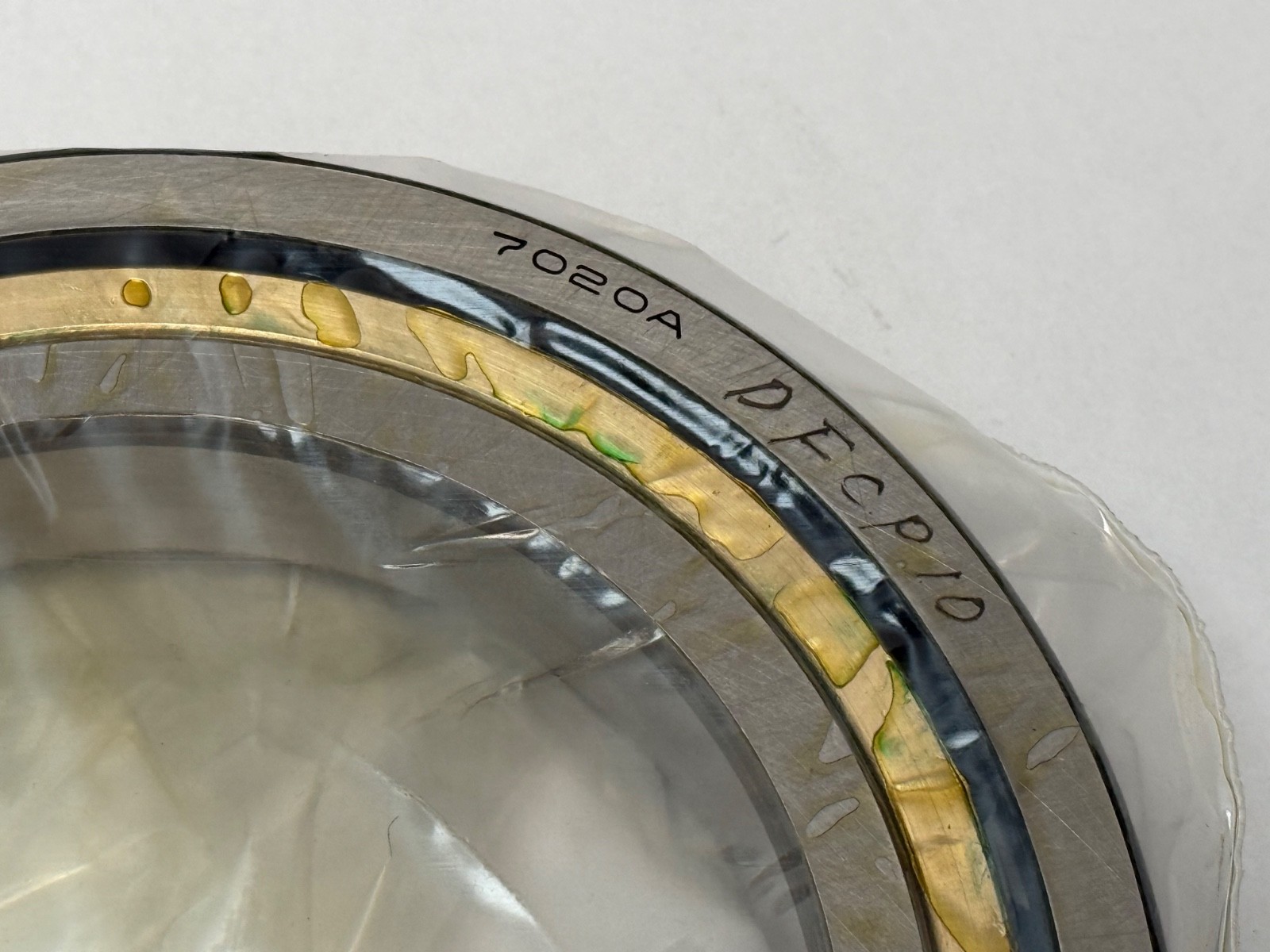

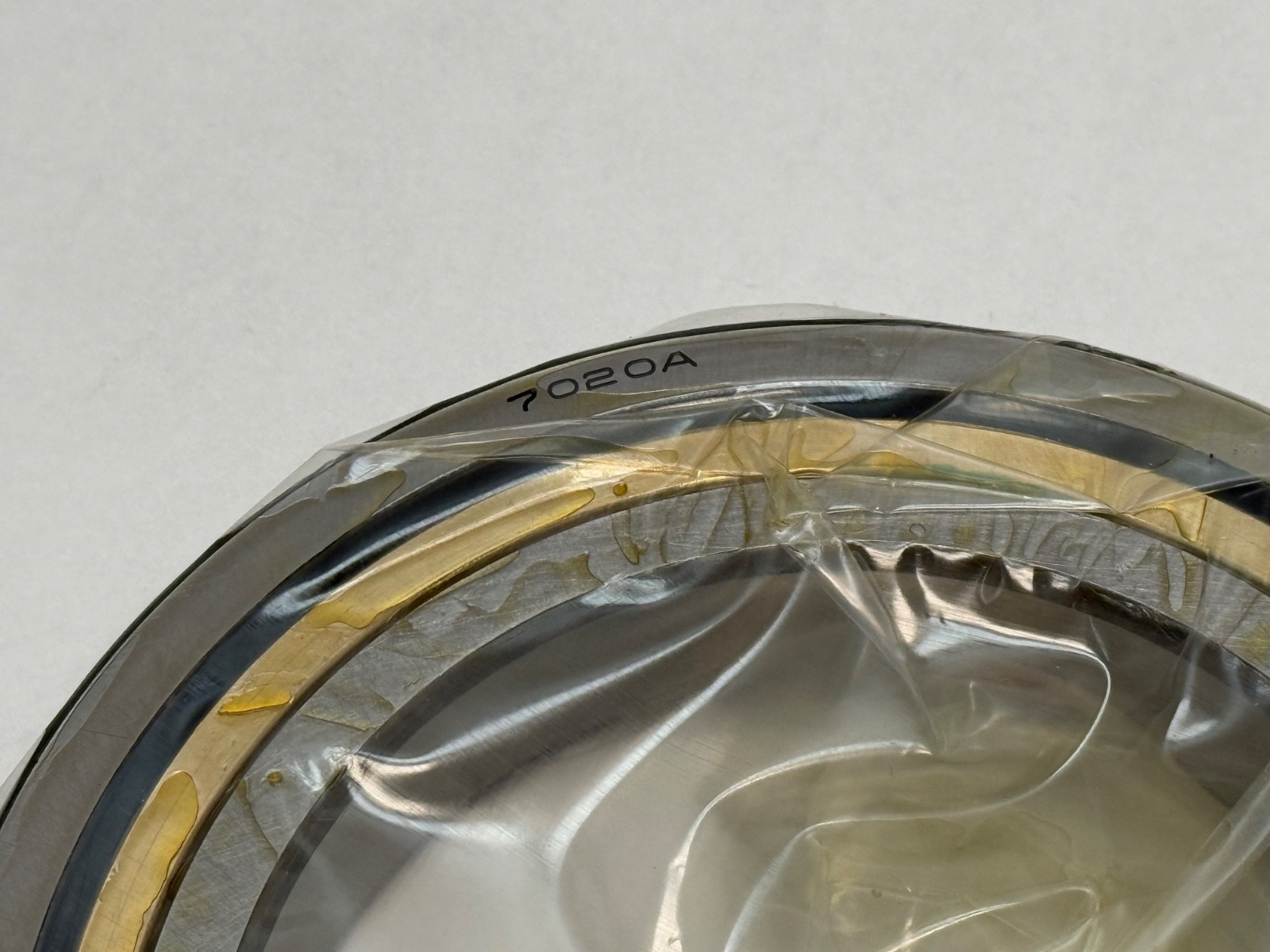

7020 — NSK’s number for the ISO 70-series size, 100 x 150 x 24 mm.
DF — duplex face-to-face. Two single-row bearings ground as a matched set and mounted with their outer ring front faces together.
Lubricant: grease or oil.
A face-to-face arrangement sets the two load lines converging inward, which makes the pair more tolerant of shaft and housing misalignment than a back-to-back set.
Shaft abutment diameter da min: 109 mm. Housing abutment diameter Da max: 141 mm. Abutment fillet radius ra max: 1.5 mm.
Bearing chamfer r min: 1.5 mm. Bearing chamfer r1 min: 1 mm.

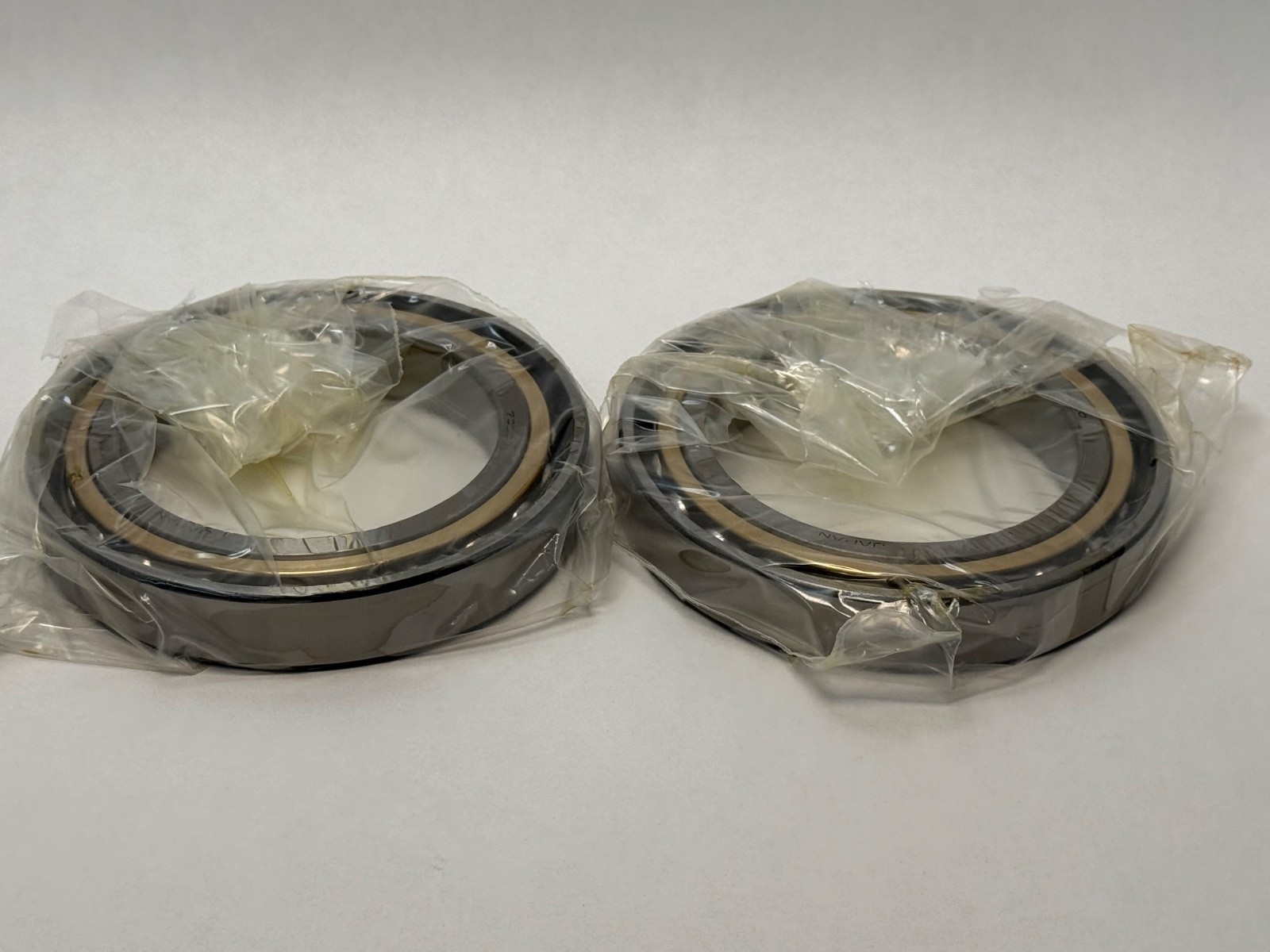

Unit Quantity: 2 Pcs. A matched face-to-face duplex pair.
