Availability:
1 in stock

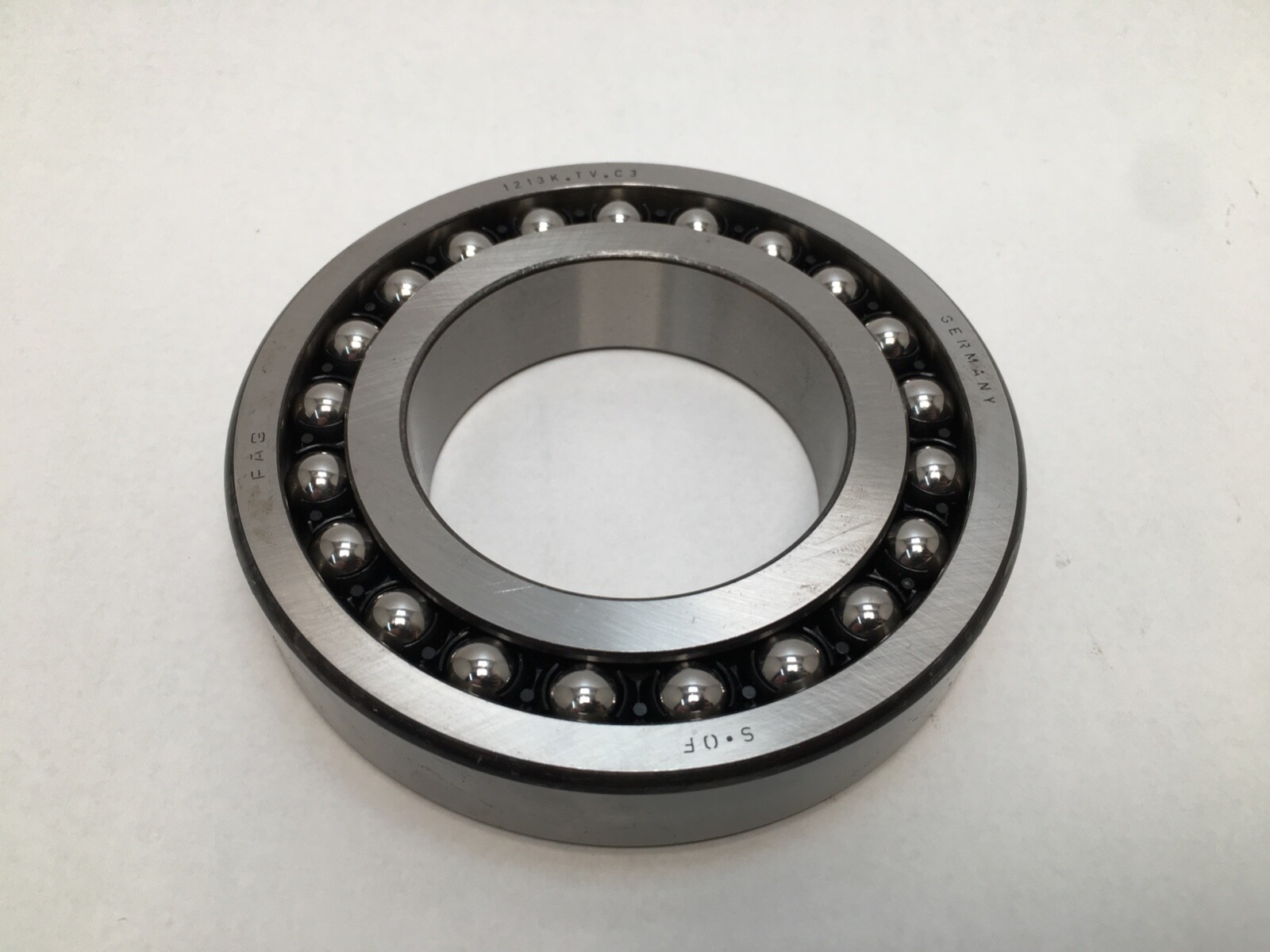

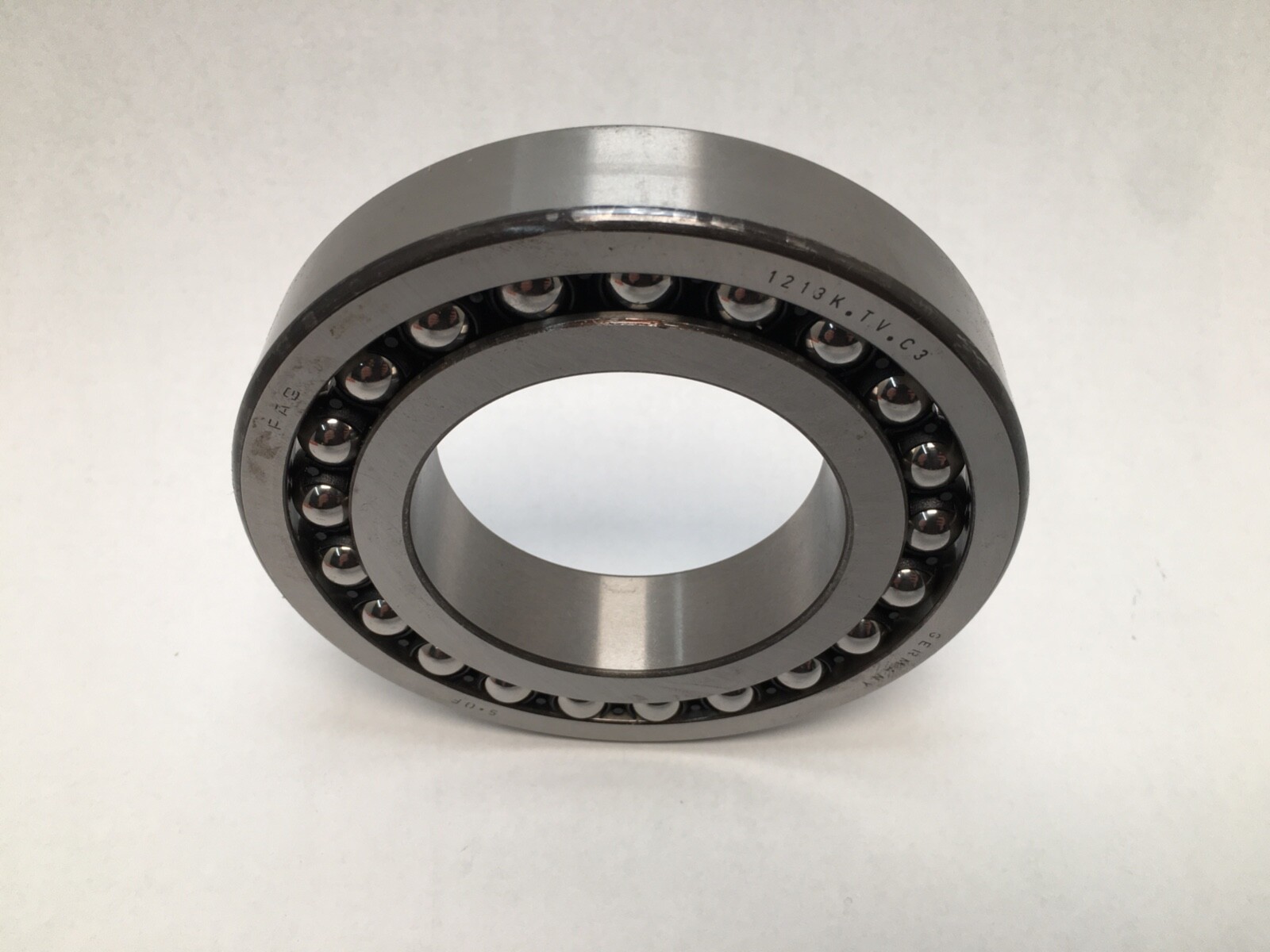

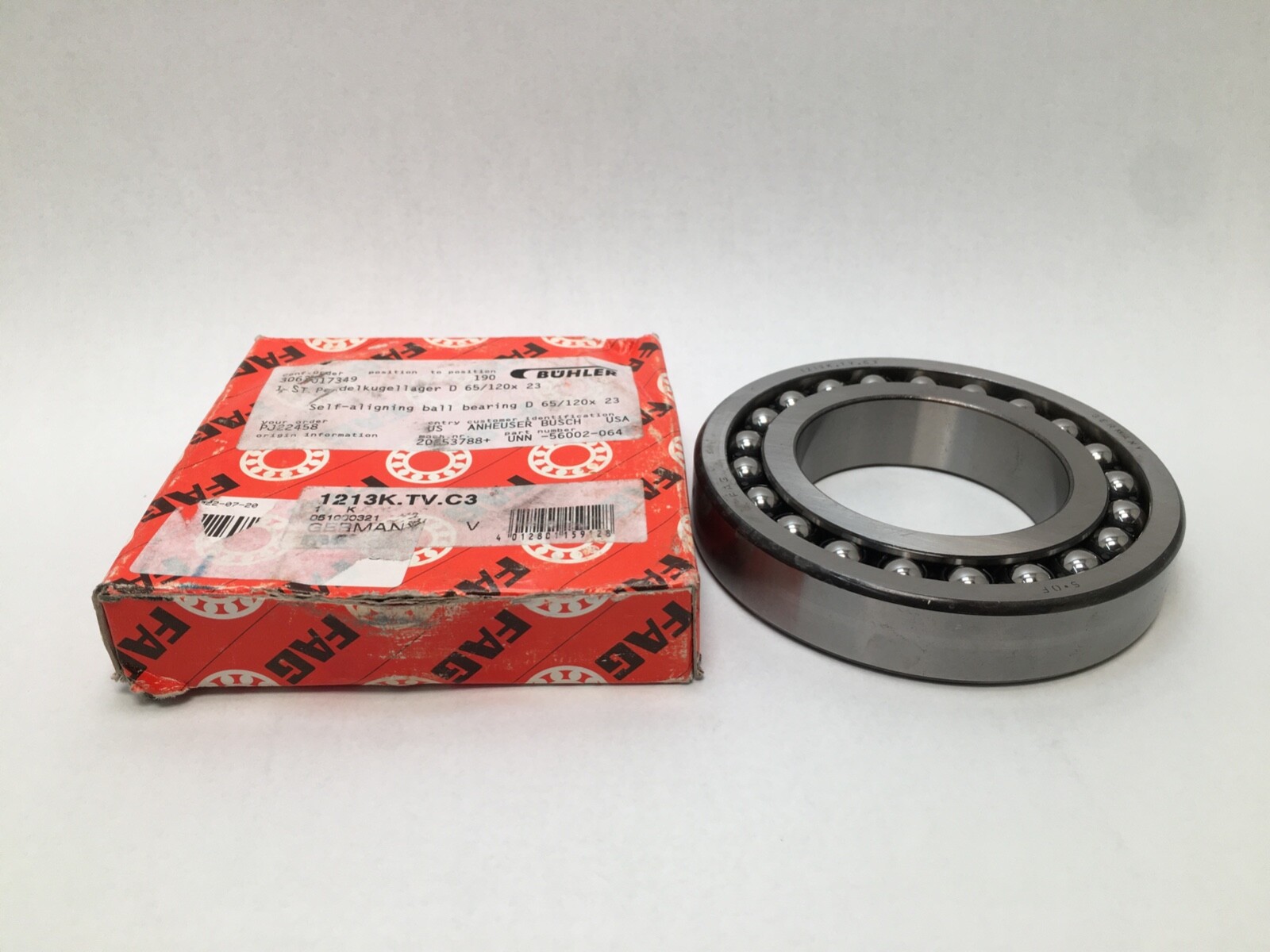

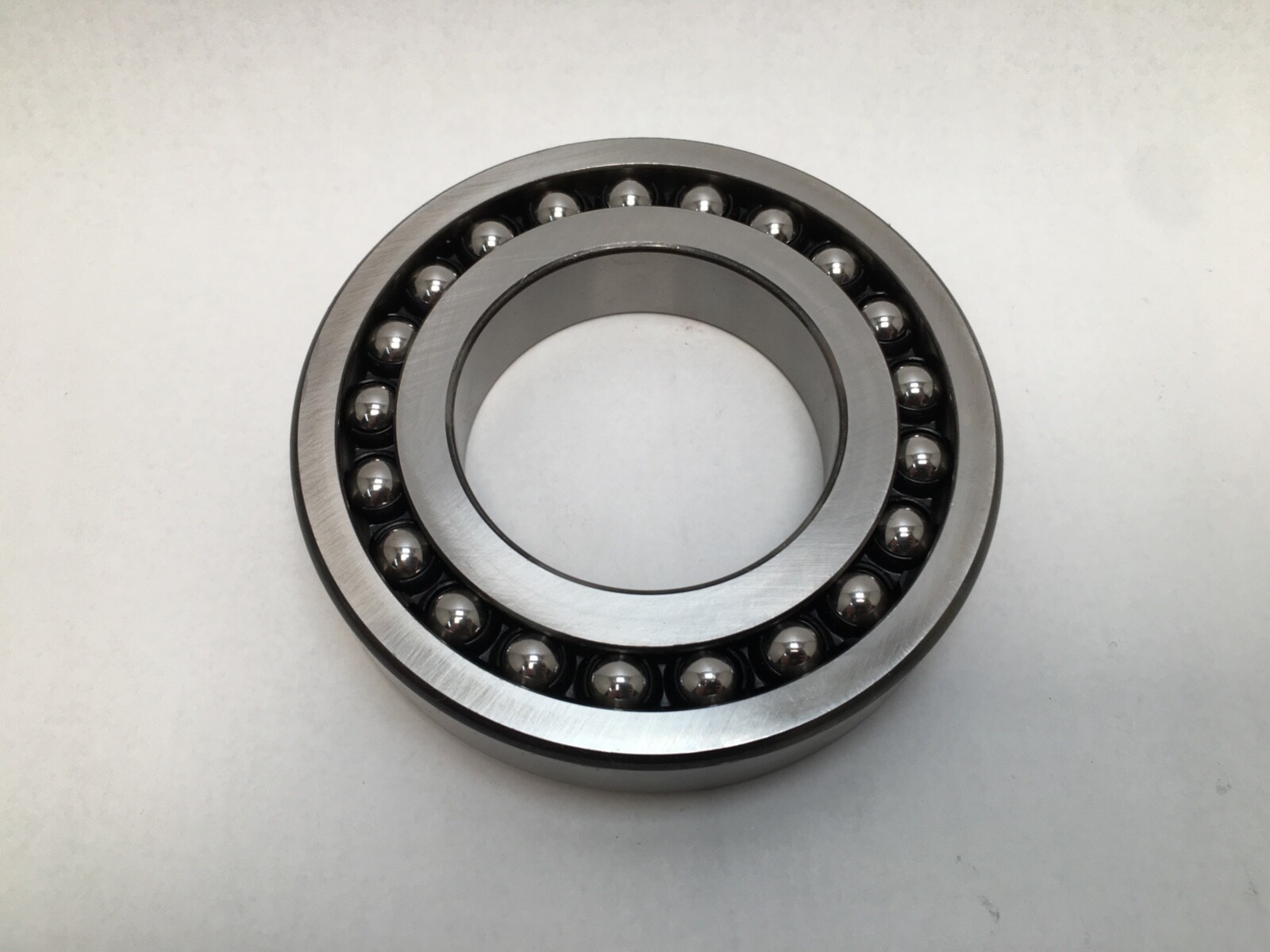

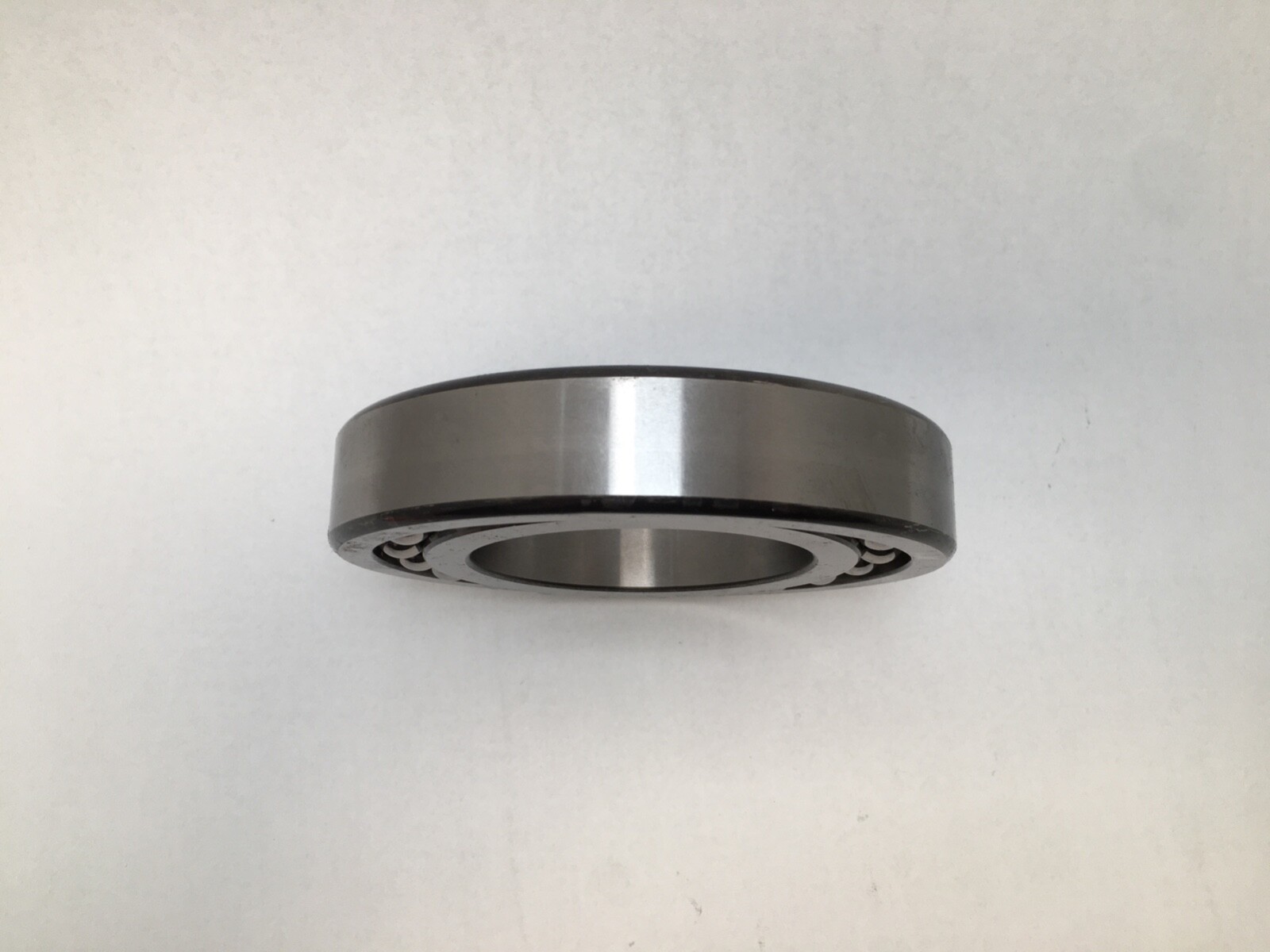

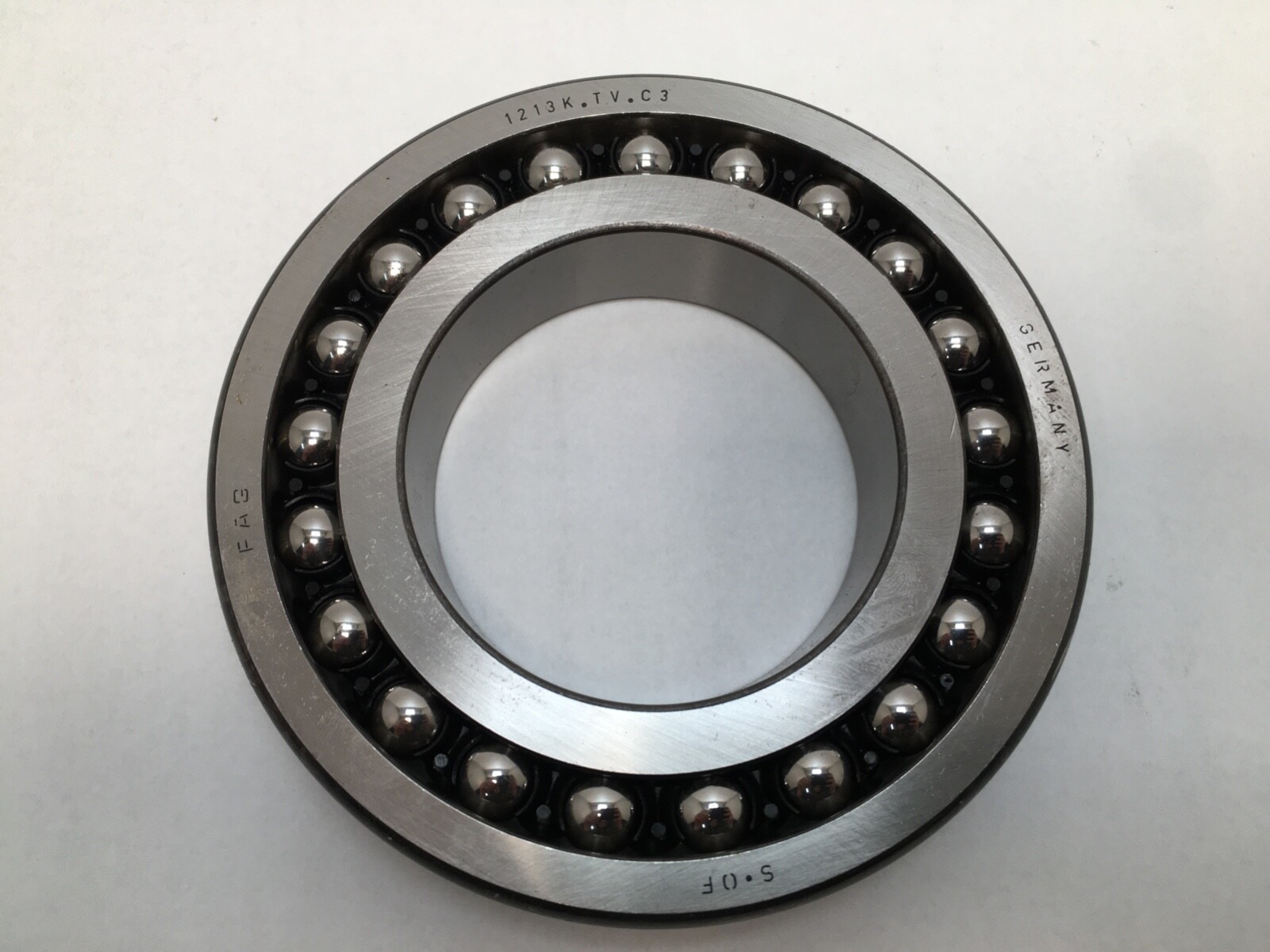

FAG 1213-K-TVH-C3 self-aligning ball bearing, 65 x 120 x 23 mm, 1:12 tapered bore, polyamide cage, C3 clearance. Cr 31,000 N. Mounts on adapter sleeve H213.
List Price
$48.93
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1213-K-TVH-C3 |
| GTIN | 4012801159128 |
| Model | 1213K.TV.C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Series | 12 |
|---|---|
| Min Temp | -30 °C |
| Cage Type | Solid, glass-fibre reinforced |
| Dynamic Load Rating | 31,000 N |
| Static Load Rating | 12,500 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.108 kg (2.44 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Limiting Speed | 6,500 rpm |
| Harmonization Code | 8482.10 |
| Internal Clearance | C3 |
| Industry Terms | self-aligning ball bearing, double row self aligning bearing, tapered bore bearing, adapter sleeve mount, 1213K, H213 sleeve bearing |
| Overall Width | 23 mm |
| Mpn Variants | 1213-K-TVH-C3, 1213K.TV.C3, 1213KTVC3, 1213 K TV C3, 1213K |
| Compatible With Replaces | Replaces FAG 1213K.TV.C3; adapter sleeve H213 |
| Additional Attributes | Adapter sleeve: H213; Fatigue limit load Cu: 790 N; Reference speed: 5,800 rpm; da min: 74 mm; da max: 83 mm; db min: 70 mm; Da max: 111 mm; Ba min: 6 mm |
| Common Misspellings | FAG 1213 KTVH C3; FAG1213K; Fag 1213 K TV C3; FAG 1213KTVC3; Schaeffler 1213K TVH |
| Application Types | Fans and blowers; textile machinery; agricultural machinery; shafting with misalignment on adapter sleeves |
| Cross Reference 1 | SKF 1213 EKTN9/C3 |
|---|---|
| Cross Reference 2 | NTN 1213SKC3 |
| Cross Reference 3 | NSK 1213KC3 |
| Cross Reference 4 | Koyo 1213KC3 |
FAG 1213-K-TVH-C3 (formerly 1213K.TV.C3) is a double-row self-aligning ball bearing with a 1:12 tapered bore, a solid cage of glass-fibre reinforced polyamide and C3 clearance. Unit Quantity: 1 Pc. GTIN: 4012801159128.
12 — self-aligning ball bearing, dimension series 02.
13 — bore code, 65 mm.
K — tapered bore, taper 1:12.
TV / TVH — solid cage of glass-fibre reinforced polyamide.
C3 — radial internal clearance larger than normal.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Tapered 1:12. Closure Type: Open. Cage Material: Polyamide. Internal Clearance: C3.
Dynamic Load Rating: 31,000 N. Static Load Rating: 12,500 N. Limiting Speed: 6,500 rpm. Reference Speed: 5,800 rpm. Fatigue Limit Load: 790 N. Item Weight: 1.108 kg (2.44 lb). Operating Temperature: -30 °C to 120 °C.

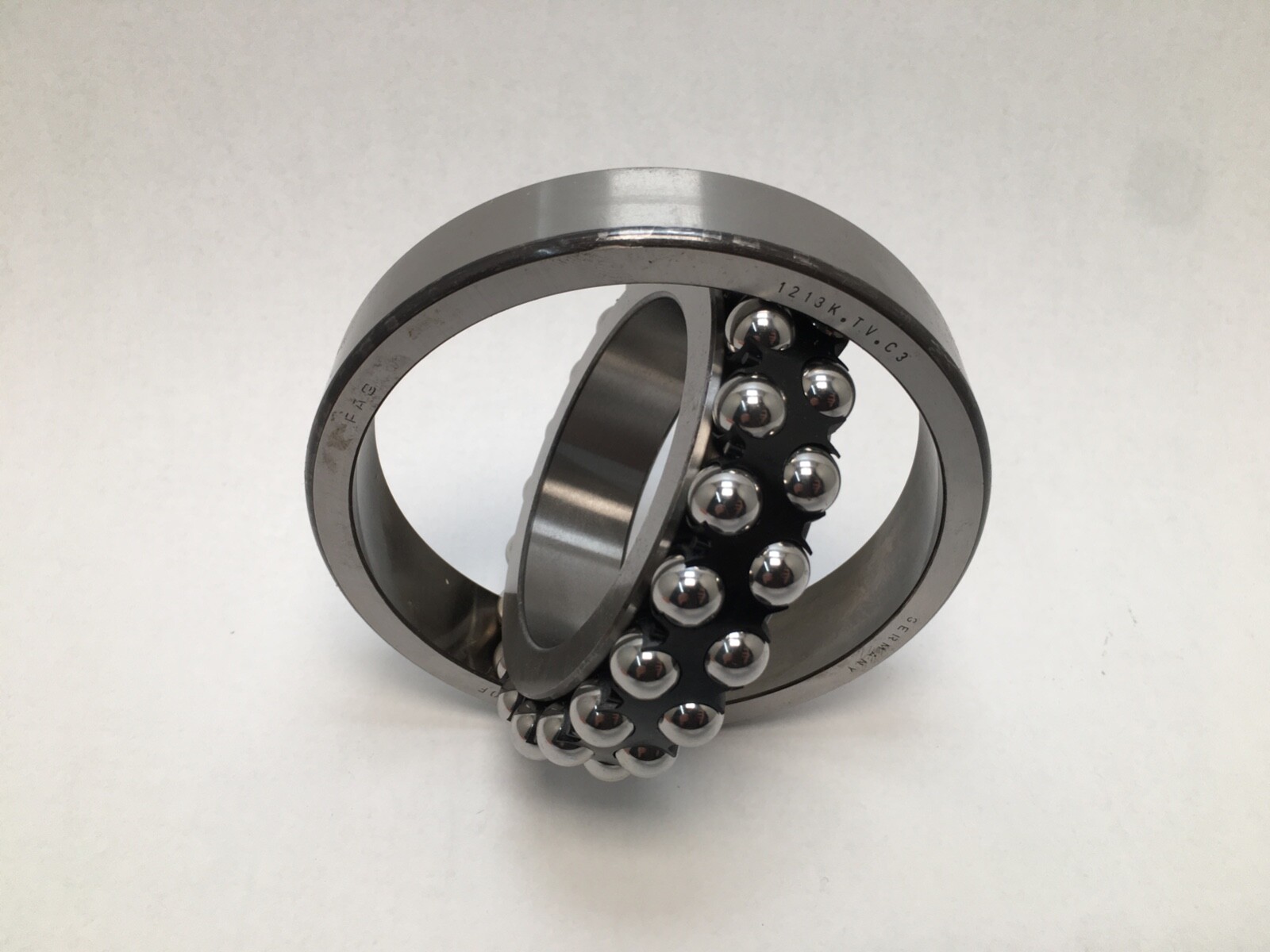

Adapter Sleeve: H213 (mounts on a 60 mm shaft). Chamfer r min: 1.5 mm. Fillet ra max: 1.5 mm. Shaft Abutment da min: 74 mm. Shaft Abutment da max: 83 mm. Sleeve Abutment db min: 70 mm. Housing Abutment Da max: 111 mm. Spacer Width Ba min: 6 mm. The spherical outer raceway lets the inner ring and ball set swivel, accommodating shaft misalignment.
Replaces FAG 1213K.TV.C3. Cross designations at 65 x 120 x 23 mm, tapered bore, C3 clearance: SKF 1213 EKTN9/C3, NTN 1213SKC3, NSK 1213KC3, Koyo 1213KC3.
65 mm bore, 120 mm outside diameter and 23 mm width.
The H213 adapter sleeve, which mounts on a 60 mm shaft.
Dynamic Load Rating: 31,000 N. Static Load Rating: 12,500 N. Limiting Speed: 6,500 rpm.
