Availability:
5 in stock
Angular contact ball bearing, 25 x 47 x 12 mm, 15° contact angle, light preload, Class 5 precision, open, chrome steel, single-row 7000 series.
List Price
$61.18
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 7005C-5GL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Chrome bearing steel |
|---|---|
| Series | 7000 |
| Lubricant | Grease or oil |
| Base Number | 7005 |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7005C-5GL; 7005 C 5 GL; 7005CTUL; 7005-C-5-GL/UL-PA; 7005 C GL PA |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7005CGL |
| Cross Reference 1 | FAG B7005-C-T-P4S-UL – P4S class, tighter than Class 5 |
|---|---|
| Cross Reference 2 | SKF 7005 CDGA/P4A – P4A class, extra light preload |
| Cross Reference 3 | NSK 7005C – standard class, no matched preload |
| Cross Reference 4 | NTN 7005C – standard class, no matched preload |
| Cross Reference 5 | Nachi 7005C – standard class, no matched preload |

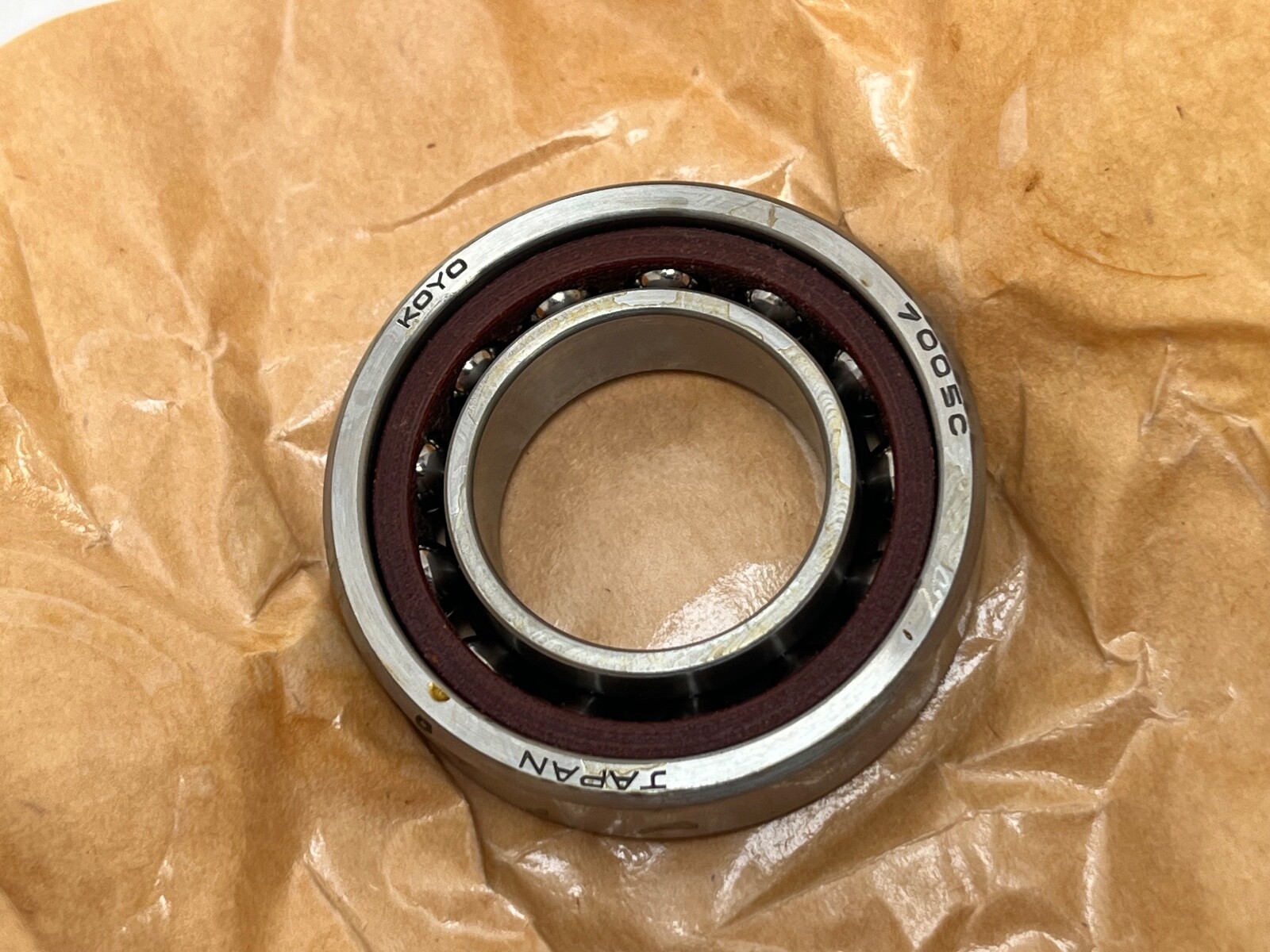

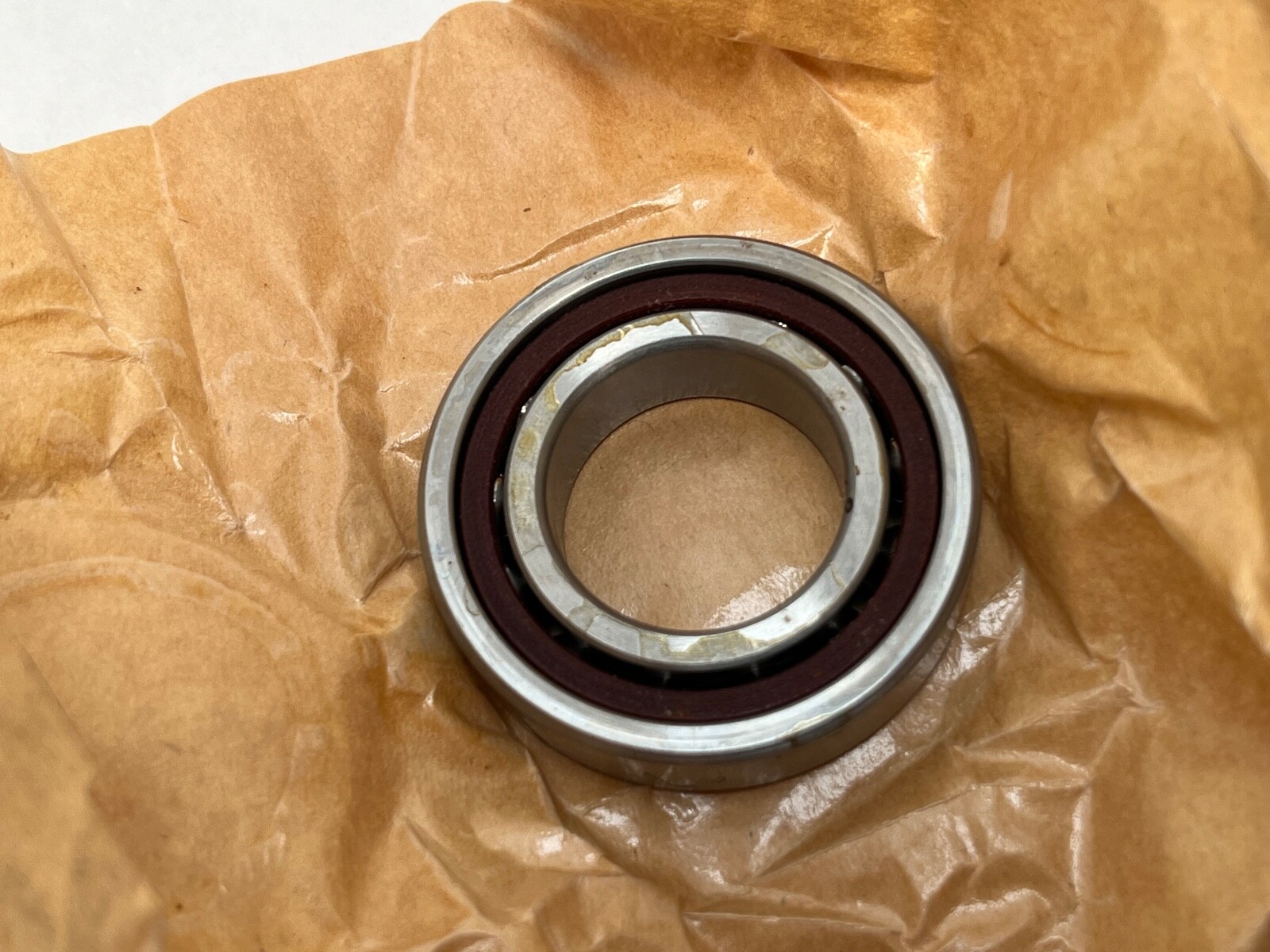

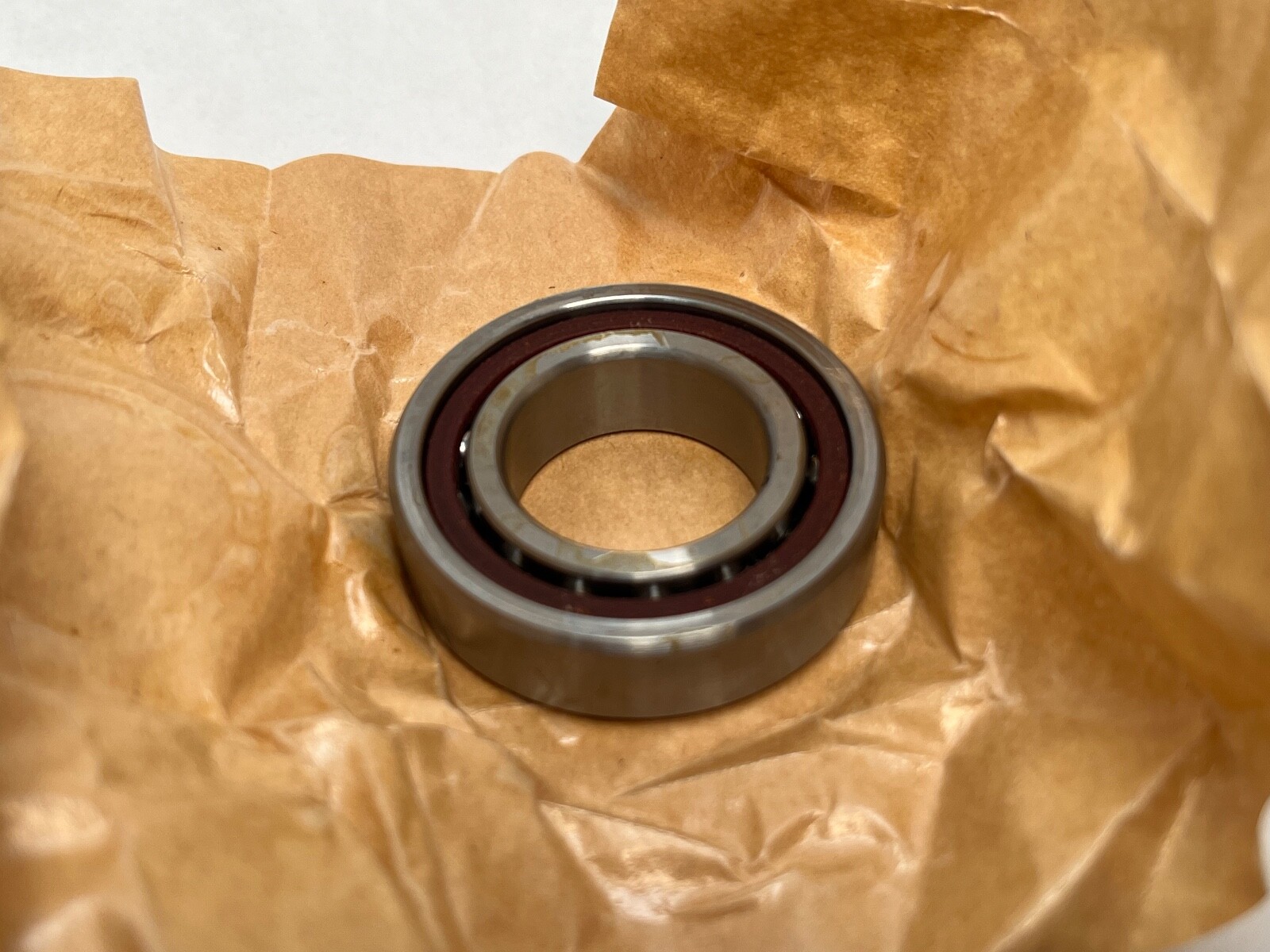

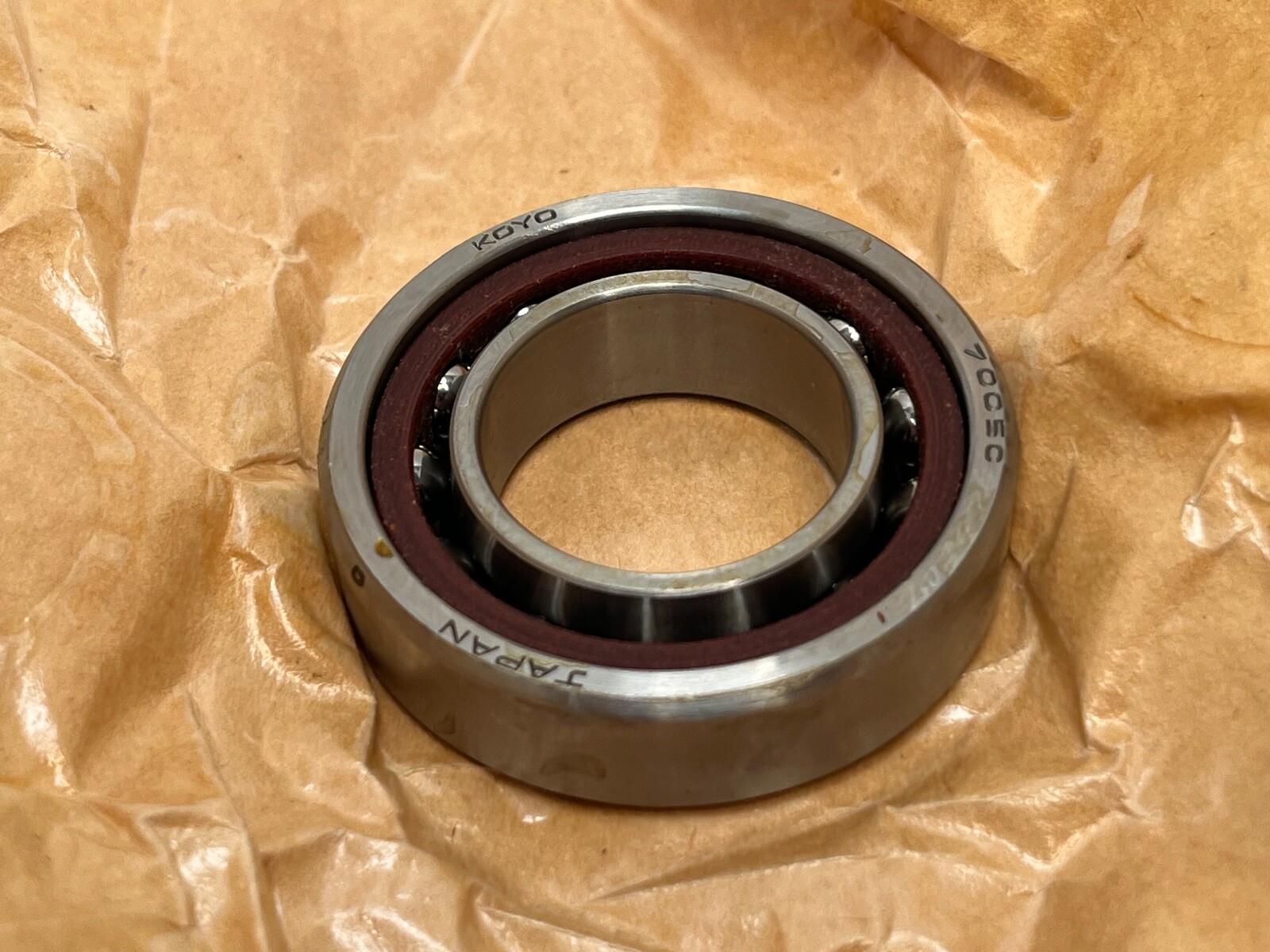

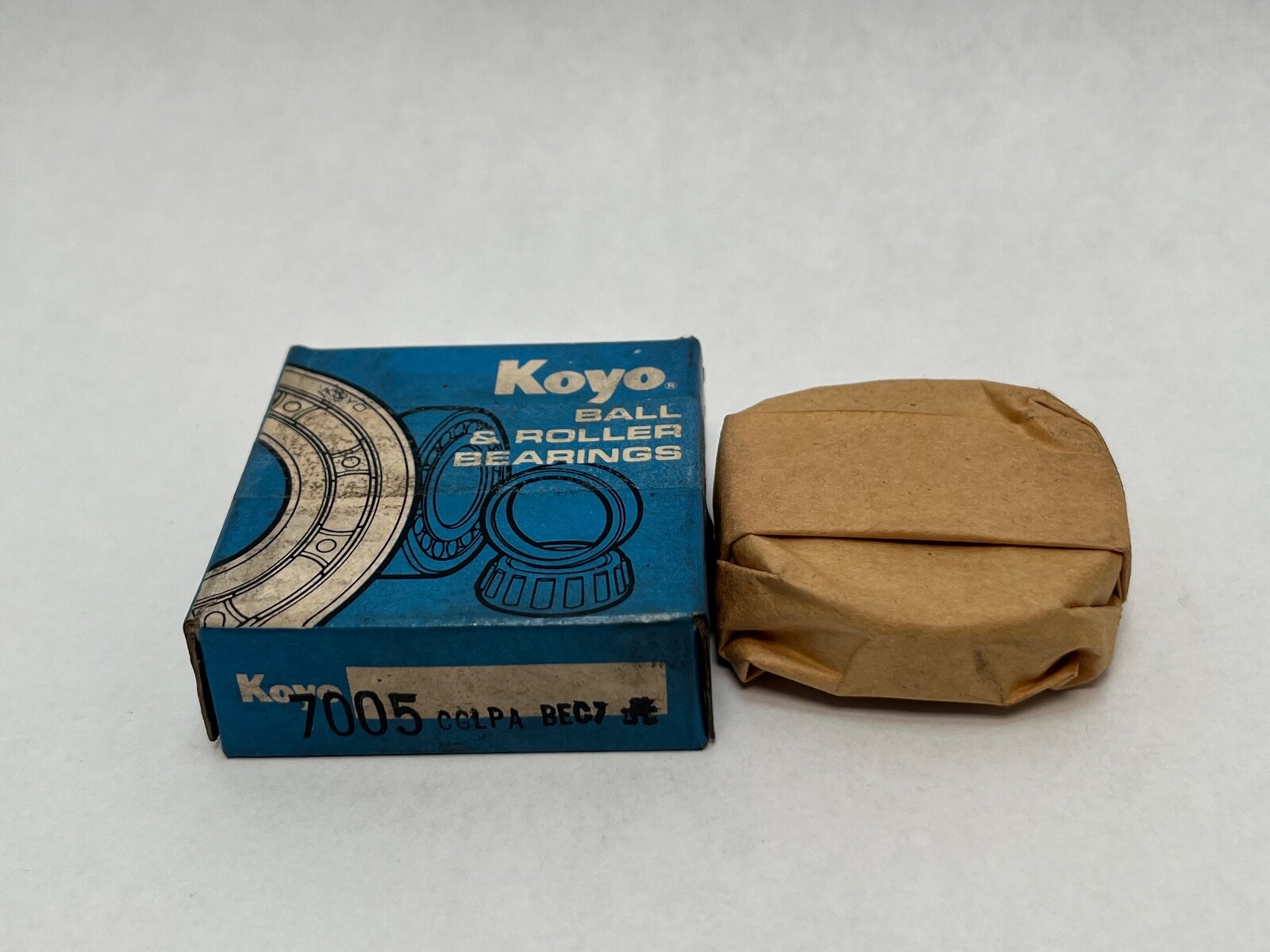

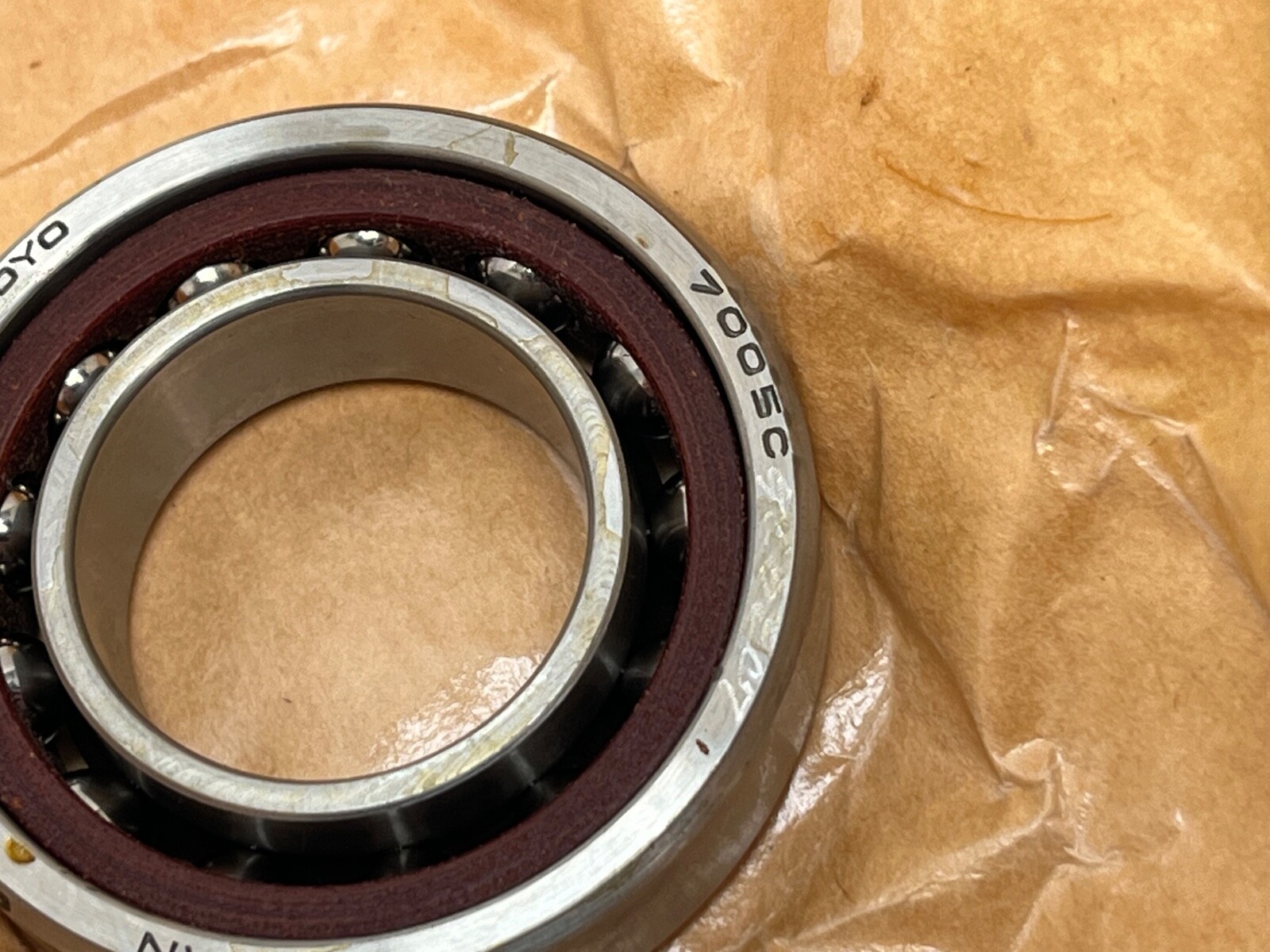

Koyo 7005CGL single-row angular contact ball bearing. Bore: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: chrome bearing steel. Series: 7000, ISO dimension series 10. Item Weight: 0.18 lb (0.082 kg).
Contact Angle: 15°, given by the C in the Koyo scheme. Precision Class: Class 5, equivalent to P5 and ABEC 5, given by the 5 in the full designation 7005C-5GL. Preload: light, given by GL. Mounting Arrangement: universally matched. Searchable forms of the number: 7005CGL, 7005C-5GL, 7005 C 5 GL, 7005CTUL, 7005-C-5-GL/UL-PA.
Dynamic Load Rating: 15.4 kN (3,462 lbf). Static Load Rating: 8.0 kN (1,798 lbf). Limiting Speed: 44,500 rev/min on oil lubrication and 32,500 rev/min on grease. Lubricant: grease or oil.
A 15° contact angle favours speed and radial rigidity over thrust capacity, which is why it is the standard machine-tool spindle angle. Class 5 tolerances hold bore, outside diameter and running accuracy tighter than a standard-class bearing, so the shaft is located more precisely and runs quieter at speed. Light preload holds true rolling contact between the balls and the raceways with less heat than a medium or heavy setting, and the universally matched rings clamp together back-to-back or face-to-face at the rated preload with no custom spacer.
Unit Quantity: 1 Pc. Internal Clearance: N/A. The bearing is preload-set at manufacture rather than clearance-set, so no radial clearance class applies.
25 x 47 x 12 mm, 15° contact angle, light preload: FAG B7005-C-T-P4S-UL (P4S, tighter than Class 5). SKF 7005 CDGA/P4A is P4A with extra light preload. NSK 7005C, NTN 7005C and Nachi 7005C are standard-class singles with no matched preload. A 7005A5, 7005AC or 7005E in this envelope carries a 25° contact angle, a related size rather than a substitution.
