A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Single-row angular contact ball bearing, 25 x 47 x 12 mm, 15° contact angle, machined phenolic cage, light preload, ABEC 7, matched duplex pair.
List Price
$174.78
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7005CVDUJ74 |
| GTIN | 3413520216887 |
| Model | 7005 CV DU J74 / 2MM9105 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7005CVDUJ74 / 7005 CV DU J74 / 7005-CV-DU-J74 / 7005C / 2MM9105 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
SNR 7005CVDUJ74 single-row angular contact ball bearing, supplied as a matched duplex pair. Brand: SNR. Manufacturer Part Number: 7005CVDUJ74. Bore: 25 mm. Outside Diameter: 47 mm. Width: 12 mm per bearing. Series: 7000. Number of Rows: 1 per bearing. Rolling Elements: Ball. Bearing Material: bearing steel. Closure Type: open on both faces. Bore Type: straight. Item Weight: 0.17 lbs.
Contact Angle: 15°. Preload: light. Precision Class: ABEC 7, equivalent to P4. Cage Material: phenolic resin. Cage Type: machined. Mounting Arrangement: universally ground. Minimum Temperature: -40°C. Maximum Temperature: 120°C.

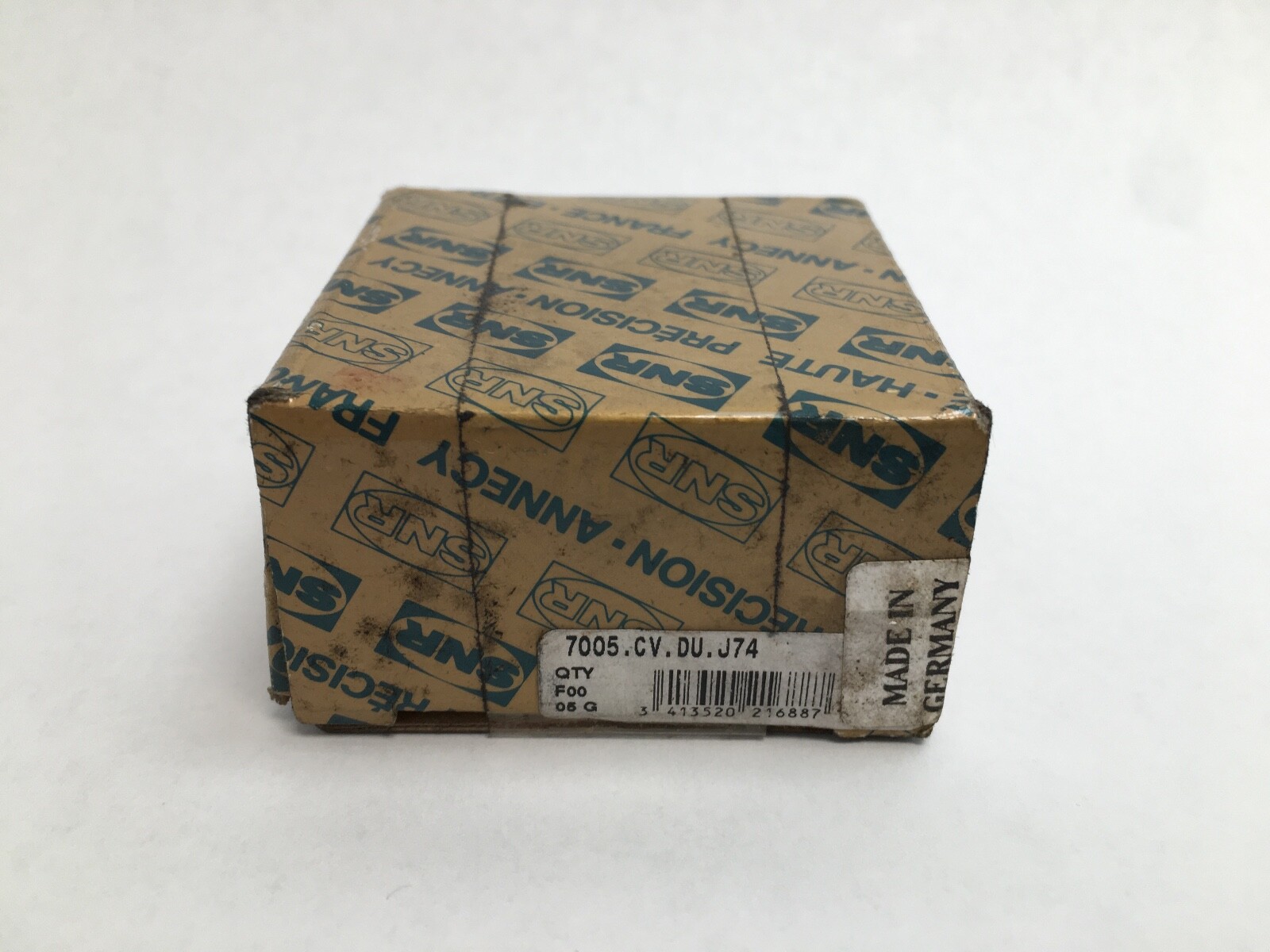

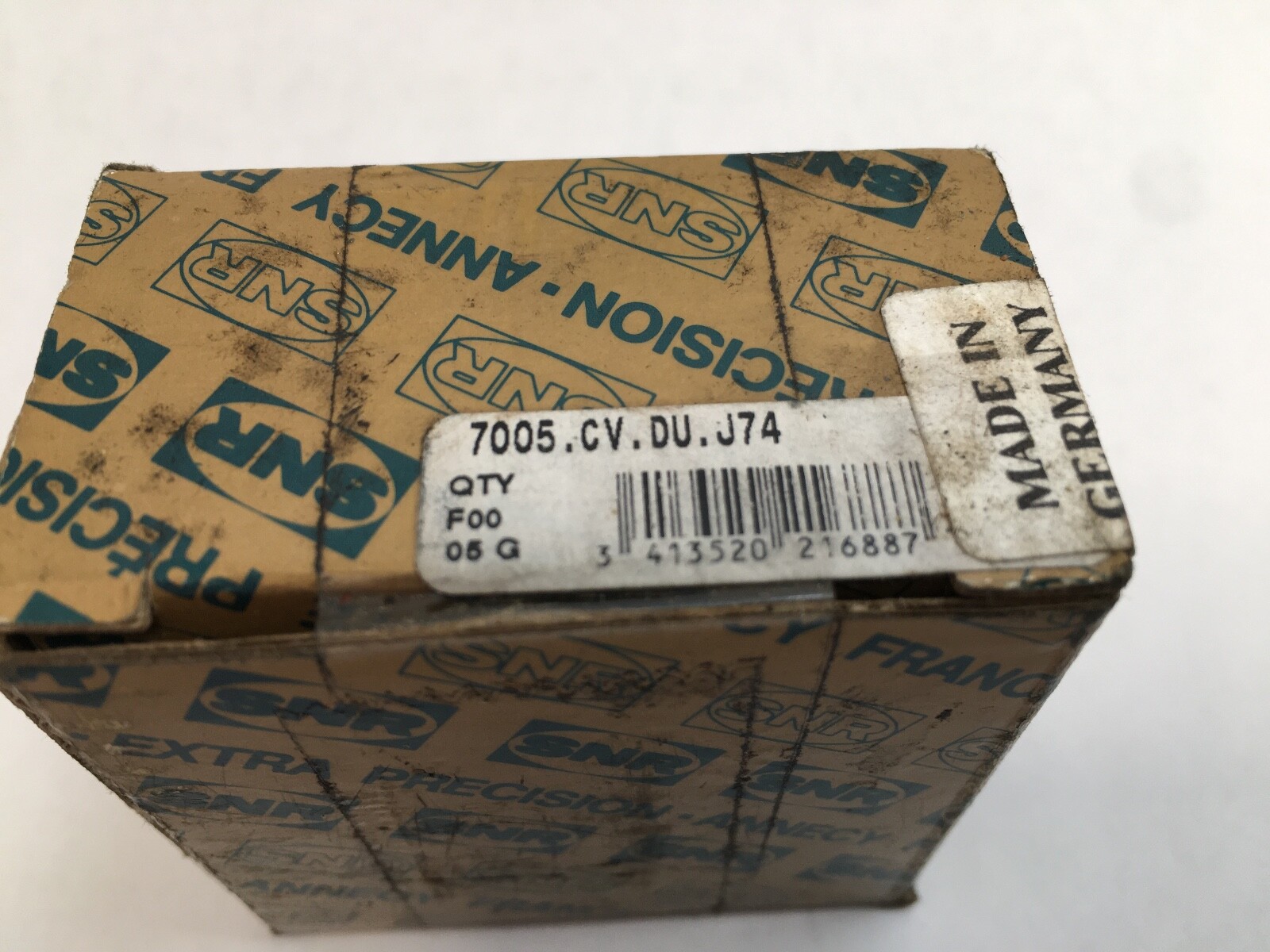

The carton carries this bearing in two schemes: SNR 7005 CV DU J74 and Fafnir 2MM9105. Searchable variants of the number include 7005CVDUJ74, 7005 CV DU J74, 7005-CV-DU-J74 and 7005C.
A 15° contact angle keeps the load path close to the radial plane, favouring speed and radial stiffness over thrust capacity. That is the trade a high-speed spindle position normally wants, and it is why this execution carries a high speed ceiling for its size.
The machined phenolic cage is light and absorbs oil, so it runs cooler and quieter than brass or steel at high shaft speed, and the 120°C ceiling reflects the phenolic. ABEC 7 precision holds low radial and axial runout and gives close, repeatable shaft location. Light preload removes internal play and fixes the ball path, which is why this bearing is set by preload rather than by an internal clearance class.
Unit Quantity: 2 Pcs. This listing supplies a matched duplex pair, universally ground so the two bearings can be clamped together in any face orientation and will arrive at the designed light preload.
Cross-Reference: SKF 7005 CD/P4ADGA. Cross-Reference: FAG B7005-C-T-P4S-DUL. Cross-Reference: NSK 7005CTYNDULP4. Cross-Reference: Fafnir 2MM9105. Harmonization Code: 8482.10.50. A same-envelope 7005 built at 25° is a related size rather than a substitution, because the steeper angle changes both the thrust capacity and the speed behaviour.
