Angular contact ball bearing pair, 65 mm bore, 100 mm outside diameter, 18 mm width per ring. 15 degree contact angle, light preload, duplex-matched. Sold as a set of 2 Pcs.
List Price
$272.43
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SNR |
|---|---|
| MPN | 7013CDUJ74 |
| Model | 7013C T DUL P4 / 3MM9113WI CR DUL / 7013 C DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Preload | Light |
| Base Number | 7013C |
| Industry Terms | spindle bearing; machine tool bearing; matched pair angular contact; duplex bearing set; light preload bearing |
| Common Misspellings | SNR 7013CDUJ7A; 7013 C DU J7 4; 7013CDUI74; SRN |
| Application Types | Machine tool spindles; grinding spindles; pumps; gearbox input shafts |
| Total Width | 36 mm (1.4173 in) for the matched pair |
| Bore Shaft Size | 65 mm (2.5591 in) |
| Mpn Variants | 7013CDUJ74; 7013 C DU J74; 7013-C-DU-J74; 7013CDU J74; 7013CDU |
| Distributor Stock Numbers | 7013CDUJ74 |
| Manufacturer Status | SNR is a French maker, now NTN-SNR |
| Arrangement Configuration | Duplex matched pair (DU) |
| Min Temp | -30 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 31.5 kN |
| Static Load Rating | 32 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.20 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 per ring, 2 rows in the pair |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15 degrees |
| Mounting Arrangement | Matched duplex pair |
| Design Units | Metric |
| Bearing Material | Steel rings, steel balls |
| Part Number | 7013CDUJ74 |
| Cross Reference 1 | 7013C (ISO angle-designated equivalent) |
|---|---|
| Cross Reference 2 | 7013 (ISO base number) |
| Cross Reference 3 | 7013-C-T-DUL-P4 (generic carton cross-designation) |

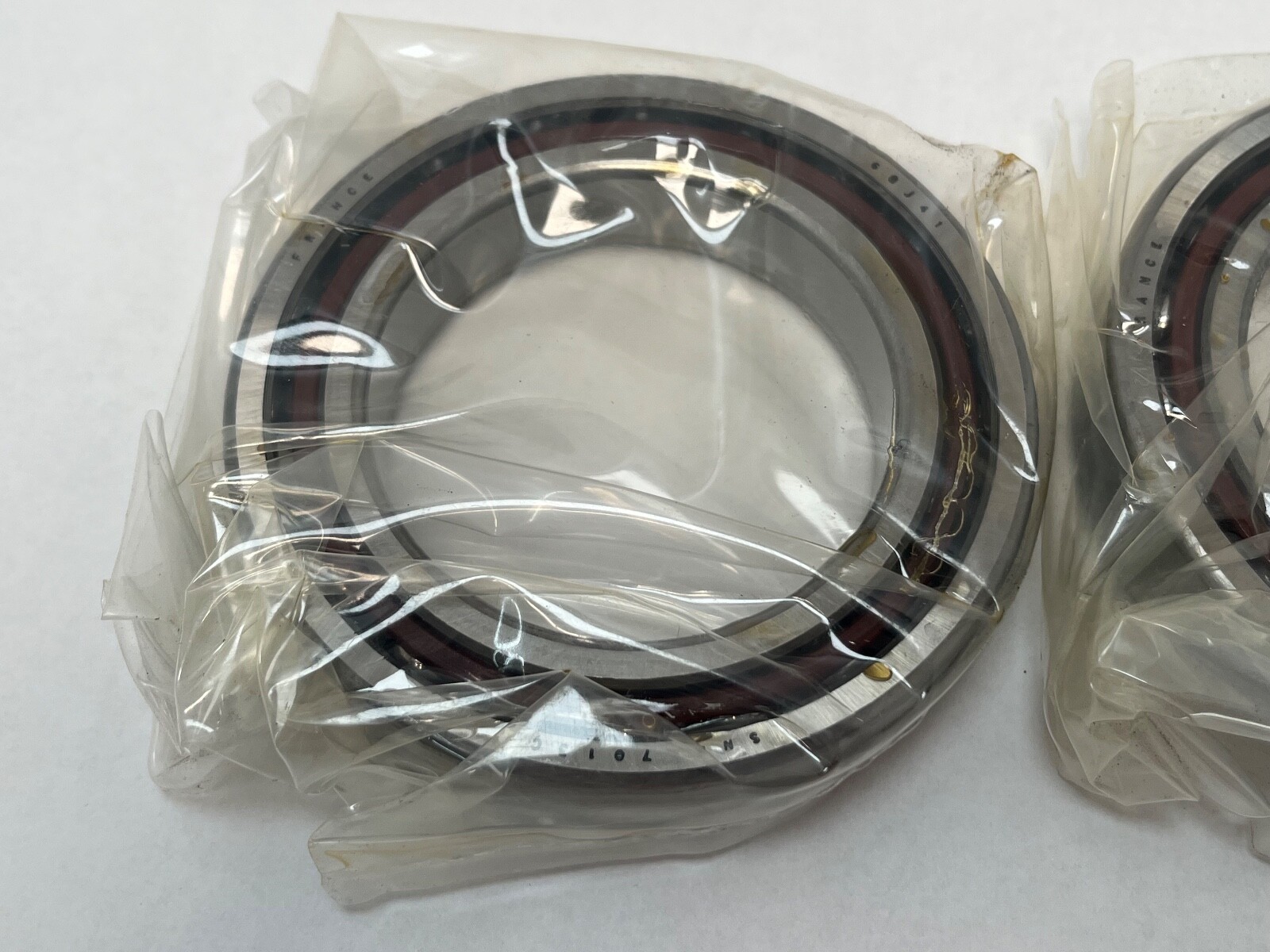

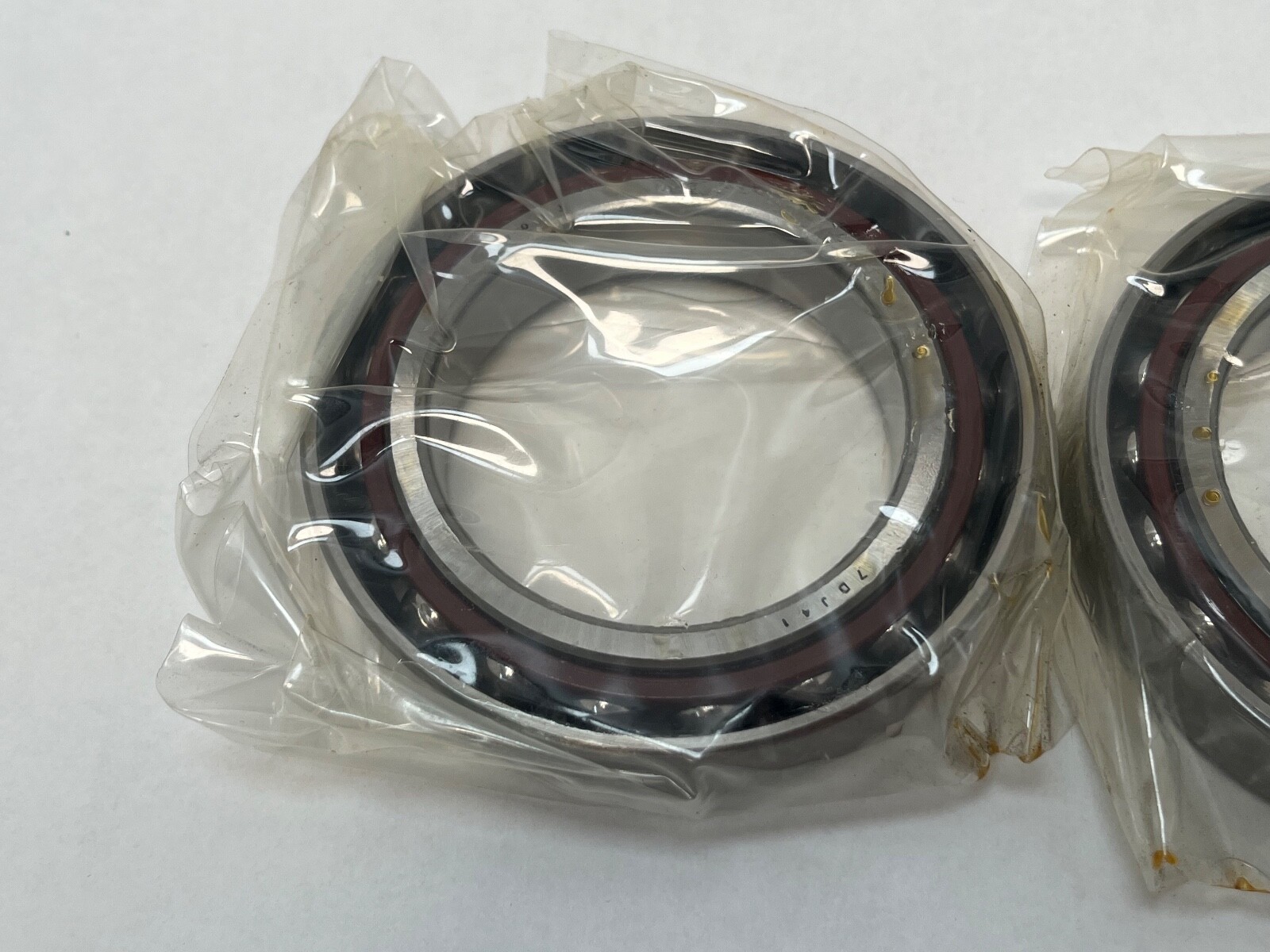

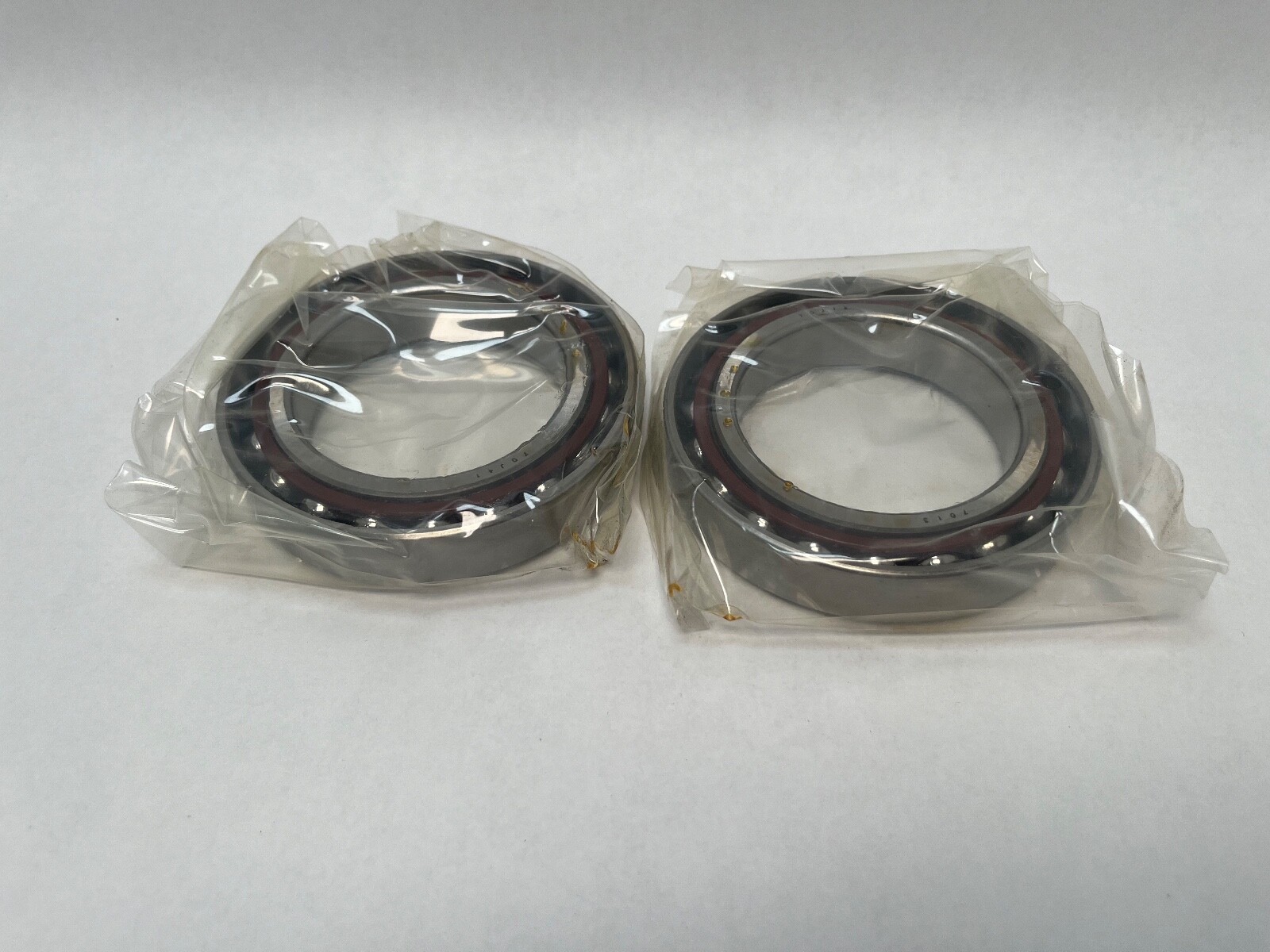

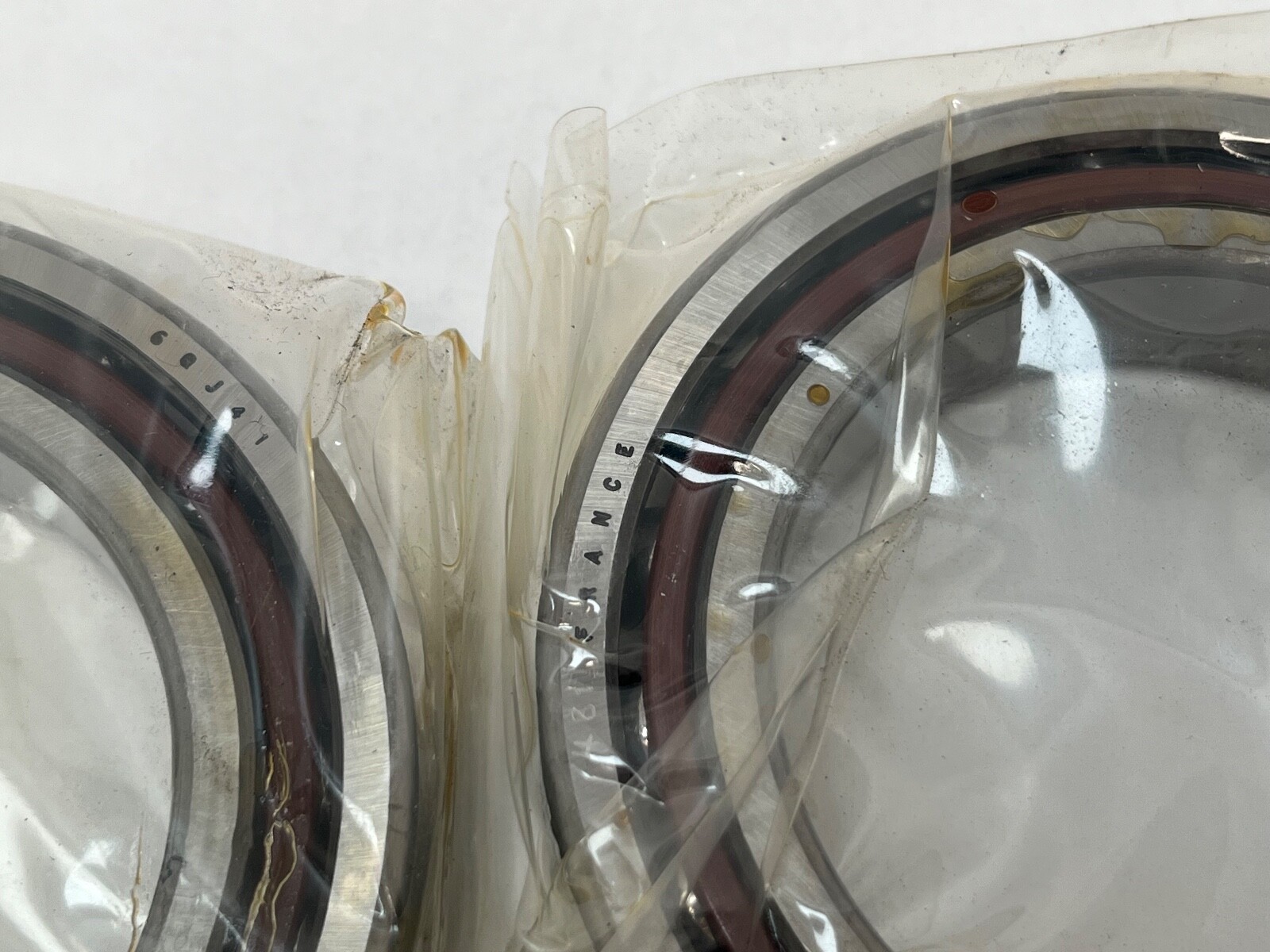

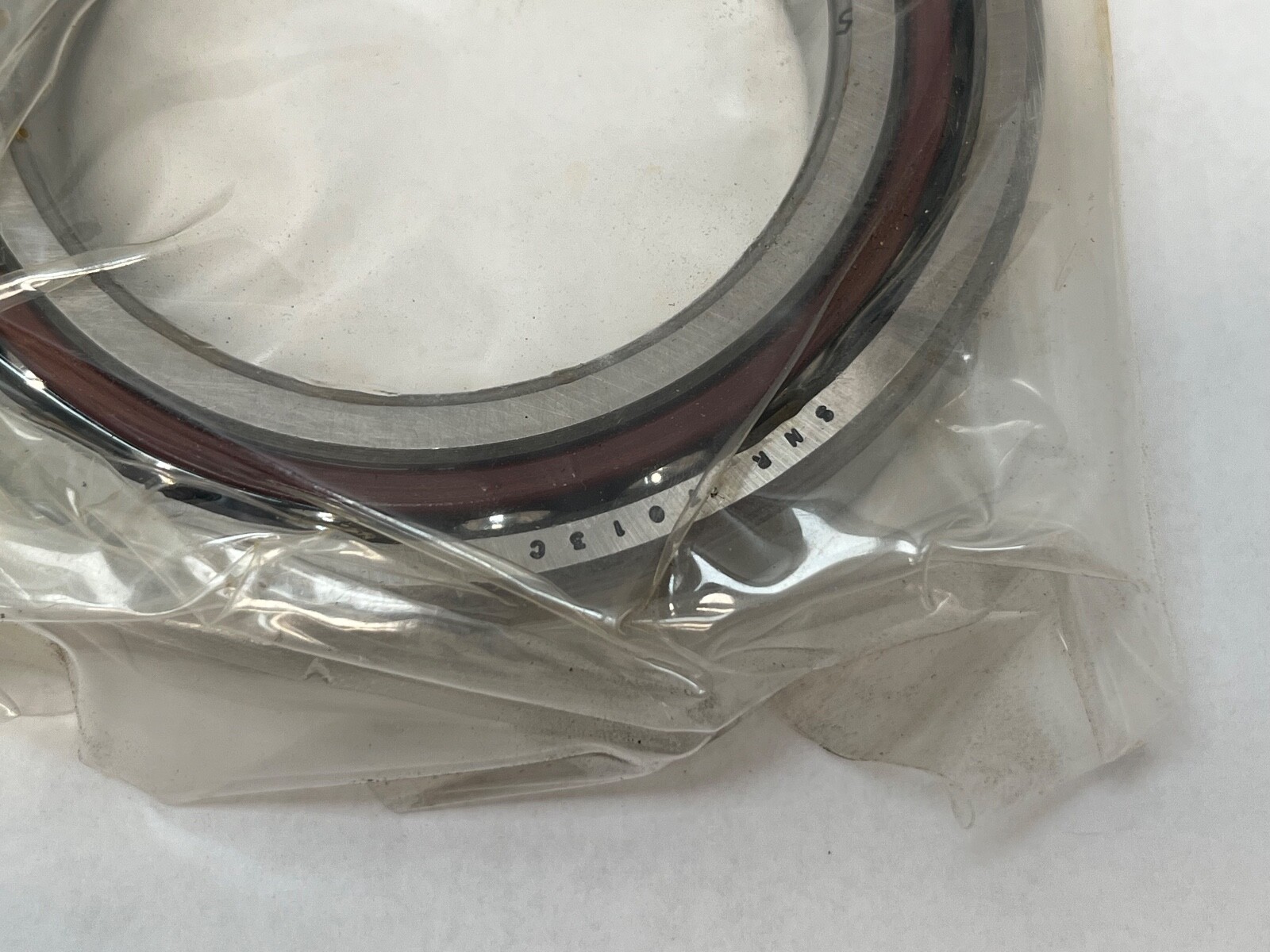

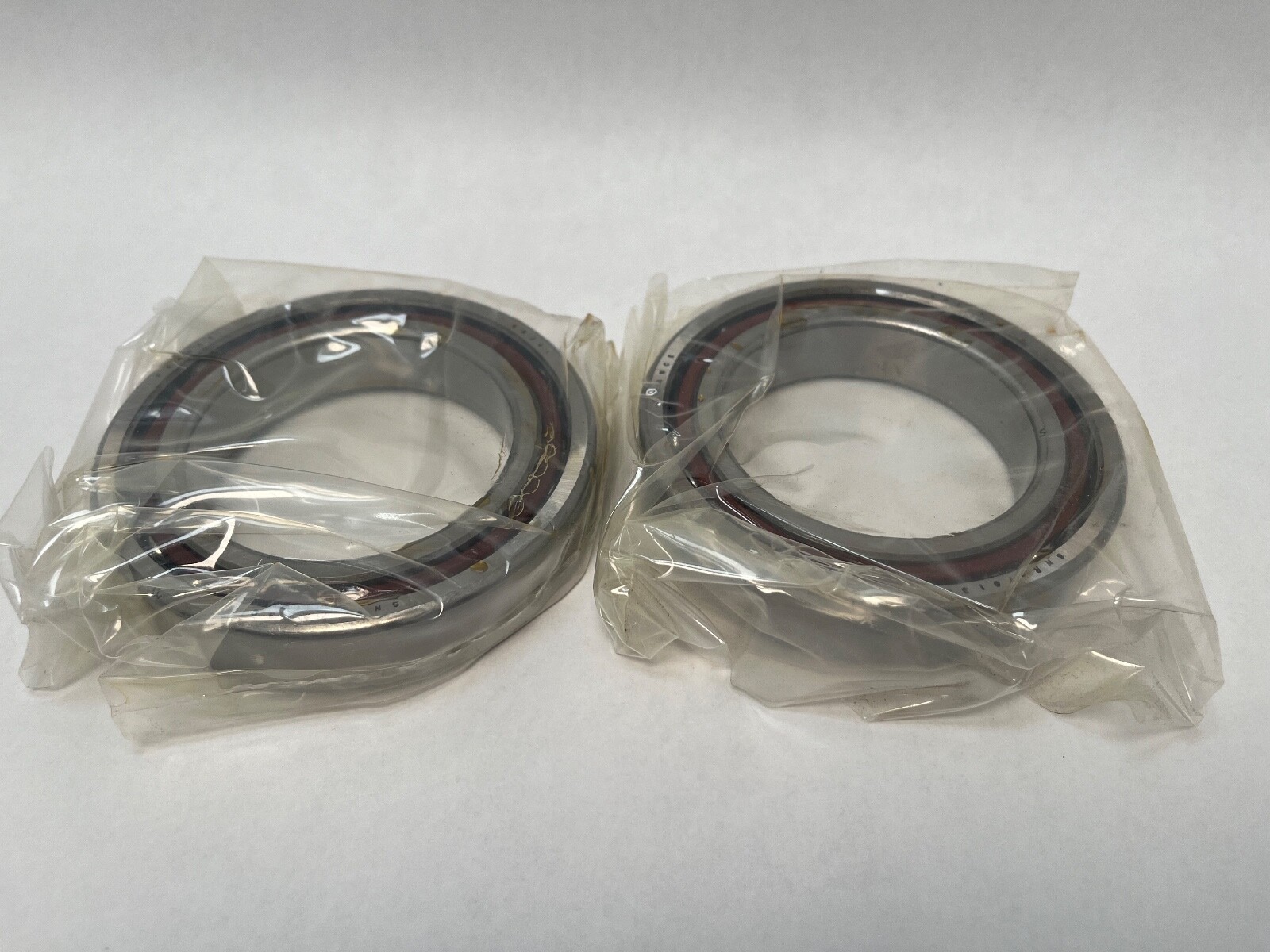

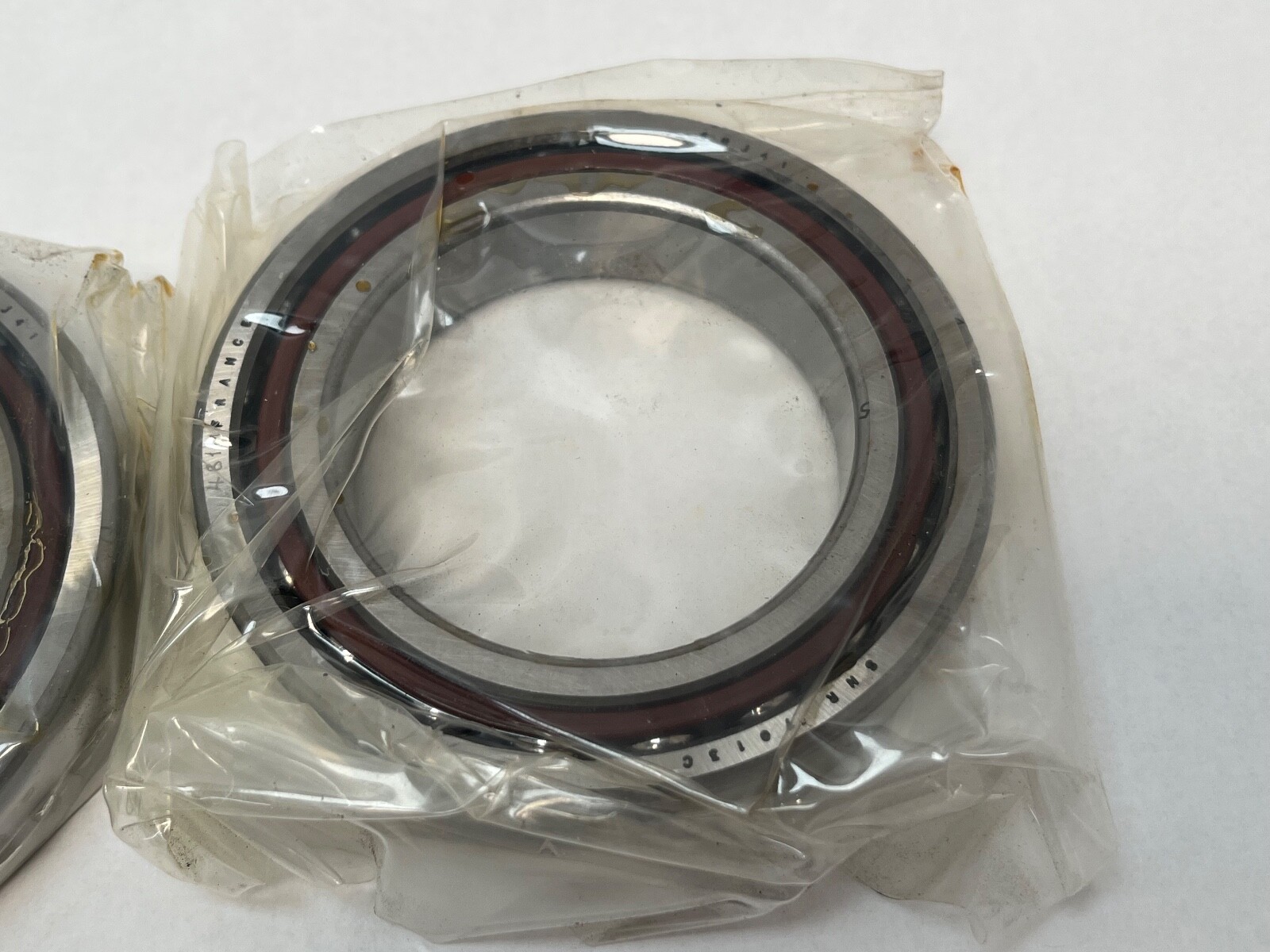

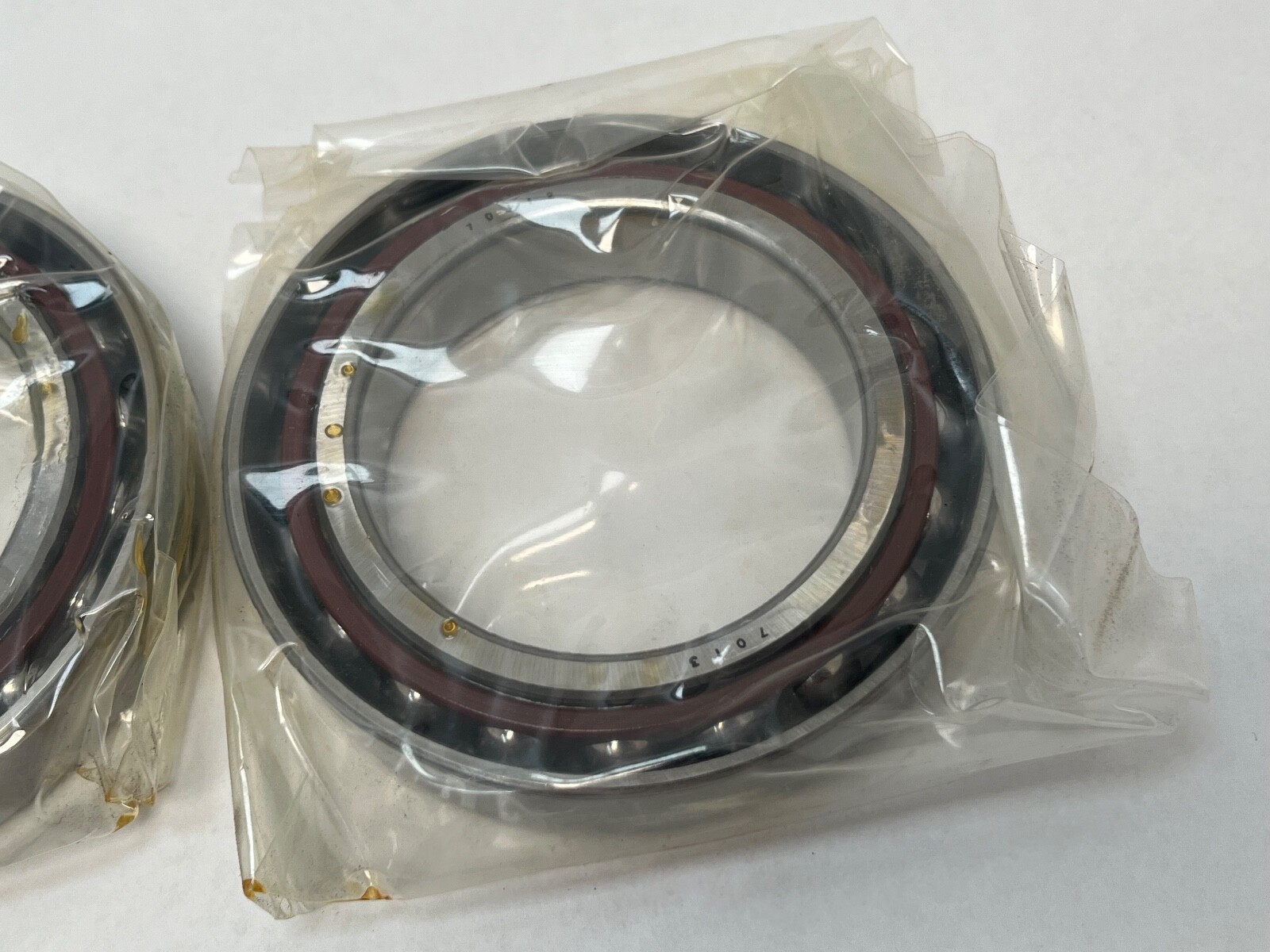

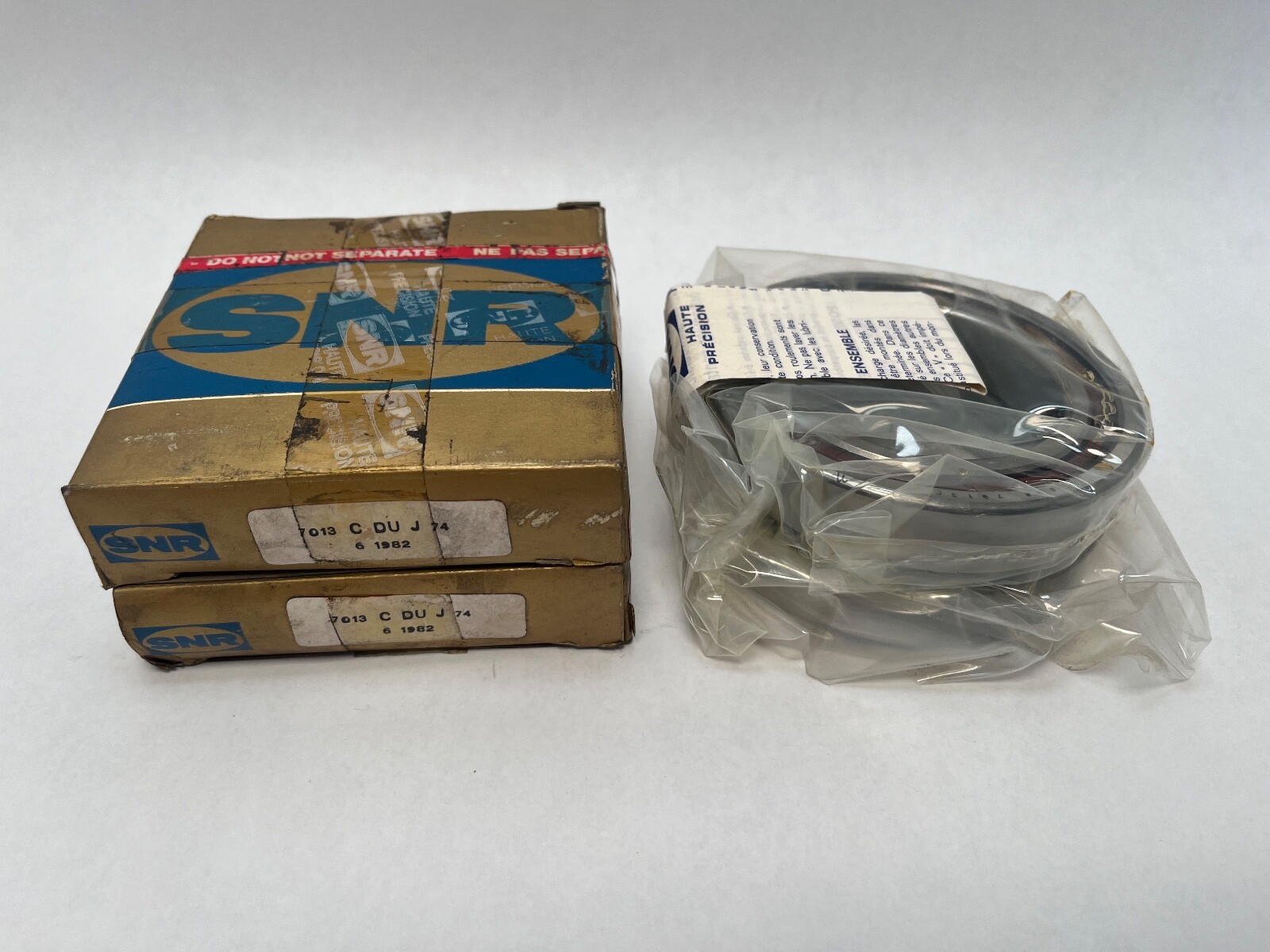

An SNR 7013 C DU J74 angular contact ball bearing set, two rings supplied as a duplex-matched pair. Steel rings, steel balls, open on both faces.
70 — ISO 70 dimension series; bore code 13 gives a 65 mm bore.
C — 15° contact angle.
DU — duplex, supplied as a matched pair.
J74 — light preload. J84 is the medium grade.
A 15° contact angle favours speed and radial stiffness over thrust capacity, which is the usual choice for a spindle front position. Light preload keeps the running temperature and frictional torque low against some loss of axial stiffness. Being ground as a duplex pair, the two rings seat together and reach the marked preload with no shim stack. SNR’s J74 and J84 are preload codes and sit in a different register from the J20, J30, J40 and J50 radial clearance codes.
Bore: 65 mm (2.5591 in)
Outside diameter: 100 mm (3.9370 in)
Width per ring: 18 mm (0.7087 in)
Total width of the pair: 36 mm (1.4173 in)
Contact angle: 15°
Preload: light (J74)
Rolling elements: steel balls, single row per ring
Closure: open both faces
2 Pcs, supplied as one duplex-matched pair.
ISO base number 7013, angle-designated 7013C. Searchable forms are 7013CDUJ74, 7013 C DU J74, 7013-C-DU-J74 and 7013CDU. A 7013AC or 7013B ring carries a 25° or 40° contact angle on the same envelope, so both are related sizes rather than interchanges. A 7013 C DU J84 is the medium preload grade and is likewise a related size.
