Availability:
1 in stock

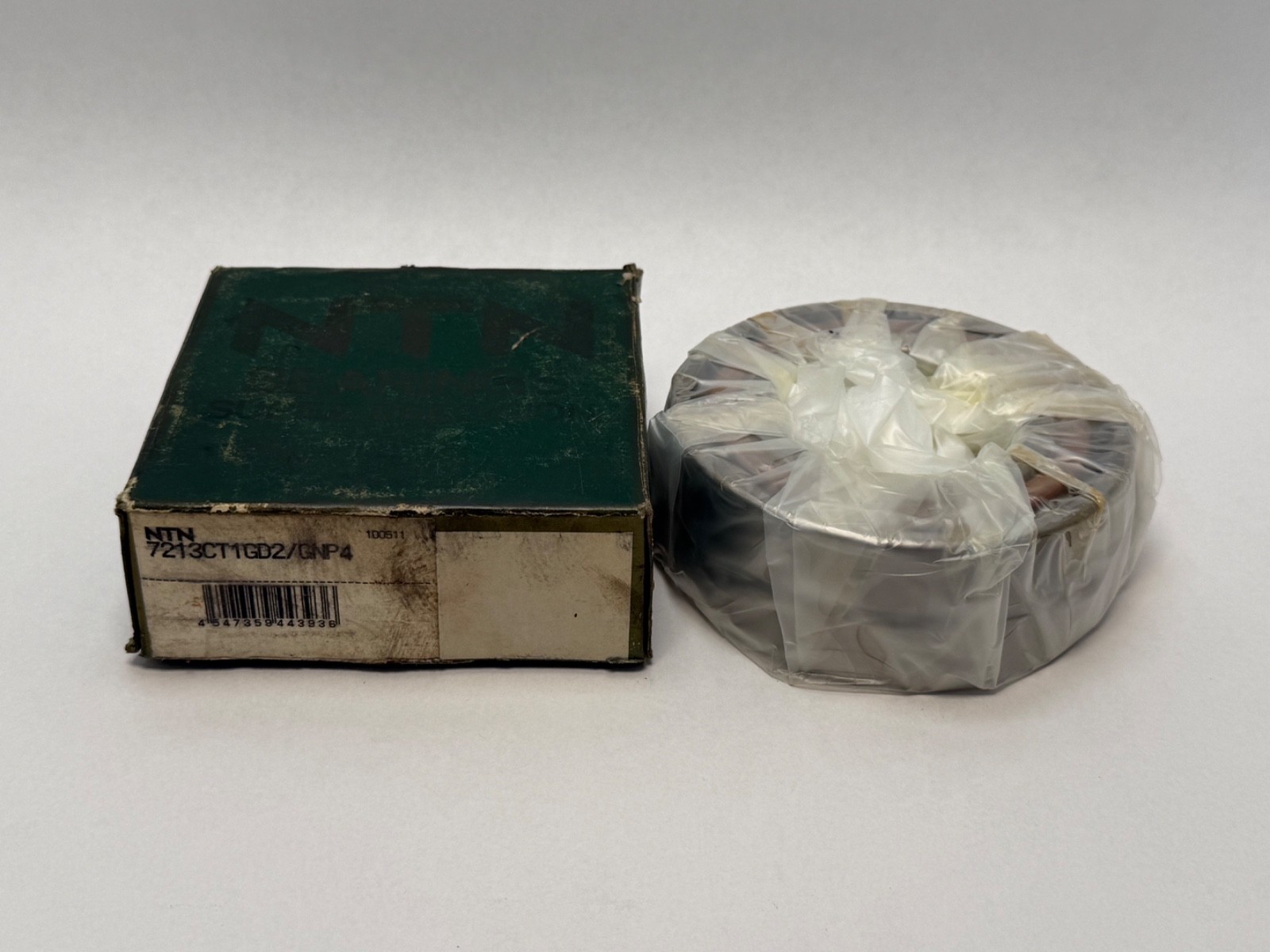

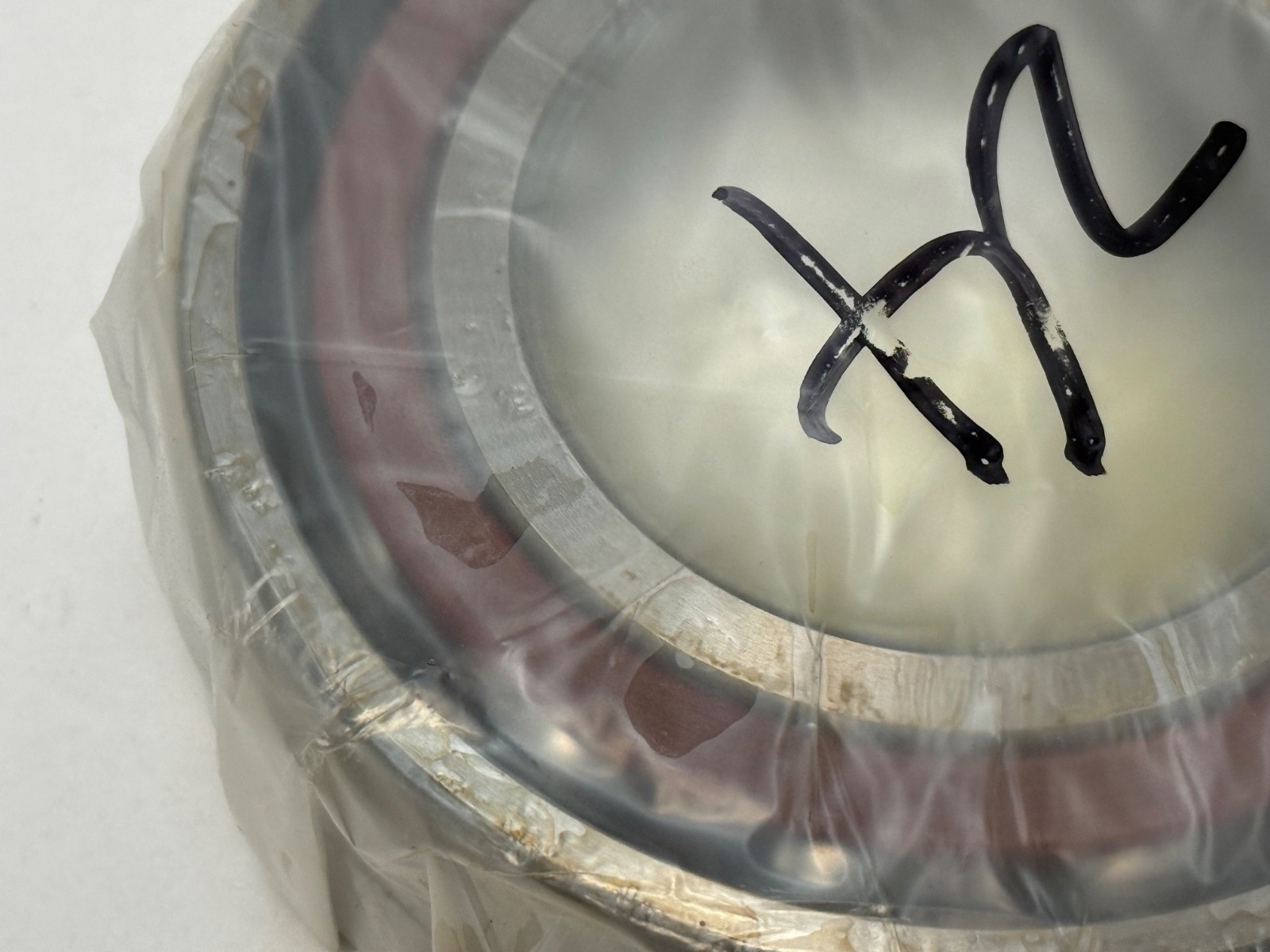

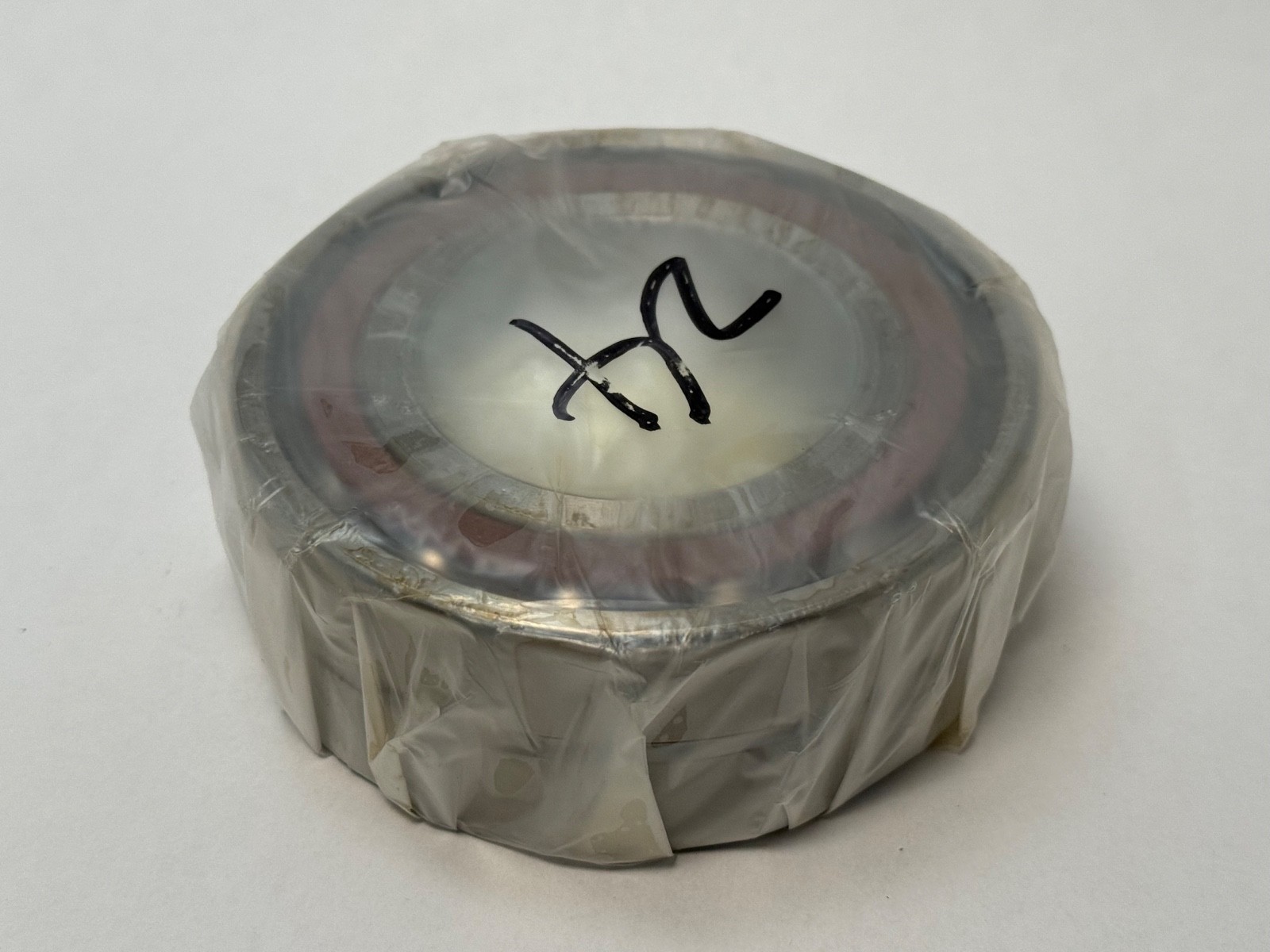

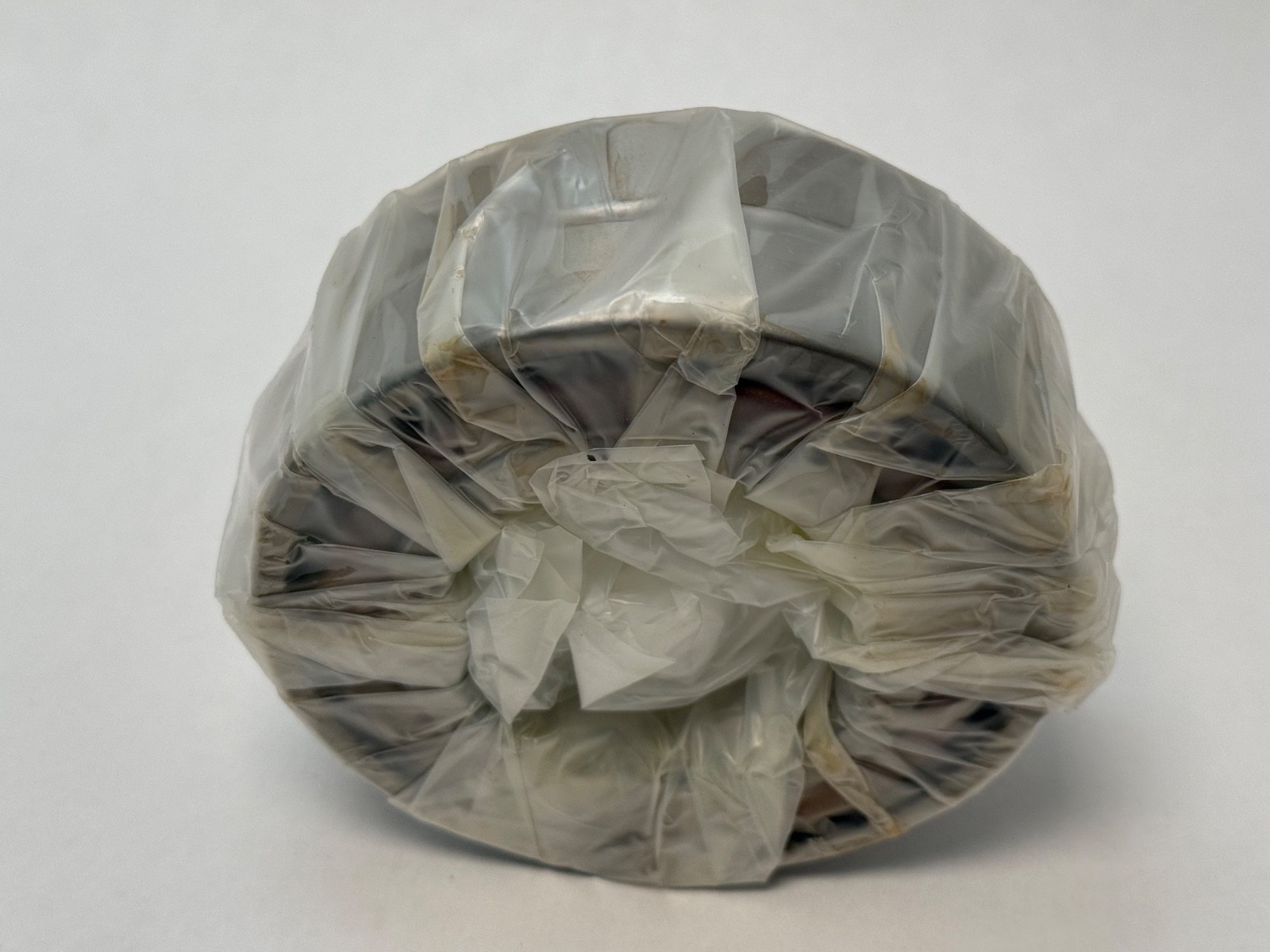

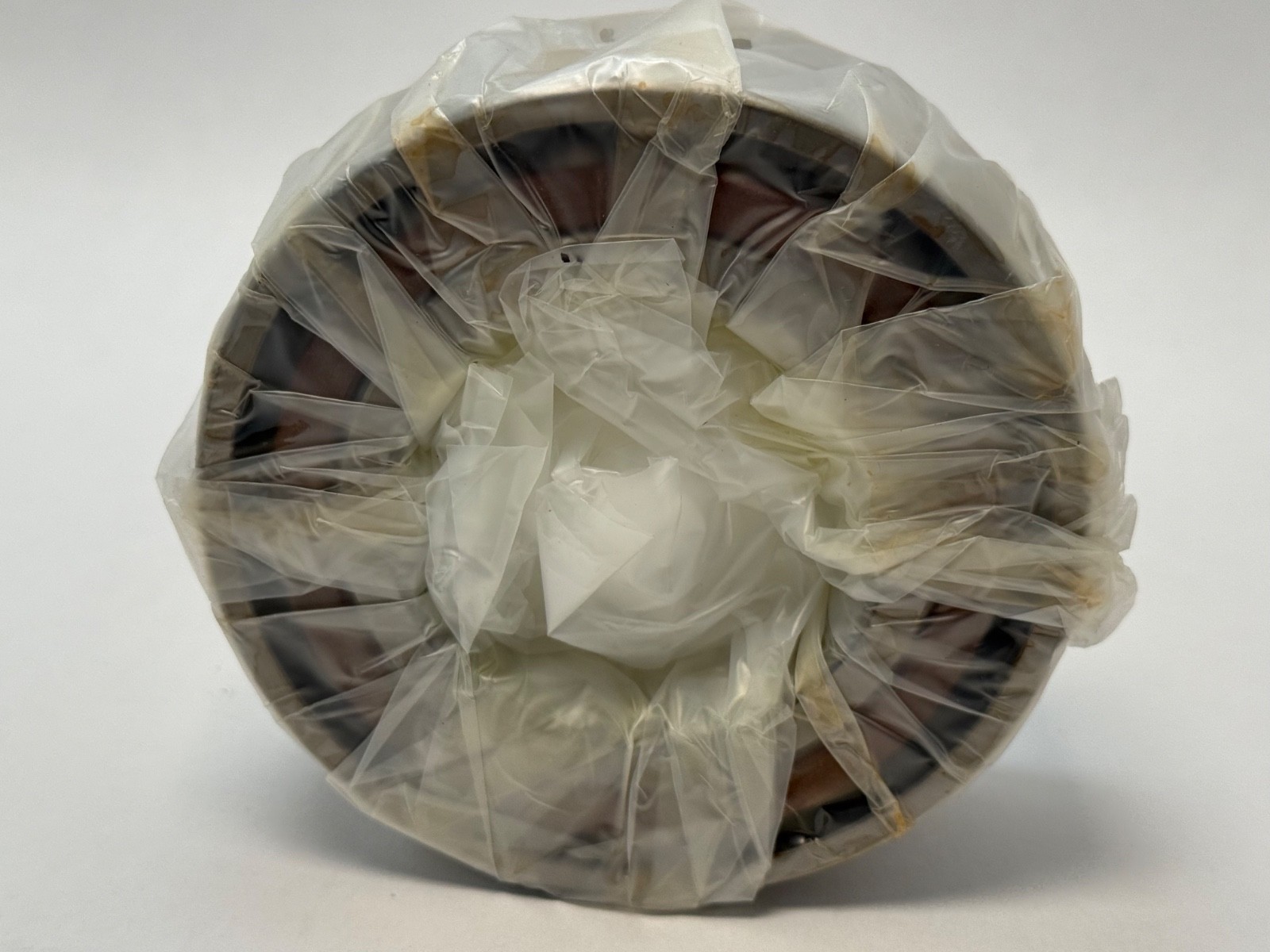

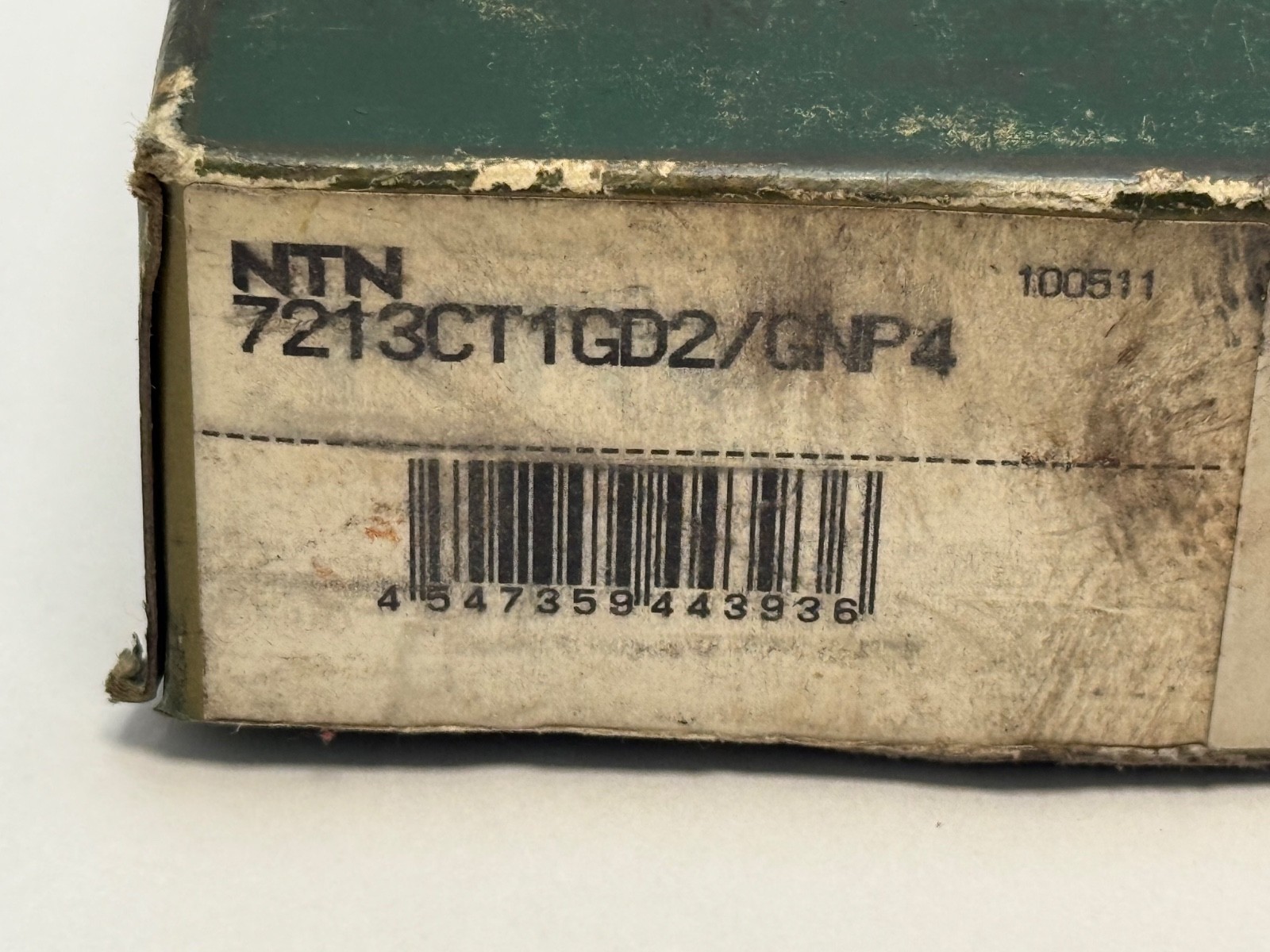

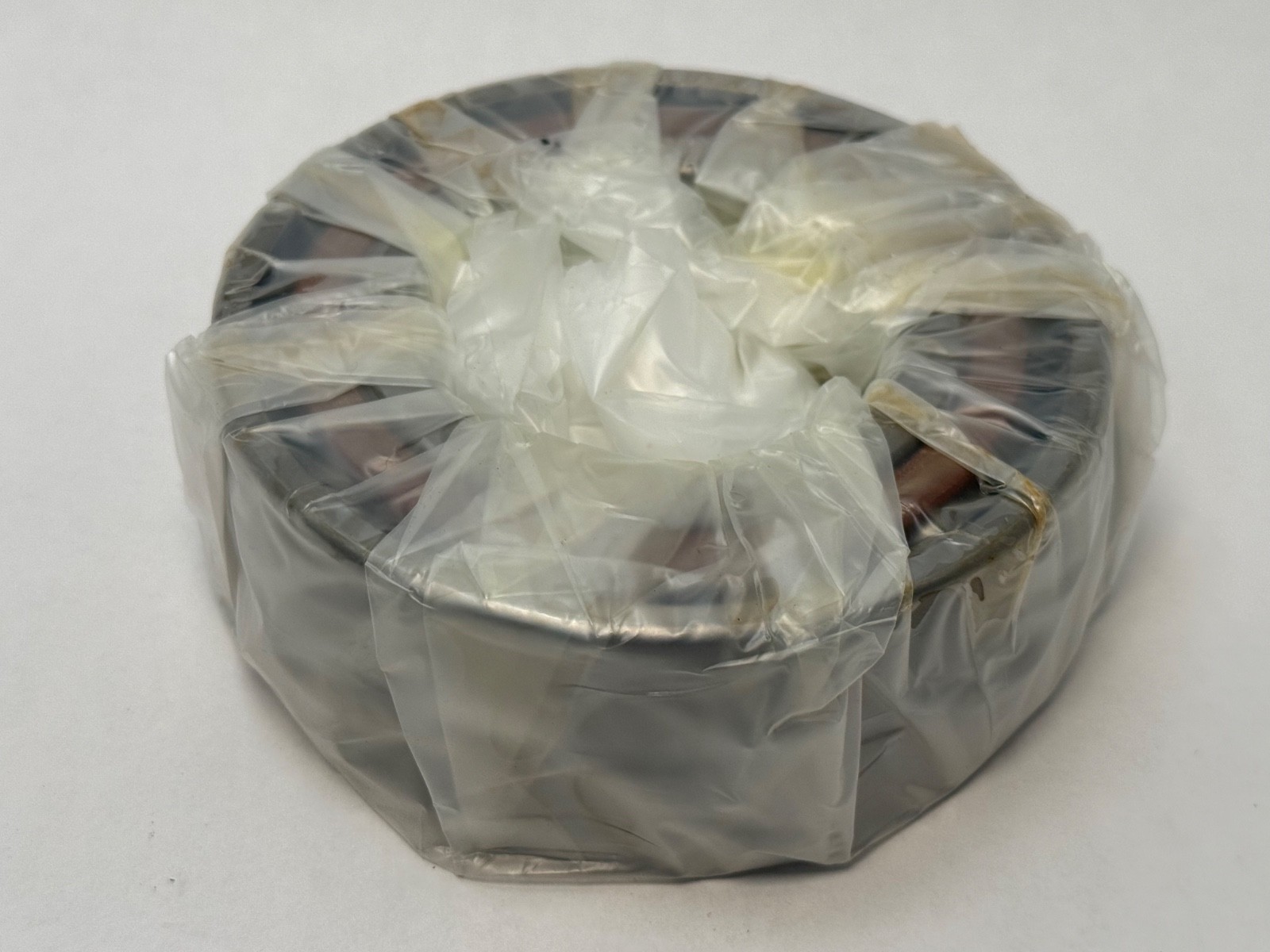

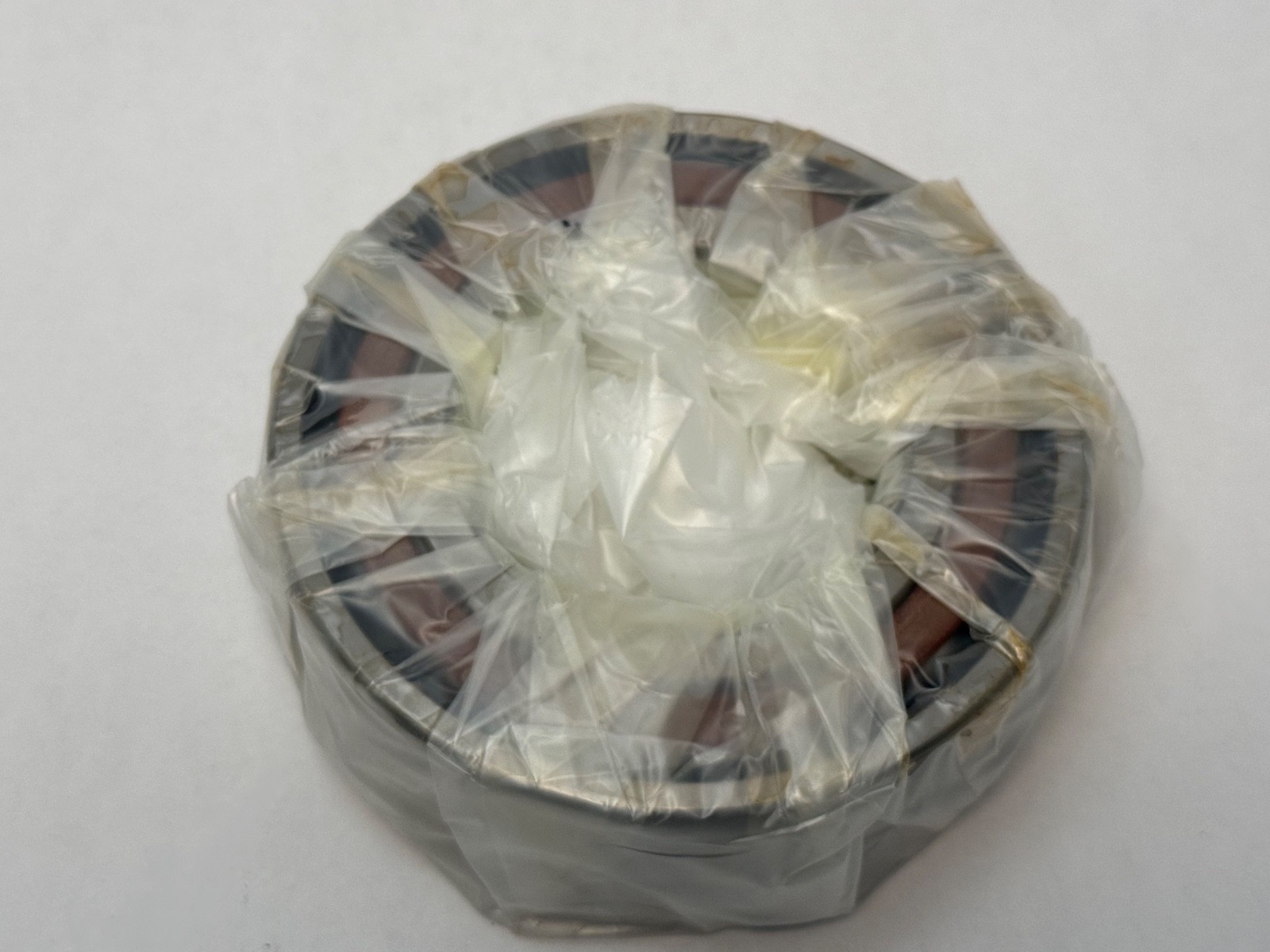

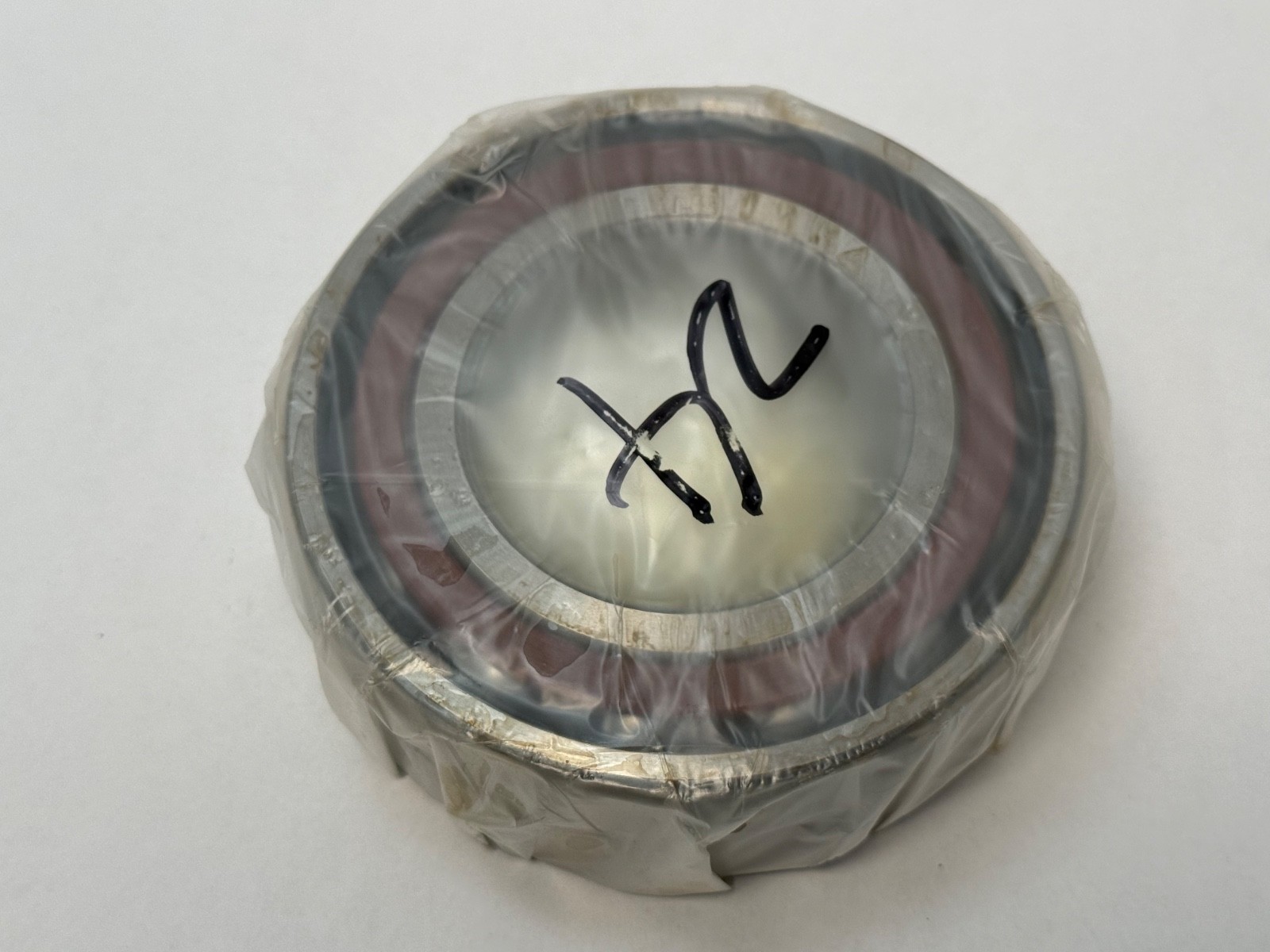

Angular contact ball bearing pair, 65 x 120 x 23 mm, 15° contact angle, ISO P4, phenolic cage. NTN 7213CT1GD2/GNP4 universal flush-ground set, 2 pieces.
List Price
$243.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 7213-C-T1-GD2-GN-P4 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Total Width | 46 mm |
| Mpn Variants | 7213CT1GD2/GNP4, 7213CT1GD2GNP4, 7213-C-T1-GD2-GN-P4, 7213C |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -40 °C |
| Cage Type | Laminated (stratified) |
| Dynamic Load Rating | 113,000 N (pair) |
| Static Load Rating | 110,000 N (pair) |
| Precision Rating | ABEC 7 / P4 |
| Series | 7200 |
| Max Temp | 120 °C |
| Item Weight | 1.958 kg (4.32 lb) pair |
| Cage Material | Phenolic |
| Limiting Speed | 7,100 rpm grease; 9,500 rpm oil |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Contact Angle | 15° |
| Mounting Arrangement | Universal pair (DB, DF or DT) |
| Cross Reference 1 | SKF 7213 CD/P4A - single, order 2 |
|---|---|
| Cross Reference 2 | FAG B7213-C-T-P4S - single, order 2 |
| Cross Reference 3 | NSK 7213CTYNSULP4 - single, polyamide cage, order 2 |
| Cross Reference 4 | Koyo 7213C P4 - single, cage and preload not confirmed |
NTN 7213CT1GD2/GNP4 precision angular contact ball bearings, supplied as a universal flush-ground duplex pair. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Width: 23 mm per bearing, 46 mm for the pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
7213 — ISO 72 series (light section), 65 mm bore.
C — 15° contact angle.
T1 — laminated phenolic cage.
GD2 — universal flush-ground duplex set of two bearings, mountable back-to-back, face-to-face or in tandem.
P4 — ISO Class 4 precision, equivalent to ABEC 7.
Figures for the pair, from NTN. Dynamic Load Rating: 113,000 N. Static Load Rating: 110,000 N. Limiting Speed: 7,100 rpm grease; 9,500 rpm oil. Item Weight: 1.958 kg (4.32 lb) for the pair. Cage Material: Phenolic. Cage Type: Laminated (stratified). Operating Temperature: -40 °C to 120 °C.
Shaft abutment da min: 73.5 mm; db min: 70.5 mm. Housing abutment Da max: 111.5 mm; Db max: 114.5 mm. Fillet ras max: 1.5 mm; r1as max: 1.0 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal pair (DB, DF or DT).
Cross-references, 15° and P4 class, each a single bearing so order two for a pair: SKF 7213 CD/P4A, FAG B7213-C-T-P4S, NSK 7213CTYNSULP4 (polyamide cage rather than phenolic), Koyo 7213C P4 (cage and preload not confirmed).
