Matched pair of super-precision angular contact ball bearings, 65 x 100 x 18 mm, 15° contact angle, light preload, P4A. SKF D design, universally matchable.
List Price
$366.38
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7013 CD/P4ADGB |
| Model | 7013CDP4ADGB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Preload | Light, 320 N |
| Total Width | 36 mm (pair) |
| Mpn Variants | 7013 CD/P4ADGB, 7013-CD/P4ADGB, 7013CDP4ADGB, 7013-CD-P4A-DGB, 7013CD/P4A DGB |
| Precision Class | ABEC 7 / P4A |
| Dynamic Load Rating | 67,600 N (pair) |
| Static Load Rating | 75,000 N (pair) |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 10,500 rpm grease; 16,500 rpm oil-air (back-to-back pair) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable pair (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | FAG B7013-C-T-P4S-DUM – medium preload, not light |
|---|---|
| Cross Reference 2 | NSK 7013CTYNDUMP4 – medium preload, not light |
| Cross Reference 3 | Fafnir 2MM9113WI CR DUM – medium preload, not light |

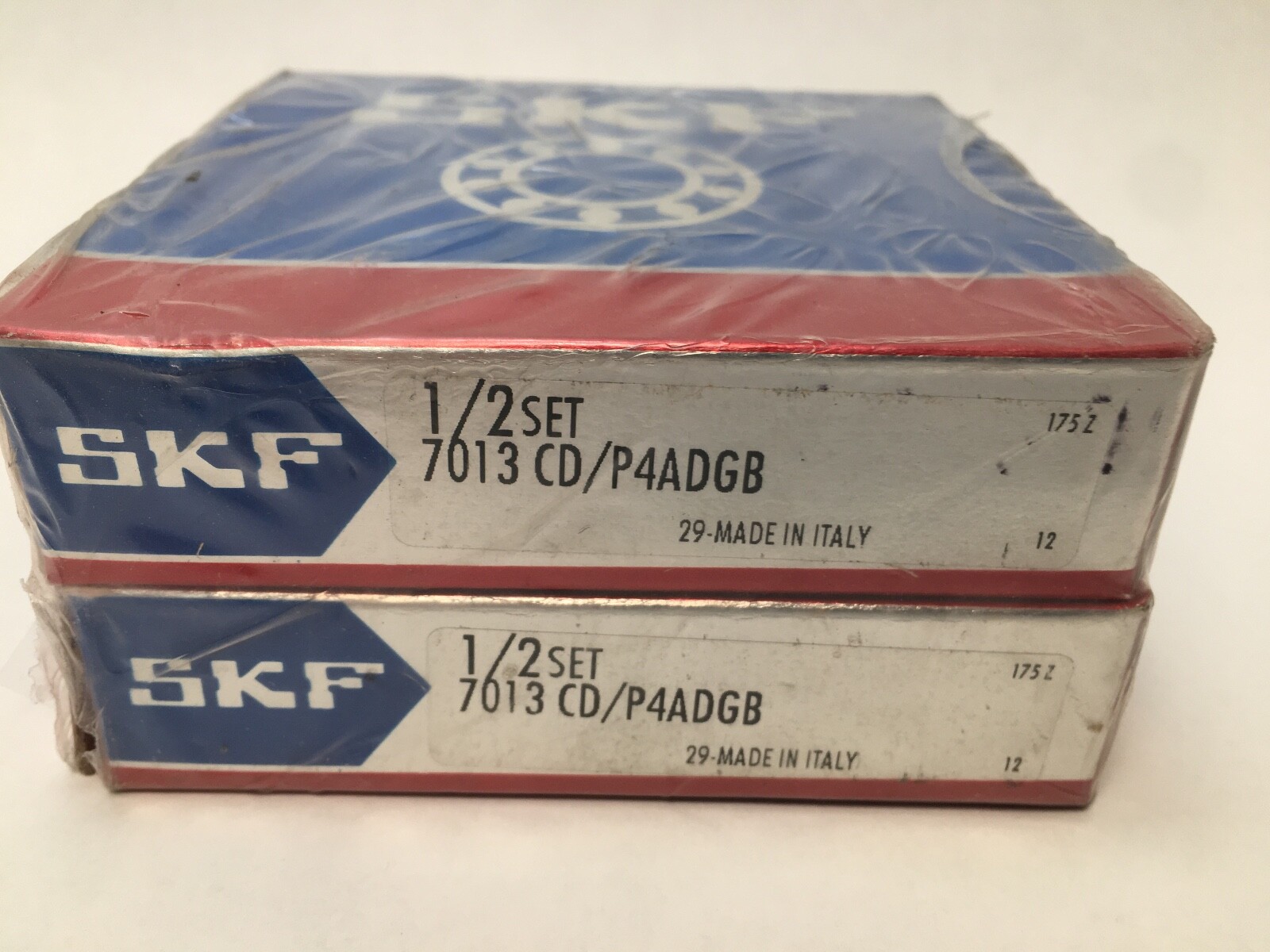

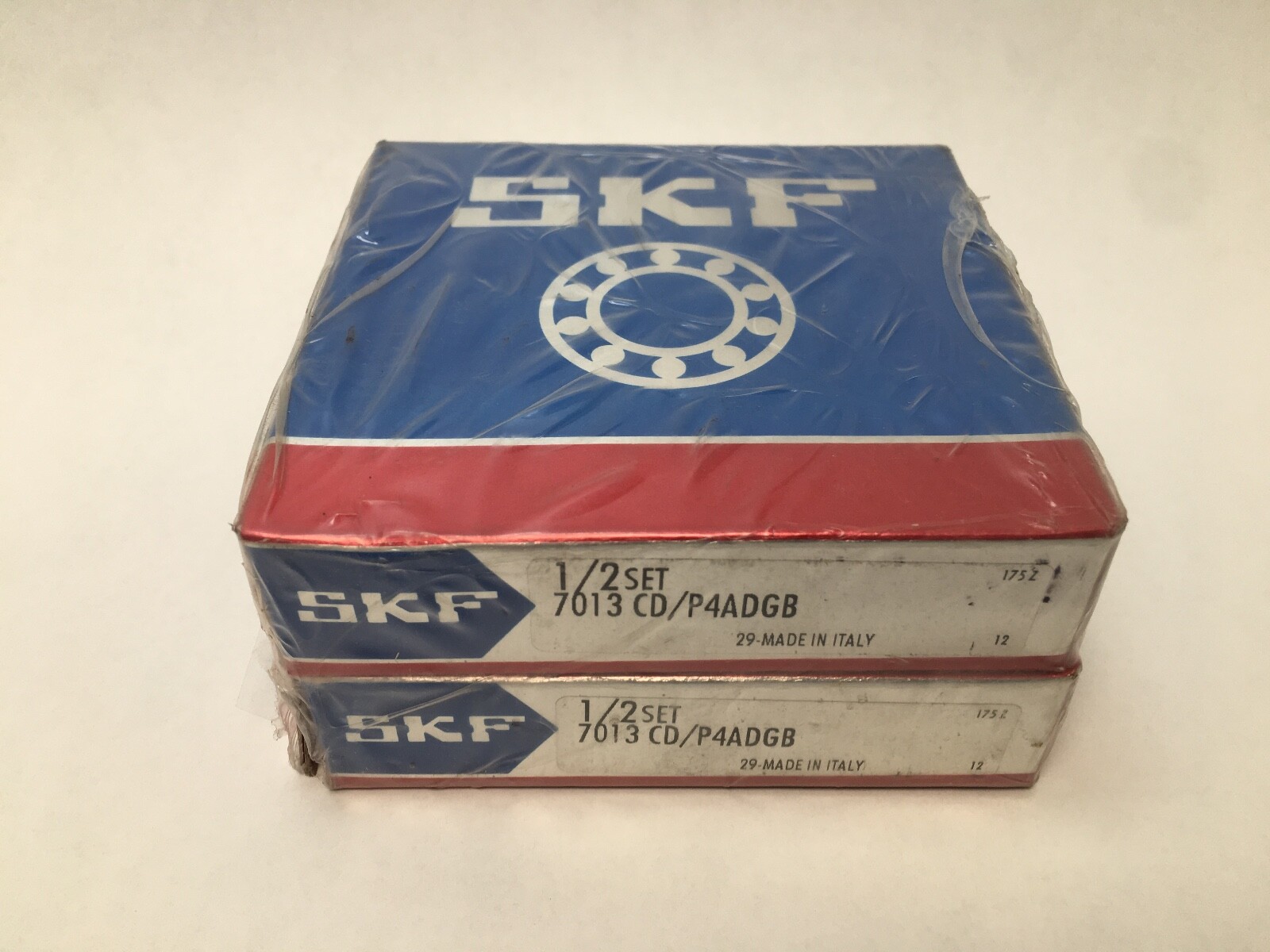

SKF 7013 CD/P4ADGB matched set of two super-precision, high-capacity D design single row angular contact ball bearings, universally matchable as back-to-back, face-to-face or tandem. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Width: 18 mm per bearing. Total Width: 36 mm (pair). Contact Angle: 15°.
7013 — ISO 70 light series, 65 mm bore.
CD — 15° contact angle, SKF high-capacity D internal design.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with P2 running accuracy.
DG — matched set of two bearings, universally matchable in any arrangement.
B — light preload.
Dynamic Load Rating: 67,600 N (pair). Static Load Rating: 75,000 N (pair). Attainable Speed: 10,500 rpm grease; 16,500 rpm oil-air (back-to-back pair; single bearing 14,000 rpm grease, 22,000 rpm oil-air). Preload: Light, 320 N (back-to-back or face-to-face). Axial Stiffness: 101 N/µm. Precision Class: ABEC 7 / P4A. Ball Diameter: 11.112 mm. Number of Balls: 20 per bearing.
Shaft Abutment Diameter (da min): 71 mm. Housing Abutment Diameter (Da max): 94 mm. Fillet Radius (ra max): 1 mm. Chamfer (r1,2 min): 1.1 mm. Oil Nozzle Position (dn): 78.1 mm. Reference Grease Quantity: 5.7 cm³ per bearing.
Unit Quantity: 2 Pcs. One factory-matched pair.
Same 15° contact angle and P4-level precision, but medium preload rather than light: FAG B7013-C-T-P4S-DUM, NSK 7013CTYNDUMP4, Fafnir 2MM9113WI CR DUM.
