Availability:
1 in stock

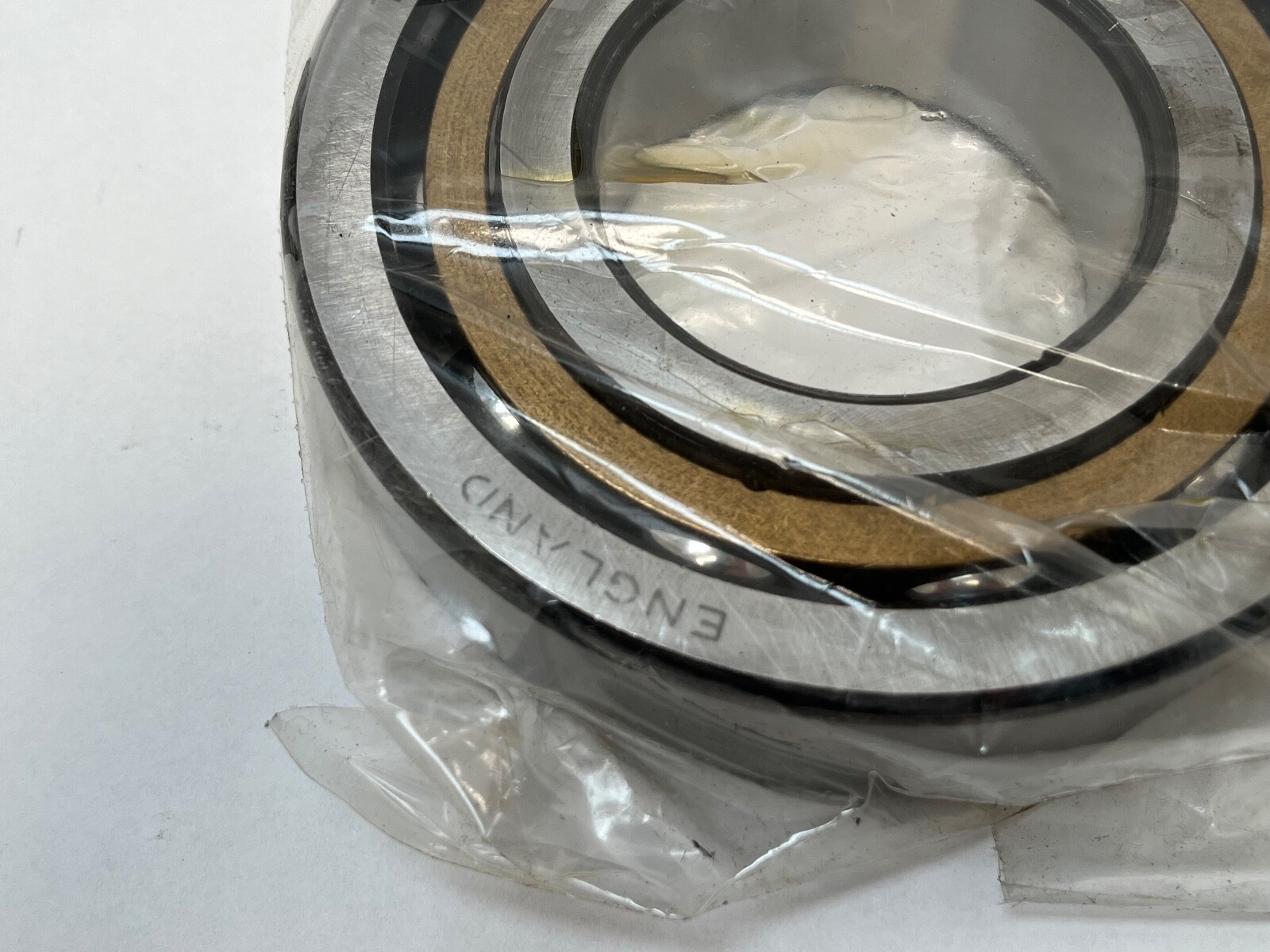

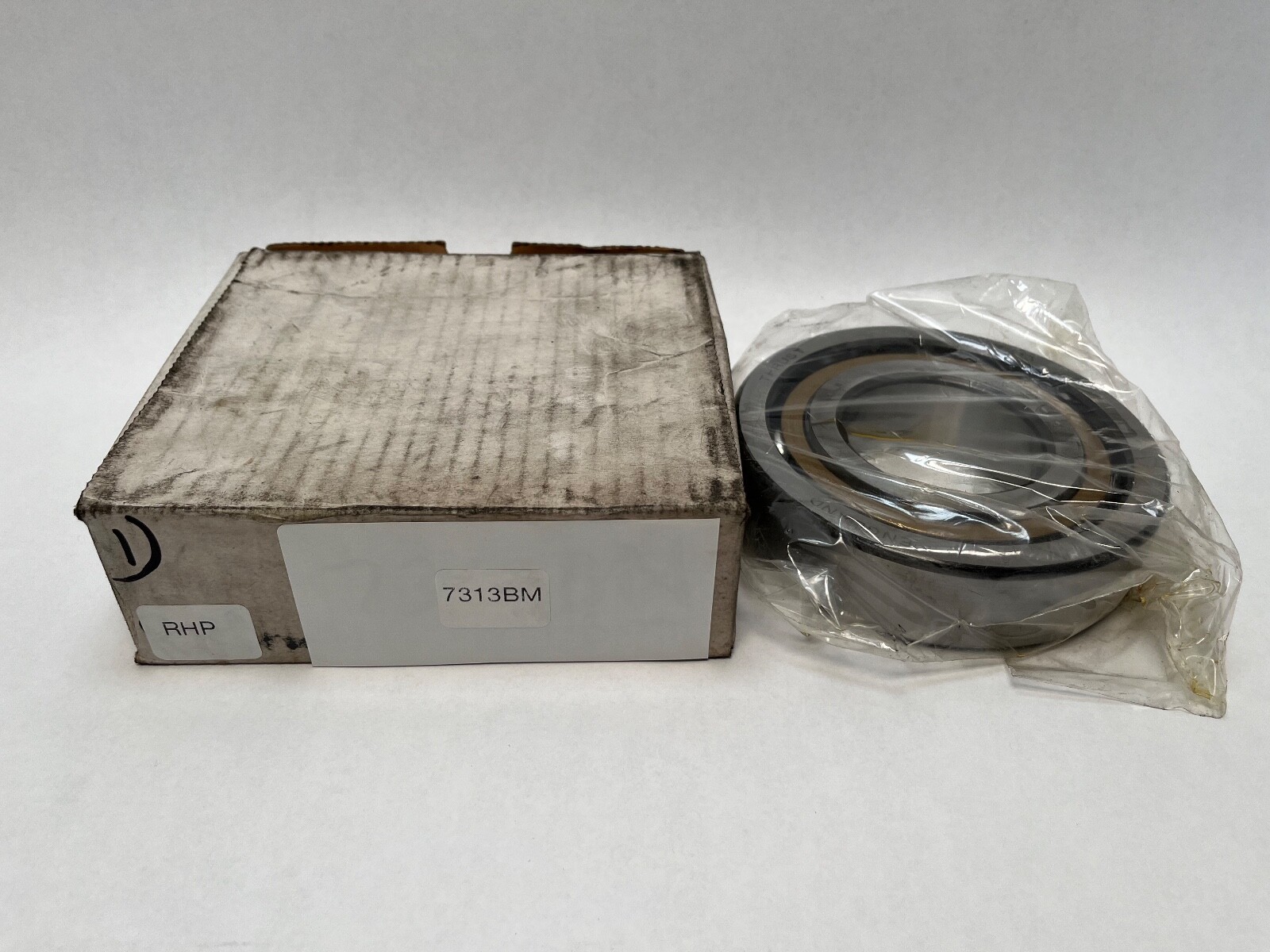

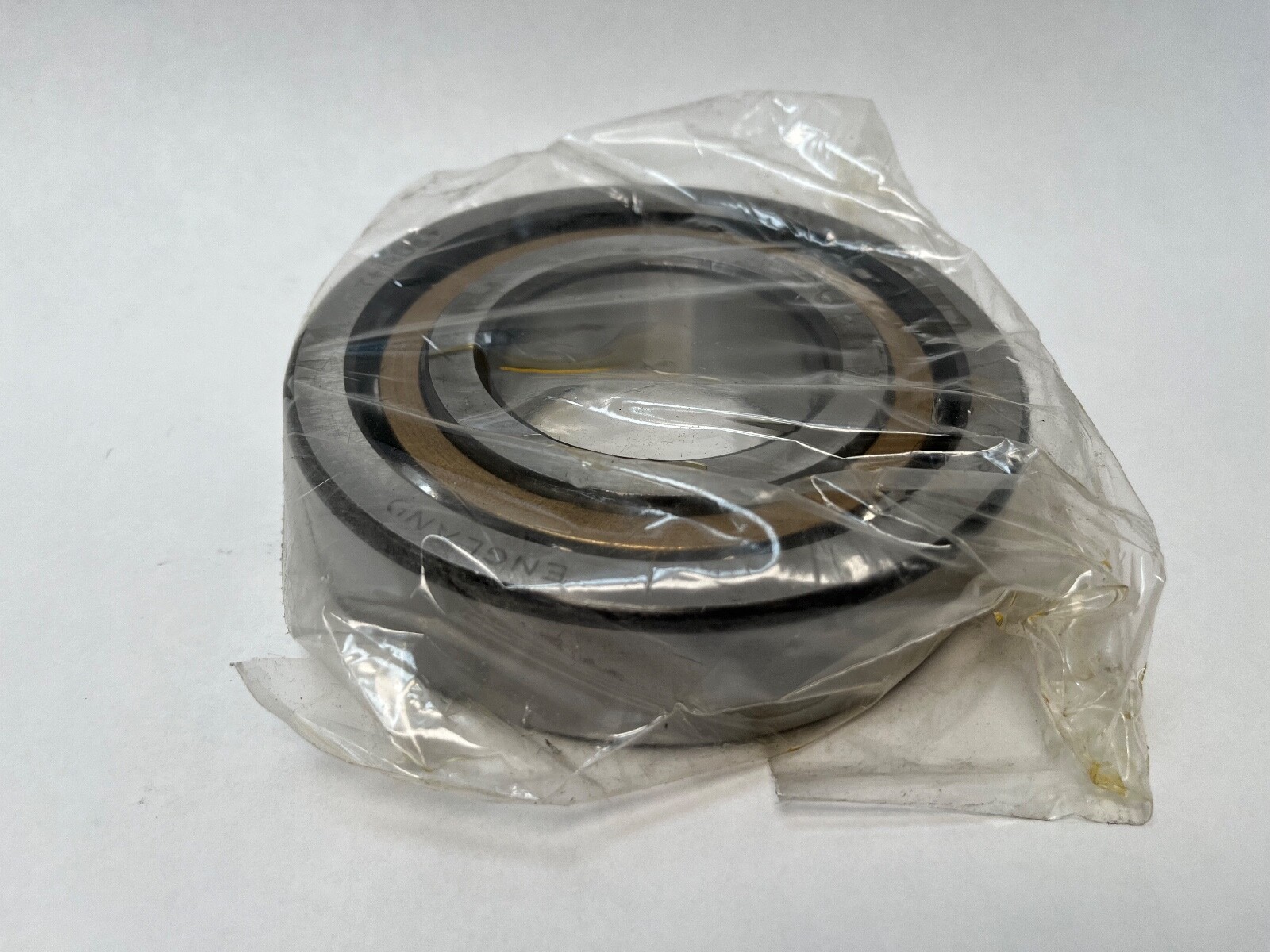

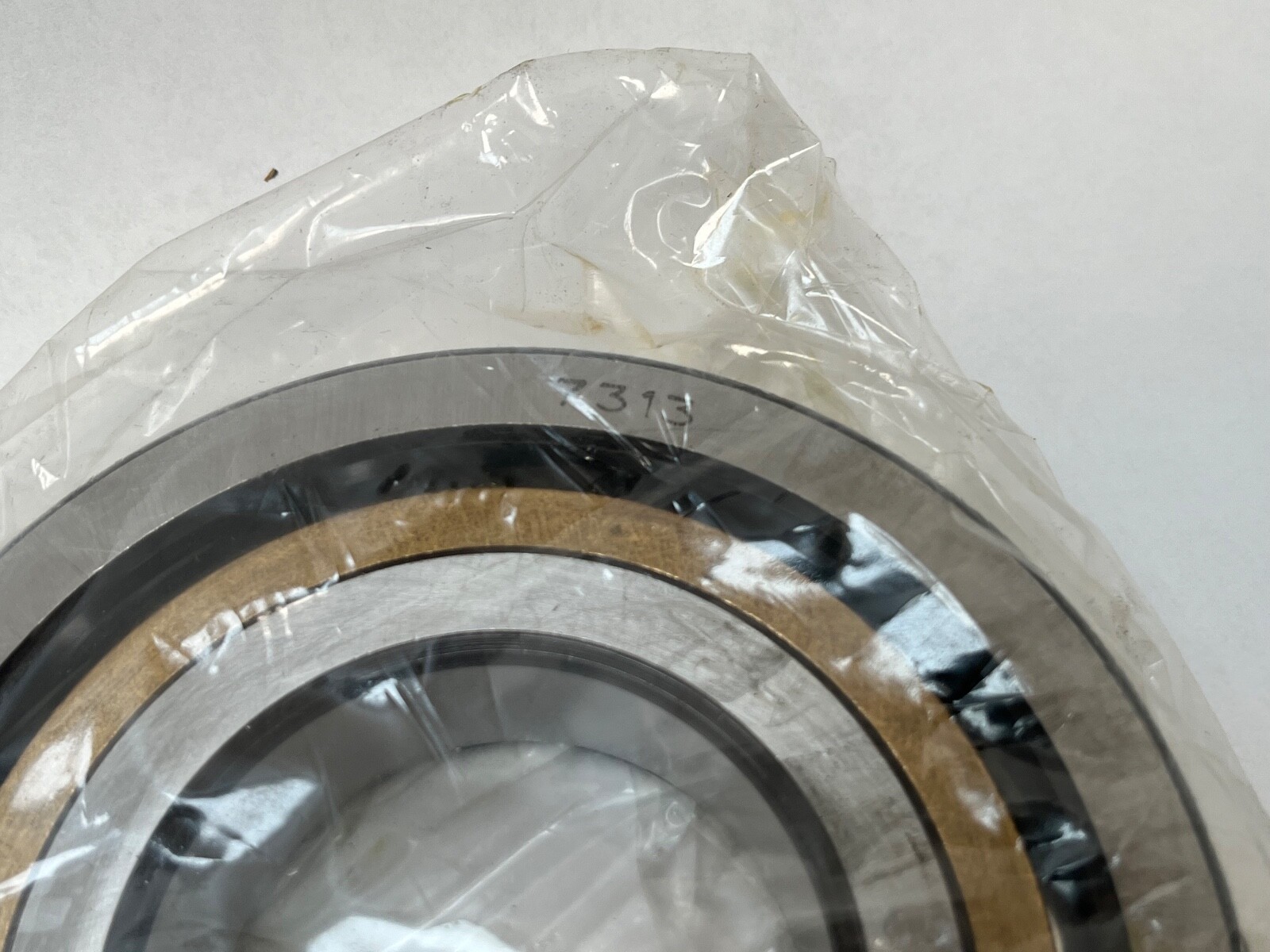

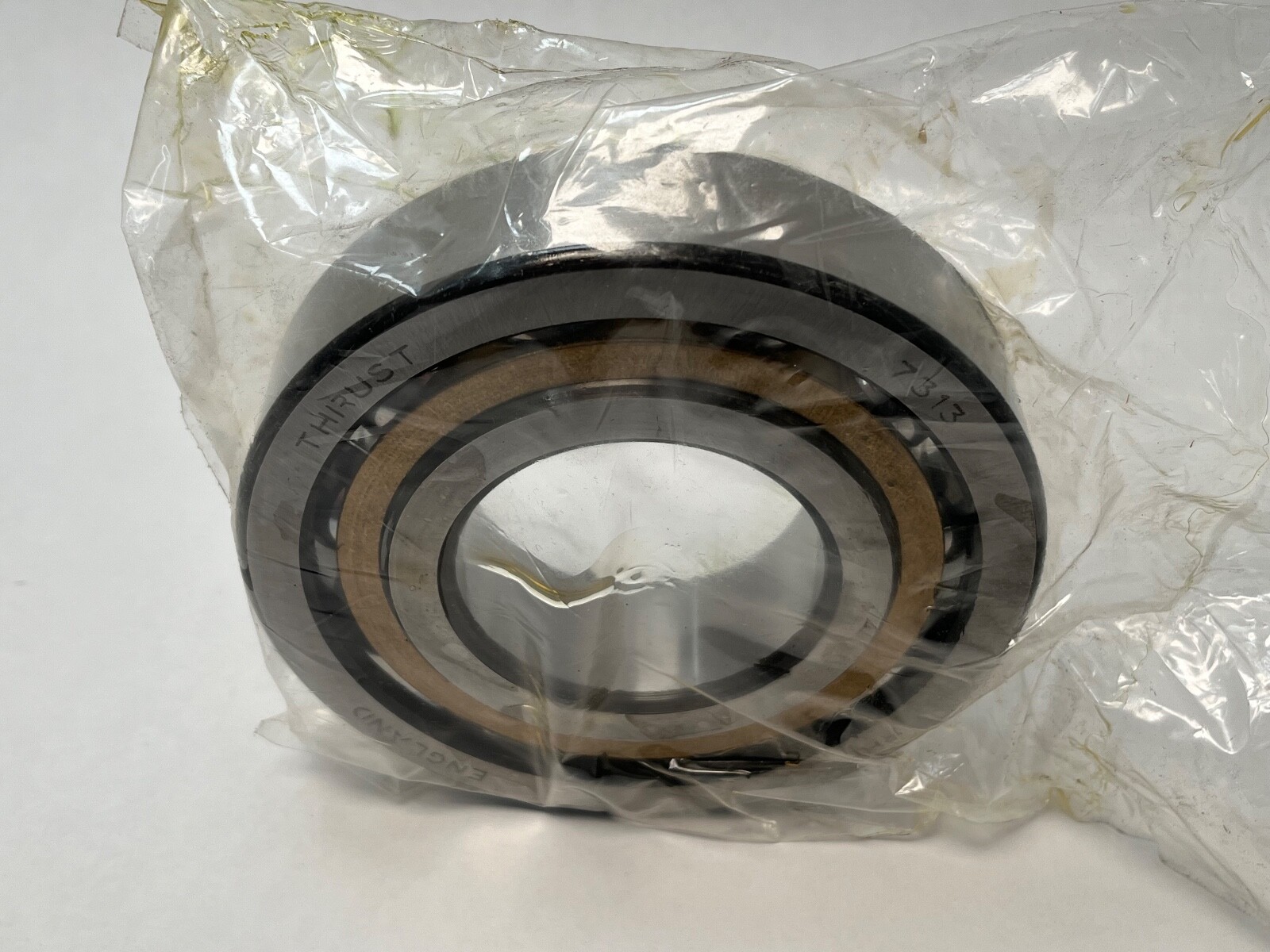

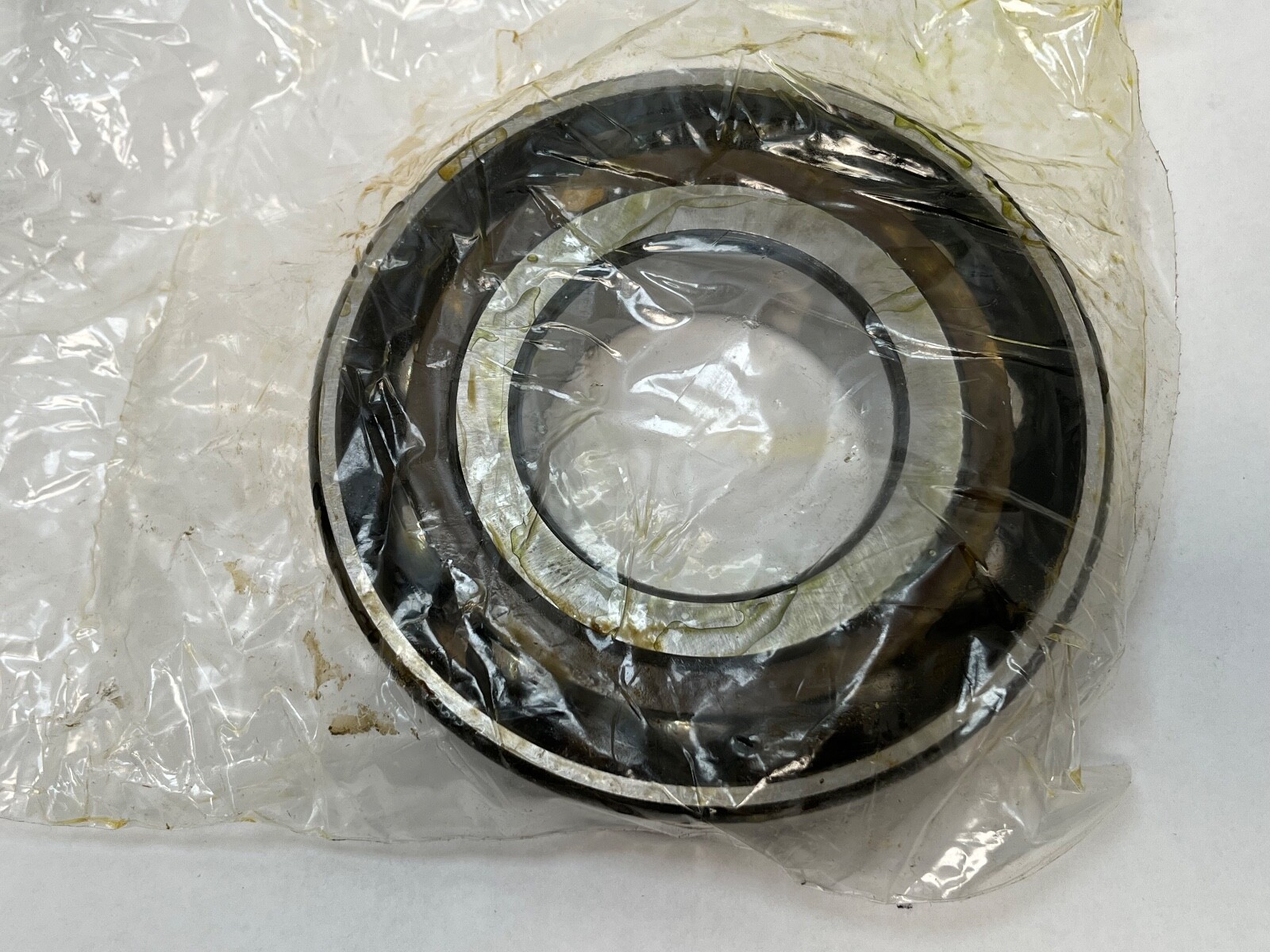

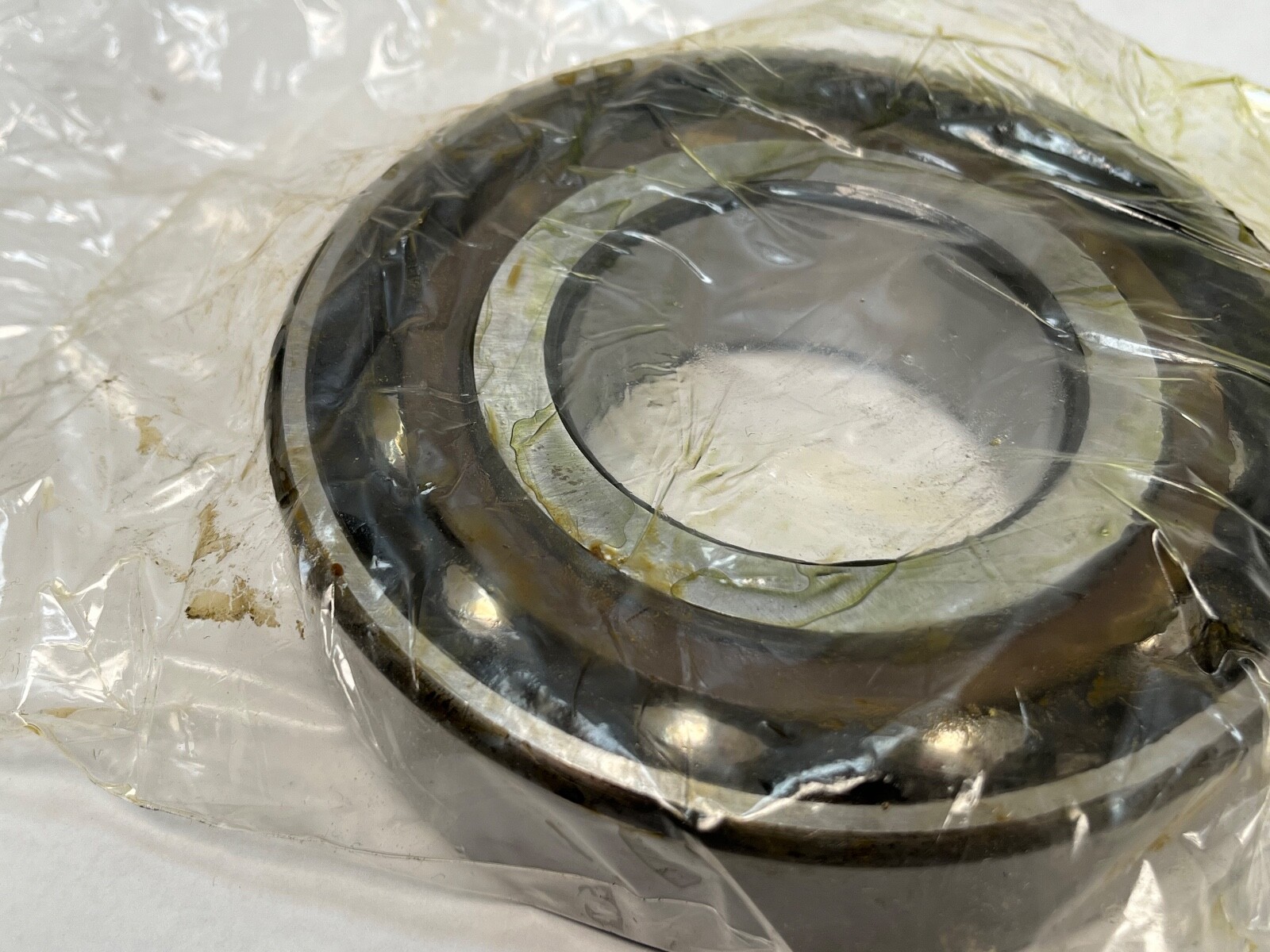

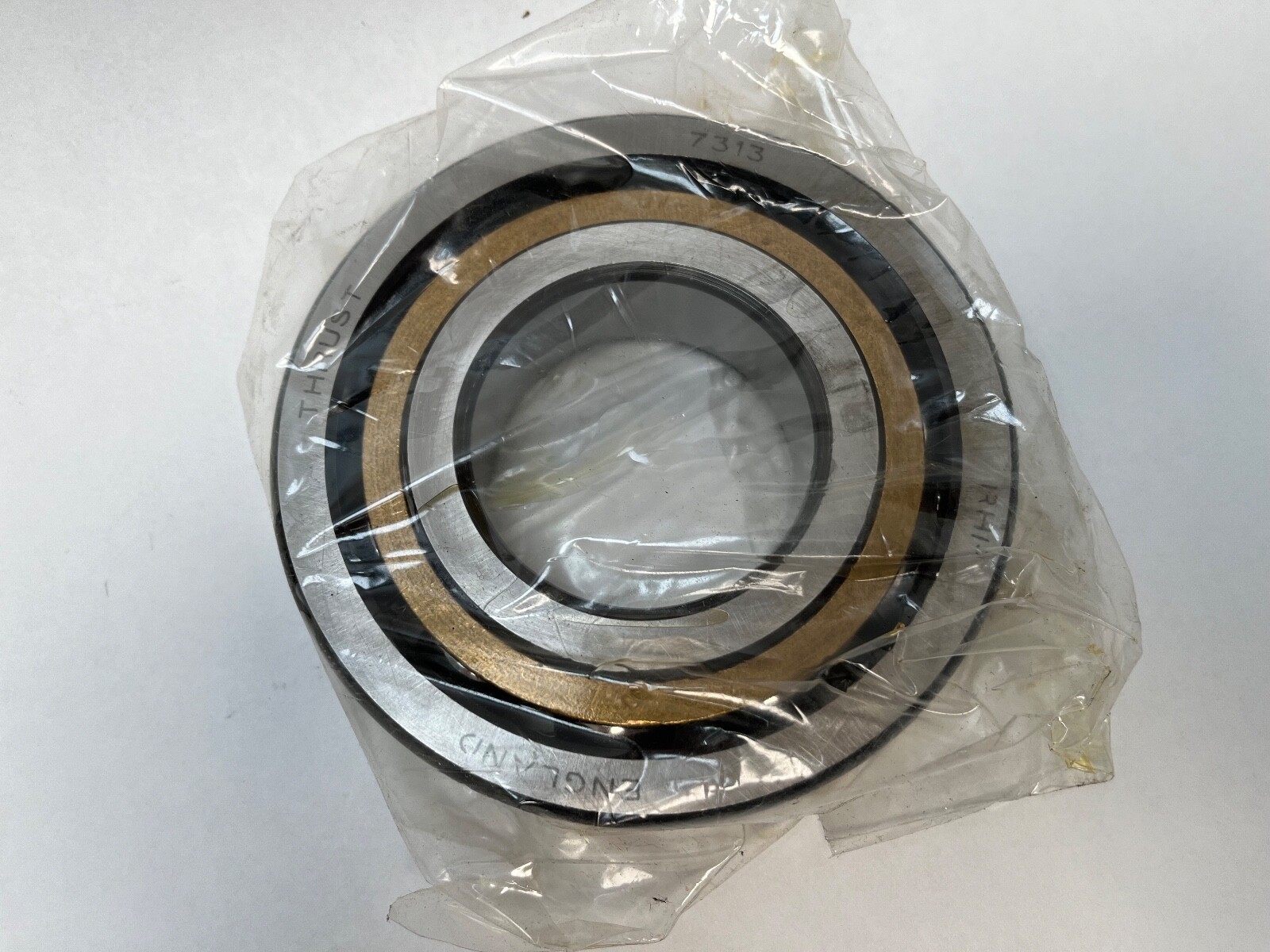

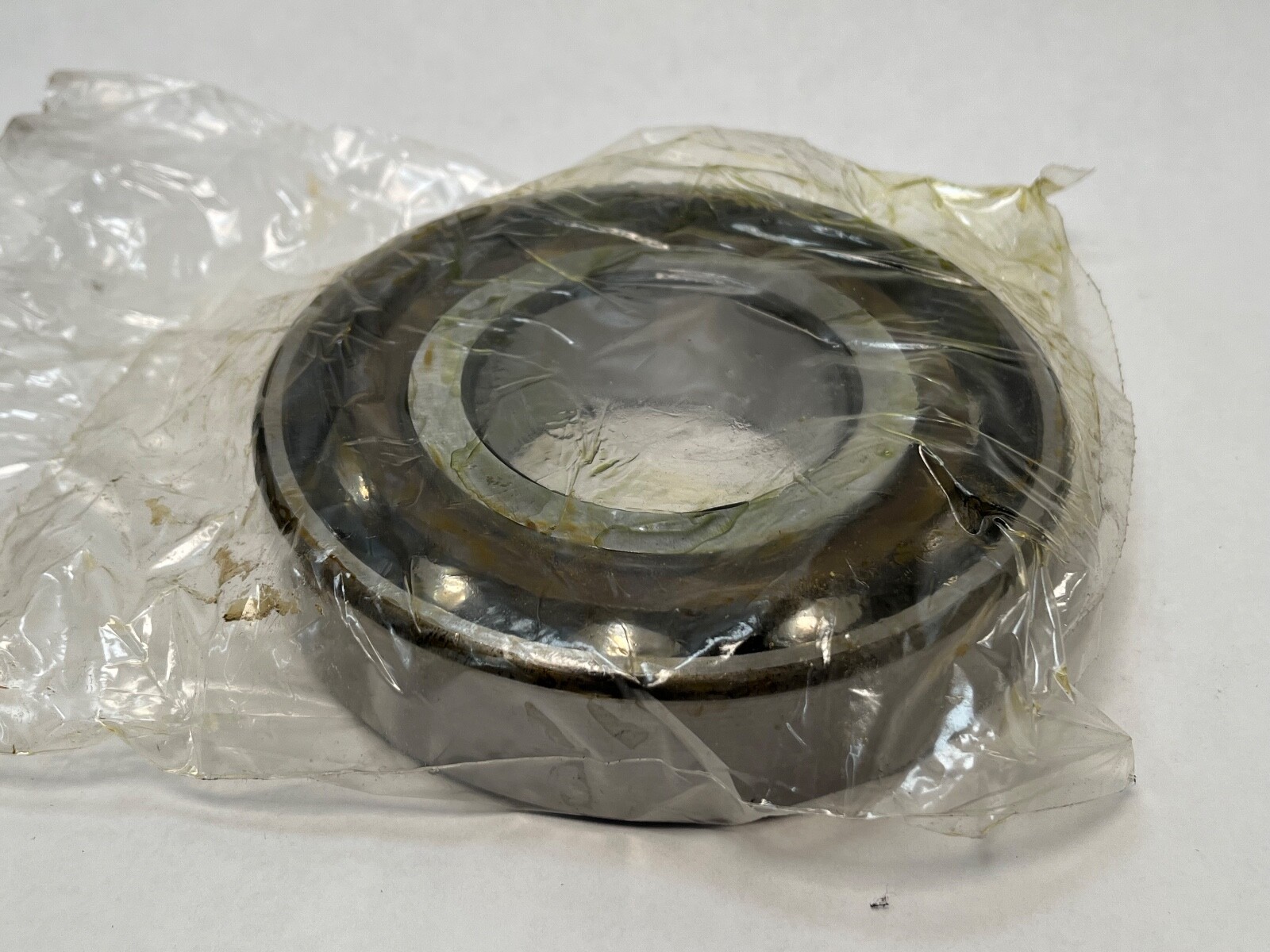

Single-row angular contact ball bearing, 65 mm bore, 140 mm OD, 33 mm wide, with a 40° contact angle and a machined brass cage. New old stock, opened box.
List Price
$68.84
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7313BM |
| Model | 7313 B M / BECBM / BEGAM / BMP |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 140 mm |
| Width | 33 mm |
| Series | 7300 |
|---|---|
| Material | Bearing Steel |
| Industry Terms | Angular contact ball bearing; 40 degree contact angle; B series angular contact; brass cage bearing; single row angular contact; 73 series |
| Common Misspellings | 7313 MB; 7133BM; 7313BN; 7313 B M brass |
| Overall Width | 33 mm |
| Mpn Variants | 7313BM; 7313-B-M; 7313 B M; 7313B; 7313BMP |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Chamfer r min 2.1 mm; shaft abutment da min 77 mm; housing abutment Da max 128 mm; max fillet radius ra 2 mm |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Cross Reference 1 | SKF 7313 BECBM |
|---|---|
| Cross Reference 2 | FAG 7313-B-MP |
| Cross Reference 3 | NSK 7313B |
| Cross Reference 4 | NTN 7313BG |
| Cross Reference 5 | Fafnir 7313WN |
| Cross Reference 6 | Koyo 7313B |
| Cross Reference 7 | SNR 7313B |
RHP 7313BM is a single-row angular contact ball bearing, standard-precision B range, 65 x 140 x 33 mm, 40° contact angle, machined brass cage. Unit Quantity: 1 Pc. Single bearing, normal clearance.
7313 — ISO 73 dimension series, bore code 13. Bore 65 mm, outside diameter 140 mm, width 33 mm.
B — the 40° contact angle of the standard-precision ISO B range.
M — machined brass cage.
Bore Diameter: 65 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Contact Angle: 40°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Cage Material: Machined brass. Precision Class: ABEC 1 / P0. Internal Clearance: CN. Series: 7300.
Chamfer dimension r min: 2.1 mm. Shaft abutment diameter da: 77 mm min. Housing abutment diameter Da: 128 mm max. Maximum fillet radius on the shaft or housing ra: 2 mm. Thrust is carried in one direction; a second 7313B mounted face to face, back to back or in tandem carries thrust in the other.
Same 65 x 140 x 33 mm envelope, same 40° B-series contact angle. Cross-references: SKF 7313 BECBM, FAG 7313-B-MP, NSK 7313B, NTN 7313BG, Fafnir 7313WN, Koyo 7313B, SNR 7313B.
65 mm bore, 140 mm outside diameter, 33 mm width.
40°, designated by the B in the part number.
Machined brass, designated by the M.
