Availability:
2 in stock

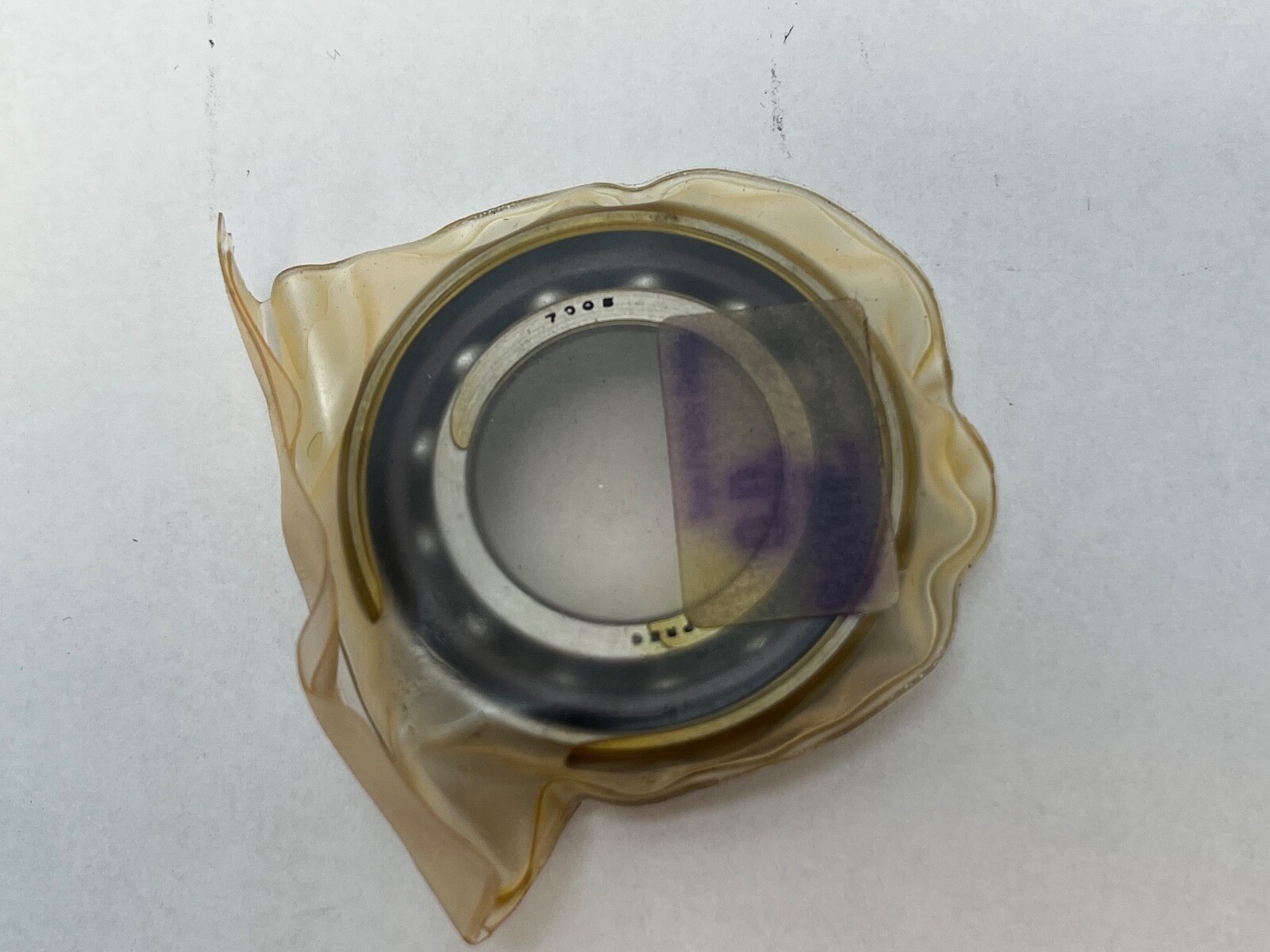

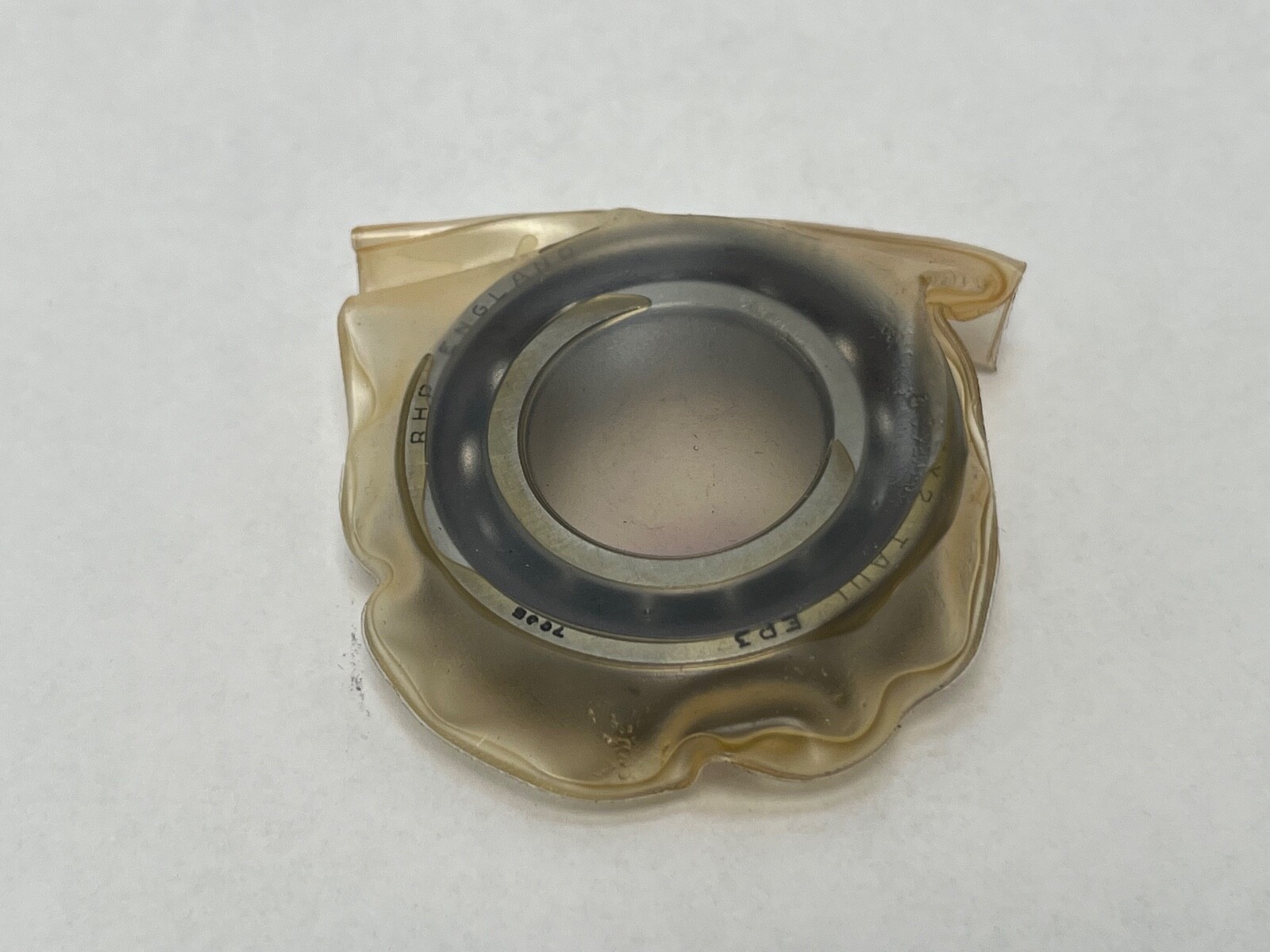

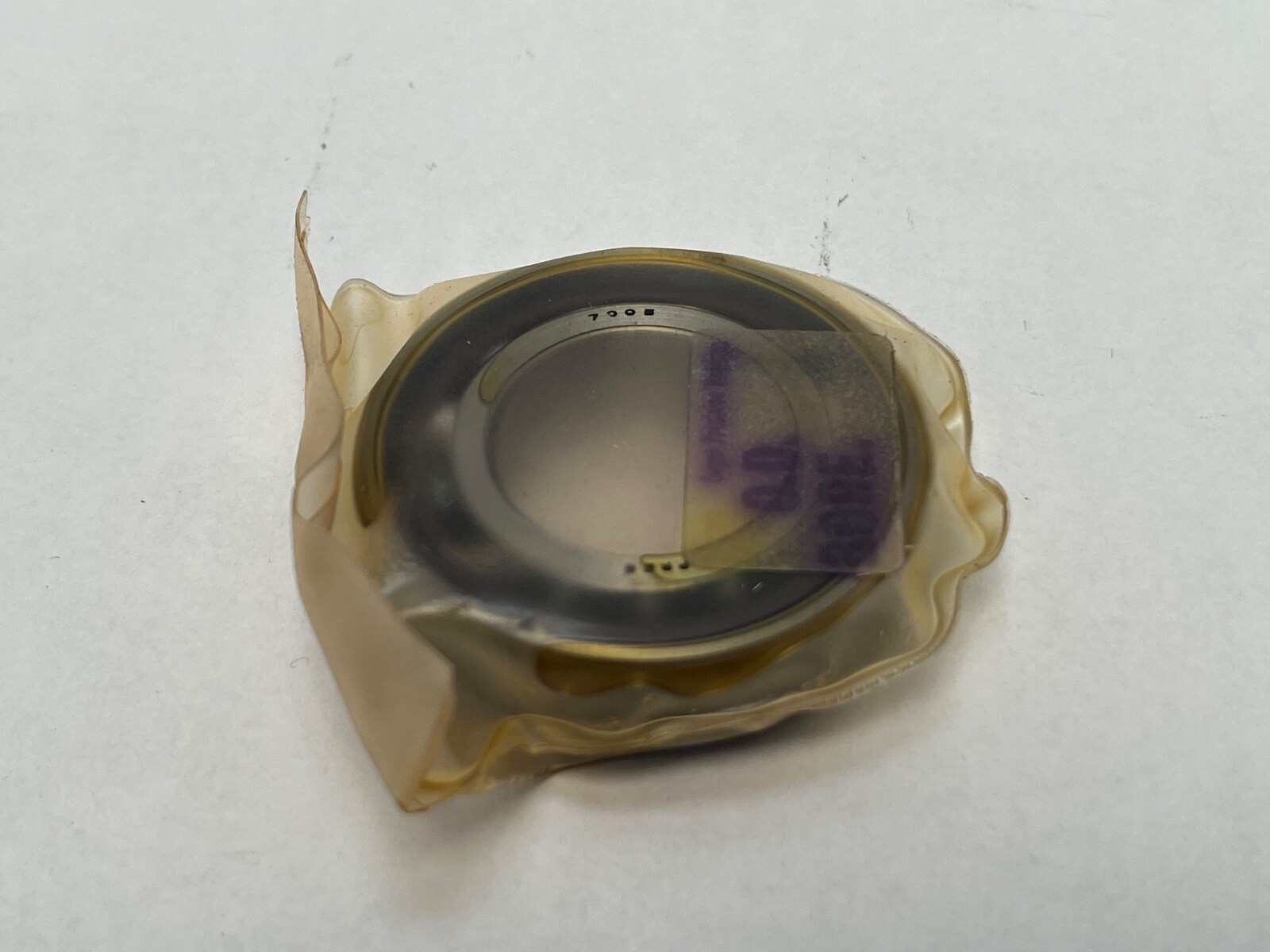

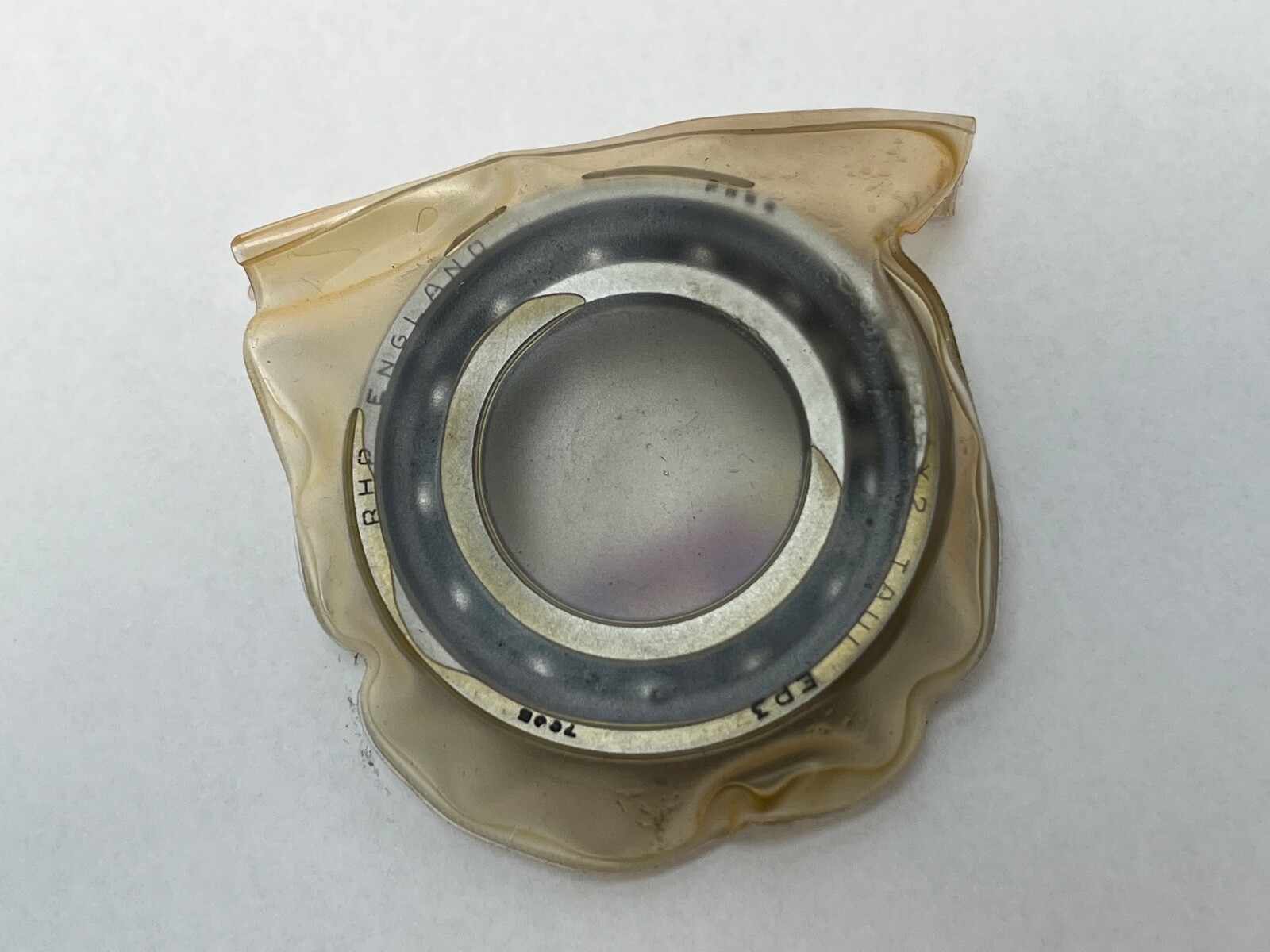

Super-precision angular contact ball bearing, 25 x 47 x 12 mm, 15° contact angle, light preload, single universal, machined phenolic cage, open.
List Price
$47.41
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| Model | B7005 X2 TB SUL EP3 / 3M9105WI SUL / 7005 C TB SUL P6 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Carbon chrome bearing steel (SAE 52100) |
|---|---|
| Series | 7000 |
| Lubricant | Grease or oil |
| Base Number | 7005 |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7005-C-TB-SUL-P6; 7005 C TB SUL P6; B7005X2TBSULEP3; 3M9105WI SUL |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 7005CTBSULP6 |
RHP 7005CTBSULP6 super-precision single-row angular contact ball bearing, 25 x 47 x 12 mm, 15° contact angle, P6 precision, light preload, single universal, machined phenolic cage, open. Unit Quantity: 1 Pc.
70 — ISO dimension series 10 (7000 series).
05 — bore code, 25 mm bore.
C — 15° contact angle in the RHP scheme.
SU — single, universal face control; the rings are flush ground.
L — light preload.
P6 — equal to BS292 EP3 and ABEC 3.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Series: 7000, ISO dimension series 10. Bearing Material: Carbon chrome bearing steel to SAE 52100, through hardened. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Preload: Light. Mounting Arrangement: Single universal. Precision Class: P6 / ABEC 3. Dynamic Load Rating: 11,700 N. Static Load Rating: 7,400 N. Limiting Speed: 47,500 rpm oil/air; 29,300 rpm grease. Axial Preload: 59 N light preload as a pair. Axial Stiffness: 32 N/µm light preload pair. Maximum Operating Temperature: 120°C. Lubricant: Grease or oil. Item Weight: 0.079 kg (0.17 lb).
Effective Load Centre: 10.8 mm. Shaft Abutment Diameter d1 min: 30 mm. Housing Abutment Diameter D1 max: 42 mm. Housing Abutment Diameter D2 max: 44.5 mm. Bearing Fillet Radius r min: 0.6 mm. Fillet Radius r1 min: 0.3 mm. Internal Free Volume: 3.8 cm³. Lubrication Jet Pitch Circle Diameter: 32.9 mm. The bearing is preload-set at manufacture. Universal face control allows any two of these bearings to be used back-to-back, face-to-face or in tandem at the rated preload.

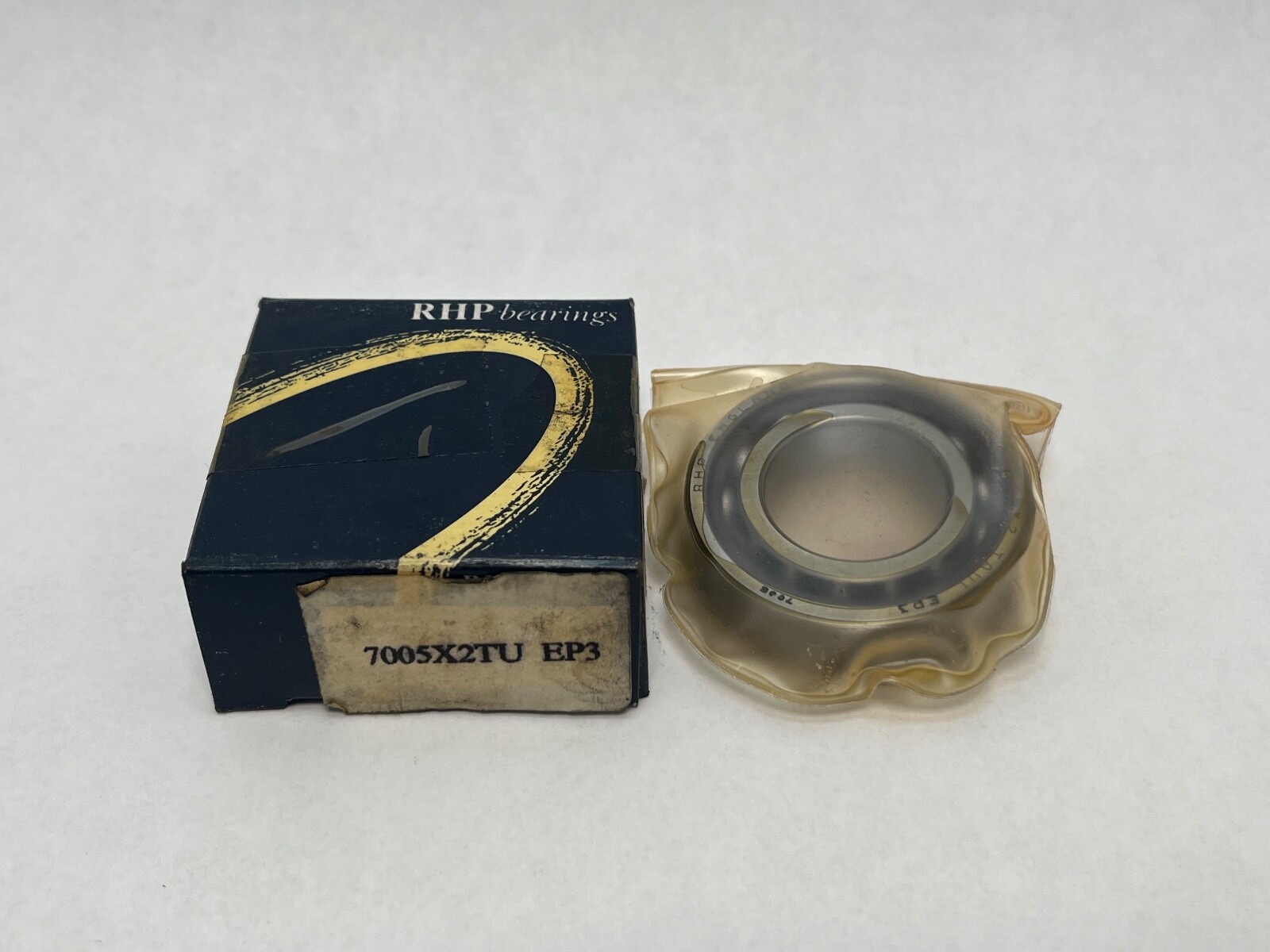

Carton designations: B7005X2TBSULEP3 and 3M9105WI SUL. The RHP B-series X2 code and the C code both give 15° contact angle, and EP3 is the same class as P6. MPN variants: 7005CTBSULP6; 7005-C-TB-SUL-P6; 7005 C TB SUL P6. Same envelope at 25°: 7005A5 and 7005E.
What is the contact angle of the RHP 7005CTBSULP6?15°. Both the C and the X2 in carton code B7005X2TBSULEP3 denote 15°.
What are the load ratings and speeds?Dynamic Load Rating: 11,700 N. Static Load Rating: 7,400 N. Limiting Speed: 47,500 rpm oil/air; 29,300 rpm grease.
What precision class is it?P6, equal to BS292 EP3 and ABEC 3.
