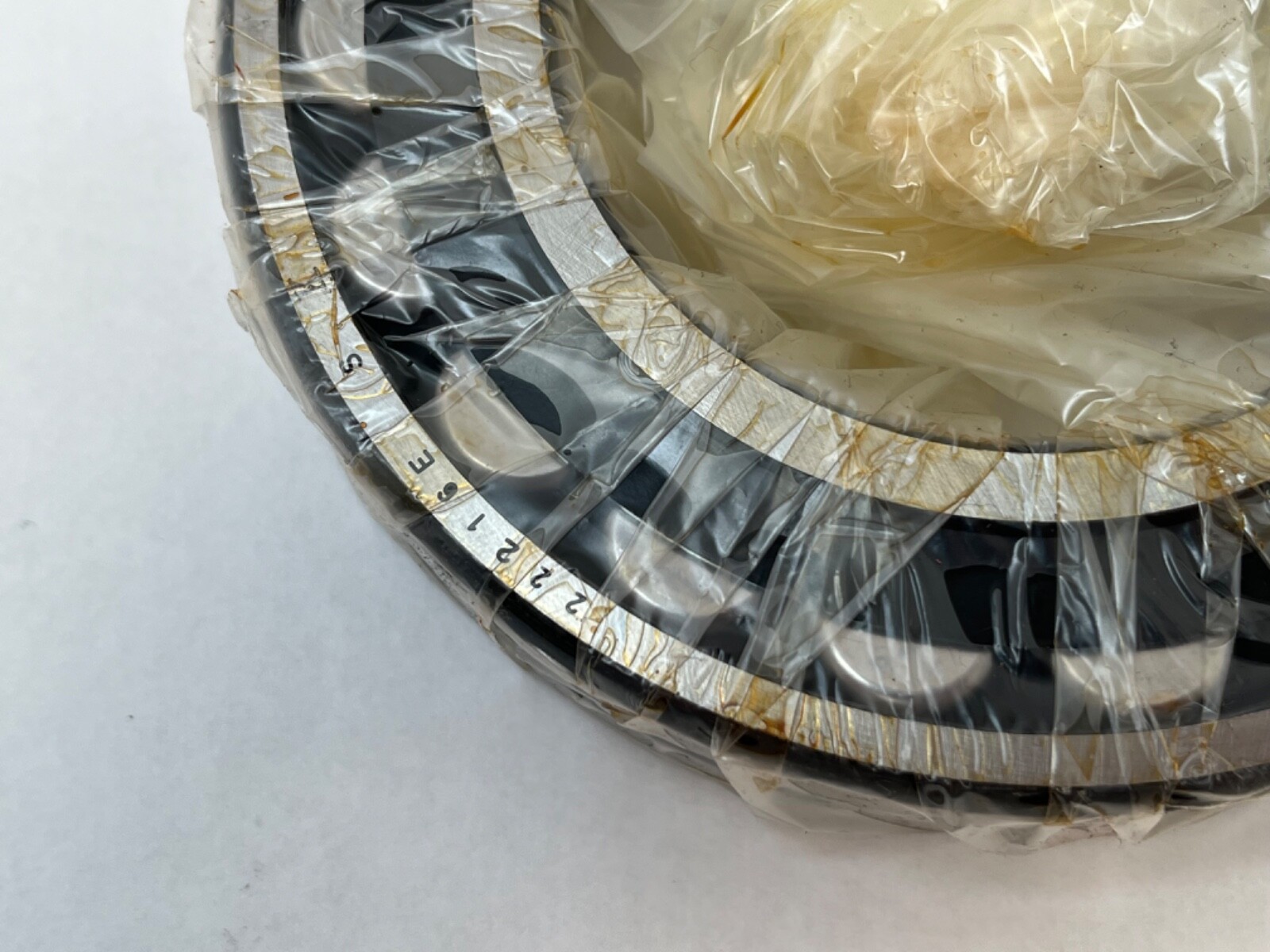

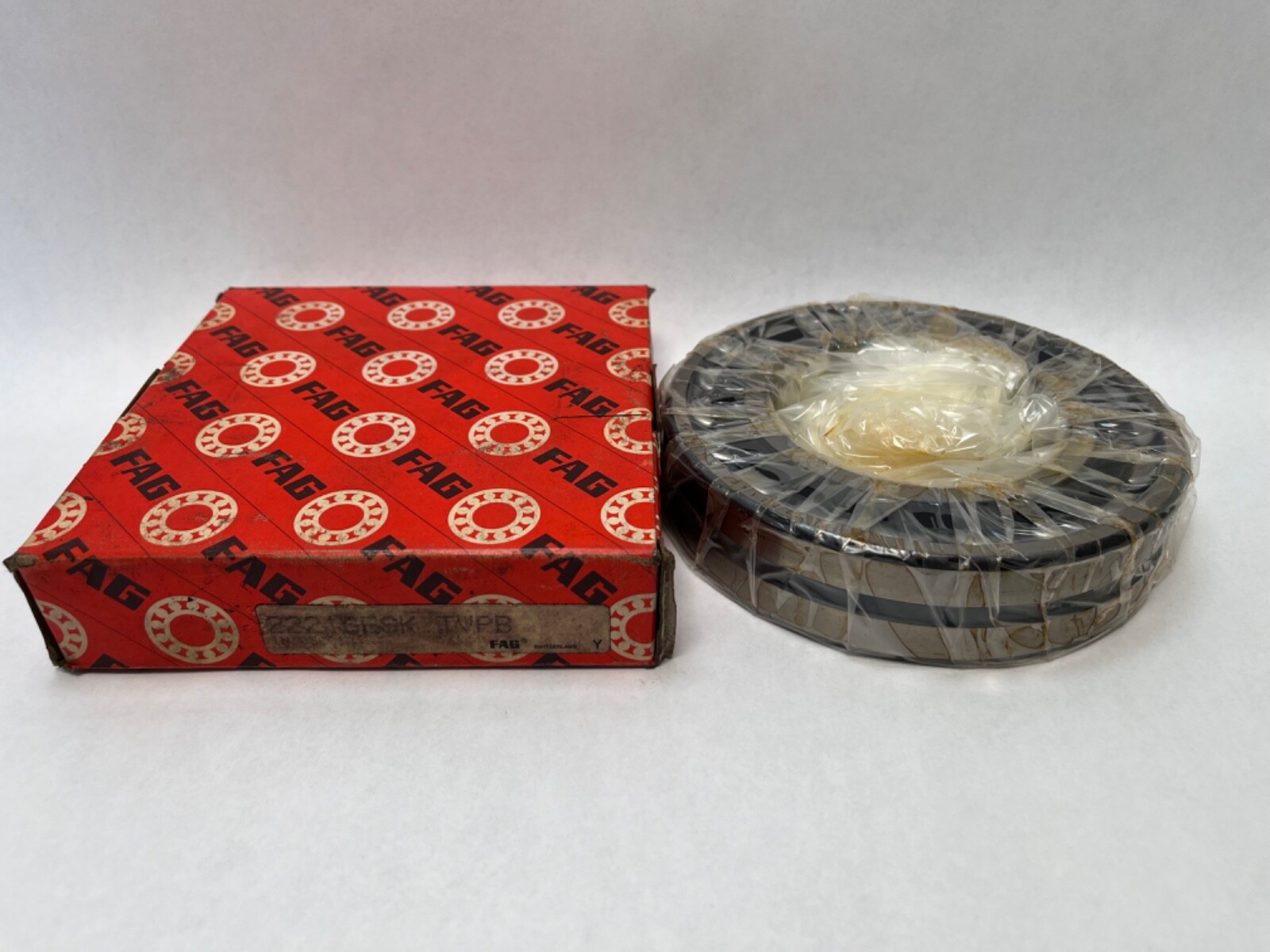

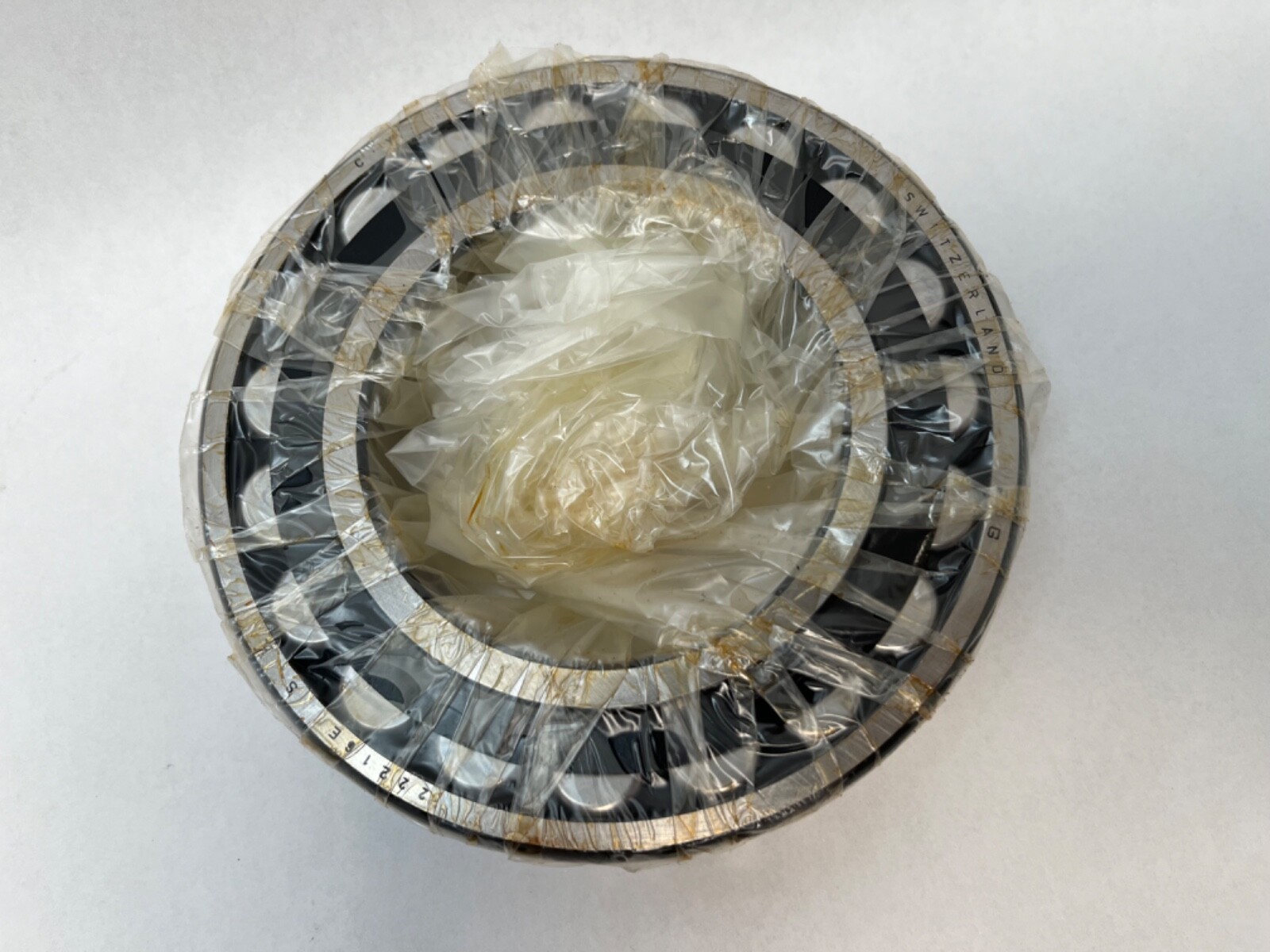

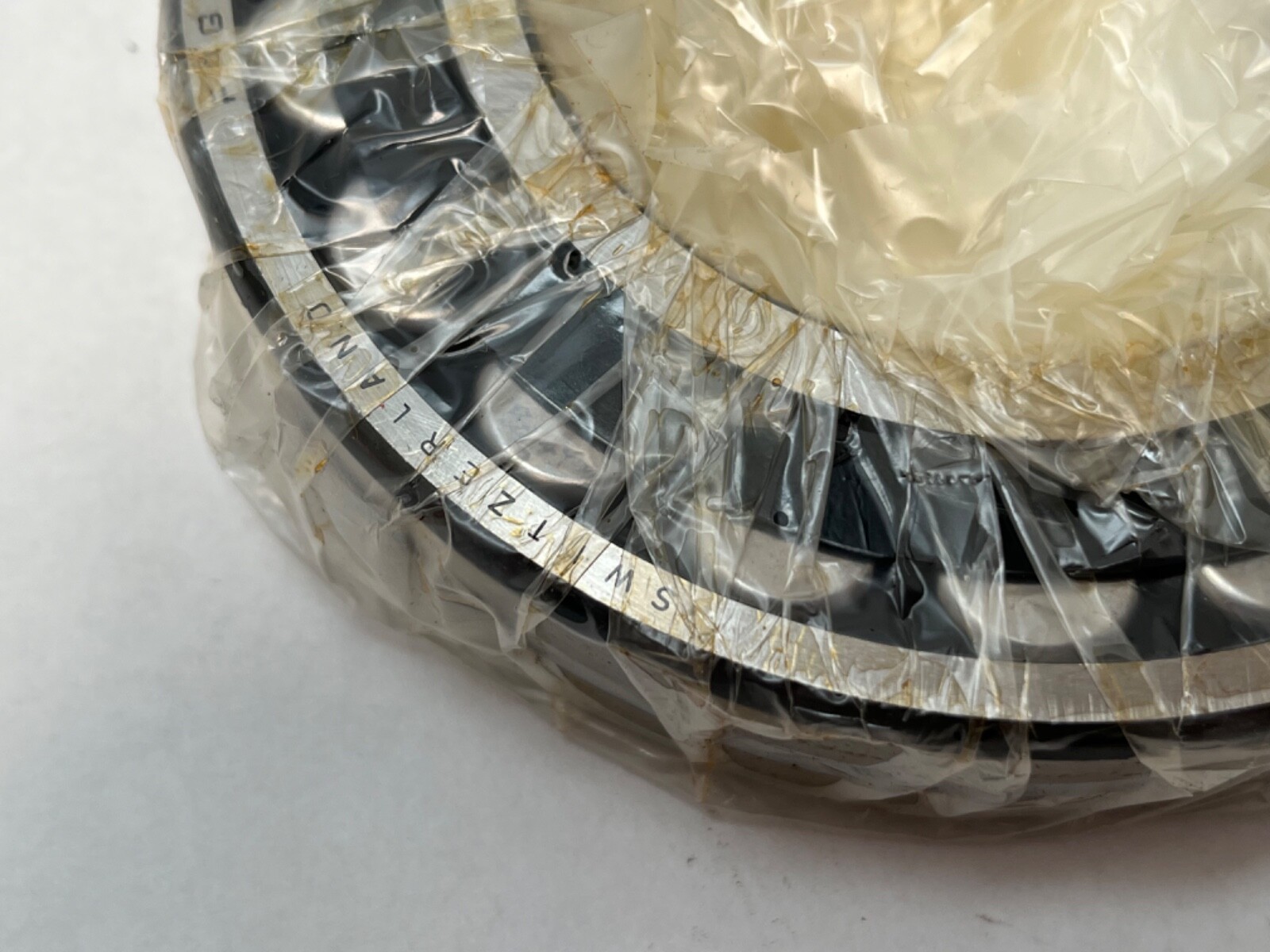

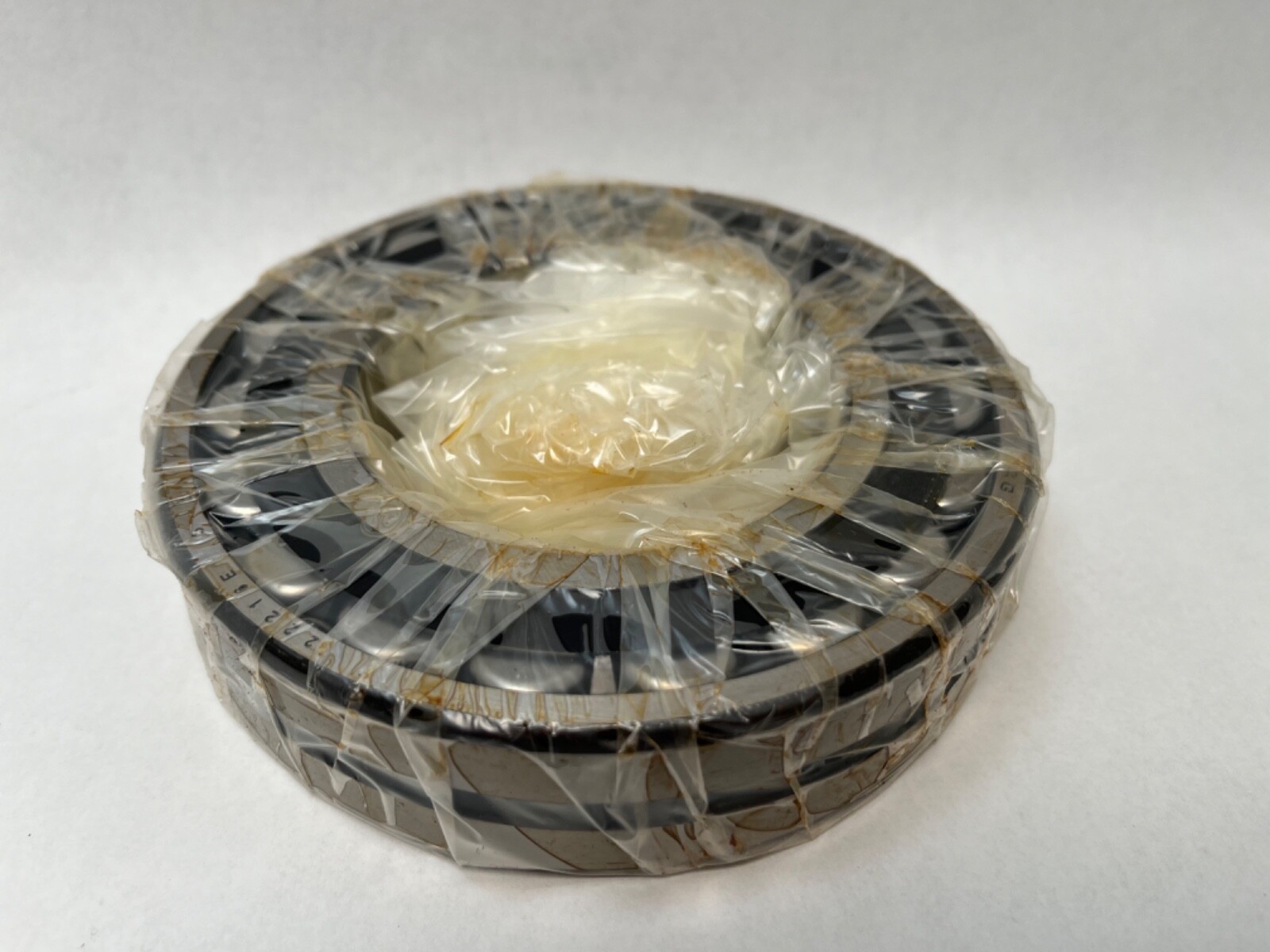

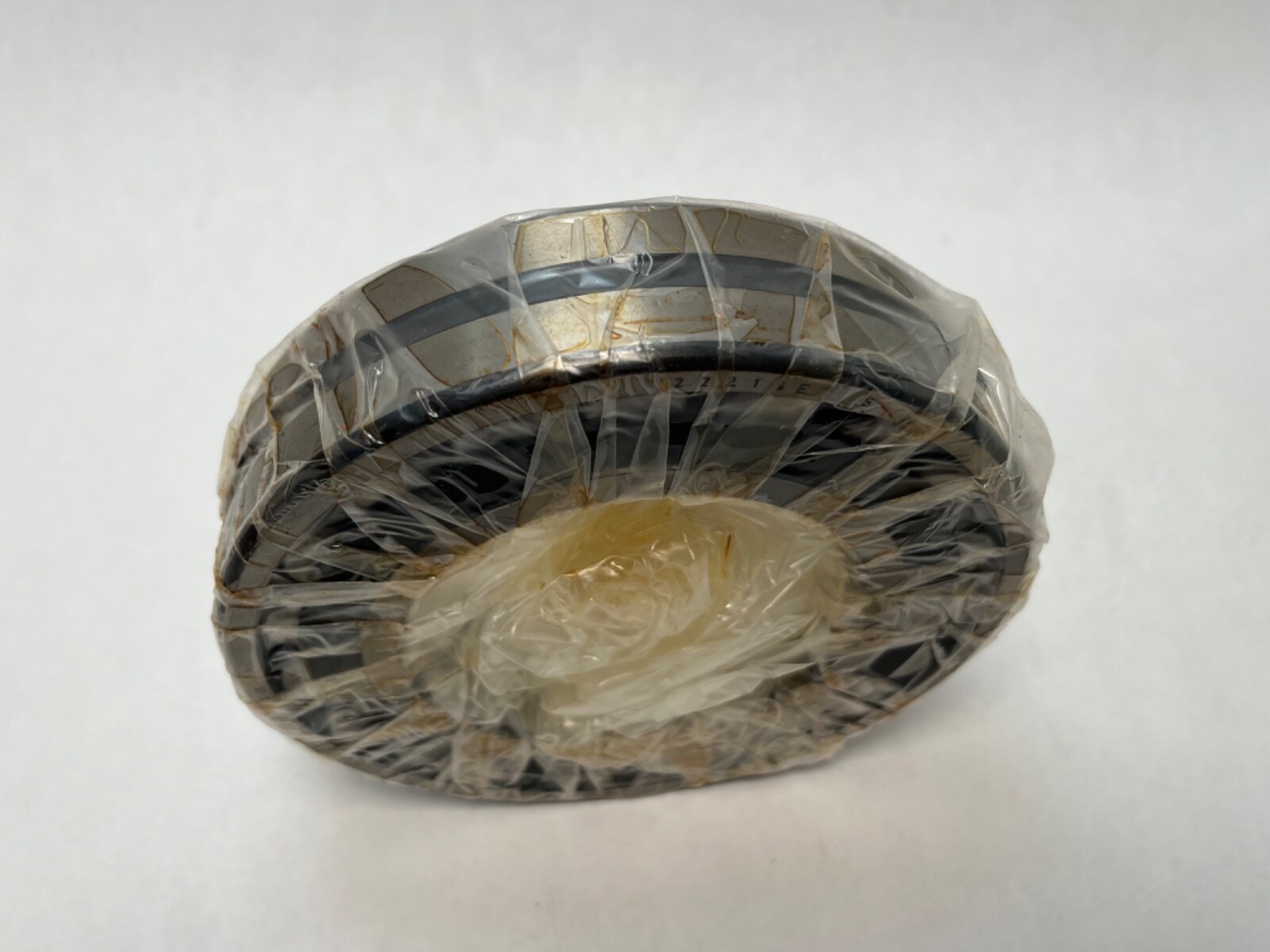

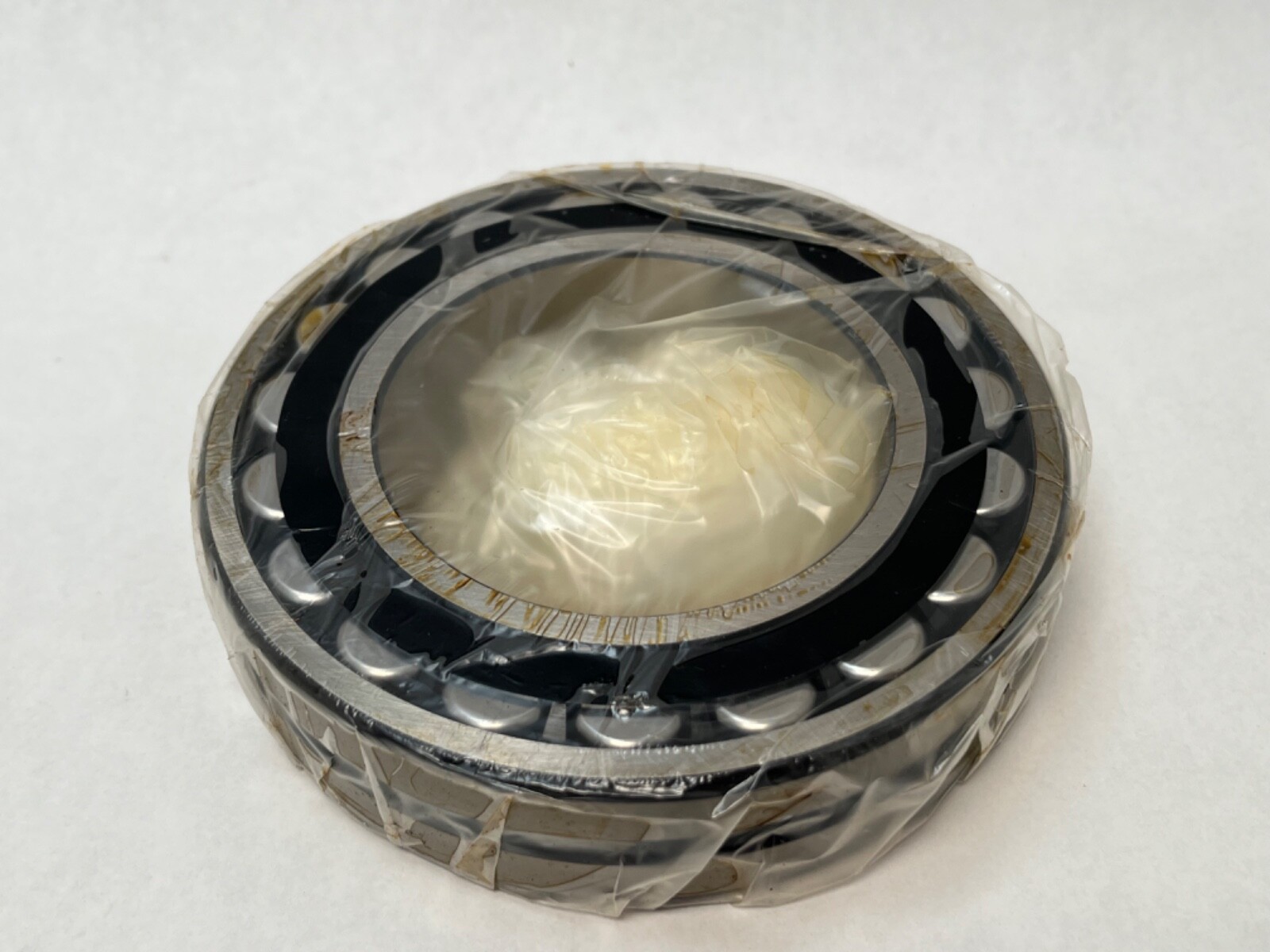

FAG 22216ESK.TVPB double-row spherical roller bearing, 80 mm 1:12 tapered bore, 140 mm OD, 33 mm wide, W33 lubrication groove, polyamide cage.
List Price
$75.82
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22216ESK.TVPB |
| Model | 22216E S K TVPB 22216ESKTVP |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Base Number | 22216K |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; taper bore bearing; adapter sleeve bearing; W33 lube groove; 222 series |
| Common Misspellings | 22216ESKTVPB W33; 22216-ESK-TVBP; 22216 ES K TVPB W-33; FAG 22216EKS |
| Application Types | Conveyor pulleys and idlers; plummer block housings; fans and blowers; crushers and screens; gearboxes |
| Bore Shaft Size | 80 mm (3.1496 in), tapered bore 1:12 |
| Locking Method | Adapter sleeve on 1:12 taper, clamped by locknut |
| Mpn Variants | 22216-ES-K-TVPB-W33; 22216ESKTVPBW33; 22216ESK.TVPB; 22216-E-K-TVPB-W33; 22216EKW33; 22216K; 22216E |
| Manufacturer Status | Active FAG/Schaeffler catalogue designation |
| Compatible With Replaces | Adapter sleeve H316 (70 mm seat), KM16 locknut, MB16 washer |
| Closure Type | Open |
| Rolling Elements | Spherical Roller |
| Cage Material | Glass fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Part Number | 22216ESK.TVPB |
| Cross Reference 1 | SKF 22216 CCK/W33 - taper bore, W33, steel cage |
|---|---|
| Cross Reference 2 | SKF 22216 EK - taper bore, no W33 groove |
| Cross Reference 3 | NSK 22216EAKE4 - taper bore, outer ring groove (E4) |
FAG 22216ESK.TVPB double-row spherical roller bearing, 80 mm bore with a 1:12 tapered bore, 140 mm outside diameter, 33 mm wide. Lubrication groove and three radial holes in the outer ring (W33), glass-fibre reinforced polyamide cage, open on both faces. Bearing only. Condition: New. Unit Quantity: 1 Pc.
222 — ISO dimension series of the double-row spherical roller family.
16 — bore code, 80 mm (16 x 5).
E — reinforced internal design.
S — FAG code for the lubrication groove and three radial feed holes in the outer ring, the feature ISO denotes with W33.
K — 1:12 tapered bore.
TVPB — glass-fibre reinforced polyamide cage.
Bore Diameter: 80 mm (3.1496 in). Outside Diameter: 140 mm. Overall Width: 33 mm. Bore Type: Tapered, 1:12. Rolling Elements: Spherical roller. Number Of Rows: 2. Cage Material: Glass fibre reinforced polyamide. Internal Clearance: CN. Closure Type: Open. Lubricant: Grease or oil. Series: 222. Base Number: 22216K. Material: High carbon chrome steel.
Locking Method: adapter sleeve on the 1:12 taper, clamped by locknut. Matching adapter sleeve: H316, 70 mm shaft seat, with KM16 locknut and MB16 lockwasher.
Cross-Reference 1: SKF 22216 CCK/W33 – taper bore, W33, steel cage. Cross-Reference 2: SKF 22216 EK – taper bore, no W33 groove. Cross-Reference 3: NSK 22216EAKE4 – taper bore, outer ring groove (E4).
Bore 80 mm with a 1:12 taper, outside diameter 140 mm, width 33 mm.
S is the FAG code for a lubrication groove with three radial feed holes in the outer ring, the feature ISO denotes with W33.
Adapter sleeve H316, 70 mm shaft seat, with KM16 locknut and MB16 lockwasher.
