Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Double-row spherical roller bearing, 80 x 140 x 33 mm, 1:12 tapered bore for an H316 adapter sleeve. Open, W33 groove, C3 clearance, 237 kN dynamic.
List Price
$83.36
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 22216KCJW33C3 |
| GTIN | 087796023406 |
| Model | 22216 K CJ W33 C3 / 22216CK 22216CCK 22216CKJ 22216CCKJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 22216 |
| Industry Terms | Self-aligning roller bearing, taper bore spherical roller, adapter mount roller bearing |
| Application Types | Conveyors, gearboxes, mining and aggregate machinery, fans and blowers, vibrating screens |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Mpn Variants | 22216KCJW33C3, 22216-K-CJ-W33-C3, 22216 K CJ W33 C3, 22216CK, 22216CCK, 22216CKJ, 22216CCKJ |
| Compatible With Replaces | Mounts on an H316 adapter sleeve (70 mm shaft seat), with KM16 locknut and MB16 lockwasher |
| Precision Class | ABEC 1 / P0 |
| Cage Type | Roller guided |
| Dynamic Load Rating | 237,000 N |
| Static Load Rating | 276,000 N |
| Series | 22200 |
| Rolling Elements | Spherical (barrel-shaped) rollers |
| Item Weight | 4.60 lb |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Not applicable |
| Limiting Speed | 4,300 rpm |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Part Number | 22216KCJW33C3 |
| Common Misspellings | Timkin 22216KCJW33C3, Timkin 22216, Timken 22216 KCJ W33 C3, Timken 22216KCJW33 C3 |
| Cross Reference 1 | Torrington 22216KVJW33C3 |
|---|---|
| Cross Reference 2 | NSK 22216HKC3 |
| Cross Reference 3 | SKF 22216 EK/C3 - E design, higher ratings |
| Cross Reference 4 | FAG 22216-E1-K-C3 - E1 design |

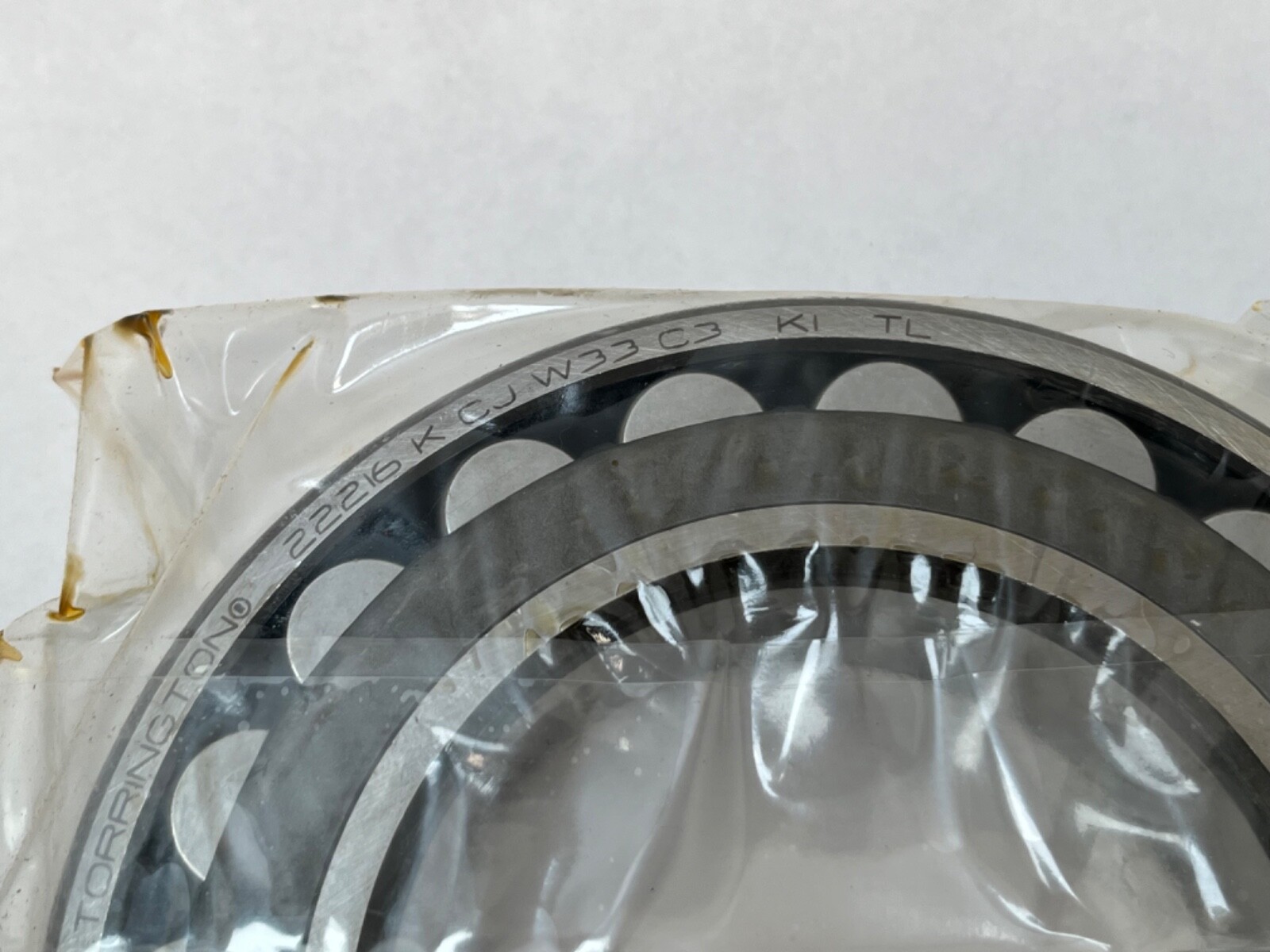

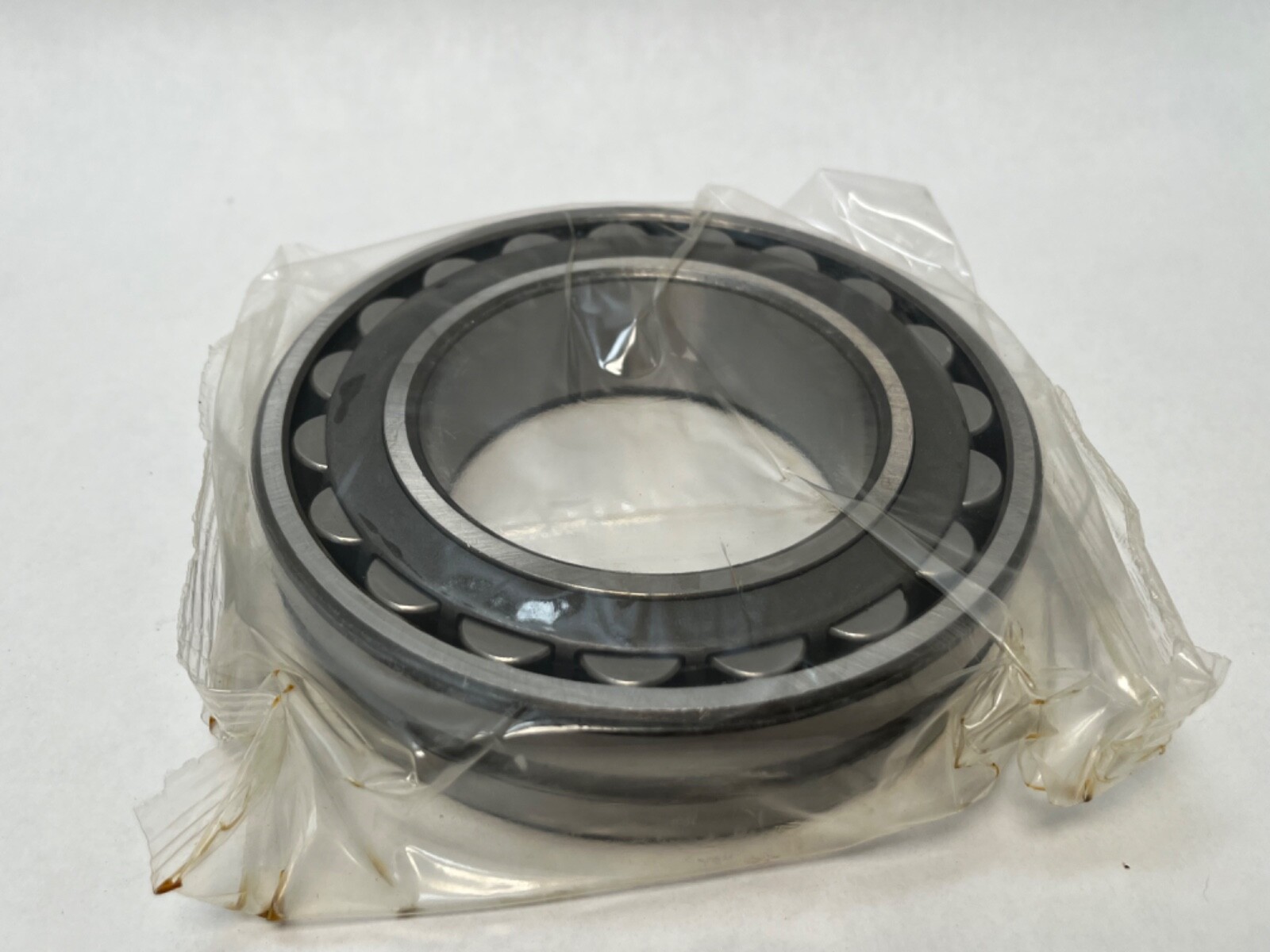

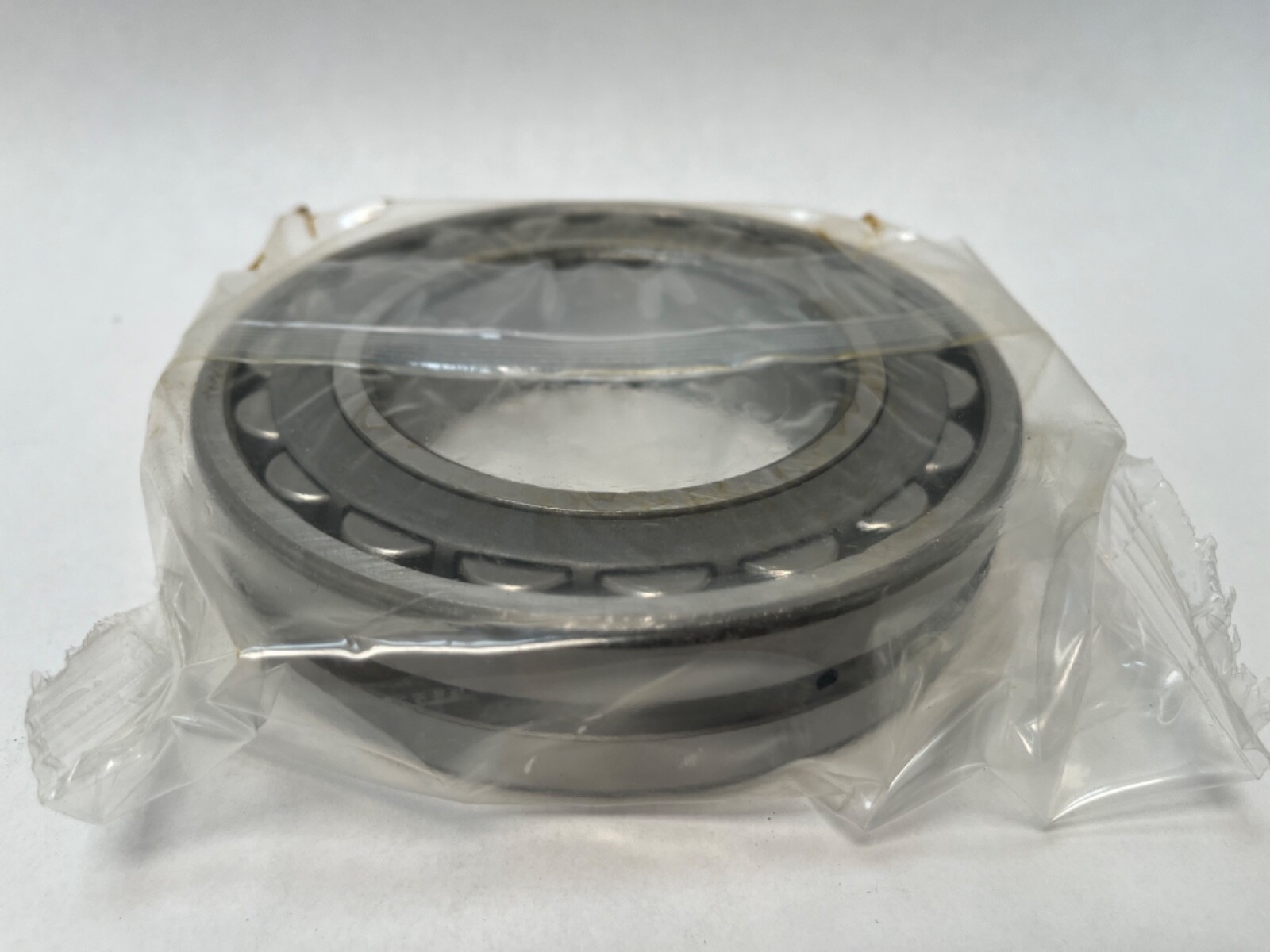

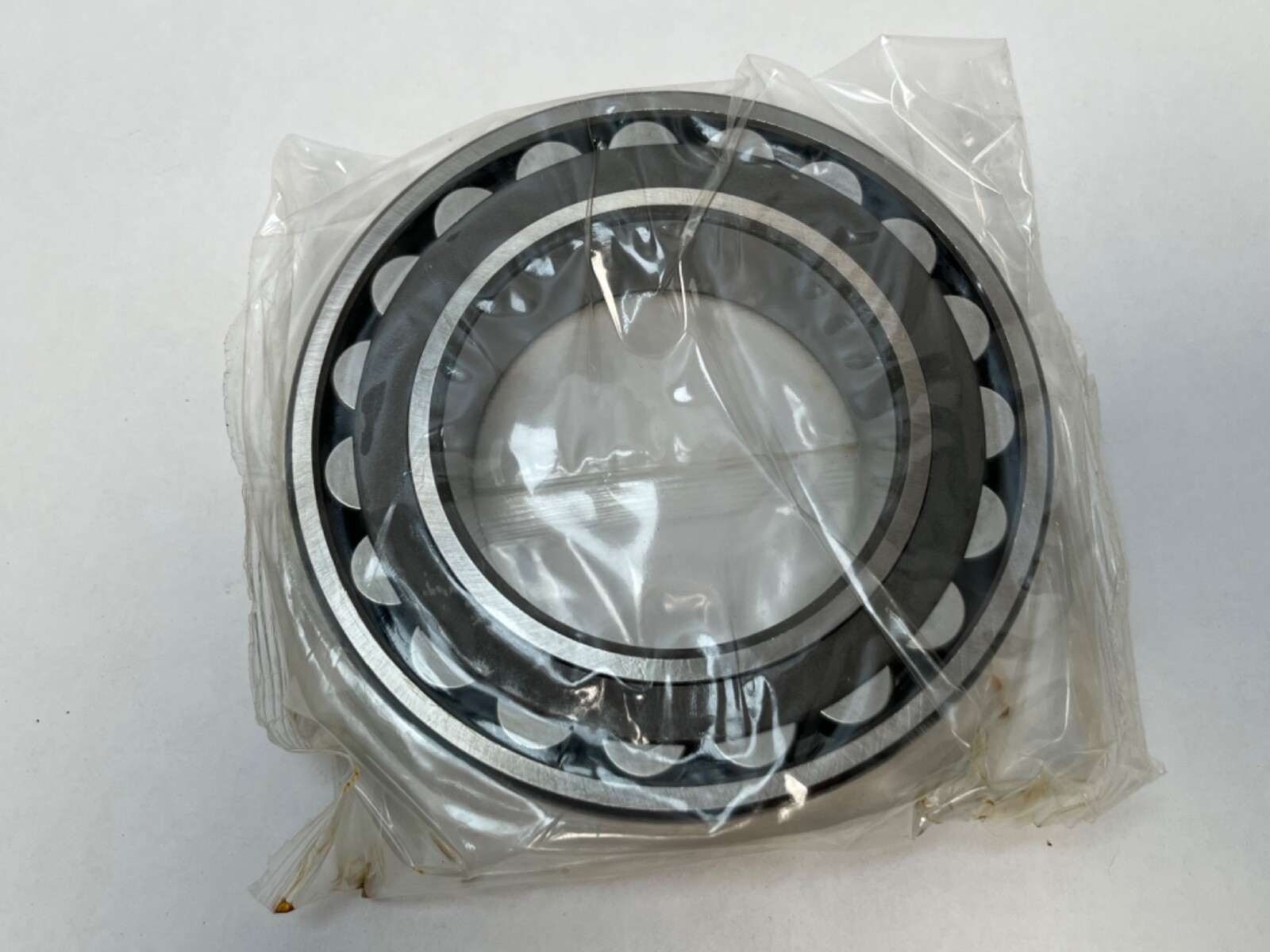

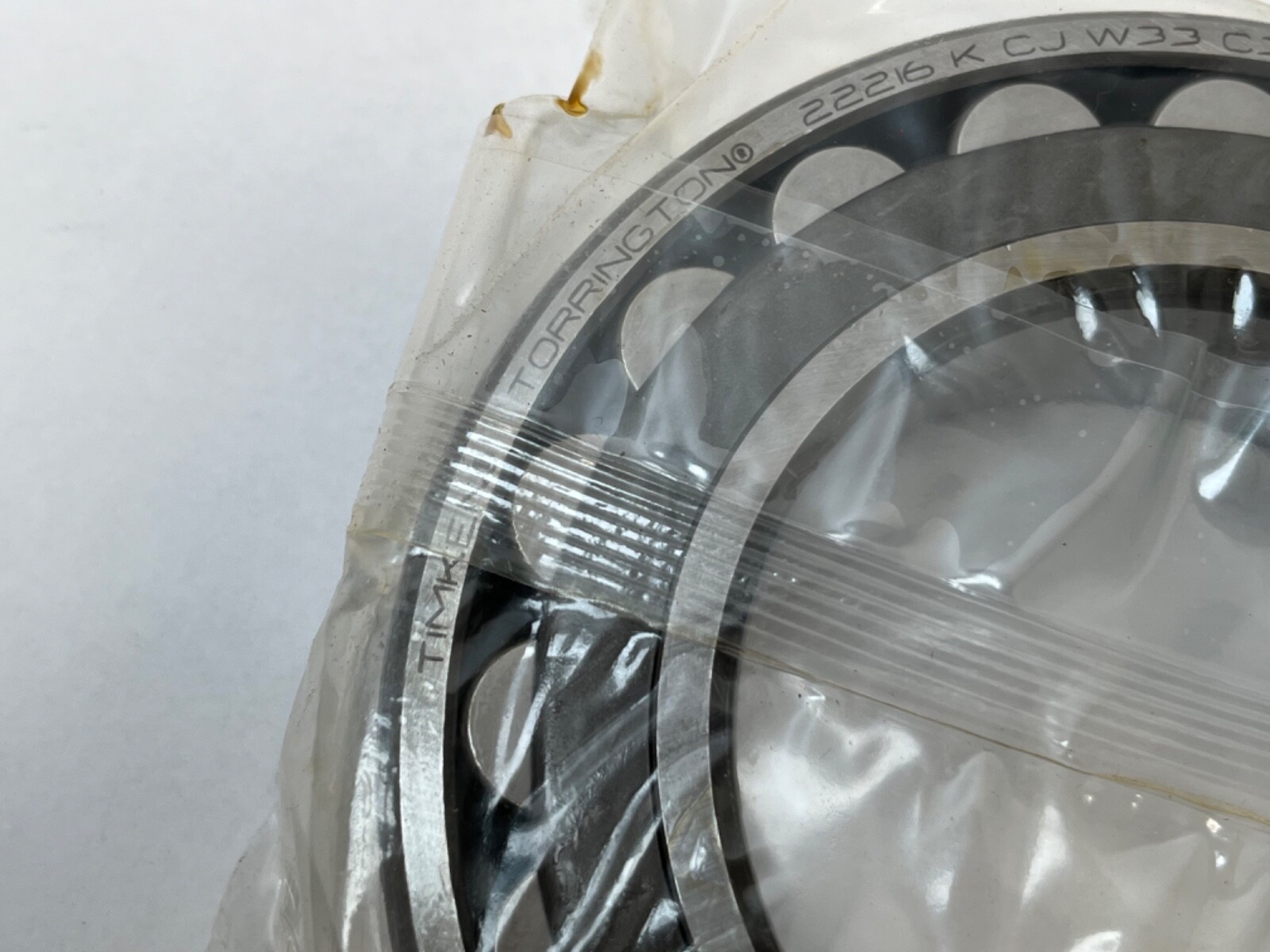

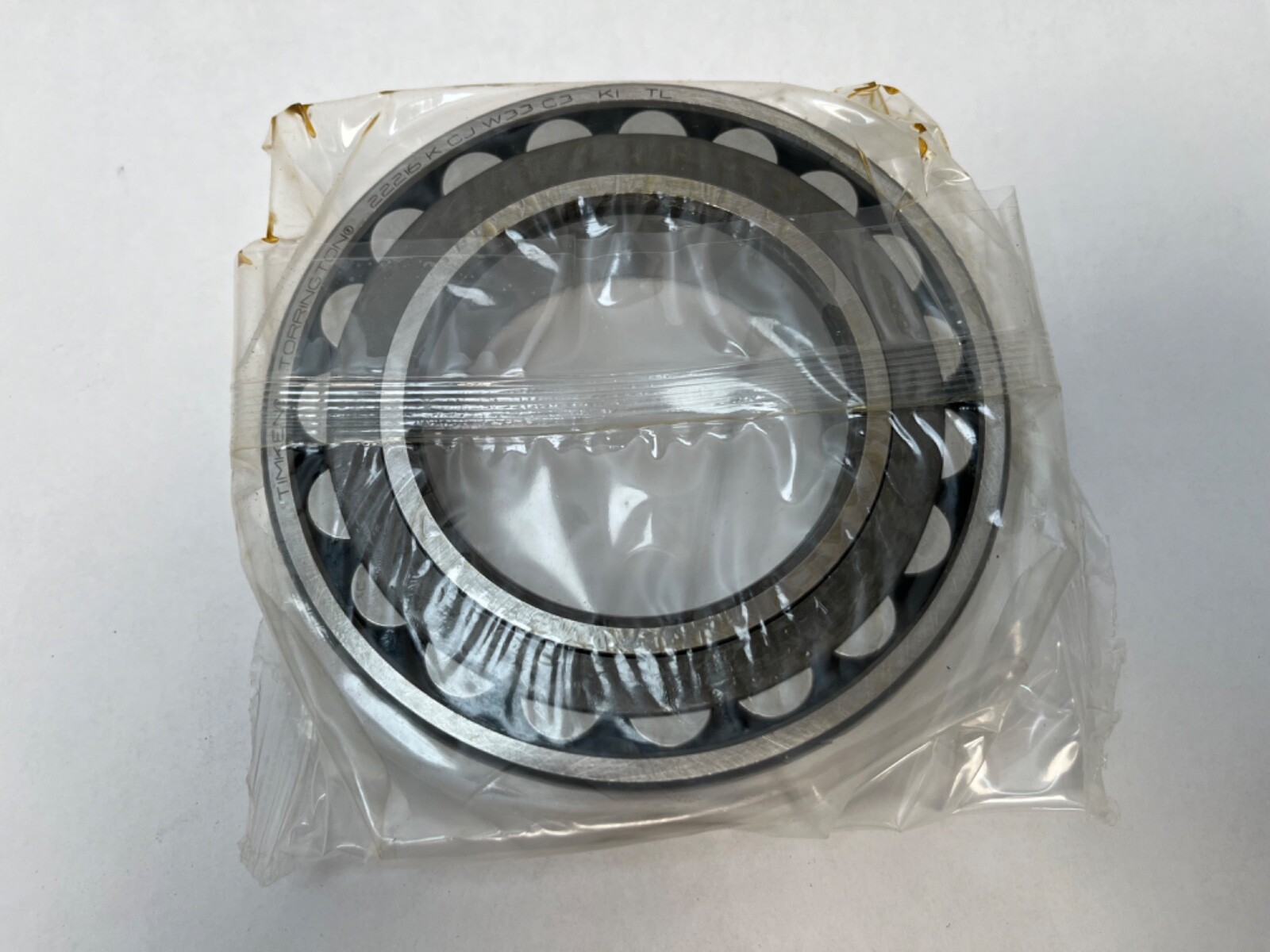

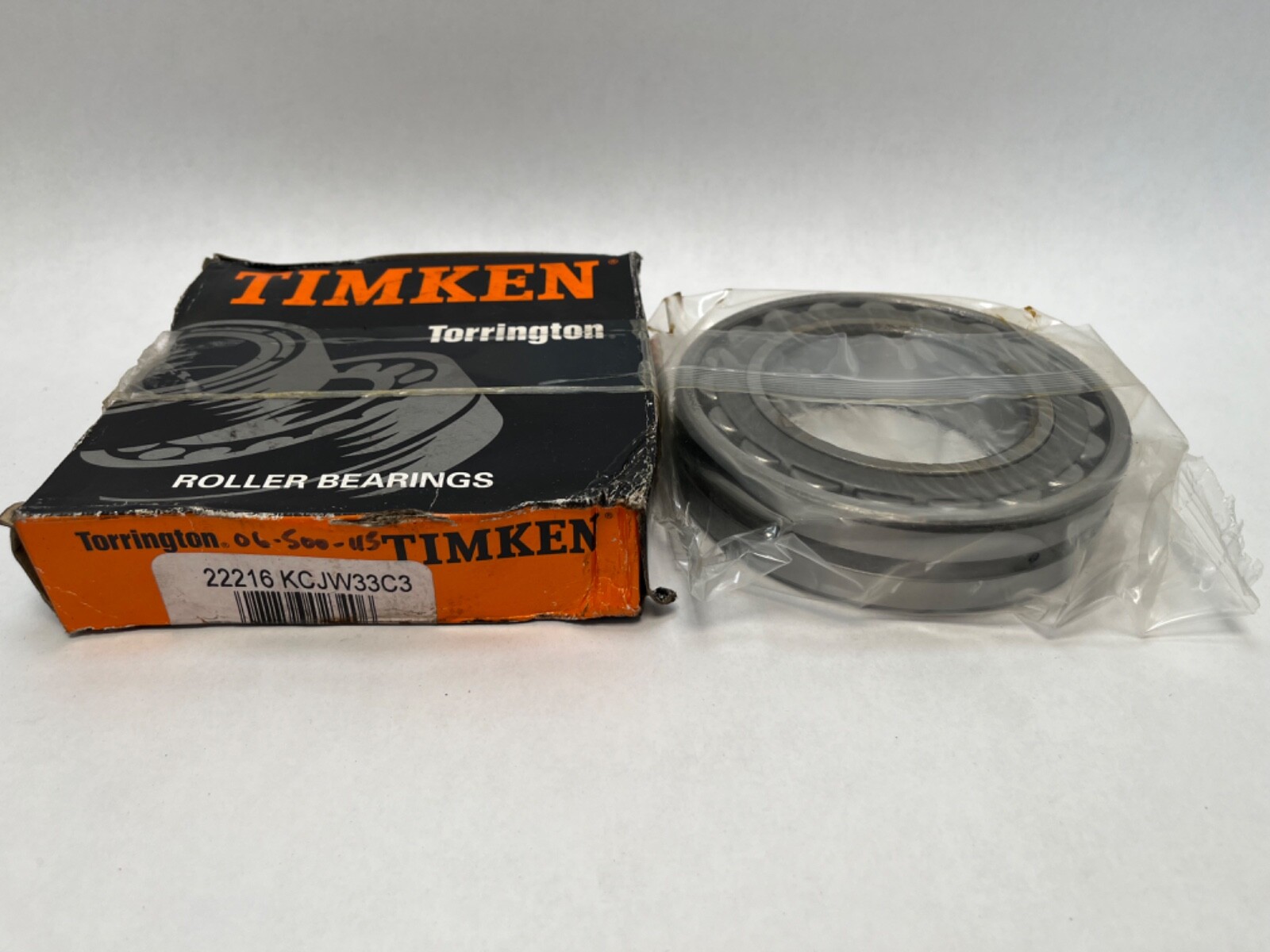

Timken 22216KCJW33C3, a double-row spherical roller bearing, 80 mm bore, 140 mm outside diameter, 33 mm width, with 1:12 tapered bore, W33 lubrication groove and C3 internal clearance. Two rows of barrel-shaped rollers run on a common spherical outer raceway. Unit Quantity: 1 Pc.
22216 — 222 series double-row spherical roller bearing, bore code 16, 16 x 5 = 80 mm.
K — tapered bore, 1:12 taper.
CJ — steel cage execution.
W33 — lubrication groove in the outer ring with three radial feed holes.
C3 — radial internal clearance greater than normal.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Series: 22200. Number Of Rows: 2. Bore Type: Tapered 1:12. Closure Type: Open both faces. Rolling Elements: Spherical roller. Cage Material: Steel. Cage Type: Roller guided. Internal Clearance: C3. Precision Class: ABEC 1 / P0. Lubricant: grease or oil. Dynamic Load Rating: 237,000 N. Static Load Rating: 276,000 N. Limiting Speed: 4,300 rpm. Item Weight: 4.60 lb. Country of Origin: Italy. Unit Quantity: 1 Pc.
The 1:12 tapered bore seats on an H316 adapter sleeve (70 mm shaft seat, 80 mm tapered outside diameter) with a KM16 locknut and MB16 lockwasher. The W33 groove and three radial holes carry grease or oil to both roller rows.
Cross-references on the 80 x 140 x 33 mm tapered-bore W33 C3 envelope: Torrington 22216KVJW33C3; NSK 22216HKC3; SKF 22216 EK/C3 (E design, higher ratings); FAG 22216-E1-K-C3 (E1 design). Ratings and cage design differ between makers. Alternate written forms: 22216KCJW33C3, 22216-K-CJ-W33-C3, 22216CK, 22216CCK, 22216CKJ, 22216CCKJ.
An H316 adapter sleeve with 70 mm shaft seat, KM16 locknut and MB16 lockwasher.
Dynamic Load Rating 237,000 N and Static Load Rating 276,000 N.
A lubrication groove in the outer ring with three radial feed holes.
