Availability:
8 in stock

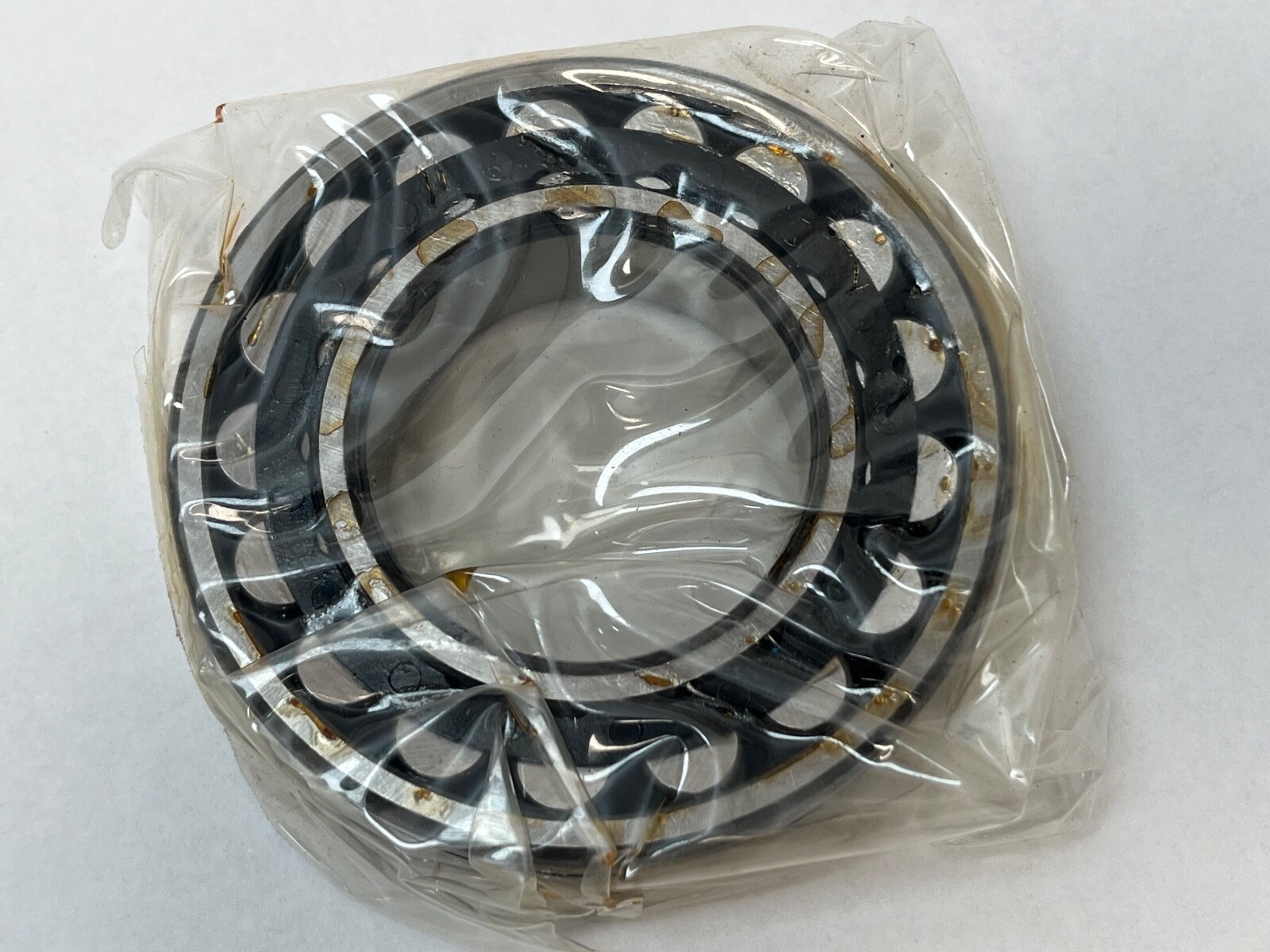

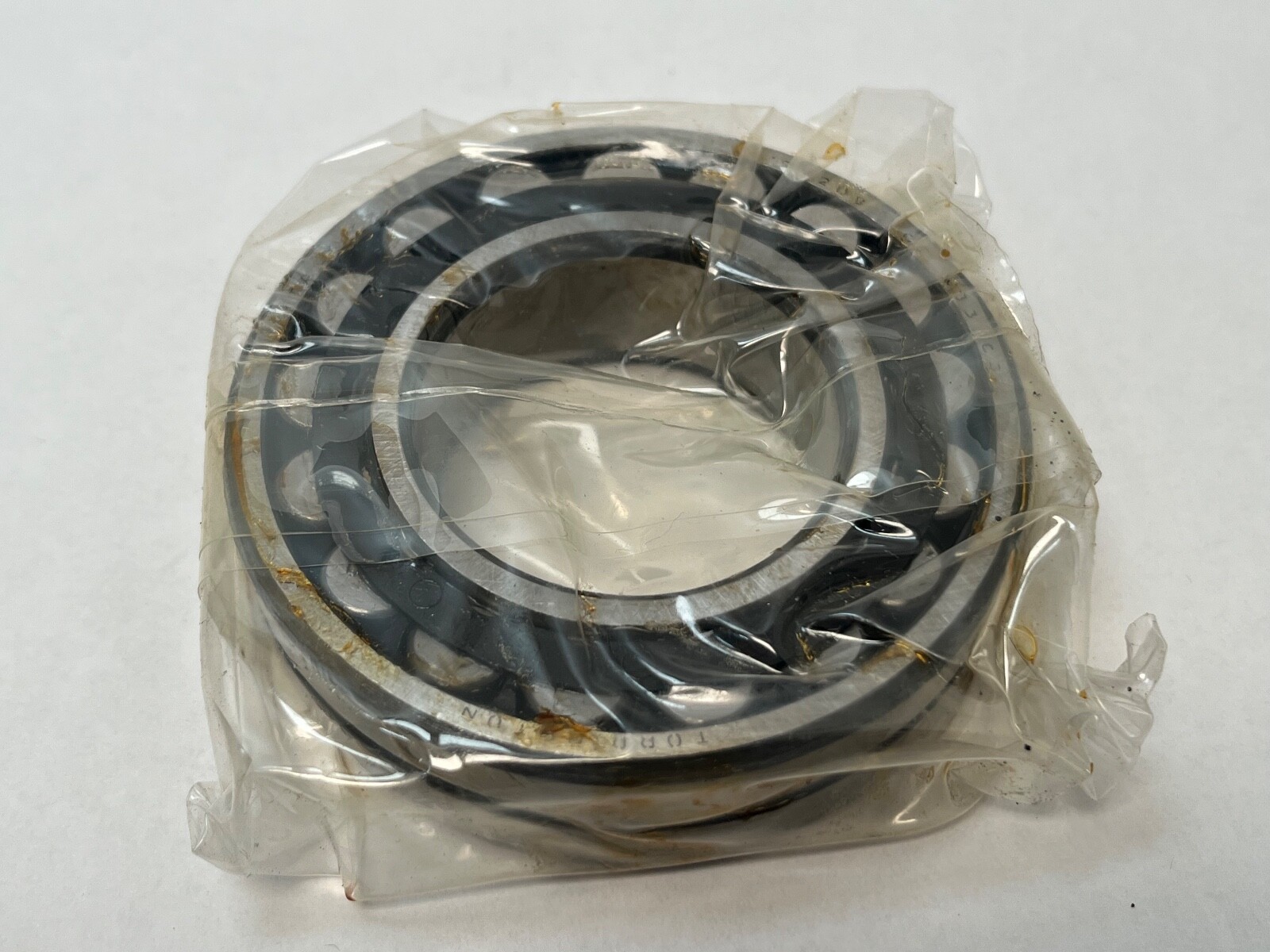

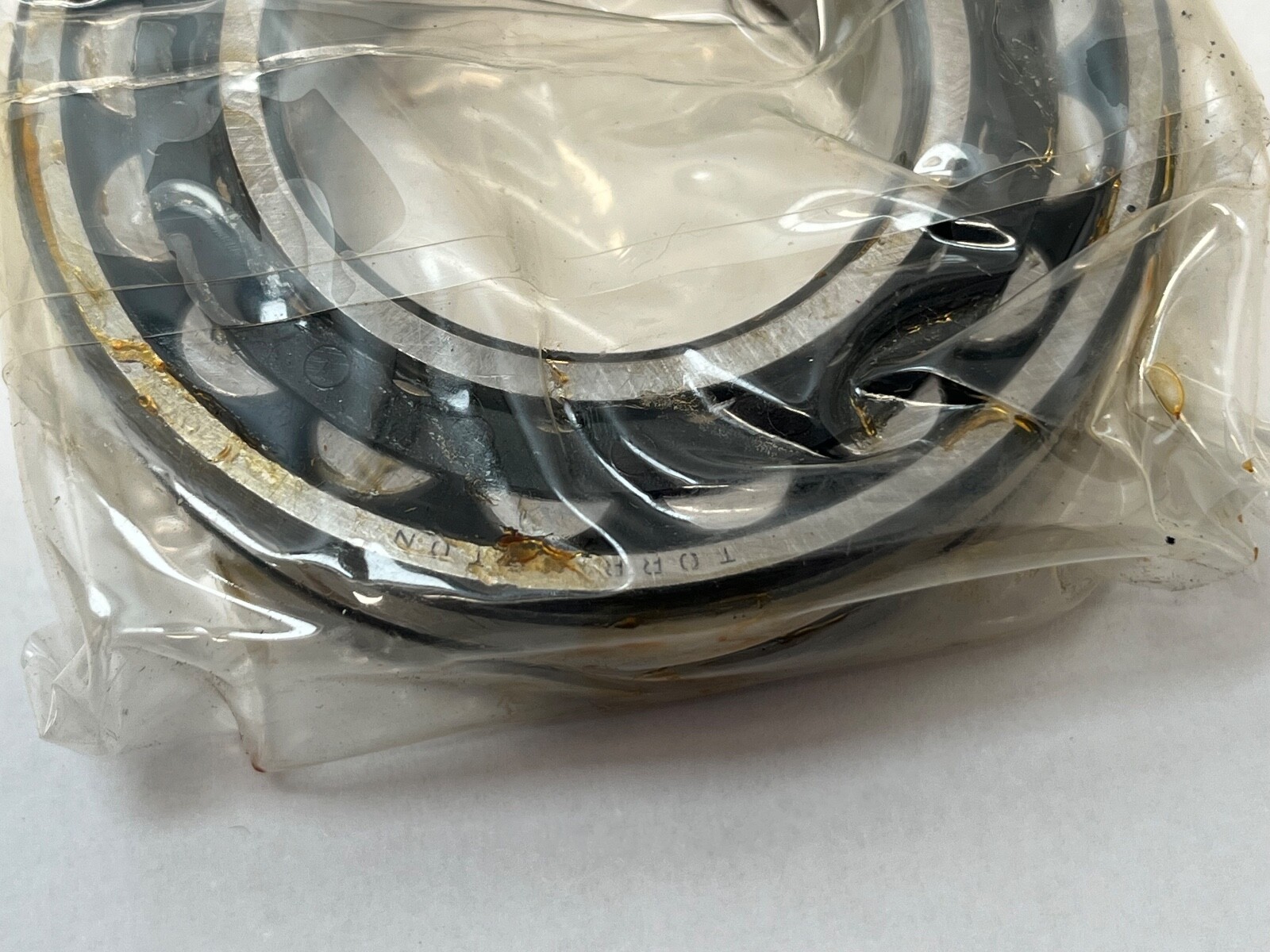

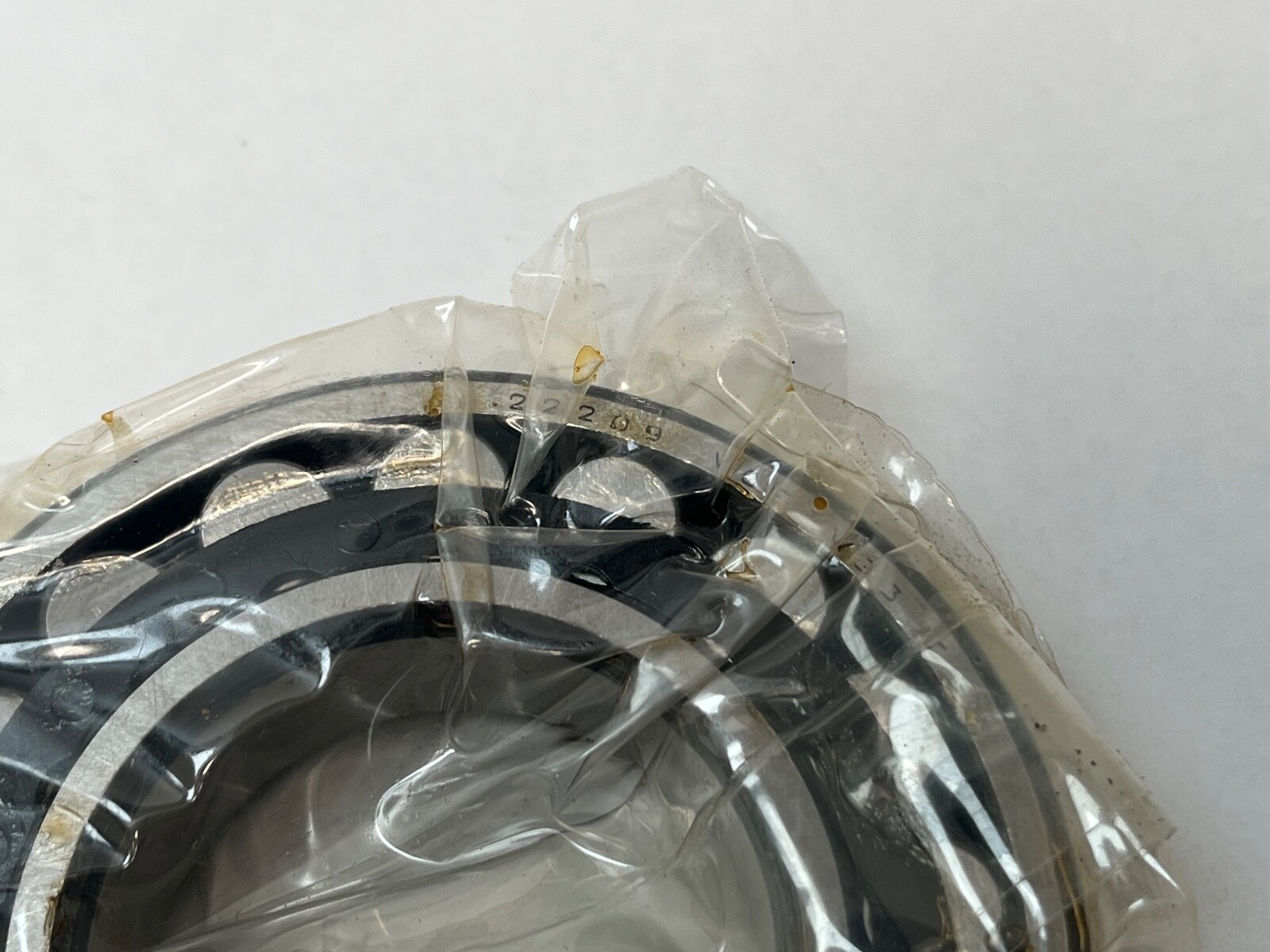

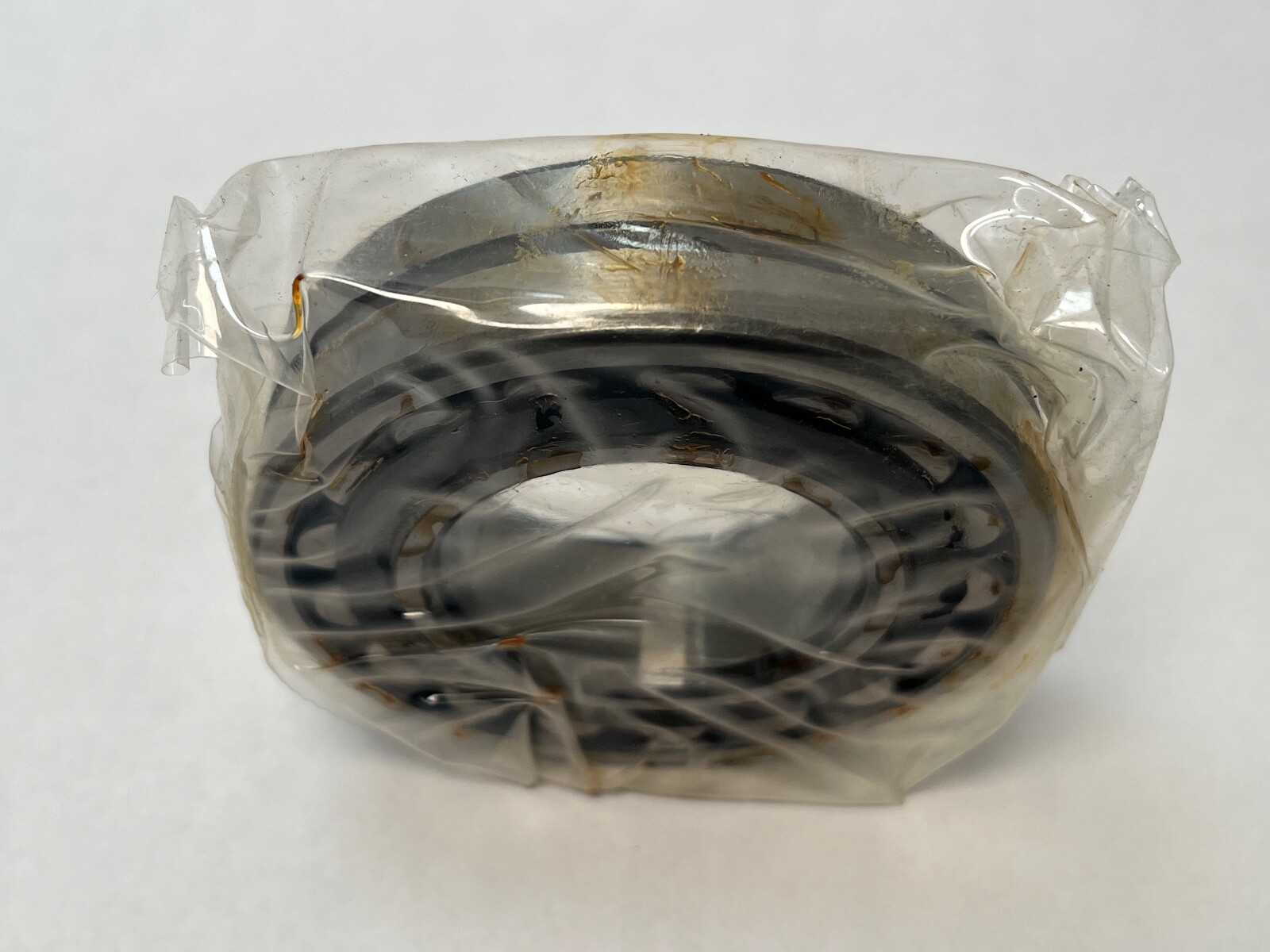

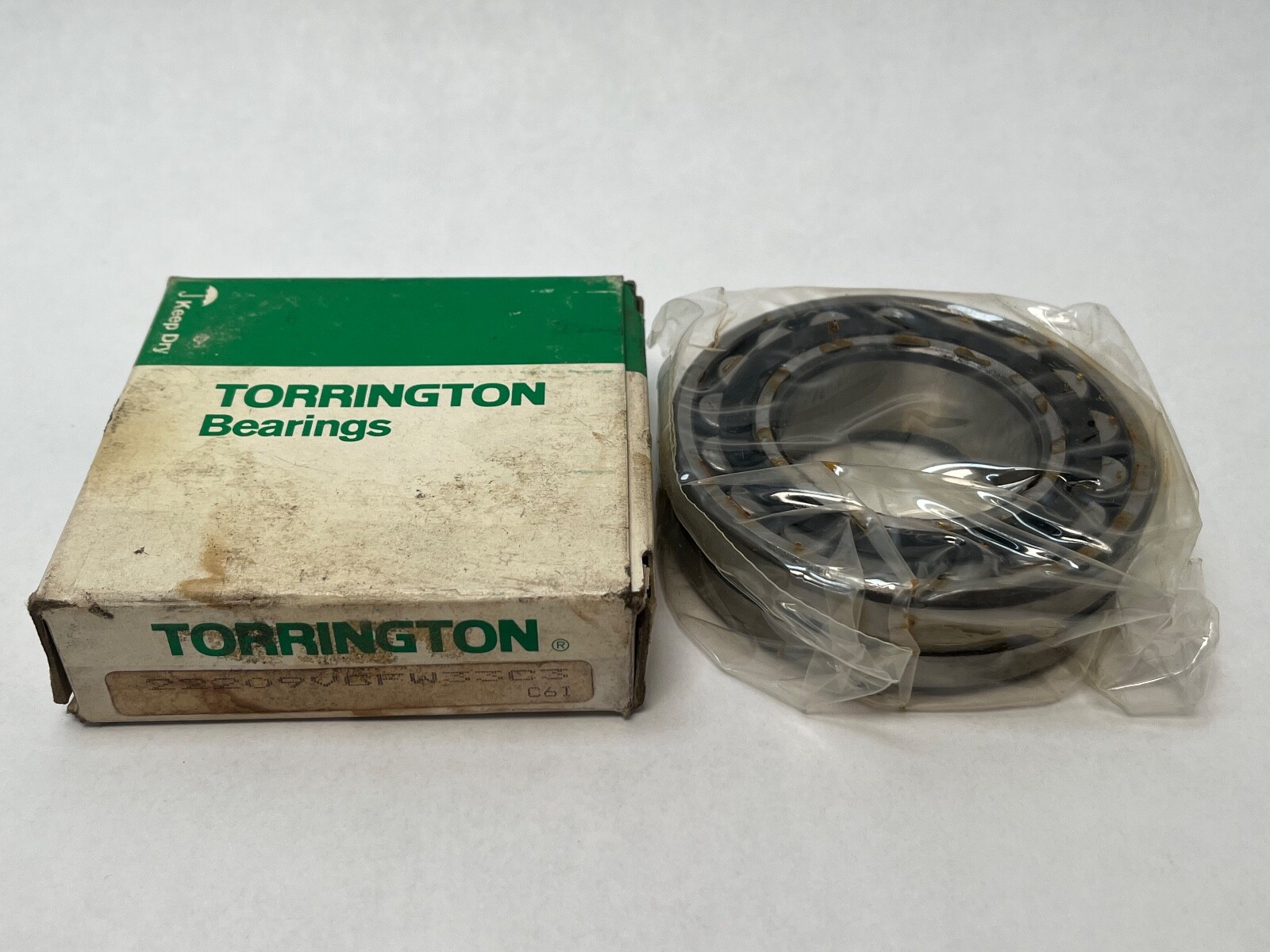

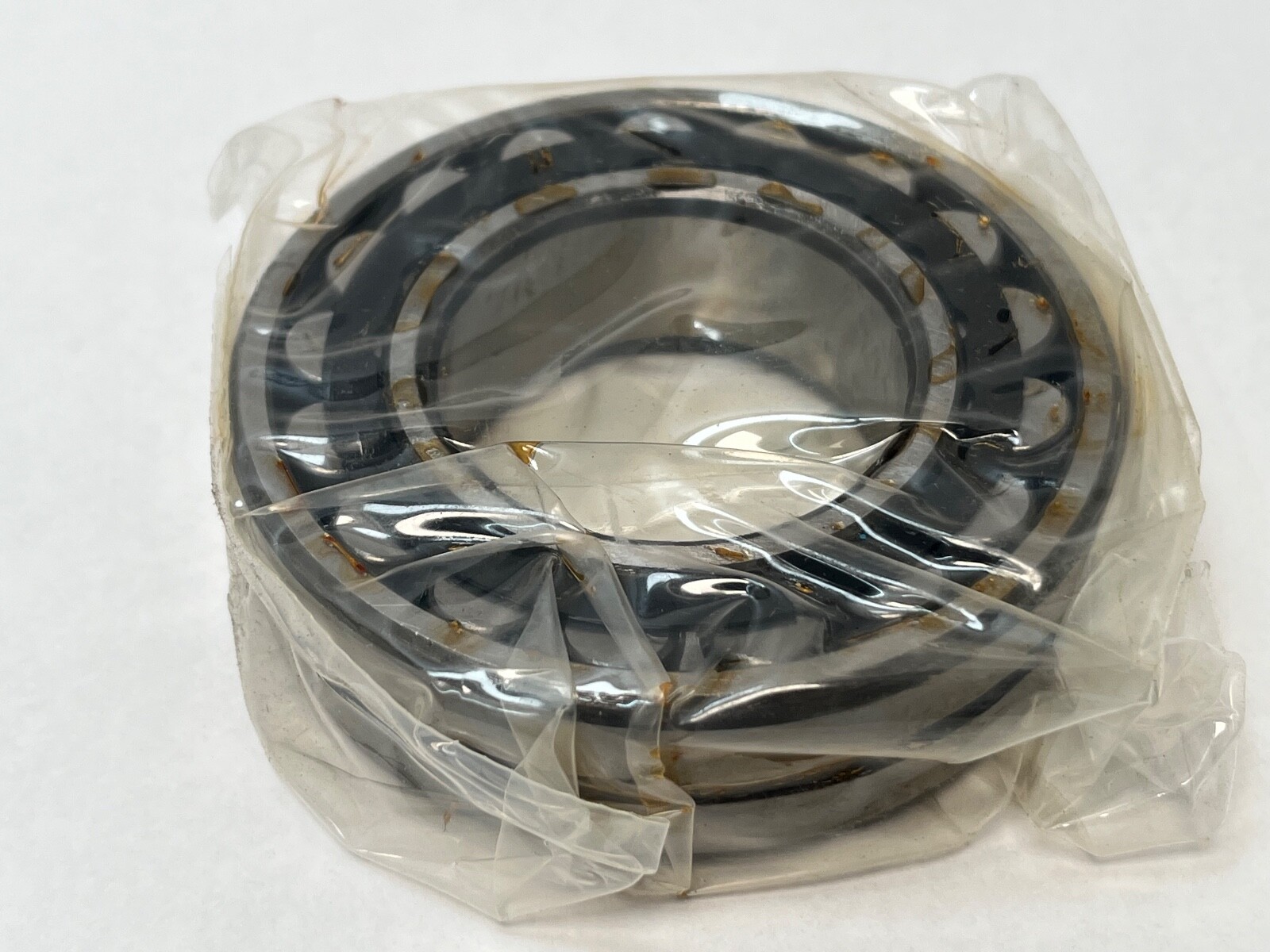

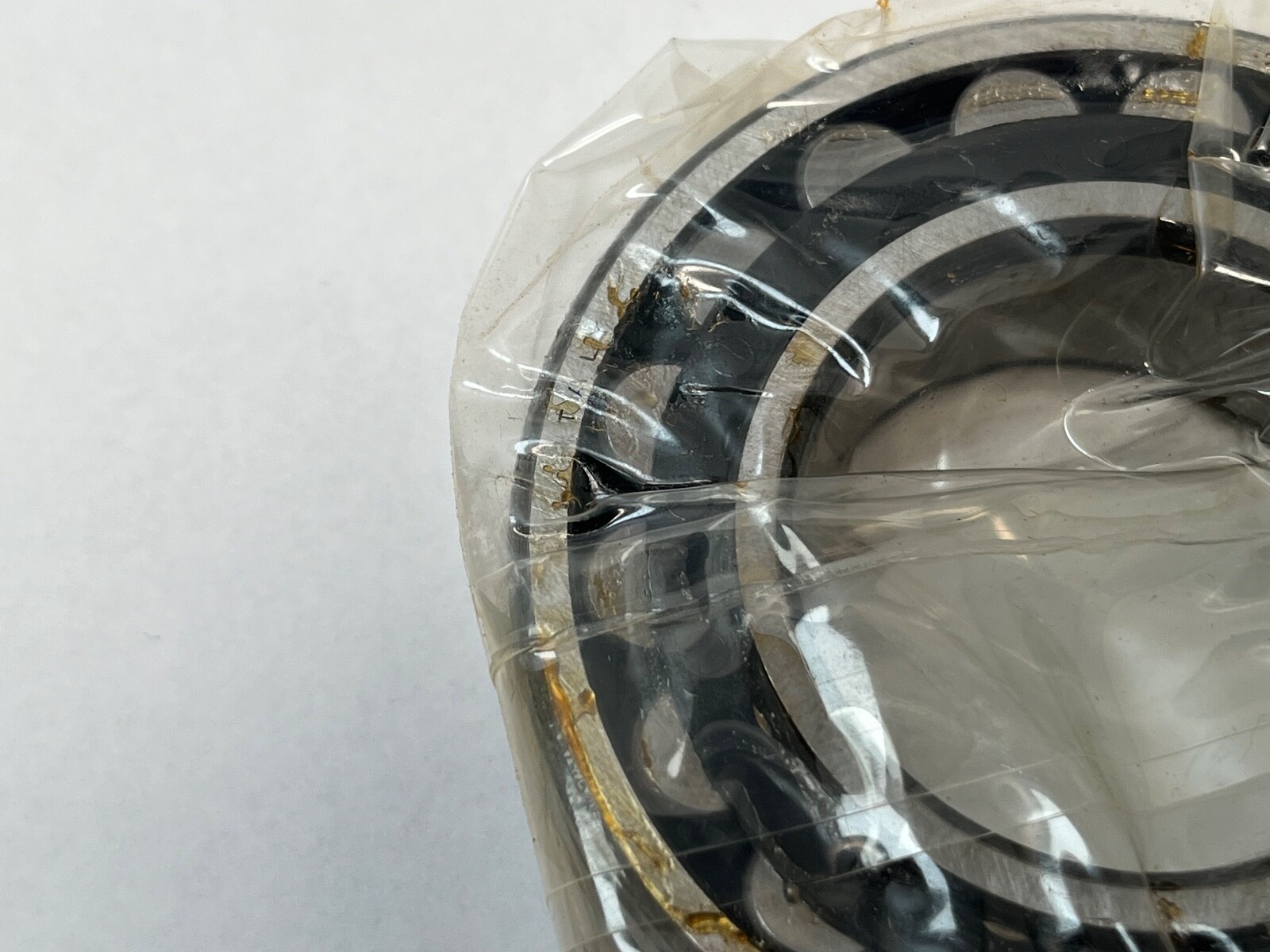

Torrington 22209VCFW33C3 spherical roller bearing, 45 mm bore x 85 mm OD x 23 mm wide, straight bore, W33 lube groove, C3 clearance. Successor: Timken 22209EJW33C3.
List Price
$35.80
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22209-VCF-W33-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Lubricant | Oil/Grease |
| Dynamic Load Rating | 109,000 N (Successor 22209EJW33C3 data) |
| Static Load Rating | 108,000 N (Successor 22209EJW33C3 data) |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 22209VCFW33C3, 22209-VCF-W33-C3, 22209 VCF W33 C3 |
| Compatible With Replaces | Timken 22209EJW33C3 (current successor design) |
| Additional Attributes | Successor 22209EJW33C3 data: e factor 0.26; Y0 2.58; Y1 2.64; Y2 3.93; shaft backing shoulder 55 mm; housing backing shoulder 77 mm; max fillet radius 1 mm |
| Design Units | Metric |
| Cross Reference 1 | Timken 22209EJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22209 E/C3 |
| Cross Reference 3 | FAG 22209-E1-XL-C3 |
| Cross Reference 4 | NSK 22209EAE4C3 |
Torrington 22209VCFW33C3 double-row spherical roller bearing: 45 mm straight bore, 85 mm outside diameter, 23 mm width, W33 lubrication groove, C3 clearance. Torrington is a Timken brand; the current Timken design is 22209EJW33C3.
222 — spherical roller bearing, ISO dimension series 22.
09 — bore code. 09 × 5 = 45 mm bore.
W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.
Successor 22209EJW33C3 data: Dynamic Load Rating: 109,000 N. Static Load Rating: 108,000 N. Reference Speed: 5,600 rpm grease; 6,900 rpm oil. e factor: 0.26. Y1: 2.64. Y2: 3.93. Y0: 2.58.
The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. C3 clearance suits interference fits and shafts running warmer than their housings.
Successor 22209EJW33C3 data: Shaft Backing Shoulder Diameter: 55 mm. Housing Backing Shoulder Diameter: 77 mm. Maximum Fillet Radius: 1 mm.
Unit Quantity: 1 Pc. One complete bearing.
Cross references for this 45 × 85 × 23 mm straight-bore C3 bearing: Timken 22209EJW33C3, SKF 22209 E/C3, FAG 22209-E1-XL-C3, NSK 22209EAE4C3, NTN 22209EAW33C3.
