TORRINGTONHJTR-182620Needle Bearing 1-1/8″ ID 1-5/8″ OD 1-1/4″ W HJ-182620

Product Description

What this is

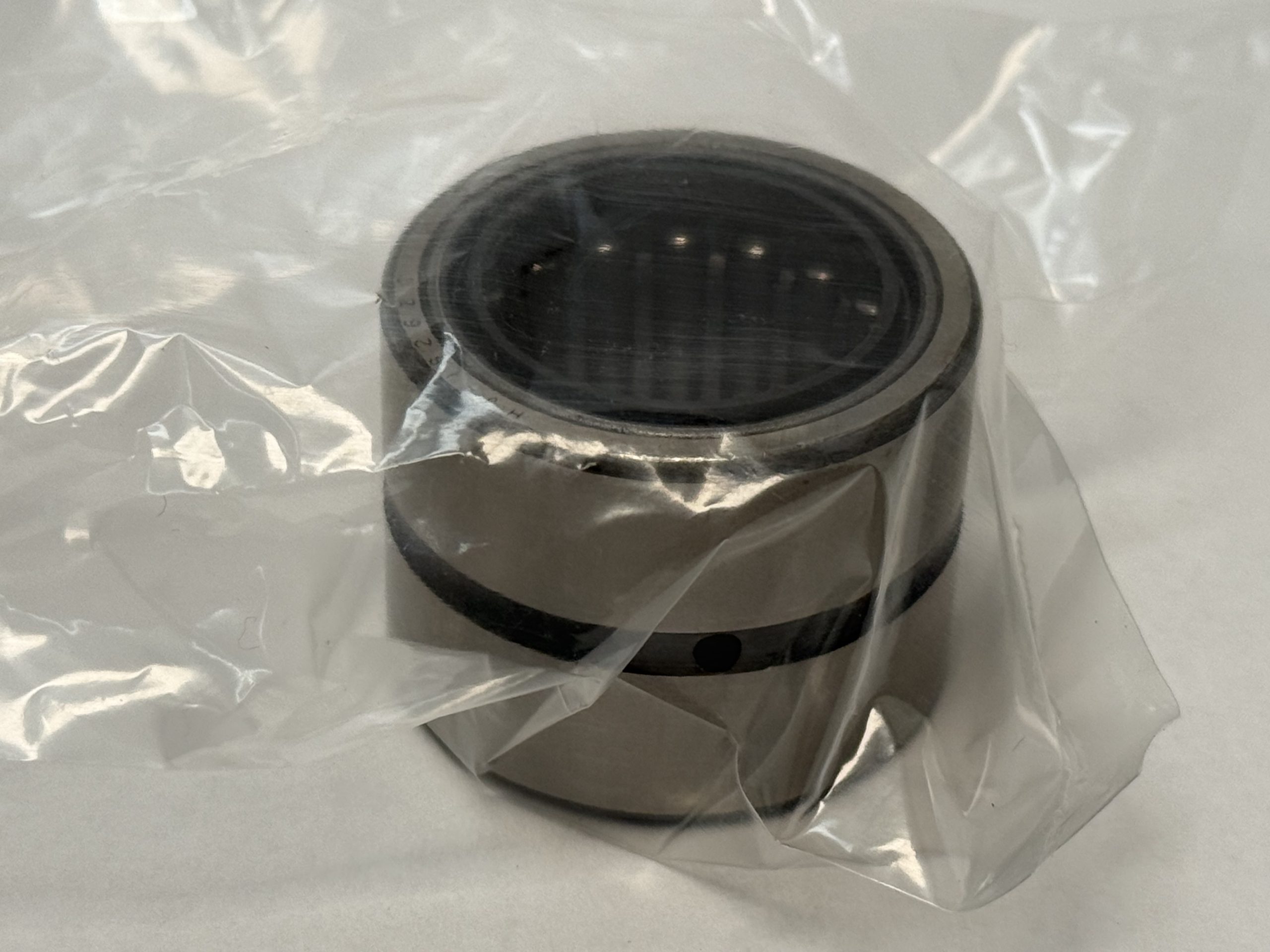

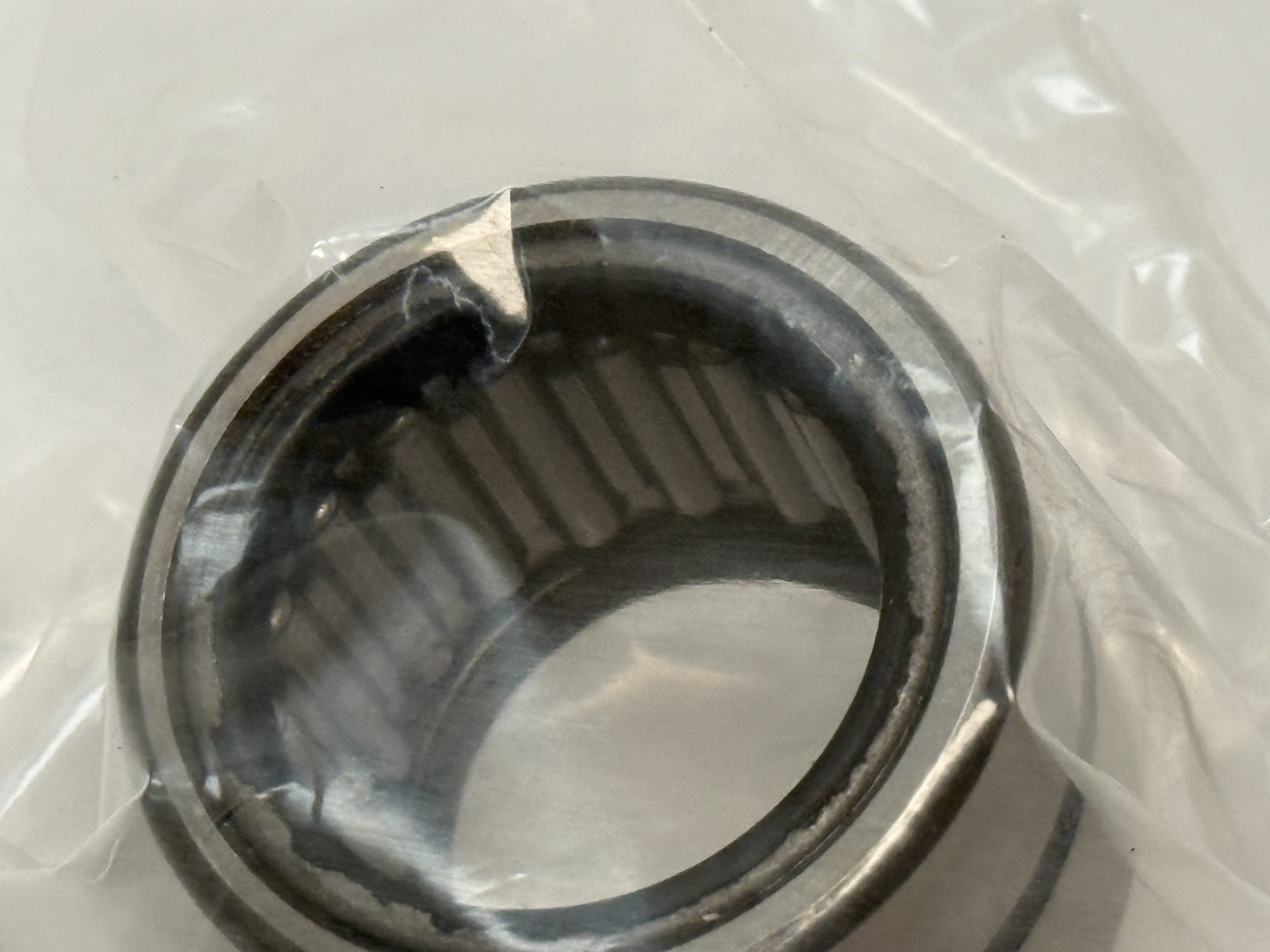

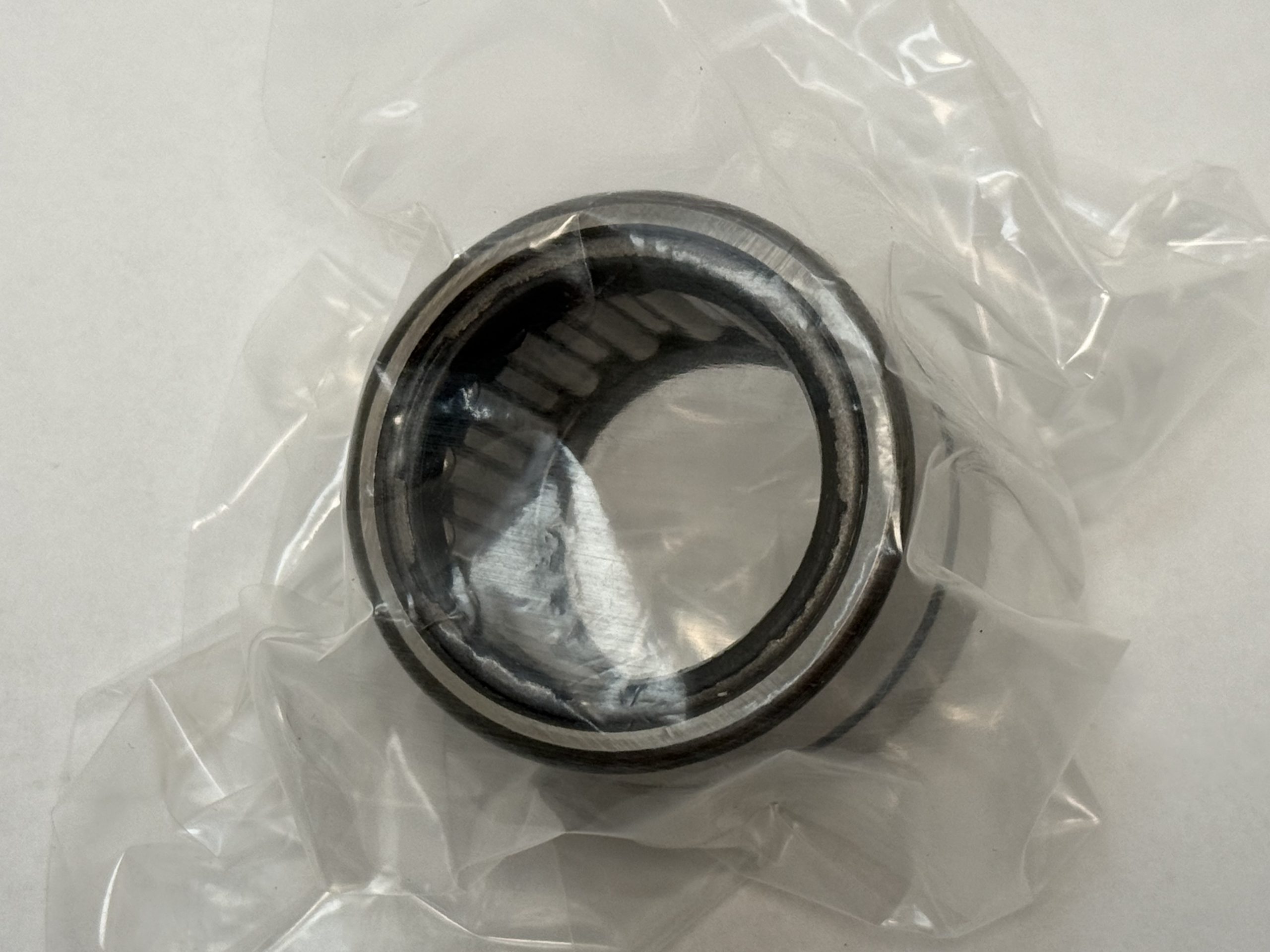

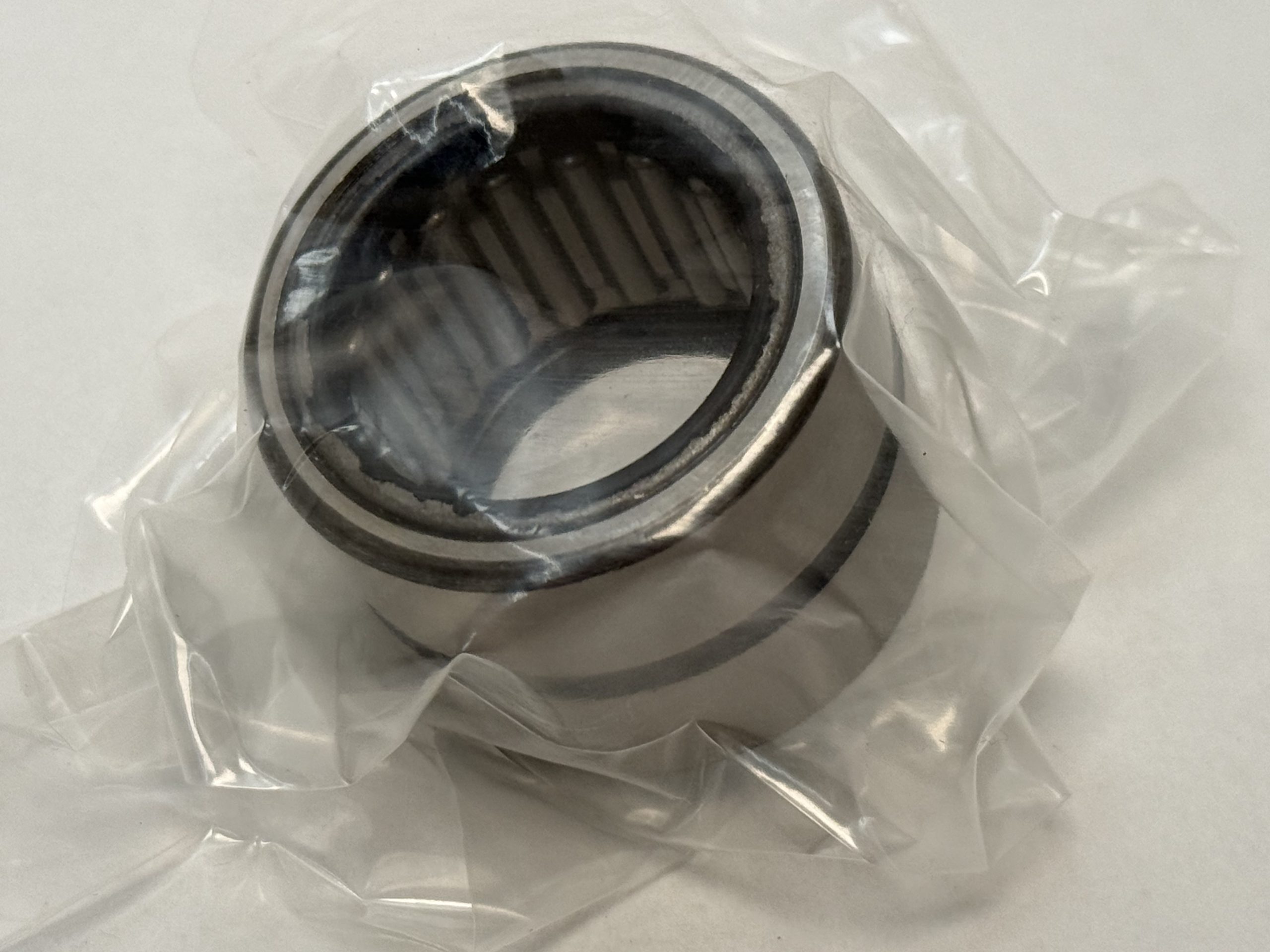

A Torrington heavy-duty needle roller bearing in the inch HJ series — 1-1/8 in bore, 1-5/8 in outside diameter, 1-1/4 in wide. It is a machined-ring assembly: a hardened, ground outer ring with an integral rib at each end, a full row of needle rollers in a one-piece steel cage, and no inner ring. The needles run directly on the shaft, so the shaft journal has to be hardened and ground to the bearing’s specification. Where that is not practical, the matching separate inner ring is IR-141820.

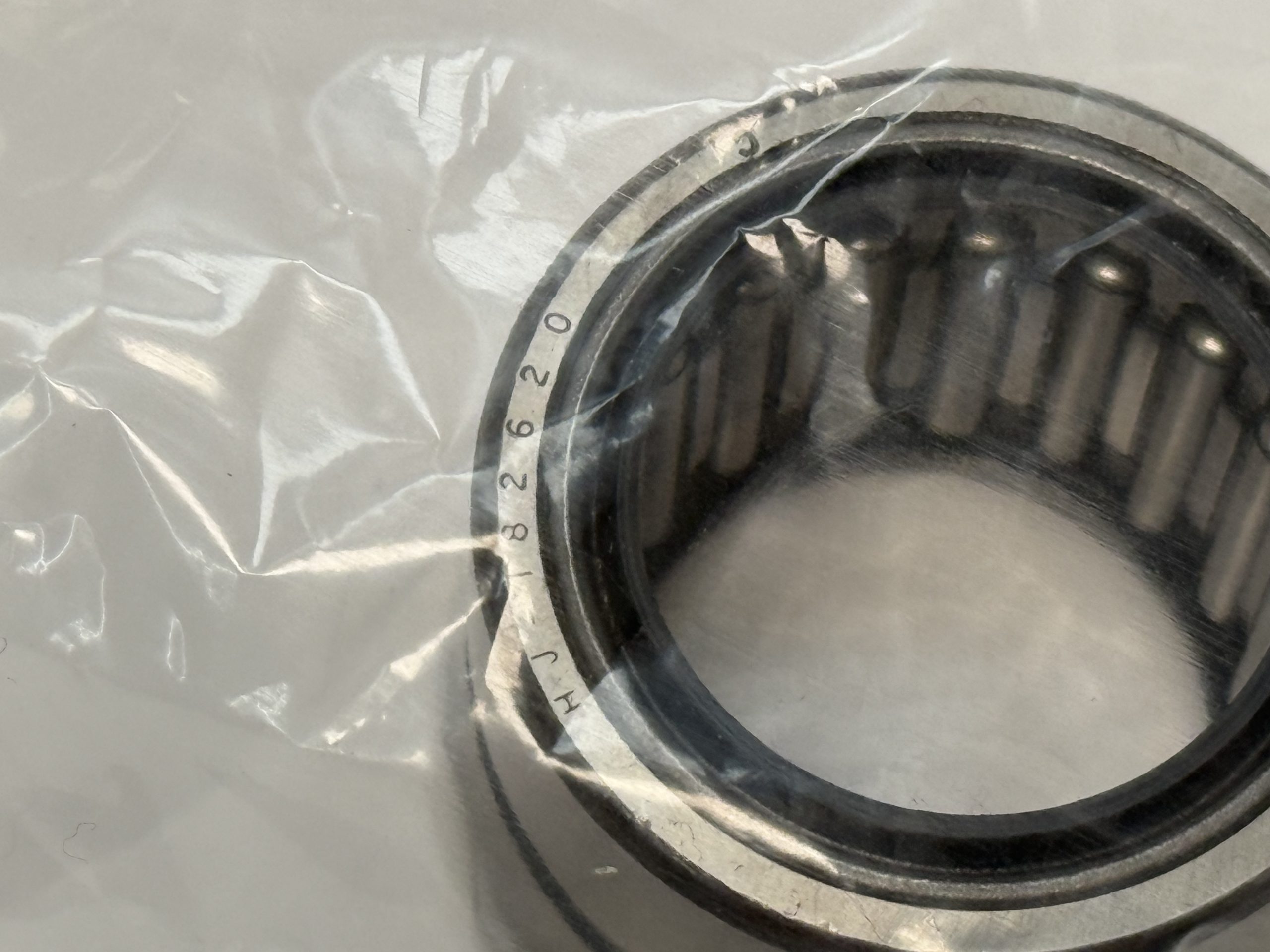

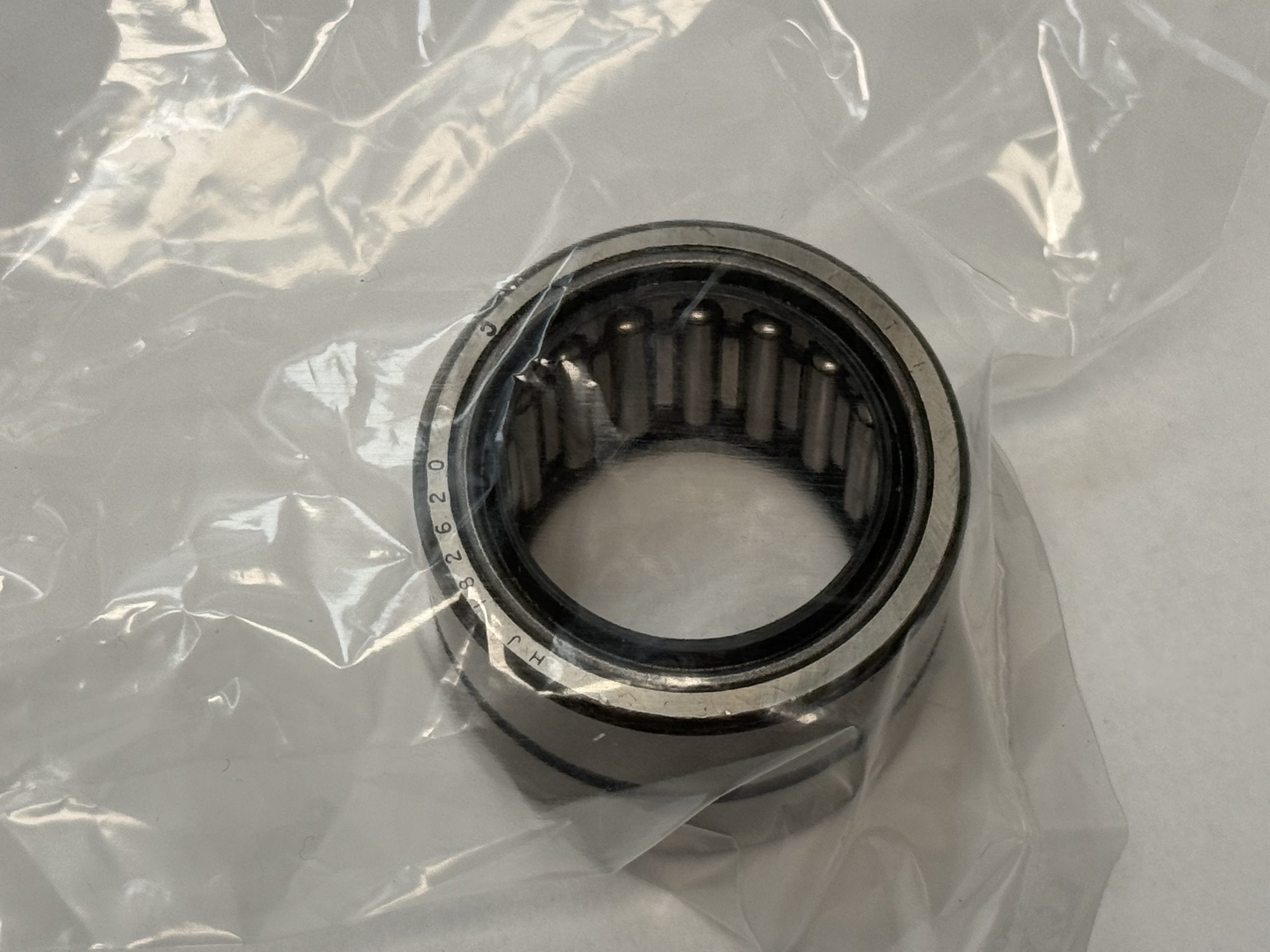

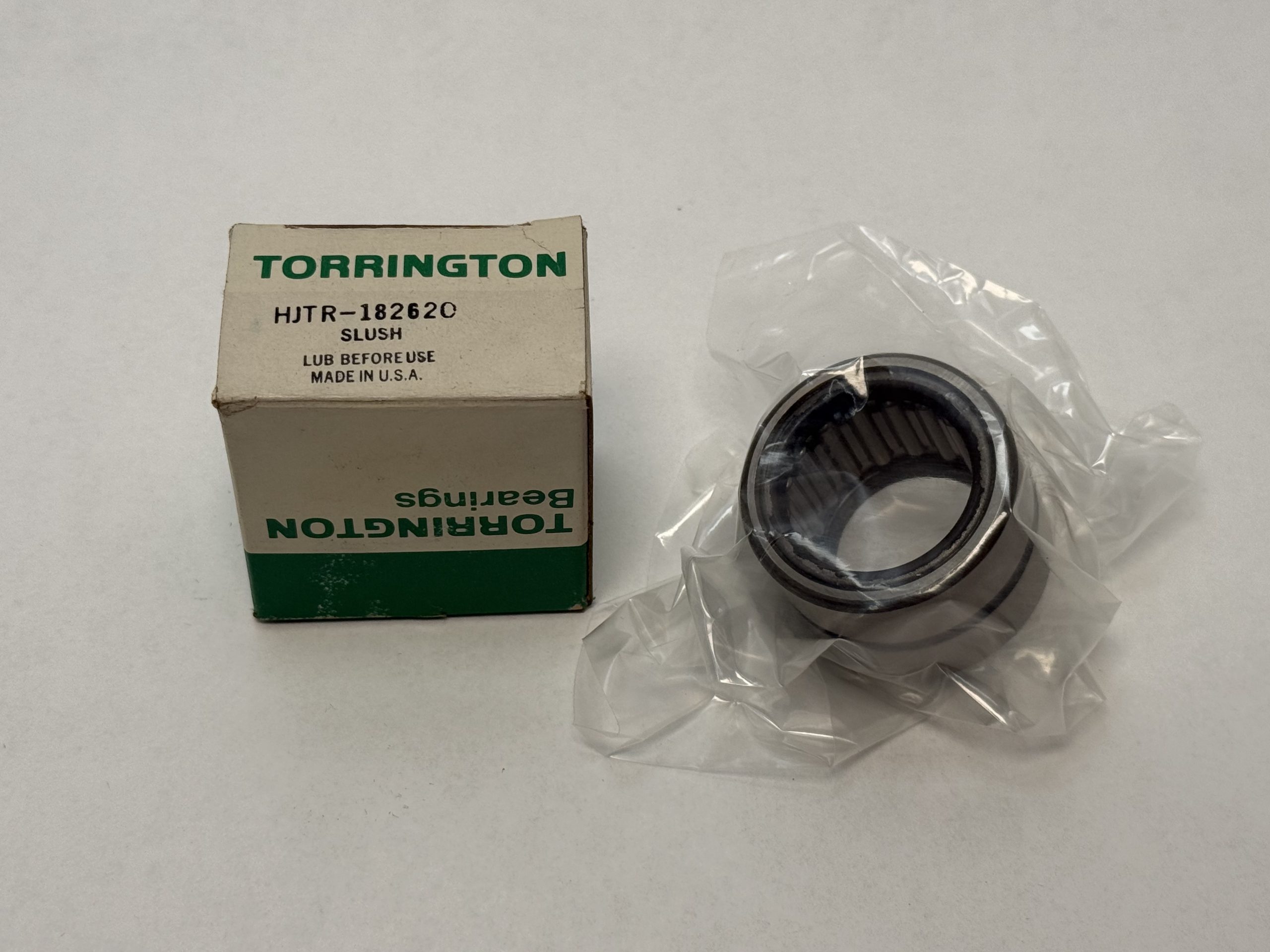

The carton is marked HJTR-182620 and the outer ring itself is stamped HJ 182620 — the same bearing under Torrington’s packaged designation and its ring designation. Both numbers are listed here so it comes up either way. Made in U.S.A. The carton also carries Torrington’s “lub before use” instruction: the bearing ships with a rust-preventive coating only, not a running lubricant, so it must be lubricated at installation.

How the part number breaks down
HJ — Torrington’s heavy-duty needle roller bearing series: caged, single row, machined outer ring, no inner ring, inch dimensions.

TR — appears on the carton but not on the ring. We have not found Torrington documentation defining it, so we are not going to guess at it; the ring designation HJ-182620 is the one that identifies the bearing.

18 — the bore in sixteenths of an inch: 18/16 = 1.125 in.

26 — the outside diameter in sixteenths: 26/16 = 1.625 in.

20 — the width in sixteenths: 20/16 = 1.250 in.

Also sold and cross-referenced as HJ182620, MR-18 and MR 18S.

Published figures

Bore (Fw): 1.1250 in / 28.575 mm
Outside diameter: 1.6250 in / 41.275 mm
Width: 1.2500 in / 31.750 mm
Basic dynamic load rating: 44.9 kN (10,100 lbf)
Basic static load rating: 70.3 kN (15,800 lbf)
Limiting speed: 10,000 rpm grease, 16,000 rpm oil
Rows: 1
Cage: steel
Inner ring: none — matching inner ring is IR-141820
Made in U.S.A.
